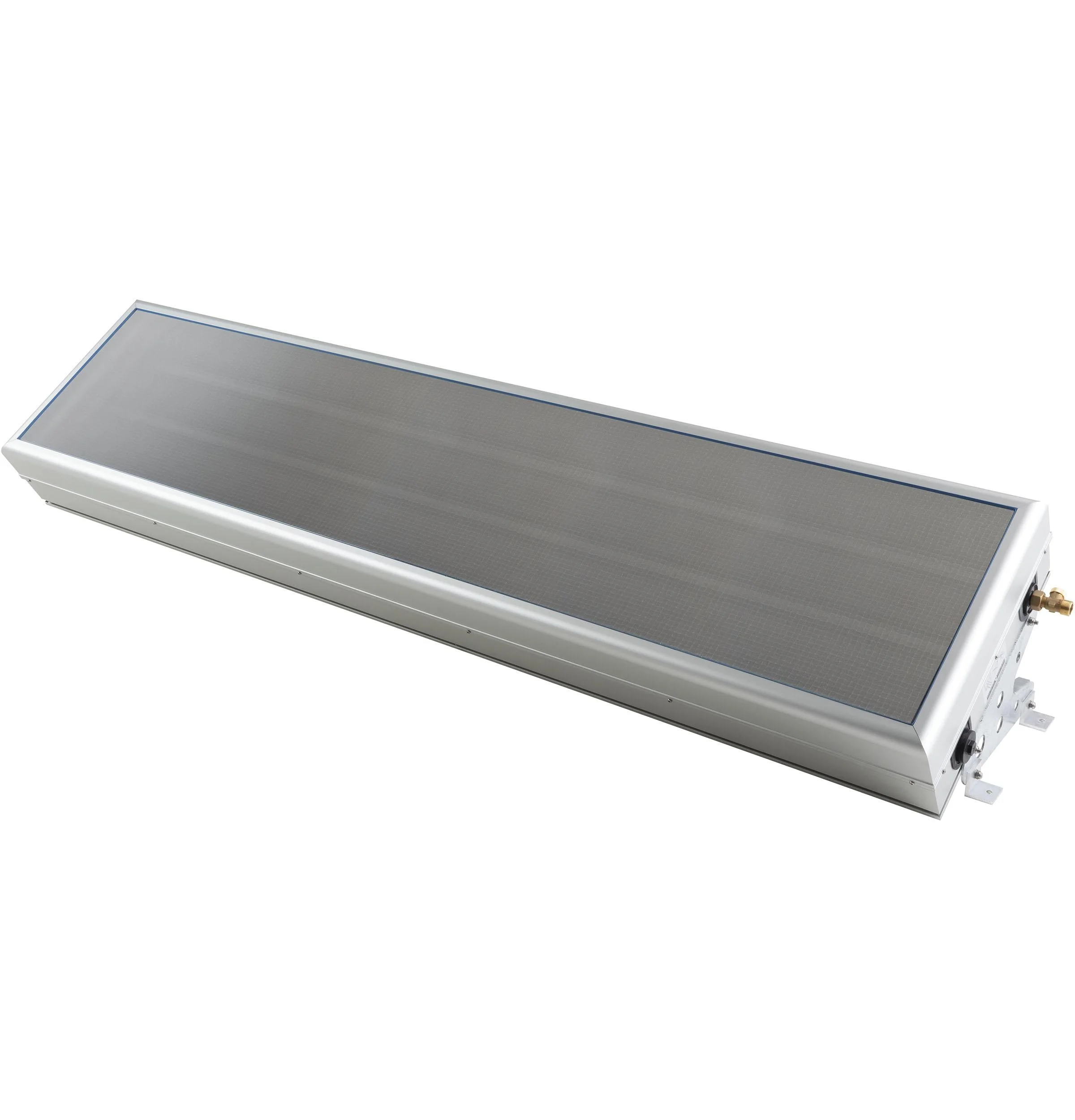

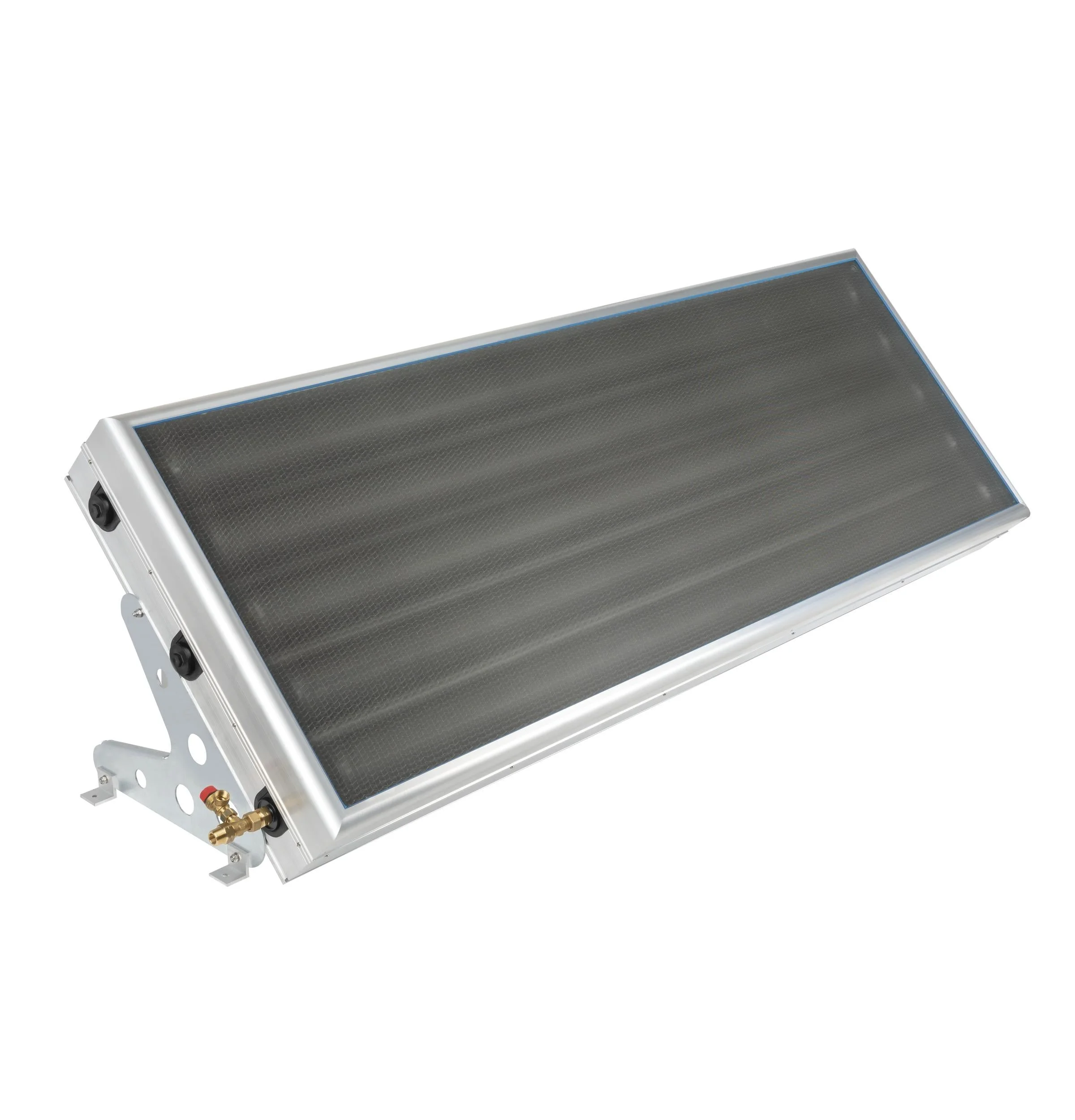

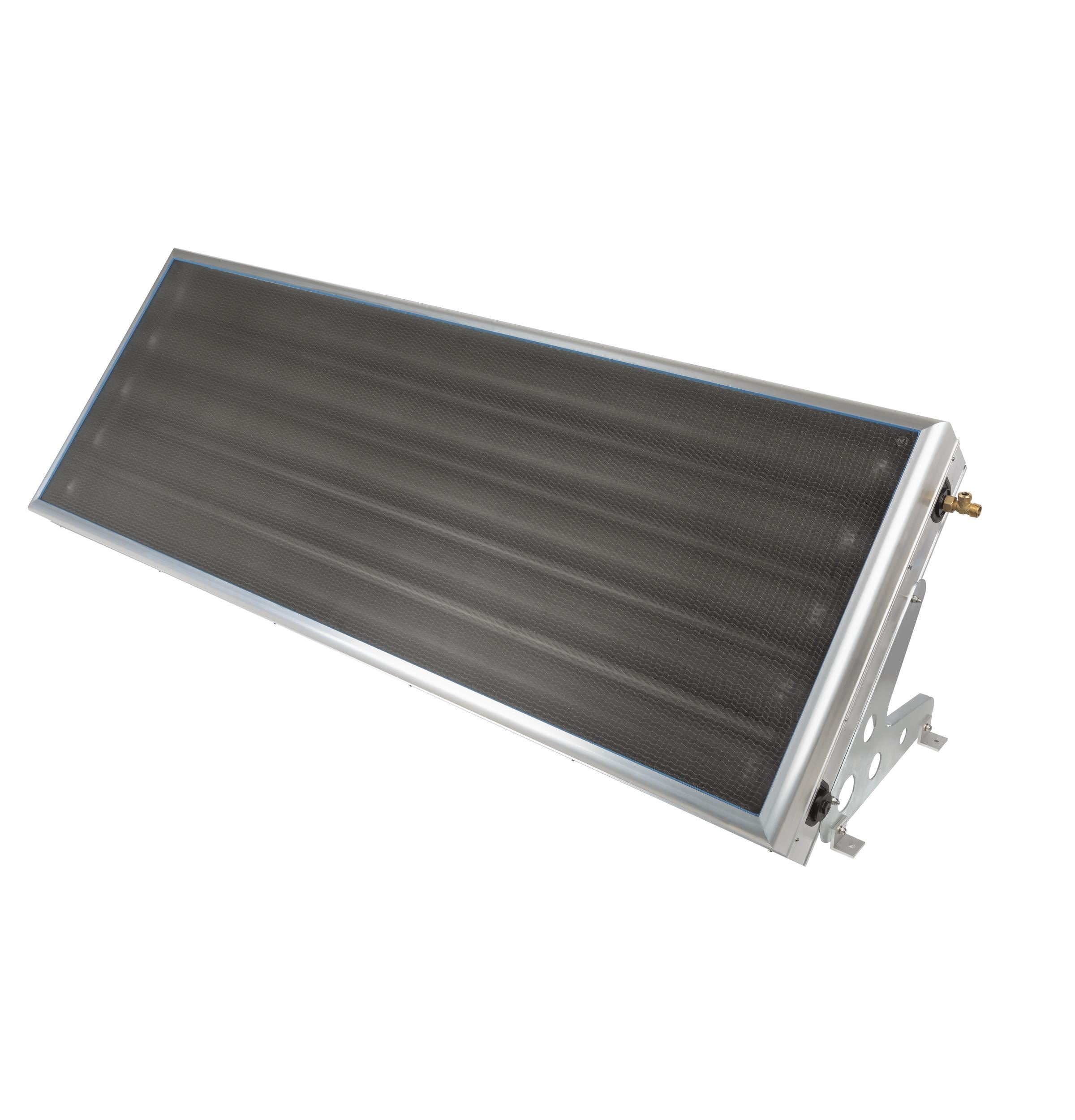

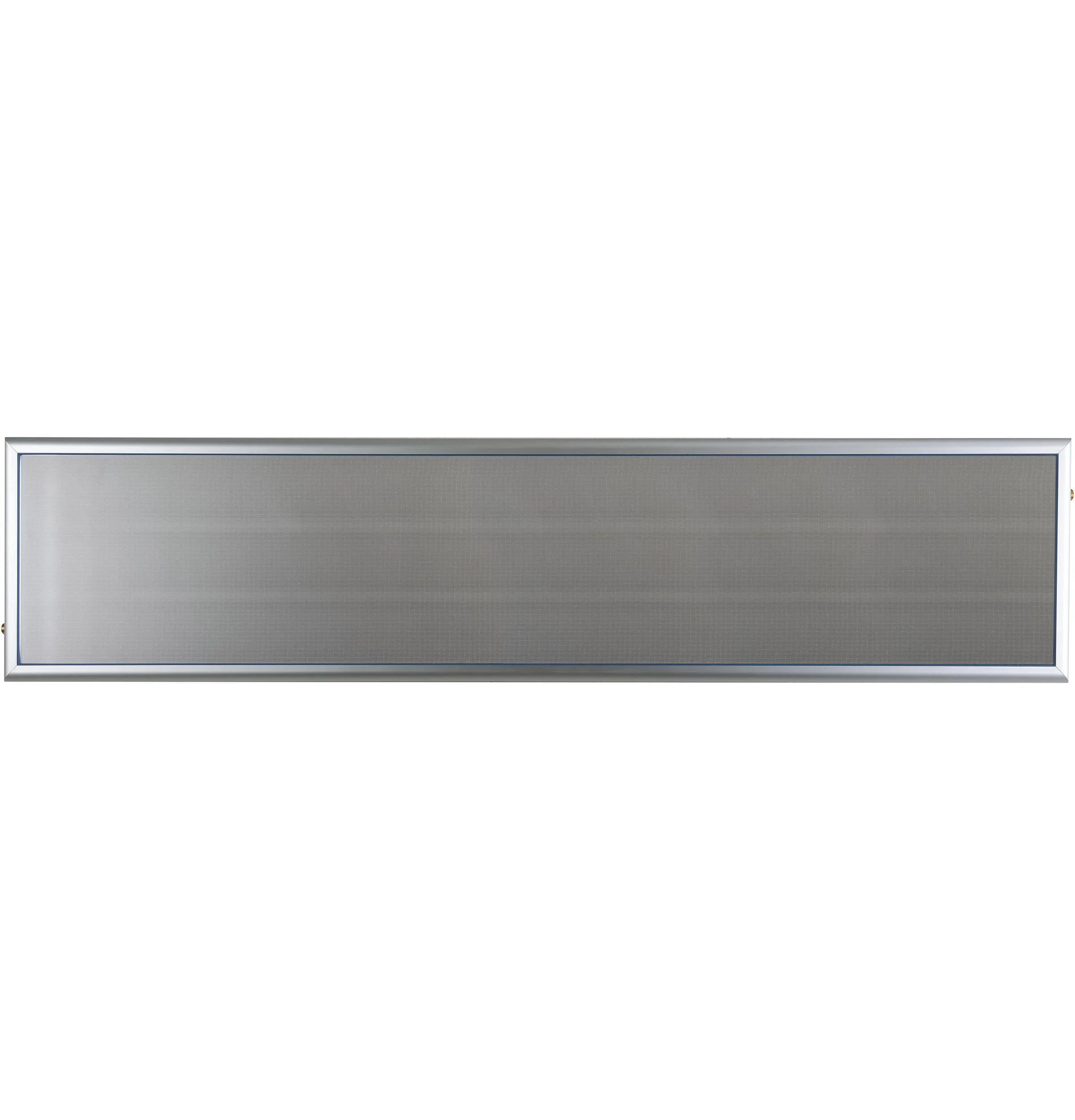

GE Appliances Geospring™ Internal Collector Storage (Ics) Solar Water Heater
SKU: GT40C10BAM
Simon's Price:
$1,999
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
keyboard_arrow_down
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDisclaimer
Description
moreSerpentine system
Water is heated and stored directly in the solar collector, making hot water available as soon as it's heated by the sun
Storage tank
Integrated into the solar collector, the tank maintains hot water temperatures even if the sun isn't shining. The pipes in the tank have a 38-gallon capacity rating, enough to satisfy the needs of the home
One-of-a-kind design for versatile installation
Accommodate any roof style with a unit that's easy to set up
Internal tank coating
Resilient internal coating offers maximum corrosion resistance and trouble-free performance
Solar glass
Water is efficiently heated in the integrated storage tank the moment sunlight hits the solar glass
Clear heat insulation
Totally transparent insulation delivers maximum heat retention
Innovative frame
Aluminum profiles and rigid foam insulation at the sides and rear of the solar collector provide total durability
Water is heated and stored directly in the solar collector, making hot water available as soon as it's heated by the sun
Storage tank
Integrated into the solar collector, the tank maintains hot water temperatures even if the sun isn't shining. The pipes in the tank have a 38-gallon capacity rating, enough to satisfy the needs of the home
One-of-a-kind design for versatile installation
Accommodate any roof style with a unit that's easy to set up
Internal tank coating
Resilient internal coating offers maximum corrosion resistance and trouble-free performance
Solar glass
Water is efficiently heated in the integrated storage tank the moment sunlight hits the solar glass
Clear heat insulation
Totally transparent insulation delivers maximum heat retention
Innovative frame
Aluminum profiles and rigid foam insulation at the sides and rear of the solar collector provide total durability
- Internal tank coating
- Storage tank
- One-of-a-kind design for versatile installation
- Solar glass
- Serpentine system
- Clear heat insulation
- Innovative frame
Specifications
Specifications
Product
Home Water Maintenance Types
Small Water Heater
Home Water Maintenance Types
- Small Water Heater
Energy Star Compliant
No
Energy Star Compliant
- No
Style Elements
Color Family
Gray
Color Family
- Gray
Color Name
Gray
Color Name
- Gray
Features
Internal tank coating, Storage tank, One-of-a-kind design for versatile installation, Solar glass, Serpentine system, Clear heat insulation, Innovative frame
- Internal tank coating
- Storage tank
- One-of-a-kind design for versatile installation
- Solar glass
- Serpentine system
- Clear heat insulation
- Innovative frame
CAPACITY
Unit Capacity
38 Gallons
Unit Capacity
- 38 Gallons
APPEARANCE
Color Appearance
Gray
Color Appearance
- Gray
WARRANTY
Parts Warranty
10-year limited
Parts Warranty
- 10-year limited
WEIGHTS & DIMENSIONS
Weight (with mount, with water) (lb)
444
Weight (with mount, with water) (lb)
- 444
Approximate Shipping Weight
128 lb
Approximate Shipping Weight
- 128 lb
Collector outer dimensions (inches)
86x33x8
Collector outer dimensions (inches)
- 86x33x8
Net Weight
114.6 lb
Net Weight
- 114.6 lb
Weight (with mount, no water) (lb)
125
Weight (with mount, no water) (lb)
- 125
Max height, mount 45/30 (inches)
28/22
Max height, mount 45/30 (inches)
- 28/22
FEATURES
Net Collector Area (ft )
17
Net Collector Area (ft )
- 17
Gross area (ft)
19
Gross area (ft)
- 19
Max. operating pressure (psi)
60
Max. operating pressure (psi)
- 60
Heat transfer medium
Water
Heat transfer medium
- Water
Volume hot water storage tank (gal)
38
Volume hot water storage tank (gal)
- 38
Thermal insulation - storage tank (inches)
1.2
Thermal insulation - storage tank (inches)
- 1.2
Product Type
Solar
Product Type
- Solar
Collector Inclination Angle from horizontal (degrees)
10 to 75
Collector Inclination Angle from horizontal (degrees)
- 10 to 75
Cold/hot water connections (inches)
3/4 MNPT
Cold/hot water connections (inches)
- 3/4 MNPT
Item & Dimensions
Manufacturer
GE Appliances
Manufacturer
- GE Appliances
The Water Treatment GE Appliances Geospring™ Internal Collector Storage (Ics) Solar Water Heater, made by GE Appliances,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
