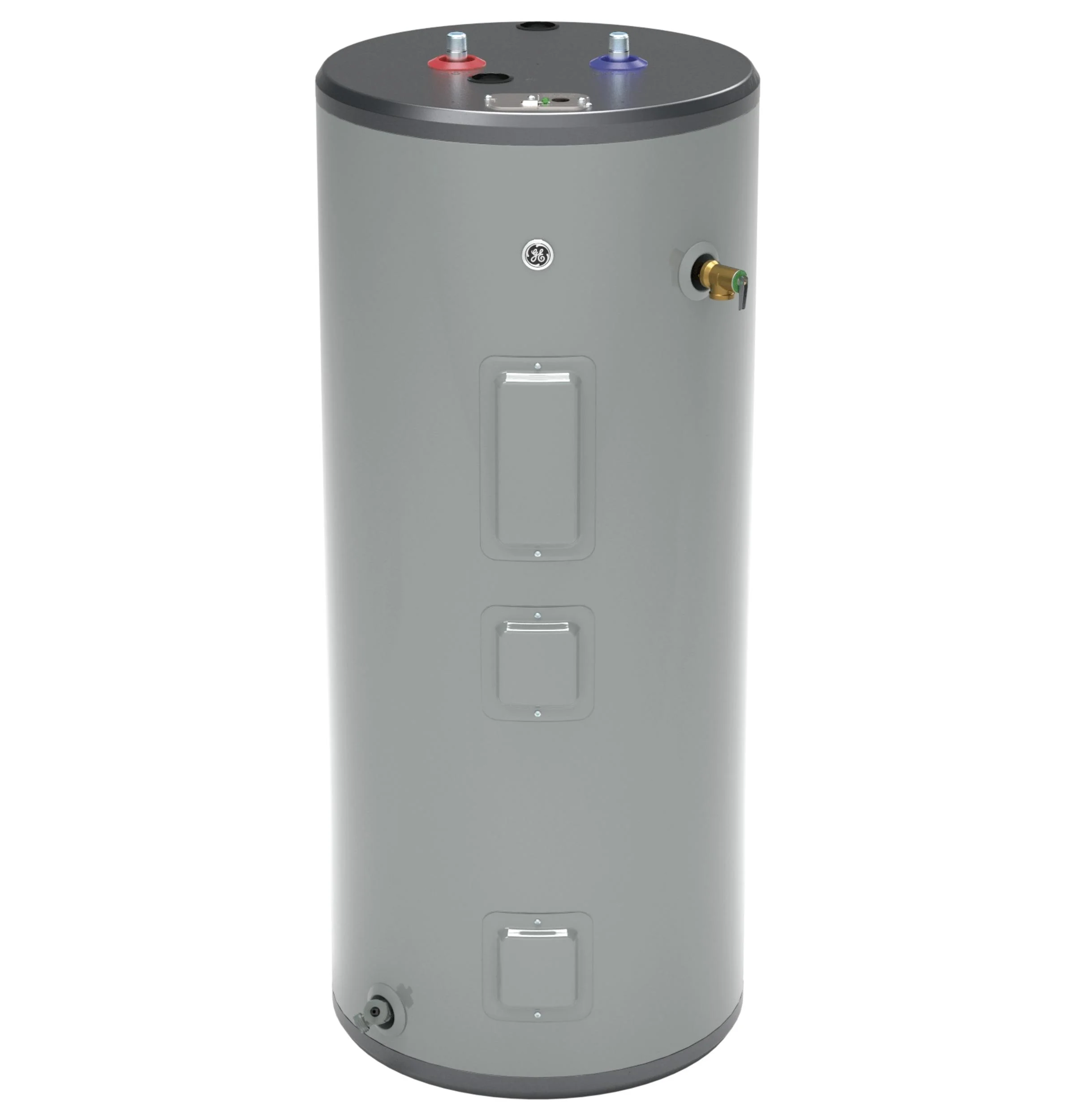

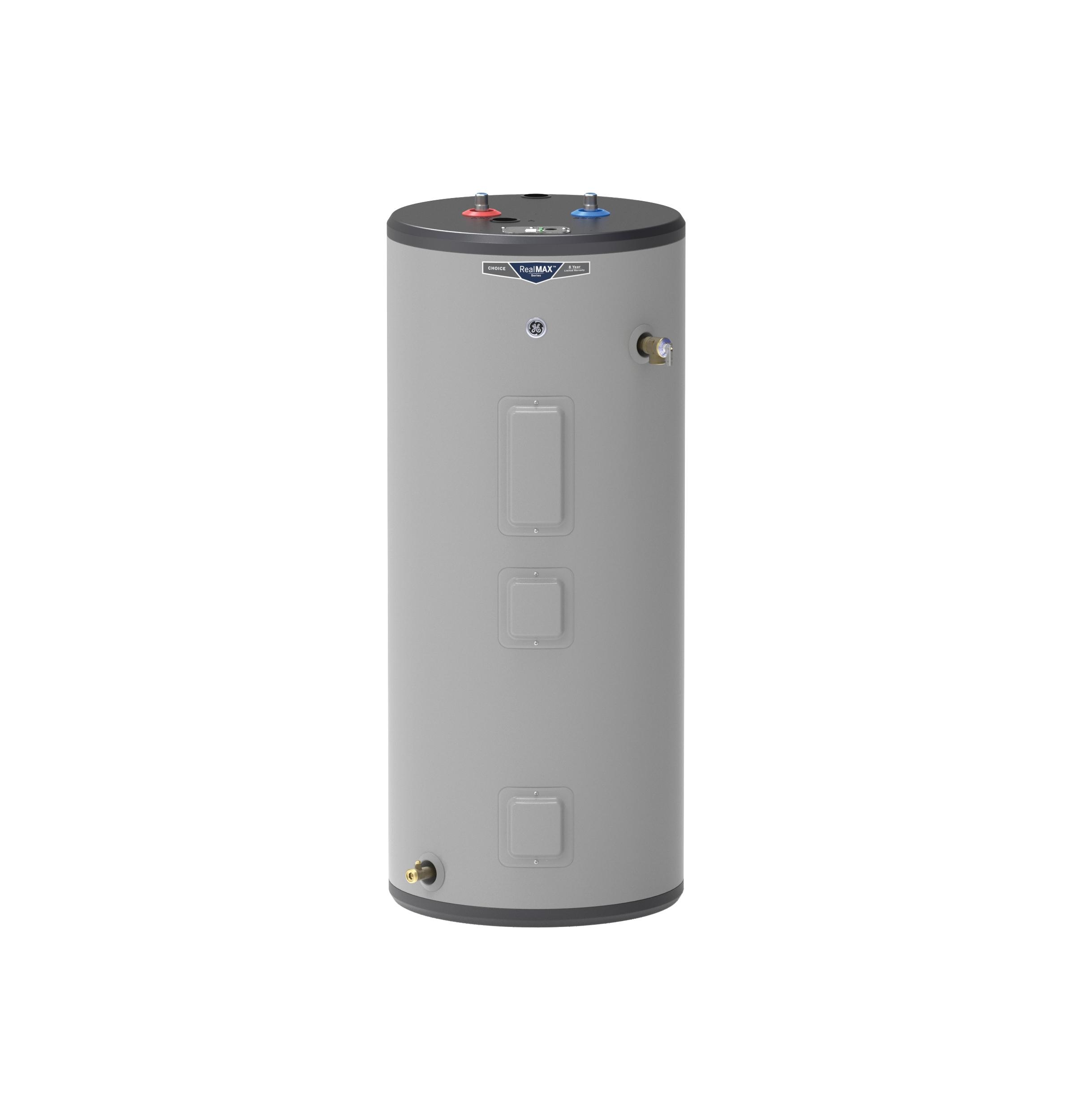

GE Appliances 40-Gallon Short Electric Water Heater
SKU: GE40S08BAM
Simon's Price:
$476
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
Qty: 1
keyboard_arrow_down
Qty: 1
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
22.0" W
×
22.0" D
×
52.88" H
| Width (side to side) | 22.0 |
| Depth (front to back) | 22.0 |
| Height (bottom to top) | 52.88 |
Disclaimer
Description
moreReal Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)
Leading Performance
Live comfortably with this best in class unit that delivers 66 gallons of hot water in the first hour (Measured through DOE First Hour Rating)
Household Size
Provide hot water for the whole family of 2 to 4 persons
Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it
Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Anode Rod
Durable design offers long-lasting protection against corrosion
Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Adjustable Thermostat
Change temperature to your desired setting
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)
Leading Performance
Live comfortably with this best in class unit that delivers 66 gallons of hot water in the first hour (Measured through DOE First Hour Rating)
Household Size
Provide hot water for the whole family of 2 to 4 persons
Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it
Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Anode Rod
Durable design offers long-lasting protection against corrosion
Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Adjustable Thermostat
Change temperature to your desired setting
- Quick Recovery
- Drain Valve
- Leading Performance
- Adjustable Thermostat
- Household Size
- Inlet Tube
- Real Capacity
- Easy Set Up
- Anode Rod
Specifications
Specifications
Product
Home Water Maintenance Types
Small Water Heater
Home Water Maintenance Types
- Small Water Heater
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
52.88" H
Height (bottom to top)
- 52.88" H
Width (side to side)
22.0" W
Width (side to side)
- 22.0" W
Depth (front to back)
22.0" D
Depth (front to back)
- 22.0" D
Style Elements
Color Family
Gray
Color Family
- Gray
Color Name
Gray
Color Name
- Gray
Features
Quick Recovery, Drain Valve, Leading Performance, Adjustable Thermostat, Household Size, Inlet Tube, Real Capacity, Easy Set Up, Anode Rod
- Quick Recovery
- Drain Valve
- Leading Performance
- Adjustable Thermostat
- Household Size
- Inlet Tube
- Real Capacity
- Easy Set Up
- Anode Rod
CAPACITY
Unit Capacity
40 Gallons
Unit Capacity
- 40 Gallons
FILTER
App Filter - Tank Warranty
8 year limited
App Filter - Tank Warranty
- 8 year limited
App Filter - Product Type
Water Heaters Electric Standard
App Filter - Product Type
- Water Heaters Electric Standard
App Filter - Tank Diameter
22 in. and above
App Filter - Tank Diameter
- 22 in. and above
App Filter - Vacation Mode
No
App Filter - Vacation Mode
- No
App Filter - Capacity
Water Heater 40-49 gallons
App Filter - Capacity
- Water Heater 40-49 gallons
APPEARANCE
Color Appearance
Gray
Color Appearance
- Gray
POWER / RATINGS
Integrated Energy Factor
0.92
Integrated Energy Factor
- 0.92
Heating - Electric - Heater Watts
5500/5500
Heating - Electric - Heater Watts
- 5500/5500
Electrical Connection
Direct-Wire
Electrical Connection
- Direct-Wire
Operating Water Pressure
20-125 PSI
Operating Water Pressure
- 20-125 PSI
Volts/Hertz
240V; 60Hz
Volts/Hertz
- 240V; 60Hz
First Hour Rate (FHR)
66 Gallons
First Hour Rate (FHR)
- 66 Gallons
Voltage (MAX)
240 V
Voltage (MAX)
- 240 V
Electrical Circuit Required
208V/240V 60 Hz Dedicated 30 Amp Min.
Electrical Circuit Required
- 208V/240V 60 Hz Dedicated 30 Amp Min.
WARRANTY
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
Parts Warranty
8-year limited
Parts Warranty
- 8-year limited
Labor Warranty
1-year limited
Labor Warranty
- 1-year limited
WEIGHTS & DIMENSIONS
Product Height (to top of water inlet/outlet connections)
52.875 in
Product Height (to top of water inlet/outlet connections)
- 52.875 in
Approximate Shipping Weight
133 lb
Approximate Shipping Weight
- 133 lb
Overall Width
22 in
Overall Width
- 22 in
Overall Height
52.875 in
Overall Height
- 52.875 in
Product Height (to top of unit)
51.375 in
Product Height (to top of unit)
- 51.375 in
Net Weight
121 lb
Net Weight
- 121 lb
Product Diameter
22 in
Product Diameter
- 22 in
Overall Depth
22 in
Overall Depth
- 22 in
Connection Sizes - Water Inlet (MNPT)
3/4"
Connection Sizes - Water Inlet (MNPT)
- 3/4"
Connection Sizes - Hot Water Outlet (MNPT)
3/4"
Connection Sizes - Hot Water Outlet (MNPT)
- 3/4"
FEATURES
Control Type
Thermostat
Control Type
- Thermostat
Temp & Pressure Relief Valve
Yes
Temp & Pressure Relief Valve
- Yes
Height Description
Short
Height Description
- Short
Heating Element
Copper
Heating Element
- Copper
Fuel Type
Electric
Fuel Type
- Electric
Configuration
Short
Configuration
- Short
Installation Location
Indoor
Installation Location
- Indoor
Operating Modes
Standard Electric
Operating Modes
- Standard Electric
Rated Storage Capacity
40
Rated Storage Capacity
- 40
Drain Valve Type
Plastic
Drain Valve Type
- Plastic
GPH Recovery @ 90 Degrees F
25.1
GPH Recovery @ 90 Degrees F
- 25.1
Mobile Home Compatible
No
Mobile Home Compatible
- No
Temperature Setting Factory Default
120° F
Temperature Setting Factory Default
- 120° F
Product Type
Electric Thermostat
Product Type
- Electric Thermostat
Family Size
2-4 People
Family Size
- 2-4 People
Water Connection Location
Top
Water Connection Location
- Top
Foam Insulation
Yes
Foam Insulation
- Yes
Point of Use
No
Point of Use
- No
Temperature Setting
90-150° F Range
Temperature Setting
- 90-150° F Range
Insulation Thickness
2.75 in
Insulation Thickness
- 2.75 in
Item & Dimensions
Manufacturer
GE Appliances
Manufacturer
- GE Appliances
The Water Treatment GE Appliances 40-Gallon Short Electric Water Heater, made by GE Appliances,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Water Treatment collection is an amazing option if you are looking for
products.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Reference #: GE40S08BAM
