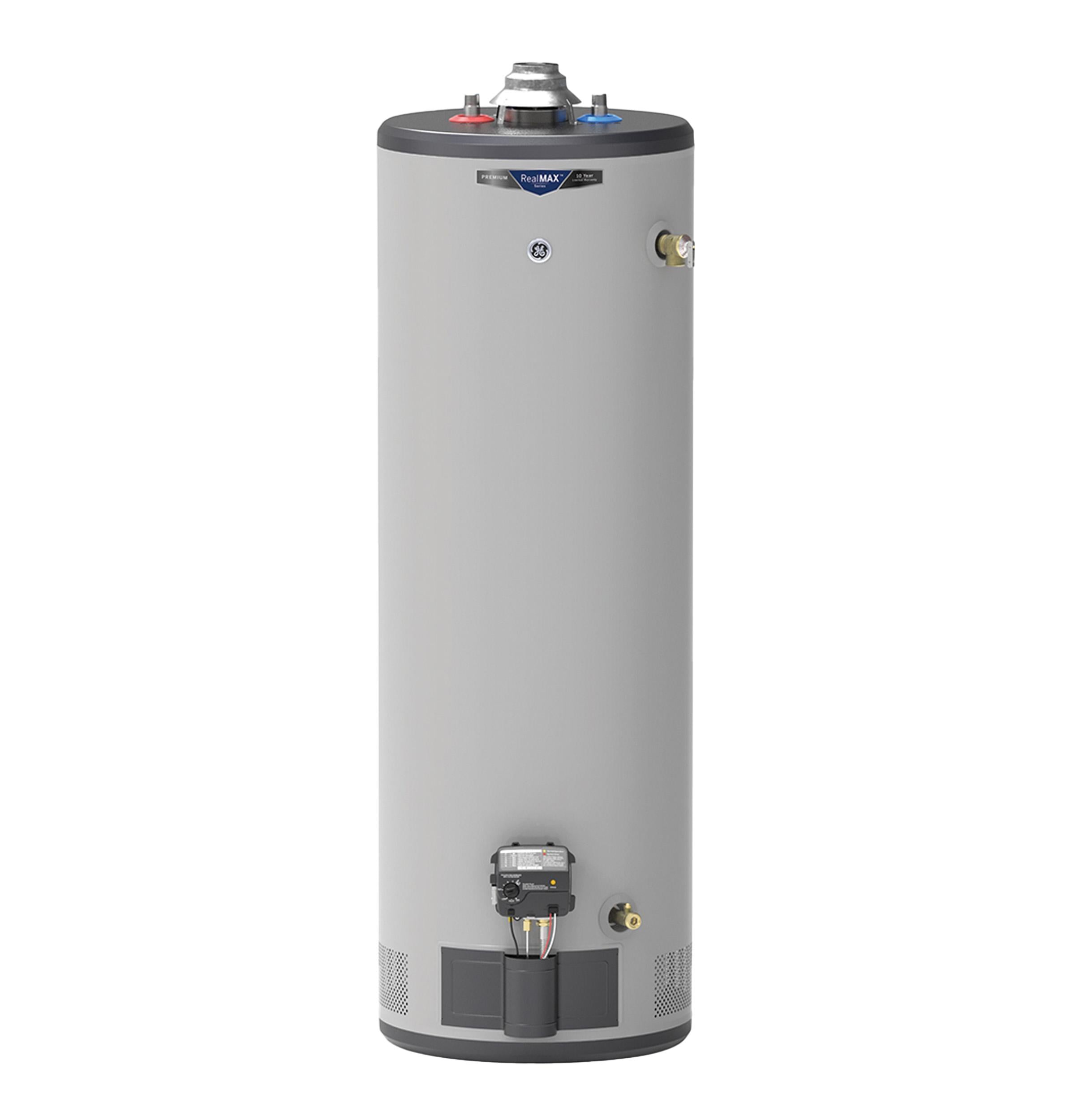

GE Appliances Realmax Premium 40-Gallon Tall Natural Gas Atmospheric Water Heater
SKU: GG40T10BXR
Simon's Price:
$647
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
Qty: 1
keyboard_arrow_down
Qty: 1
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
20.0" W
×
20.0" D
×
61.88" H
| Width (side to side) | 20.0 |
| Depth (front to back) | 20.0 |
| Height (bottom to top) | 61.88 |
Disclaimer
Description
moreHousehold Size
Provide hot water for the whole family of 2 to 4 persons
Quick Recovery
Quickly replenish hot water with a max-performance 40K burner
Anode Rod
Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank
SmartShield ™ Safety System
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected
Self-Diagnostic
Monitors and reports on gas system status via LED status indicator
Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Easy Installation
Replace your old water heater quickly and easily using standard water and gas connections
Built-To-Last Warranty
RealMAX Premium water heaters carry a 10-year tank and parts limited warranty
Provide hot water for the whole family of 2 to 4 persons
Quick Recovery
Quickly replenish hot water with a max-performance 40K burner
Anode Rod
Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank
SmartShield ™ Safety System
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected
Self-Diagnostic
Monitors and reports on gas system status via LED status indicator
Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Easy Installation
Replace your old water heater quickly and easily using standard water and gas connections
Built-To-Last Warranty
RealMAX Premium water heaters carry a 10-year tank and parts limited warranty
- SmartShield ™ Safety System
- Built-To-Last Warranty
- Quick Recovery
- Anode Rod
- Self-Diagnostic
- Household Size
- Drain Valve
- Easy Installation
GE Appliances Realmax Premium 40-Gallon Tall Natural Gas Atmospheric Water Heater
Water Treatment Collection
Simon's Price:
$647
Specifications
Specifications
Product
Home Water Maintenance Types
Small Water Heater
Home Water Maintenance Types
- Small Water Heater
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
61.88" H
Height (bottom to top)
- 61.88" H
Width (side to side)
20.0" W
Width (side to side)
- 20.0" W
Depth (front to back)
20.0" D
Depth (front to back)
- 20.0" D
Style Elements
Color Family
Gray
Color Family
- Gray
Color Name
Gray
Color Name
- Gray
Features
SmartShield ™ Safety System, Built-To-Last Warranty, Quick Recovery, Anode Rod, Self-Diagnostic, Household Size, Drain Valve, Easy Installation
- SmartShield ™ Safety System
- Built-To-Last Warranty
- Quick Recovery
- Anode Rod
- Self-Diagnostic
- Household Size
- Drain Valve
- Easy Installation
CAPACITY
Unit Capacity
40 Gallons
Unit Capacity
- 40 Gallons
APPEARANCE
Color Appearance
Gray
Color Appearance
- Gray
POWER / RATINGS
First Hour Delivery GPH
83 gal/hr
First Hour Delivery GPH
- 83 gal/hr
Burner BTU Size (k)
40
Burner BTU Size (k)
- 40
WARRANTY
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
Parts Warranty
10-year limited
Parts Warranty
- 10-year limited
Labor Warranty
1-year limited
Labor Warranty
- 1-year limited
WEIGHTS & DIMENSIONS
Product Height (to top of water inlet/outlet connections)
60 in
Product Height (to top of water inlet/outlet connections)
- 60 in
Height to Gas Control
11.25 in
Height to Gas Control
- 11.25 in
Approximate Shipping Weight
147 lb
Approximate Shipping Weight
- 147 lb
Overall Width
20 in
Overall Width
- 20 in
Overall Height
61.875 in
Overall Height
- 61.875 in
Product Height (to top of unit)
58.5 in
Product Height (to top of unit)
- 58.5 in
Net Weight
140 lb
Net Weight
- 140 lb
Product Diameter
20 in
Product Diameter
- 20 in
Overall Depth
20 in
Overall Depth
- 20 in
Vent Size
3" Type B Vent
Vent Size
- 3" Type B Vent
Connection Sizes - Water Inlet (MNPT)
3/4"
Connection Sizes - Water Inlet (MNPT)
- 3/4"
Connection Sizes - Hot Water Outlet (MNPT)
3/4"
Connection Sizes - Hot Water Outlet (MNPT)
- 3/4"
FEATURES
FVIR Safety System
Prevents accidental ignition of flammable vapors
FVIR Safety System
- Prevents accidental ignition of flammable vapors
Vent
Atmospheric
Vent
- Atmospheric
Controls
LED Indicator
Controls
- LED Indicator
UEF
.64
UEF
- .64
Temp & Pressure Relief Valve
Yes
Temp & Pressure Relief Valve
- Yes
Height Description
Tall
Height Description
- Tall
Fuel Type
Natural Gas (factory set)
Fuel Type
- Natural Gas (factory set)
Pilot Light Window / Button
Yes
Pilot Light Window / Button
- Yes
Configuration
Tall
Configuration
- Tall
Drain Valve Type
Plastic
Drain Valve Type
- Plastic
Product Type
Gas
Product Type
- Gas
Family Size
2-5 People
Family Size
- 2-5 People
Bin Testing
High
Bin Testing
- High
Water Connection Location
Top
Water Connection Location
- Top
Overheat Protection
Dry Burning Protection
Overheat Protection
- Dry Burning Protection
Gas Valve
Self Powered
Gas Valve
- Self Powered
Anode Rod
Magnesium
Anode Rod
- Magnesium
Altitude Rating
10100 ft
Altitude Rating
- 10100 ft
Temperature Setting
45-160° F Range
Temperature Setting
- 45-160° F Range
Item & Dimensions
Manufacturer
GE Appliances
Manufacturer
- GE Appliances
The Water Treatment GE Appliances Realmax Premium 40-Gallon Tall Natural Gas Atmospheric Water Heater, made by GE Appliances,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Water Treatment collection is an amazing option if you are looking for
products.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Reference #: GG40T10BXR
