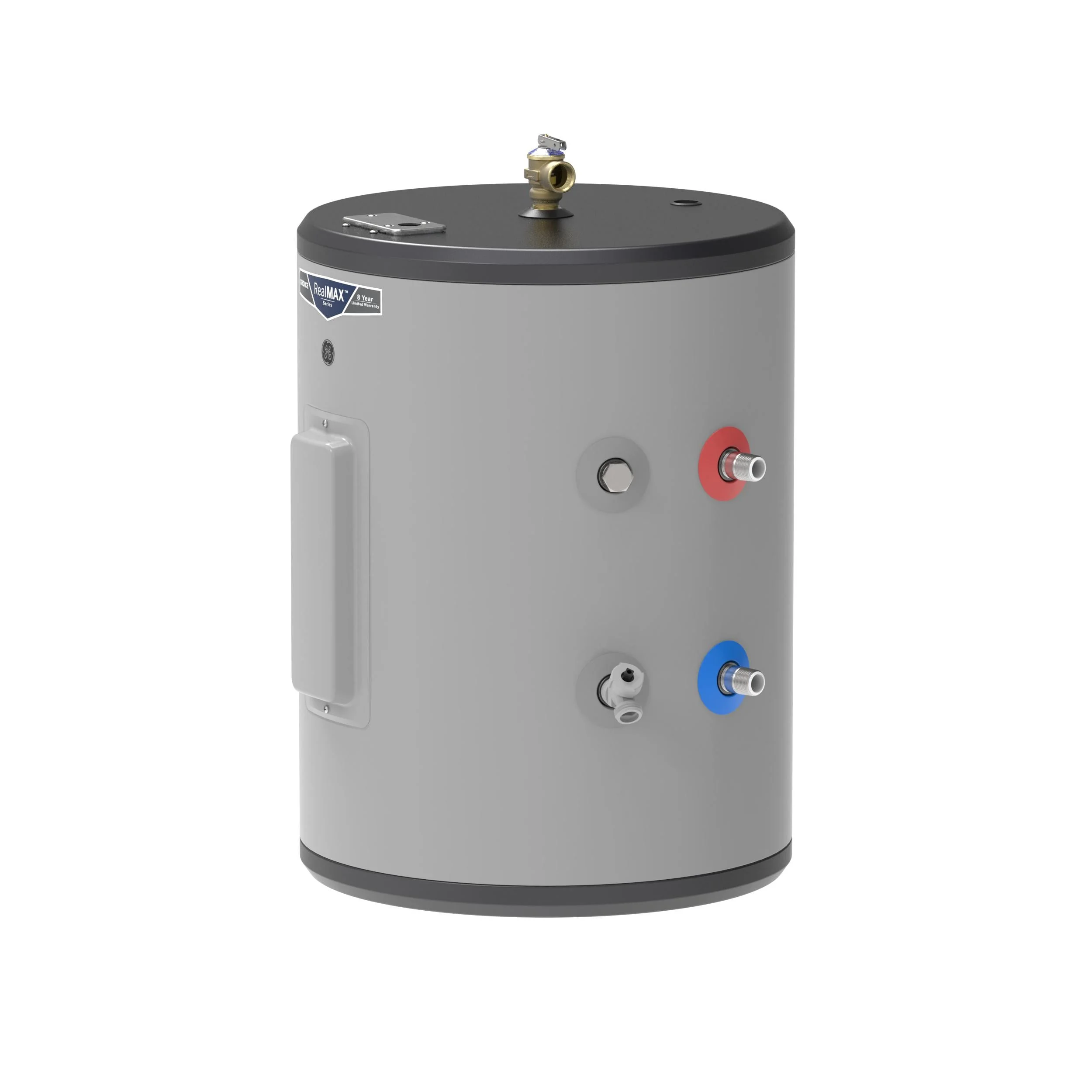

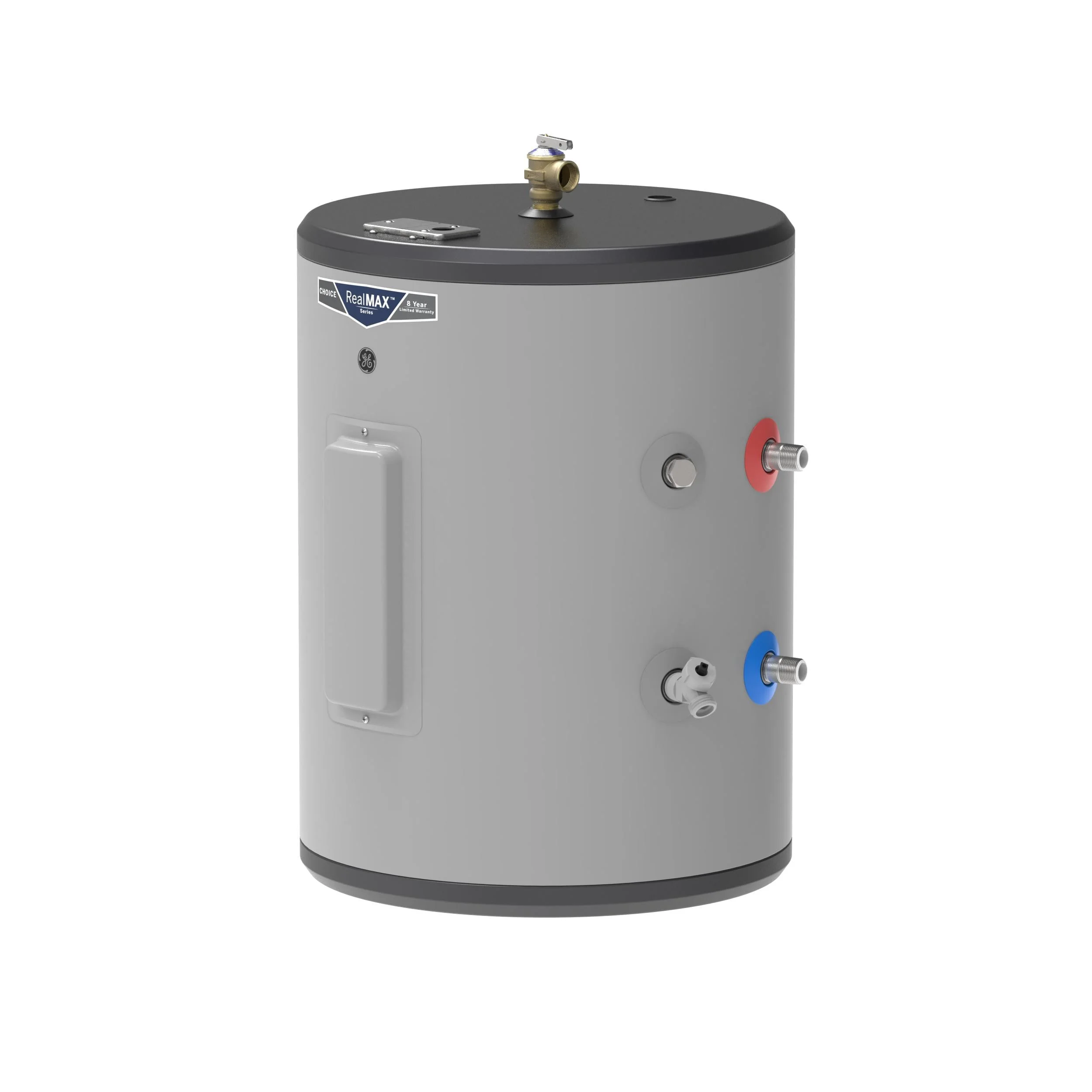

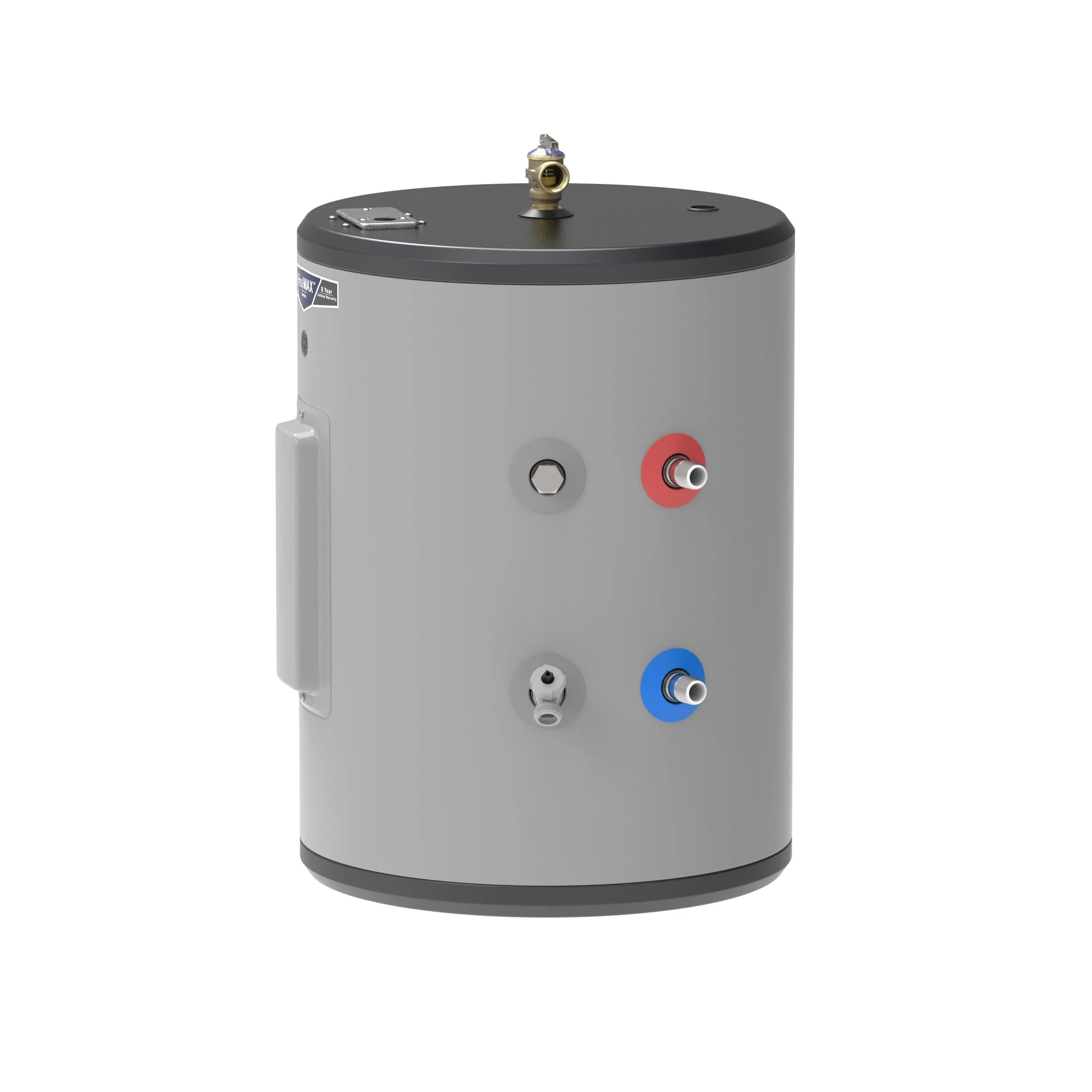

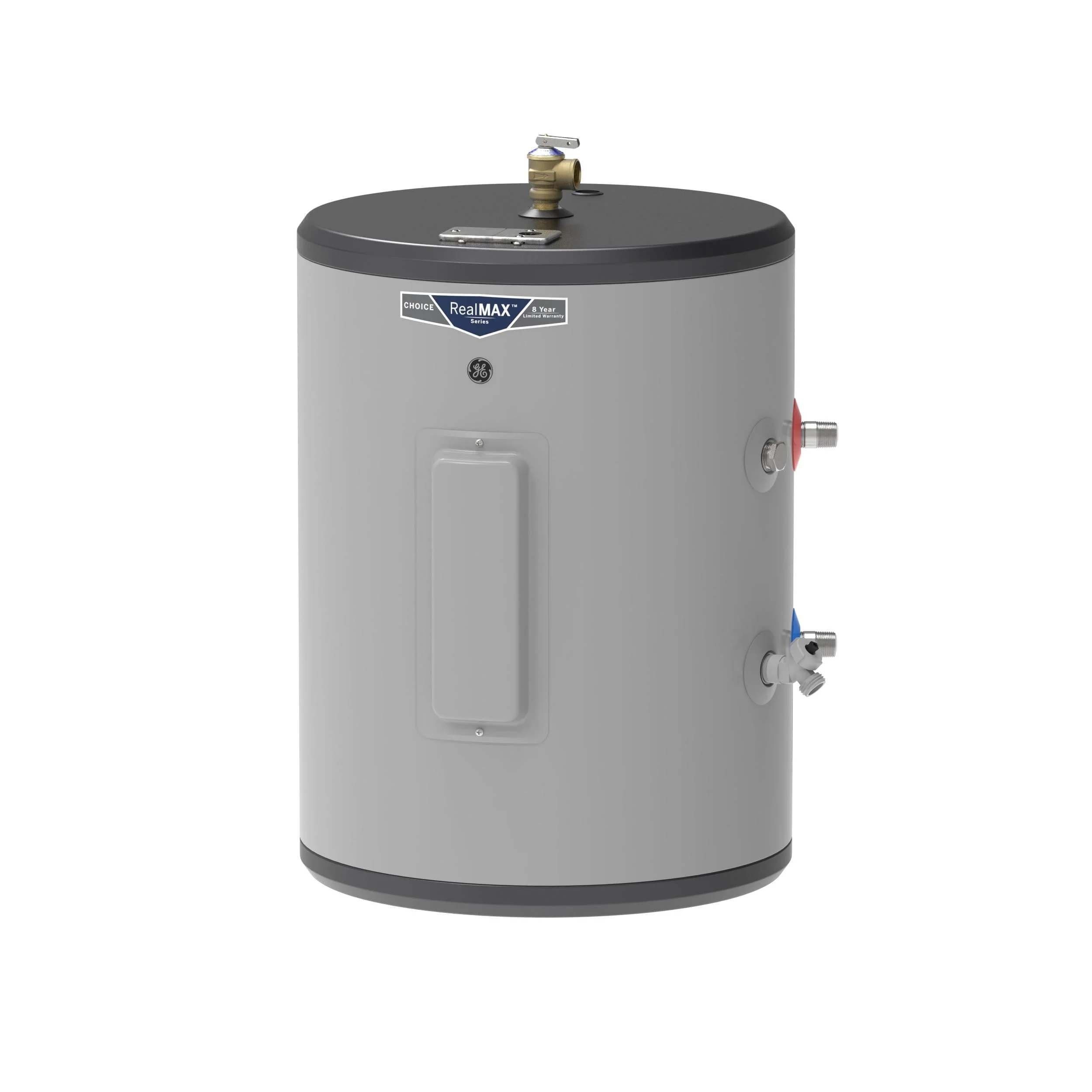

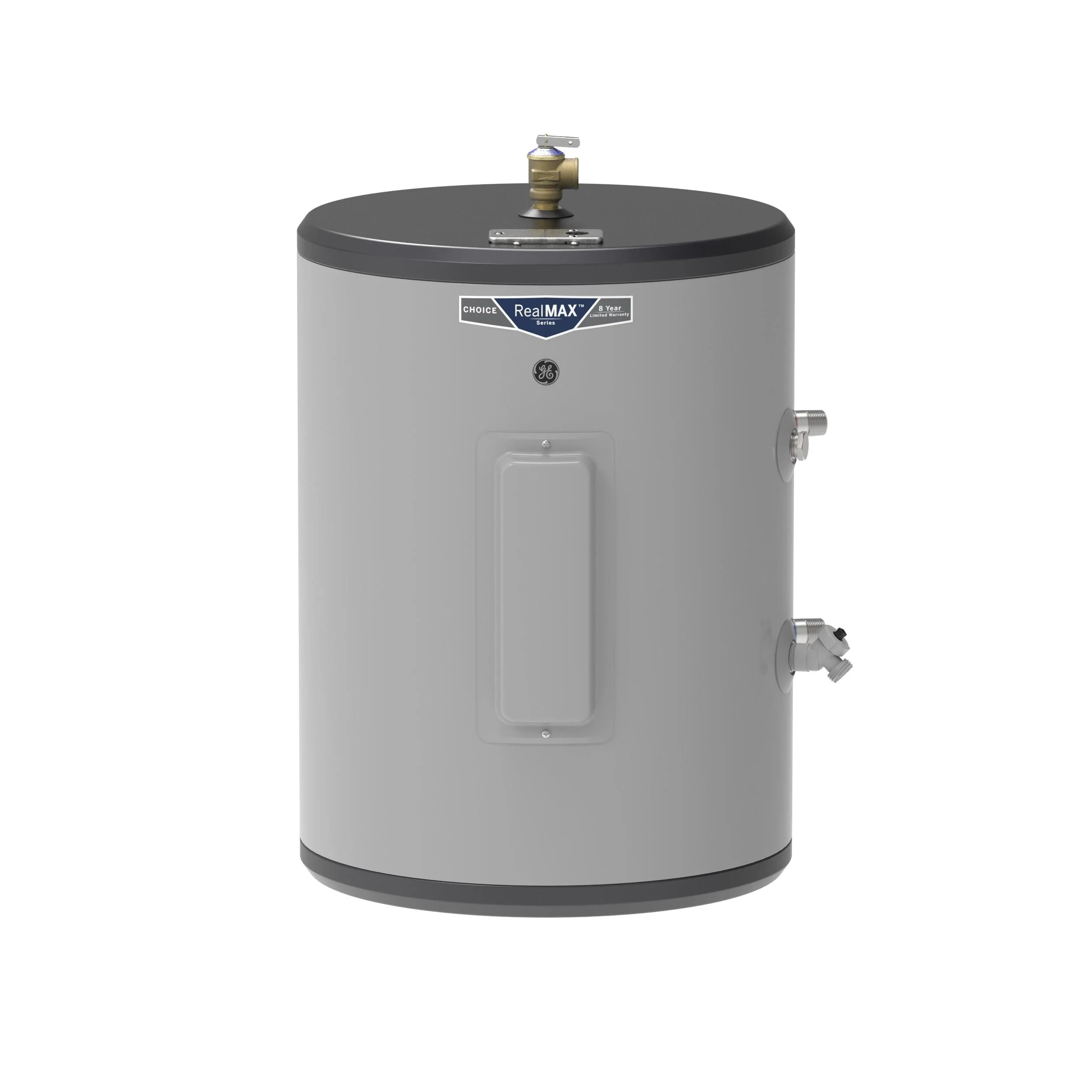

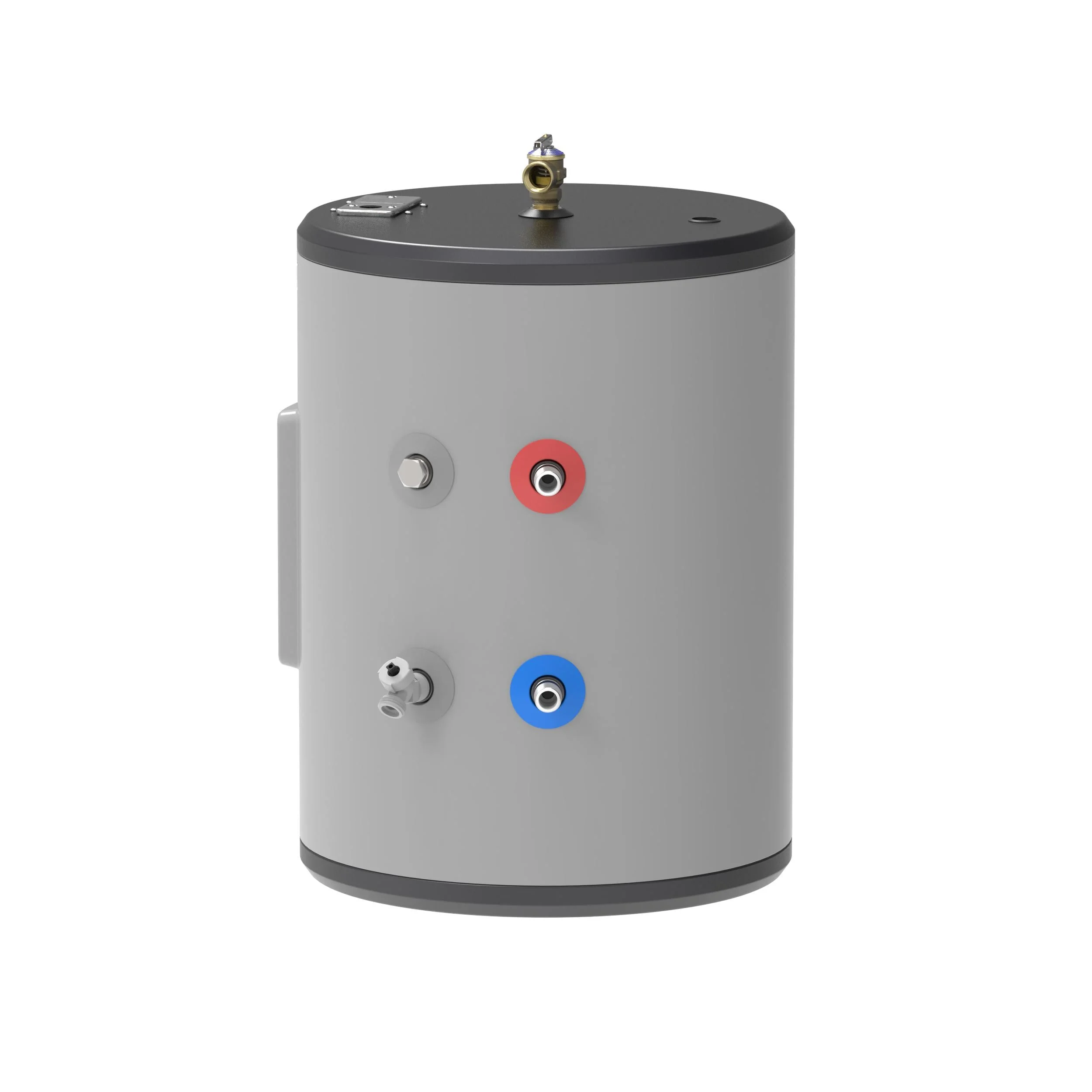

GE Appliances 18-Gallon Side Port Lowboy Electric Water Heater
SKU: GE20L08BAR
Simon's Price:
$332
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
Qty: 1
keyboard_arrow_down
Qty: 1
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
19.25" W
×
19.25" D
×
25.75" H
| Width (side to side) | 19.25 |
| Depth (front to back) | 19.25 |
| Height (bottom to top) | 25.75 |
Disclaimer
Description
moreLowboy
Make the most of tight spaces with a water heater that fits where height is a concern
Quick Recovery
5500W heating elements quickly increase water temperature for hot water when you need it
Household Size
Provide hot water for the whole family of 1 to 2 persons
Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Anode Rod
Durable design offers long-lasting protection against corrosion
Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Adjustable Thermostat
Change temperature to your desired setting
Make the most of tight spaces with a water heater that fits where height is a concern
Quick Recovery
5500W heating elements quickly increase water temperature for hot water when you need it
Household Size
Provide hot water for the whole family of 1 to 2 persons
Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Anode Rod
Durable design offers long-lasting protection against corrosion
Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Adjustable Thermostat
Change temperature to your desired setting
- Inlet Tube
- Adjustable Thermostat
- Quick Recovery
- Household Size
- Easy Set Up
- Lowboy
- Anode Rod
- Drain Valve
GE Appliances 18-Gallon Side Port Lowboy Electric Water Heater
Water Treatment Collection
Simon's Price:
$332
Specifications
Specifications
Product
Home Water Maintenance Types
Small Water Heater
Home Water Maintenance Types
- Small Water Heater
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
25.75" H
Height (bottom to top)
- 25.75" H
Width (side to side)
19.25" W
Width (side to side)
- 19.25" W
Depth (front to back)
19.25" D
Depth (front to back)
- 19.25" D
Style Elements
Color Family
Gray
Color Family
- Gray
Color Name
Gray
Color Name
- Gray
Features
Inlet Tube, Adjustable Thermostat, Quick Recovery, Household Size, Easy Set Up, Lowboy, Anode Rod, Drain Valve
- Inlet Tube
- Adjustable Thermostat
- Quick Recovery
- Household Size
- Easy Set Up
- Lowboy
- Anode Rod
- Drain Valve
CAPACITY
Unit Capacity
18 Gallons
Unit Capacity
- 18 Gallons
APPEARANCE
Color Appearance
Gray
Color Appearance
- Gray
POWER / RATINGS
Heating - Electric - Heater Watts
3800
Heating - Electric - Heater Watts
- 3800
Electrical Connection
Direct-Wire
Electrical Connection
- Direct-Wire
Operating Water Pressure
20-125 PSI
Operating Water Pressure
- 20-125 PSI
Volts/Hertz
240V; 60Hz
Volts/Hertz
- 240V; 60Hz
Voltage (MAX)
240 V
Voltage (MAX)
- 240 V
Electrical Circuit Required
208V/240V 60 Hz Dedicated 30 Amp Min.
Electrical Circuit Required
- 208V/240V 60 Hz Dedicated 30 Amp Min.
WARRANTY
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
Parts Warranty
8-year limited
Parts Warranty
- 8-year limited
Labor Warranty
1-year limited
Labor Warranty
- 1-year limited
WEIGHTS & DIMENSIONS
Product Height (to top of water inlet/outlet connections)
26 in
Product Height (to top of water inlet/outlet connections)
- 26 in
Approximate Shipping Weight
62 lb
Approximate Shipping Weight
- 62 lb
Overall Width
19.25 in
Overall Width
- 19.25 in
Overall Height
25.75 in
Overall Height
- 25.75 in
Product Height (to top of unit)
25.75 in
Product Height (to top of unit)
- 25.75 in
Net Weight
54.2 lb
Net Weight
- 54.2 lb
Product Diameter
19.25 in
Product Diameter
- 19.25 in
Overall Depth
19.25 in
Overall Depth
- 19.25 in
Connection Sizes - Water Inlet (MNPT)
3/4"
Connection Sizes - Water Inlet (MNPT)
- 3/4"
Connection Sizes - Hot Water Outlet (MNPT)
3/4"
Connection Sizes - Hot Water Outlet (MNPT)
- 3/4"
FEATURES
Control Type
Thermostat
Control Type
- Thermostat
Controls
Mechanical Temperature Control
Controls
- Mechanical Temperature Control
Max. operating pressure (psi)
150
Max. operating pressure (psi)
- 150
Temp & Pressure Relief Valve
Yes
Temp & Pressure Relief Valve
- Yes
Rated Capacity
18 gal
Rated Capacity
- 18 gal
Height Description
Low Boy with Side Port
Height Description
- Low Boy with Side Port
Heating Element
Stainless steel
Heating Element
- Stainless steel
Max: operating pressure (psi)
150
Max: operating pressure (psi)
- 150
Fuel Type
Electric
Fuel Type
- Electric
Configuration
Lowboy
Configuration
- Lowboy
Installation Location
Indoor
Installation Location
- Indoor
Operating Modes
Standard Electric
Operating Modes
- Standard Electric
Rated Storage Capacity
18
Rated Storage Capacity
- 18
Drain Valve Type
Plastic
Drain Valve Type
- Plastic
GPH Recovery @ 90 Degrees F
25.1
GPH Recovery @ 90 Degrees F
- 25.1
Mobile Home Compatible
No
Mobile Home Compatible
- No
Temperature Setting Factory Default
120° F
Temperature Setting Factory Default
- 120° F
Product Type
Electric Thermostat
Product Type
- Electric Thermostat
Family Size
1-2 People
Family Size
- 1-2 People
Water Connection Location
Side
Water Connection Location
- Side
Foam Insulation
Yes
Foam Insulation
- Yes
Point of Use
No
Point of Use
- No
Anode Rod
Aluminum
Anode Rod
- Aluminum
Temperature Setting
90-150° F Range
Temperature Setting
- 90-150° F Range
Item & Dimensions
Manufacturer
GE Appliances
Manufacturer
- GE Appliances
The Water Treatment GE Appliances 18-Gallon Side Port Lowboy Electric Water Heater, made by GE Appliances,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Water Treatment collection is an amazing option if you are looking for
products.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Reference #: GE20L08BAR
