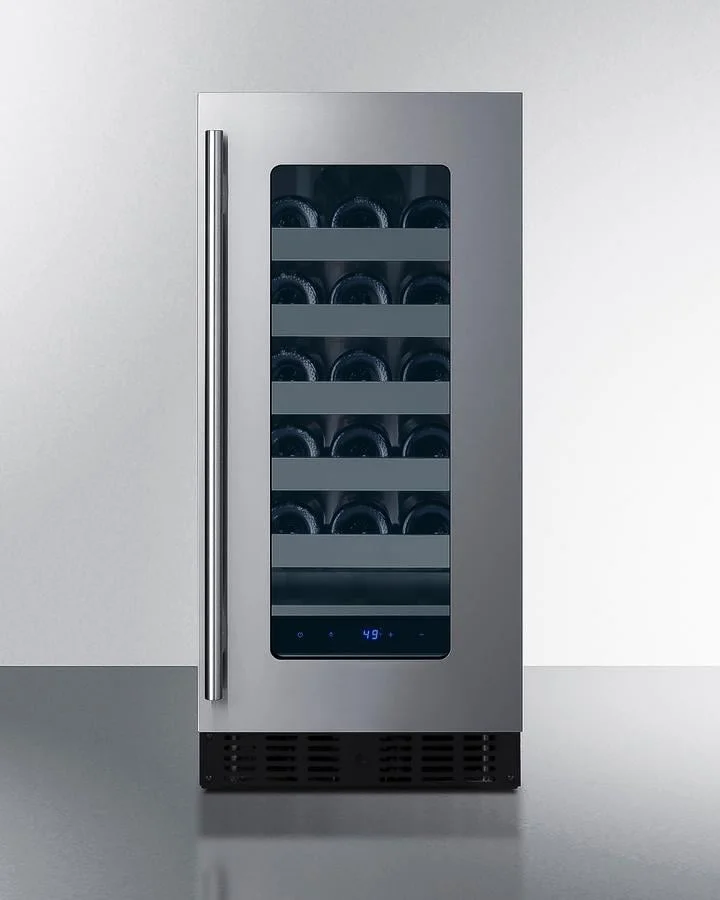

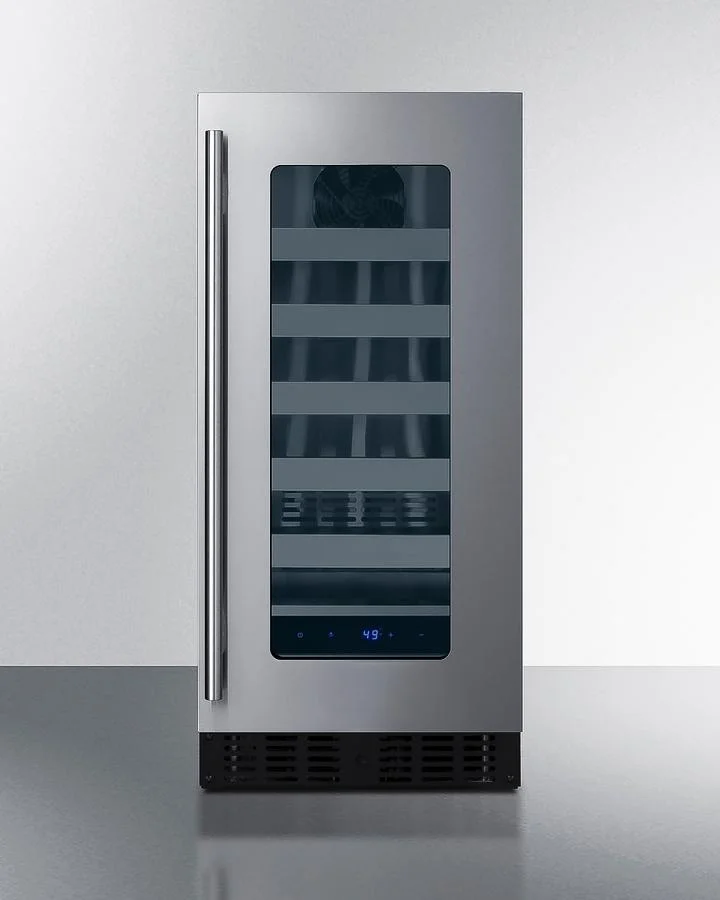

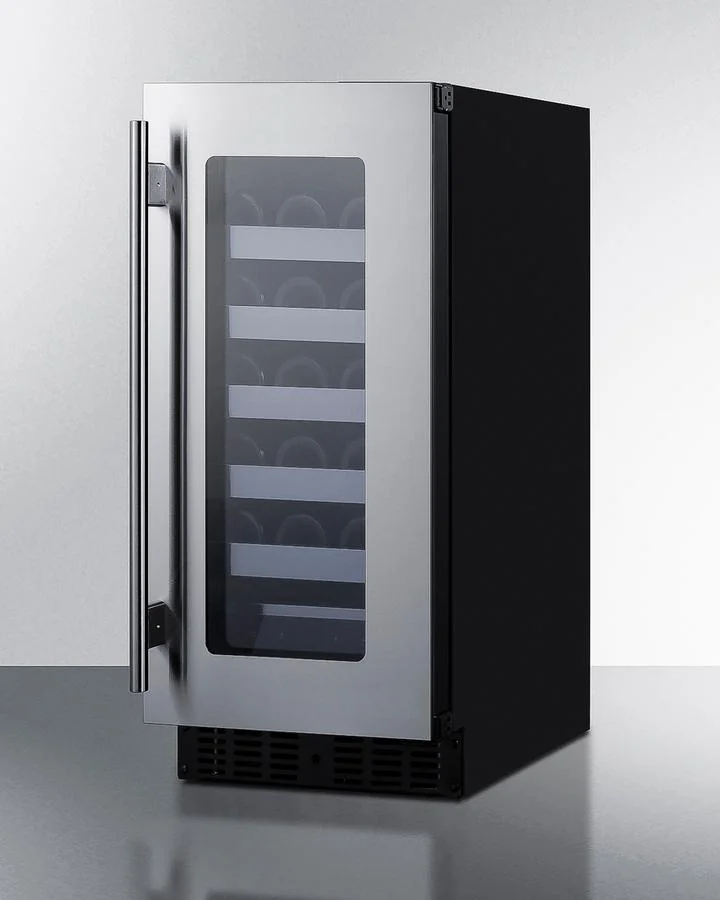

15" Wide Built-In Wine Cellar, Ada Compliant

SKU: ASDW1522
Free Delivery Appliance
Simon's Price: $1,659
12 Interest Free Monthly Payments Of $139
Price with selected options:
Qty:

Where Can I See This Product in Store?

more
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.

Ask a Question

less
First Name is required
Last Name is required
Email Address is required
Message is required

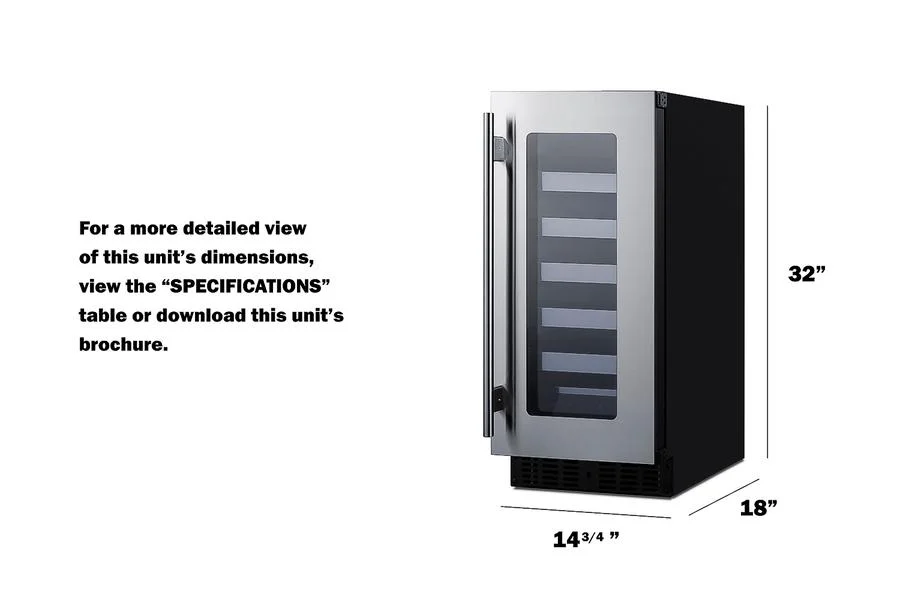

Dimensions:

14.75" W × 19.63" D × 32.0" H
remove add
Width (side to side) 14.75
Depth (front to back) 19.63
Height (bottom to top) 32.0

Disclaimer

remove add

Description

more
Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDW1522 is a 15" wide single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock to protect your collection. Inside, the ASDW1522 features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41 and 64 F to accommodate red, white, or sparkling wine. Store bottles on the removable steel shelves complete with stainless steel front trim. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The ASDW1522 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDG1521 beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.
  • Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
  • Glass is framed by with a flush one-piece stainless steel trim for an elevated look
  • Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
  • Keyed lock for a secure interior (2 keys included)
  • Stainless steel handle completes the look
  • Sized at 32" high for use under lower ADA compliant counters
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Single zone wine cooler for residential or commercial cold storage
  • Walls and floor are constructed from stainless steel for added strength and easy cleanup
  • Elegant design offers a clear but protected view of your interior
Brochure W/ Drawings
Brochure W/ Drawings
View PDF for more information
Use & Care
Use & Care
View PDF for more information
Msds Information
Msds Information
View PDF for more information

Rebates

view available rebates
15" Wide Built-In Wine Cellar, Ada Compliant
15" Wide Built-In Wine Cellar, Ada Compliant
Refrigerators Collection
Simon's Price: $1,659
12 Interest Free Monthly Payments Of $139

Specifications

Specifications

remove add

Product

Icemaker No
Icemaker
  • No
Sabbath Mode Yes
Sabbath Mode
  • Yes
Wifi Enabled No
Wifi Enabled
  • No
Refrigerator Type Compact/Beverage
Refrigerator Type
  • Compact/Beverage
Refrigerator Total Capacity 1.8
Refrigerator Total Capacity
  • 1.8
Refrigerator Capacity Cubic Feet 1.8
Refrigerator Capacity Cubic Feet
  • 1.8
ADA Compliant Yes
ADA Compliant
  • Yes
Water Dispenser No
Water Dispenser
  • No
Energy Star Compliant No
Energy Star Compliant
  • No

Dimensions

Height (bottom to top) 32.0" H
Height (bottom to top)
  • 32.0" H
Width (side to side) 14.75" W
Width (side to side)
  • 14.75" W
Depth (front to back) 19.63" D
Depth (front to back)
  • 19.63" D

Storage

Number of Shelves 5
Number of Shelves
  • 5

Features & Function

Oven Features ADA Compliant
Oven Features
  • ADA Compliant
Refrigerator Features Sabbath Mode
Refrigerator Features
  • Sabbath Mode

Overview

Nominal Height 32.0" (81 cm)
Nominal Height
  • 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Height of Cabinet
  • 32.0" (81 cm)
Nominal Width 15.0" (38 cm)
Nominal Width
  • 15.0" (38 cm)
Width 14.75" (37 cm)
Width
  • 14.75" (37 cm)
Nominal Depth 18.0" (46 cm)
Nominal Depth
  • 18.0" (46 cm)
Depth 17.75" (45 cm)
Depth
  • 17.75" (45 cm)
Depth with Handle 19.63" (50 cm)
Depth with Handle
  • 19.63" (50 cm)
Depth with door at 90° 31.0" (79 cm)
Depth with door at 90°
  • 31.0" (79 cm)
Capacity 1.8 cu.ft. (51 L)
Capacity
  • 1.8 cu.ft. (51 L)
Bottles 18 bottles
Bottles
  • 18 bottles
Defrost Type Automatic
Defrost Type
  • Automatic
Door Glass
Door
  • Glass
Cabinet Black
Cabinet
  • Black
US Electrical Safety ETL
US Electrical Safety
  • ETL
Canadian Electrical Safety ETL-C
Canadian Electrical Safety
  • ETL-C
Sanitation ETL-S
Sanitation
  • ETL-S
Amps 1.0
Amps
  • 1.0
Voltage/Frequency 115 V AC/60 Hz
Voltage/Frequency
  • 115 V AC/60 Hz
Weight 68.0 lbs. (31 kg)
Weight
  • 68.0 lbs. (31 kg)
Parts & Labor Warranty 1 Year
Parts & Labor Warranty
  • 1 Year
Compressor Warranty 5 Years
Compressor Warranty
  • 5 Years
UPC 761101079516
UPC
  • 761101079516

Wine Cellar

Number of Zones 1
Number of Zones
  • 1
Door Swing RHD
Door Swing
  • RHD
Reversible Yes
Reversible
  • Yes
Height Adjustable Yes
Height Adjustable
  • Yes
Adjustable Shelves Yes
Adjustable Shelves
  • Yes
Shelf Type Steel
Shelf Type
  • Steel
Shelf Qty 5
Shelf Qty
  • 5
Thermostat Type Digital
Thermostat Type
  • Digital
Interior Light Yes
Interior Light
  • Yes
Fan Type Interior and Exterior
Fan Type
  • Interior and Exterior
Refrigerant Type R600a
Refrigerant Type
  • R600a
Refrigerant Amount 0.64 oz.
Refrigerant Amount
  • 0.64 oz.
High Side PSI 270.0
High Side PSI
  • 270.0
Low Side PSI 105.0
Low Side PSI
  • 105.0
Interior Height 1 20.5" (52 cm)
Interior Height 1
  • 20.5" (52 cm)
Interior Width 1 10.75" (27 cm)
Interior Width 1
  • 10.75" (27 cm)
Interior Depth 1 12.25" (31 cm)
Interior Depth 1
  • 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Height
  • 3.75" (10 cm)
Compressor Step Width 10.75" (27 cm)
Compressor Step Width
  • 10.75" (27 cm)
Compressor Step Depth 5.0" (13 cm)
Compressor Step Depth
  • 5.0" (13 cm)
Level Legs 4
Level Legs
  • 4
Temperature Range 41 to 64 F
Temperature Range
  • 41 to 64 F
Sabbath Mode Yes
Sabbath Mode
  • Yes
Sound Level 33 dB
Sound Level
  • 33 dB

Features

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets, Glass is framed by with a flush one-piece stainless steel trim for an elevated look, Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space, Keyed lock for a secure interior (2 keys included), Stainless steel handle completes the look, Sized at 32" high for use under lower ADA compliant counters, Front-breathing design lets you make the best use of space by installing your appliance under the counter, Single zone wine cooler for residential or commercial cold storage, Walls and floor are constructed from stainless steel for added strength and easy cleanup, Elegant design offers a clear but protected view of your interior
  • Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
  • Glass is framed by with a flush one-piece stainless steel trim for an elevated look
  • Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
  • Keyed lock for a secure interior (2 keys included)
  • Stainless steel handle completes the look
  • Sized at 32" high for use under lower ADA compliant counters
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Single zone wine cooler for residential or commercial cold storage
  • Walls and floor are constructed from stainless steel for added strength and easy cleanup
  • Elegant design offers a clear but protected view of your interior

Item & Dimensions

Manufacturer Summit
Manufacturer
  • Summit
The Refrigerators 15" Wide Built-In Wine Cellar, Ada Compliant, made by Summit, is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary. Contact us for the most current availability on this product.

Collection Details

The Refrigerators collection is an amazing option if you are looking for Appliances. Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Wine Coolers, Wine Cooler Refrigerator, Wine Fridge, Wine Refrigerator, Wine Storage Cooler, Home Appliances, Kitchen Appliance, Small Appliances, Cooler Fridge, Wine Chiller
Reference #: ASDW1522
