24" Wide Combination Dual-Zone Wine Cellar And 2-Drawer All-Refrigerator (Panels Not Included)
SKU: SWCDAR24PNR
Simon's Price:
$5,562
12 Interest Free Monthly Payments Of
$468
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
keyboard_arrow_down
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
23.63" W
×
23.5" D
×
65.63" H
Width (side to side) | 23.63 |
Depth (front to back) | 23.5 |
Height (bottom to top) | 65.63 |
Installation Depth | Standard Depth |
Disclaimer
Description
moreSummit brings an innovative, elegant solution to store wine, food, and beverages with its combination two-zone wine cellar and two-drawer refrigerator - the perfect entertainment station for the home. Sized at just under 24" wide, the SWCDAR24PNR combines the 46 bottle capacity two-zone wine cellar (model ALWC532)with the 3.4 cu.ft. two-drawer refrigerator (model FF642D) into one complete refrigeration station. The front-breathing design allows built-in installation, while the stainless steel cabinet affords freestanding use in a durable design. The sealed back offers added space savings when placing the unit, while the included 6' Y-shaped NEMA 5-15P cord with a 3-prong right angle plug allows users to operate both units from one outlet without added depth. The wine cellar door frame and refrigerator drawer fronts can be customized with overlay panels to match or accent an existing cabinetry design. Users provide their own handles to complete the look. An anti-tip bracket is included and recommended for use to avoid forward tipping. For user convenience, this model ships fully assembled. The upper two-zone wine cellar has a double pane tempered glass door featuring a seamless stainless steel trim, while a factory-installed lock offers security as needed. Inside, automatic defrost operation ensures minimal user maintenance. It is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper-temperature zone between 41°F and 50 F for white wine, while the lower zone is designed to store red wine between 50°F and 64 F. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for convenient loading. Both zones include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation. The bottom two-drawer refrigerator features complete stainless steel construction inside and out for long-lasting durability in an easy-to-clean design. The digital thermostat makes it simple to manage the interior temperature. An internal fan ensures both drawers are evenly cooled. Two adjustable dividers allow you to separate the drawer compartments into two or four zones to accommodate a variety of sizes, perfect for storing canned beverages or meats and cheeses to pair with your favorite wine. A sliding chrome basket offers additional storage convenience as needed, while the LED lighting makes it easy to view interior contents when loading or unloading both drawers. Additional features include a high-temperature alarm and an open drawer alarm for added peace of mind. Sabbath Mode disables certain electrical features during periods of religious observance, while a temperature memory function helps to recover all settings in the event of power loss. Offering complete refrigeration convenience in a slim-fitting design, the SWCDAR24PNR is ideal for home bars, kitchens, and similar residential settings seeking to store wine, beverages, and food in a modern style. Additional panel-ready options are available with a bottom freezer (model SWCDAF24PNR) or a bottom refrigerator-freezer (model SWCDRF24PNR). Note: Panels are not included. The images provided are meant only to be suggestive of what the product with wood panels installed could look like. Users must supply their own wood panels.
- Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius
- Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F
- Slim 24" wide fit offers full storage for wine, food, and beverage in a compact footprint

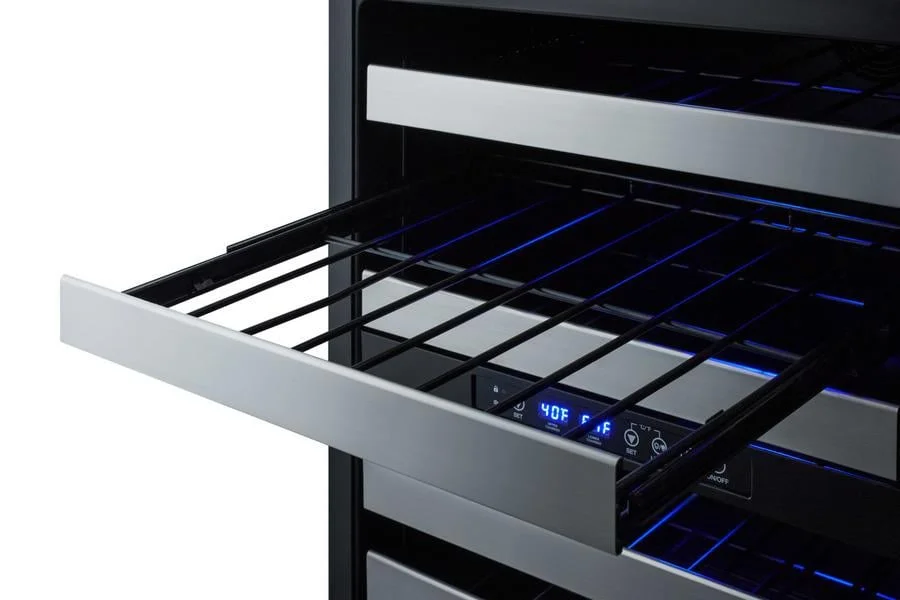

- Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving
- Shelves move smoothly on ball-bearing glides for easier loading and unloading
- Front-breathing design allows this unit be built in for added space savings
- LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of both drawer interiors for easy access
- Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532PNR) and two-drawer all-refrigerator (model FF642D), perfect for home bars, kitchens, and similar residential spaces
- Provides a full display of the interior, with two levels of glass for added protection
- Door frame can be customized with an overlay panel to best match your own cabinetry style (panel size: 27 5/8" H x 23" W at 3/4" thick)
Specifications
Specifications
Product
Icemaker
No
Icemaker
- No
Sabbath Mode
Yes
Sabbath Mode
- Yes
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Type
Compact/Beverage
Refrigerator Type
- Compact/Beverage
Refrigerator Total Capacity
3.4
Refrigerator Total Capacity
- 3.4
Refrigerator Capacity Cubic Feet
3.4
Refrigerator Capacity Cubic Feet
- 3.4
ADA Compliant
No
ADA Compliant
- No
Water Dispenser
No
Water Dispenser
- No
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
65.63" H
Height (bottom to top)
- 65.63" H
Width (side to side)
23.63" W
Width (side to side)
- 23.63" W
Depth (front to back)
23.5" D
Depth (front to back)
- 23.5" D
Installation Depth
Standard Depth
Installation Depth
- Standard Depth
Storage
Number of Shelves
6
Number of Shelves
- 6
Features & Function
Refrigerator Features
Sabbath Mode
Refrigerator Features
- Sabbath Mode
Overview
Height of Cabinet
65.63" (167 cm)
Height of Cabinet
- 65.63" (167 cm)
Width
23.63" (60 cm)
Width
- 23.63" (60 cm)
Depth
23.5" (60 cm)
Depth
- 23.5" (60 cm)
Depth with door at 90(degree)
45.75" (116 cm)
Depth with door at 90(degree)
- 45.75" (116 cm)
Capacity
3.4 cu.ft. (96 L)
Capacity
- 3.4 cu.ft. (96 L)
Bottles
46 bottles
Bottles
- 46 bottles
Defrost Type
Automatic
Defrost Type
- Automatic
Door
Glass/Panel-Ready Frame
Door
- Glass/Panel-Ready Frame
Cabinet
Stainless Steel
Cabinet
- Stainless Steel
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Energy Usage/Year
275.0kWh/year
Energy Usage/Year
- 275.0kWh/year
Other Energy Info
ALWC532: 1.25Ams; FF642D: 0.8 Amps
Other Energy Info
- ALWC532: 1.25Ams; FF642D: 0.8 Amps
Amps
2.05
Amps
- 2.05
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
229.0 lbs. (104 kg)
Weight
- 229.0 lbs. (104 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101082813
UPC
- 761101082813
Wine Cellar
Number of Zones
2
Number of Zones
- 2
Door Swing
RHD
Door Swing
- RHD
Reversible
Factory Reversible
Reversible
- Factory Reversible
Shelf Type
Wire
Shelf Type
- Wire
Shelf Qty
6
Shelf Qty
- 6
Thermostat Type
Digital
Thermostat Type
- Digital
Interior Light
Yes
Interior Light
- Yes
Fan Type
Interior and Exterior
Fan Type
- Interior and Exterior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Interior Height 1
11.88" (30 cm)
Interior Height 1
- 11.88" (30 cm)
Interior Width 1
20.5" (52 cm)
Interior Width 1
- 20.5" (52 cm)
Interior Depth 1
18.0" (46 cm)
Interior Depth 1
- 18.0" (46 cm)
Interior Height - Drawer 1
9.25" (23 cm)
Interior Height - Drawer 1
- 9.25" (23 cm)
Interior Width - Drawer 1
17.25" (44 cm)
Interior Width - Drawer 1
- 17.25" (44 cm)
Interior Depth - Drawer 1
15.5" (39 cm)
Interior Depth - Drawer 1
- 15.5" (39 cm)
Interior Height - Drawer 2
10.0" (25 cm)
Interior Height - Drawer 2
- 10.0" (25 cm)
Interior Width - Drawer 2
17.25" (44 cm)
Interior Width - Drawer 2
- 17.25" (44 cm)
Interior Depth - Drawer 2
15.5" (39 cm)
Interior Depth - Drawer 2
- 15.5" (39 cm)
Temperature Range
ALWC532: 41°F to 64°F; FF642D: 36°F to 43°F
Temperature Range
- ALWC532: 41°F to 64°F; FF642D: 36°F to 43°F
Interior Height 2
11.63" (30 cm)
Interior Height 2
- 11.63" (30 cm)
Interior Width 2
20.5" (52 cm)
Interior Width 2
- 20.5" (52 cm)
Interior Depth 2
18.0" (46 cm)
Interior Depth 2
- 18.0" (46 cm)
Features
Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius, Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F, Slim 24" wide fit offers full storage for wine, food, and beverage in a compact footprint, Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving, Shelves move smoothly on ball-bearing glides for easier loading and unloading, Front-breathing design allows this unit be built in for added space savings, LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of both drawer interiors for easy access, Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532PNR) and two-drawer all-refrigerator (model FF642D), perfect for home bars, kitchens, and similar residential spaces, Provides a full display of the interior, with two levels of glass for added protection, Door frame can be customized with an overlay panel to best match your own cabinetry style (panel size: 27 5/8" H x 23" W at 3/4" thick)
- Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius
- Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F
- Slim 24" wide fit offers full storage for wine, food, and beverage in a compact footprint
- Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving
- Shelves move smoothly on ball-bearing glides for easier loading and unloading
- Front-breathing design allows this unit be built in for added space savings
- LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of both drawer interiors for easy access
- Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532PNR) and two-drawer all-refrigerator (model FF642D), perfect for home bars, kitchens, and similar residential spaces
- Provides a full display of the interior, with two levels of glass for added protection
- Door frame can be customized with an overlay panel to best match your own cabinetry style (panel size: 27 5/8" H x 23" W at 3/4" thick)
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Refrigerators 24" Wide Combination Dual-Zone Wine Cellar And 2-Drawer All-Refrigerator (Panels Not Included), made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Refrigerators collection is an amazing option if you are looking for
Appliances.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Wine Coolers, Wine Cooler Refrigerator, Wine Fridge, Wine Refrigerator, Wine Storage Cooler, Home Appliances, Kitchen Appliance, Small Appliances, Cooler Fridge, Wine Chiller
Reference #: SWCDAR24PNR
