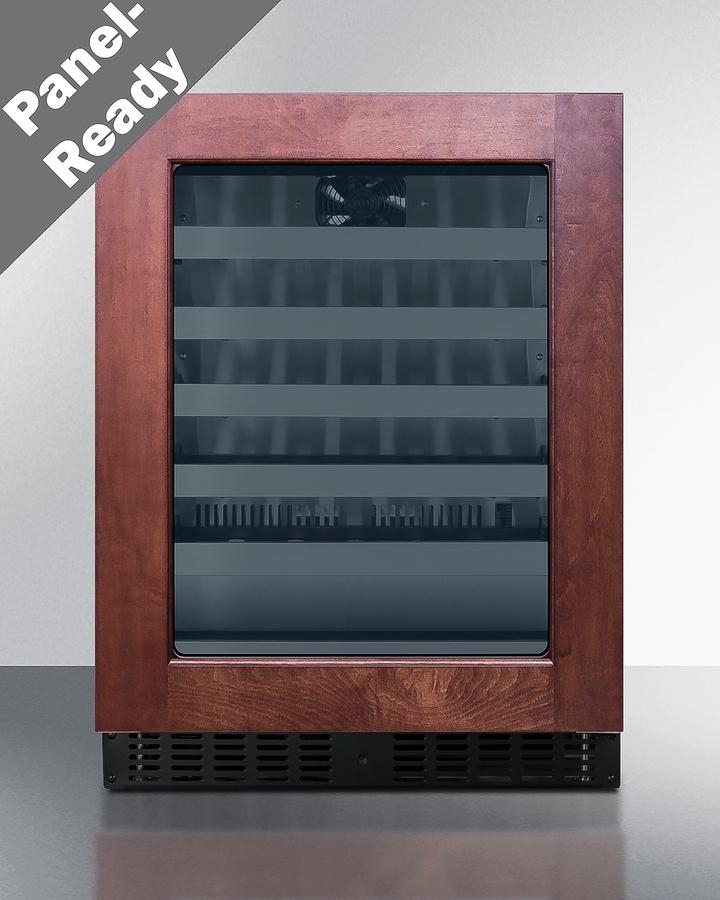

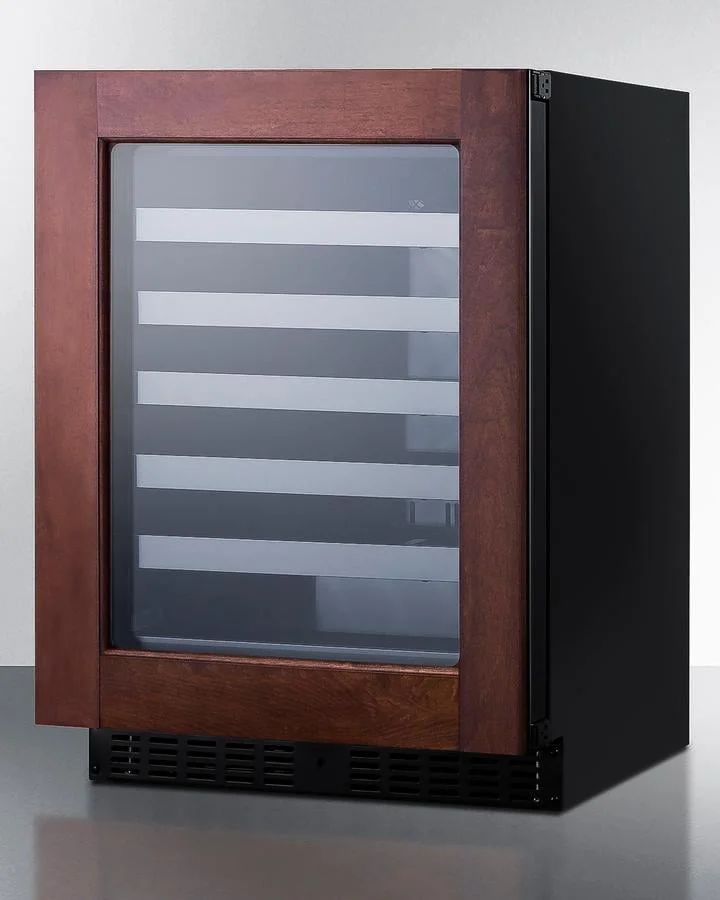

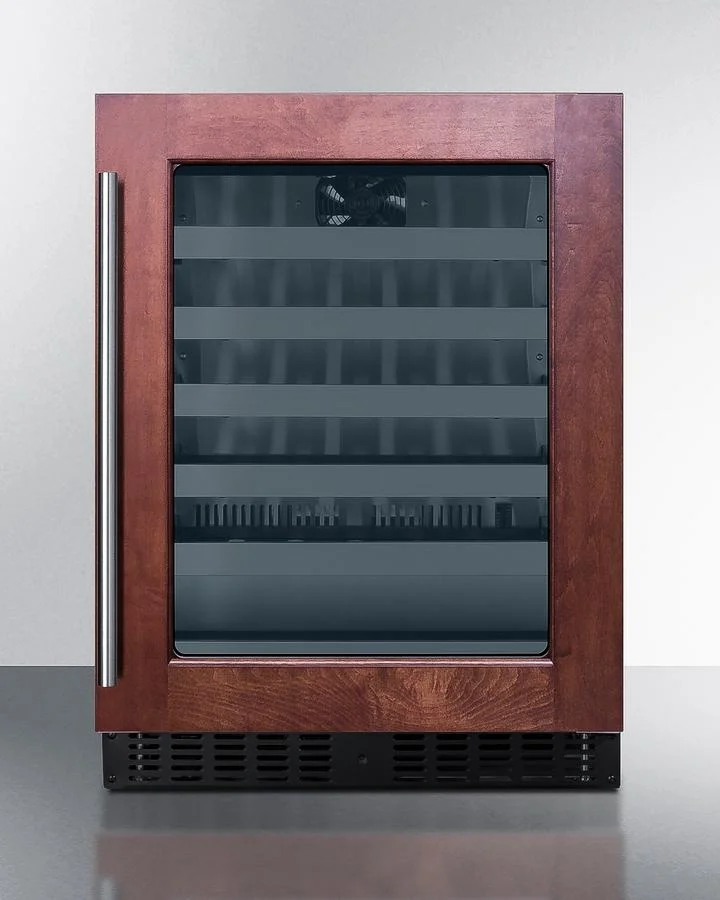

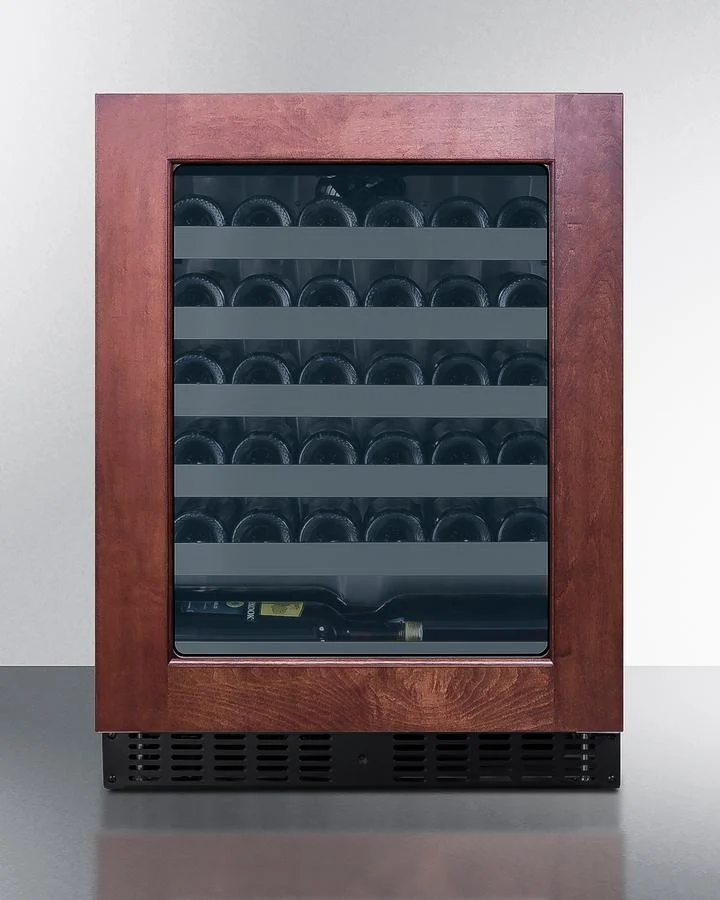

24" Wide Built-In Wine Cellar, Ada Compliant (Panel Not Included)

SKU: ASDW2412PNR
Free Delivery Appliance
Simon's Price: $2,172
12 Interest Free Monthly Payments Of $181
Price with selected options:
Qty:

Where Can I See This Product in Store?

more
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.

Ask a Question

less
First Name is required
Last Name is required
Email Address is required
Message is required

Dimensions:

23.38" W × 18.87" D × 32.0" H
remove add
Width (side to side) 23.38
Depth (front to back) 18.87
Height (bottom to top) 32.0

Disclaimer

remove add

Description

more

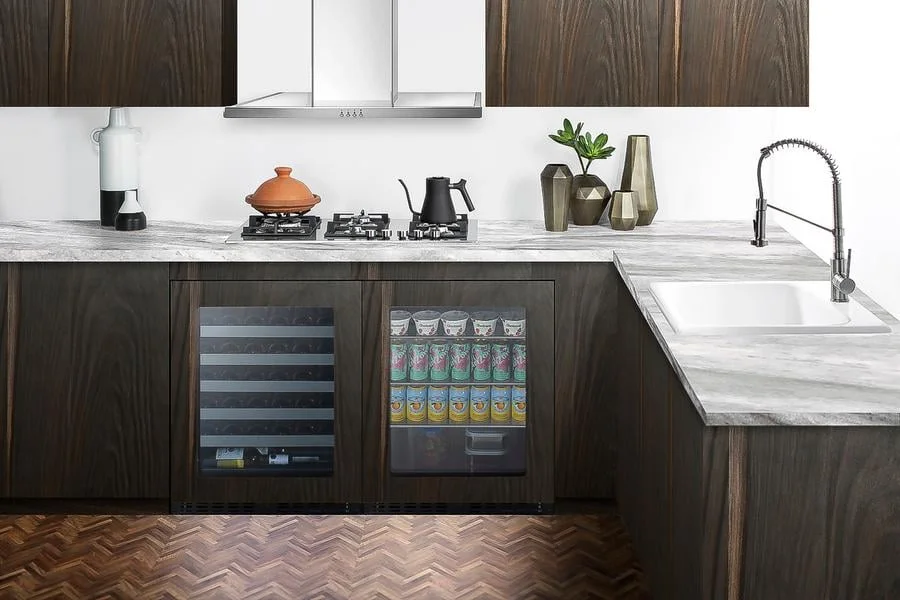

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDW2412PNR is a 24" wide 33-bottle single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit features our European style fully articulating hinge, allowing for easy installation of custom door trim panels to match your cabinetry. The sealed rear and right angle cord ensure a better fit. The door is user-reversible and includes a front lock to protect your collection. Inside, the ASDW2412PNR features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41 and 64 F to accommodate red, white, or sparkling wine. Our uniquely designed steel shelves in a jet black finish extend smoothly on ball-bearing glides, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The ASDW2412PNR is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2411PNR beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. NOTE: The interior can store up to 33 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the corks facing the rear for a better fit. Wider Burgundy bottles will also fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle design. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine. The lower shelf is designed to hold Bordeaux-style bottles horizontally. Please use care when loading and unloading this section.
  • Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
  • Glass is framed by with a flush one-piece stainless steel trim for an elevated look
  • Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
  • Walls and floor are constructed from stainless steel for added strength and easy cleanup
  • Keyed lock for a secure interior (2 keys included)
  • 32" height allows easy installation under lower ADA compliant counters
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Single zone wine cooler for residential or commercial cold storage
  • European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 28 1/4" H x 23 1/4" W with a 3 1/4" H x 3 1/4" W inner frame
  • Elegant design offers a clear but protected view of your interior
Brochure W/ Drawings
Brochure W/ Drawings
View PDF for more information
Msds Information
Msds Information
View PDF for more information
Use & Care
Use & Care
View PDF for more information

Rebates

view available rebates
24" Wide Built-In Wine Cellar, Ada Compliant (Panel Not Included)
24" Wide Built-In Wine Cellar, Ada Compliant (Panel Not Included)
Refrigerators Collection
Simon's Price: $2,172
12 Interest Free Monthly Payments Of $181

Specifications

Specifications

remove add

Product

Icemaker No
Icemaker
  • No
Sabbath Mode Yes
Sabbath Mode
  • Yes
Wifi Enabled No
Wifi Enabled
  • No
Refrigerator Type Compact/Beverage
Refrigerator Type
  • Compact/Beverage
Refrigerator Total Capacity 3.25
Refrigerator Total Capacity
  • 3.25
Refrigerator Capacity Cubic Feet 3.25
Refrigerator Capacity Cubic Feet
  • 3.25
ADA Compliant Yes
ADA Compliant
  • Yes
Water Dispenser No
Water Dispenser
  • No
Energy Star Compliant No
Energy Star Compliant
  • No

Dimensions

Height (bottom to top) 32.0" H
Height (bottom to top)
  • 32.0" H
Width (side to side) 23.38" W
Width (side to side)
  • 23.38" W
Depth (front to back) 18.87" D
Depth (front to back)
  • 18.87" D

Storage

Number of Shelves 6
Number of Shelves
  • 6

Features & Function

Oven Features ADA Compliant
Oven Features
  • ADA Compliant
Refrigerator Features Sabbath Mode
Refrigerator Features
  • Sabbath Mode

Overview

Nominal Height 32.0" (81 cm)
Nominal Height
  • 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Height of Cabinet
  • 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Nominal Width
  • 24.0" (61 cm)
Width 23.38" (59 cm)
Width
  • 23.38" (59 cm)
Nominal Depth 18.0" (46 cm)
Nominal Depth
  • 18.0" (46 cm)
Depth 17.75" (45 cm)
Depth
  • 17.75" (45 cm)
Depth with door at 90° 39.88" (101 cm)
Depth with door at 90°
  • 39.88" (101 cm)
Capacity 3.25 cu.ft. (92 L)
Capacity
  • 3.25 cu.ft. (92 L)
Defrost Type Frost-Free
Defrost Type
  • Frost-Free
Door Glass/Panel-Ready Frame
Door
  • Glass/Panel-Ready Frame
Cabinet Black
Cabinet
  • Black
US Electrical Safety ETL
US Electrical Safety
  • ETL
Canadian Electrical Safety ETL-C
Canadian Electrical Safety
  • ETL-C
Sanitation ETL-S
Sanitation
  • ETL-S
Amps 1.0
Amps
  • 1.0
Voltage/Frequency 115 V AC/60 Hz
Voltage/Frequency
  • 115 V AC/60 Hz
Weight 120.0 lbs. (54 kg)
Weight
  • 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Parts & Labor Warranty
  • 1 Year
Compressor Warranty 5 Years
Compressor Warranty
  • 5 Years
UPC 761101104195
UPC
  • 761101104195

Wine Cellar

Number of Zones 1
Number of Zones
  • 1
Door Swing RHD
Door Swing
  • RHD
Reversible Yes
Reversible
  • Yes
Height Adjustable Yes
Height Adjustable
  • Yes
Adjustable Shelves Yes
Adjustable Shelves
  • Yes
Shelf Type Steel
Shelf Type
  • Steel
Shelf Qty 6
Shelf Qty
  • 6
Thermostat Type Digital
Thermostat Type
  • Digital
Interior Light Yes
Interior Light
  • Yes
Fan Type Interior and Exterior
Fan Type
  • Interior and Exterior
Refrigerant Type R600a
Refrigerant Type
  • R600a
Refrigerant Amount 1.38 oz.
Refrigerant Amount
  • 1.38 oz.
High Side PSI 270.0
High Side PSI
  • 270.0
Low Side PSI 105.0
Low Side PSI
  • 105.0
Interior Height 1 24.25" (62 cm)
Interior Height 1
  • 24.25" (62 cm)
Interior Width 1 19.5" (50 cm)
Interior Width 1
  • 19.5" (50 cm)
Interior Depth 1 12.25" (31 cm)
Interior Depth 1
  • 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Height
  • 3.75" (10 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Width
  • 19.5" (50 cm)
Compressor Step Depth 4.5" (11 cm)
Compressor Step Depth
  • 4.5" (11 cm)
Level Legs 4
Level Legs
  • 4
Temperature Range 41 to 64 F
Temperature Range
  • 41 to 64 F
Sabbath Mode Yes
Sabbath Mode
  • Yes

Features

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets, Glass is framed by with a flush one-piece stainless steel trim for an elevated look, Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space, Walls and floor are constructed from stainless steel for added strength and easy cleanup, Keyed lock for a secure interior (2 keys included), 32" height allows easy installation under lower ADA compliant counters, Front-breathing design lets you make the best use of space by installing your appliance under the counter, Single zone wine cooler for residential or commercial cold storage, European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 28 1/4" H x 23 1/4" W with a 3 1/4" H x 3 1/4" W inner frame, Elegant design offers a clear but protected view of your interior
  • Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
  • Glass is framed by with a flush one-piece stainless steel trim for an elevated look
  • Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
  • Walls and floor are constructed from stainless steel for added strength and easy cleanup
  • Keyed lock for a secure interior (2 keys included)
  • 32" height allows easy installation under lower ADA compliant counters
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Single zone wine cooler for residential or commercial cold storage
  • European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 28 1/4" H x 23 1/4" W with a 3 1/4" H x 3 1/4" W inner frame
  • Elegant design offers a clear but protected view of your interior

Item & Dimensions

Manufacturer Summit
Manufacturer
  • Summit
The Refrigerators 24" Wide Built-In Wine Cellar, Ada Compliant (Panel Not Included), made by Summit, is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary. Contact us for the most current availability on this product.

Collection Details

The Refrigerators collection is an amazing option if you are looking for Appliances. Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Wine Coolers, Wine Cooler Refrigerator, Wine Fridge, Wine Refrigerator, Wine Storage Cooler, Home Appliances, Kitchen Appliance, Small Appliances, Cooler Fridge, Wine Chiller
Reference #: ASDW2412PNR
