20" Wide Built-In Healthcare All-Refrigerator, Ada Compliant
SKU: ADA404REFCAL
Simon's Price:
$1,301
12 Interest Free Monthly Payments Of
$110
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
keyboard_arrow_down
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
19.75" W
×
22.5" D
×
31.75" H
Width (side to side) | 19.75 |
Depth (front to back) | 22.5 |
Height (bottom to top) | 31.75 |
Refrigerator Capacity Ranges | <14 cu.ft. |
Installation Depth | Standard Depth |
Interior Height | 23.5" (60 cm) |
Interior Width | 16.25" (41 cm) |
Interior Depth | 17.0" (43 cm) |
Compressor Step Height | 6.25" (16 cm) |
Compressor Step Width | 16.25" (41 cm) |
Compressor Step Depth | 6.0" (15 cm) |
Disclaimer
Description

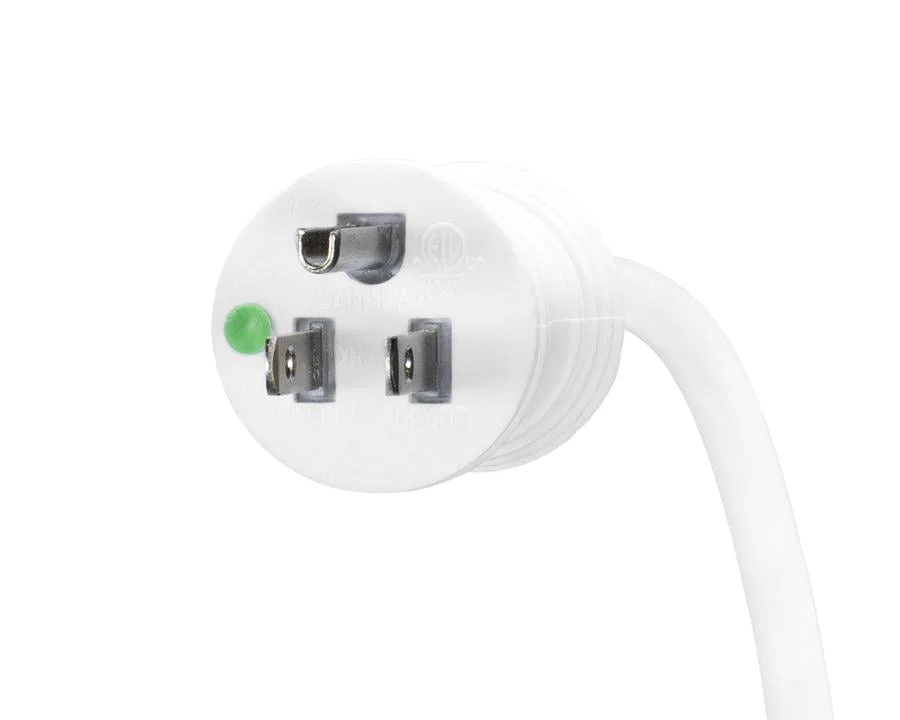

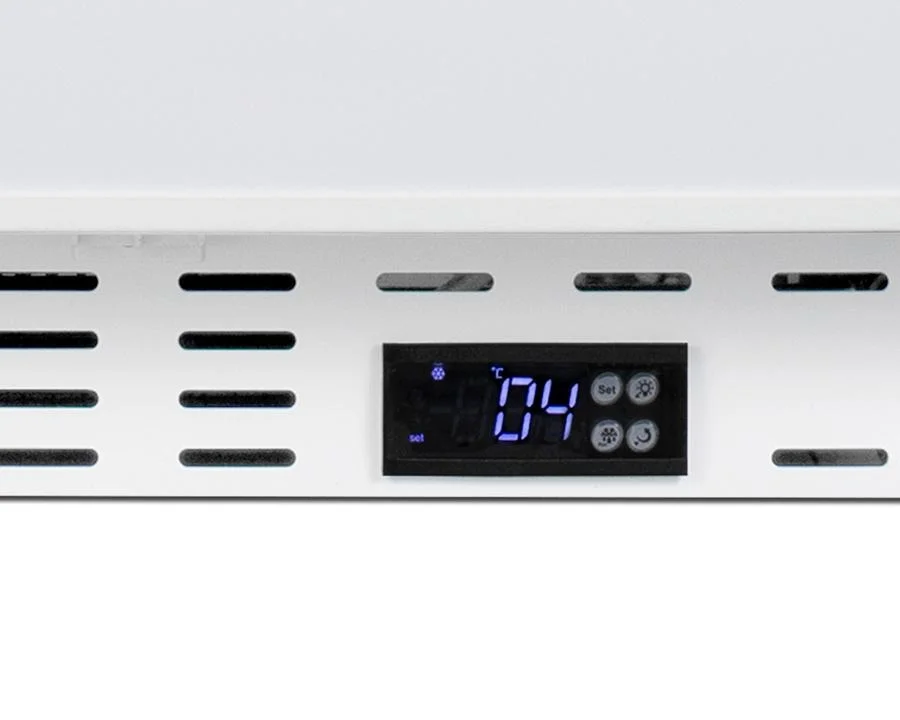

moreAccucold offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters and for the storage of vaccines and medical supplies. The ADA404REFCAL is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high-traffic areas. Powerful magnetic gaskets ensure a tight seal. This model comes with a right-hand door swing. (Note: For a left-hand door swing, please select option 'LHD' when ordering. The door is not user reversible.) The ADA404REFCAL is designed to operate between +2°C and +8°C as recommended for the storage of vaccines, select pharmaceuticals, and other medical supplies. For optimum temperature management, a pre-installed NIST-certified thermometer is included and calibrated in our own ISO/IEC 17025:2017 accredited laboratory to provide an external readout of the current and high/low temperatures to the nearest tenth of a degree (as recommended by the CDC and VFC). The display is switchable between Celsius or Fahrenheit at the touch of a button. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filed bottle and secured on the left wall of the interior cabinet to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. A certificate of calibration for your facility's records is also included. Inside, an LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu. ft. interior. Adjustable wire shelves allow you to rearrange the interior to best suit your storage needs. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind but can be disabled depending on your needs. Sized at just under 20" wide, the ADA404REFCAL is the ideal storage solution for doctors' offices, clinics, and similar facilities. NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8 C.
- Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
- Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Audible alarm sounds if the interior temperature rises or falls out of set range
- Audible alarm will sound if the door is left ajar for over a minute
- Designed to safely store vaccines, select pharmaceuticals, and other materials with strict temperature requirements
- Calibrated to NIST standards in our ISO/IEC 17025:2017 accredited laboratory, with a certificate included for your records
- 32" height allows easy installation under lower ADA compliant counters
- Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the left wall of the inner cabinet. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
- Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
Specifications
Specifications
Product
Icemaker
No
Icemaker
- No
Sabbath Mode
No
Sabbath Mode
- No
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Type
Compact/Beverage
Refrigerator Type
- Compact/Beverage
Refrigerator Total Capacity
3.32
Refrigerator Total Capacity
- 3.32
Install Type
Freestanding
Install Type
- Freestanding
Refrigerator Capacity Cubic Feet
3.32
Refrigerator Capacity Cubic Feet
- 3.32
ADA Compliant
Yes
ADA Compliant
- Yes
Water Dispenser
No
Water Dispenser
- No
Energy Star Compliant
No
Energy Star Compliant
- No
Storage
Number of Shelves
4
Number of Shelves
- 4
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Dimensions
Height (bottom to top)
31.75" H
Height (bottom to top)
- 31.75" H
Width (side to side)
19.75" W
Width (side to side)
- 19.75" W
Depth (front to back)
22.5" D
Depth (front to back)
- 22.5" D
Interior Height
23.5" (60 cm)
Interior Height
- 23.5" (60 cm)
Compressor Step Height
6.25" (16 cm)
Compressor Step Height
- 6.25" (16 cm)
Interior Width
16.25" (41 cm)
Interior Width
- 16.25" (41 cm)
Compressor Step Width
16.25" (41 cm)
Compressor Step Width
- 16.25" (41 cm)
Interior Depth
17.0" (43 cm)
Interior Depth
- 17.0" (43 cm)
Compressor Step Depth
6.0" (15 cm)
Compressor Step Depth
- 6.0" (15 cm)
Installation Depth
Standard Depth
Installation Depth
- Standard Depth
Refrigerator Capacity Ranges
<14 cu.ft.
Refrigerator Capacity Ranges
- <14 cu.ft.
Overview
Height of Cabinet
31.75" (81 cm)
Height of Cabinet
- 31.75" (81 cm)
Height to Hinge Cap
32.0" (81 cm)
Height to Hinge Cap
- 32.0" (81 cm)
Width
19.75" (50 cm)
Width
- 19.75" (50 cm)
Width with Door Open
20.25" (51 cm)
Width with Door Open
- 20.25" (51 cm)
Depth
22.5" (57 cm)
Depth
- 22.5" (57 cm)
Depth with Handle
24.38" (62 cm)
Depth with Handle
- 24.38" (62 cm)
Depth with door at 90(degree)
40.25" (102 cm)
Depth with door at 90(degree)
- 40.25" (102 cm)
Capacity
3.32 cu.ft. (94 L)
Capacity
- 3.32 cu.ft. (94 L)
Defrost Type
Automatic
Defrost Type
- Automatic
Door
White
Door
- White
Cabinet
White
Cabinet
- White
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Amps
1.1
Amps
- 1.1
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
59.0 lbs. (27 kg)
Weight
- 59.0 lbs. (27 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101079059
UPC
- 761101079059
Refrigerator Features
Door Swing
RHD
Door Swing
- RHD
Reversible
Factory Reversible
Reversible
- Factory Reversible
Shelf Type
Wire
Shelf Type
- Wire
Shelf Qty
4
Shelf Qty
- 4
Thermostat Type
Digital
Thermostat Type
- Digital
Fan Type
Interior
Fan Type
- Interior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Refrigerant Amount
0.99oz.
Refrigerant Amount
- 0.99oz.
High Side PSI
180.0
High Side PSI
- 180.0
Low Side PSI
80.0
Low Side PSI
- 80.0
Level Legs Qty
2
Level Legs Qty
- 2
Interior Light
Yes
Interior Light
- Yes
Sound Level
2°C to 8°C
Sound Level
- 2°C to 8°C
Features
Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button, Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials, Front-breathing design lets you make the best use of space by installing your appliance under the counter, Audible alarm sounds if the interior temperature rises or falls out of set range, Audible alarm will sound if the door is left ajar for over a minute, Designed to safely store vaccines, select pharmaceuticals, and other materials with strict temperature requirements, Calibrated to NIST standards in our ISO/IEC 17025:2017 accredited laboratory, with a certificate included for your records, 32" height allows easy installation under lower ADA compliant counters, Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the left wall of the inner cabinet. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines, Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
- Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
- Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Audible alarm sounds if the interior temperature rises or falls out of set range
- Audible alarm will sound if the door is left ajar for over a minute
- Designed to safely store vaccines, select pharmaceuticals, and other materials with strict temperature requirements
- Calibrated to NIST standards in our ISO/IEC 17025:2017 accredited laboratory, with a certificate included for your records
- 32" height allows easy installation under lower ADA compliant counters
- Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the left wall of the inner cabinet. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
- Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Refrigerators 20" Wide Built-In Healthcare All-Refrigerator, Ada Compliant, made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Refrigerators collection is an amazing option if you are looking for
Appliances.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Refrigerator, Refrigerator with Bottom Freezer, Built-In Refrigerator, Side by Side Refrigerators, Built In Side x Side, Compact Refrigerator, Fridge, Refrigerator without a Freezer, Under the Counter Refrigerator, Fridge, Refridgerators, Appliances, Kitchen Appliances, Icebox, Iceboxes, Residential Refrigerators, Cold Storage
Reference #: ADA404REFCAL
