lessDimensions:
29.5" W
×
23.5" D
×
17.75" H
Width (side to side) | 29.5 |
Depth (front to back) | 23.5 |
Height (bottom to top) | 17.75 |
Refrigerator Capacity Ranges | <14 cu.ft. |
Interior Height | 13.0" (33 cm) |
Interior Width | 23.63" (60 cm) |
Interior Depth | 15.5" (39 cm) |
Compressor Step Height | 6.5" (17 cm) |
Compressor Step Width | 23.63" (60 cm) |
Compressor Step Depth | 4.5" (11 cm) |
Disclaimer
Description

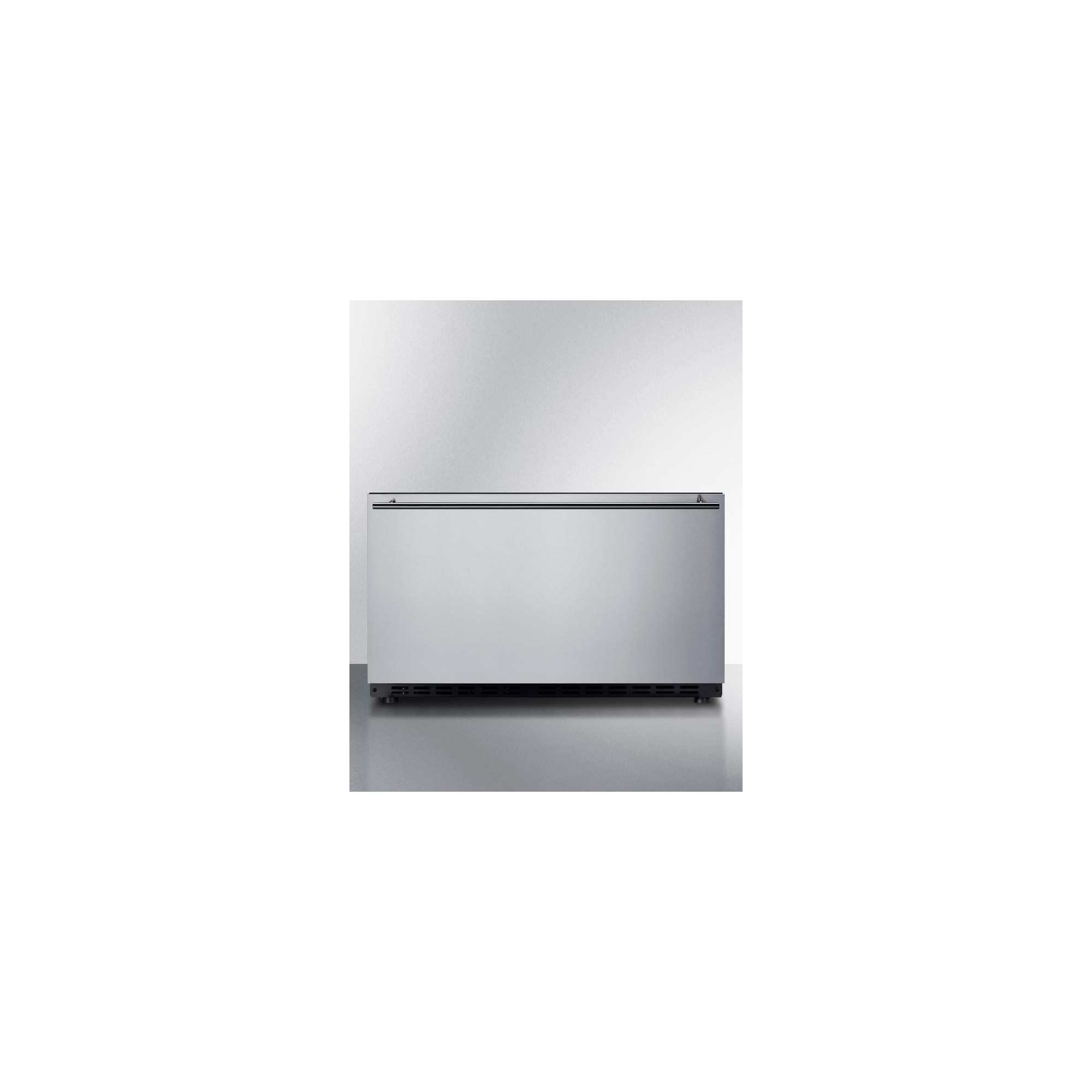

moreSummit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens. The SDR301OS is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 30" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The weatherproof construction allows safe use in outdoor settings, with a sealed back and fully finished black cabinet to ensure all components are protected from the elements. The drawer is constructed from 304 grade stainless steel, with a pro style handle and fully finished front. For more custom style, the drawer is panel-ready, allowing you to match or complement existing cabinetry in a few simple steps (suggested panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness). Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. We include a removable clear cover that helps protect all components from the elements. To adjust the settings, slide the off to access the screen. Inside, the SDR301OS offers a full 2.5 cu.ft. capacity to accommodate your storage needs. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. With its fully-featured, weatherproof design, the SDR301OS is the perfect cooling compartment or beverage holder in outdoor or indoor home kitchens, as well as hotel spaces, foodservice areas, and more. Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.
- Front-breathing design allows you to build the drawer into cabinetry

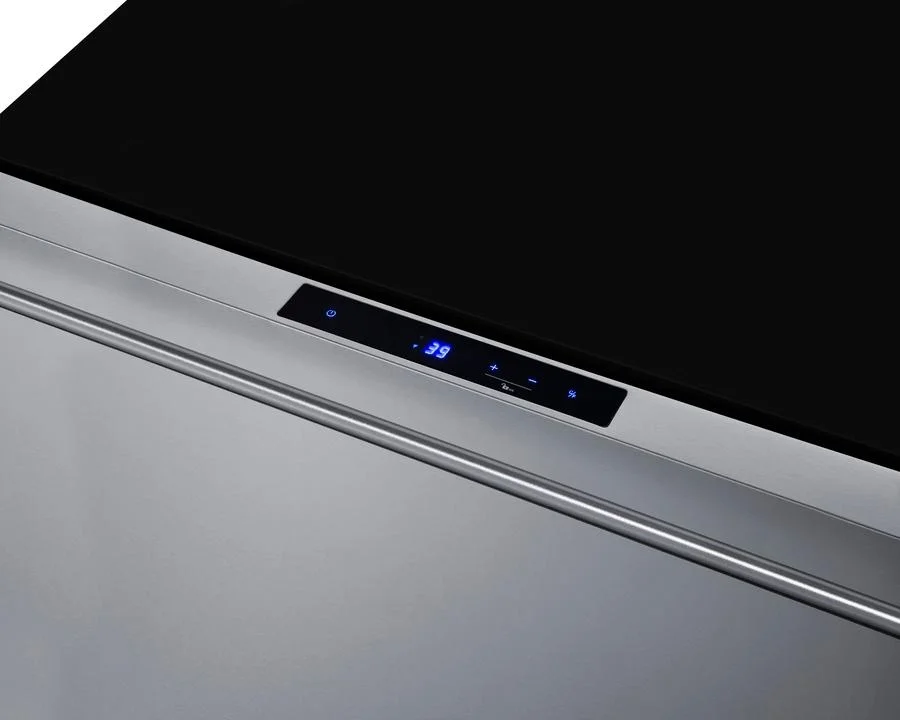

- Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
- Durable construction allows safe installation in outdoor kitchens
- Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior
- Removable divider makes it easy to organize stored items
- ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
- Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness)
- 2.5 cu.ft. all-refrigerator in a single drawer style
- Drawer front and interior constructed from stainless steel for added durability and easy cleanability
- Minimum user maintenance with a fully no-frost operation system
Specifications
Specifications
Product
Icemaker
No
Icemaker
- No
Sabbath Mode
Yes
Sabbath Mode
- Yes
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Type
Undercounter Drawer
Refrigerator Type
- Undercounter Drawer
Refrigerator Total Capacity
2.5
Refrigerator Total Capacity
- 2.5
Install Type
Built-In
Install Type
- Built-In
Refrigerator Capacity Cubic Feet
2.5
Refrigerator Capacity Cubic Feet
- 2.5
ADA Compliant
No
ADA Compliant
- No
Water Dispenser
No
Water Dispenser
- No
Energy Star Compliant
No
Energy Star Compliant
- No
Storage
Number of Shelves
1
Number of Shelves
- 1
Features & Function
Refrigerator Features
Sabbath Mode
Refrigerator Features
- Sabbath Mode
Dimensions
Height (bottom to top)
17.75" H
Height (bottom to top)
- 17.75" H
Width (side to side)
29.5" W
Width (side to side)
- 29.5" W
Depth (front to back)
23.5" D
Depth (front to back)
- 23.5" D
Interior Height
13.0" (33 cm)
Interior Height
- 13.0" (33 cm)
Compressor Step Height
6.5" (17 cm)
Compressor Step Height
- 6.5" (17 cm)
Interior Width
23.63" (60 cm)
Interior Width
- 23.63" (60 cm)
Compressor Step Width
23.63" (60 cm)
Compressor Step Width
- 23.63" (60 cm)
Interior Depth
15.5" (39 cm)
Interior Depth
- 15.5" (39 cm)
Compressor Step Depth
4.5" (11 cm)
Compressor Step Depth
- 4.5" (11 cm)
Refrigerator Capacity Ranges
<14 cu.ft.
Refrigerator Capacity Ranges
- <14 cu.ft.
Overview
Height of Cabinet
17.75" (45 cm)
Height of Cabinet
- 17.75" (45 cm)
Width
29.5" (75 cm)
Width
- 29.5" (75 cm)
Depth
22.0" (56 cm)
Depth
- 22.0" (56 cm)
Depth with Handle
23.5" (60 cm)
Depth with Handle
- 23.5" (60 cm)
Depth with door at 90(degree)
37.88" (96 cm)
Depth with door at 90(degree)
- 37.88" (96 cm)
Capacity
2.5 cu.ft. (71 L)
Capacity
- 2.5 cu.ft. (71 L)
Defrost Type
Frost-Free
Defrost Type
- Frost-Free
Door
Stainless Steel/Panel-Ready
Door
- Stainless Steel/Panel-Ready
Cabinet
Black
Cabinet
- Black
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Sanitation
ETL-S
Sanitation
- ETL-S
Energy Usage/Year
280.0kWh/year
Energy Usage/Year
- 280.0kWh/year
Amps
1.0
Amps
- 1.0
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
77.0 lbs. (35 kg)
Weight
- 77.0 lbs. (35 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101088990
UPC
- 761101088990
Refrigerator Features
Sabbath Mode
Yes
Sabbath Mode
- Yes
Door Swing
Drawer
Door Swing
- Drawer
Reversible
No
Reversible
- No
Shelf Type
Glass
Shelf Type
- Glass
Shelf Qty
1
Shelf Qty
- 1
Adjustable Shelves
Yes
Adjustable Shelves
- Yes
Thermostat Type
Digital
Thermostat Type
- Digital
Fan Type
Interior and Exterior
Fan Type
- Interior and Exterior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Refrigerant Amount
0.92oz.
Refrigerant Amount
- 0.92oz.
High Side PSI
270.0
High Side PSI
- 270.0
Low Side PSI
105.0
Low Side PSI
- 105.0
Level Legs Qty
4
Level Legs Qty
- 4
Interior Light
Yes
Interior Light
- Yes
Temperature Range
36 to 43 F
Temperature Range
- 36 to 43 F
Sound Level
34.3 dB
Sound Level
- 34.3 dB
Features
Front-breathing design allows you to build the drawer into cabinetry, Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit, Durable construction allows safe installation in outdoor kitchens, Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior, Removable divider makes it easy to organize stored items, ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings, Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness), 2.5 cu.ft. all-refrigerator in a single drawer style, Drawer front and interior constructed from stainless steel for added durability and easy cleanability, Minimum user maintenance with a fully no-frost operation system
- Front-breathing design allows you to build the drawer into cabinetry
- Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
- Durable construction allows safe installation in outdoor kitchens
- Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior
- Removable divider makes it easy to organize stored items
- ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
- Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness)
- 2.5 cu.ft. all-refrigerator in a single drawer style
- Drawer front and interior constructed from stainless steel for added durability and easy cleanability
- Minimum user maintenance with a fully no-frost operation system
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Refrigerators 30" Wide Built-In Outdoor Drawer Refrigerator, made by Summit,
