18" Wide 2-Drawer All-Refrigerator, Ada Compliant (Panels Not Included)

Name: Refrigerators Refrigerated Drawer
Brand: Summit
Price: 2448.0 USD
Availability: OnlineOnly

Refrigerators Collection by Summit

SKU: ADRD18PNR

Be the first to write a review

Simon's Price: $2,448

12 Interest Free Monthly Payments Of $204

Price with selected options:

Qty:

Items in Cart

( products)

Where Can I See This Product in Store?

This product is not on display in our showrooms.

Estimated Delivery Price

Enter your zip code to get a delivery estimate.

Ask a Question

less

First Name *

First Name is required

Last Name *

Last Name is required

Email Address *

Email Address is required

How can we help you? *

Message is required

Sign-up for email offers and promotions

Important Field Do you agree to the terms of service? (*Required)

Really Important Field

Dimensions:

17.75" W × 23.25" D × 31.5" H

remove add

Width (side to side)	17.75
Depth (front to back)	23.25
Height (bottom to top)	31.5
Refrigerator Capacity Ranges	<14 cu.ft.
Installation Depth	Standard Depth
Compressor Step Height	5.75" (15 cm)
Compressor Step Width	12.75" (32 cm)
Compressor Step Depth	4.75" (12 cm)

see more specs

Disclaimer

remove add

Description

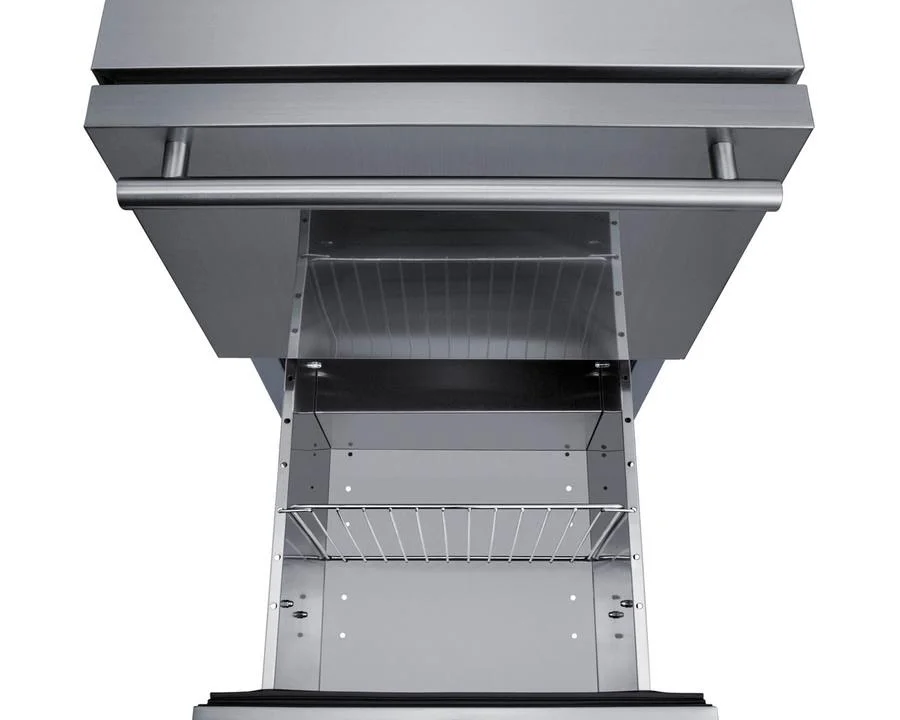

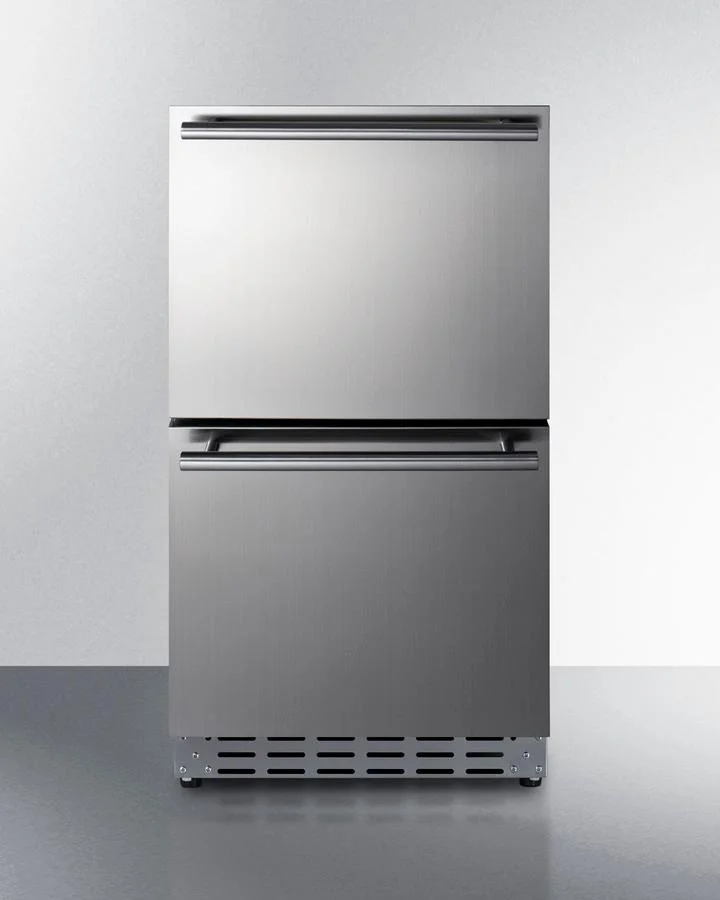

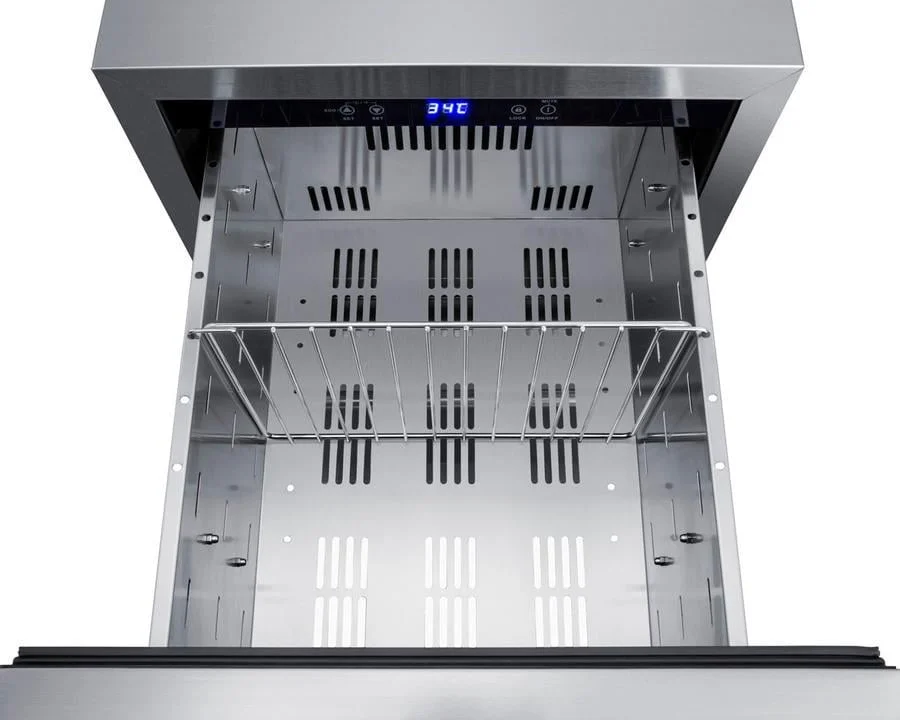

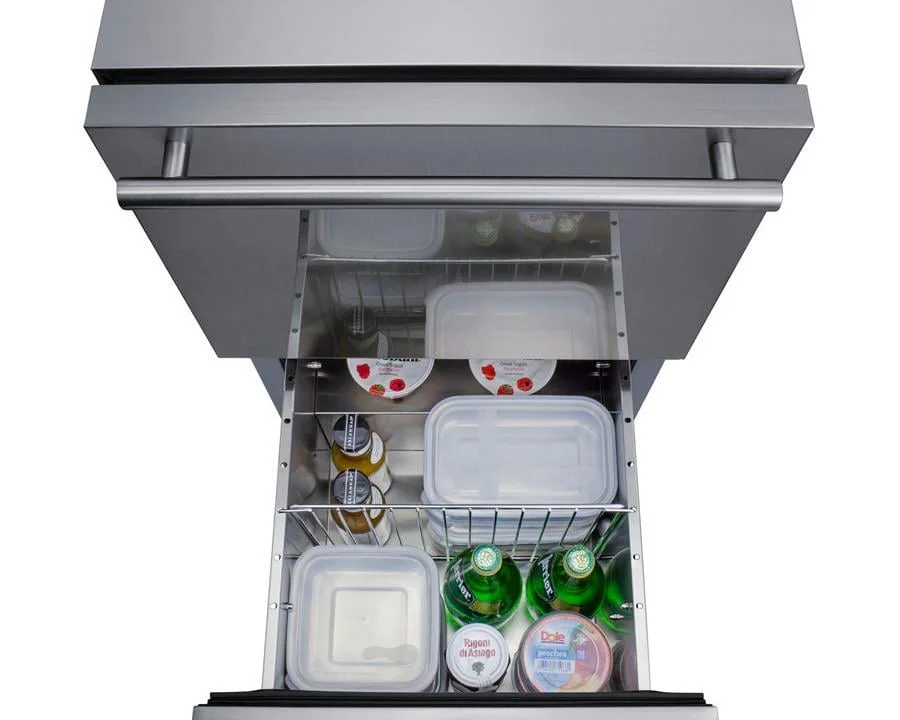

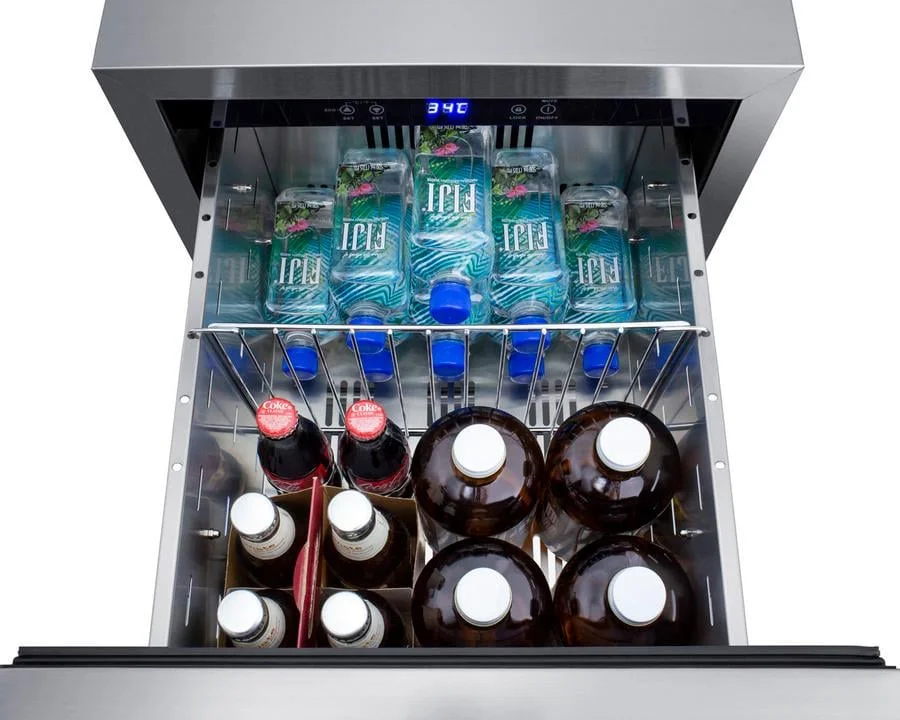

Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style. The ADRD18PNR is a two-drawer all-refrigerator sized just under 32 inches high for installation under lower ADA compliant counters. The front-breathing design and finished 304 grade stainless steel cabinet allow for built-in or freestanding use. The drawer front are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 17.7" W x 14" H at 3/4" thick). The drawers are fully finished in stainless steel. We include two sleek handles for optional use. Soft close glides allow you to gently close each drawer with a light touch. The stainless steel kickplate and stylish handles complete the look. This unit features a right angle cord and sealed rear for added space spacings. Frost-free operation ensures minimum user maintenance inside the 3.4 cu ft. interior. Each drawer includes a divider to make it easier to separate and organize your storage, with attractive and efficient LED lighting to illuminate the interior. Intuitive digital controls display a temperature readout switchable from Fahrenheit to Celsius to best suit your preference. High/low temperature alarms audibly warn if the interior goes out of the recommended range. Additional features include an open drawer alarm, child lock to secure the controls, sabbath mode for optional observance, and eco-mode for energy savings. Model ADRD18PNR is ETL-S listed to NSF-7 commercial standards and also meets DOE guidelines for residential use. This unit is also approved for use in outdoor kitchens. Additional 18" wide options are available in front-opening styles as refrigerators, freezers, icemakers, beverage centers, and wine cellars. Browse the complete Summit lineup for more options.

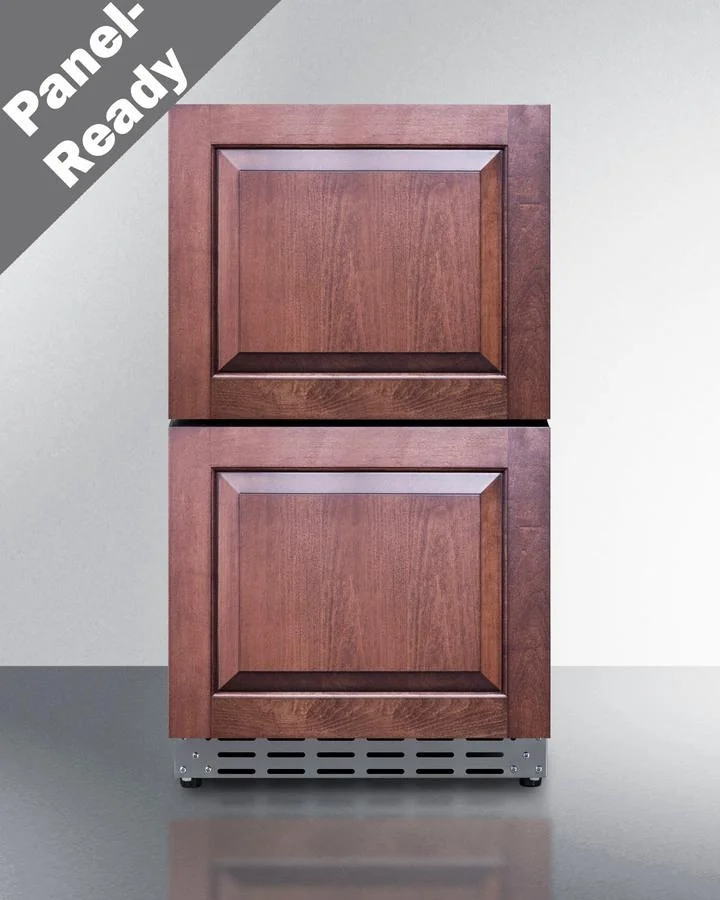

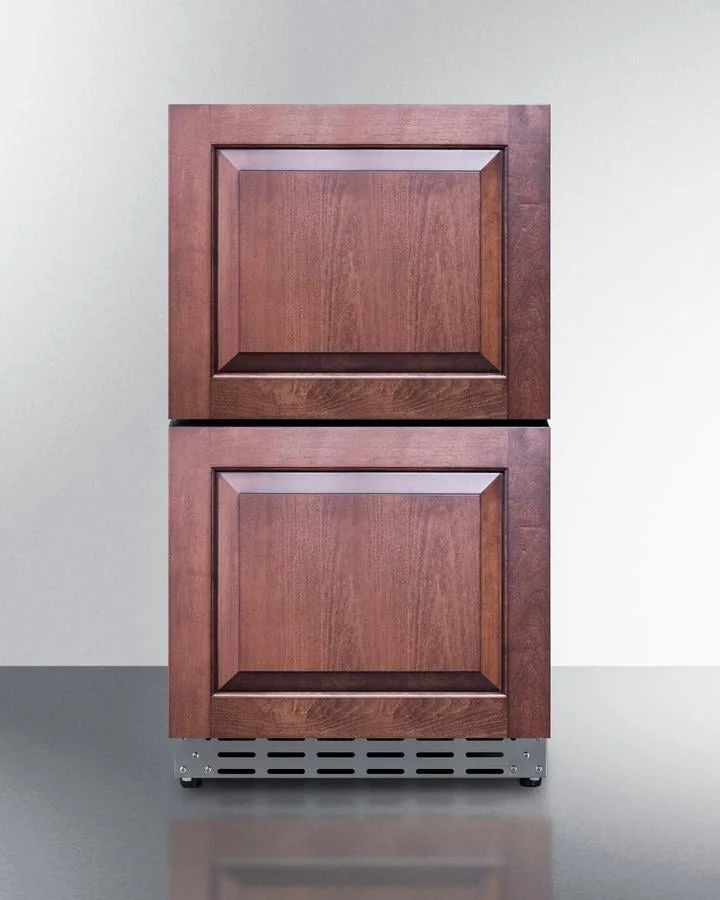

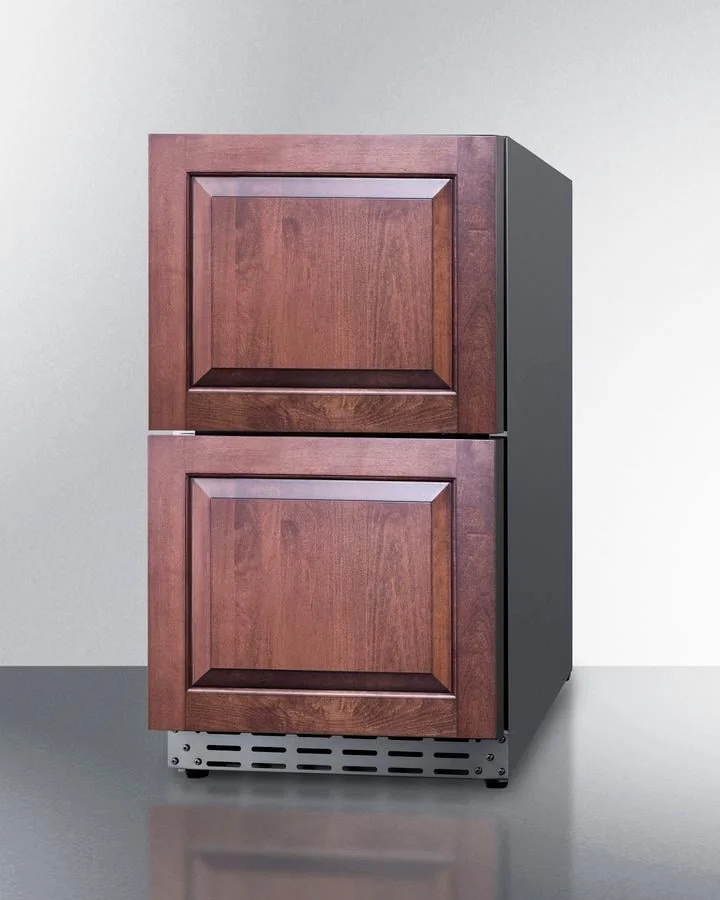

Drawers can be customized with overlay panels sized (at 14" H x 17.7" W at 3/4" thick) to match or accent existing cabinetry

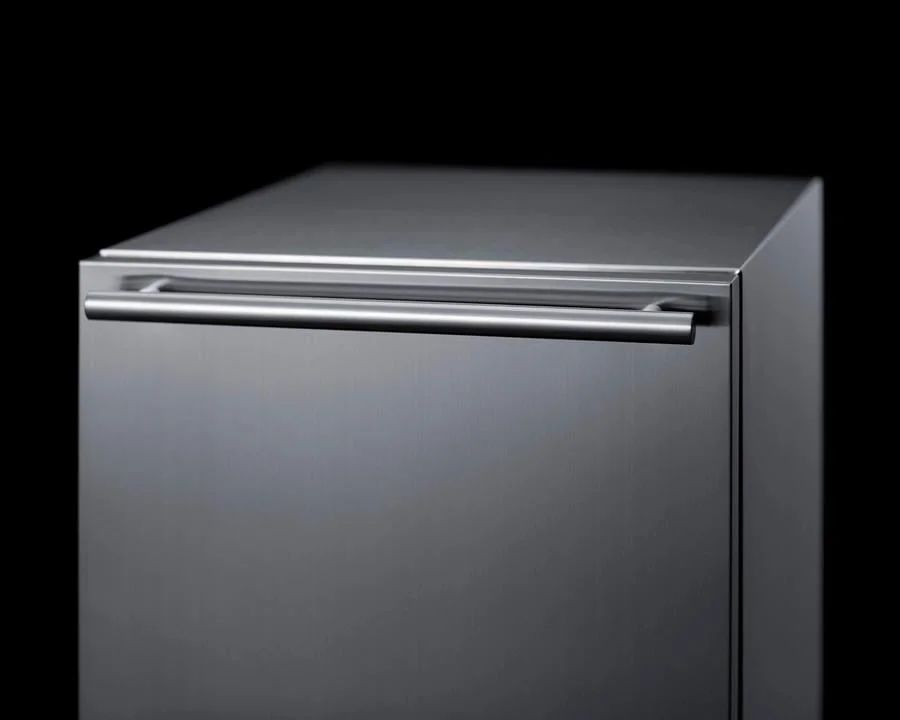

Stainless steel handles add style to any setting
ETL-S listed to NSF-7 standards for commercial use
No-frost operation for minimal user maintenance
Soft LED lighting makes for easy viewing of each drawer s contents
32 height allows for installation under lower ADA compliant counters
Front-breathing design allows the unit to be built-in under counters
Two-drawer design in a unique 18" width ideal for undercounter spaces
Complete 304 grade stainless steel inside and out to ensure lasting durability with a luxurious look
Durable, weatherproof construction designed to hold up to the elements

Brochure W/ Drawings

View PDF for more information

Use & Care

View PDF for more information

Energy Guide

View PDF for more information

Rebates

view available rebates

18" Wide 2-Drawer All-Refrigerator, Ada Compliant (Panels Not Included)

Refrigerators Collection

Simon's Price: $2,448

12 Interest Free Monthly Payments Of $204

Items in Cart ()

Specifications

Product

Icemaker No

Icemaker

Sabbath Mode Yes

Sabbath Mode

Wifi Enabled No

Wifi Enabled

Refrigerator Type Undercounter Drawer

Refrigerator Type

Undercounter Drawer

Refrigerator Total Capacity 3.4

Refrigerator Total Capacity

Install Type Built-In

Install Type

Built-In

Refrigerator Capacity Cubic Feet 3.4

Refrigerator Capacity Cubic Feet

ADA Compliant Yes

ADA Compliant

Water Dispenser No

Water Dispenser

Energy Star Compliant No

Energy Star Compliant

Features & Function

Oven Features ADA Compliant

Oven Features

ADA Compliant

Refrigerator Features Sabbath Mode

Refrigerator Features

Sabbath Mode

Dimensions

Height (bottom to top) 31.5" H

Height (bottom to top)

31.5" H

Width (side to side) 17.75" W

Width (side to side)

17.75" W

Depth (front to back) 23.25" D

Depth (front to back)

23.25" D

Compressor Step Height 5.75" (15 cm)

Compressor Step Height

5.75" (15 cm)

Compressor Step Width 12.75" (32 cm)

Compressor Step Width

12.75" (32 cm)

Compressor Step Depth 4.75" (12 cm)

Compressor Step Depth

4.75" (12 cm)

Installation Depth Standard Depth

Installation Depth

Standard Depth

Refrigerator Capacity Ranges <14 cu.ft.

Refrigerator Capacity Ranges

<14 cu.ft.

Overview

Nominal Height 32.0" (81 cm)

Nominal Height

32.0" (81 cm)

Height of Cabinet 31.5" (80 cm)

Height of Cabinet

31.5" (80 cm)

Nominal Width 18.0" (46 cm)

Nominal Width

18.0" (46 cm)

Width 17.75" (45 cm)

Width

17.75" (45 cm)

Nominal Depth 24.0" (61 cm)

Nominal Depth

24.0" (61 cm)

Depth 23.25" (59 cm)

Depth

23.25" (59 cm)

Depth with Handle 25.0" (64 cm)

Depth with Handle

25.0" (64 cm)

Depth with door at 90° 37.0" (94 cm)

Depth with door at 90°

37.0" (94 cm)

Capacity 3.4 cu.ft. (96 L)

Capacity

3.4 cu.ft. (96 L)

Defrost Type Frost-Free

Defrost Type

Frost-Free

Door Stainless Steel/Panel-Ready

Door

Stainless Steel/Panel-Ready

Cabinet Stainless Steel

Cabinet

Stainless Steel

US Electrical Safety ETL

US Electrical Safety

Canadian Electrical Safety ETL-C

Canadian Electrical Safety

ETL-C

Sanitation ETL-S

Sanitation

ETL-S

Energy Usage/Year 259.0kWh/year

Energy Usage/Year

259.0kWh/year

Amps 1.25

Amps

1.25

Voltage/Frequency 115 V AC/60 Hz

Voltage/Frequency

115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Weight

100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Parts & Labor Warranty

1 Year

Compressor Warranty 5 Years

Compressor Warranty

5 Years

UPC 761101088709

UPC

761101088709

Refrigerator Features

Sabbath Mode Yes

Sabbath Mode

Door Swing Drawer

Door Swing

Drawer

Thermostat Type Digital

Thermostat Type

Digital

Fan Type Interior and Exterior

Fan Type

Interior and Exterior

Refrigerant Type R600a

Refrigerant Type

R600a

Refrigerant Amount 1.23oz.

Refrigerant Amount

1.23oz.

High Side PSI 150.0

High Side PSI

150.0

Low Side PSI 50.0

Low Side PSI

50.0

Level Legs Qty 4

Level Legs Qty

Interior Light Yes

Interior Light

Interior Drawers Yes

Interior Drawers

Interior Drawers Qty 2

Interior Drawers Qty

Temperature Range 34 to 65°F

Temperature Range

34 to 65°F

Drawer Dimensions

Interior Height 1 8.75" (22 cm)

Interior Height 1

8.75" (22 cm)

Interior Width 1 12.75" (32 cm)

Interior Width 1

12.75" (32 cm)

Interior Depth 1 17.5" (44 cm)

Interior Depth 1

17.5" (44 cm)

Interior Height 2 10.5" (27 cm)

Interior Height 2

10.5" (27 cm)

Interior Width 2 12.75" (32 cm)

Interior Width 2

12.75" (32 cm)

Interior Depth 2 17.5" (44 cm)

Interior Depth 2

17.5" (44 cm)

Features

Drawers can be customized with overlay panels sized (at 14" H x 17.7" W at 3/4" thick) to match or accent existing cabinetry, Stainless steel handles add style to any setting, ETL-S listed to NSF-7 standards for commercial use, No-frost operation for minimal user maintenance, Soft LED lighting makes for easy viewing of each drawer s contents, 32 height allows for installation under lower ADA compliant counters, Front-breathing design allows the unit to be built-in under counters, Two-drawer design in a unique 18" width ideal for undercounter spaces, Complete 304 grade stainless steel inside and out to ensure lasting durability with a luxurious look, Durable, weatherproof construction designed to hold up to the elements

Drawers can be customized with overlay panels sized (at 14" H x 17.7" W at 3/4" thick) to match or accent existing cabinetry
Stainless steel handles add style to any setting
ETL-S listed to NSF-7 standards for commercial use
No-frost operation for minimal user maintenance
Soft LED lighting makes for easy viewing of each drawer s contents
32 height allows for installation under lower ADA compliant counters
Front-breathing design allows the unit to be built-in under counters
Two-drawer design in a unique 18" width ideal for undercounter spaces
Complete 304 grade stainless steel inside and out to ensure lasting durability with a luxurious look
Durable, weatherproof construction designed to hold up to the elements
