24" Wide 2-Drawer Refrigerator-Freezer, Ada Compliant
SKU: ADRF244
Simon's Price:
$3,024
12 Interest Free Monthly Payments Of
$255
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
keyboard_arrow_down
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
23.38" W
×
23.88" D
×
31.88" H
Width (side to side) | 23.38 |
Depth (front to back) | 23.88 |
Height (bottom to top) | 31.88 |
Refrigerator Capacity Ranges | <14 cu.ft. |
Disclaimer
Description
moreSummit manufactures an extensive selection of drawer refrigeration designed to bring elegant style and modern convenience to any undercounter space, with ADA compliant choices designed for indoor and outdoor installation. Sized at just under 24" wide and 32" high, model ADRF244 is a 2-drawer refrigerator-freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The fully finished black cabinet and stainless steel drawer fronts feature weatherproof construction for safe use in outdoor kitchens, with a sealed back to protect all components from the elements. Sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). Inside, the ADRF244 has a generous 3.3 cu.ft. capacity to accommodate your storage needs. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ADRF244 is ETL-S listed to NSF-7 commercial standards and approved for residential use. Additional refrigerator and freezer drawers are available, with 15" and 18" choices and standard height options. Browse the full Summit line to explore your endless options for ADA compliant undercounter spaces.
- Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior
- Sleek stainless steel handles add an elegant touch to any setting
- Sized just under 32" high to allow installation under lower ADA compliant counters
- No-frost operation for minimum user maintenance

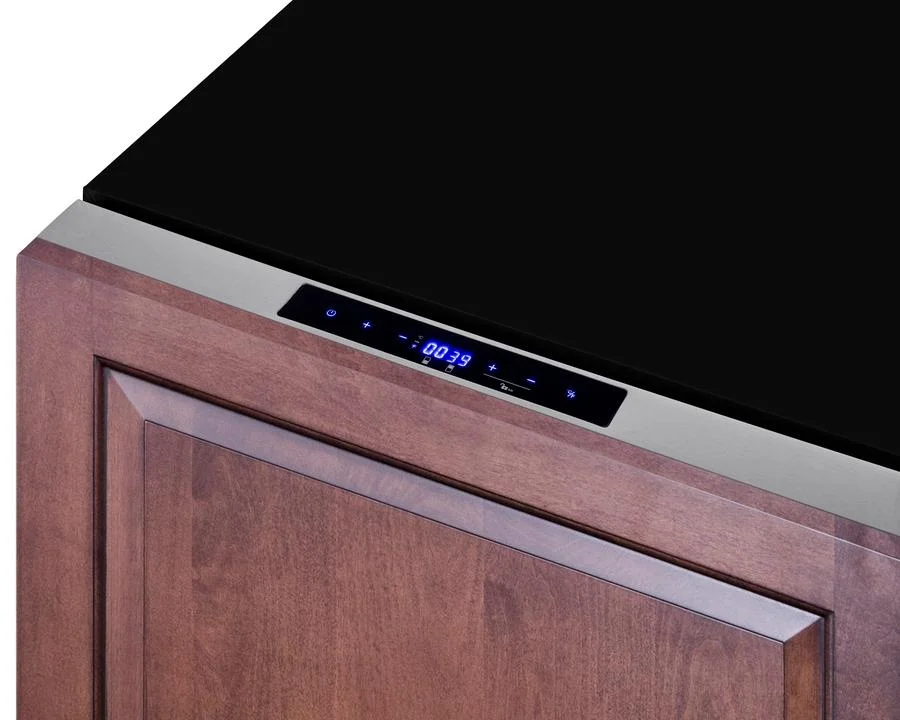

- Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
- Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
- ETL-S listed to ANSI-NSF Standard 7 for commercial use
- Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer
- Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style
- Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
Specifications
Specifications
Product
Icemaker
No
Icemaker
- No
Sabbath Mode
Yes
Sabbath Mode
- Yes
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Type
Undercounter Drawer
Refrigerator Type
- Undercounter Drawer
Refrigerator Total Capacity
3.32
Refrigerator Total Capacity
- 3.32
Install Type
Built-In
Install Type
- Built-In
Refrigerator Capacity Cubic Feet
3.32
Refrigerator Capacity Cubic Feet
- 3.32
ADA Compliant
Yes
ADA Compliant
- Yes
Water Dispenser
No
Water Dispenser
- No
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
31.88" H
Height (bottom to top)
- 31.88" H
Width (side to side)
23.38" W
Width (side to side)
- 23.38" W
Depth (front to back)
23.88" D
Depth (front to back)
- 23.88" D
Refrigerator Capacity Ranges
<14 cu.ft.
Refrigerator Capacity Ranges
- <14 cu.ft.
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Refrigerator Features
Sabbath Mode
Refrigerator Features
- Sabbath Mode
Overview
Height of Cabinet
31.88" (81 cm)
Height of Cabinet
- 31.88" (81 cm)
Width
23.38" (59 cm)
Width
- 23.38" (59 cm)
Depth
22.5" (57 cm)
Depth
- 22.5" (57 cm)
Depth with Handle
23.88" (61 cm)
Depth with Handle
- 23.88" (61 cm)
Depth with door at 90(degree)
34.25" (87 cm)
Depth with door at 90(degree)
- 34.25" (87 cm)
Capacity
3.32 cu.ft. (94 L)
Capacity
- 3.32 cu.ft. (94 L)
Defrost Type
Frost-Free
Defrost Type
- Frost-Free
Door
Stainless Steel/Panel-Ready
Door
- Stainless Steel/Panel-Ready
Cabinet
Black
Cabinet
- Black
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Sanitation
ETL-S
Sanitation
- ETL-S
Energy Usage/Year
370.0kWh/year
Energy Usage/Year
- 370.0kWh/year
Amps
1.0
Amps
- 1.0
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
105.0 lbs. (48 kg)
Weight
- 105.0 lbs. (48 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101079578
UPC
- 761101079578
Refrigerator-Freezer
Door Swing
Drawer
Door Swing
- Drawer
Interior Light
Yes
Interior Light
- Yes
Refrigerator - Interior Height
8.0" (20 cm)
Refrigerator - Interior Height
- 8.0" (20 cm)
Refrigerator - Interior Width
17.0" (43 cm)
Refrigerator - Interior Width
- 17.0" (43 cm)
Refrigerator - Interior Depth
14.5" (37 cm)
Refrigerator - Interior Depth
- 14.5" (37 cm)
Refrigerator - Temperature Range
36°F to 43°F
Refrigerator - Temperature Range
- 36°F to 43°F
Freezer - Interior Height
8.0" (20 cm)
Freezer - Interior Height
- 8.0" (20 cm)
Freezer - Interior Width
17.0" (43 cm)
Freezer - Interior Width
- 17.0" (43 cm)
Freezer - Interior Depth
14.5" (37 cm)
Freezer - Interior Depth
- 14.5" (37 cm)
Thermostat Type
Digital
Thermostat Type
- Digital
Fan Type
Interior
Fan Type
- Interior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Refrigerant Amount
1.38 oz.
Refrigerant Amount
- 1.38 oz.
High Side PSI
270.0
High Side PSI
- 270.0
Low Side PSI
105.0
Low Side PSI
- 105.0
Level Legs
4
Level Legs
- 4
Freezer - Temperature Range
-11°F to 11°F
Freezer - Temperature Range
- -11°F to 11°F
Compressor Step Height
4.0" (10 cm)
Compressor Step Height
- 4.0" (10 cm)
Compressor Step Width
17.0" (43 cm)
Compressor Step Width
- 17.0" (43 cm)
Compressor Step Depth
3.5" (9 cm)
Compressor Step Depth
- 3.5" (9 cm)
Sabbath Mode
Yes
Sabbath Mode
- Yes
Sound Level
34.6 dB
Sound Level
- 34.6 dB
Features
Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior, Sleek stainless steel handles add an elegant touch to any setting, Sized just under 32" high to allow installation under lower ADA compliant counters, No-frost operation for minimum user maintenance, Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button, Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings, ETL-S listed to ANSI-NSF Standard 7 for commercial use, Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer, Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style, Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
- Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior
- Sleek stainless steel handles add an elegant touch to any setting
- Sized just under 32" high to allow installation under lower ADA compliant counters
- No-frost operation for minimum user maintenance
- Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
- Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
- ETL-S listed to ANSI-NSF Standard 7 for commercial use
- Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer
- Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style
- Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Refrigerators 24" Wide 2-Drawer Refrigerator-Freezer, Ada Compliant, made by Summit,
