Simon's Price:
$2,622
12 Interest Free Monthly Payments Of
$221
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
keyboard_arrow_down
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
29.5" W
×
23.5" D
×
17.75" H
Width (side to side) | 29.5 |
Depth (front to back) | 23.5 |
Height (bottom to top) | 17.75 |
Refrigerator Capacity Ranges | <14 cu.ft. |
Interior Height | 13.0" (33 cm) |
Interior Width | 23.63" (60 cm) |
Interior Depth | 15.5" (39 cm) |
Compressor Step Height | 6.5" (17 cm) |
Compressor Step Width | 23.63" (60 cm) |
Compressor Step Depth | 4.5" (11 cm) |
Disclaimer
Description

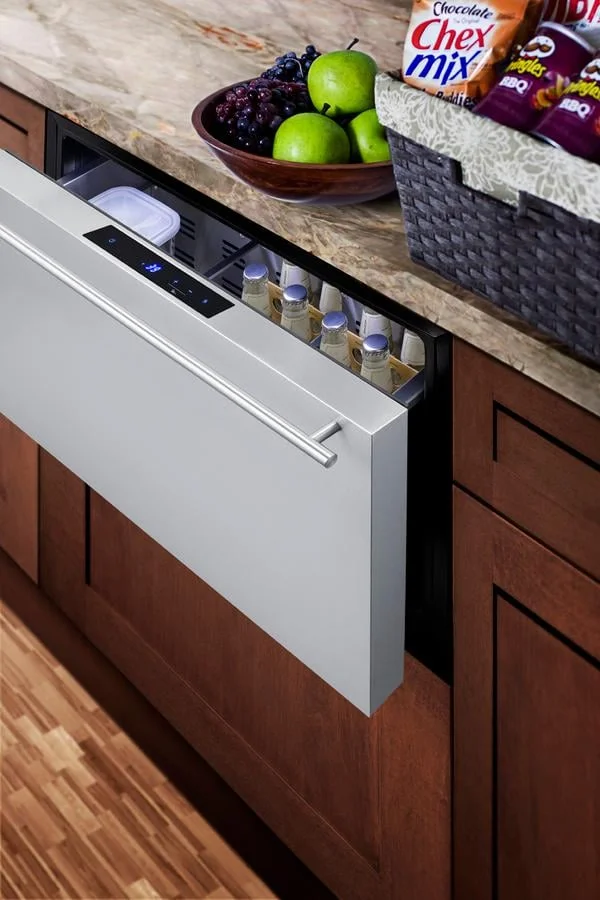

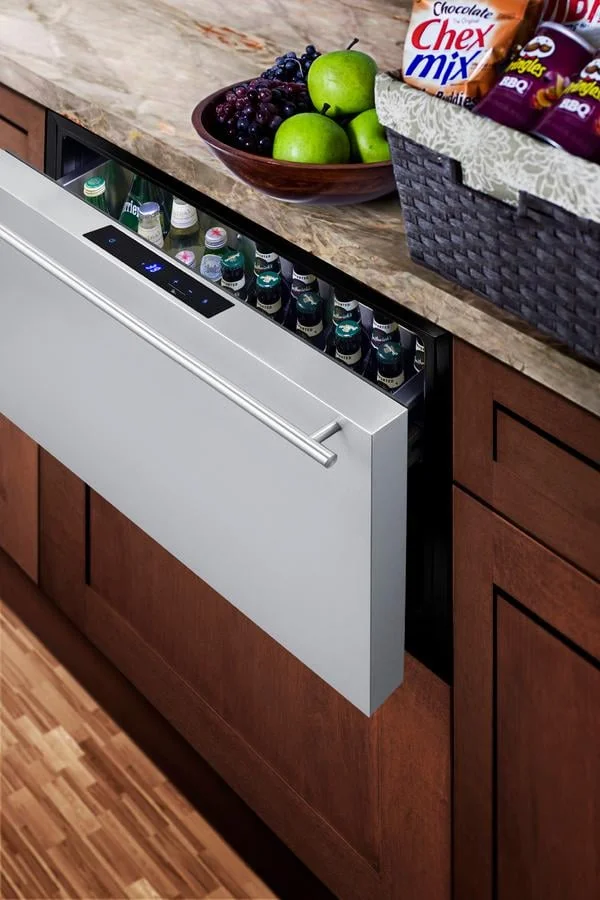

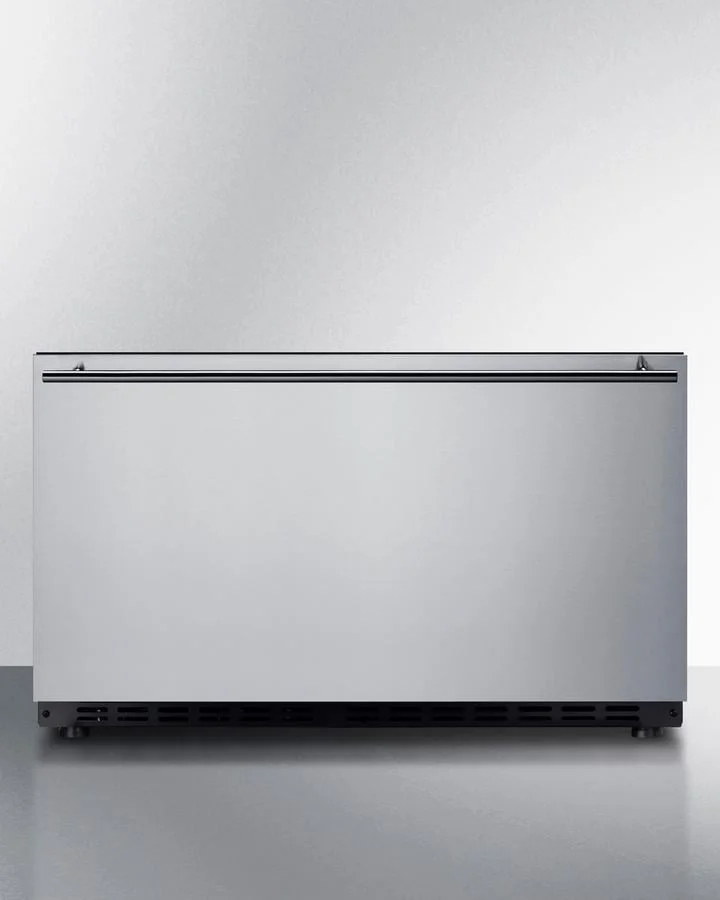

moreSummit offers a quality line of commercially approved drawer refrigerators, including single drawer options for built-in installation. The SDR30 is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 30" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The fully finished black cabinet also enables freestanding use. The drawer features 304 grade stainless steel construction inside and out, with a fully finished front that can also be customized with your own overlay panel (not included) to match existing cabinetry style (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness). This unit has a sealed rear with no exposed coils and a right angle plug for an easier fit. Inside, the SDR30 has a 2.5 cu.ft. capacity to accommodate your storage needs. Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. With its fully-featured, weatherproof design, the SDR30 is the perfect cooling compartment or beverage holder for home kitchens, as well as hotel spaces, foodservice areas, and more. Additional single drawer choices are available in a 21" and 24" width, with a 36" choice available soon. Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.

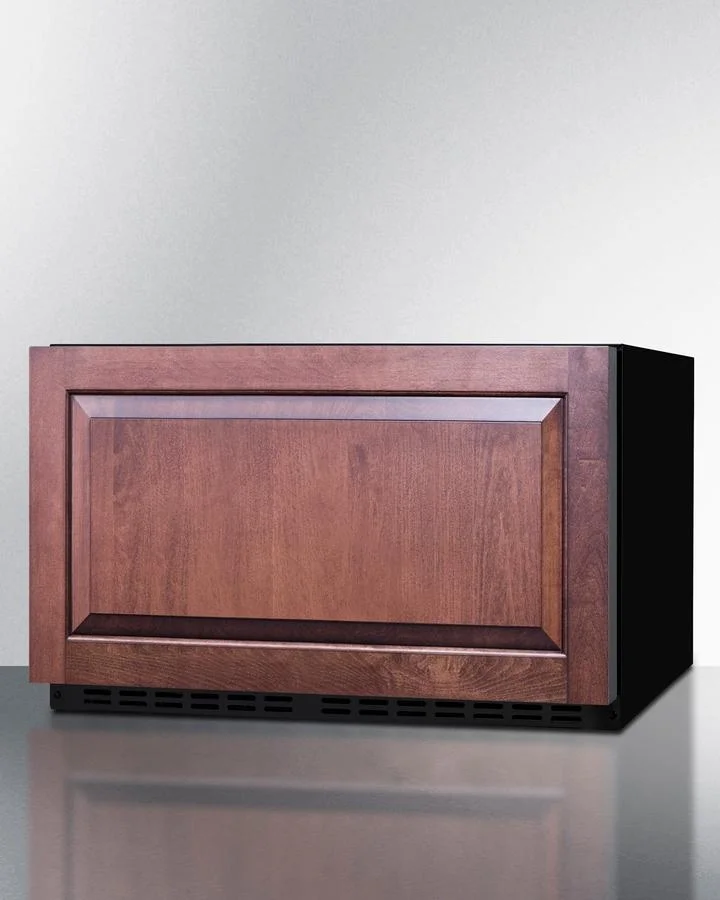

- Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness)
- Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior
- ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

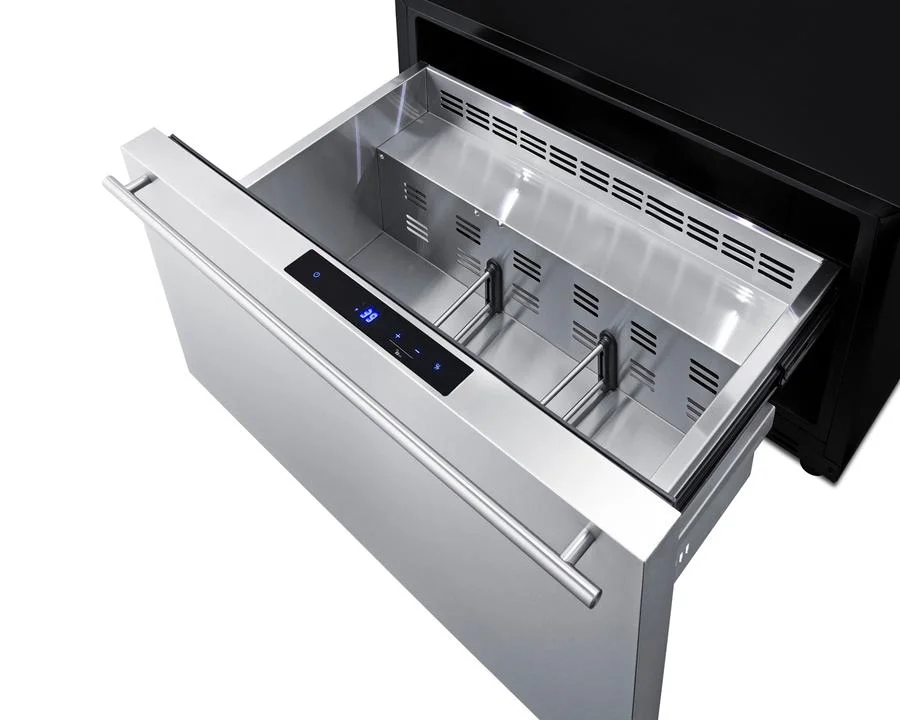

- Removable divider makes it easy to organize stored items
- Includes one half-sized shelf that lets you create more separation as needed
- Front-breathing design allows you to build the drawer into cabinetry

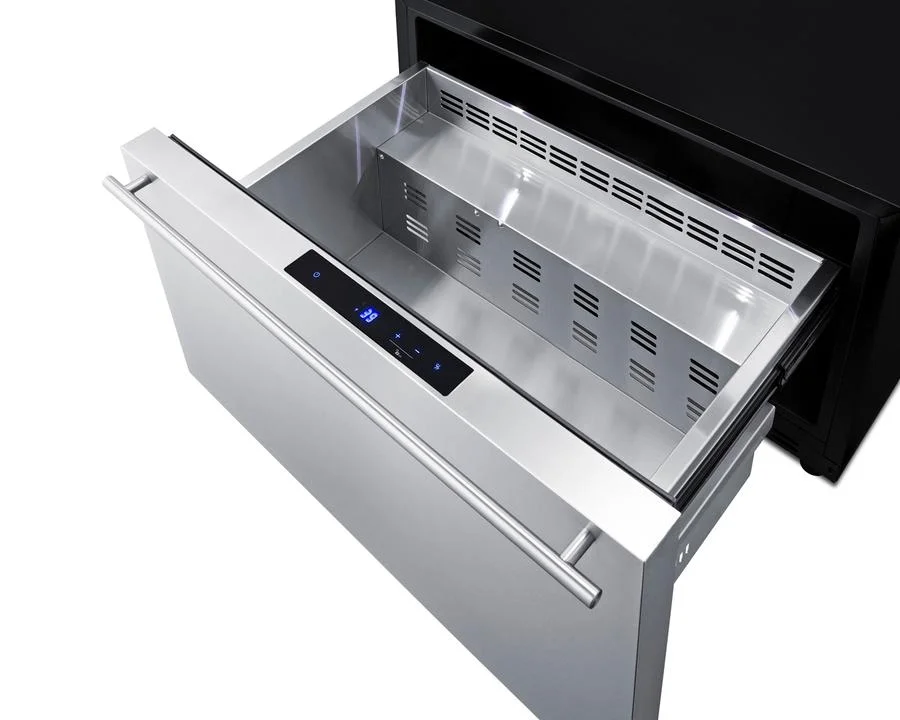

- Drawer front and interior constructed from stainless steel for added durability and easy cleanability
- 2.5 cu.ft. all-refrigerator in a single drawer style
- Minimum user maintenance with a fully no-frost operation system

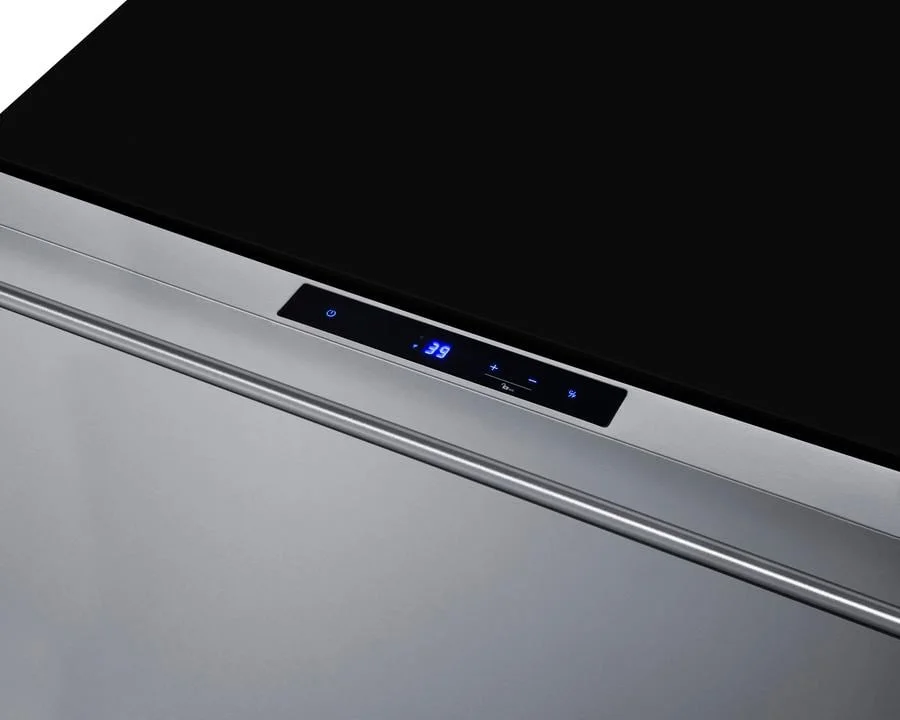

- Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
Specifications
Specifications
Product
Icemaker
No
Icemaker
- No
Sabbath Mode
Yes
Sabbath Mode
- Yes
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Type
Undercounter Drawer
Refrigerator Type
- Undercounter Drawer
Refrigerator Total Capacity
2.54
Refrigerator Total Capacity
- 2.54
Install Type
Built-In
Install Type
- Built-In
Refrigerator Capacity Cubic Feet
2.54
Refrigerator Capacity Cubic Feet
- 2.54
ADA Compliant
No
ADA Compliant
- No
Water Dispenser
No
Water Dispenser
- No
Energy Star Compliant
No
Energy Star Compliant
- No
Storage
Number of Shelves
1
Number of Shelves
- 1
Features & Function
Refrigerator Features
Sabbath Mode
Refrigerator Features
- Sabbath Mode
Dimensions
Height (bottom to top)
17.75" H
Height (bottom to top)
- 17.75" H
Width (side to side)
29.5" W
Width (side to side)
- 29.5" W
Depth (front to back)
23.5" D
Depth (front to back)
- 23.5" D
Interior Height
13.0" (33 cm)
Interior Height
- 13.0" (33 cm)
Compressor Step Height
6.5" (17 cm)
Compressor Step Height
- 6.5" (17 cm)
Interior Width
23.63" (60 cm)
Interior Width
- 23.63" (60 cm)
Compressor Step Width
23.63" (60 cm)
Compressor Step Width
- 23.63" (60 cm)
Interior Depth
15.5" (39 cm)
Interior Depth
- 15.5" (39 cm)
Compressor Step Depth
4.5" (11 cm)
Compressor Step Depth
- 4.5" (11 cm)
Refrigerator Capacity Ranges
<14 cu.ft.
Refrigerator Capacity Ranges
- <14 cu.ft.
Overview
Height of Cabinet
17.75" (45 cm)
Height of Cabinet
- 17.75" (45 cm)
Width
29.5" (75 cm)
Width
- 29.5" (75 cm)
Depth
22.0" (56 cm)
Depth
- 22.0" (56 cm)
Depth with Handle
23.5" (60 cm)
Depth with Handle
- 23.5" (60 cm)
Depth with door at 90(degree)
37.88" (96 cm)
Depth with door at 90(degree)
- 37.88" (96 cm)
Capacity
2.54 cu.ft. (72 L)
Capacity
- 2.54 cu.ft. (72 L)
Defrost Type
Frost-Free
Defrost Type
- Frost-Free
Door
Stainless Steel/Panel-Ready
Door
- Stainless Steel/Panel-Ready
Cabinet
Black
Cabinet
- Black
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Sanitation
ETL-S
Sanitation
- ETL-S
Energy Usage/Year
280.0kWh/year
Energy Usage/Year
- 280.0kWh/year
Amps
1.0
Amps
- 1.0
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
77.0 lbs. (35 kg)
Weight
- 77.0 lbs. (35 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101086606
UPC
- 761101086606
Refrigerator Features
Sabbath Mode
Yes
Sabbath Mode
- Yes
Door Swing
Drawer
Door Swing
- Drawer
Reversible
No
Reversible
- No
Shelf Type
Glass
Shelf Type
- Glass
Shelf Qty
1
Shelf Qty
- 1
Adjustable Shelves
Yes
Adjustable Shelves
- Yes
Thermostat Type
Digital
Thermostat Type
- Digital
Fan Type
Interior and Exterior
Fan Type
- Interior and Exterior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Refrigerant Amount
0.92oz.
Refrigerant Amount
- 0.92oz.
High Side PSI
270.0
High Side PSI
- 270.0
Low Side PSI
105.0
Low Side PSI
- 105.0
Level Legs Qty
4
Level Legs Qty
- 4
Interior Light
Yes
Interior Light
- Yes
Temperature Range
36 to 43 F
Temperature Range
- 36 to 43 F
Sound Level
34.3 dB
Sound Level
- 34.3 dB
Features
Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness), Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior, ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings, Removable divider makes it easy to organize stored items, Includes one half-sized shelf that lets you create more separation as needed, Front-breathing design allows you to build the drawer into cabinetry, Drawer front and interior constructed from stainless steel for added durability and easy cleanability, 2.5 cu.ft. all-refrigerator in a single drawer style, Minimum user maintenance with a fully no-frost operation system, Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
- Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness)
- Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior
- ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
- Removable divider makes it easy to organize stored items
- Includes one half-sized shelf that lets you create more separation as needed
- Front-breathing design allows you to build the drawer into cabinetry
- Drawer front and interior constructed from stainless steel for added durability and easy cleanability
- 2.5 cu.ft. all-refrigerator in a single drawer style
- Minimum user maintenance with a fully no-frost operation system
- Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Refrigerators 30" Wide Built-In Drawer Refrigerator, made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Refrigerators collection is an amazing option if you are looking for
Appliances.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Refrigerator, Refrigerator with Bottom Freezer, Built-In Refrigerator, Side by Side Refrigerators, Built In Side x Side, Compact Refrigerator, Fridge, Refrigerator without a Freezer, Under the Counter Refrigerator, Fridge, Refridgerators, Appliances, Kitchen Appliances, Icebox, Iceboxes, Residential Refrigerators, Cold Storage
Reference #: SDR30
