24" Wide Built-In All-Refrigerator, Ada Compliant (Panel Not Included)
SKU: AL54IFLHD
Simon's Price:
$1,861
12 Interest Free Monthly Payments Of
$157
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
keyboard_arrow_down
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
23.63" W
×
22.63" D
×
32.0" H
Width (side to side) | 23.63 |
Depth (front to back) | 22.63 |
Height (bottom to top) | 32.0 |
Refrigerator Capacity Ranges | <14 cu.ft. |
Interior Height | 25.0" (64 cm) |
Interior Width | 20.0" (51 cm) |
Interior Depth | 17.5" (44 cm) |
Compressor Step Height | 3.25" (8 cm) |
Compressor Step Width | 20.0" (51 cm) |
Compressor Step Depth | 5.25" (13 cm) |
Disclaimer
Description

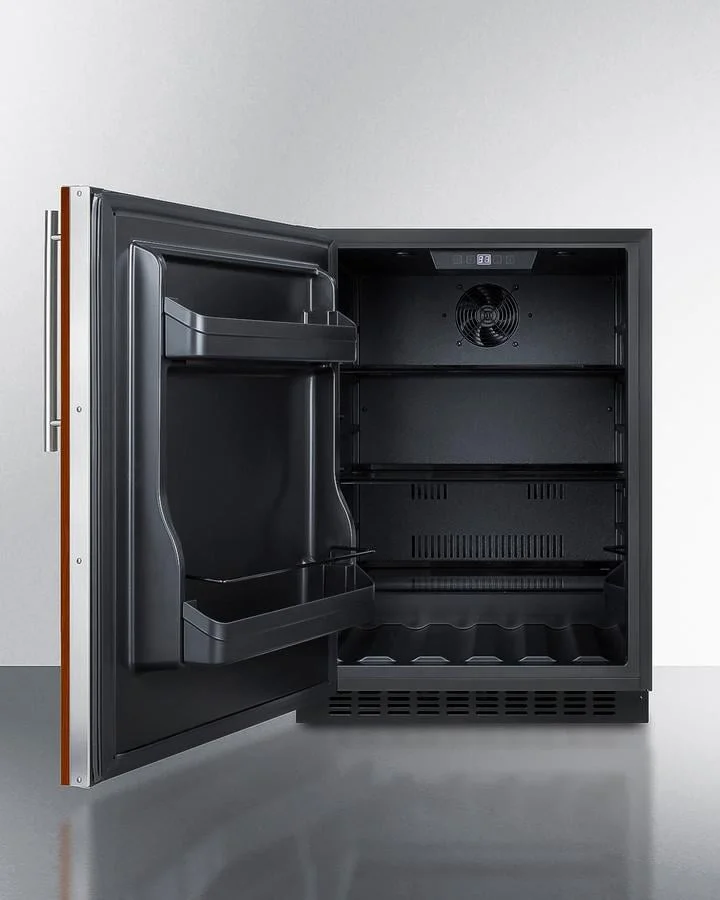

moreSUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. Sized with a convenient 24" footprint, the AL54IF is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The door features a European-style fully articulating hinge for smooth opening. This also allows the door to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle cord for a better fit. It ships with a left hand door swing. Inside, the AL54IFLHD utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The AL54IFLHD refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. Additional styles are available, as well a matching frost-free freezer (model ALFZ53IF). Browse the full Summit line to explore your endless options.
- No-frost operation for minimum user maintenance
- Two door racks offer convenient storage for condiments and bottles
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Floor is specially slotted to store wine and other bottles safely in place
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)
- Electronic controls located inside the unit for precise temperature management
- 32" height allows easy installation under lower ADA compliant counters
- Efficient and attractive presentation with LED lighting
- Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Specifications
Specifications
Product
Icemaker
No
Icemaker
- No
Sabbath Mode
Yes
Sabbath Mode
- Yes
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Total Capacity
4.8
Refrigerator Total Capacity
- 4.8
Install Type
Built-In
Install Type
- Built-In
Refrigerator Capacity Cubic Feet
4.8
Refrigerator Capacity Cubic Feet
- 4.8
ADA Compliant
Yes
ADA Compliant
- Yes
Water Dispenser
No
Water Dispenser
- No
Energy Star Compliant
No
Energy Star Compliant
- No
Storage
Number of Shelves
3
Number of Shelves
- 3
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Refrigerator Features
Sabbath Mode
Refrigerator Features
- Sabbath Mode
Dimensions
Height (bottom to top)
32.0" H
Height (bottom to top)
- 32.0" H
Width (side to side)
23.63" W
Width (side to side)
- 23.63" W
Depth (front to back)
22.63" D
Depth (front to back)
- 22.63" D
Interior Height
25.0" (64 cm)
Interior Height
- 25.0" (64 cm)
Compressor Step Height
3.25" (8 cm)
Compressor Step Height
- 3.25" (8 cm)
Interior Width
20.0" (51 cm)
Interior Width
- 20.0" (51 cm)
Compressor Step Width
20.0" (51 cm)
Compressor Step Width
- 20.0" (51 cm)
Interior Depth
17.5" (44 cm)
Interior Depth
- 17.5" (44 cm)
Compressor Step Depth
5.25" (13 cm)
Compressor Step Depth
- 5.25" (13 cm)
Refrigerator Capacity Ranges
<14 cu.ft.
Refrigerator Capacity Ranges
- <14 cu.ft.
Overview
Height of Cabinet
32.0" (81 cm)
Height of Cabinet
- 32.0" (81 cm)
Width
23.38" (59 cm)
Width
- 23.38" (59 cm)
Depth
22.63" (57 cm)
Depth
- 22.63" (57 cm)
Capacity
4.8 cu.ft. (136 L)
Capacity
- 4.8 cu.ft. (136 L)
Defrost Type
Frost-Free
Defrost Type
- Frost-Free
Door
Panel-Ready
Door
- Panel-Ready
Cabinet
Black
Cabinet
- Black
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Sanitation
ETL-S
Sanitation
- ETL-S
Energy Usage/Year
270.0kWh/year
Energy Usage/Year
- 270.0kWh/year
Amps
1.0
Amps
- 1.0
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
100.0 lbs. (45 kg)
Weight
- 100.0 lbs. (45 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101091143
UPC
- 761101091143
Refrigerator Features
Sabbath Mode
Yes
Sabbath Mode
- Yes
Door Swing
LHD
Door Swing
- LHD
Reversible
No
Reversible
- No
Shelf Type
Glass
Shelf Type
- Glass
Shelf Qty
3
Shelf Qty
- 3
Full Door Shelf Qty
2
Full Door Shelf Qty
- 2
Adjustable Shelves
Yes
Adjustable Shelves
- Yes
Thermostat Type
Digital
Thermostat Type
- Digital
Fan Type
Interior and Exterior
Fan Type
- Interior and Exterior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Refrigerant Amount
0.99oz.
Refrigerant Amount
- 0.99oz.
High Side PSI
270.0
High Side PSI
- 270.0
Low Side PSI
105.0
Low Side PSI
- 105.0
Level Legs Qty
4
Level Legs Qty
- 4
Interior Light
Yes
Interior Light
- Yes
Temperature Range
36 to 43 F
Temperature Range
- 36 to 43 F
Sound Level
33.3dB
Sound Level
- 33.3dB
Features
No-frost operation for minimum user maintenance, Two door racks offer convenient storage for condiments and bottles, Front-breathing design lets you make the best use of space by installing your appliance under the counter, Floor is specially slotted to store wine and other bottles safely in place, Fan-forced cooling ensures the unit is evenly cooled from top to bottom, European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum), Electronic controls located inside the unit for precise temperature management, 32" height allows easy installation under lower ADA compliant counters, Efficient and attractive presentation with LED lighting, Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- No-frost operation for minimum user maintenance
- Two door racks offer convenient storage for condiments and bottles
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Floor is specially slotted to store wine and other bottles safely in place
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)
- Electronic controls located inside the unit for precise temperature management
- 32" height allows easy installation under lower ADA compliant counters
- Efficient and attractive presentation with LED lighting
- Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
