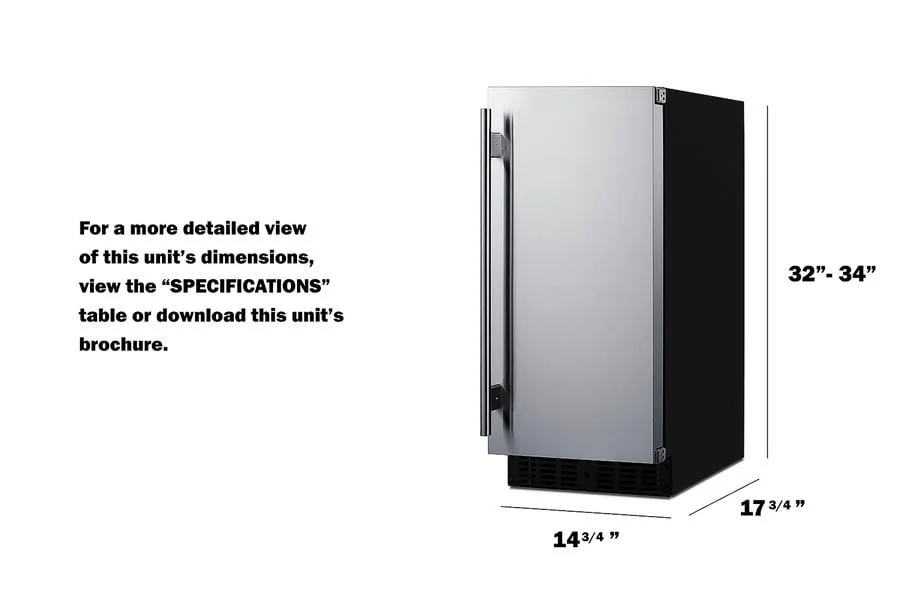

lessDimensions:
14.75" W
×
17.75" D
×
32.0" H
Width (side to side) | 14.75 |
Depth (front to back) | 17.75 |
Height (bottom to top) | 32.0 |
Refrigerator Capacity Ranges | <14 cu.ft. |
Interior Height | 24.25" (62 cm) |
Interior Width | 10.75" (27 cm) |
Interior Depth | 12.38" (31 cm) |
Compressor Step Height | 3.75" (10 cm) |
Compressor Step Width | 10.75" (27 cm) |
Compressor Step Depth | 5.5" (14 cm) |
Disclaimer
Description

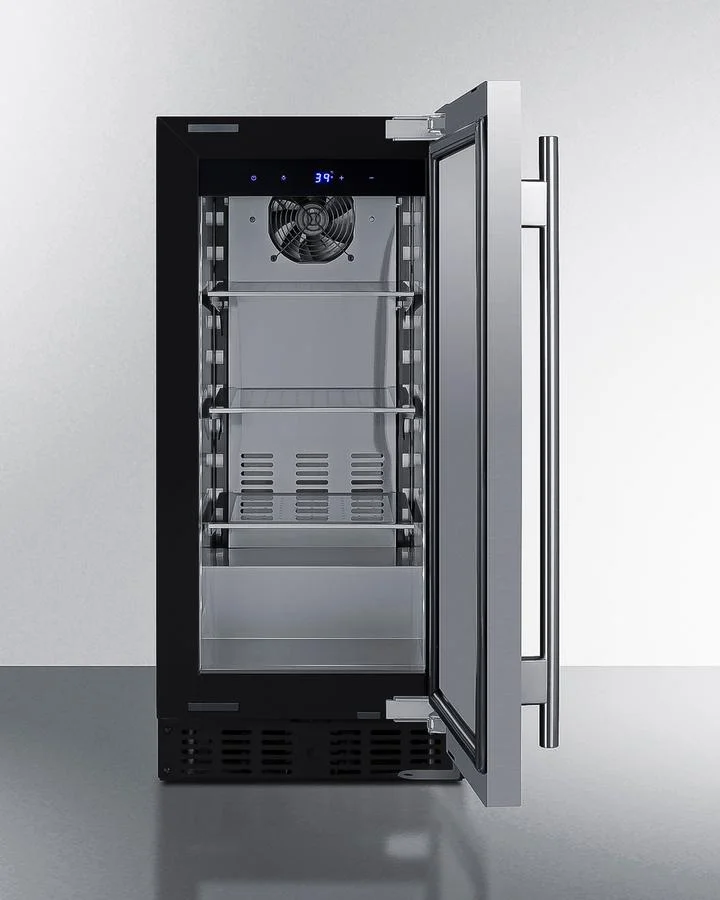

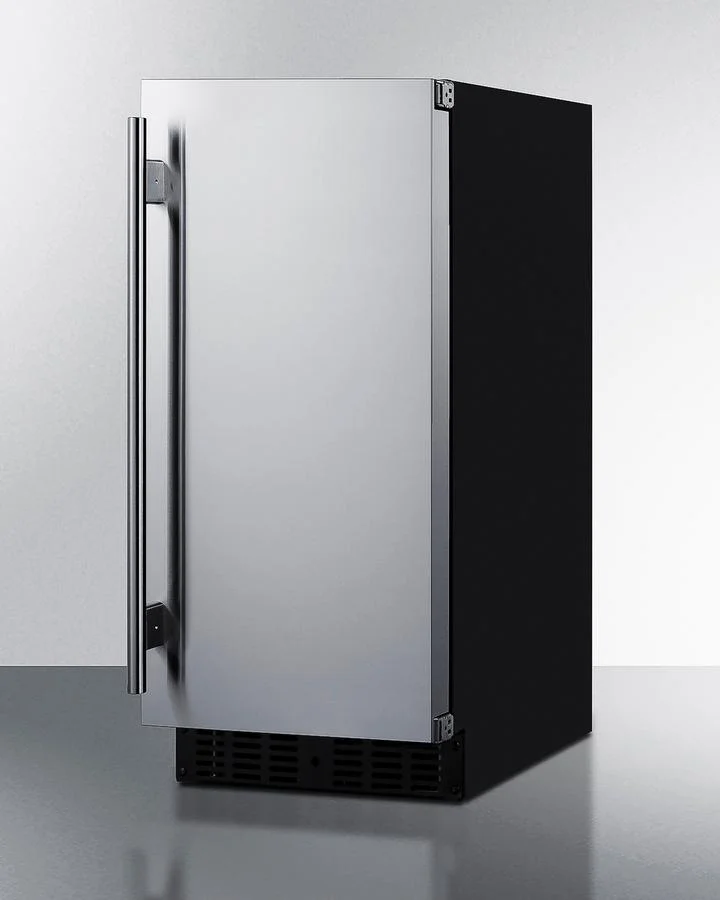

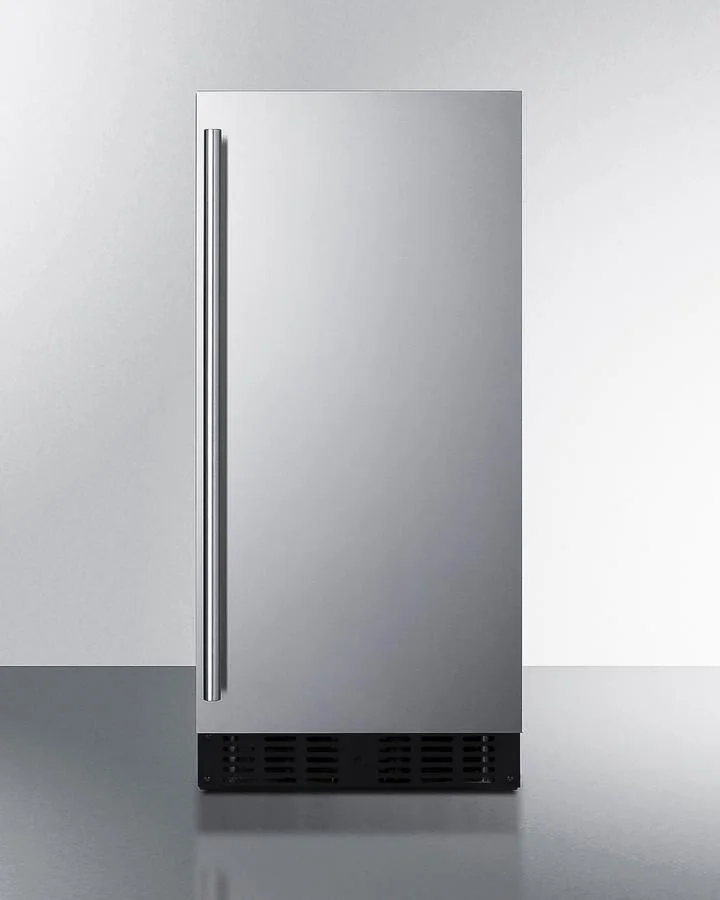

moreSummit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDS1523 is a 15" wide all-refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The stainless steel wrapped door is user-reversible and includes a front lock and pro style handle. Inside, the ASDS1523 features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes cantilevered shelving system with glass shelves for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The ASDS1523 refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.
- Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
- Keyed lock for a secure interior (2 keys included)
- Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
- Includes a full-length pro handle in chrome
- No-frost operation for minimal user maintenance
- 32" height allows easy installation under lower ADA compliant counters
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- 1.7 cu.ft. interior for residential or commercial cold storage
- Walls and floor are constructed from stainless steel for added strength and easy cleanup
- Durable construction with a professional look
Specifications
Specifications
Product
Icemaker
No
Icemaker
- No
Sabbath Mode
No
Sabbath Mode
- No
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Type
Compact/Beverage
Refrigerator Type
- Compact/Beverage
Refrigerator Total Capacity
1.72
Refrigerator Total Capacity
- 1.72
Install Type
Freestanding
Install Type
- Freestanding
Refrigerator Capacity Cubic Feet
1.72
Refrigerator Capacity Cubic Feet
- 1.72
ADA Compliant
Yes
ADA Compliant
- Yes
Water Dispenser
No
Water Dispenser
- No
Energy Star Compliant
No
Energy Star Compliant
- No
Storage
Number of Shelves
3
Number of Shelves
- 3
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Dimensions
Height (bottom to top)
32.0" H
Height (bottom to top)
- 32.0" H
Width (side to side)
14.75" W
Width (side to side)
- 14.75" W
Depth (front to back)
17.75" D
Depth (front to back)
- 17.75" D
Interior Height
24.25" (62 cm)
Interior Height
- 24.25" (62 cm)
Compressor Step Height
3.75" (10 cm)
Compressor Step Height
- 3.75" (10 cm)
Interior Width
10.75" (27 cm)
Interior Width
- 10.75" (27 cm)
Compressor Step Width
10.75" (27 cm)
Compressor Step Width
- 10.75" (27 cm)
Interior Depth
12.38" (31 cm)
Interior Depth
- 12.38" (31 cm)
Compressor Step Depth
5.5" (14 cm)
Compressor Step Depth
- 5.5" (14 cm)
Refrigerator Capacity Ranges
<14 cu.ft.
Refrigerator Capacity Ranges
- <14 cu.ft.
Overview
Height of Cabinet
32.0" (81 cm)
Height of Cabinet
- 32.0" (81 cm)
Width
14.75" (37 cm)
Width
- 14.75" (37 cm)
Depth
17.75" (45 cm)
Depth
- 17.75" (45 cm)
Depth with Handle
19.75" (50 cm)
Depth with Handle
- 19.75" (50 cm)
Depth with door at 90(degree)
31.25" (79 cm)
Depth with door at 90(degree)
- 31.25" (79 cm)
Capacity
1.72 cu.ft. (49 L)
Capacity
- 1.72 cu.ft. (49 L)
Defrost Type
Frost-Free
Defrost Type
- Frost-Free
Door
Stainless Steel
Door
- Stainless Steel
Cabinet
Black
Cabinet
- Black
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Sanitation
ETL-S
Sanitation
- ETL-S
Energy Usage/Year
235.0kWh/year
Energy Usage/Year
- 235.0kWh/year
Amps
1.0
Amps
- 1.0
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
59.0 lbs. (27 kg)
Weight
- 59.0 lbs. (27 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101079523
UPC
- 761101079523
Refrigerator Features
Sabbath Mode
Yes
Sabbath Mode
- Yes
Door Swing
Reversible
Door Swing
- Reversible
Reversible
Yes
Reversible
- Yes
Height Adjustable
Yes
Height Adjustable
- Yes
Shelf Type
Glass
Shelf Type
- Glass
Shelf Qty
3
Shelf Qty
- 3
Adjustable Shelves
Yes
Adjustable Shelves
- Yes
Thermostat Type
Digital
Thermostat Type
- Digital
Fan Type
Interior and Exterior
Fan Type
- Interior and Exterior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Refrigerant Amount
0.64oz.
Refrigerant Amount
- 0.64oz.
High Side PSI
270.0
High Side PSI
- 270.0
Low Side PSI
105.0
Low Side PSI
- 105.0
Level Legs Qty
4
Level Legs Qty
- 4
Interior Light
Yes
Interior Light
- Yes
Temperature Range
36 to 43 F
Temperature Range
- 36 to 43 F
Sound Level
33 dB
Sound Level
- 33 dB
Features
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets, Keyed lock for a secure interior (2 keys included), Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space, Includes a full-length pro handle in chrome, No-frost operation for minimal user maintenance, 32" height allows easy installation under lower ADA compliant counters, Front-breathing design lets you make the best use of space by installing your appliance under the counter, 1.7 cu.ft. interior for residential or commercial cold storage, Walls and floor are constructed from stainless steel for added strength and easy cleanup, Durable construction with a professional look
- Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
- Keyed lock for a secure interior (2 keys included)
- Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
- Includes a full-length pro handle in chrome
- No-frost operation for minimal user maintenance
- 32" height allows easy installation under lower ADA compliant counters
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- 1.7 cu.ft. interior for residential or commercial cold storage
- Walls and floor are constructed from stainless steel for added strength and easy cleanup
- Durable construction with a professional look
Item & Dimensions
Manufacturer
