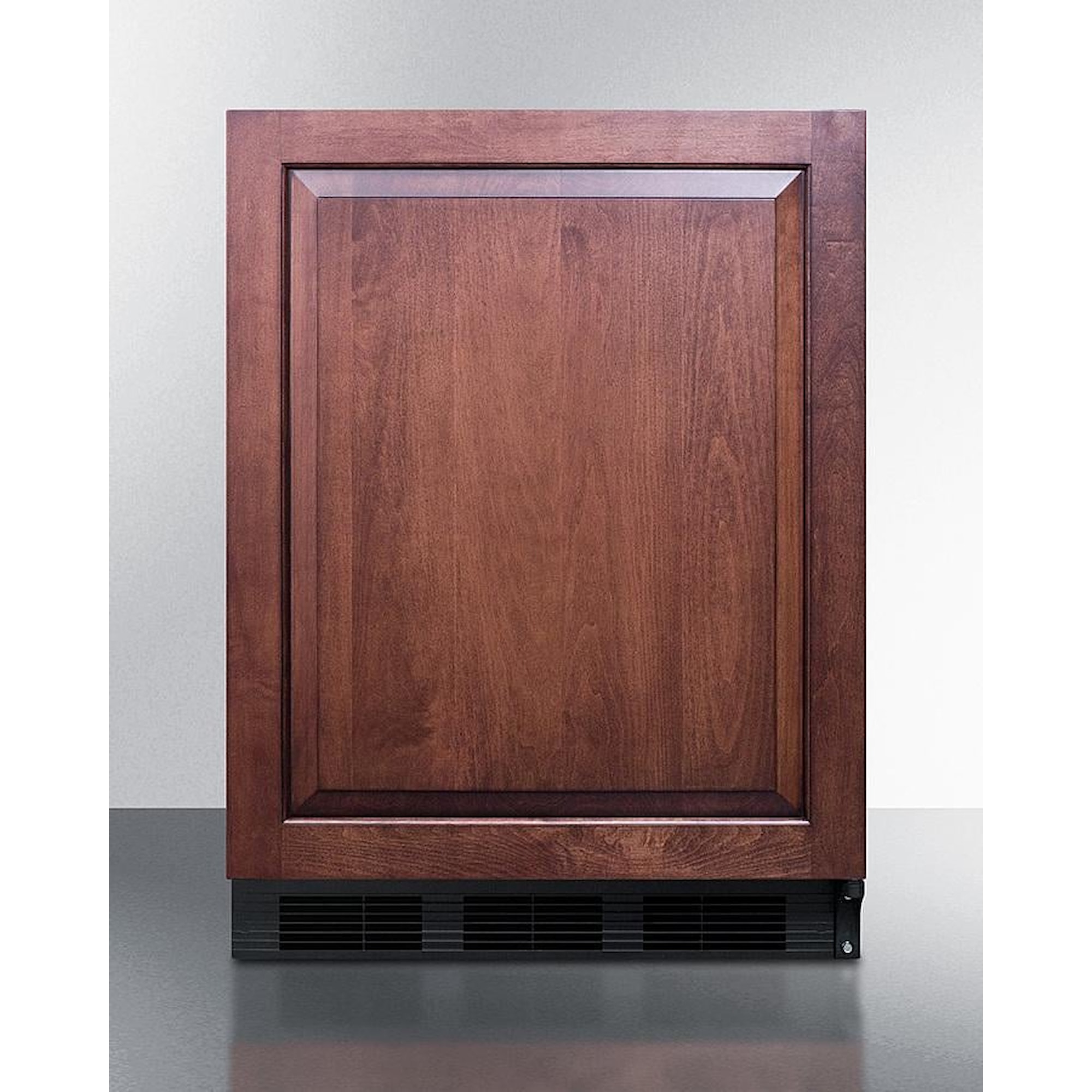

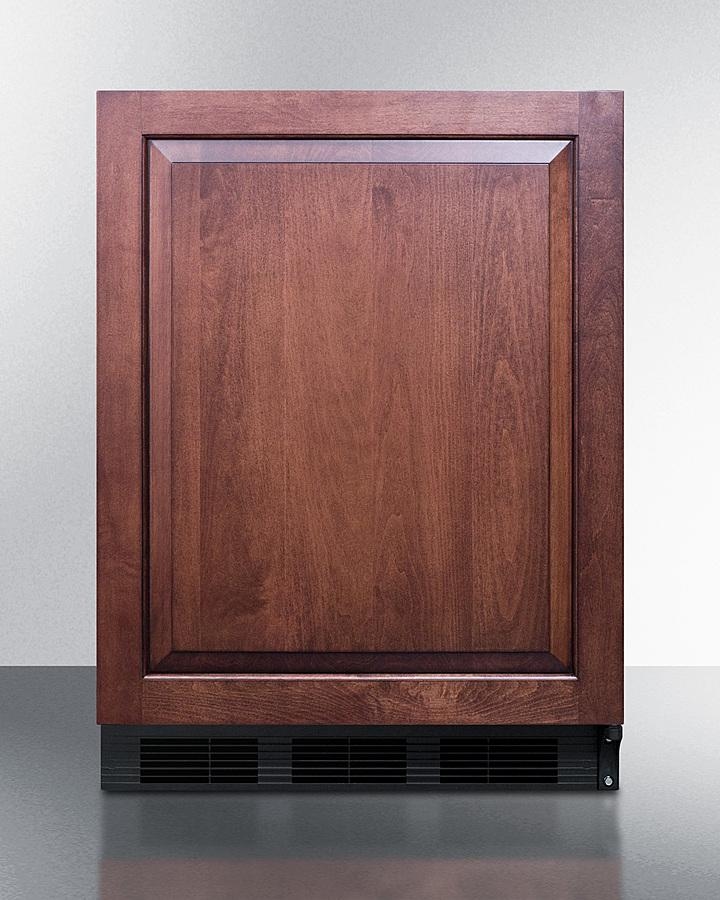

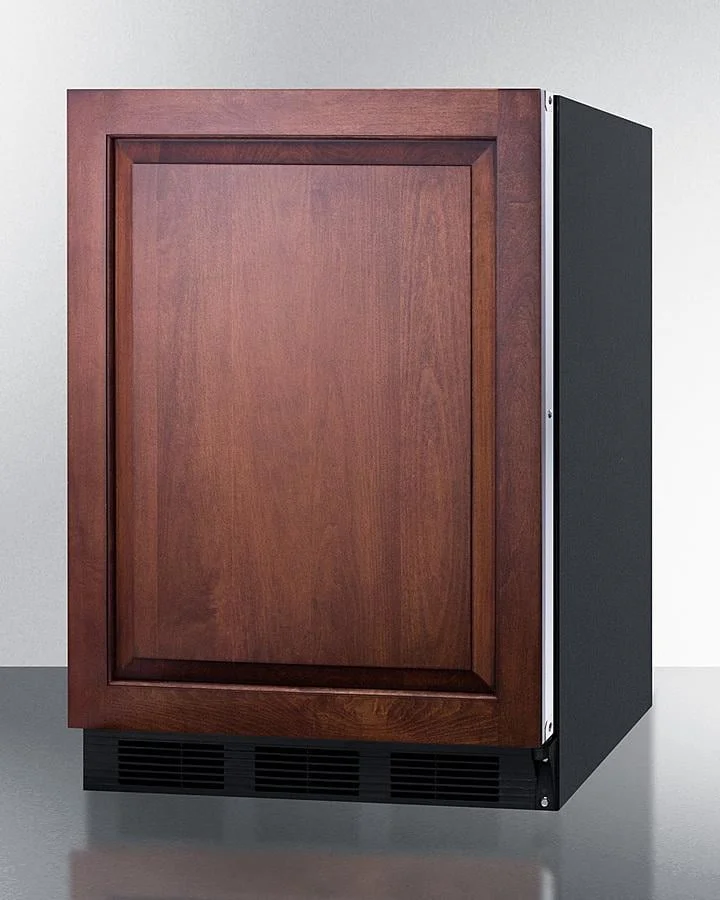

24" Wide Built-In All-Refrigerator, Ada Compliant (Panel Not Included)
SKU: AR5BIF
Call for availability
Simon's Price:
$1,623
12 Interest Free Monthly Payments Of
$137
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
Qty: 1
keyboard_arrow_down
Qty: 1
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
23.63" W
×
23.0" D
×
32.25" H
| Width (side to side) | 23.63 |
| Depth (front to back) | 23.0 |
| Height (bottom to top) | 32.25 |
| Refrigerator Capacity Ranges | <14 cu.ft. |
| Installation Depth | Standard Depth |
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
Disclaimer
Description

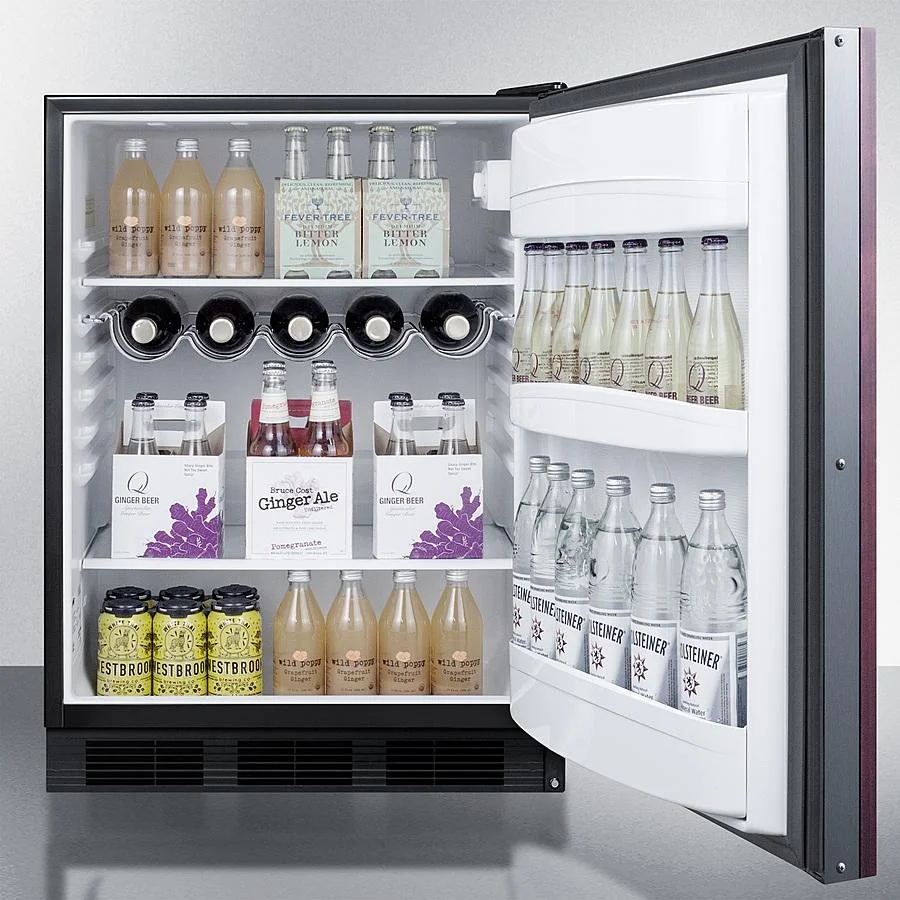

moreSUMMIT offers the industry s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations. Sized with a 24 footprint and 32 height, the AR5BIF is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish. The door includes an integrated stainless steel frame designed to accept full overlay panels, allowing you to create a custom look that blends into your own cabinetry. Customers provide their own handle. Panels should be sized at 23 5/16" W x 28 1/4" H and at least 3/4" thick. Inside, the AR5BIF utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BIF features Summit's intuitive dial thermostat for easy temperature management. Designed and constructed in Europe, the AR5BIF brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. Additional ADA compliant choices are available in a variety of sizes and styles. Browse our website for more options.
- Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Removable scalloped wine shelf is included to store champagne and wine bottles
- Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
- Automatically illuminates when you open the door
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Reduced maintenance with auto defrost system
- 32" height to fit under lower ADA compliant counters
- Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Store tall bottles and condiments right on the door for convenient access
Rebates
view available rebates
24" Wide Built-In All-Refrigerator, Ada Compliant (Panel Not Included)
Refrigerators Collection
Simon's Price:
$1,623
12 Interest Free Monthly Payments Of
$137
Specifications
Specifications
Product
Icemaker
No
Icemaker
- No
Sabbath Mode
No
Sabbath Mode
- No
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Type
Compact/Beverage
Refrigerator Type
- Compact/Beverage
Refrigerator Total Capacity
5.5
Refrigerator Total Capacity
- 5.5
Install Type
Freestanding
Install Type
- Freestanding
Refrigerator Capacity Cubic Feet
5.5
Refrigerator Capacity Cubic Feet
- 5.5
ADA Compliant
Yes
ADA Compliant
- Yes
Water Dispenser
No
Water Dispenser
- No
Energy Star Compliant
No
Energy Star Compliant
- No
Storage
Number of Shelves
3
Number of Shelves
- 3
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Dimensions
Height (bottom to top)
32.25" H
Height (bottom to top)
- 32.25" H
Width (side to side)
23.63" W
Width (side to side)
- 23.63" W
Depth (front to back)
23.0" D
Depth (front to back)
- 23.0" D
Interior Height
26.25" (67 cm)
Interior Height
- 26.25" (67 cm)
Compressor Step Height
5.5" (14 cm)
Compressor Step Height
- 5.5" (14 cm)
Interior Width
21.0" (53 cm)
Interior Width
- 21.0" (53 cm)
Compressor Step Width
21.0" (53 cm)
Compressor Step Width
- 21.0" (53 cm)
Interior Depth
18.0" (46 cm)
Interior Depth
- 18.0" (46 cm)
Compressor Step Depth
6.0" (15 cm)
Compressor Step Depth
- 6.0" (15 cm)
Installation Depth
Standard Depth
Installation Depth
- Standard Depth
Refrigerator Capacity Ranges
<14 cu.ft.
Refrigerator Capacity Ranges
- <14 cu.ft.
Overview
Height of Cabinet
32.0" (81 cm)
Height of Cabinet
- 32.0" (81 cm)
Height to Hinge Cap
32.25" (82 cm)
Height to Hinge Cap
- 32.25" (82 cm)
Width
23.63" (60 cm)
Width
- 23.63" (60 cm)
Depth
23.0" (58 cm)
Depth
- 23.0" (58 cm)
Depth with door at 90(degree)
45.38" (115 cm)
Depth with door at 90(degree)
- 45.38" (115 cm)
Capacity
5.5 cu.ft. (156 L)
Capacity
- 5.5 cu.ft. (156 L)
Defrost Type
Automatic
Defrost Type
- Automatic
Door
Panel-Ready
Door
- Panel-Ready
Cabinet
Black
Cabinet
- Black
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Energy Usage/Year
307.0kWh/year
Energy Usage/Year
- 307.0kWh/year
Amps
1.4
Amps
- 1.4
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
100.0 lbs. (45 kg)
Weight
- 100.0 lbs. (45 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101068787
UPC
- 761101068787
Refrigerator Features
Door Swing
RHD
Door Swing
- RHD
Reversible
Factory Reversible
Reversible
- Factory Reversible
Shelf Type
Glass
Shelf Type
- Glass
Shelf Qty
3
Shelf Qty
- 3
Full Door Shelf Qty
3
Full Door Shelf Qty
- 3
Adjustable Shelves
Yes
Adjustable Shelves
- Yes
Wine Bottle Shelves
Yes
Wine Bottle Shelves
- Yes

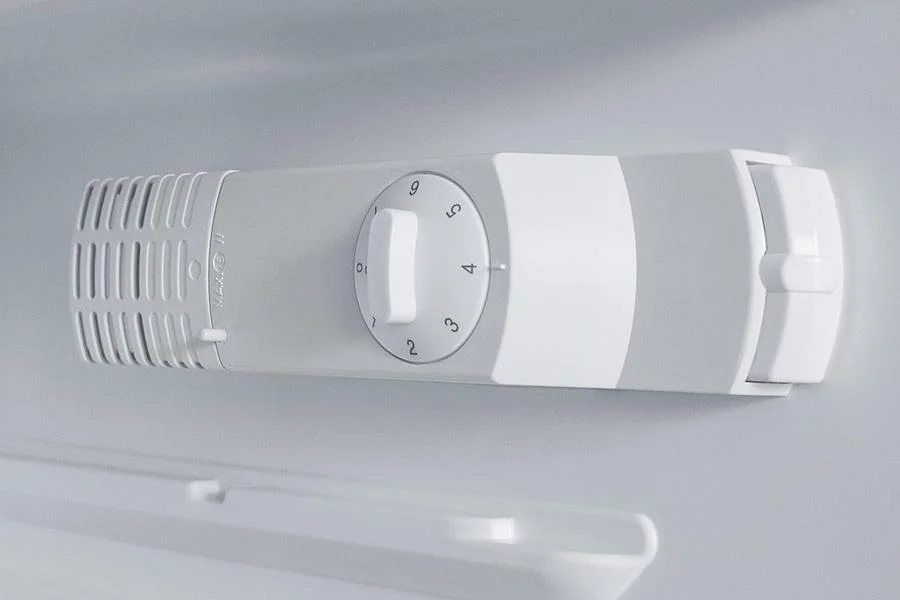

Thermostat Type
Dial
Thermostat Type
- Dial
Fan Type
Exterior
Fan Type
- Exterior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Refrigerant Amount
0.64oz.
Refrigerant Amount
- 0.64oz.
High Side PSI
180.0
High Side PSI
- 180.0
Low Side PSI
80.0
Low Side PSI
- 80.0
Interior Light
Yes
Interior Light
- Yes
Features
Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.), Removable scalloped wine shelf is included to store champagne and wine bottles, Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit, Automatically illuminates when you open the door, Easy clean-up with a seamless liner that won't hold a mess in hidden crevices, Front-breathing design lets you make the best use of space by installing your appliance under the counter, Reduced maintenance with auto defrost system, 32" height to fit under lower ADA compliant counters, Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up, Store tall bottles and condiments right on the door for convenient access
- Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Removable scalloped wine shelf is included to store champagne and wine bottles
- Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
- Automatically illuminates when you open the door
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Reduced maintenance with auto defrost system
- 32" height to fit under lower ADA compliant counters
- Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Store tall bottles and condiments right on the door for convenient access
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Refrigerators 24" Wide Built-In All-Refrigerator, Ada Compliant (Panel Not Included), made by Summit,
