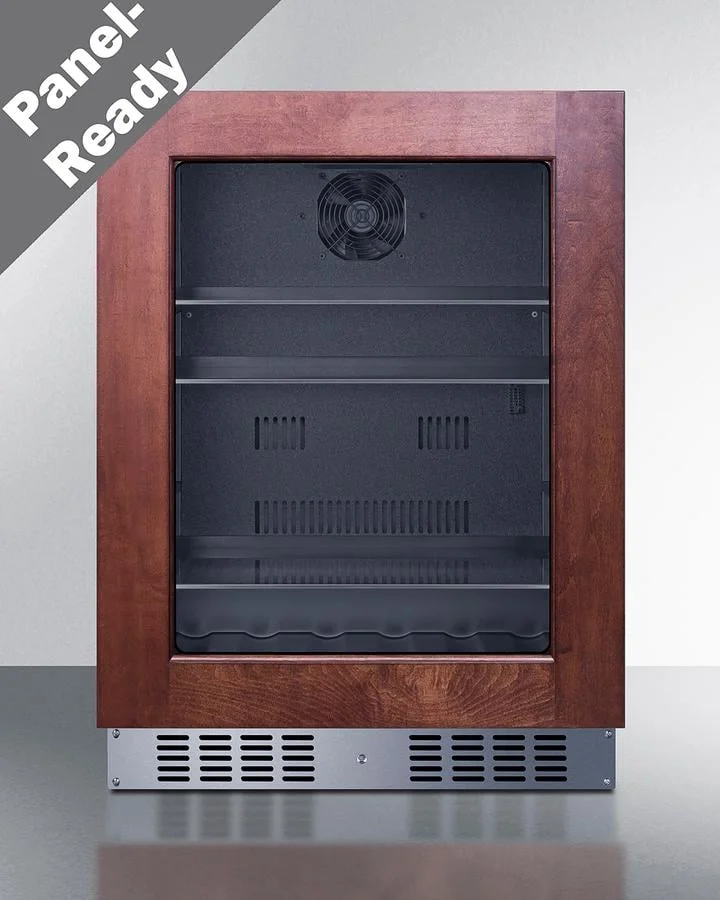

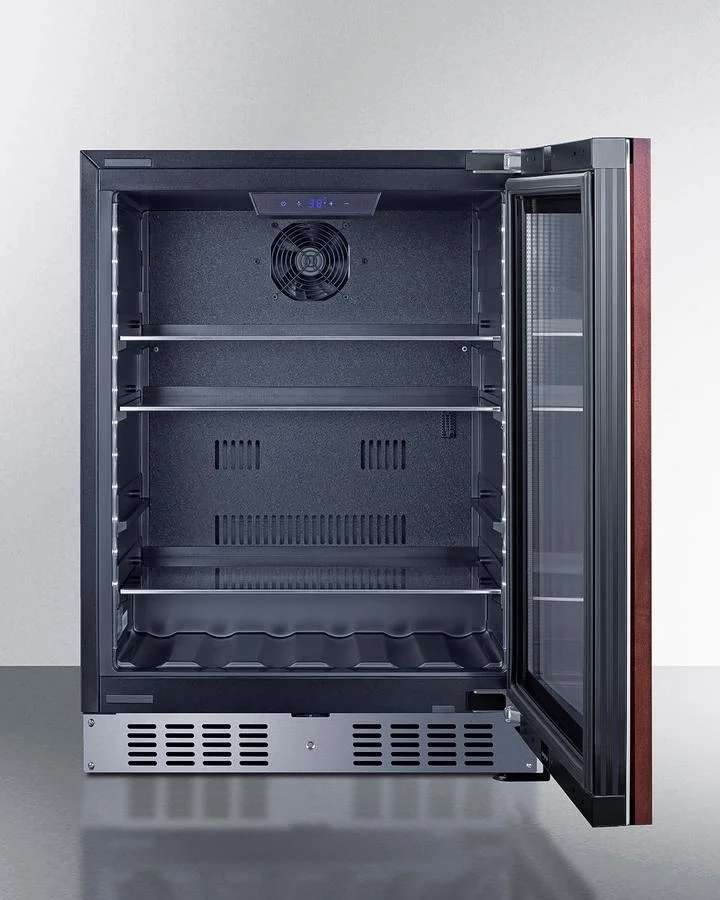

24" Wide Built-In Beverage Center, Ada Compliant (Panel Not Included)
SKU: AL57GPNR
Simon's Price:
$1,956
12 Interest Free Monthly Payments Of
$165
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
keyboard_arrow_down
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
23.63" W
×
22.63" D
×
32.0" H
Width (side to side) | 23.63 |
Depth (front to back) | 22.63 |
Height (bottom to top) | 32.0 |
Refrigerator Capacity Ranges | <14 cu.ft. |
Installation Depth | Standard Depth |
Interior Height | 24.38" (62 cm) |
Interior Width | 20.0" (51 cm) |
Interior Depth | 16.75" (43 cm) |
Compressor Step Height | 3.25" (8 cm) |
Compressor Step Width | 20.0" (51 cm) |
Compressor Step Depth | 5.25" (13 cm) |
Disclaimer
Description
moreSUMMIT's ADA compliant line of 24" wide built-in refrigerators brings quality and style to residential and commercial settings with space restraints. Model AL57GPNR is a 32" high beverage center designed for built-in or freestanding use under lower ADA compliant counters. The reversible glass door features a seamless stainless steel trim and two included brackets that let you customize the look to best match adjacent cabinetry (recommended panel dimensions: 28.34" H x 23.4" W with a 3 1/4" H x 3 1/4" W frame; panel thickness: 3/4"). The European style fully articulating hinge ensures the door opens in its own radius. A factory-installed lock offers additional security, while the sealed rear and right angle plug provide added space savings. Inside, the AL57GPNR utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The AL57GPNR refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
- ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
- No-frost operation for minimum user maintenance
- 32" height allows easy installation under lower ADA compliant counters
- Electronic controls located inside the unit for precise temperature management
- Efficient and attractive presentation with LED lighting
- Front-breathing design lets you make the best use of space by installing your appliance under the counter

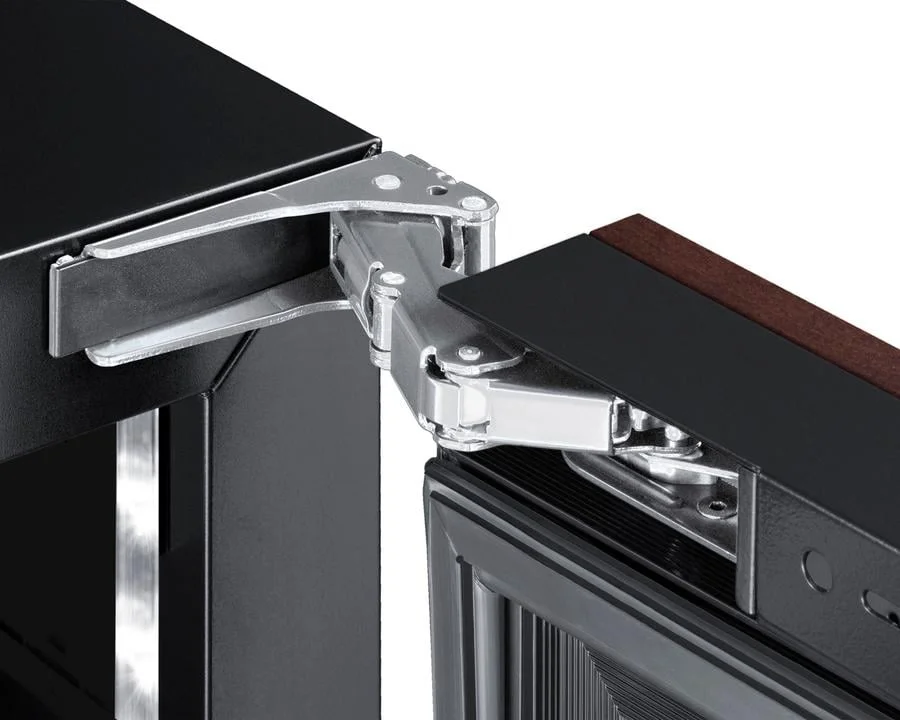

- Articulating door hinge allows the door frame to be customized with a custom overlay panel (recommended panel dimensions: 28.34" H x 23.4" W with a 3 1/4" H x 3 1/4" W frame; panel thickness: 3/4")
- Glass door refrigerator sized at 32" high for built-in or freestanding use in ADA compliant residential or commercial settings
- Stainless steel trimmed glass door offers a heat-safe view of the interior
- Keyed lock for a secure interior
Specifications
Specifications
Product
Icemaker
No
Icemaker
- No
Sabbath Mode
Yes
Sabbath Mode
- Yes
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Type
Compact/Beverage
Refrigerator Type
- Compact/Beverage
Refrigerator Total Capacity
5.0
Refrigerator Total Capacity
- 5.0
Install Type
Freestanding
Install Type
- Freestanding
Refrigerator Capacity Cubic Feet
5.0
Refrigerator Capacity Cubic Feet
- 5.0
ADA Compliant
Yes
ADA Compliant
- Yes
Water Dispenser
No
Water Dispenser
- No
Energy Star Compliant
No
Energy Star Compliant
- No
Storage
Number of Shelves
3
Number of Shelves
- 3
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Refrigerator Features
Sabbath Mode
Refrigerator Features
- Sabbath Mode
Dimensions
Height (bottom to top)
32.0" H
Height (bottom to top)
- 32.0" H
Width (side to side)
23.63" W
Width (side to side)
- 23.63" W
Depth (front to back)
22.63" D
Depth (front to back)
- 22.63" D
Interior Height
24.38" (62 cm)
Interior Height
- 24.38" (62 cm)
Compressor Step Height
3.25" (8 cm)
Compressor Step Height
- 3.25" (8 cm)
Interior Width
20.0" (51 cm)
Interior Width
- 20.0" (51 cm)
Compressor Step Width
20.0" (51 cm)
Compressor Step Width
- 20.0" (51 cm)
Interior Depth
16.75" (43 cm)
Interior Depth
- 16.75" (43 cm)
Compressor Step Depth
5.25" (13 cm)
Compressor Step Depth
- 5.25" (13 cm)
Installation Depth
Standard Depth
Installation Depth
- Standard Depth
Refrigerator Capacity Ranges
<14 cu.ft.
Refrigerator Capacity Ranges
- <14 cu.ft.
Overview
Height of Cabinet
32.0" (81 cm)
Height of Cabinet
- 32.0" (81 cm)
Width
23.38" (59 cm)
Width
- 23.38" (59 cm)
Depth
22.75" (58 cm)
Depth
- 22.75" (58 cm)
Depth with door at 90(degree)
46.0" (117 cm)
Depth with door at 90(degree)
- 46.0" (117 cm)
Capacity
4.6 cu.ft. (130 L)
Capacity
- 4.6 cu.ft. (130 L)
Defrost Type
Frost-Free
Defrost Type
- Frost-Free
Door
Glass/Panel-Ready Frame
Door
- Glass/Panel-Ready Frame
Cabinet
Black
Cabinet
- Black
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Sanitation
ETL-S
Sanitation
- ETL-S
Energy Usage/Year
290.0kWh/year
Energy Usage/Year
- 290.0kWh/year
Amps
1.0
Amps
- 1.0
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
95.0 lbs. (43 kg)
Weight
- 95.0 lbs. (43 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101065922
UPC
- 761101065922
Refrigerator Features
Sabbath Mode
Yes
Sabbath Mode
- Yes
Door Swing
RHD
Door Swing
- RHD
Reversible
Yes
Reversible
- Yes
Shelf Type
Glass
Shelf Type
- Glass
Shelf Qty
3
Shelf Qty
- 3
Adjustable Shelves
Yes
Adjustable Shelves
- Yes
Thermostat Type
Digital
Thermostat Type
- Digital
Fan Type
Interior and Exterior
Fan Type
- Interior and Exterior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Refrigerant Amount
0.99oz.
Refrigerant Amount
- 0.99oz.
High Side PSI
270.0
High Side PSI
- 270.0
Low Side PSI
105.0
Low Side PSI
- 105.0
Level Legs Qty
4
Level Legs Qty
- 4
Interior Light
Yes
Interior Light
- Yes
Temperature Range
36 to 43 F
Temperature Range
- 36 to 43 F
Sound Level
33.6 dB
Sound Level
- 33.6 dB
Features
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments, No-frost operation for minimum user maintenance, 32" height allows easy installation under lower ADA compliant counters, Electronic controls located inside the unit for precise temperature management, Efficient and attractive presentation with LED lighting, Front-breathing design lets you make the best use of space by installing your appliance under the counter, Articulating door hinge allows the door frame to be customized with a custom overlay panel (recommended panel dimensions: 28.34" H x 23.4" W with a 3 1/4" H x 3 1/4" W frame; panel thickness: 3/4"), Glass door refrigerator sized at 32" high for built-in or freestanding use in ADA compliant residential or commercial settings, Stainless steel trimmed glass door offers a heat-safe view of the interior, Keyed lock for a secure interior
- ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
- No-frost operation for minimum user maintenance
- 32" height allows easy installation under lower ADA compliant counters
- Electronic controls located inside the unit for precise temperature management
- Efficient and attractive presentation with LED lighting
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Articulating door hinge allows the door frame to be customized with a custom overlay panel (recommended panel dimensions: 28.34" H x 23.4" W with a 3 1/4" H x 3 1/4" W frame; panel thickness: 3/4")
- Glass door refrigerator sized at 32" high for built-in or freestanding use in ADA compliant residential or commercial settings
- Stainless steel trimmed glass door offers a heat-safe view of the interior
- Keyed lock for a secure interior
