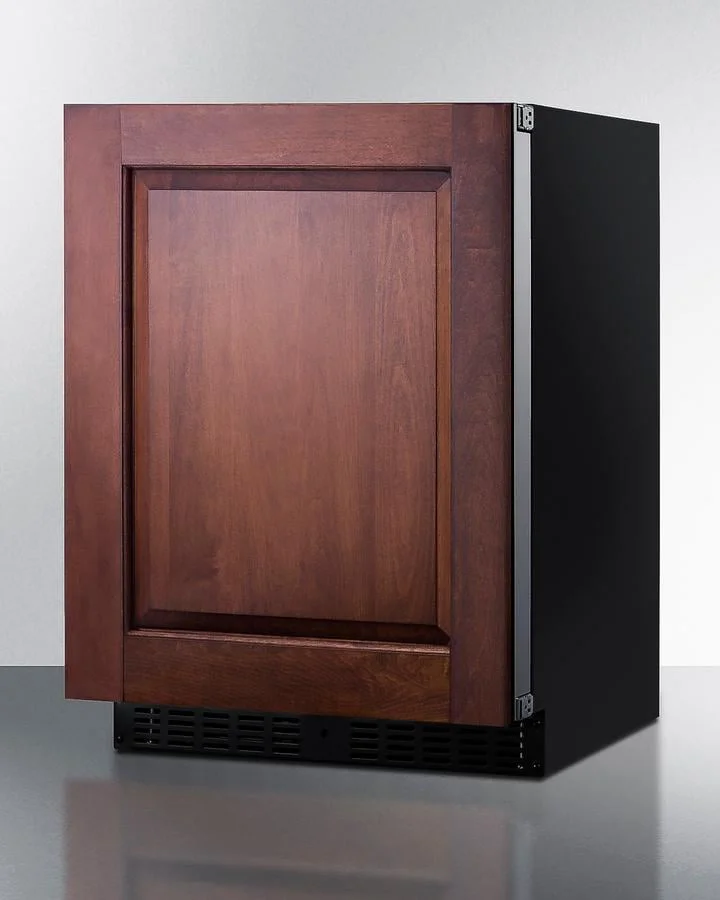

24" Wide Built-In All-Refrigerator, Ada Compliant (Panel Not Included)

SKU: ASDS2413IF
Free Delivery Appliance
Simon's Price: $1,877
12 Interest Free Monthly Payments Of $157
Add Appliance Recycling
Click to show options
add
Price with selected options: $2,126.99

Where Can I See This Product in Store?

This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.

Ask a Question

First Name is required
Last Name is required
Email Address is required
Message is required

Description

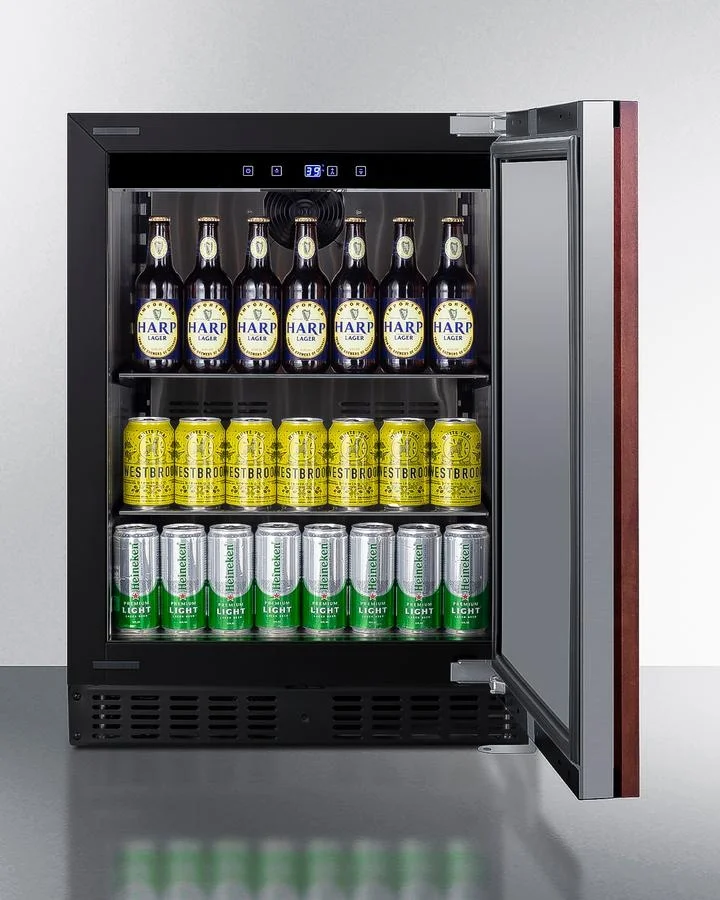

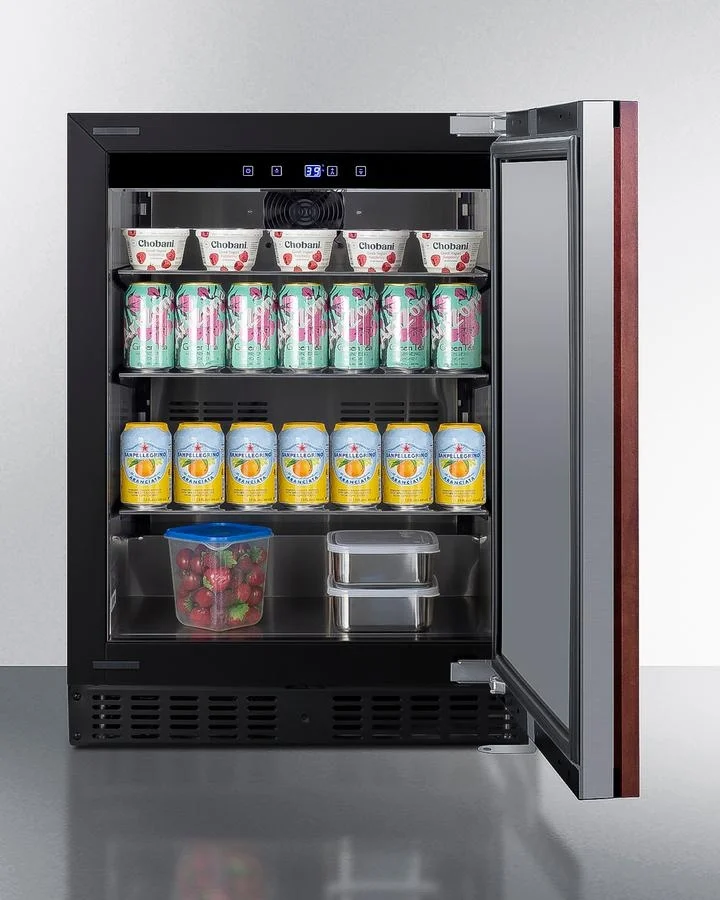

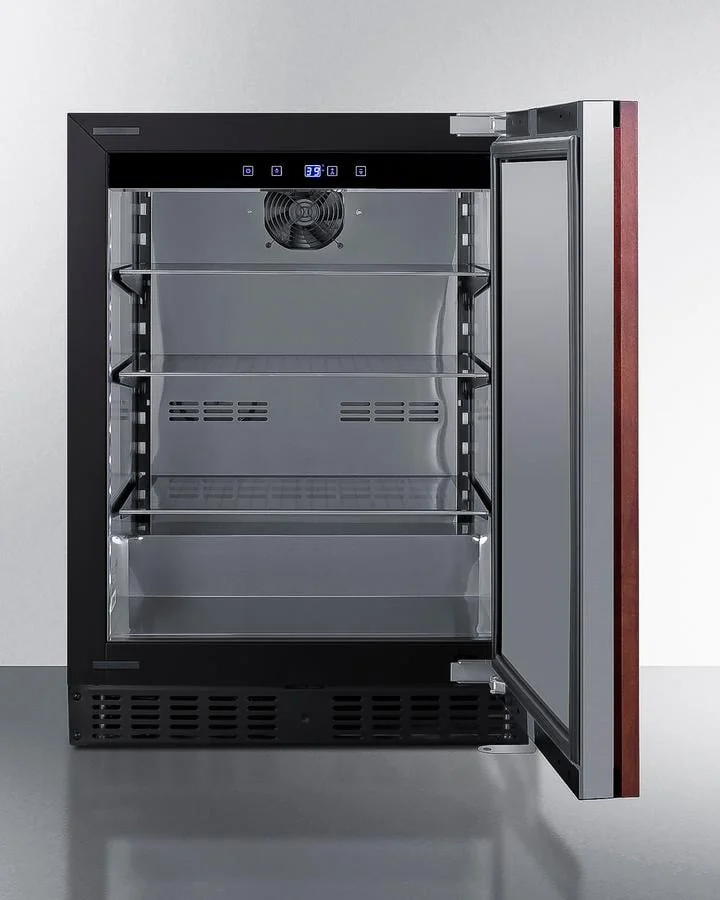

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDS2413IF is a 24" wide all-refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The door features a European-style fully articulating hinge for smooth opening. This also allows the door to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). Note: this unit ships with a handle for optional use (not shown in image). Customers may also supply their own (as shown) to better match their existing cabinetry. Inside, the ASDS2413IF features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes cantilevered shelving in chrome for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The ASDS2413IF refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.
  • Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
  • Keyed lock for a secure interior (2 keys included)
  • Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
  • No-frost operation for minimum user maintenance
  • Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
  • 32" height allows easy installation under lower ADA compliant counters
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • 3.1 cu.ft. interior for residential or commercial cold storage
  • Walls and floor are constructed from stainless steel for added strength and easy cleanup

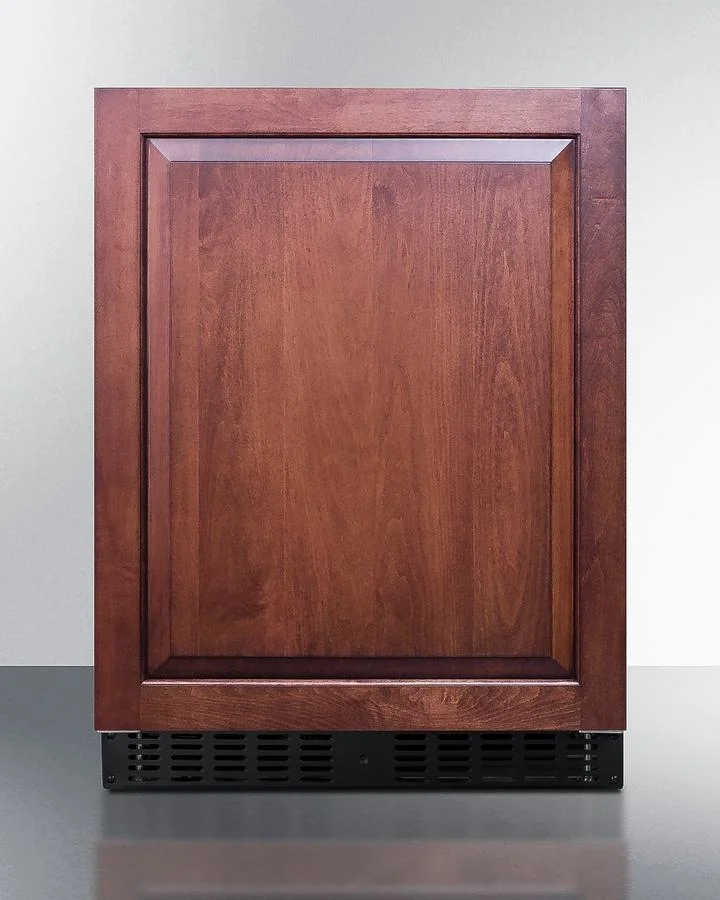

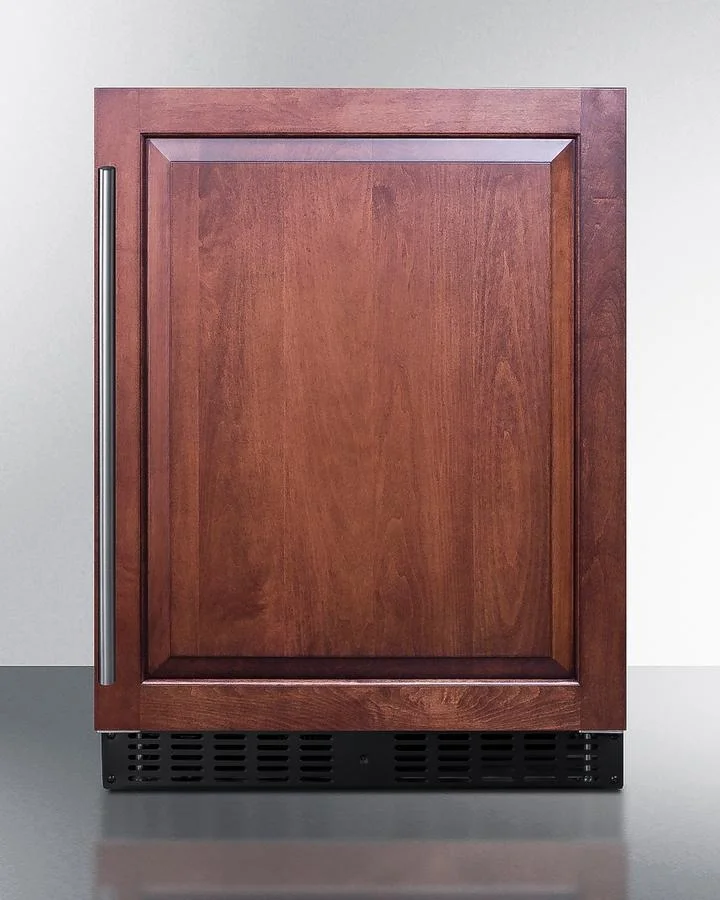

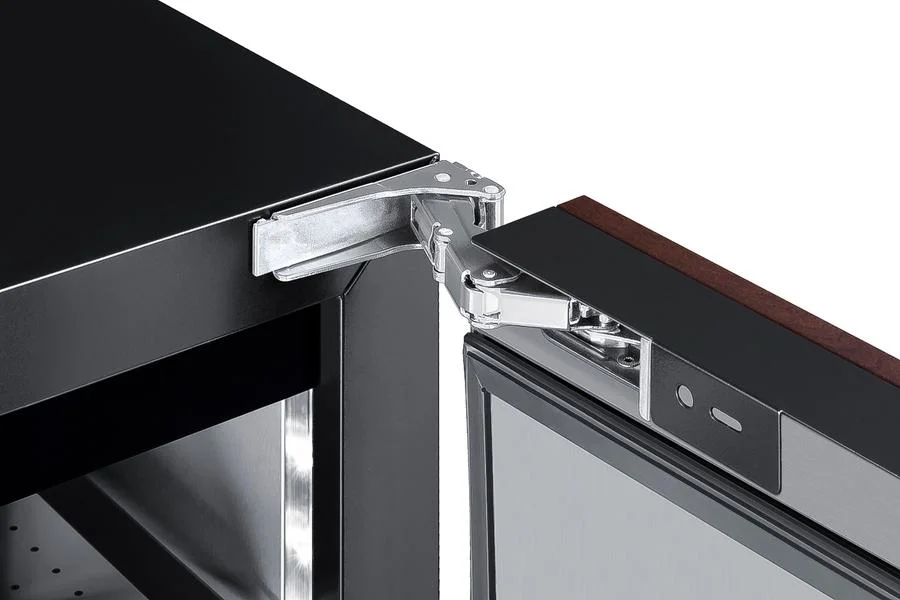

  • European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23.4" W x 28.38" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
Brochure W/ Drawings
Brochure W/ Drawings
View PDF for more information
Use & Care
Use & Care
View PDF for more information
Msds Information
Msds Information
View PDF for more information
Energy Guide
Energy Guide
View PDF for more information

Rebates

view available rebates
24" Wide Built-In All-Refrigerator, Ada Compliant (Panel Not Included)
24" Wide Built-In All-Refrigerator, Ada Compliant (Panel Not Included)
Refrigerators Collection
Simon's Price: $1,877
12 Interest Free Monthly Payments Of $157

Specifications

Specifications

remove

Product

Icemaker No
Icemaker
  • No
Sabbath Mode No
Sabbath Mode
  • No
Wifi Enabled No
Wifi Enabled
  • No
Refrigerator Type Compact/Beverage
Refrigerator Type
  • Compact/Beverage
Refrigerator Total Capacity 3.1
Refrigerator Total Capacity
  • 3.1
Install Type Freestanding
Install Type
  • Freestanding
Refrigerator Capacity Cubic Feet 3.1
Refrigerator Capacity Cubic Feet
  • 3.1
ADA Compliant Yes
ADA Compliant
  • Yes
Water Dispenser No
Water Dispenser
  • No
Energy Star Compliant No
Energy Star Compliant
  • No

Storage

Number of Shelves 3
Number of Shelves
  • 3

Features & Function

Oven Features ADA Compliant
Oven Features
  • ADA Compliant

Dimensions

Height (bottom to top) 32.0" H
Height (bottom to top)
  • 32.0" H
Width (side to side) 23.38" W
Width (side to side)
  • 23.38" W
Depth (front to back) 17.75" D
Depth (front to back)
  • 17.75" D
Interior Height 24.25" (62 cm)
Interior Height
  • 24.25" (62 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Height
  • 3.75" (10 cm)
Interior Width 19.5" (50 cm)
Interior Width
  • 19.5" (50 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Width
  • 19.5" (50 cm)
Interior Depth 12.25" (31 cm)
Interior Depth
  • 12.25" (31 cm)
Compressor Step Depth 4.25" (11 cm)
Compressor Step Depth
  • 4.25" (11 cm)
Refrigerator Capacity Ranges <14 cu.ft.
Refrigerator Capacity Ranges
  • <14 cu.ft.

Overview

Nominal Height 32.0" (81 cm)
Nominal Height
  • 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Height of Cabinet
  • 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Nominal Width
  • 24.0" (61 cm)
Width 23.38" (59 cm)
Width
  • 23.38" (59 cm)
Nominal Depth 18.0" (46 cm)
Nominal Depth
  • 18.0" (46 cm)
Depth 17.75" (45 cm)
Depth
  • 17.75" (45 cm)
Depth with door at 90° 40.0" (102 cm)
Depth with door at 90°
  • 40.0" (102 cm)
Capacity 3.1 cu.ft. (88 L)
Capacity
  • 3.1 cu.ft. (88 L)
Defrost Type Frost-Free
Defrost Type
  • Frost-Free

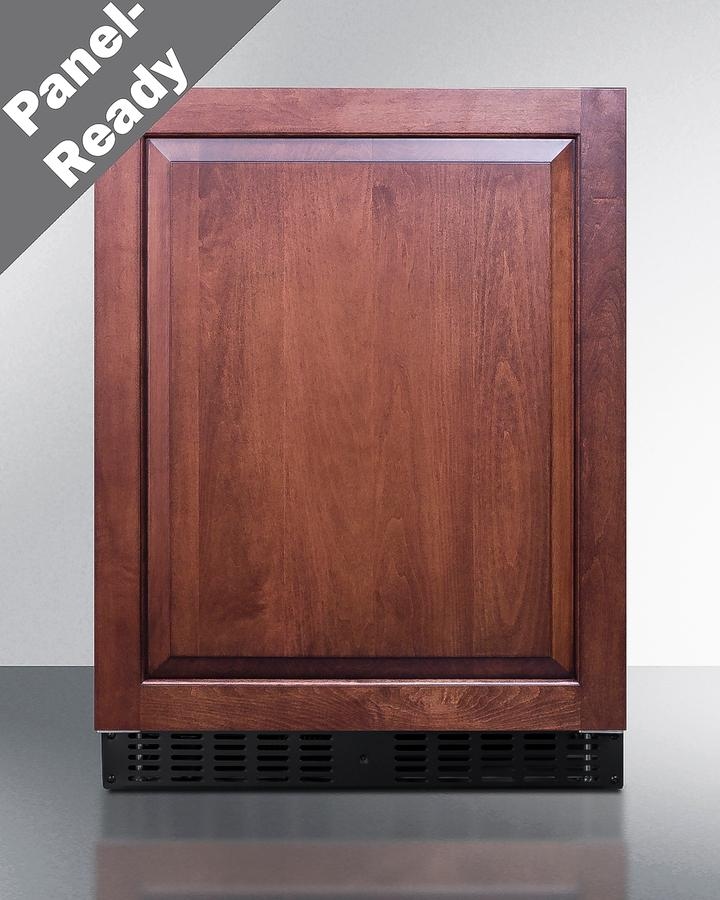

Door Panel-Ready
Door
  • Panel-Ready
Cabinet Black
Cabinet
  • Black
US Electrical Safety ETL
US Electrical Safety
  • ETL
Canadian Electrical Safety ETL-C
Canadian Electrical Safety
  • ETL-C
Sanitation ETL-S
Sanitation
  • ETL-S
Energy Usage/Year 215.0kWh/year
Energy Usage/Year
  • 215.0kWh/year
Amps 1.0
Amps
  • 1.0
Voltage/Frequency 115 V AC/60 Hz
Voltage/Frequency
  • 115 V AC/60 Hz
Weight 89.0 lbs. (40 kg)
Weight
  • 89.0 lbs. (40 kg)
Parts & Labor Warranty 1 Year
Parts & Labor Warranty
  • 1 Year
Compressor Warranty 5 Years
Compressor Warranty
  • 5 Years
UPC 761101088822
UPC
  • 761101088822

Refrigerator Features

Sabbath Mode Yes
Sabbath Mode
  • Yes
Door Swing RHD
Door Swing
  • RHD
Reversible Factory Reversible
Reversible
  • Factory Reversible
Height Adjustable Yes
Height Adjustable
  • Yes

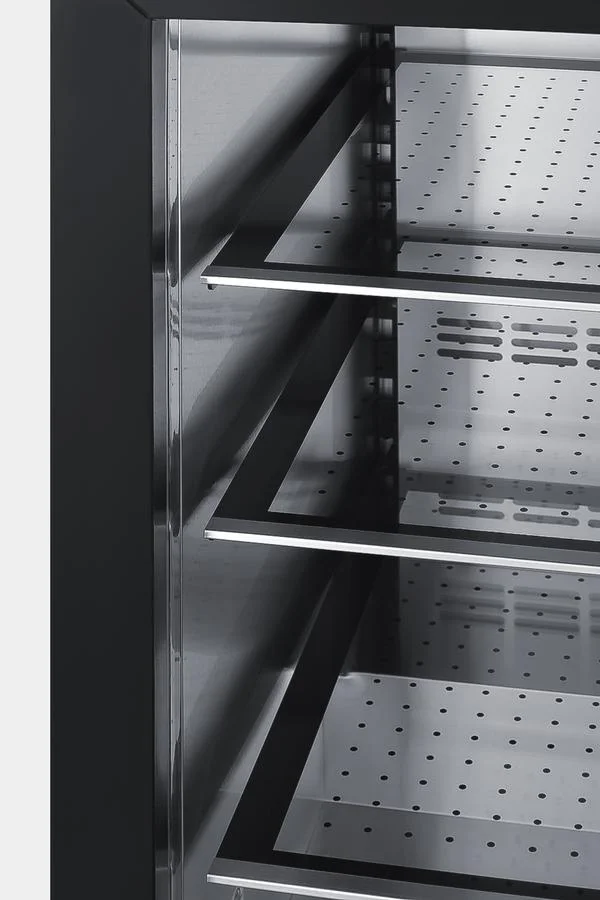

Shelf Type Chrome
Shelf Type
  • Chrome
Shelf Qty 3
Shelf Qty
  • 3
Adjustable Shelves Yes
Adjustable Shelves
  • Yes
Thermostat Type Digital
Thermostat Type
  • Digital
Fan Type Interior and Exterior
Fan Type
  • Interior and Exterior
Refrigerant Type R600a
Refrigerant Type
  • R600a
Refrigerant Amount 1.38oz.
Refrigerant Amount
  • 1.38oz.
High Side PSI 270.0
High Side PSI
  • 270.0
Low Side PSI 105.0
Low Side PSI
  • 105.0
Level Legs Qty 4
Level Legs Qty
  • 4

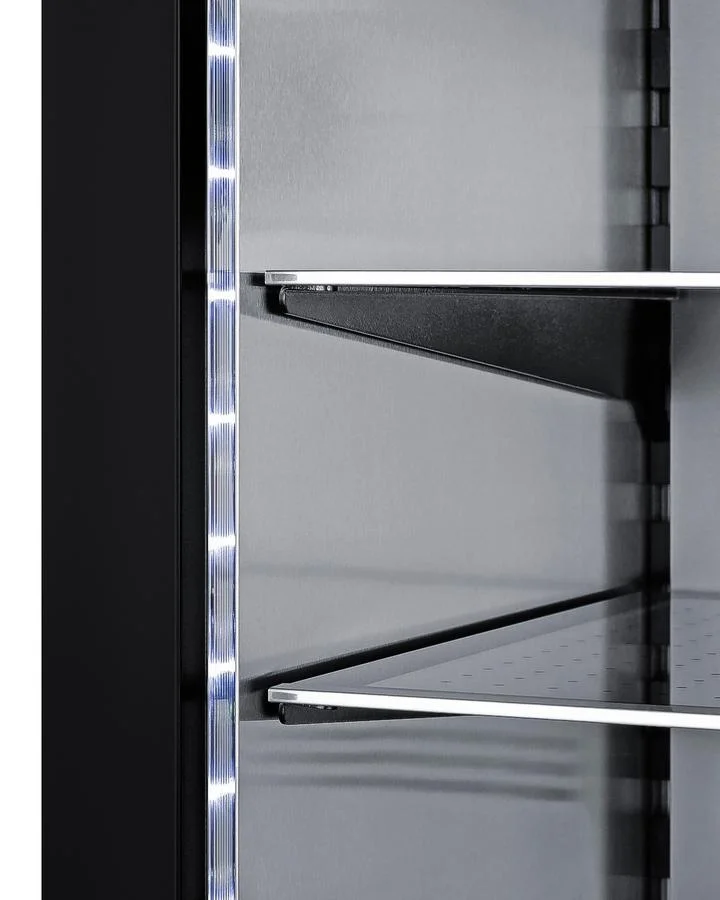

Interior Light Yes
Interior Light
  • Yes
Temperature Range 36 to 43 F
Temperature Range
  • 36 to 43 F
Sound Level 32.9 dB
Sound Level
  • 32.9 dB

Features

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets, Keyed lock for a secure interior (2 keys included), Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space, No-frost operation for minimum user maintenance, Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom, 32" height allows easy installation under lower ADA compliant counters, Front-breathing design lets you make the best use of space by installing your appliance under the counter, 3.1 cu.ft. interior for residential or commercial cold storage, Walls and floor are constructed from stainless steel for added strength and easy cleanup, European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23.4" W x 28.38" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
  • Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
  • Keyed lock for a secure interior (2 keys included)
  • Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
  • No-frost operation for minimum user maintenance
  • Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
  • 32" height allows easy installation under lower ADA compliant counters
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • 3.1 cu.ft. interior for residential or commercial cold storage
  • Walls and floor are constructed from stainless steel for added strength and easy cleanup
  • European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23.4" W x 28.38" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles

Item & Dimensions

Manufacturer Summit
Manufacturer
  • Summit
The Refrigerators 24" Wide Built-In All-Refrigerator, Ada Compliant (Panel Not Included), made by Summit, is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary. Contact us for the most current availability on this product.

Collection Details

The Refrigerators collection is an amazing option if you are looking for Appliances. Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Refrigerator, Refrigerator with Bottom Freezer, Built-In Refrigerator, Side by Side Refrigerators, Built In Side x Side, Compact Refrigerator, Fridge, Refrigerator without a Freezer, Under the Counter Refrigerator, Fridge, Refridgerators, Appliances, Kitchen Appliances, Icebox, Iceboxes, Residential Refrigerators, Cold Storage
Reference #: ASDS2413IF
