Description

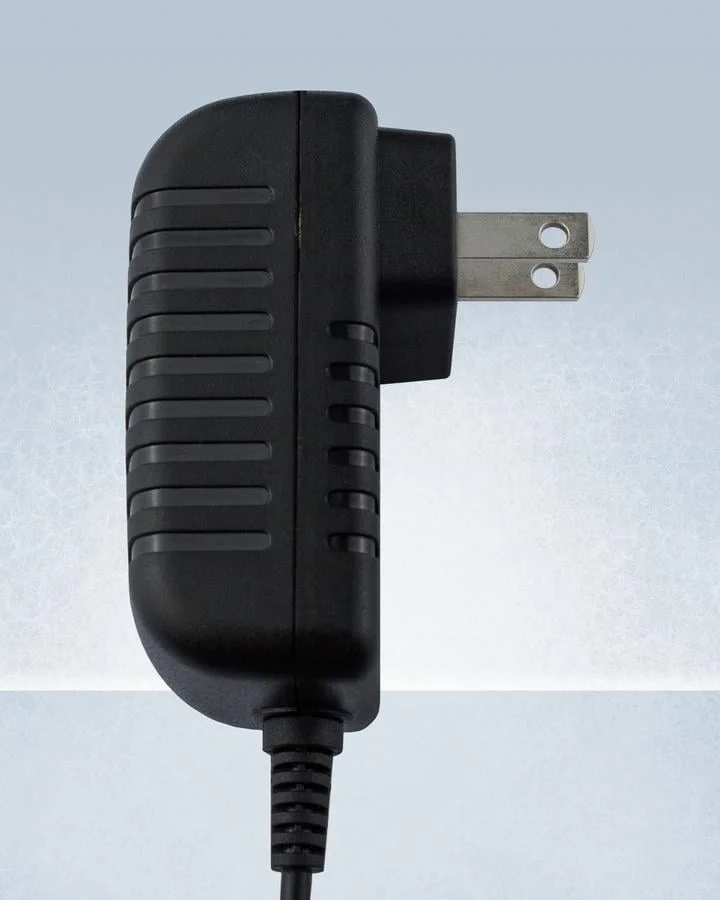

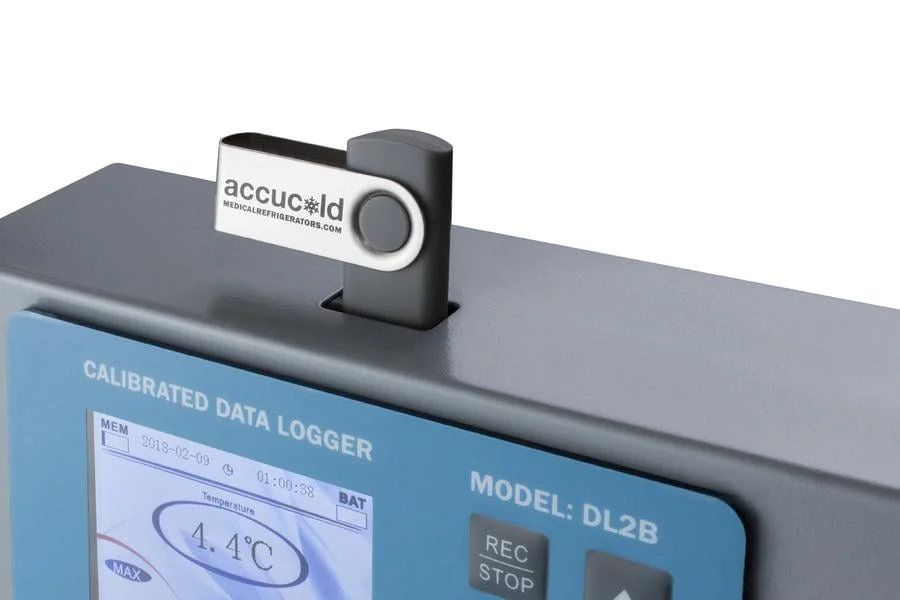

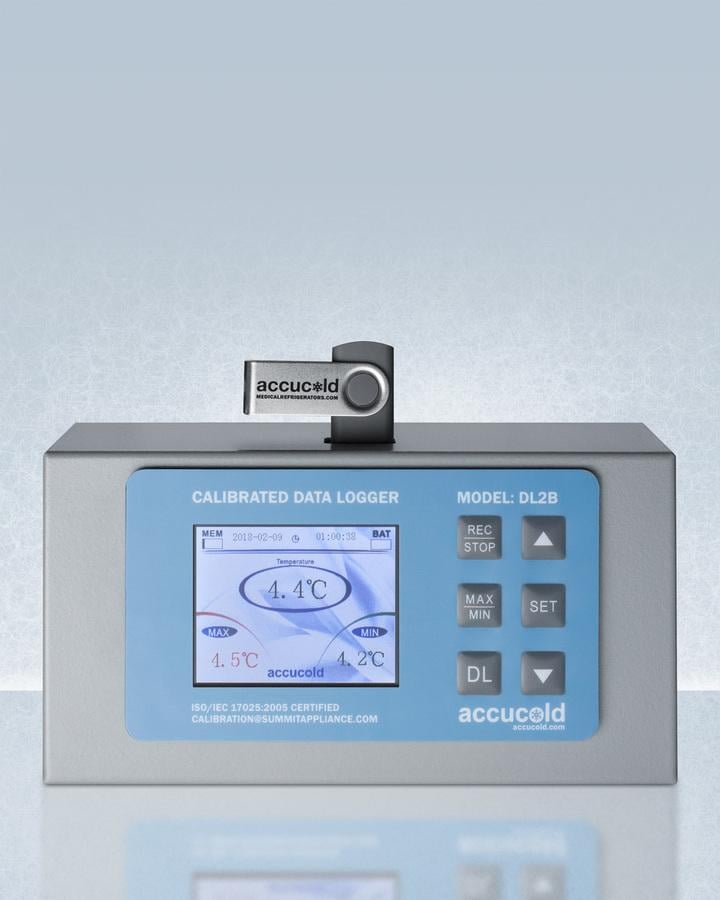

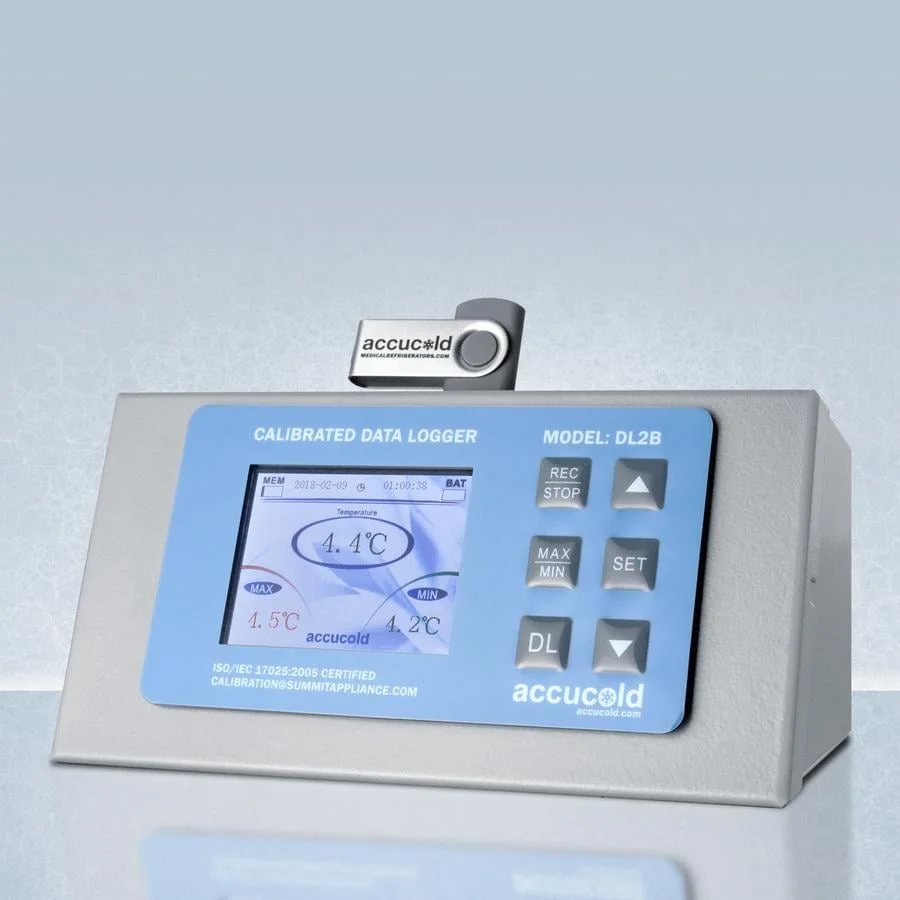

moreNOTE: The DL2BKIT is for aftermarket installation. It ships in a single box with the following items included: a 4GB USB flash drive, a power adapter, a rechargeable battery, an external temperature sensor encased in a bottle filled with glycol, and a NIST certified calibration certificate. If you want this data logger installed on a Summit or Accucold refrigerator, order the DL2B option with your unit. Contact your sales representative for details and pricing on pre-installation. Accucold brings true convenience and trusted reliability to temperature logging with the DL2BKIT digital data logger (DDL). With a NIST calibrated probe and large display, this data logger offers all the features needed for accurate and convenient temperature monitoring. Designed for use with virtually any refrigerator or freezer, the DL2BKIT lets you set your own recording intervals (anywhere between 10 seconds to 240 minutes) for logging that meets your specific needs. The digital data logger can store up to 32,000 groups of data through its internal memory, or up to 4GB using the included USB flash drive. When you're ready to review the temperature data, simply plug the flash drive into your PC or Mac and transfer the data using Microsoft Excel or any .CSV compatible program. The unit is also compatible with a USB 3.0 extension cable for easy data transfer. This DDL offers accurate logging with a measurement uncertainty of 0.09 C, conforming to the CDC's guidelines for calibration. The LED illuminated LCD screen features a large simultaneous readout of the current, minimum, and maximum temperature to the nearest tenth of a degree, as recommended by the CDC for vaccine storage. The default readout is set to display in Celsius, but can be switched to Fahrenheit in just a few steps. A high/low temperature alarm sounds and flashes when the temperature rises above or falls below the user-set range. The DL2BKIT is powered by a 12V DC power adapter included with your unit. A rechargeable lithium battery is also included to allow you to record up to 8 hours of data in the event of a power failure. The temperature sensor is enclosed in a glycol-filled bottle to protect it from rapid changes when the door is opened, better simulating the temperature of stored contents instead of air temperature. This item is NIST calibrated in Accucold's ISO/IEC 17025:2017 accredited laboratory and ships with a calibration certificate for your records. For added security, the DL2BKIT is password protected to ensure only authorized staff can adjust the logger's settings. The DL2BKIT comes in a durable steel housing. The screen is set at a slight angle, making it easy to view the temperature at a glance. This logger can also be ordered pre-installed on any Summit or Accucold refrigerator/freezer using the "DL2B" upgrade option. It is designed to measure a temperature range of -45 to +120 C (-49 to +248 F). With its flexible programming capabilities and user-friendly interface, the DL2BKIT creates an easy and reliable solution to temperature logging. By providing a detailed and accurate temperature record, this DDL meets CDC and VFC recommendations for logging and monitoring vaccine storage.
- Allows you to delay alarm activation by a user-set time interval to avoid unnecessary alerts
- Users can program the timing interval for data logging, with a wide range of anywhere between 10 seconds and 240 minutes
- Audible alarm will sound and indicator light will flash if temperature rises or falls below the specified approved range
- Accurate logging with a measurement uncertainty of 0.09°C

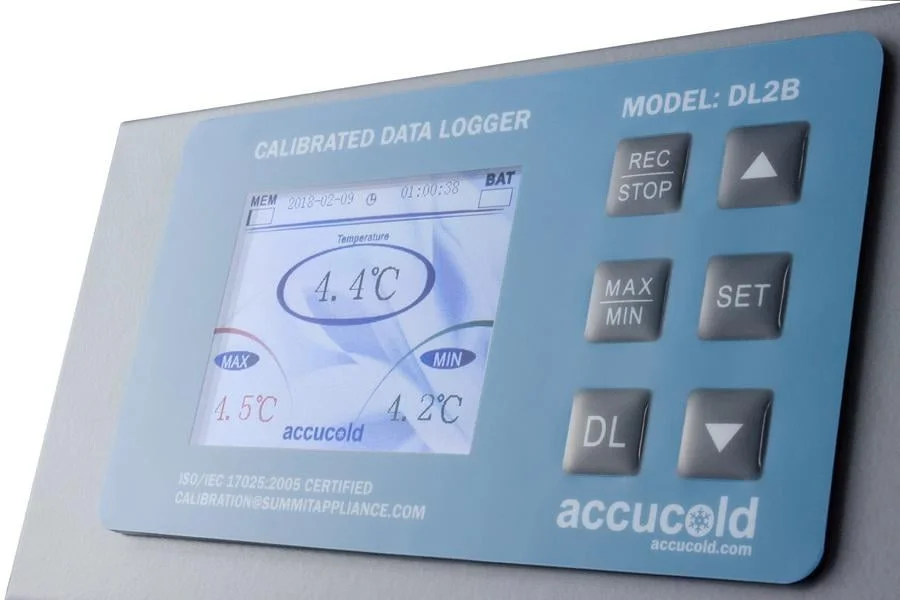

- LED illuminated LCD screen keeps the current, minimum, and maximum temperatures in view at all times, with a readout in Celsius or Fahrenheit to the nearest tenth of a degree
- Programmable tolerance band helps to prevent alarm chattering
- Screen is positioned at a slight angle for easier readability
- Simply plug the flash drive into a PC or Mac and graph or chart in Microsoft Excel or .CSV compatible program
- Logger can hold up to 32,000 data groups for long-term recordkeeping
- Screen includes a display icon for the available memory, with an audible/visual alarm alerting when the unit falls to 10%
Specifications
Specifications
Product
Refrigerator Accessory Type
Other
Refrigerator Accessory Type
- Other
Energy Star Compliant
No
Energy Star Compliant
- No
Accessory Type
Refrigerator Accessories
Accessory Type
- Refrigerator Accessories
Features
Allows you to delay alarm activation by a user-set time interval to avoid unnecessary alerts, Users can program the timing interval for data logging, with a wide range of anywhere between 10 seconds and 240 minutes, Audible alarm will sound and indicator light will flash if temperature rises or falls below the specified approved range, Accurate logging with a measurement uncertainty of 0.09°C, LED illuminated LCD screen keeps the current, minimum, and maximum temperatures in view at all times, with a readout in Celsius or Fahrenheit to the nearest tenth of a degree, Programmable tolerance band helps to prevent alarm chattering, Screen is positioned at a slight angle for easier readability, Simply plug the flash drive into a PC or Mac and graph or chart in Microsoft Excel or .CSV compatible program, Logger can hold up to 32,000 data groups for long-term recordkeeping, Screen includes a display icon for the available memory, with an audible/visual alarm alerting when the unit falls to 10%
- Allows you to delay alarm activation by a user-set time interval to avoid unnecessary alerts
- Users can program the timing interval for data logging, with a wide range of anywhere between 10 seconds and 240 minutes
- Audible alarm will sound and indicator light will flash if temperature rises or falls below the specified approved range
- Accurate logging with a measurement uncertainty of 0.09°C
- LED illuminated LCD screen keeps the current, minimum, and maximum temperatures in view at all times, with a readout in Celsius or Fahrenheit to the nearest tenth of a degree
- Programmable tolerance band helps to prevent alarm chattering
- Screen is positioned at a slight angle for easier readability
- Simply plug the flash drive into a PC or Mac and graph or chart in Microsoft Excel or .CSV compatible program
- Logger can hold up to 32,000 data groups for long-term recordkeeping
- Screen includes a display icon for the available memory, with an audible/visual alarm alerting when the unit falls to 10%
Overview
Height of Cabinet
3.5" (9 cm)
Height of Cabinet
- 3.5" (9 cm)
Width
7.25" (18 cm)
Width
- 7.25" (18 cm)
Depth
3.25" (8 cm)
Depth
- 3.25" (8 cm)
Door
Blue
Door
- Blue
Cabinet
Gray
Cabinet
- Gray
Other Energy Info
12VDC Power Supply
Other Energy Info
- 12VDC Power Supply
Weight
3.0 lbs. (1 kg)
Weight
- 3.0 lbs. (1 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
UPC
761101064789
UPC
- 761101064789
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Misc Summit USB Digital Data Logger, made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Misc collection is an amazing option if you are looking for
furniture.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Reference #: DL2BKIT
