55'' Ips 4K Surgical Monitor With Hdr 10, Dci-P3 86%, 12G-Sdi Support, Mirror & Rotation Mode, & 4Pbp Pip
SKU: 55MH5K
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
HDR10
This 4K surgical monitor features HDR10, properly displaying HDR images clearly.
12G-SDI Support
The 55MH5K features a 55-inch 4K (3840x2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.
Failover Input Switch
When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.
Mirror & Rotation Mode
Conveniently flip and rotate the monitor to adjust to your surgery needs. Mirror & Rotation Modes allow you to select a convenient 180° rotated/mirror image.
IP 45& IP 32
With ratings of IP 45* on the front and IP 32* on the body except for front, this surgical monitor is protected against contact with solid objects and water.

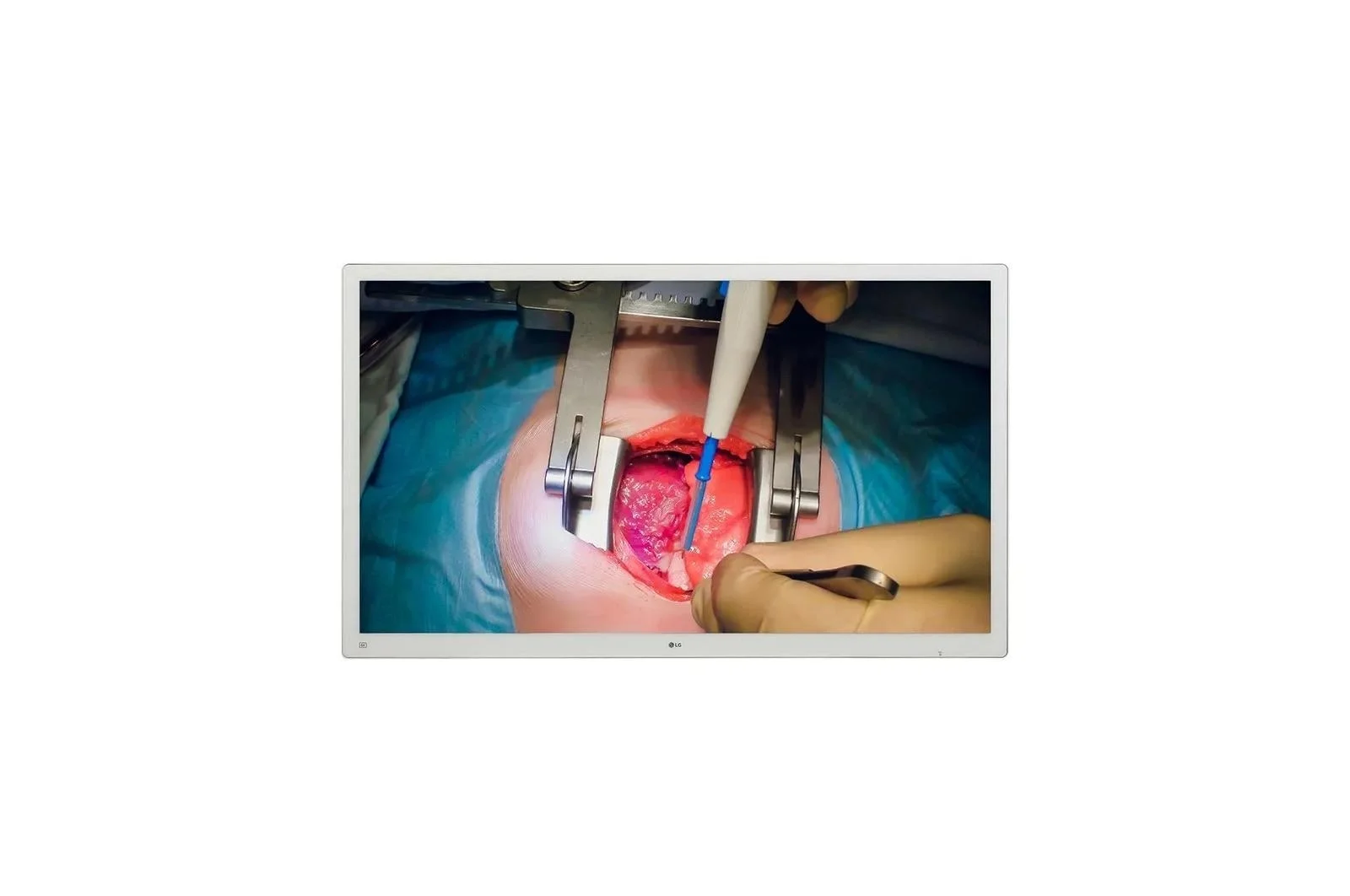

4K Large Display for Surgery
Experience vivid images on LG's 55-inch 4K Display Surgical Monitor, equipped with an IPS panel that offers a wide 178° viewing angle.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Multiple Signals on One Screen
55MH5K supports up to 4PBP, PIP and extended ports, allowing you to view multiple signals simultaneously on a single screen.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
This 4K surgical monitor features HDR10, properly displaying HDR images clearly.
12G-SDI Support
The 55MH5K features a 55-inch 4K (3840x2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.
Failover Input Switch
When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.
Mirror & Rotation Mode
Conveniently flip and rotate the monitor to adjust to your surgery needs. Mirror & Rotation Modes allow you to select a convenient 180° rotated/mirror image.
IP 45& IP 32
With ratings of IP 45* on the front and IP 32* on the body except for front, this surgical monitor is protected against contact with solid objects and water.
4K Large Display for Surgery
Experience vivid images on LG's 55-inch 4K Display Surgical Monitor, equipped with an IPS panel that offers a wide 178° viewing angle.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Multiple Signals on One Screen
55MH5K supports up to 4PBP, PIP and extended ports, allowing you to view multiple signals simultaneously on a single screen.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
- HDR 10 & DCI-P3 86% (CIE 1976) Deliver Crisp, Clear Images
- 178° Wide Viewing Angle
- 12G-SDI Support
- Mirror & Rotation Mode, Failover Input Switch & PBP (2/3/4PBP) / PIP
- 55" IPS 4K (3,840 x 2,160) Resolution & 16:9 Aspect Ratio
- IP45 (Front), IP32 (Except for Front), IK06
Rebates
view available rebates
55'' Ips 4K Surgical Monitor With Hdr 10, Dci-P3 86%, 12G-Sdi Support, Mirror & Rotation Mode, & 4Pbp Pip
Misc Collection
Specifications
Specifications
Features
HDR 10 & DCI-P3 86% (CIE 1976) Deliver Crisp, Clear Images, 178° Wide Viewing Angle, 12G-SDI Support, Mirror & Rotation Mode, Failover Input Switch & PBP (2/3/4PBP) / PIP, 55" IPS 4K (3,840 x 2,160) Resolution & 16:9 Aspect Ratio, IP45 (Front), IP32 (Except for Front), IK06
- HDR 10 & DCI-P3 86% (CIE 1976) Deliver Crisp, Clear Images
- 178° Wide Viewing Angle
- 12G-SDI Support
- Mirror & Rotation Mode, Failover Input Switch & PBP (2/3/4PBP) / PIP
- 55" IPS 4K (3,840 x 2,160) Resolution & 16:9 Aspect Ratio
- IP45 (Front), IP32 (Except for Front), IK06
PANEL
Panel Type
IPS
Panel Type
- IPS
Inch (Aspect Ratio)
55-inch (16: 9)
Inch (Aspect Ratio)
- 55-inch (16: 9)
Resolution
4K (3,840 x 2,160)
Resolution
- 4K (3,840 x 2,160)
Surface Treatment
Protection Glass (3.1t, Anti-reflection, Anti-fingerprint)
Surface Treatment
- Protection Glass (3.1t, Anti-reflection, Anti-fingerprint)
Color Gamut (Typ.)
DCI-P3 86% (CIE 1976)
Color Gamut (Typ.)
- DCI-P3 86% (CIE 1976)
Viewing Angles (CR 10)
178° (Right/Left), 178° (Up/Down)
Viewing Angles (CR 10)
- 178° (Right/Left), 178° (Up/Down)
Brightness (Typ.)
680 cd/m
Brightness (Typ.)
- 680 cd/m
Contrast Ratio (Typ.)
1,100 : 1
Contrast Ratio (Typ.)
- 1,100 : 1
Response Time (GTG*)
9 ms (Off-setting), 5 ms (Faster-setting)
Response Time (GTG*)
- 9 ms (Off-setting), 5 ms (Faster-setting)
Feature
DICOM Compliant
Yes
DICOM Compliant
- Yes
HW Calibration
Yes (LG Calibration Studio)
HW Calibration
- Yes (LG Calibration Studio)
HDR
HDR 10
HDR
- HDR 10
Video Signals

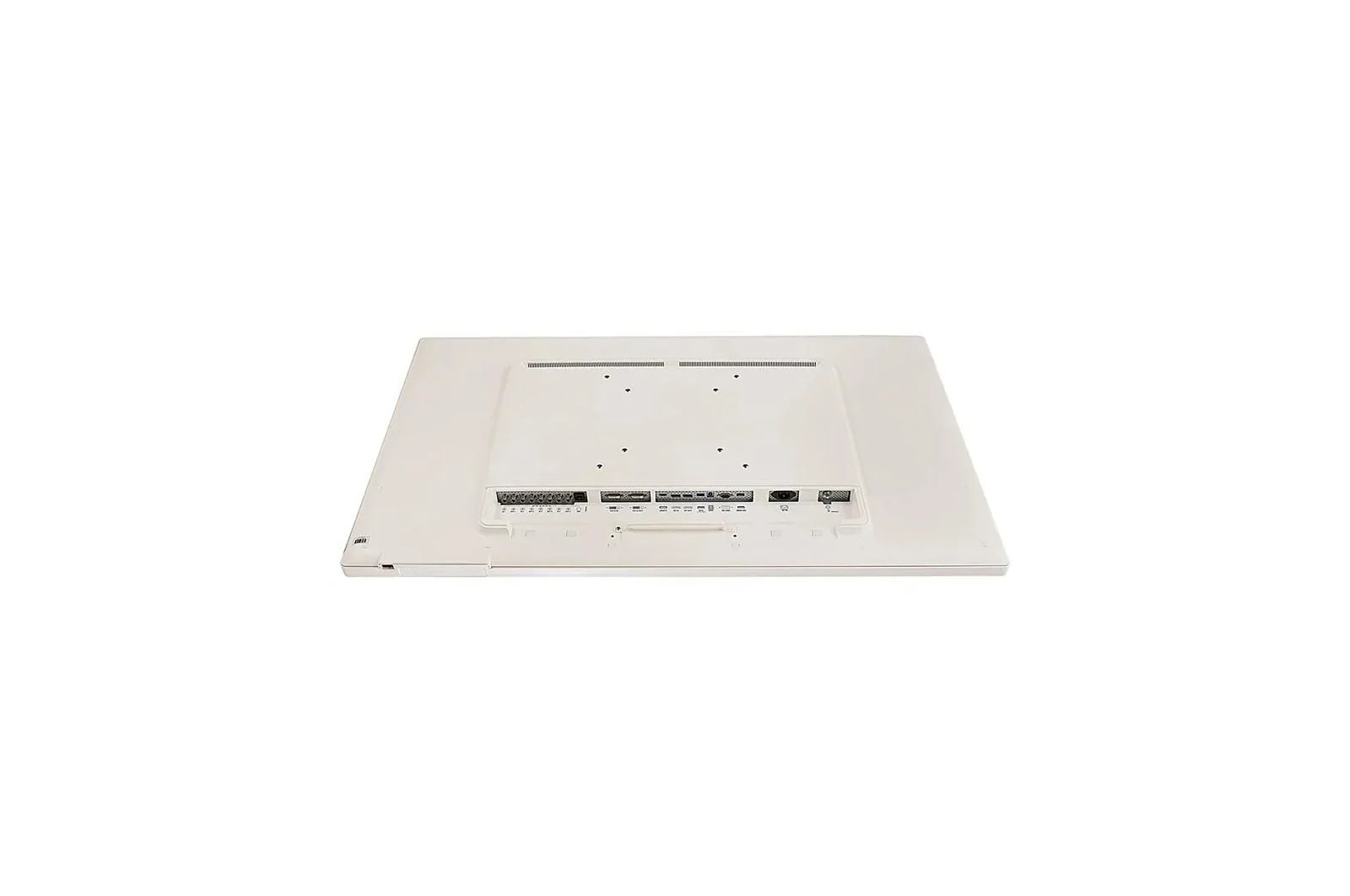

Input Terminals
HDMI x1, DisplayPort x1, DVI x1, 12G-SDI x1
Input Terminals
- HDMI x1, DisplayPort x1, DVI x1, 12G-SDI x1
Output Terminals
DisplayPort x1, DVI x1, 12G-SDI x1
Output Terminals
- DisplayPort x1, DVI x1, 12G-SDI x1
CONNECTIVITY
USB
1 Upstream, 1 Downstream
USB
- 1 Upstream, 1 Downstream
POWER
Power Requirements
100-240 Vac, 50-60 Hz
Power Requirements
- 100-240 Vac, 50-60 Hz
Power Consumption (Max.)
180 W
Power Consumption (Max.)
- 180 W
Power Consumption (DC Off)
Less than 0.3 W
Power Consumption (DC Off)
- Less than 0.3 W
Resistance Rating
Resistance Rating
IP45 (Front), IP32 (Except for Front), IK06
Resistance Rating
- IP45 (Front), IP32 (Except for Front), IK06
CERTIFICATIONS & STANDARDS
Certifications & Standards
IEC (IEC 60601-1 / IEC 60601-1-2), EN (EN 60601-1 / EN 60601-1-2) IEC (IEC 60950-1 / IEC 55032, 55024), EN (EN 60950-1 / EN 55032, 55024) cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1) FCC (FCC part 15 Class A), FDA (Registration (Class I)), RoHS, REACH, WEEE
Certifications & Standards
- IEC (IEC 60601-1 / IEC 60601-1-2), EN (EN 60601-1 / EN 60601-1-2) IEC (IEC 60950-1 / IEC 55032, 55024), EN (EN 60950-1 / EN 55032, 55024) cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1) FCC (FCC part 15 Class A), FDA (Registration (Class I)), RoHS, REACH, WEEE
User Convenience
Screen Flip
Mirror Mode & Rotation Mode
Screen Flip
- Mirror Mode & Rotation Mode
PBP / PIP
PBP (2/3/4PBP) / PIP
PBP / PIP
- PBP (2/3/4PBP) / PIP
Failover Input Switch
Yes
Failover Input Switch
- Yes
PHYSICAL SPECIFICATIONS
Weight (without stand)
34.8 kg (76.7 lb)
Weight (without stand)
- 34.8 kg (76.7 lb)
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
