Description

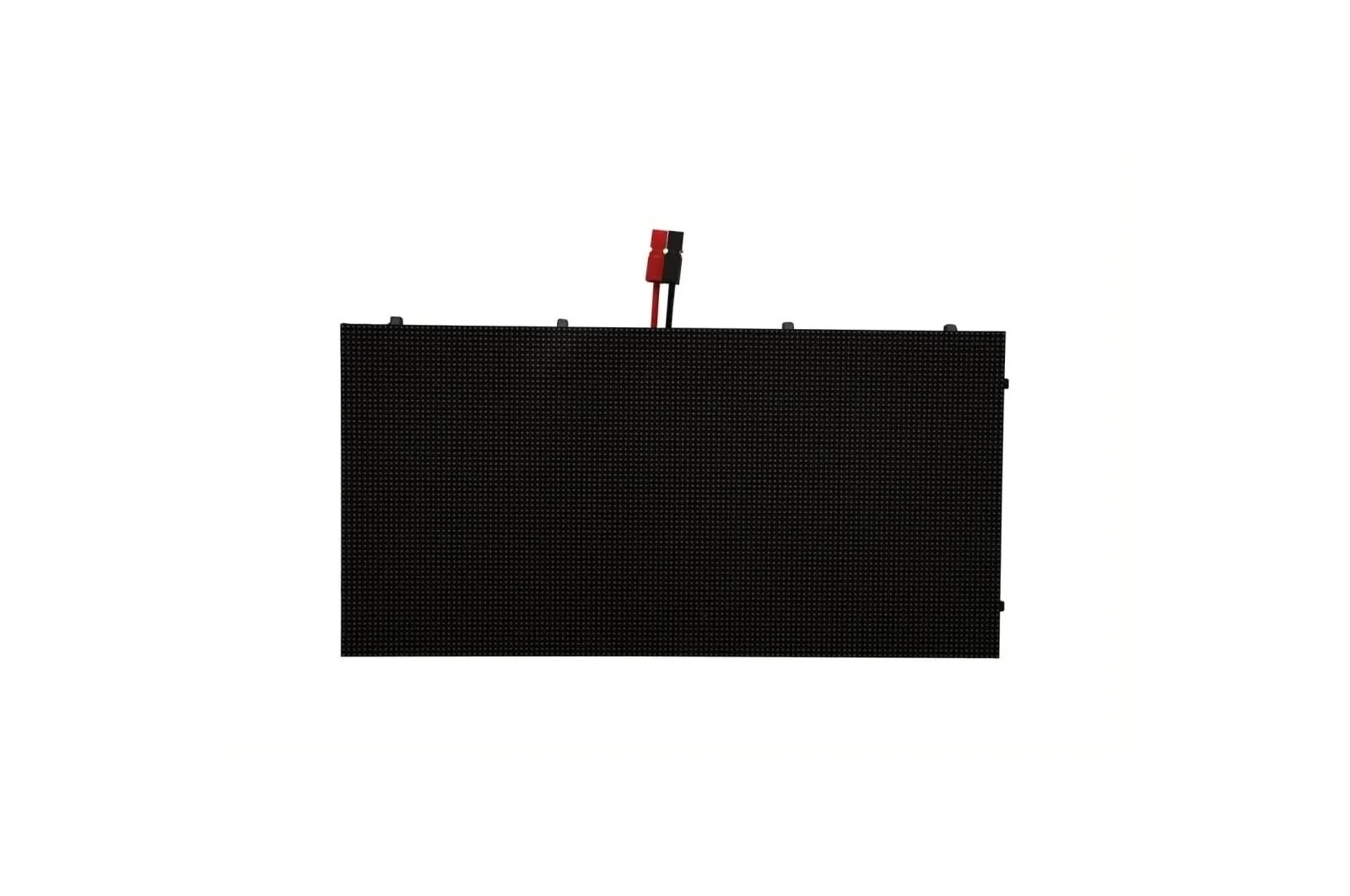

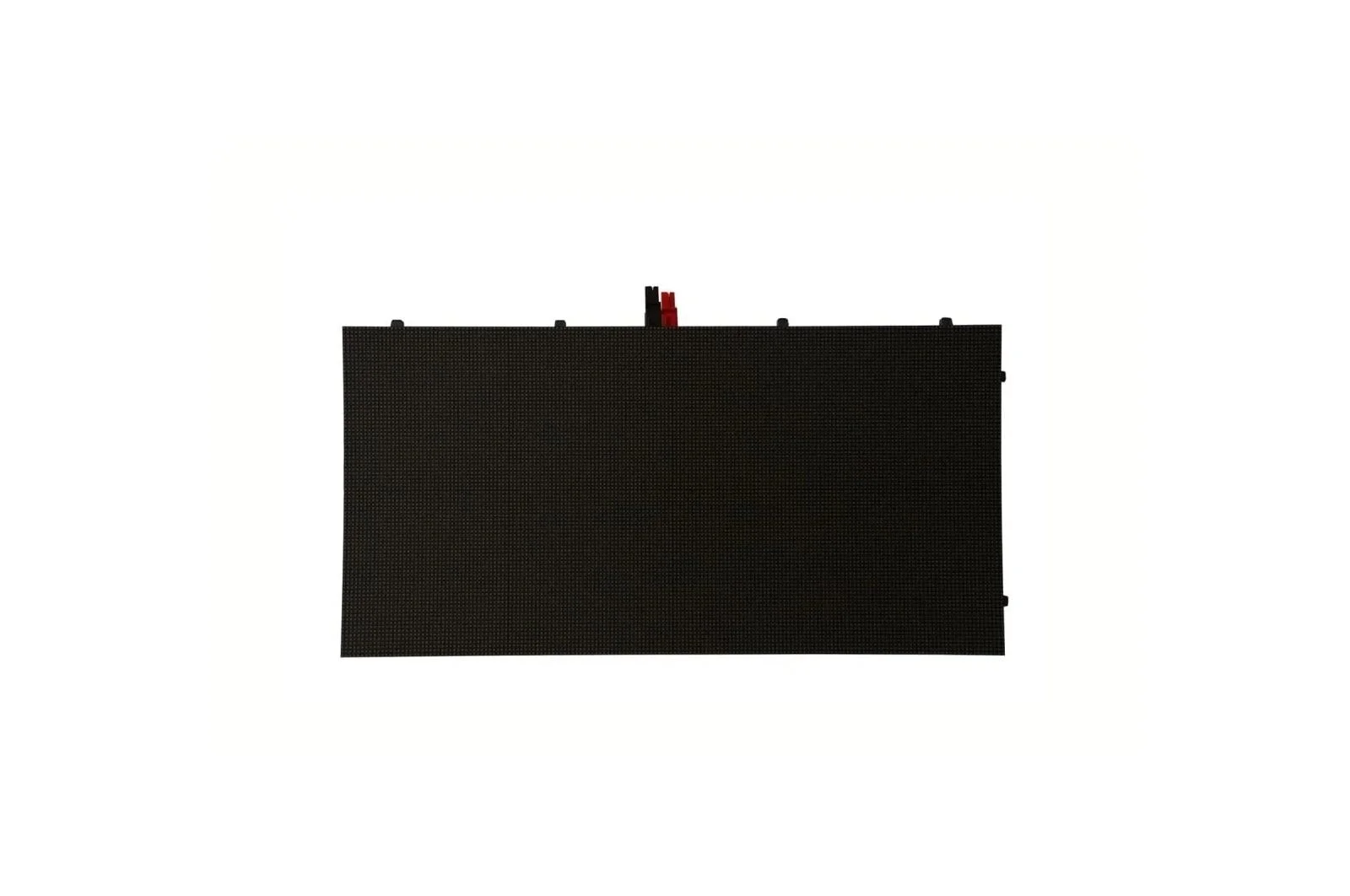

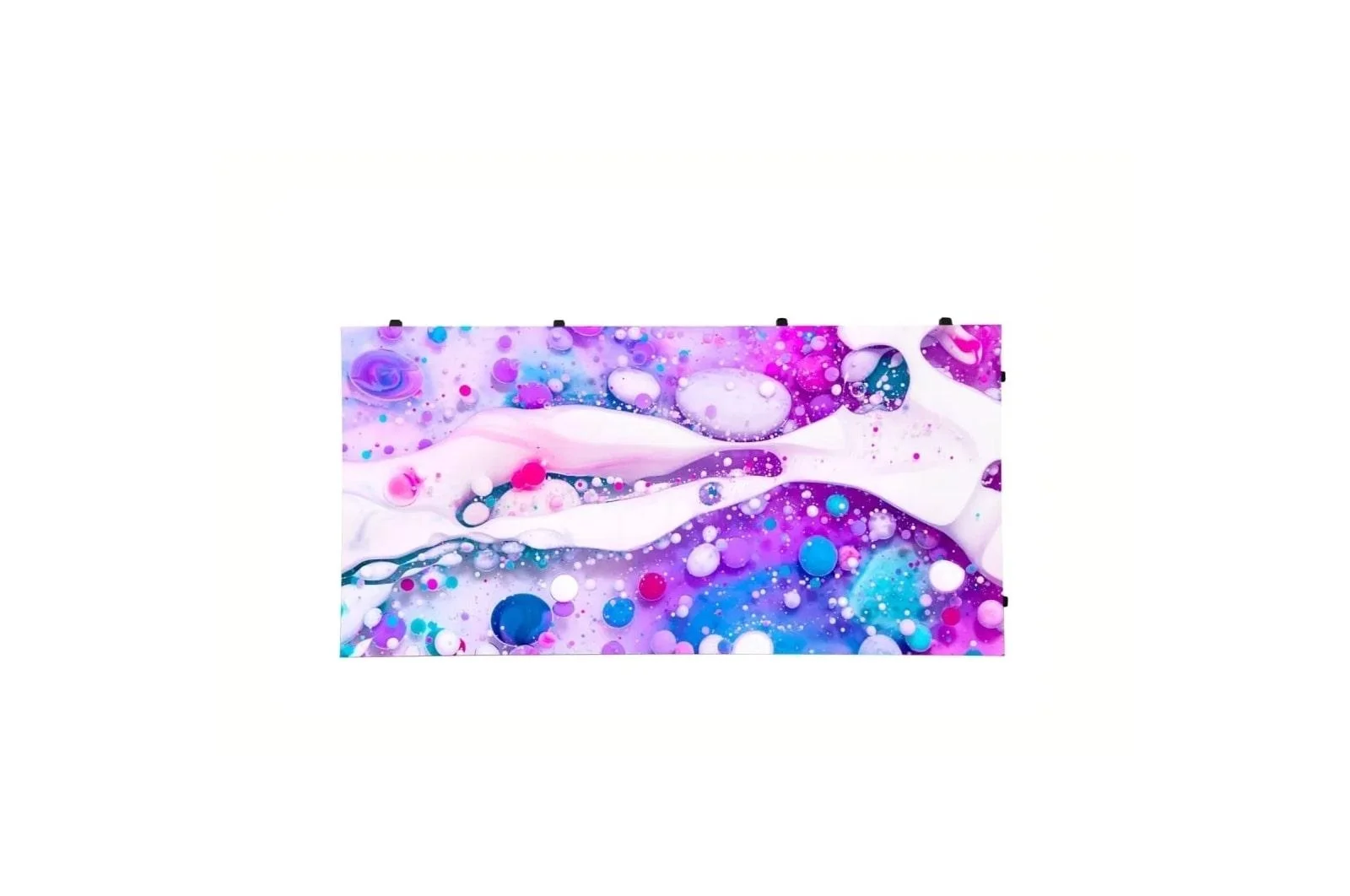

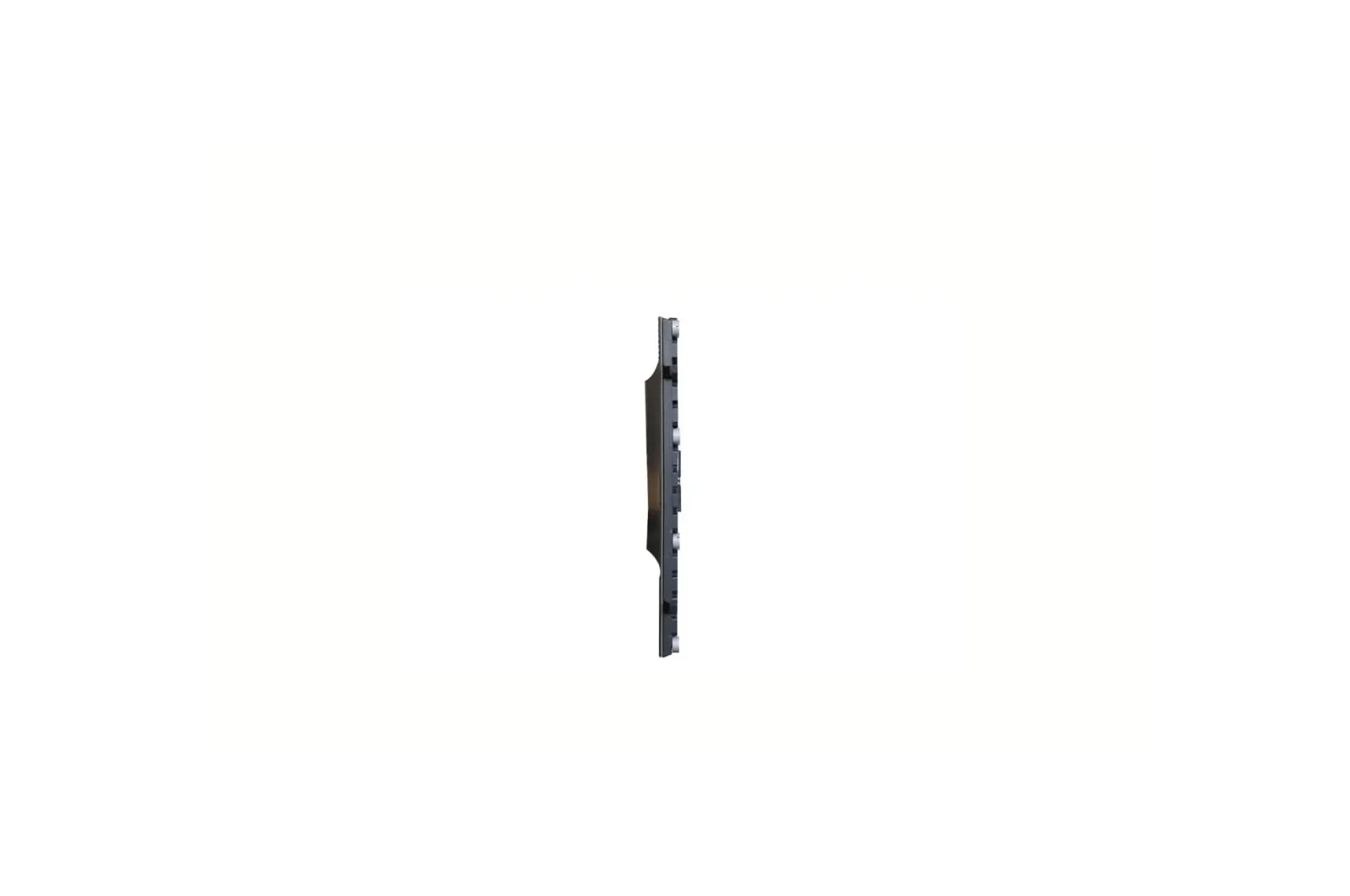

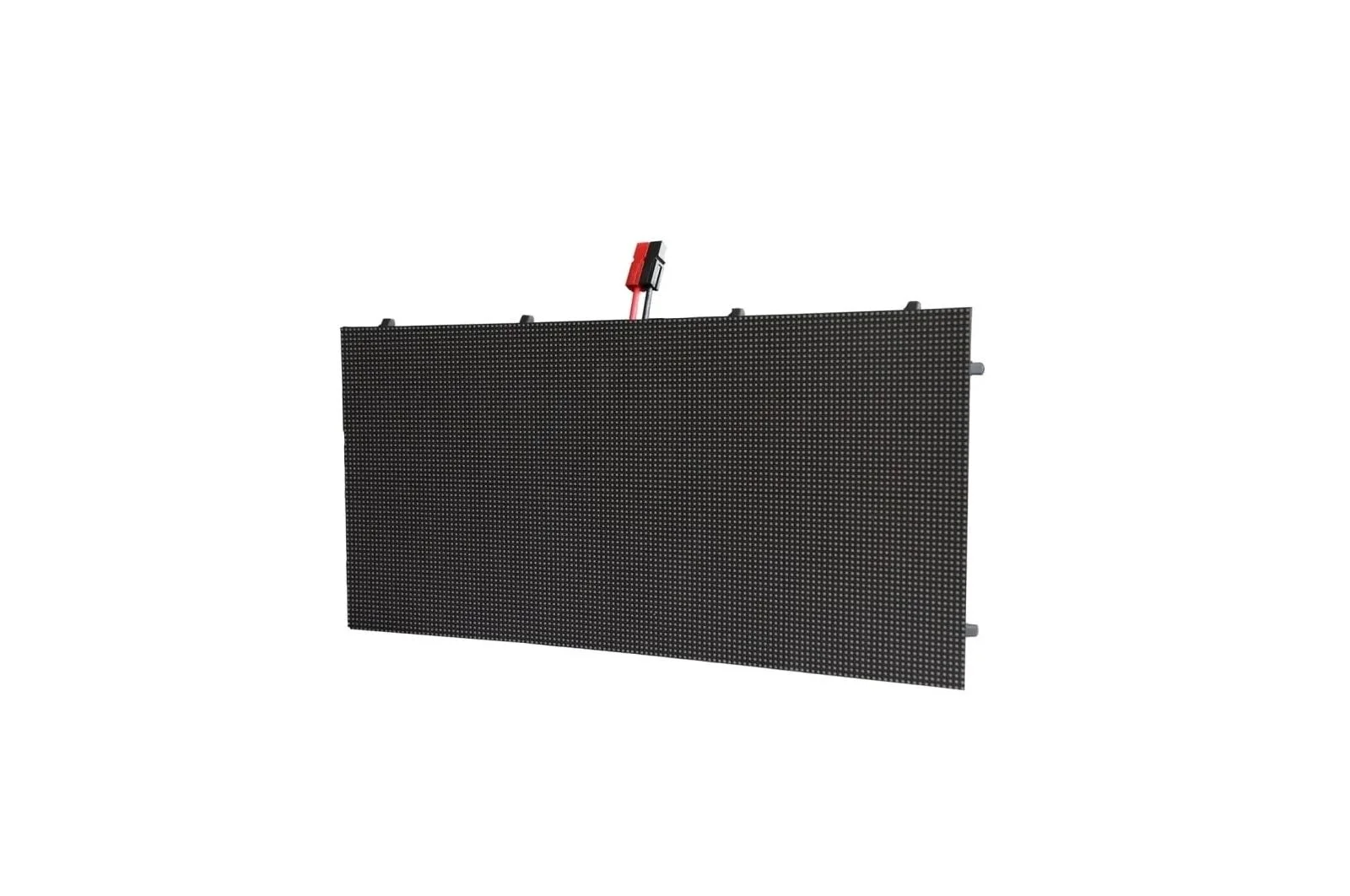

LCCM Curvable Direct View LED
With a specially designed flexible LDM (LED Display Module), the LCCM series supports true concave and convex curvature from 611R. The LCCM series also greatly amplifies design flexibility, providing users with the ability to create true curved screens.
Creative LED Screen

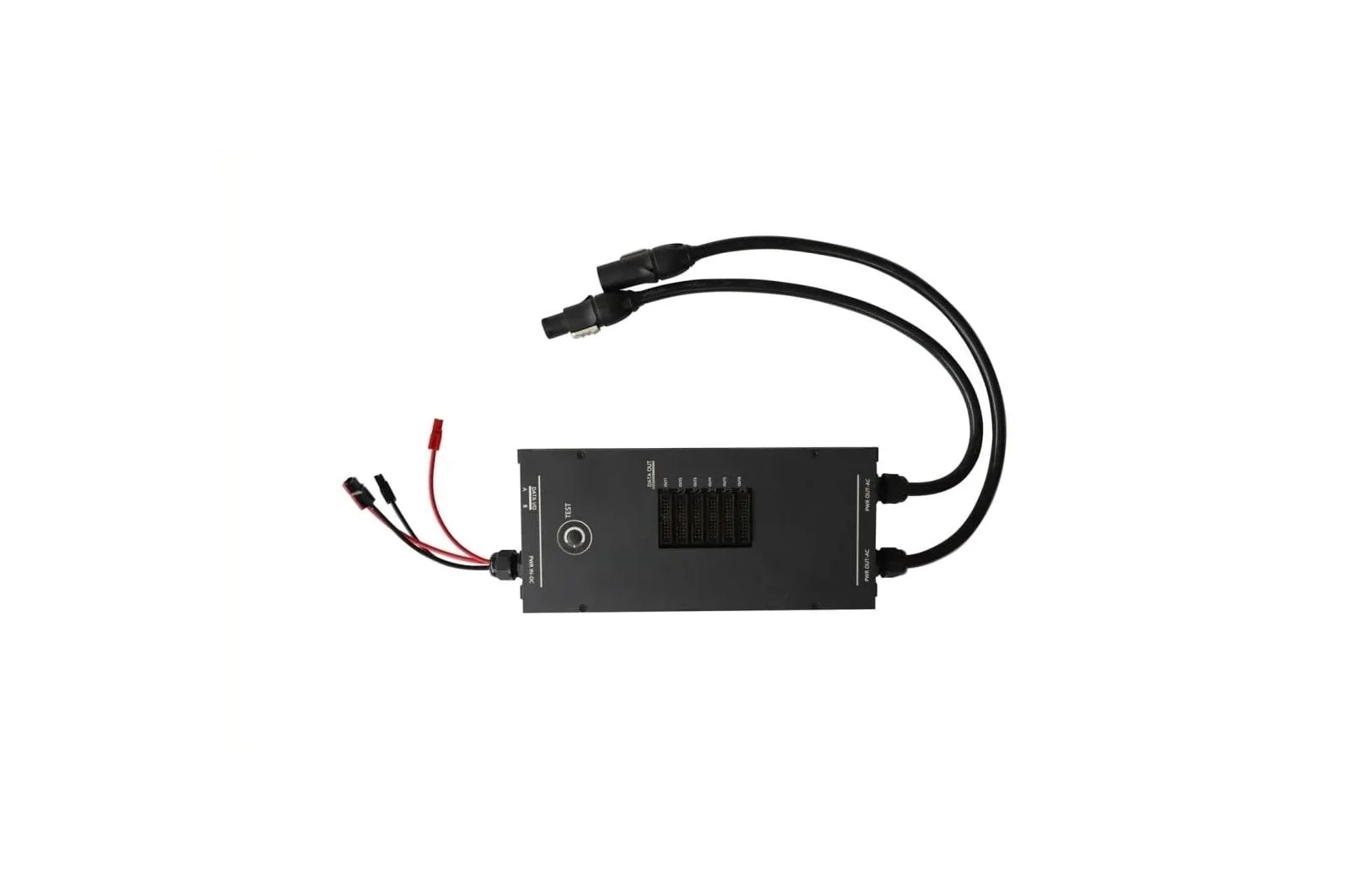

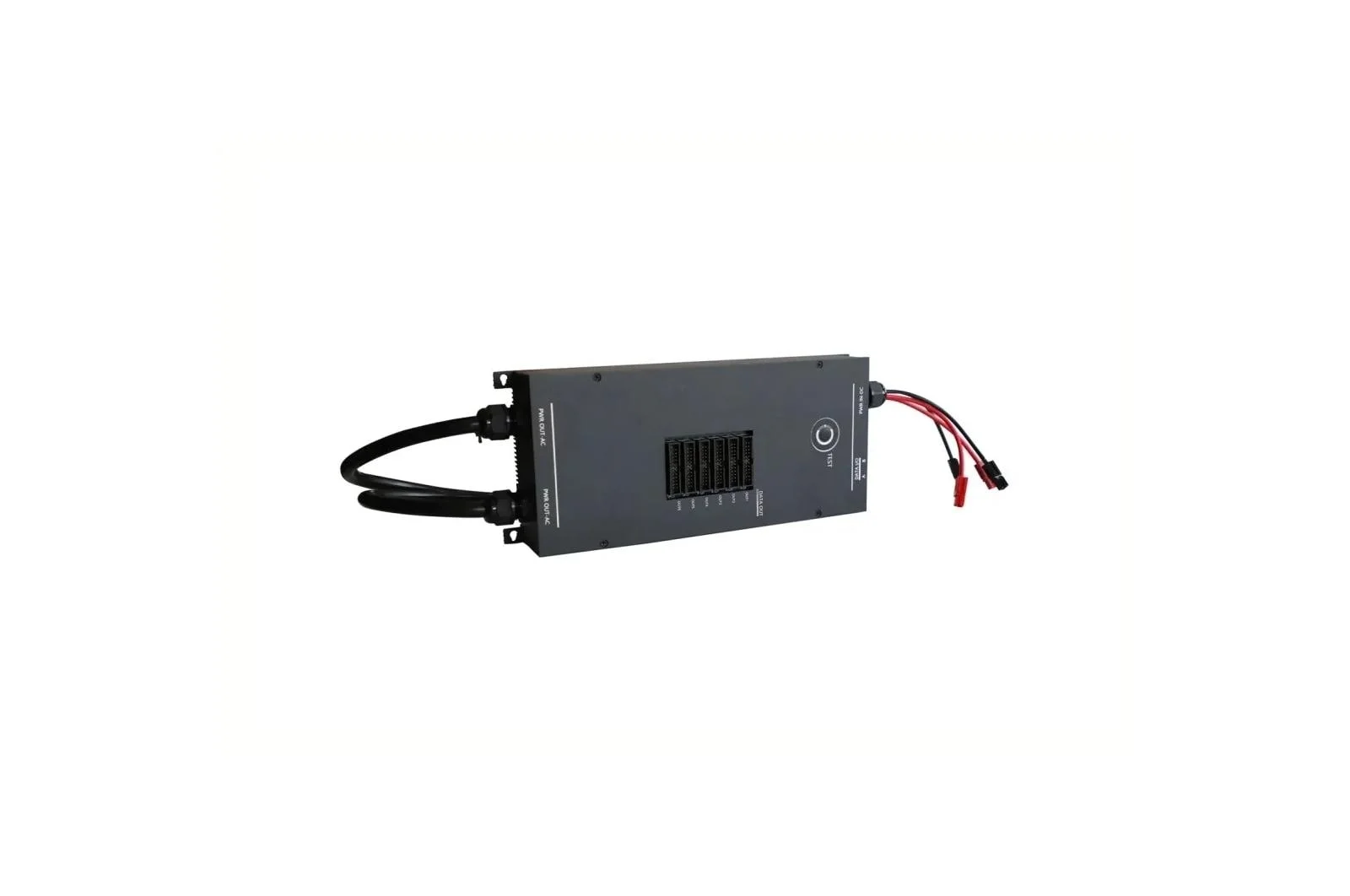

Different from the conventional LED display, LCCM series breaks free from the rectangular shape, allowing the ablility to be designed in various shapes. In addition, the separation of the PDU (Power & Data Unit) from the cabinet gives a lot of freedom and advantage for creative installations.
Easy Installation & Maintenance

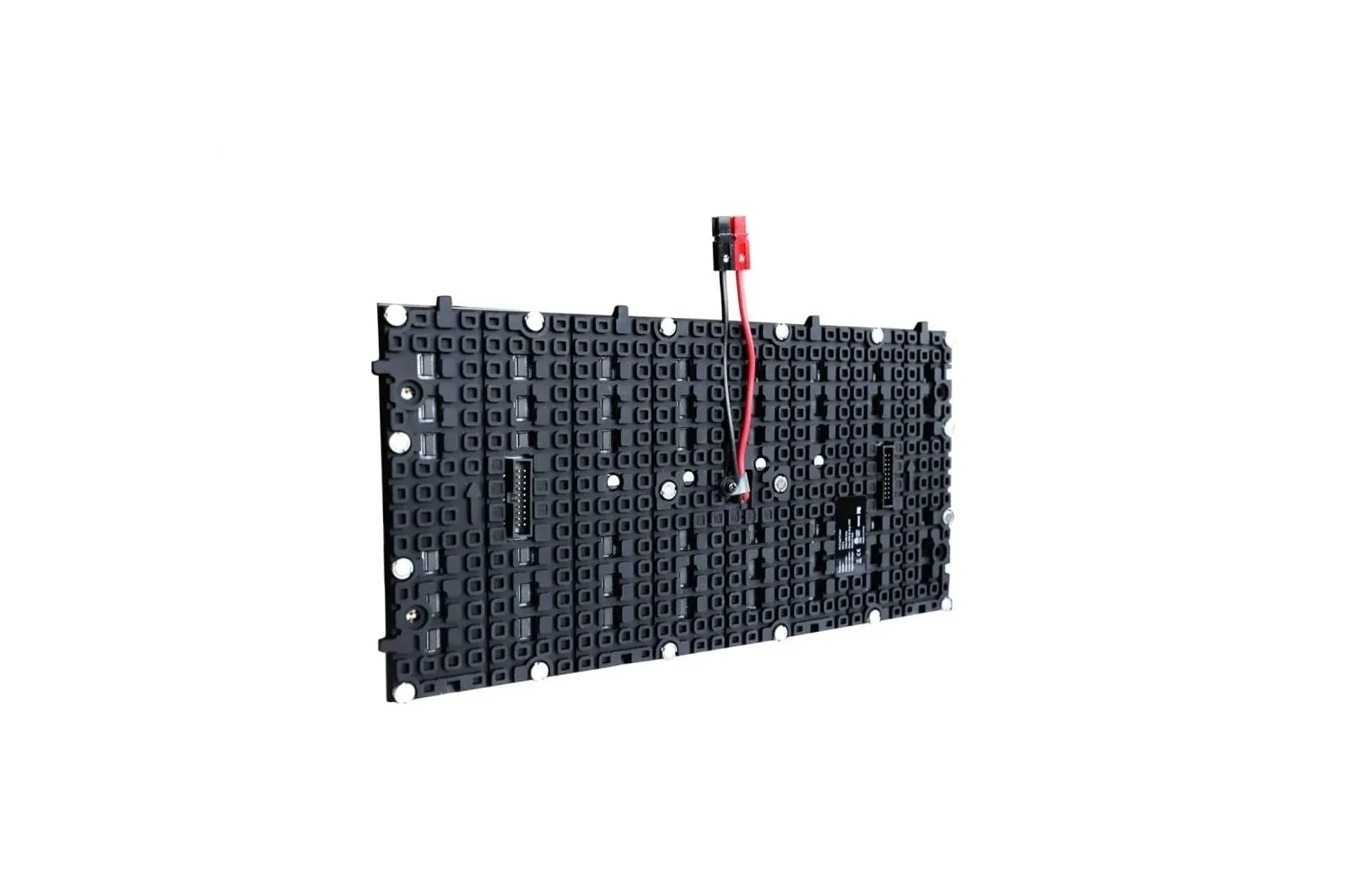

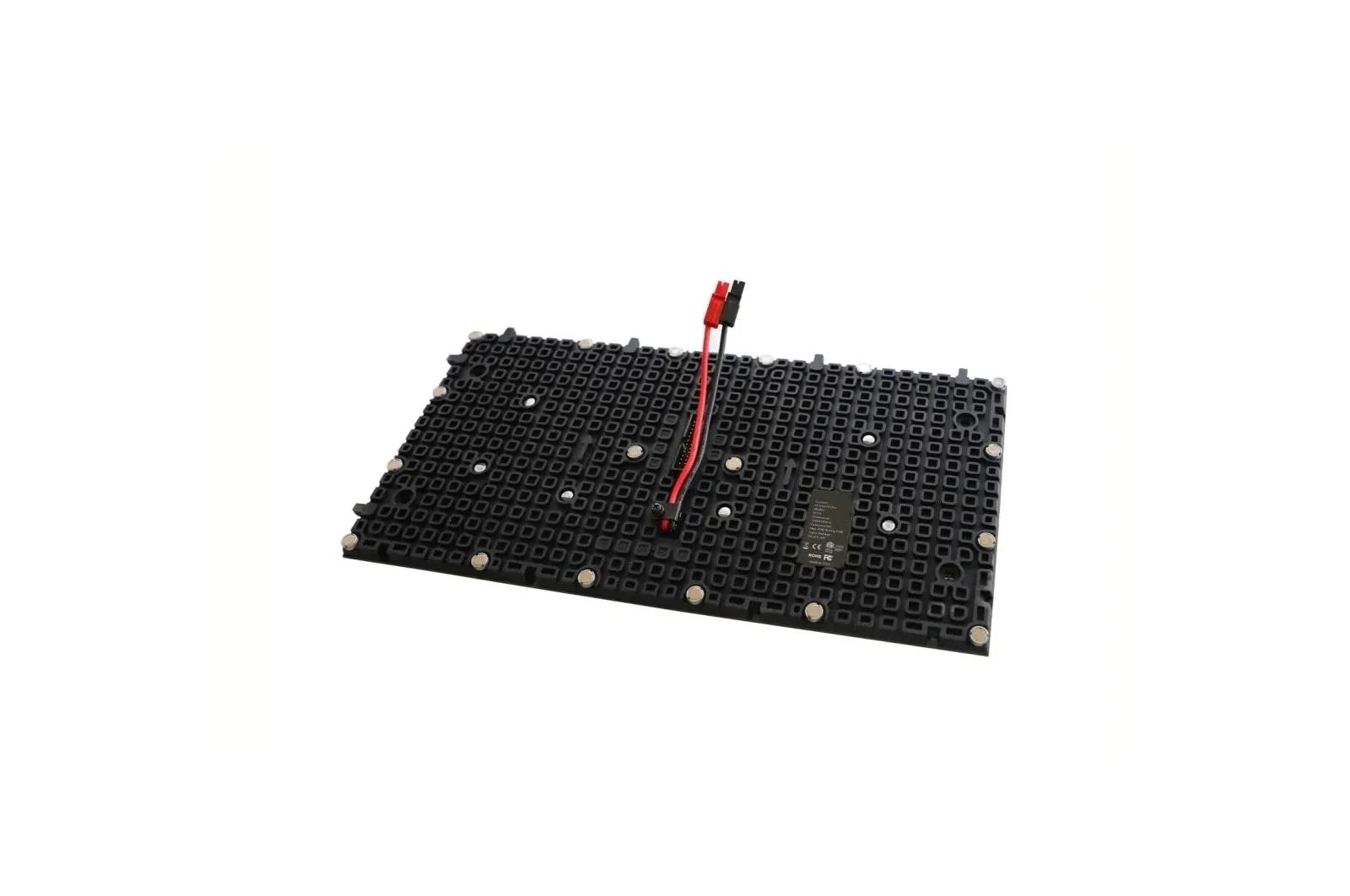

The easy-handling lightweight LDM (LED Display Module) makes installation easy. Also, with various factors including magnets and positioning pins, the installers can easily install and dismantle the LED screen with dedicated tool, making it convenient to manage.
Compatibility with LG Software Solutions
Powered by LG's high performance system controller, the LCCM series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, that allow customers to monitor the status of their display.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details. *The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power) *Available when using with CVCA cotroller.
With a specially designed flexible LDM (LED Display Module), the LCCM series supports true concave and convex curvature from 611R. The LCCM series also greatly amplifies design flexibility, providing users with the ability to create true curved screens.
Creative LED Screen
Different from the conventional LED display, LCCM series breaks free from the rectangular shape, allowing the ablility to be designed in various shapes. In addition, the separation of the PDU (Power & Data Unit) from the cabinet gives a lot of freedom and advantage for creative installations.
Easy Installation & Maintenance
The easy-handling lightweight LDM (LED Display Module) makes installation easy. Also, with various factors including magnets and positioning pins, the installers can easily install and dismantle the LED screen with dedicated tool, making it convenient to manage.
Compatibility with LG Software Solutions
Powered by LG's high performance system controller, the LCCM series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, that allow customers to monitor the status of their display.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details. *The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power) *Available when using with CVCA cotroller.
- Easy Installation & Maintenance
- Supports True Concave and Convex Curvature from 611R
- Separate Power & Data Unit
- 2.50 mm Pixel Pitch & 1,200 nits Brightness
Rebates
view available rebates
2.50 Mm Lccm Series Flexible Direct View Led
Misc Collection
Specifications
Specifications
Features
Easy Installation & Maintenance, Supports True Concave and Convex Curvature from 611R, Separate Power & Data Unit, 2.50 mm Pixel Pitch & 1,200 nits Brightness
- Easy Installation & Maintenance
- Supports True Concave and Convex Curvature from 611R
- Separate Power & Data Unit
- 2.50 mm Pixel Pitch & 1,200 nits Brightness
PHYSICAL PARAMETERS
Pixel Configuration
3 in 1
Pixel Configuration
- 3 in 1
Pixel Pitch
2.50 mm
Pixel Pitch
- 2.50 mm
Module Resolution (W x H)
128 x 64
Module Resolution (W x H)
- 128 x 64
Module Dimensions (W x H)
12.6 x 6.3 in 320 x 160 mm
Module Dimensions (W x H)
- 12.6 x 6.3 in 320 x 160 mm
Weight per Module
1.2 lbs. / 0.55 kg
Weight per Module
- 1.2 lbs. / 0.55 kg
Physical Pixel Density
160,000 pixels/m
Physical Pixel Density
- 160,000 pixels/m
Service Access
Front
Service Access
- Front
OPTICAL SPECIFICATIONS
Max. Brightness After Calibration
1,200 nits
Max. Brightness After Calibration
- 1,200 nits
Color Temperature
3,200-9,300 K
Color Temperature
- 3,200-9,300 K
Visual Viewing Angle (H x V)
160° x 160°
Visual Viewing Angle (H x V)
- 160° x 160°
Brightness Uniformity
97%
Brightness Uniformity
- 97%
Color Uniformity
0.003 Cx, Cy
Color Uniformity
- 0.003 Cx, Cy
Contrast Ratio (Typ.)
5,000:1
Contrast Ratio (Typ.)
- 5,000:1
Processing Depth
14 bits (HDR10, HDR10 Pro)
Processing Depth
- 14 bits (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
Max. Power Consumption per Cabinet
36 W
Max. Power Consumption per Cabinet
- 36 W
Avg. Power Consumption per Cabinet
12 W
Avg. Power Consumption per Cabinet
- 12 W
Max. Power Consumption per Unit Area
720 W/m
Max. Power Consumption per Unit Area
- 720 W/m
Max. Heat Dissipation per Cabinet
123 BTU
Max. Heat Dissipation per Cabinet
- 123 BTU
Avg. Heat Dissipation per Cabinet
41 BTU
Avg. Heat Dissipation per Cabinet
- 41 BTU
Max. Heat Dissipation per Unit Area
2,457 BTU/m
Max. Heat Dissipation per Unit Area
- 2,457 BTU/m
Power Supply
100 to 240 V
Power Supply
- 100 to 240 V
Frame Rate
50 / 60 Hz
Frame Rate
- 50 / 60 Hz
Refresh Rate
1,920 Hz
Refresh Rate
- 1,920 Hz
OPERATION SPECIFICATIONS
LED Lifetime (Half brightness)
Up to 100,000
LED Lifetime (Half brightness)
- Up to 100,000
Operating Temperature
+14 to +114 °F -10 to +45 °C
Operating Temperature
- +14 to +114 °F -10 to +45 °C
Operating Humidity
10-90%RH
Operating Humidity
- 10-90%RH
IP Rating Front / Rear
IP30 / IP30
IP Rating Front / Rear
- IP30 / IP30
Regulatory/Certifications
Regulatory / Certifications
CE / FCC / ETL / RoHS / REACH
Regulatory / Certifications
- CE / FCC / ETL / RoHS / REACH
CONTROLLER
Controller
CVCA
Controller
- CVCA
90 DEGREE CORNER CUT
90 Degree corner cut
No
90 Degree corner cut
- No
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
