1.5Mm Lscb Series Ultra Slim Led Digital Signage With 800Nits Brightness, 16:9 Aspect, Front Access & 90° Corner Option
SKU: LSCB015GK
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDisclaimer
Description
moreEasy Installation
The LSCB series can be easily installed and managed from the front side for easy operation. Thanks to this feature, no additional space for maintenance behind the product is required. Its LED modules can also be simply attached or detached with a magnetic tool.
16:9 FHD/UHD Configuration
Each cabinet uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content. This allows you to keep using existing content with virtually no additional cost and time for editing.
EMC Class B Certified
The LSCB series LED is EMC Class B certification. This means it produces low amount of electromagnetic wave making it safer for the environment and people.
LG Recognized as MSAP Leader
LG's environmental practices have earned us the title of Leader in the MindClick Sustainability Assessment Program 22-23. MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices. LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.
Ultra Slim Depth

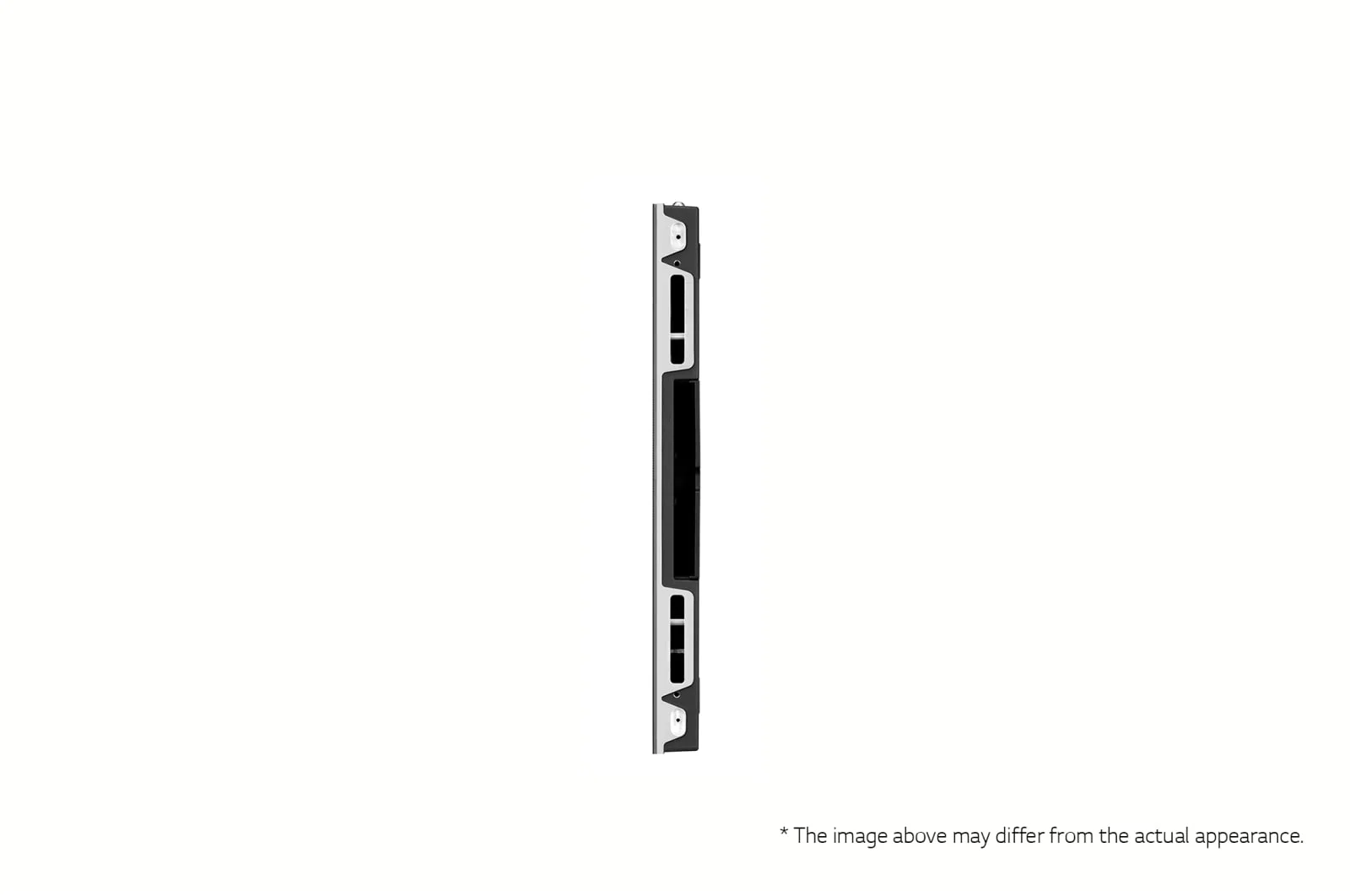

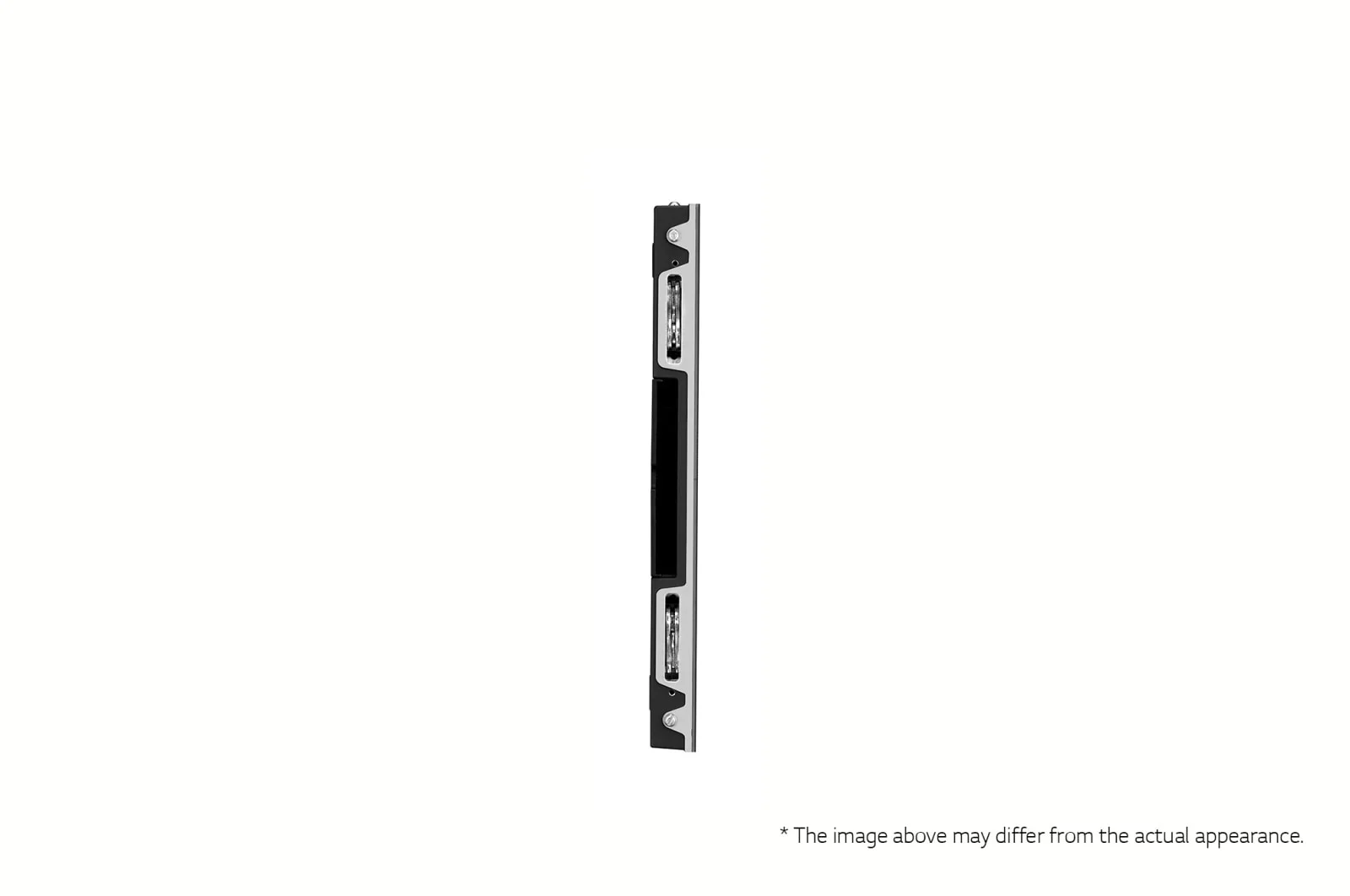

The LSCB Series has an ultra-slim design with an edge thickness of only 37.5mm (1.47"). This makes it great for virtually any venue.
90° Corner Design Available
With the 90° corner option, the LSCB series creates fluid imagery around corners.
*Image for illustration purposes only.
The LSCB series can be easily installed and managed from the front side for easy operation. Thanks to this feature, no additional space for maintenance behind the product is required. Its LED modules can also be simply attached or detached with a magnetic tool.
16:9 FHD/UHD Configuration
Each cabinet uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content. This allows you to keep using existing content with virtually no additional cost and time for editing.
EMC Class B Certified
The LSCB series LED is EMC Class B certification. This means it produces low amount of electromagnetic wave making it safer for the environment and people.
LG Recognized as MSAP Leader
LG's environmental practices have earned us the title of Leader in the MindClick Sustainability Assessment Program 22-23. MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices. LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.
Ultra Slim Depth
The LSCB Series has an ultra-slim design with an edge thickness of only 37.5mm (1.47"). This makes it great for virtually any venue.
90° Corner Design Available
With the 90° corner option, the LSCB series creates fluid imagery around corners.
*Image for illustration purposes only.
- EMC Class B, BS 476 Part7 Class 1
- Brightness: 800nits
- Ultra Slim Depth
- Pixel Pitch: 1.56mm
Rebates
view available rebates
1.5Mm Lscb Series Ultra Slim Led Digital Signage With 800Nits Brightness, 16:9 Aspect, Front Access & 90° Corner Option
Misc Collection
Specifications
Specifications
Features
EMC Class B, BS 476 Part7 Class 1, Brightness: 800nits, Ultra Slim Depth, Pixel Pitch: 1.56mm
- EMC Class B, BS 476 Part7 Class 1
- Brightness: 800nits
- Ultra Slim Depth
- Pixel Pitch: 1.56mm
PHYSICAL PARAMETERS
Pixel Configuration
3 in 1 SMD
Pixel Configuration
- 3 in 1 SMD
Pixel Pitch (mm)
1.56
Pixel Pitch (mm)
- 1.56
Module Resolution (W x H)
192 x 108
Module Resolution (W x H)
- 192 x 108
Module Dimensions (W x H, mm)
300 x 168.75
Module Dimensions (W x H, mm)
- 300 x 168.75
Weight per Module (kg)
0.40
Weight per Module (kg)
- 0.40
No. of Modules per Cabinet (W x H)
2 x 2
No. of Modules per Cabinet (W x H)
- 2 x 2
Cabinet Resolution (W x H)
384 x 216
Cabinet Resolution (W x H)
- 384 x 216
Cabinet Dimensions (W x H x D, mm)
600 x 337.5 x 35 mm
Cabinet Dimensions (W x H x D, mm)
- 600 x 337.5 x 35 mm
Cabinet Surface Area (m )
0.203
Cabinet Surface Area (m )
- 0.203
Weight per Cabinet (kg / cabinet)
5.2
Weight per Cabinet (kg / cabinet)
- 5.2
Weight per Square Meter (kg / m )
25.7
Weight per Square Meter (kg / m )
- 25.7
Physical Pixel Density (pixels / m )
409,600
Physical Pixel Density (pixels / m )
- 409,600
Flatness of Cabinet (mm)
0.1
Flatness of Cabinet (mm)
- 0.1
Cabinet Material
Die Casting Aluminum Alloy
Cabinet Material
- Die Casting Aluminum Alloy
Service Access
Front
Service Access
- Front
OPTICAL SPECIFICATIONS
Min. Brightness
600 nit
Min. Brightness
- 600 nit
Color Temperature
6,500
Color Temperature
- 6,500
Visual Viewing Angle (H x V)
160 x 160
Visual Viewing Angle (H x V)
- 160 x 160
Brightness Uniformity
97%
Brightness Uniformity
- 97%
Color Uniformity
0.003 Cx,Cy
Color Uniformity
- 0.003 Cx,Cy
Contrast Ratio
5,000
Contrast Ratio
- 5,000
Processing Depth (bit)
14
Processing Depth (bit)
- 14
ELECTRICAL SPECIFICATIONS
Power Consumption (W/Cabinet, Max.)
150
Power Consumption (W/Cabinet, Max.)
- 150
Power Consumption (W/Cabinet, Avg.)
50
Power Consumption (W/Cabinet, Avg.)
- 50
Power Consumption (W/m , Max.)
890
Power Consumption (W/m , Max.)
- 890
Power Consumption (BTU/Cabinet, Max.)
512
Power Consumption (BTU/Cabinet, Max.)
- 512
Power Consumption (BTU/Cabinet, Avg.)
171
Power Consumption (BTU/Cabinet, Avg.)
- 171
Power Consumption (BTU/m , Max.)
3,037
Power Consumption (BTU/m , Max.)
- 3,037
Power Supply (V)
100 to 240
Power Supply (V)
- 100 to 240
Frame Rate (Hz)
50 / 60
Frame Rate (Hz)
- 50 / 60
Refresh Rate (Hz)
3,840
Refresh Rate (Hz)
- 3,840
OPERATION SPECIFICATIONS
Lifetime (Duration of Half Brightness in Hrs)
100,000
Lifetime (Duration of Half Brightness in Hrs)
- 100,000
Operating Temperature
-10 °C to +45 °C
Operating Temperature
- -10 °C to +45 °C
Operating Humidity
0 - 80 % RH
Operating Humidity
- 0 - 80 % RH
IP Rating Front
IP30
IP Rating Front
- IP30
IP Rating Rear
IP30
IP Rating Rear
- IP30
CERTIFICATION
Certification
CE, FCC, ETL, EMC Class B, BS 476 Part 7 Class 1, in progress
Certification
- CE, FCC, ETL, EMC Class B, BS 476 Part 7 Class 1, in progress
ENVIRONMENT
Environment
RoHS, REACH in progress
Environment
- RoHS, REACH in progress
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
