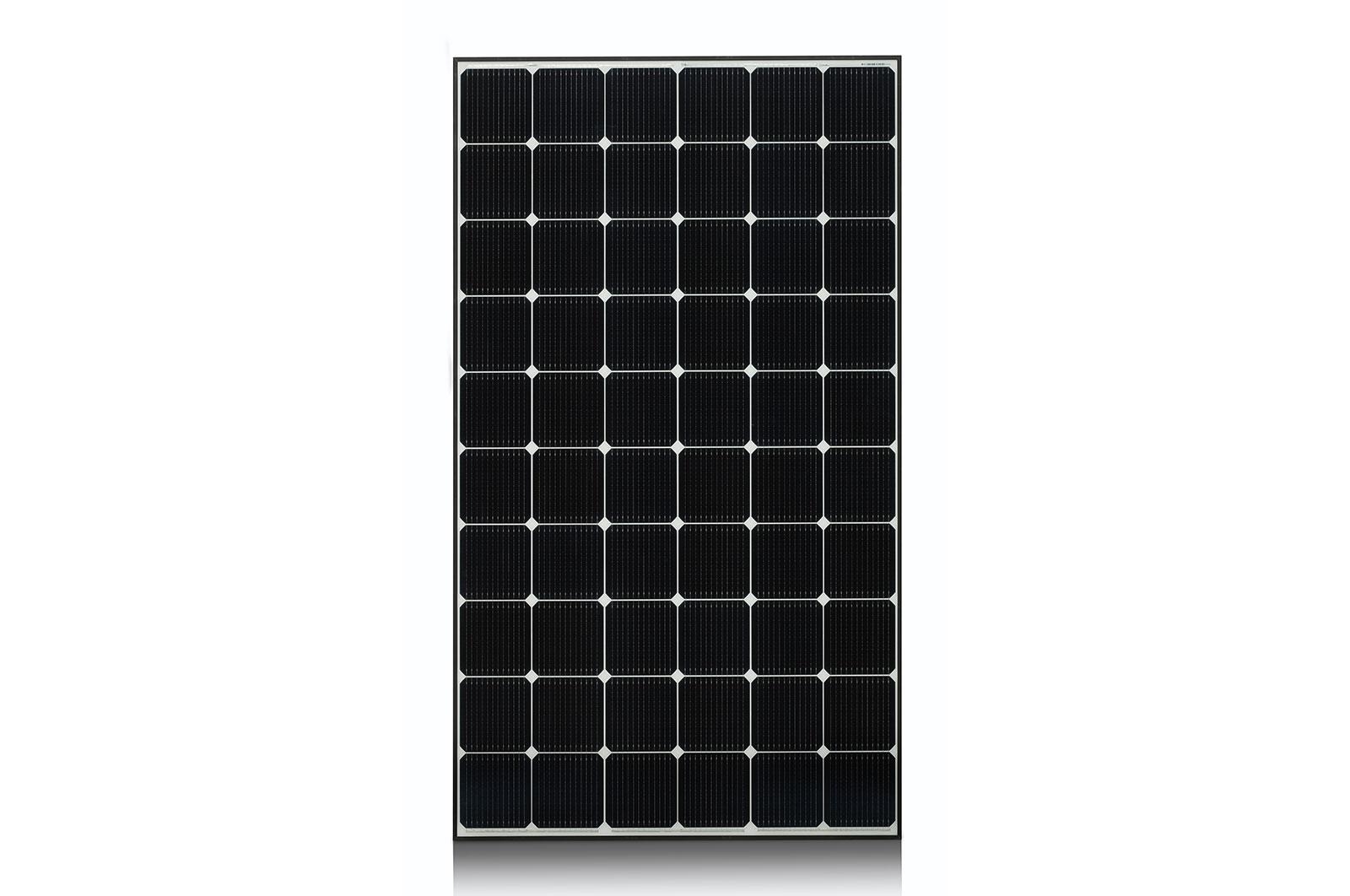

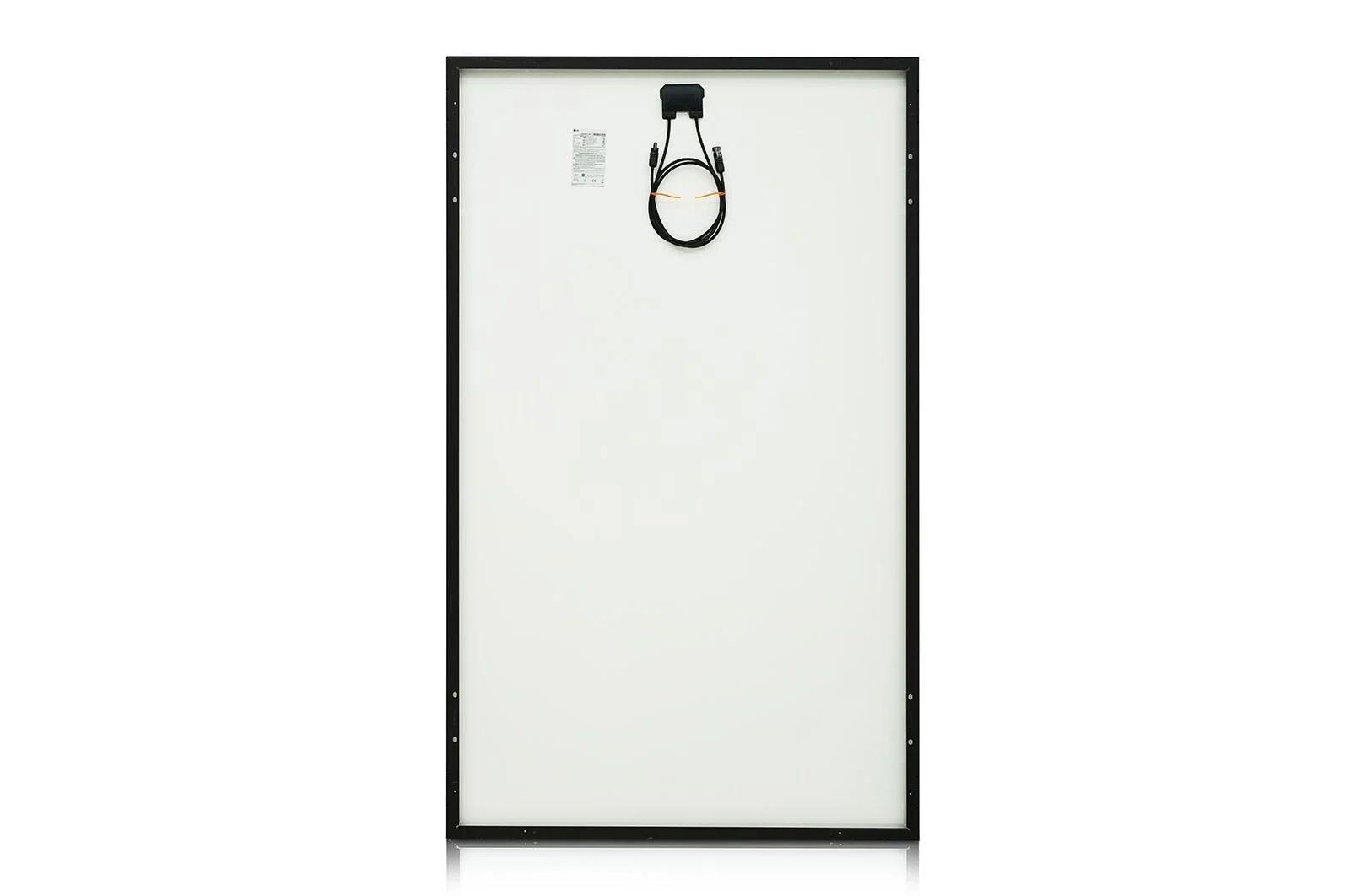

375W High Efficiency Lg Neon® 2 Solar Panel For Home With 60 Cells (6 X 10), Module Efficiency: 20.7%, Connector Type: Mc4
SKU: LG375N1CA6
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
- 20.7% Module Efficiency
- 25 Year Limited Warranty
- Better Performance on a Sunny Day
- Award-Winning Cello Technology™
- 60 Cell (6 x 10) Solar Panel
- Attractive Roof Aesthetic
Rebates
view available rebates
375W High Efficiency Lg Neon® 2 Solar Panel For Home With 60 Cells (6 X 10), Module Efficiency: 20.7%, Connector Type: Mc4
Misc Collection
Specifications
Specifications
Features
20.7% Module Efficiency, 25 Year Limited Warranty, Better Performance on a Sunny Day, Award-Winning Cello Technology™, 60 Cell (6 x 10) Solar Panel, Attractive Roof Aesthetic
- 20.7% Module Efficiency
- 25 Year Limited Warranty
- Better Performance on a Sunny Day
- Award-Winning Cello Technology™
- 60 Cell (6 x 10) Solar Panel
- Attractive Roof Aesthetic
General Data
Cell Properties (Material/Type)
Monocrystalline/N-type
Cell Properties (Material/Type)
- Monocrystalline/N-type
Cell Maker
LG
Cell Maker
- LG
Cell Configuration
60 Cells (6 x 10)
Cell Configuration
- 60 Cells (6 x 10)
Number of Busbars
12EA
Number of Busbars
- 12EA
Module Dimensions (L x W x H)
1,740mm x 1,042mm x 40mm
Module Dimensions (L x W x H)
- 1,740mm x 1,042mm x 40mm
Weight
18.6kg
Weight
- 18.6kg
Glass (Material)
Tempered Glass with AR Coating
Glass (Material)
- Tempered Glass with AR Coating
Backsheet (Color)
White
Backsheet (Color)
- White
Frame (Material)
Anodized Aluminium
Frame (Material)
- Anodized Aluminium
Junction Box (Protection Degree)
IP 68 with 3 Bypass Diodes
Junction Box (Protection Degree)
- IP 68 with 3 Bypass Diodes
Cables (Length)
1,100mm x 2EA
Cables (Length)
- 1,100mm x 2EA
Connector (Type/Maker)
MC 4/MC
Connector (Type/Maker)
- MC 4/MC
Certifications and Warranty
Certifications
IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, UL 61730-1: 2017, UL 61730-2:2017, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001
Certifications
- IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, UL 61730-1: 2017, UL 61730-2:2017, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001
Salt Mist Corrosion Test
IEC 61701:2012 Severity 6
Salt Mist Corrosion Test
- IEC 61701:2012 Severity 6
Ammonia Corrosion Test
IEC 62716:2013
Ammonia Corrosion Test
- IEC 62716:2013
Module Fire Performance
Type 1 (UL 61730)
Module Fire Performance
- Type 1 (UL 61730)
Fire Rating
Class C (UL 790, ULC/ORD C 1703)
Fire Rating
- Class C (UL 790, ULC/ORD C 1703)
Solar Module Product Warranty
25 Year Limited
Solar Module Product Warranty
- 25 Year Limited
Solar Module Output Warranty
Linear Warranty*
Solar Module Output Warranty
- Linear Warranty*
*
Improved: 1st year 98.5%, from 2-24th year: 0.33%/year down, 90.6% at year 25
*
- Improved: 1st year 98.5%, from 2-24th year: 0.33%/year down, 90.6% at year 25
Temperature Characteristics
NMOT* [°C]
42 3
NMOT* [°C]
- 42 3
Pmax [%/°C]
-0.34
Pmax [%/°C]
- -0.34
Voc [%/°C]
-0.26
Voc [%/°C]
- -0.26
Isc [%/°C]
0.03
Isc [%/°C]
- 0.03
*
NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m , Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5.
*
- NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m , Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5.
Electrical Properties (NMOT)
Model
TBD
Model
- TBD
Maximum Power (Pmax) [W]
281
Maximum Power (Pmax) [W]
- 281
MPP Voltage (Vmpp) [V]
33.2
MPP Voltage (Vmpp) [V]
- 33.2
MPP Current (Impp) [A]
8.48
MPP Current (Impp) [A]
- 8.48
Open Circuit Voltage (Voc) [V]
39.4
Open Circuit Voltage (Voc) [V]
- 39.4
Short Circuit Current (Isc) [A]
9.13
Short Circuit Current (Isc) [A]
- 9.13
Electrical Properties (STC*)
Model
TBD
Model
- TBD
Maximum Power (Pmax) [W]
375
Maximum Power (Pmax) [W]
- 375
MPP Voltage (Vmpp) [V]
35.3
MPP Voltage (Vmpp) [V]
- 35.3
MPP Current (Impp) [A]
10.63
MPP Current (Impp) [A]
- 10.63
Open Circuit Voltage (Voc 5%) [V]
41.8
Open Circuit Voltage (Voc 5%) [V]
- 41.8
Short Circuit Current (Isc 5%) [A]
11.35
Short Circuit Current (Isc 5%) [A]
- 11.35
Module Efficiency [%]
20.7
Module Efficiency [%]
- 20.7
Power Tolerance [%]
0 ~ +3
Power Tolerance [%]
- 0 ~ +3
*
STC (Standard Test Condition): Irradiance 1000 W/m , cell temperature 25 °C, AM 1.5, Measure Tolerance of Pmax: +/- 3%.
*
- STC (Standard Test Condition): Irradiance 1000 W/m , cell temperature 25 °C, AM 1.5, Measure Tolerance of Pmax: +/- 3%.
Operating Conditions
Operating Temperature [°C]
-40 ~+85
Operating Temperature [°C]
- -40 ~+85
Maximum System Voltage [V]
1,000
Maximum System Voltage [V]
- 1,000
Maximum Series Fuse Rating [A]
20
Maximum Series Fuse Rating [A]
- 20
Mechanical Test Load (Front) [Pa/psf]
5,400/113
Mechanical Test Load (Front) [Pa/psf]
- 5,400/113
Mechanical Test Load (Rear) [Pa/psf]
4,000/84
Mechanical Test Load (Rear) [Pa/psf]
- 4,000/84
*
Mechanical Test Load 5,400Pa/4,000Pa based on IEC 61215-2 : 2016, Test Load = Design Load x Safety Factor (1.5)
*
- Mechanical Test Load 5,400Pa/4,000Pa based on IEC 61215-2 : 2016, Test Load = Design Load x Safety Factor (1.5)
Packaging Configuration
Number of Modules per Pallet [EA]
25
Number of Modules per Pallet [EA]
- 25
Number of Modules per 40ft HQ Container [EA]
650
Number of Modules per 40ft HQ Container [EA]
- 650
Number of Modules per 53' Container [EA]
850
Number of Modules per 53' Container [EA]
- 850
Packaging Box Dimensions (L x W x H) [mm]
1,790 x 1,120 x 1,213
Packaging Box Dimensions (L x W x H) [mm]
- 1,790 x 1,120 x 1,213
Packaging Box Dimensions (L x W x H) [in]
TBD
Packaging Box Dimensions (L x W x H) [in]
- TBD
Packaging Box Gross Weight [kg]
500
Packaging Box Gross Weight [kg]
- 500
Packaging Box Gross Weight [lb]
TBD
Packaging Box Gross Weight [lb]
- TBD
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
