98'' Umk5-B Uhd Signage With Webos™ 6.0, Pro:Idiom, Supports Crestron Connected®, Cisco Certified, Supersign Compatible
SKU: 98UM5KB
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
Ultra HD Resolution
UHD resolution is 4 times higher than FHD, which makes the color and details of the contents more vivid and realistic. In addition, the IPS Panel allows for wider viewing angles and provides clearer content with no distortion.
Clear Content Delivered with 500 nits Brightness
With a brightness rating of 500 nits the UM5K series displays deliver brilliant content and attracts attention, making these displays an ideal choice for a wide variety of businesses, including retail and corporate
High-Performance with webOS™
LG webOS™ platform enhances user convenience with intuitive GUI and simple app development tools.
Built-in Speaker
Enrich content with sound effects from built-in speakers. *Internal Built-in Speaker Support (L/R max 10 W)
Mobile Content Management
Create a store profile and get template recommendations using the LG Promota* app. Users can customize templates as needed and easily create and manage content not only on PCs but also on mobile devices. *LG Promota is can be downloaded from the App Store and Google Play store.
Compatible with AV Control System
The UM5K series supports Crestron Connected® for compatibility with professional AV controls to achieve seamless integration and automated network-based control. *Network based control

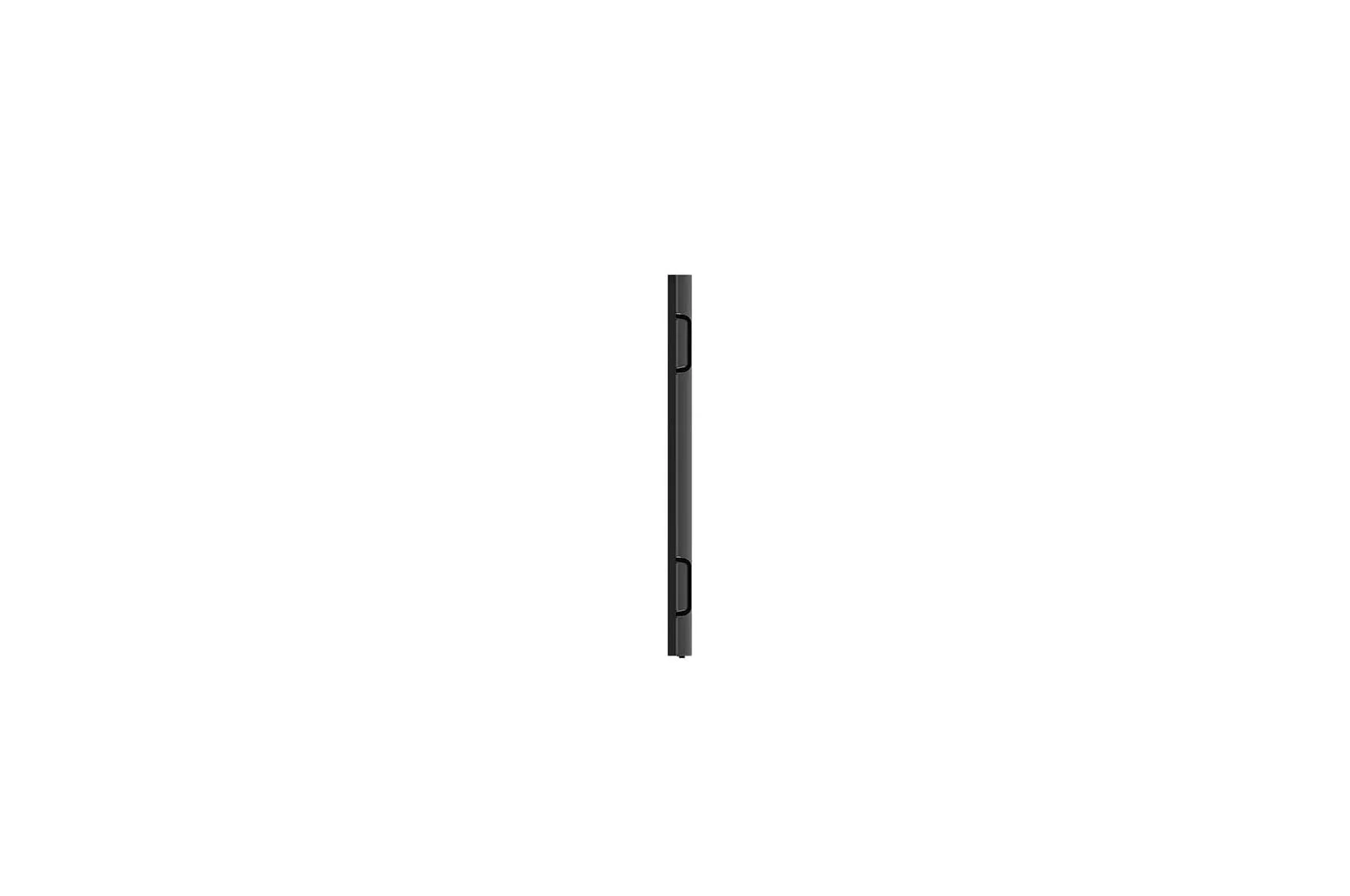

Slim Design
The slim design of the UM5K allows it to be installed closer to the wall, helping to create an immersive experience and sophisticated look.
*Image simulation for illustration purposes only.
LG SuperSign™ Solutions
SuperSign™ is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you. Some SuperSign software solutions require purchase. Visit https://www.lg.com/us/business/display-solutions/supersign
*Image simulation for illustration purposes only.
UHD resolution is 4 times higher than FHD, which makes the color and details of the contents more vivid and realistic. In addition, the IPS Panel allows for wider viewing angles and provides clearer content with no distortion.
Clear Content Delivered with 500 nits Brightness
With a brightness rating of 500 nits the UM5K series displays deliver brilliant content and attracts attention, making these displays an ideal choice for a wide variety of businesses, including retail and corporate
High-Performance with webOS™
LG webOS™ platform enhances user convenience with intuitive GUI and simple app development tools.
Built-in Speaker
Enrich content with sound effects from built-in speakers. *Internal Built-in Speaker Support (L/R max 10 W)
Mobile Content Management
Create a store profile and get template recommendations using the LG Promota* app. Users can customize templates as needed and easily create and manage content not only on PCs but also on mobile devices. *LG Promota is can be downloaded from the App Store and Google Play store.
Compatible with AV Control System
The UM5K series supports Crestron Connected® for compatibility with professional AV controls to achieve seamless integration and automated network-based control. *Network based control
Slim Design
The slim design of the UM5K allows it to be installed closer to the wall, helping to create an immersive experience and sophisticated look.
*Image simulation for illustration purposes only.
LG SuperSign™ Solutions
SuperSign™ is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you. Some SuperSign software solutions require purchase. Visit https://www.lg.com/us/business/display-solutions/supersign
*Image simulation for illustration purposes only.
- LG webOS™ 6.0, Pro:Idiom & SuperSign Compatible
- 500 nits Brightness
- Large Viewing Angles 178° x 178° & Stunning colors with DCI-P3 88%
- Compatible with AV Control System, Supports Crestron Connected®, Cisco Certified
- 98" UHD (3840x2160) ADS Display
- Life time up to 50,000 hours, Operating 16/7 (Hours/Days)
Rebates
view available rebates
98'' Umk5-B Uhd Signage With Webos™ 6.0, Pro:Idiom, Supports Crestron Connected®, Cisco Certified, Supersign Compatible
Misc Collection
Specifications
Specifications
Features
LG webOS™ 6.0, Pro:Idiom & SuperSign Compatible, 500 nits Brightness, Large Viewing Angles 178° x 178° & Stunning colors with DCI-P3 88%, Compatible with AV Control System, Supports Crestron Connected®, Cisco Certified, 98" UHD (3840x2160) ADS Display, Life time up to 50,000 hours, Operating 16/7 (Hours/Days)
- LG webOS™ 6.0, Pro:Idiom & SuperSign Compatible
- 500 nits Brightness
- Large Viewing Angles 178° x 178° & Stunning colors with DCI-P3 88%
- Compatible with AV Control System, Supports Crestron Connected®, Cisco Certified
- 98" UHD (3840x2160) ADS Display
- Life time up to 50,000 hours, Operating 16/7 (Hours/Days)
PANEL
Screen Size
98"
Screen Size
- 98"
Panel Technology
ADS
Panel Technology
- ADS
Back Light Type
Direct
Back Light Type
- Direct
Aspect Ratio
16:9
Aspect Ratio
- 16:9
Native Resolution
3,840 x 2,160 (UHD)
Native Resolution
- 3,840 x 2,160 (UHD)
Refresh Rate
60 Hz
Refresh Rate
- 60 Hz
Brightness
500 nits (Typ.)
Brightness
- 500 nits (Typ.)
Contrast Ratio
1,200:1
Contrast Ratio
- 1,200:1
Dynamic CR
200,000:1
Dynamic CR
- 200,000:1
Color Gamut
DCI-P3 88%
Color Gamut
- DCI-P3 88%
Viewing Angle (H x V)
178° x 178°
Viewing Angle (H x V)
- 178° x 178°
Color Depth
1.07 Billion Colors (8 bits + FRC)
Color Depth
- 1.07 Billion Colors (8 bits + FRC)
Response Time
8 ms (G to G)
Response Time
- 8 ms (G to G)
Surface Treatment (Haze)
25%
Surface Treatment (Haze)
- 25%
Lifetime
Up to 30,000 Hrs.
Lifetime
- Up to 30,000 Hrs.
Operation Hours (Hours / Day)
16 / 7
Operation Hours (Hours / Day)
- 16 / 7
Portrait / Landscape Orientation
Yes / Yes
Portrait / Landscape Orientation
- Yes / Yes
CONNECTIVITY
Input
HDMI x3 (HDMI1/2: HDCP 2.2/1.4, HDMI3), DisplayPort (HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio In, RS-232C (4 Pin 3.5mm), RJ45 (LAN), IR In, USB 2.0 Type-A
Input
- HDMI x3 (HDMI1/2: HDCP 2.2/1.4, HDMI3), DisplayPort (HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio In, RS-232C (4 Pin 3.5mm), RJ45 (LAN), IR In, USB 2.0 Type-A
Output
HDMI Out, Audio Out, RS-232C Out (4 Pin Phone-jack), Daisy Chain (Input HDMI, DP, DVI / Output HDMI)
Output
- HDMI Out, Audio Out, RS-232C Out (4 Pin Phone-jack), Daisy Chain (Input HDMI, DP, DVI / Output HDMI)
MECHANICAL SPECIFICATION
Bezel Color
Black
Bezel Color
- Black
Bezel Width
17 mm (Even Bezel)
Bezel Width
- 17 mm (Even Bezel)
Weight
172 lbs. / 78 kg
Weight
- 172 lbs. / 78 kg
Shipping Weight
231.5 lbs. / 105 kg
Shipping Weight
- 231.5 lbs. / 105 kg
Dimensions (W x H x D)
86.5 x 49.3 x 3.1 in. 2,198x 1,253 x 79.5 mm
Dimensions (W x H x D)
- 86.5 x 49.3 x 3.1 in. 2,198x 1,253 x 79.5 mm
Shipping Dimensions (W x H x D)
105.5 x 1730 x 320 in. 2,680 x 1,730 x 320 mm
Shipping Dimensions (W x H x D)
- 105.5 x 1730 x 320 in. 2,680 x 1,730 x 320 mm
Handle
Yes
Handle
- Yes
VESA™ Standard Mount Interface
800 x 400 mm
VESA™ Standard Mount Interface
- 800 x 400 mm
SPECIFICATIONS
Key Features
Internal Memory (eMMC) 16 GB, Built-in Wi-Fi, Sensor (Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor), Power Indicator, Local Key Operation, webOS 6.0, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Image (Booting Logo Image, No Signal Image), Sync (RS-232C Sync, Local Network Sync), PIP, PBP (4), Screen Share, Video Tag (4), Play via URL, Gapless Playback, Tile Mode Setting (Max. 15 x 15), Setting Datav Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Cisco Certi, Crestron Inside, Smart Energy Saving, PM Mode, Wake on LAN, Network Ready, Beacon, HDMI-CEC2 , SI Server Setting, webRTC, Pro:Idiom
Key Features
- Internal Memory (eMMC) 16 GB, Built-in Wi-Fi, Sensor (Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor), Power Indicator, Local Key Operation, webOS 6.0, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Image (Booting Logo Image, No Signal Image), Sync (RS-232C Sync, Local Network Sync), PIP, PBP (4), Screen Share, Video Tag (4), Play via URL, Gapless Playback, Tile Mode Setting (Max. 15 x 15), Setting Datav Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Cisco Certi, Crestron Inside, Smart Energy Saving, PM Mode, Wake on LAN, Network Ready, Beacon, HDMI-CEC2 , SI Server Setting, webRTC, Pro:Idiom
Software Compatibility
SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, LG Promota App, Mobile CMS, LG ConnectedCare
Software Compatibility
- SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, LG Promota App, Mobile CMS, LG ConnectedCare
Language
English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Turkish, Arabic, Polski
Language
- English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Turkish, Arabic, Polski
ENVIRONMENT CONDITIONS
Operation Temperature
32°F to 104°F 0°C to 40°C
Operation Temperature
- 32°F to 104°F 0°C to 40°C
Operation Humidity
10% to 80%
Operation Humidity
- 10% to 80%
POWER
Power Supply
100-240 Vac, 50/60 Hz
Power Supply
- 100-240 Vac, 50/60 Hz
Power Type
Built-In Power
Power Type
- Built-In Power
SOUND
Speaker (Built-in)
10 W x 2
Speaker (Built-in)
- 10 W x 2
POWER CONSUMPTION
Typ. / Max.
430 W / 560 W
Typ. / Max.
- 430 W / 560 W
BTU (British Thermal Unit)
1,467 BTU/Hr (Typ.), 1,911 BTU/Hr (Max.)
BTU (British Thermal Unit)
- 1,467 BTU/Hr (Typ.), 1,911 BTU/Hr (Max.)
Smart Energy Saving (~70%)
301 W
Smart Energy Saving (~70%)
- 301 W
DPM
0.5 W
DPM
- 0.5 W
Power off
0.5 W
Power off
- 0.5 W
CERTIFICATIONS
Safety
CB / NRTL
Safety
- CB / NRTL
EMC
FCC Class "A" / CE / KC
EMC
- FCC Class "A" / CE / KC
ErP (Environmental)
Yes (New ErP)
ErP (Environmental)
- Yes (New ErP)
Warranty & Other
Warranty
3 Year Limited
Warranty
- 3 Year Limited
UPC
1 95174 06122 0
UPC
- 1 95174 06122 0
Accessories
Remote Control, Power Cord, QSG, IR/Light Sensor Receiver, Regulation Book, 3.5mm to RS-232C Adapter
Accessories
- Remote Control, Power Cord, QSG, IR/Light Sensor Receiver, Regulation Book, 3.5mm to RS-232C Adapter
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
The Misc 98'' Umk5-B Uhd Signage With Webos™ 6.0, Pro:Idiom, Supports Crestron Connected®, Cisco Certified, Supersign Compatible, made by LG Appliances,
