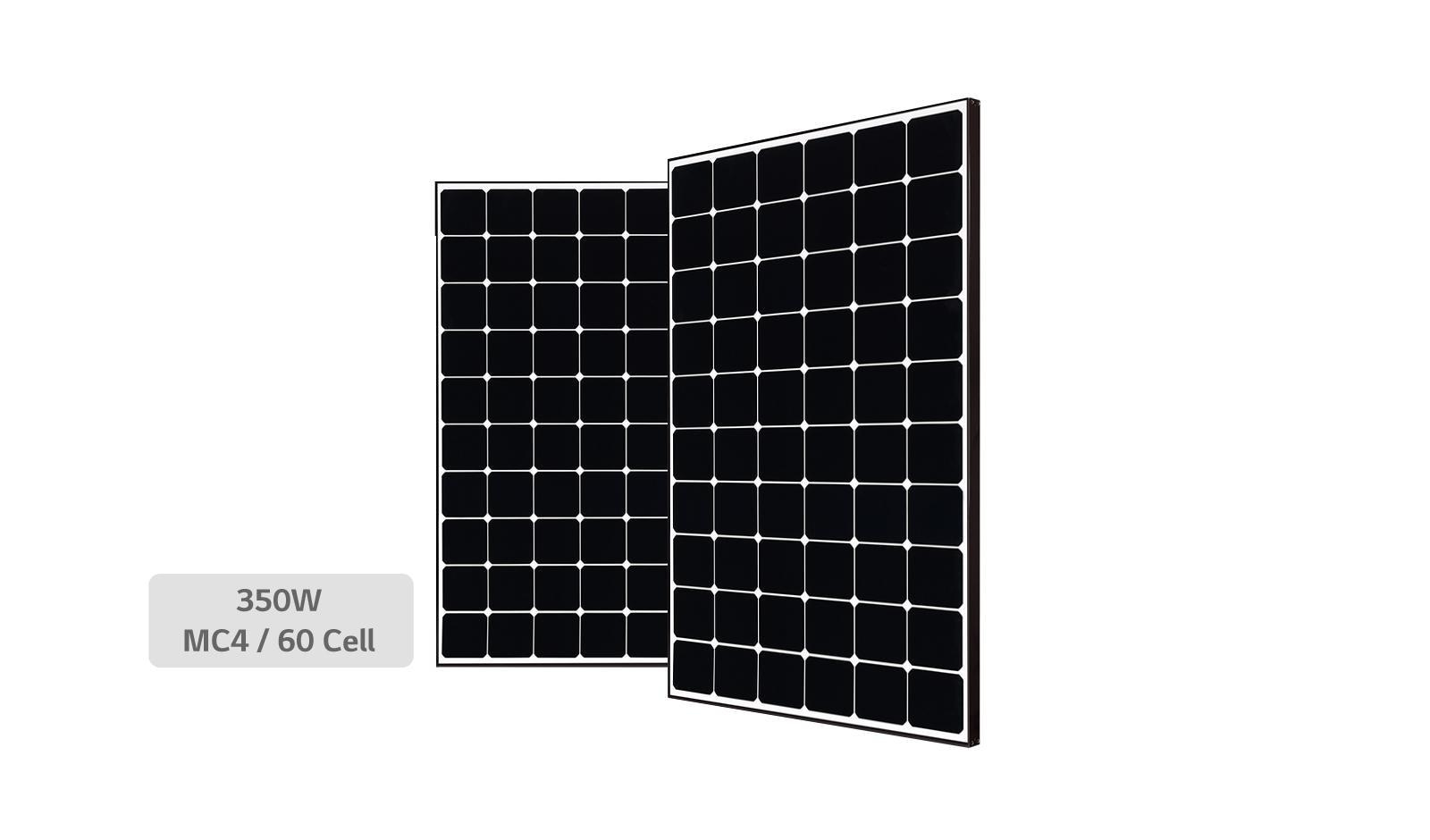

High Efficiency Lg Neon® R Module Cells: 6 X 10 Module Efficiency: 20.3% Connector Type: Mc4
SKU: LG350Q1CA5
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Dimensions:
40.0" W
×
66.38" D
×
1.57" H
Description
- High Power Output
- Roof Aesthetics
- Enhanced Performance Warranty
Rebates
view available rebates
High Efficiency Lg Neon® R Module Cells: 6 X 10 Module Efficiency: 20.3% Connector Type: Mc4
Misc Collection
Specifications
Specifications
Dimensions
Height (bottom to top)
1.57" H
Height (bottom to top)
- 1.57" H
Width (side to side)
40.0" W
Width (side to side)
- 40.0" W
Depth (front to back)
66.38" D
Depth (front to back)
- 66.38" D
Features
High Power Output, Roof Aesthetics, Enhanced Performance Warranty
- High Power Output
- Roof Aesthetics
- Enhanced Performance Warranty
CERTIFICATIONS & WARRANTY
Certifications
IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt mist corrosion test), IEC 62716 (Ammonia corrosion test), ISO 9001
Certifications
- IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt mist corrosion test), IEC 62716 (Ammonia corrosion test), ISO 9001
Module Fire Performance
Type 1
Module Fire Performance
- Type 1
Product Warranty
25 years
Product Warranty
- 25 years
Output Warranty of Pmax
Linear warranty**
Output Warranty of Pmax
- Linear warranty**
**
1) First 5 years : 95%, 2) After 5th year : 0.4% annual degradation, 3) 25 years : 88.4%
**
- 1) First 5 years : 95%, 2) After 5th year : 0.4% annual degradation, 3) 25 years : 88.4%
Fire Rating (for CANADA)
Class C (ULC/ORD C1703)
Fire Rating (for CANADA)
- Class C (ULC/ORD C1703)
ELECTRICAL PROPERTIES(NOCT*)
Maximum Power(Pmax)
264
Maximum Power(Pmax)
- 264
MPP Voltage (Vmpp)
36.3
MPP Voltage (Vmpp)
- 36.3
MPP Current (Impp)
7.26
MPP Current (Impp)
- 7.26
Open Circuit Voltage (Voc)
40.9
Open Circuit Voltage (Voc)
- 40.9
Short Circuit Current (Isc)
8.54
Short Circuit Current (Isc)
- 8.54
*
NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
*
- NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
Electrical Properties (STC*)
MPP Voltage (Vmpp)
36.4
MPP Voltage (Vmpp)
- 36.4
MPP Current (Impp)
9.62
MPP Current (Impp)
- 9.62
Open Circuit Voltage (Voc)
43.5
Open Circuit Voltage (Voc)
- 43.5
Short Circuit Current (Isc)
10.60
Short Circuit Current (Isc)
- 10.60
Module Efficiency (%)
20.3
Module Efficiency (%)
- 20.3
Operating Temperature (°C)
-40 ~ +90
Operating Temperature (°C)
- -40 ~ +90
Maximum System Voltage (V)
1000
Maximum System Voltage (V)
- 1000
Maximum Series Fuse Rating (A)
20
Maximum Series Fuse Rating (A)
- 20
Power Tolerance (%)
0 ~ +3
Power Tolerance (%)
- 0 ~ +3
*
STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.
*
- STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.
Maximum Power (Pmax)
350
Maximum Power (Pmax)
- 350
MECHANICAL PROPERTIES
Cells
6 x 10
Cells
- 6 x 10
Cell vendor
LG
Cell vendor
- LG
Cell Type
Monocrystalline / N-type
Cell Type
- Monocrystalline / N-type
Cell Dimensions
161.7 x 161.7 mm / 6 inches
Cell Dimensions
- 161.7 x 161.7 mm / 6 inches
# of Busbar
30 (Multi Ribbon Busbar)
# of Busbar
- 30 (Multi Ribbon Busbar)
Dimensions (L x W x H)
1700 x 1016 x 40 mm / 66.93 x 40.0 x 1.57 inch
Dimensions (L x W x H)
- 1700 x 1016 x 40 mm / 66.93 x 40.0 x 1.57 inch
Front Load
6000 Pa / 125 psf
Front Load
- 6000 Pa / 125 psf
Rear Load
5400 Pa / 113 psf
Rear Load
- 5400 Pa / 113 psf
Weight
18.5 kg
Weight
- 18.5 kg
Connector Type
MC4
Connector Type
- MC4
Junction Box
IP 67 with 3 bypass diodes
Junction Box
- IP 67 with 3 bypass diodes
Length of Cables
1000 mm x 2 ea
Length of Cables
- 1000 mm x 2 ea
Frame
Anodized aluminium
Frame
- Anodized aluminium
Glass
Tempered Glass with AR Coating
Glass
- Tempered Glass with AR Coating
Temperature Characteristics
NOCT
44 3 °C
NOCT
- 44 3 °C
Pmpp
-0.30 %/°C
Pmpp
- -0.30 %/°C
Voc
-0.24 %/°C
Voc
- -0.24 %/°C
Isc
0.04 %/°C
Isc
- 0.04 %/°C
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
The Misc High Efficiency Lg Neon® R Module Cells: 6 X 10 Module Efficiency: 20.3% Connector Type: Mc4, made by LG Appliances,
