1.9 Mm Lsbc Compact Indoor Led

Name: Misc Miscellaneous
Brand: LG Appliances

Misc Collection by LG Appliances

SKU: LSBC019

Be the first to write a review

Where Can I See This Product in Store?

This product is not on display in our showrooms.

Estimated Delivery Price

Enter your zip code to get a delivery estimate.

Disclaimer

add

Description

Vivid Color Expression Powered by HDR
With HDR (HDR10, HDR10 Pro*) support you can display content that has vivid colors that create an impact on customers. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy content.

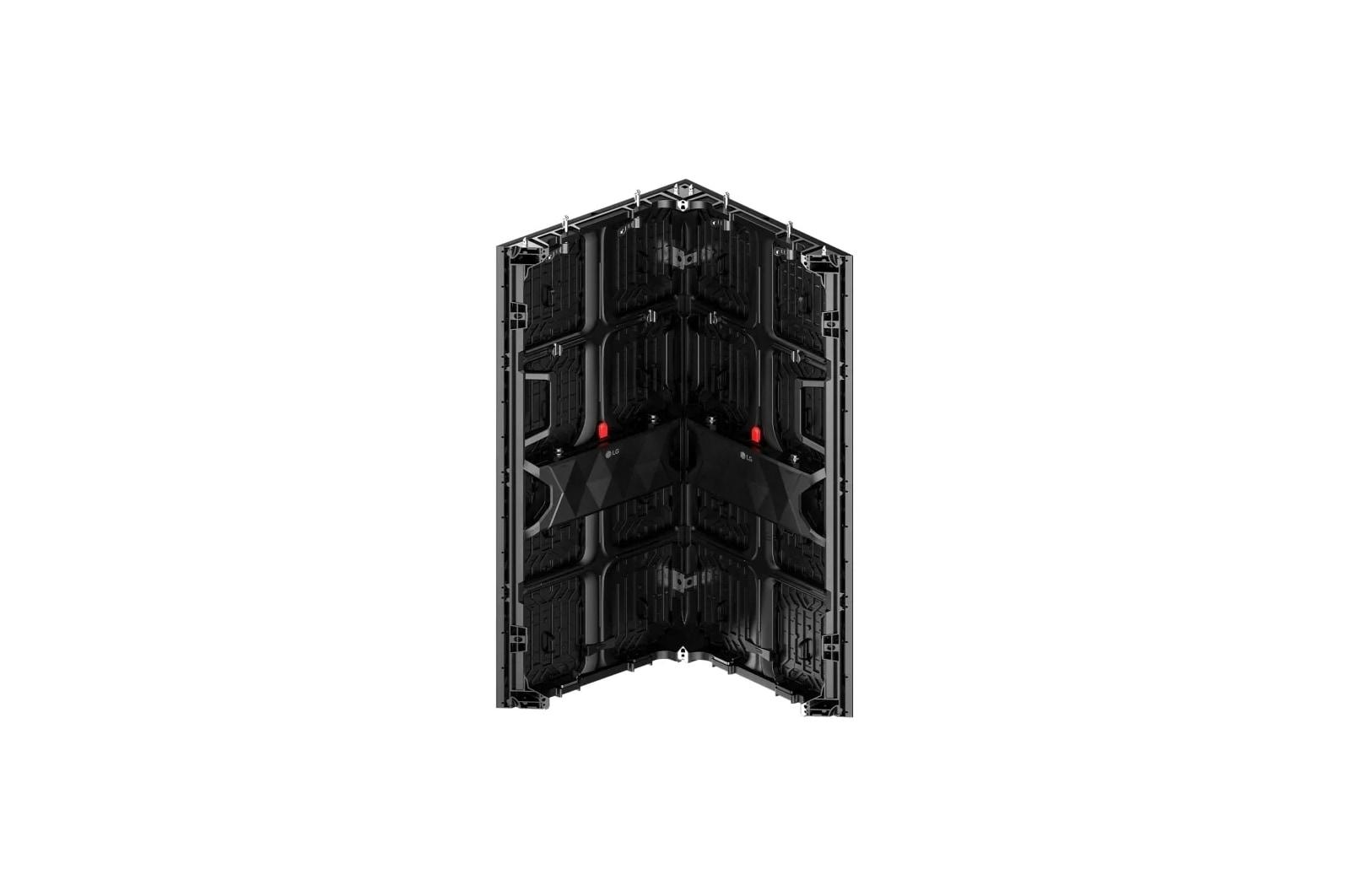

90° Corner Installation Available
The LSBC cabinet is designed to create a virtually seamless 90 degree corner. This option is a free add-on that must be requested.
Front or Rear Installation & Maintenance
Easy access to front or rear cabinet for maintenance.
Quick Lock & Flip Design
The quick lock system & flip design allows for easy installation and maintenance.
Compatibility with LG Software Solution
Powered by LG's high performance system controller and webOS™, the LSBC series is compatible with LG software solutions, including SuperSign CMS, LED Assistant, and ConnectedCare™, which help customers operate their own business flawlessly.

Quick Lock & Flip Design for Easy Install
1000 Nit Brightness & Expressive Colors with HDR
Front & Rear Accessible
90° Corner Installation Available
1.9 mm Pixel Pitch

Rebates

view available rebates

1.9 Mm Lsbc Compact Indoor Led

Misc Collection

Specifications

Features

Quick Lock & Flip Design for Easy Install, 1000 Nit Brightness & Expressive Colors with HDR, Front & Rear Accessible, 90° Corner Installation Available, 1.9 mm Pixel Pitch

Quick Lock & Flip Design for Easy Install
1000 Nit Brightness & Expressive Colors with HDR
Front & Rear Accessible
90° Corner Installation Available
1.9 mm Pixel Pitch

PHYSICAL PARAMETERS

Pixel Configuration 3 in 1 SMD

Pixel Configuration

3 in 1 SMD

Pixel Pitch 1.953 mm

Pixel Pitch

1.953 mm

Module Resolution (W x H) 128 x 128 pixels

Module Resolution (W x H)

128 x 128 pixels

Module Dimensions (W x H) 250 x 250 mm / 9.8 x 9.8 in

Module Dimensions (W x H)

250 x 250 mm / 9.8 x 9.8 in

Weight per Module 0.70 kg / 1.5 lbs

Weight per Module

0.70 kg / 1.5 lbs

No. of Modules per Cabinet (W x H) 2 x 4

No. of Modules per Cabinet (W x H)

2 x 4

Unit Case Resolution (W x H) 256 x 512 pixels

Unit Case Resolution (W x H)

256 x 512 pixels

Unit Case Dimensions (W x H x D) 500 x 1000 x 68 mm / 19.7 x 39.4 x 2.7 in

Unit Case Dimensions (W x H x D)

500 x 1000 x 68 mm / 19.7 x 39.4 x 2.7 in

Unit Case Surface Area (m ) 0.500 m / 5.4 ft

Unit Case Surface Area (m )

0.500 m / 5.4 ft

Weight per Cabinet 12.0 kg / 26.5 lbs

Weight per Cabinet

12.0 kg / 26.5 lbs

Weight per Square Meter 24.0 kg/m / 4.9 lbs/ft

Weight per Square Meter

24.0 kg/m / 4.9 lbs/ft

Physical Pixel Density 262,144 pixels/m 2,821,695 pixels/ft

Physical Pixel Density

262,144 pixels/m 2,821,695 pixels/ft

Flatness of Cabinet 0.5 mm

Flatness of Cabinet

0.5 mm

Cabinet Material Die Cast Aluminum

Cabinet Material

Die Cast Aluminum

Service Access Front or Rear (select one only)

Service Access

Front or Rear (select one only)

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration) 800 nits

Max Brightness (After Calibration)

800 nits

Color Temperature (K) 3200~9300

Color Temperature (K)

3200~9300

Visual Viewing Angle (Horizontal) 160°

Visual Viewing Angle (Horizontal)

160°

Visual Viewing Angle (Vertical) 140°

Visual Viewing Angle (Vertical)

140°

Brightness Uniformity 97%

Brightness Uniformity

Color Uniformity 0.003 Cx,Cy

Color Uniformity

0.003 Cx,Cy

Contrast Ratio 5,000:1

Contrast Ratio

5,000:1

Processing Depth (bit) 20 (HDR10, HDR10 Pro)

Processing Depth (bit)

20 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

Max Power Consumption 300 W/Cabinet

Max Power Consumption

300 W/Cabinet

Avg. Power Consumption 100 W/Cabinet

Avg. Power Consumption

100 W/Cabinet

Max Power Consumption per Unit Area 600 W/m

Max Power Consumption per Unit Area

600 W/m

Max Heat Dissipation 1024 BTU/h/Cabinet

Max Heat Dissipation

1024 BTU/h/Cabinet

Avg. Heat Dissipation 341 BTU/h/Cabinet

Avg. Heat Dissipation

341 BTU/h/Cabinet

Max Heat Dissipation per Unit Area 2047 BTU/h/m

Max Heat Dissipation per Unit Area

2047 BTU/h/m

Power Supply 100 to 240 V

Power Supply

100 to 240 V

Frame Rate 50 / 60 Hz

Frame Rate

50 / 60 Hz

Refresh Rate 3840 Hz

Refresh Rate

3840 Hz

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness) 100,000 Hours

LED Lifetime (Half brightness)

100,000 Hours

Operating Temperature -20° to 40°C / -4° to 104°F

Operating Temperature

-20° to 40°C / -4° to 104°F

Operating Humidity 10-90%RH

Operating Humidity

10-90%RH

IP Rating Front IP5X

IP Rating Front

IP5X

IP Rating Rear IP5X

IP Rating Rear

IP5X

REGULATORY & CERTIFICATIONS

REGULATORY & CERTIFICATIONS FCC / CE / TUV / RoHS / REACH / WEEE

REGULATORY & CERTIFICATIONS

FCC / CE / TUV / RoHS / REACH / WEEE

CONTROLLER

Controller CVBA

Controller

CVBA

90 DEGREE CORNER CUT AVAILABLE

90 DEGREE CORNER CUT AVAILABLE Yes

90 DEGREE CORNER CUT AVAILABLE
