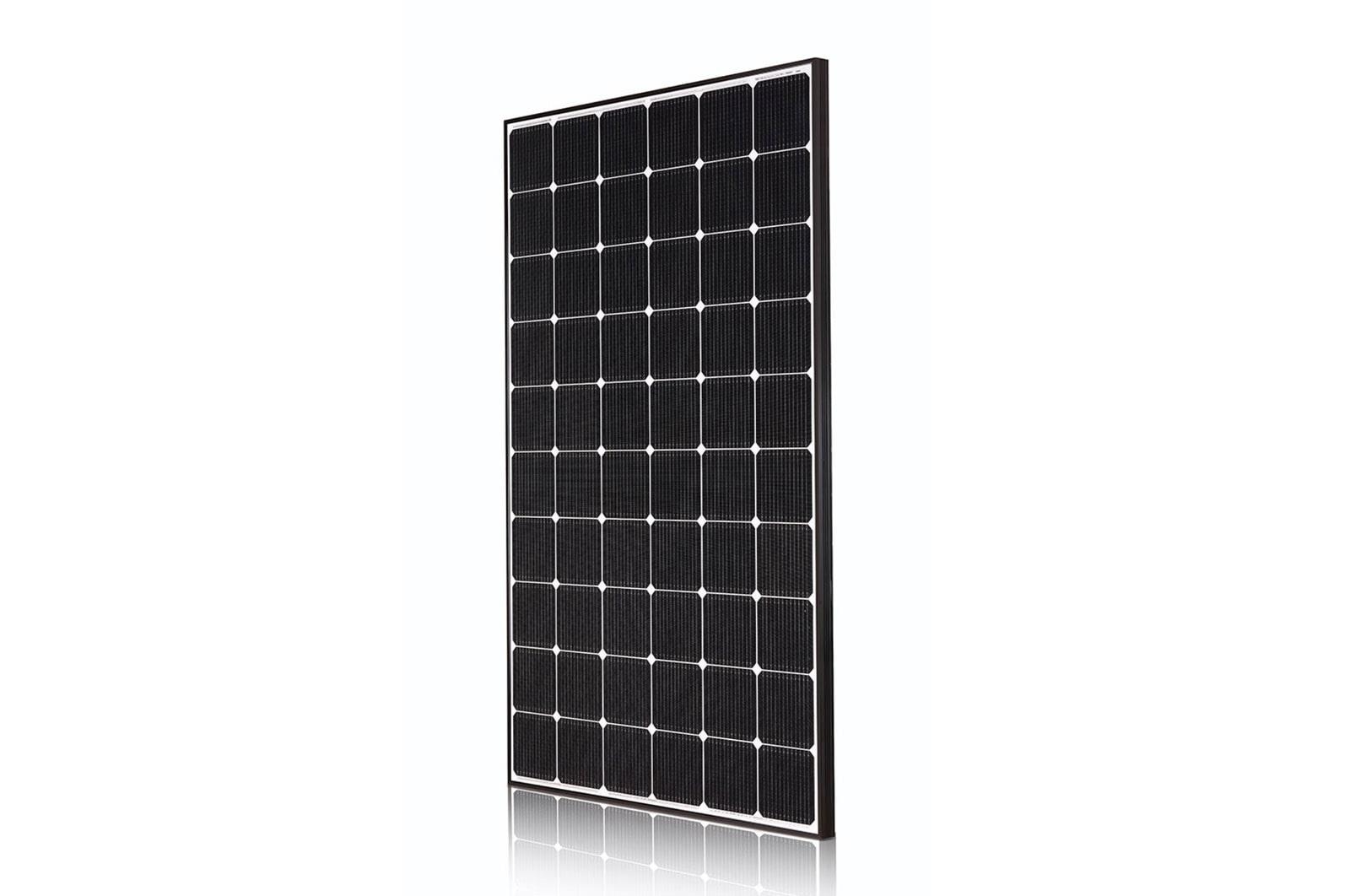

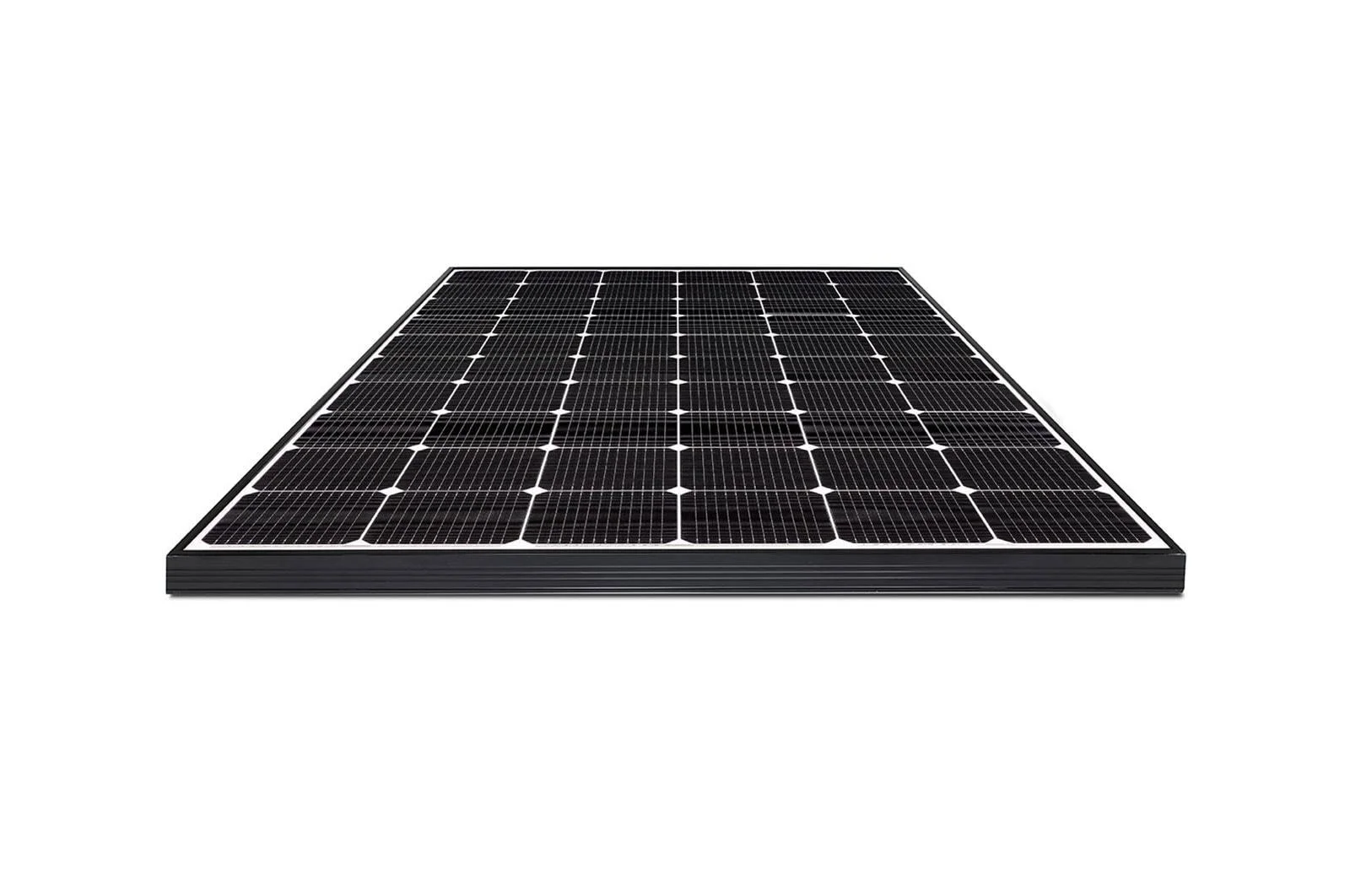

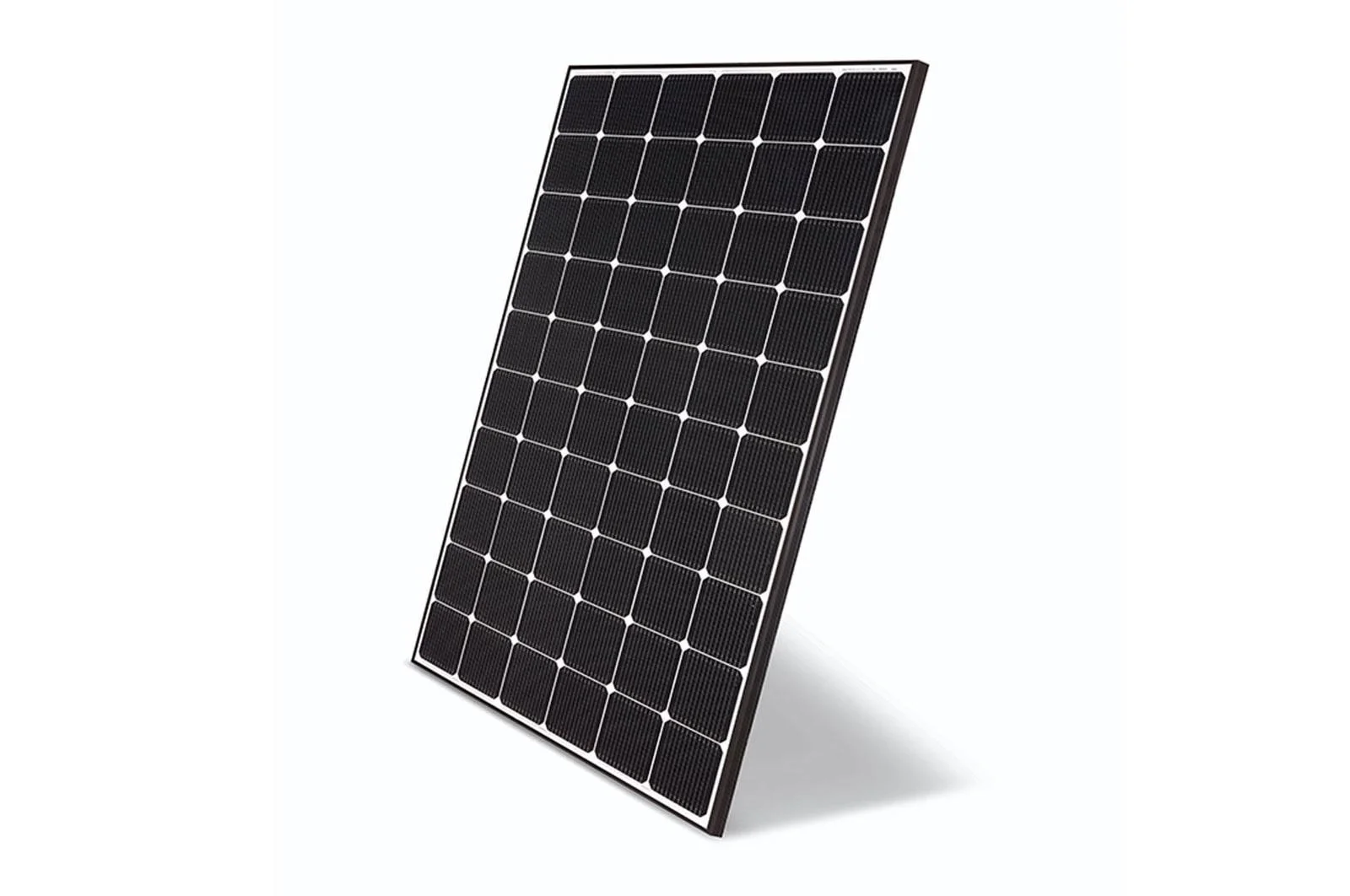

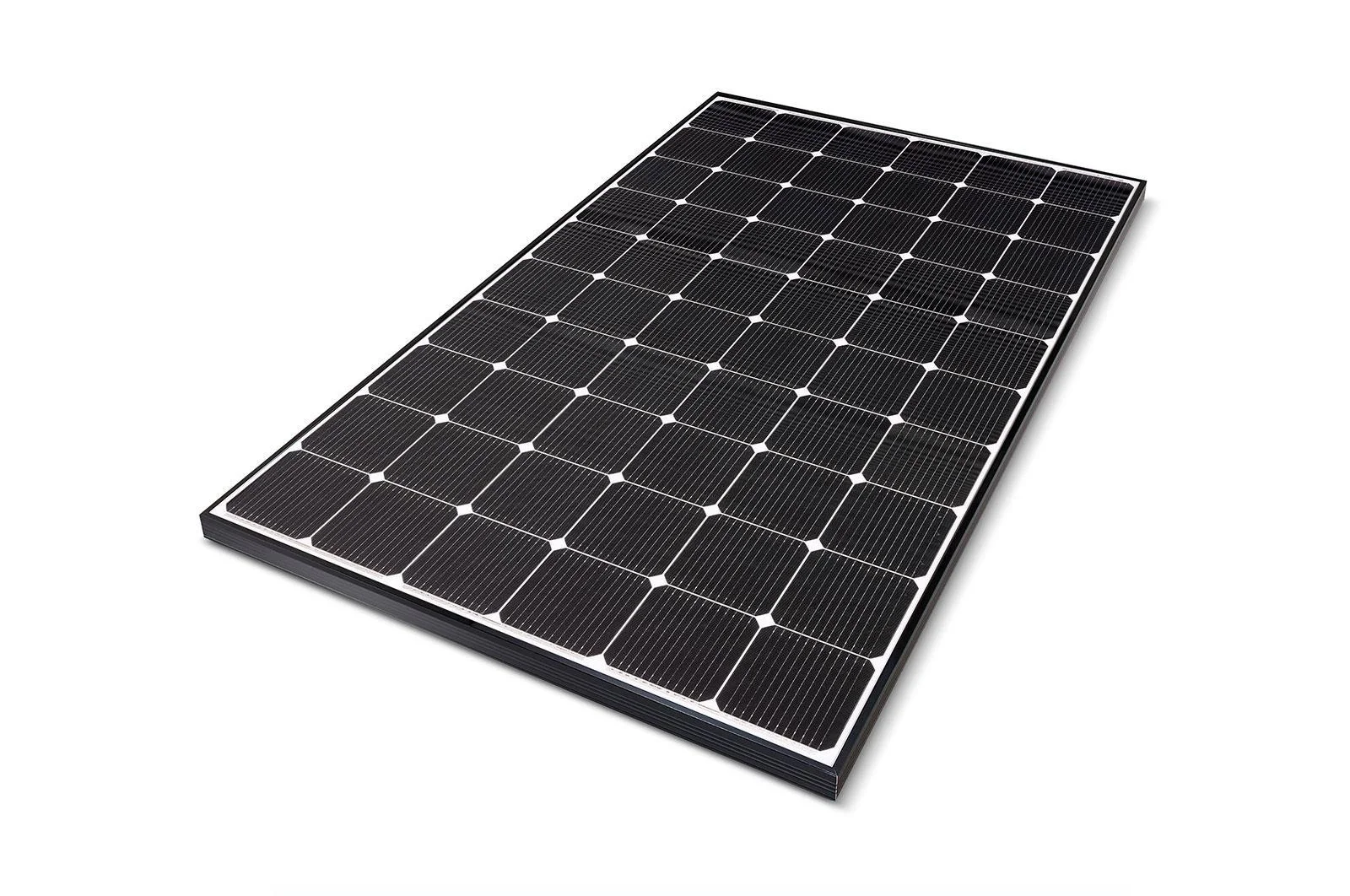

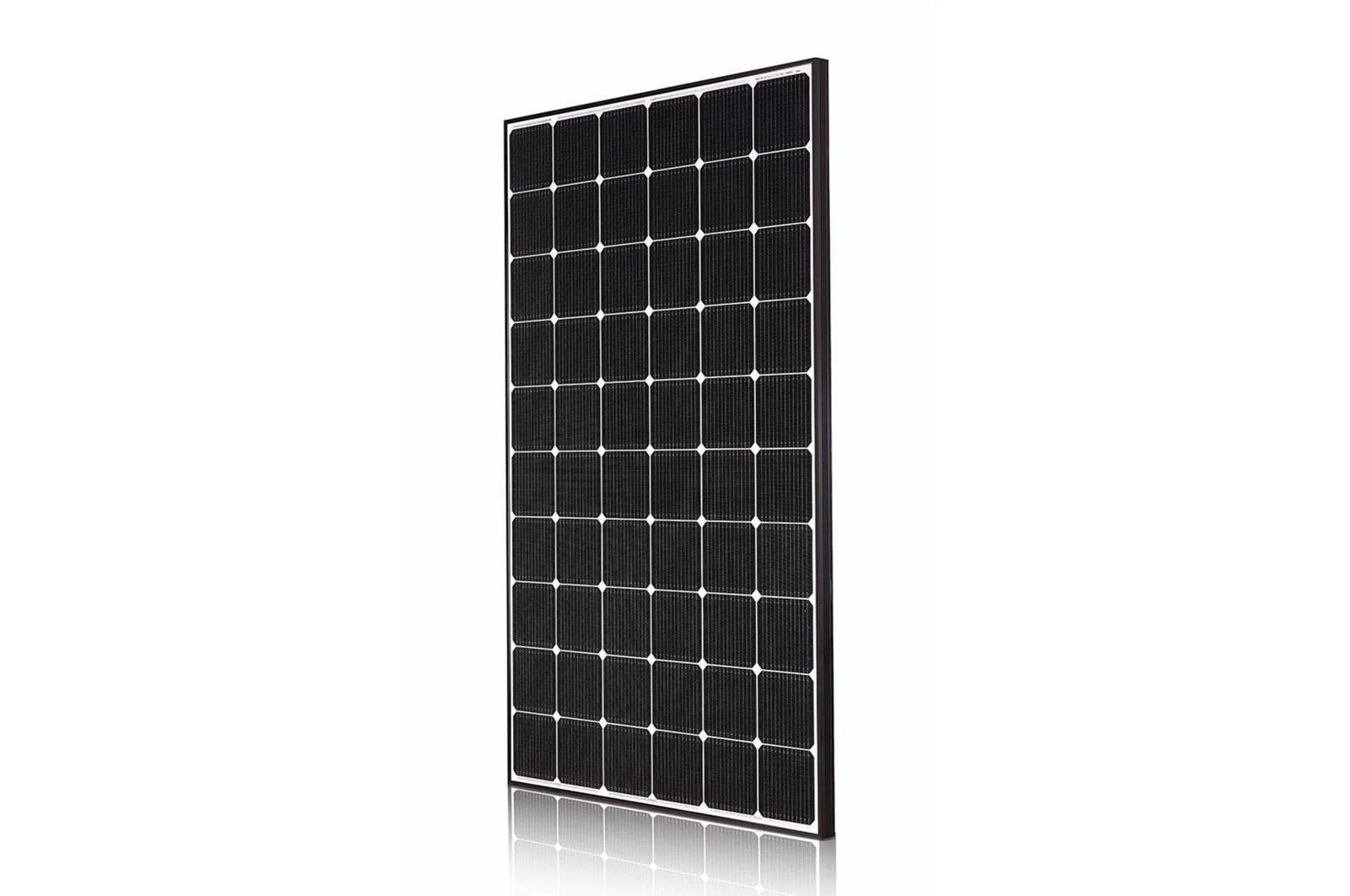

360W Neon® 2 Solar Panel For Home

Name: Misc Miscellaneous
Brand: LG Appliances

Misc Collection by LG Appliances

SKU: LG360N1CN5

Be the first to write a review

Where Can I See This Product in Store?

This product is not on display in our showrooms.

Estimated Delivery Price

Enter your zip code to get a delivery estimate.

Disclaimer

add

Description

Award-Winning Cello Technology™
25-Year Limited Warranty
Solid Performance on a Sunny Day
Attractive Roof Aesthetic
60 Cell (6 x 10) Solar Panel for Home

Rebates

view available rebates

360W Neon® 2 Solar Panel For Home

Misc Collection

Specifications

Features

Award-Winning Cello Technology™, 25-Year Limited Warranty, Solid Performance on a Sunny Day, Attractive Roof Aesthetic, 60 Cell (6 x 10) Solar Panel for Home

Award-Winning Cello Technology™
25-Year Limited Warranty
Solid Performance on a Sunny Day
Attractive Roof Aesthetic
60 Cell (6 x 10) Solar Panel for Home

General Data

Cell Properties (Material/Type) TBD

Cell Properties (Material/Type)

Cell Maker TBD

Cell Maker

Cell Configuration TBD

Cell Configuration

Number of Busbars TBD

Number of Busbars

Module Dimensions (L x W x H) TBD

Module Dimensions (L x W x H)

Weight TBD

Weight

Glass (Material) TBD

Glass (Material)

Backsheet (Color) TBD

Backsheet (Color)

Frame (Material) TBD

Frame (Material)

Junction Box (Protection Degree) TBD

Junction Box (Protection Degree)

Cables (Length) TBD

Cables (Length)

Connector (Type/Maker) TBD

Connector (Type/Maker)

CERTIFICATIONS & WARRANTY

Certifications IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001, UL 1703, IEC 61701 (Salt Mist Corrosion Test), IEC 62716 (Ammonia Corrosion Test)

Certifications

IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001, UL 1703, IEC 61701 (Salt Mist Corrosion Test), IEC 62716 (Ammonia Corrosion Test)

Salt Mist Corrosion Test TBD

Salt Mist Corrosion Test

Ammonia Corrosion Test TBD

Ammonia Corrosion Test

Module Fire Performance Type 1

Module Fire Performance

Type 1

Fire Rating Class C (UL 790, ULC/ORD C 1703)

Fire Rating

Class C (UL 790, ULC/ORD C 1703)

Product Warranty 25 Year Limited

Product Warranty

25 Year Limited

Output Warranty of Pmax Linear warranty*

Output Warranty of Pmax

Linear warranty*

* Improved: 1st year 98%, from 2-24th year: 0.33%/year down, 90.1% at year 25

Improved: 1st year 98%, from 2-24th year: 0.33%/year down, 90.1% at year 25

Temperature Characteristics

NMOT 42 3

NMOT

42 3

Pmax -0.34

Pmax

-0.34

Voc -0.26

Voc

-0.26

Isc 0.03%/°C

Isc

0.03%/°C

* NMOT (Nominal Module Operating Temperature):Irradiance 800W/m , Ambient temperature 20 , Wind speed 1m/s, Spectrum AM 1.5

NMOT (Nominal Module Operating Temperature):Irradiance 800W/m , Ambient temperature 20 , Wind speed 1m/s, Spectrum AM 1.5

Electrical Properties (NMOT)

Model TBD

Model

Maximum Power (Pmax) 270

Maximum Power (Pmax)

MPP Voltage (Vmpp) 33.0

MPP Voltage (Vmpp)

33.0

MPP Current (Impp) 8.20

MPP Current (Impp)

8.20

Open Circuit Voltage (Voc) 39.2

Open Circuit Voltage (Voc)

39.2

Short Circuit Current (Isc) 8.71

Short Circuit Current (Isc)

8.71

Electrical Properties (STC*)

Model TBD

Model

MPP Voltage (Vmpp) 35.1

MPP Voltage (Vmpp)

35.1

MPP Current (Impp) 10.28

MPP Current (Impp)

10.28

Open Circuit Voltage (Voc) 41.6

Open Circuit Voltage (Voc)

41.6

Short Circuit Current (Isc) 10.84

Short Circuit Current (Isc)

10.84

Module Efficiency (%) 20.8

Module Efficiency (%)

20.8

Power Tolerance (%) 0 ~ +3

Power Tolerance (%)

0 ~ +3

Operating Temperature (°C) -40 ~ +90

Operating Temperature (°C)

-40 ~ +90

Maximum System Voltage (V) 1000 (IEC/UL)

Maximum System Voltage (V)

1000 (IEC/UL)

Maximum Series Fuse Rating (A) 20

Maximum Series Fuse Rating (A)

Bifaciality Coefficient of Power [%] 10

Bifaciality Coefficient of Power [%]

* STC (Standard Test Condition): Irradiance 1000 W/m , cell temperature 25°C, AM 1.5 Measurement Tolerance of Pmax: 3%

STC (Standard Test Condition): Irradiance 1000 W/m , cell temperature 25°C, AM 1.5 Measurement Tolerance of Pmax: 3%

Operating Conditions

Maximum System Voltage [V] TBD

Maximum System Voltage [V]

Operating Temperature [°C] TBD

Operating Temperature [°C]

Maximum Series Fuse Rating [A] TBD

Maximum Series Fuse Rating [A]

Mechanical Test Load (Front) [Pa/psf] TBD

Mechanical Test Load (Front) [Pa/psf]

Mechanical Test Load (Rear) [Pa/psf] TBD

Mechanical Test Load (Rear) [Pa/psf]

* Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa/5,400 Pa based on IEC 61215 : 2005

Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa/5,400 Pa based on IEC 61215 : 2005

Packaging Configuration

Number of Modules per Pallet [EA] TBD

Number of Modules per Pallet [EA]

Number of Modules per 40ft HQ Container [EA] TBD

Number of Modules per 40ft HQ Container [EA]

Number of Modules per 53' HQ Cont TBD

Number of Modules per 53' HQ Cont

Packaging Box Dimensions (L x W x H) [mm] TBD

Packaging Box Dimensions (L x W x H) [mm]

Packaging Box Dimensions (L x W x H) [in] TBD

Packaging Box Dimensions (L x W x H) [in]

Packaging Box Gross Weight [kg] TBD

Packaging Box Gross Weight [kg]

Packaging Box Gross Weight [lb] TBD

Packaging Box Gross Weight [lb]

MECHANICAL PROPERTIES

Cells 6 x 10

Cells

6 x 10

Cell vendor LG

Cell vendor

Cell Type Monocrystalline / N-type

Cell Type

Monocrystalline / N-type

Cell Dimensions 162mm x 162mm/6.37"

Cell Dimensions

162mm x 162mm/6.37"

# of Busbar 12 (Multi Wire Busbar)

# of Busbar

12 (Multi Wire Busbar)

Dimensions (L x W x H) 1,750mm x 1,120mm x 1,221mm

Dimensions (L x W x H)

1,750mm x 1,120mm x 1,221mm

Front Load 5,400 Pa/113 psf

Front Load

5,400 Pa/113 psf

Rear Load 4,000 Pa/84 psf

Rear Load

4,000 Pa/84 psf

Weight 18.0kg

Weight

18.0kg

Connector Type MC4, MC4 Compatible, IP67

Connector Type

MC4, MC4 Compatible, IP67

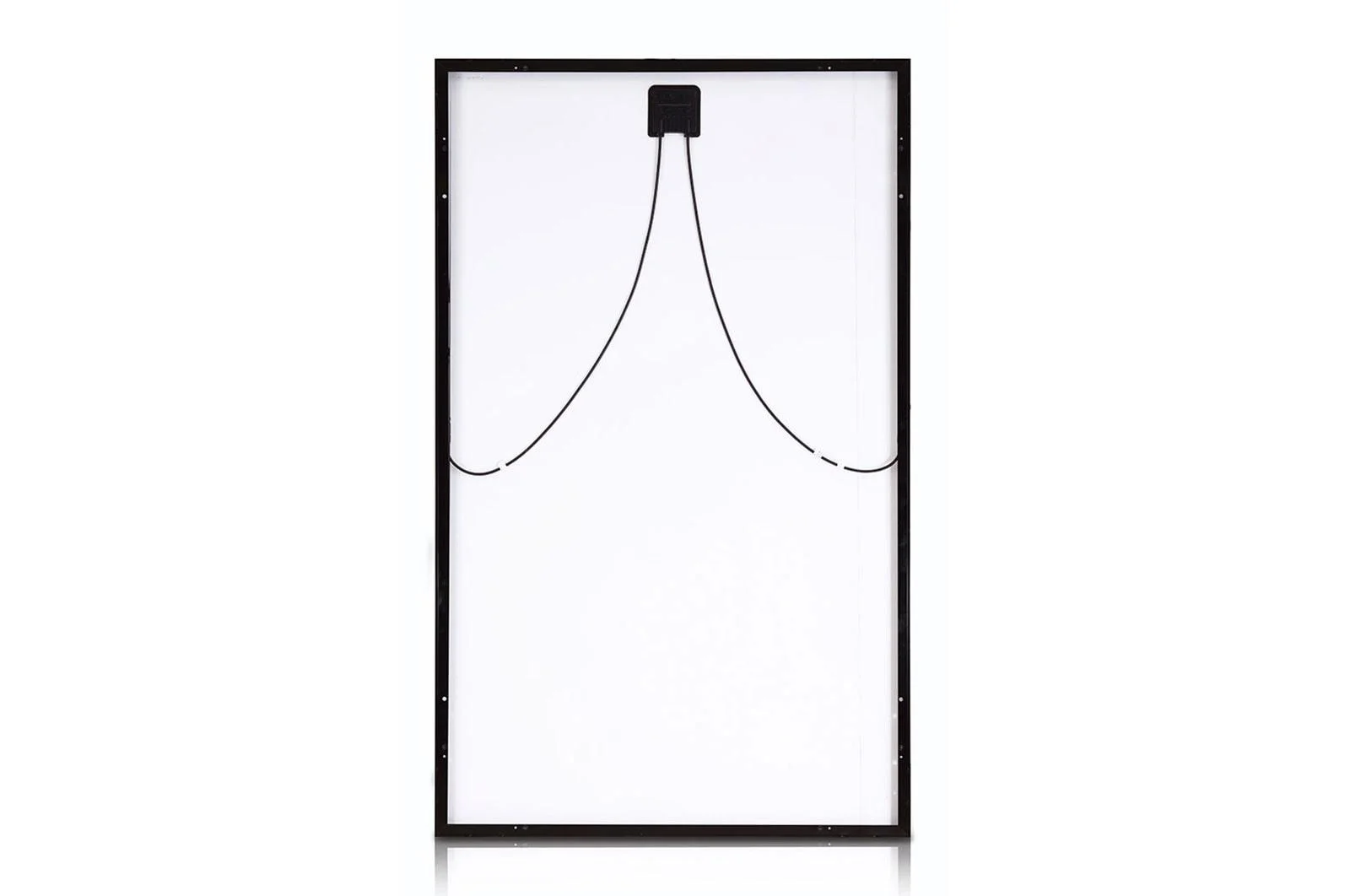

Junction Box IP 67 with 3 bypass diodes

Junction Box

IP 67 with 3 bypass diodes

Frame Anodized aluminium

Frame

Anodized aluminium

Glass 2.8mm/Tempered Glass with High Transmission Anti-Reflective Coating

Glass

2.8mm/Tempered Glass with High Transmission Anti-Reflective Coating

Cables 1000mm x 2ea

Cables

1000mm x 2ea

Item & Dimensions

Manufacturer LG Appliances

Manufacturer

LG Appliances
