Description
- Sleek Modern Design
- Top-level Output (DC 365W, AC 320W)
- Conversion Efficiency 97% (based on CEC standards)
- 25-Year Product Warranty

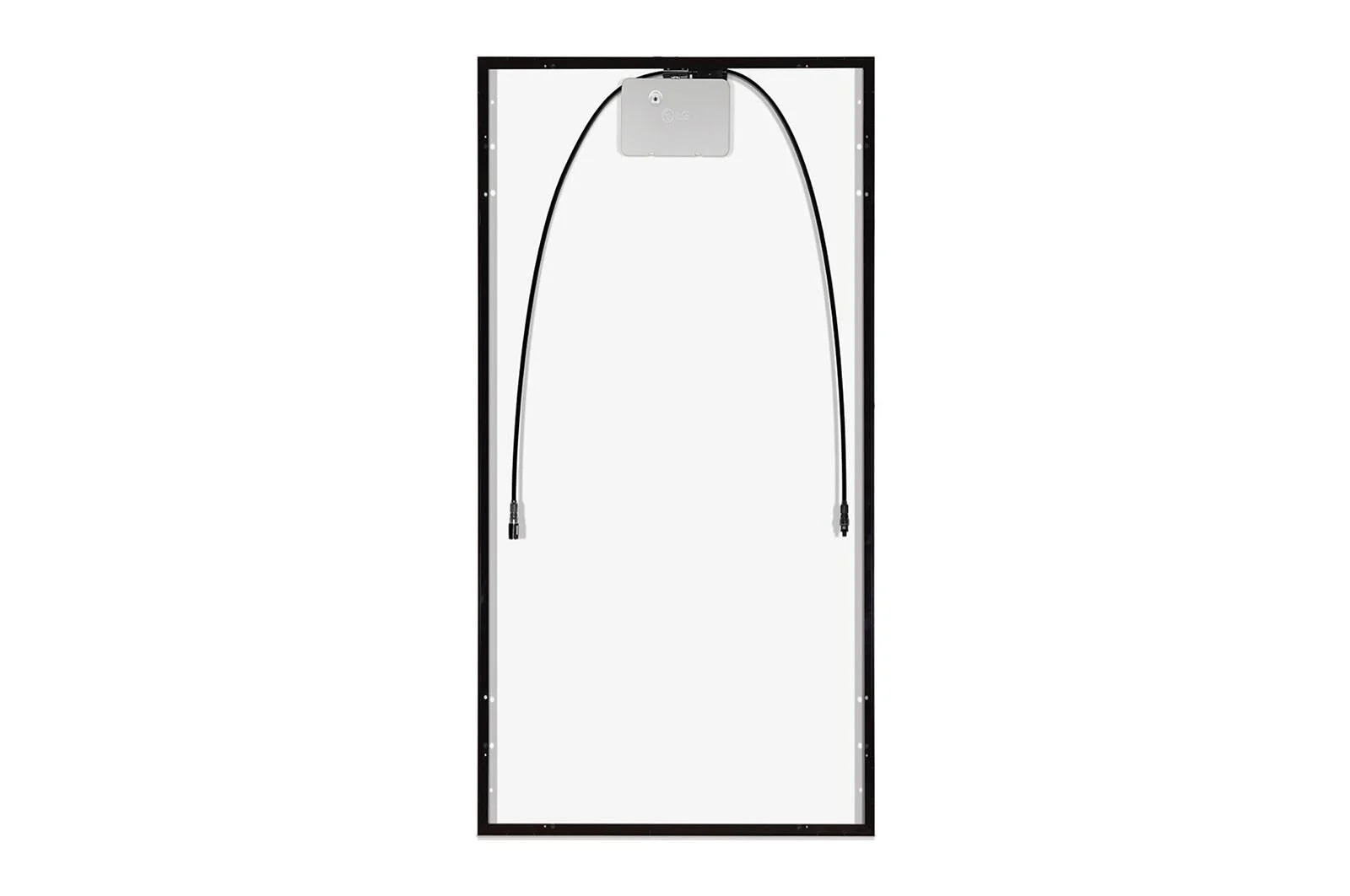

- Built-in Microinverter System
- Compatible with future LG HEMS Ecosystem
Rebates
view available rebates

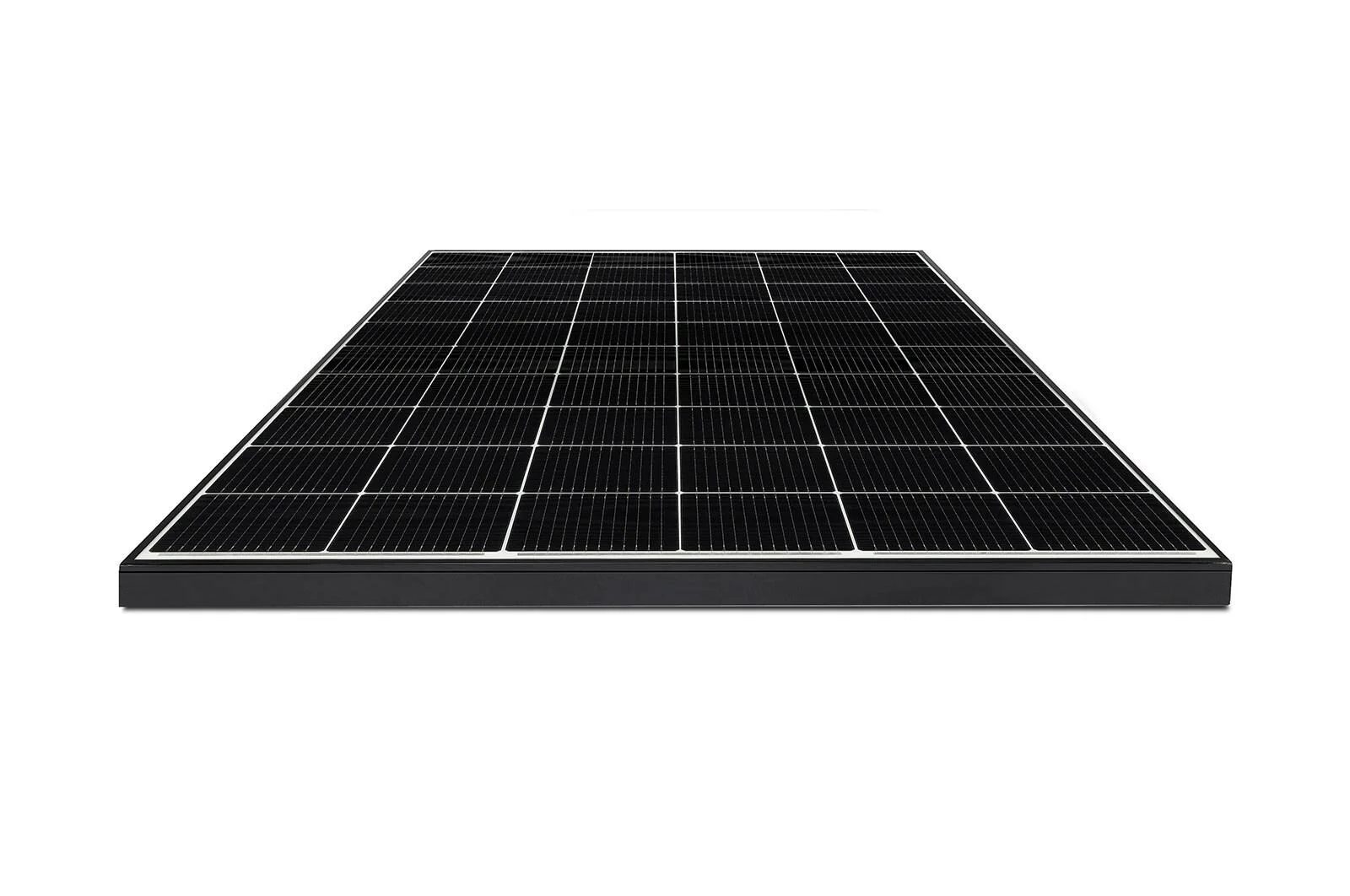

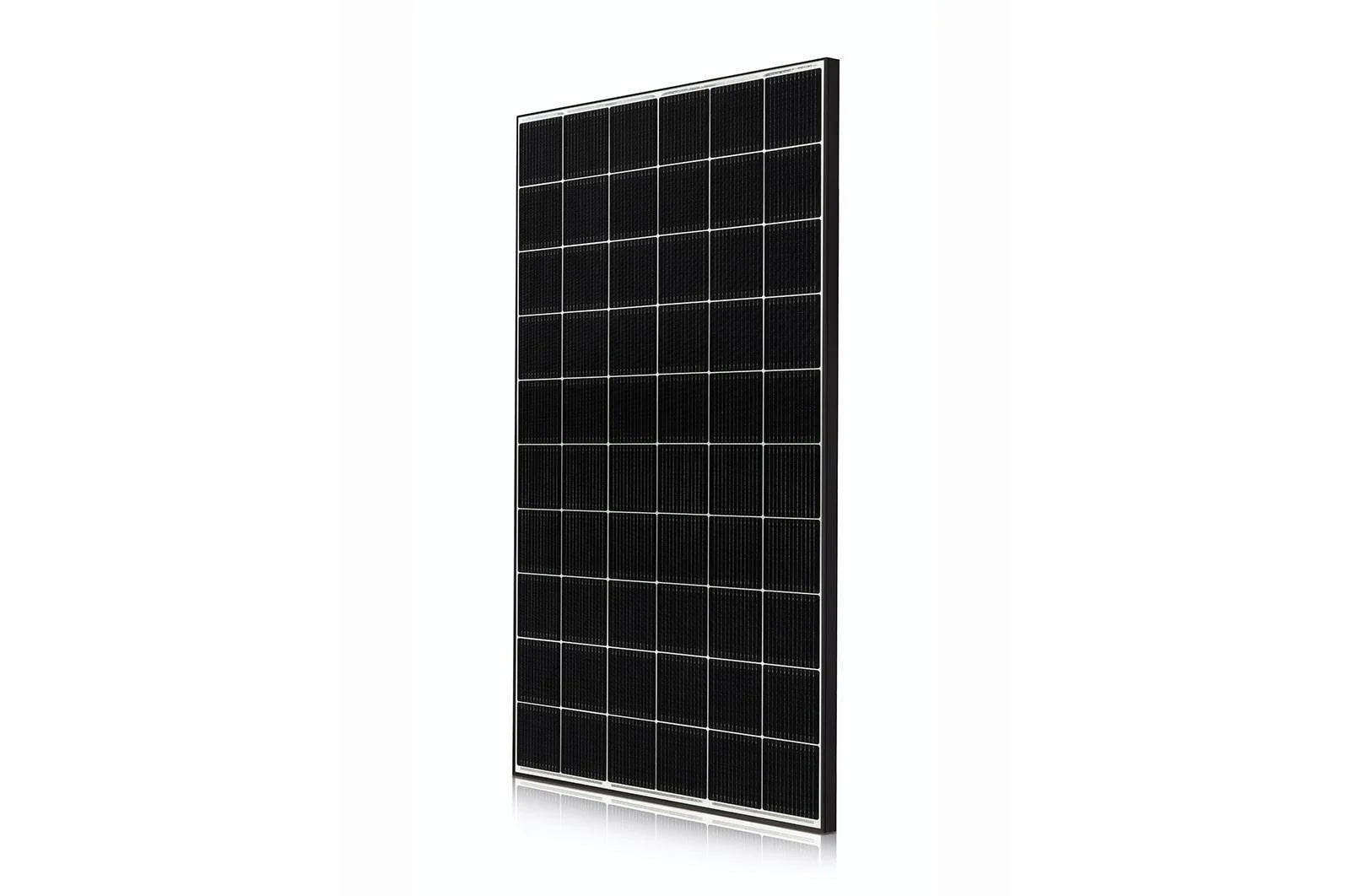

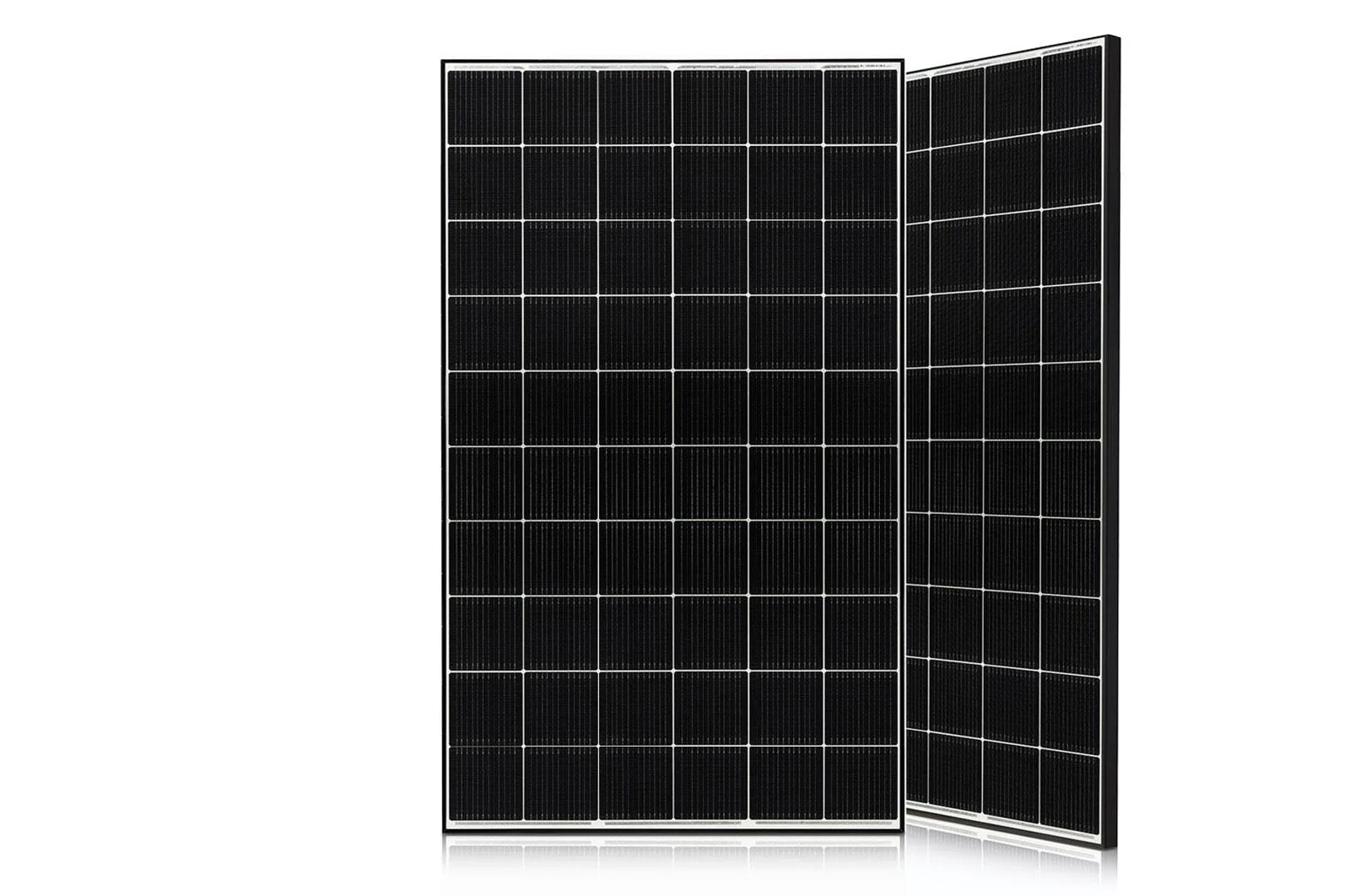

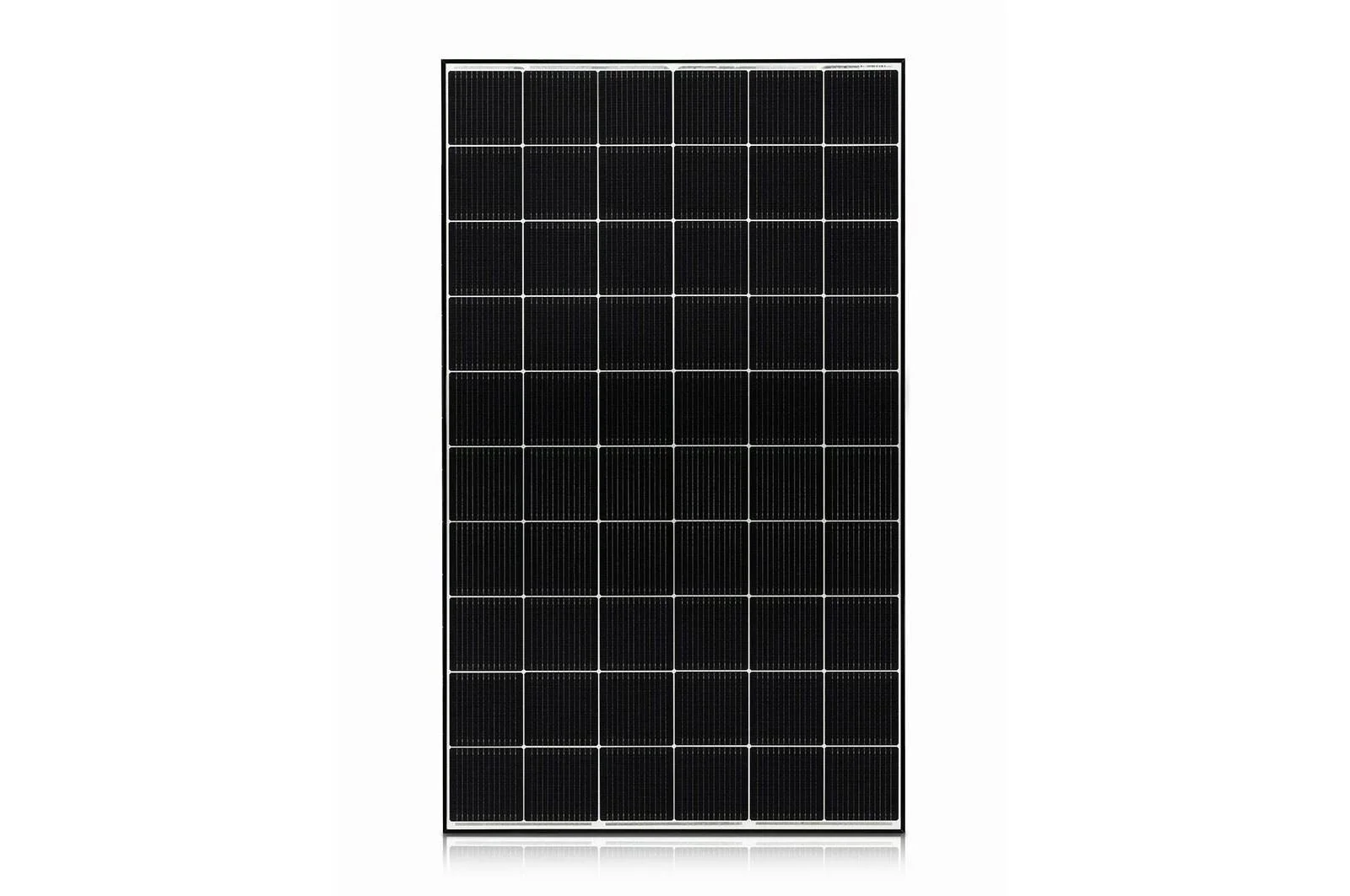

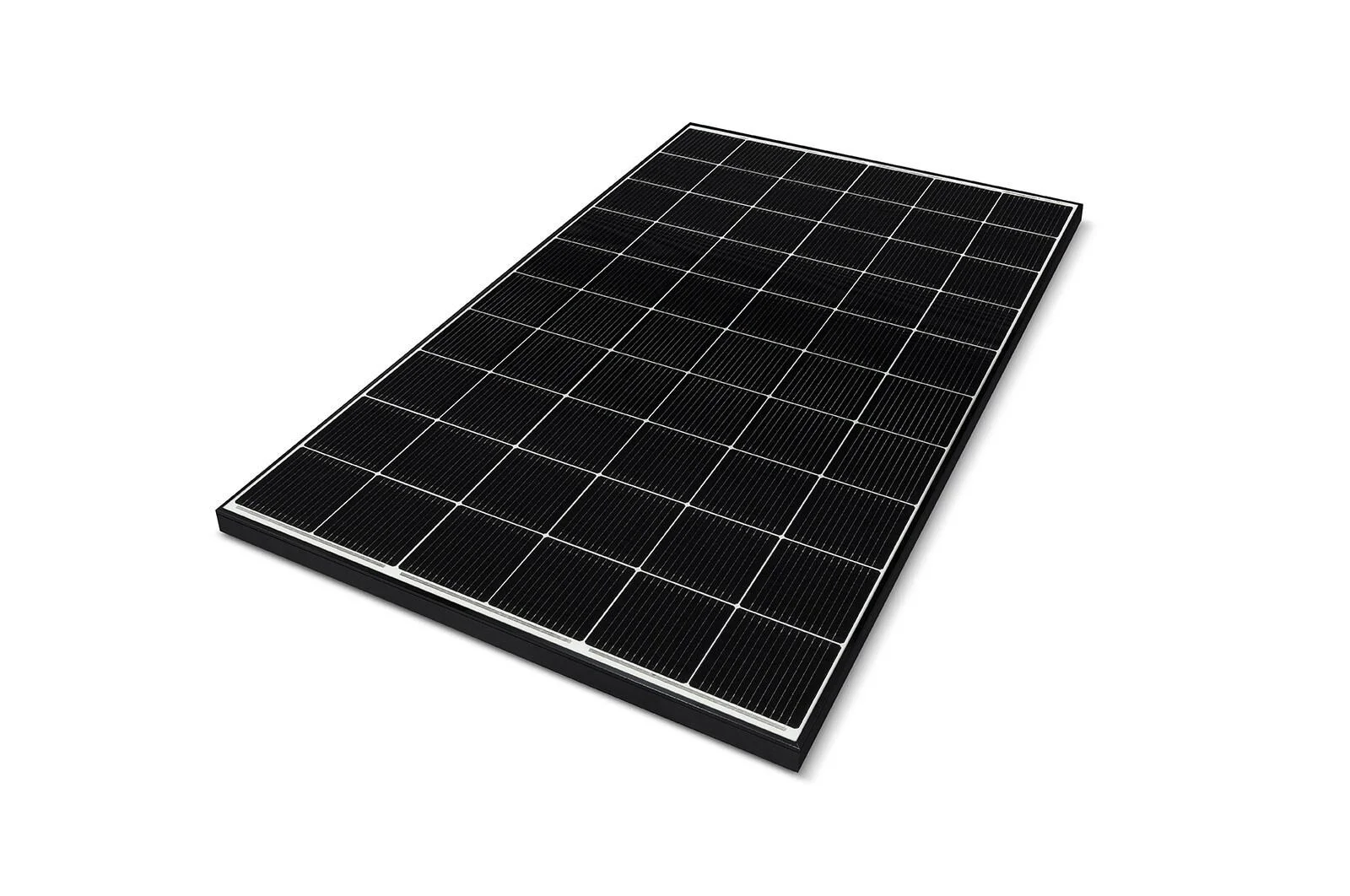

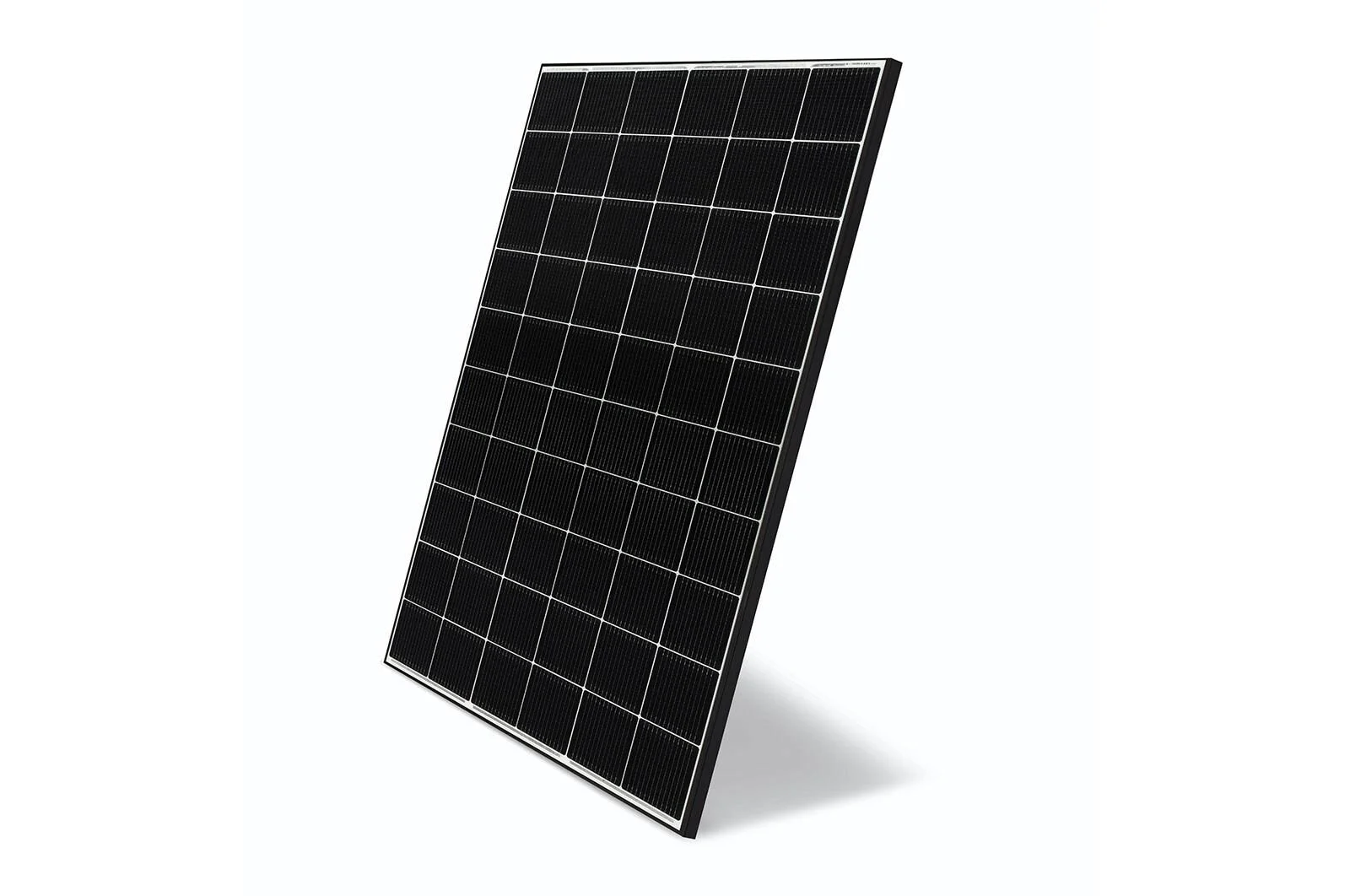

365W Neon® 2 Ace Solar Panel For Home
Misc Collection
Specifications
Specifications
Features
Sleek Modern Design, Top-level Output (DC 365W, AC 320W), Conversion Efficiency 97% (based on CEC standards), 25-Year Product Warranty, Built-in Microinverter System, Compatible with future LG HEMS Ecosystem
- Sleek Modern Design
- Top-level Output (DC 365W, AC 320W)
- Conversion Efficiency 97% (based on CEC standards)
- 25-Year Product Warranty
- Built-in Microinverter System
- Compatible with future LG HEMS Ecosystem
General Data
Cells
6 x 10
Cells
- 6 x 10
Cell Vendor
LG
Cell Vendor
- LG
Cell Type
Monocrystalline/N-type
Cell Type
- Monocrystalline/N-type
Cell Dimensions
161.7 x 161.7 mm/6 inches
Cell Dimensions
- 161.7 x 161.7 mm/6 inches
Cell Properties (Material/Type)
TBD
Cell Properties (Material/Type)
- TBD
Cell Maker
TBD
Cell Maker
- TBD
Cell Configuration
TBD
Cell Configuration
- TBD
Number of Busbars
30 EA (Multi Wire Busbar)
Number of Busbars
- 30 EA (Multi Wire Busbar)
Dimensions (L x W x H)
1,700 x 1,016 x 40 mm
Dimensions (L x W x H)
- 1,700 x 1,016 x 40 mm
Weight
19.5kg/43 lbs.
Weight
- 19.5kg/43 lbs.
Backsheet (Color)
TBD
Backsheet (Color)
- TBD
Glass
2.8mm/Tempered Glass with High Transmission Anti-Reflective Coating
Glass
- 2.8mm/Tempered Glass with High Transmission Anti-Reflective Coating
Frame
Anodized Aluminium
Frame
- Anodized Aluminium
Junction Box (Protection Degree)
TBD
Junction Box (Protection Degree)
- TBD
Cables (Length)
TBD
Cables (Length)
- TBD
Connector (Type/Maker)
TBD
Connector (Type/Maker)
- TBD
Mechanical Test Load*
5,400Pa (Front)/4,000Pa (Rear)
Mechanical Test Load*
- 5,400Pa (Front)/4,000Pa (Rear)
Cooling
Natural Convection - No Fans
Cooling
- Natural Convection - No Fans
Enclosure Environmental Rating
Outdoor - NEMA 250 type 6 (Micro Inverter)
Enclosure Environmental Rating
- Outdoor - NEMA 250 type 6 (Micro Inverter)
Operating Ambient Temperature
-40 ~ +65°C (-40 ~+149°F )
Operating Ambient Temperature
- -40 ~ +65°C (-40 ~+149°F )
Storage Temperature
-40 ~ +90°C (-40 ~+194°F )
Storage Temperature
- -40 ~ +90°C (-40 ~+194°F )
Inverter Model (Grid Support Utility Interactive)
LM320UE-A2
Inverter Model (Grid Support Utility Interactive)
- LM320UE-A2
*Mechanical Test Load
5,400pa/4,000pa based on IEC 61215 - 2:2016 (Test Load = Design Load x Safety Factor (x1.5))
*Mechanical Test Load
- 5,400pa/4,000pa based on IEC 61215 - 2:2016 (Test Load = Design Load x Safety Factor (x1.5))
Certifications and Warranty
Certifications
UL 1703, UL1741, UL1741 SA, IEEE1547 FCC Part 15 Class B
Certifications
- UL 1703, UL1741, UL1741 SA, IEEE1547 FCC Part 15 Class B
Salt Mist Corrosion Test
TBD
Salt Mist Corrosion Test
- TBD
Ammonia Corrosion Test
TBD
Ammonia Corrosion Test
- TBD
Module Fire Performance
Type 1
Module Fire Performance
- Type 1
Fire Rating
TBD
Fire Rating
- TBD
Solar Module Product Warranty
25-Year Limited
Solar Module Product Warranty
- 25-Year Limited
Solar Module Output Warranty
TBD
Solar Module Output Warranty
- TBD
Micro Inverter Warranty
25 Years
Micro Inverter Warranty
- 25 Years
Output Warranty of Pmax (DC) (Measurement Tolerance 3%)
Linear Warranty* Please contact customer support for full warranty details.
Output Warranty of Pmax (DC) (Measurement Tolerance 3%)
- Linear Warranty* Please contact customer support for full warranty details.
*
Improved: 1st year %, from 2-24th year: %/year down, % at year 25
*
- Improved: 1st year %, from 2-24th year: %/year down, % at year 25
DC Temperature Characteristics
NMOT*
TBD
NMOT*
- TBD
NOCT*
44 3 °C
NOCT*
- 44 3 °C
Pmax
-0.3%/°C
Pmax
- -0.3%/°C
Voc
-0.24%/°C
Voc
- -0.24%/°C
Isc
0.037%/°C
Isc
- 0.037%/°C
*NMOT
Irradiance 800 W/m2, Ambient temperature 20°C, Wind speed 1 m/s, Spectrum AM 1.5
*NMOT
- Irradiance 800 W/m2, Ambient temperature 20°C, Wind speed 1 m/s, Spectrum AM 1.5
*NOCT
(Nominal Operating Cell Temperature): Irradiance 800W/m , ambient temperature 20°C, wind speed 1m/s
*NOCT
- (Nominal Operating Cell Temperature): Irradiance 800W/m , ambient temperature 20°C, wind speed 1m/s
AC CABLE PROPERTIES
Standard
TBD
Standard
- TBD
Rated Voltage/Current
TBD
Rated Voltage/Current
- TBD
Wire Size Range
TBD
Wire Size Range
- TBD
Cable Length (only cable length)
TBD
Cable Length (only cable length)
- TBD
Protection Degree
TBD
Protection Degree
- TBD
Diameter range of cable
TBD
Diameter range of cable
- TBD
AC ELECTRICAL PROPERTIES
Power (Inverter Rated continuous) [W]
TBD
Power (Inverter Rated continuous) [W]
- TBD
Max. Continuous Output Power (VA)
320
Max. Continuous Output Power (VA)
- 320
Nominal Voltage / Range (V)
240/211 ~ 264 ; 208/183 ~ 229
Nominal Voltage / Range (V)
- 240/211 ~ 264 ; 208/183 ~ 229
Nominal Output Current (A)
1.33 ; 1.54
Nominal Output Current (A)
- 1.33 ; 1.54
Cable Length (only cable length) (mm)
Cable 1 : 1,200 ; Cable 2 : 1,100
Cable Length (only cable length) (mm)
- Cable 1 : 1,200 ; Cable 2 : 1,100
Number of Maximum AC Modules
12 ; 10
Number of Maximum AC Modules
- 12 ; 10
Nominal Frequency / Range (Hz)
60.0/59.3~60.5
Nominal Frequency / Range (Hz)
- 60.0/59.3~60.5
Frequency (Extended) Hz
TBD
Frequency (Extended) Hz
- TBD
Max. Branch Circuit Over Current Protection (A)
20
Max. Branch Circuit Over Current Protection (A)
- 20
Power Factor / Adjustable
1/0.8 leading...0.8 lagging
Power Factor / Adjustable
- 1/0.8 leading...0.8 lagging
Max Units Per 20A Branch Circuit
240V: 12, 208V: 10
Max Units Per 20A Branch Circuit
- 240V: 12, 208V: 10
CEC Weighted Efficiency (%)
97.0 ; 96.5
CEC Weighted Efficiency (%)
- 97.0 ; 96.5
Electrical Properties (NMOT)
Model
TBD
Model
- TBD
Maximum Power (Pmax)
TBD
Maximum Power (Pmax)
- TBD
MPP Voltage (Vmpp)
TBD
MPP Voltage (Vmpp)
- TBD
MPP Current (Impp)
TBD
MPP Current (Impp)
- TBD
Open Circuit Voltage (Voc)
TBD
Open Circuit Voltage (Voc)
- TBD
Short Circuit Current (Isc)
TBD
Short Circuit Current (Isc)
- TBD
DC ELECTRICAL PROPERTIES(STC*)
Model
TBD
Model
- TBD
Maximum Power (Pmax)**
365
Maximum Power (Pmax)**
- 365
MPP Voltage (Vmpp) [V]
TBD
MPP Voltage (Vmpp) [V]
- TBD
MPP Current (Impp) [A]
TBD
MPP Current (Impp) [A]
- TBD
Open Circuit Voltage (Voc, +/-5%) [V]
TBD
Open Circuit Voltage (Voc, +/-5%) [V]
- TBD
Short Circuit Current (Isc, +/-5%) [A]
TBD
Short Circuit Current (Isc, +/-5%) [A]
- TBD
Module Efficiency
21.1%
Module Efficiency
- 21.1%
Power Tolerance (%)
0 ~ +3
Power Tolerance (%)
- 0 ~ +3
*STC (Standard Test Condition)
Irradiance 1000 W/ , Cell temperature 25 , AM 1.5 , Measure tolerance of Pmax : 3%
*STC (Standard Test Condition)
- Irradiance 1000 W/ , Cell temperature 25 , AM 1.5 , Measure tolerance of Pmax : 3%
**Measurement Tolerance of Pmax:
3%
**Measurement Tolerance of Pmax:
- 3%
Operating Conditions
Operating Temperature [°C]
TBD
Operating Temperature [°C]
- TBD
Maximum System Voltage [V]
TBD
Maximum System Voltage [V]
- TBD
Maximum Series Fuse Rating [A]
TBD
Maximum Series Fuse Rating [A]
- TBD
Mechanical Test Load (Front) [Pa/psf]
TBD
Mechanical Test Load (Front) [Pa/psf]
- TBD
Mechanical Test Load (Rear) [Pa/psf]
TBD
Mechanical Test Load (Rear) [Pa/psf]
- TBD
*
Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa/5,400 Pa based on IEC 61215 : 2005
*
- Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa/5,400 Pa based on IEC 61215 : 2005
Packaging Configuration
Number of Modules per Pallet [EA]
TBD
Number of Modules per Pallet [EA]
- TBD
Number of Modules per 40ft HQ Container [EA]
TBD
Number of Modules per 40ft HQ Container [EA]
- TBD
Number of Modules per 53' HQ Cont
TBD
Number of Modules per 53' HQ Cont
- TBD
Packaging Box Dimensions (L x W x H) [mm]
TBD
Packaging Box Dimensions (L x W x H) [mm]
- TBD
Packaging Box Dimensions (L x W x H) [in]
TBD
Packaging Box Dimensions (L x W x H) [in]
- TBD
Packaging Box Gross Weight [kg]
TBD
Packaging Box Gross Weight [kg]
- TBD
Packaging Box Gross Weight [lb]
TBD
Packaging Box Gross Weight [lb]
- TBD
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
The Misc 365W Neon® 2 Ace Solar Panel For Home, made by LG Appliances,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Misc collection is an amazing option if you are looking for
furniture.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Reference #: LG365M1CN5
