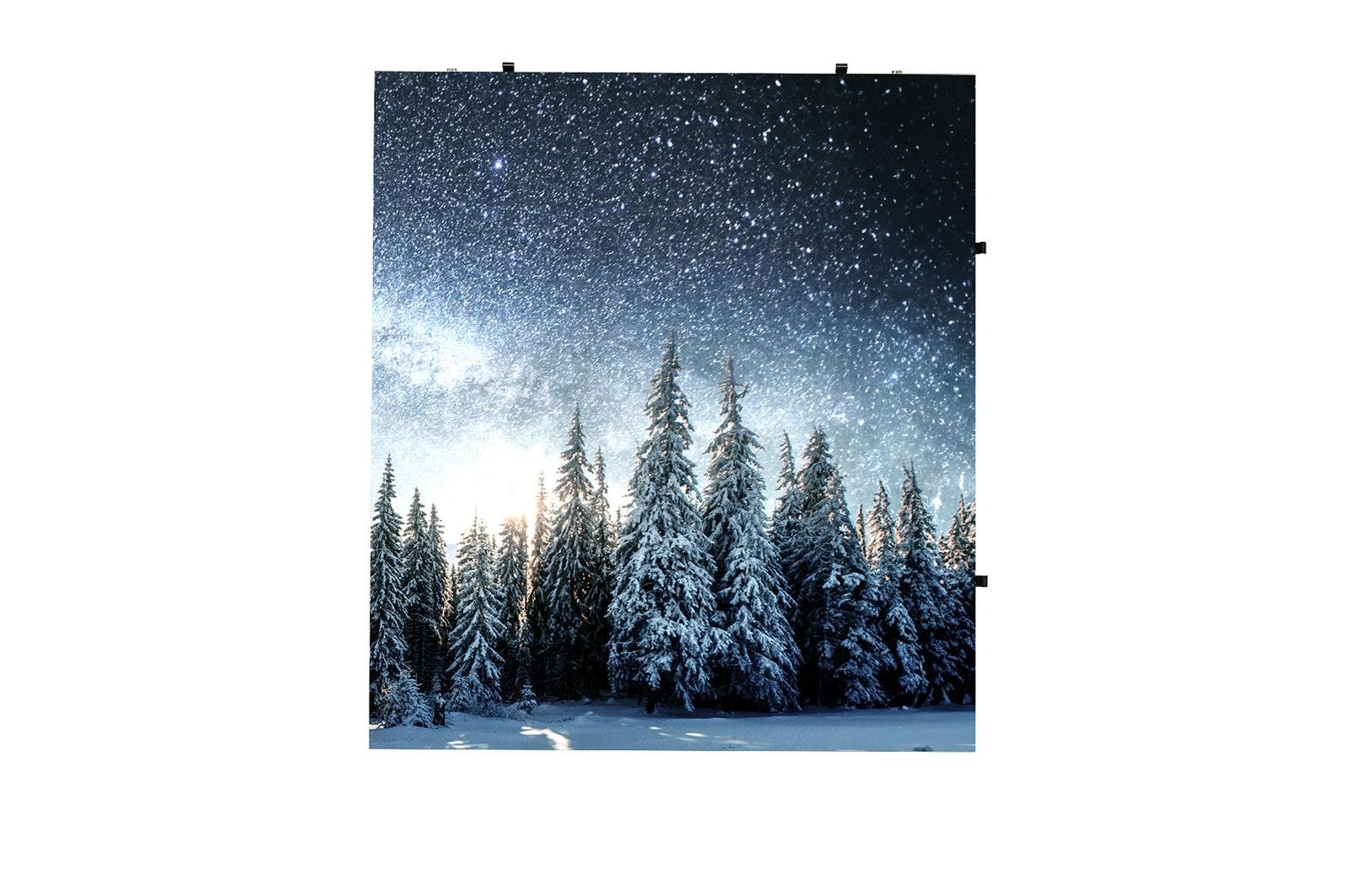

Lbag Magnit Studio Series Microled Wall With Megapixel Vr Helios Controller
SKU: LBAG015
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
LED Indicator to Check Status
LED Indicator provides convenience to users to check LBAG status with various meanings of colors.
Stacking & Hanging System Available
Installation options vary by stacking or hanging, using optional accessories such as single or double beams for customization to the studio environment.
Curve Effect Available
The angle adapter system and fast lock are designed to fascilitate easy installation for curved display. The system allows for adjustment of up to 10 degrees in concave area while providing a secure mechanical connection.
Broadcast Quality Available
With HDR and low latency video processing, the MAGNIT Studio Series supports high quality video with accurate and smooth playback.
True Black with Ultra-high Contrast
By removing the package surrounding the RGB Micro LED chips and applying LG's own Full Black Coating technology, the LBAG series delivers true black that is enhanced by its ultra-high 100,000:1 contrast ratio. This not only enhances color vividness, but also makes the details which were hidden in the shadows appear, providing audiences a sense of immersion. * Based on LG's conventional LED Signage
View Colors as Intended
MAGNIT's carefully-selected micro LED chip has a narrowed wavelength that allows it to show uniform colors across the screen. Furthermore, the enhanced Gamut Transfer technology supports it to describe colors close to the original color, which is essential for places where exact color representation is demanding.
Powerful UI/UX with Megapixel VR Helios Controller
With the MVR controller, MAGNIT Studio Series now has the capability to utilize powerful UX and UI functionalities. Real-Time Mapping and MultiUser Control, Superior Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics are all available.
*MVR Controller needs to be purchased separately
Easy Installation & Maintenance

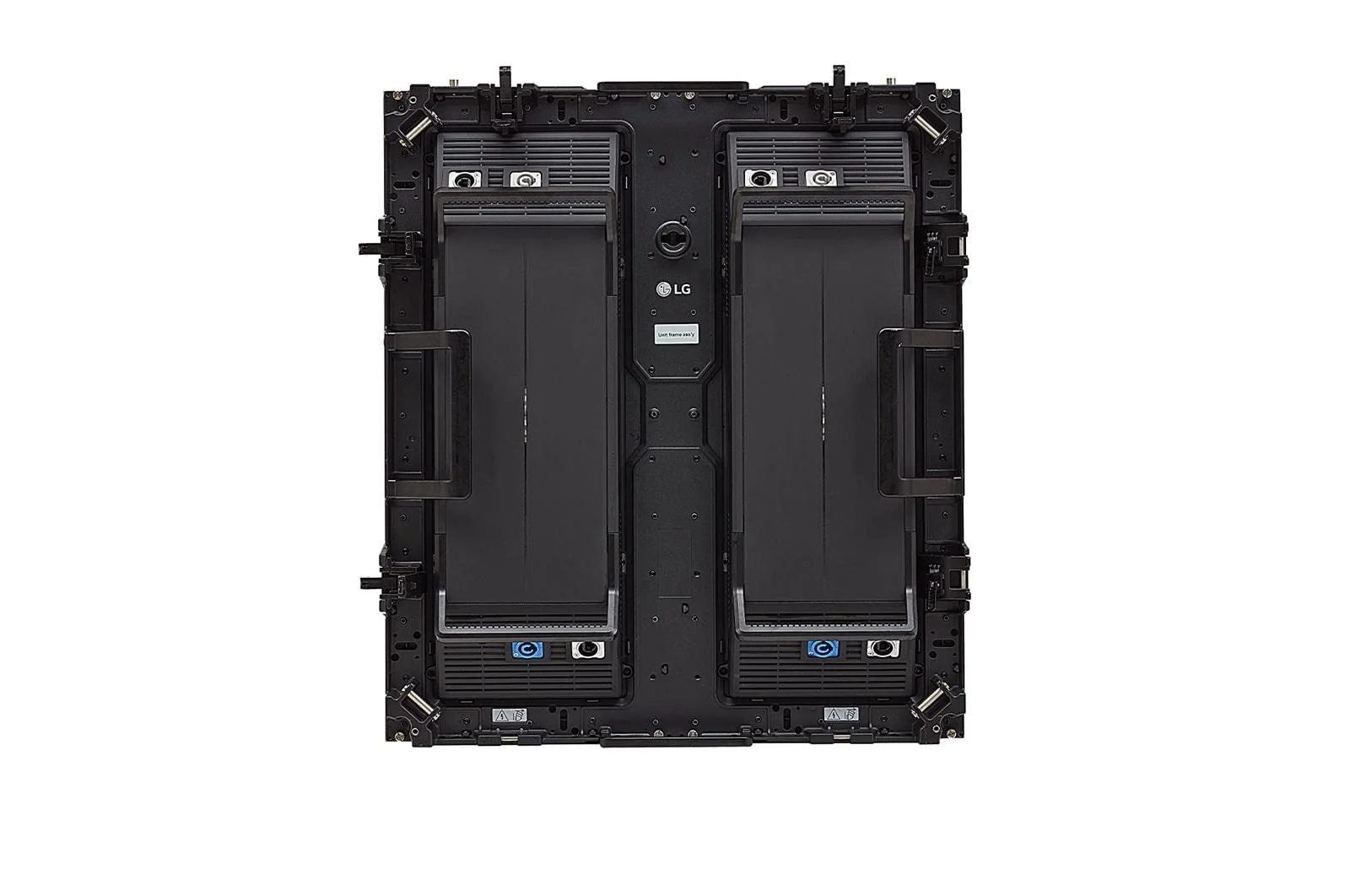

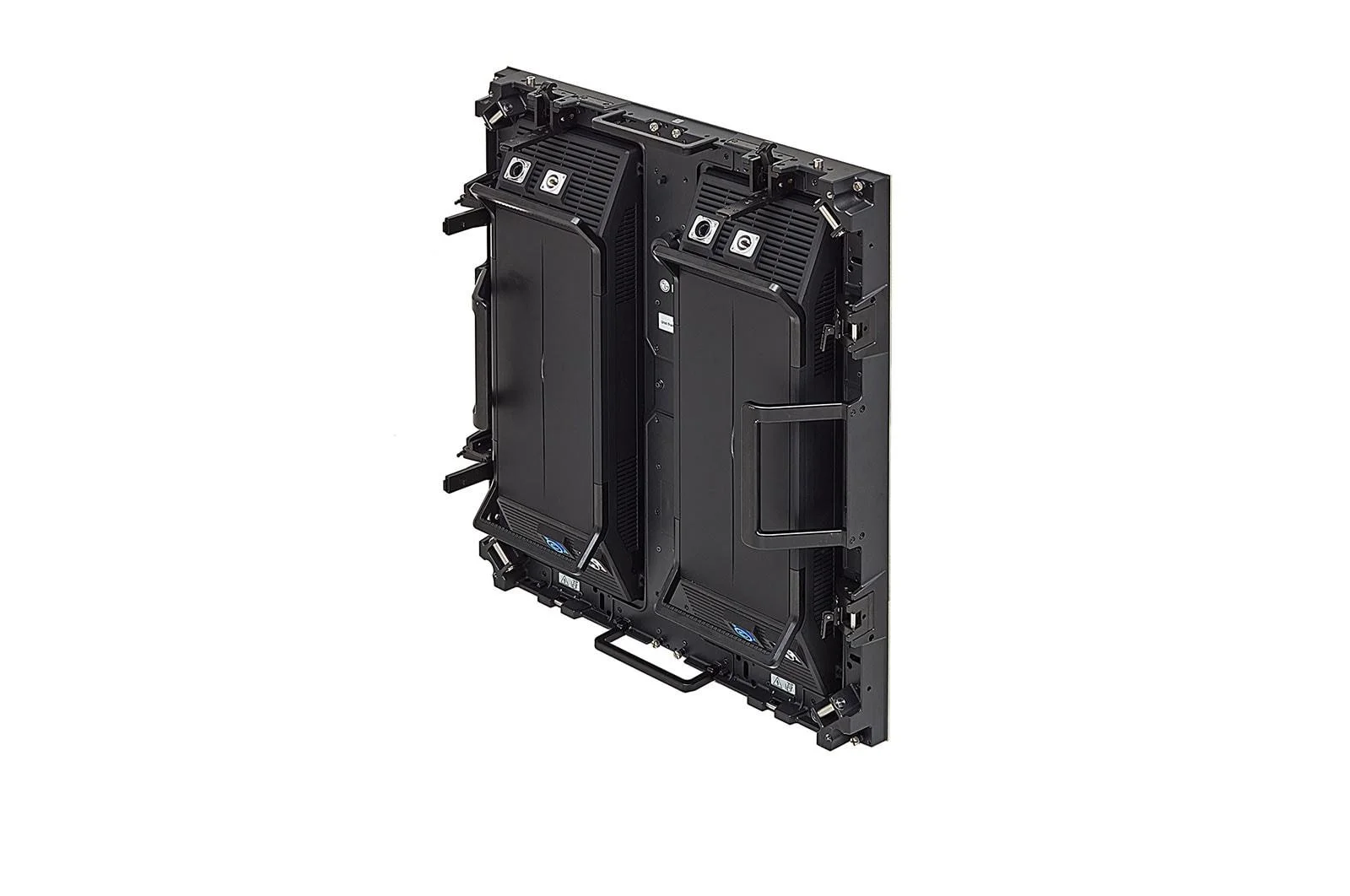

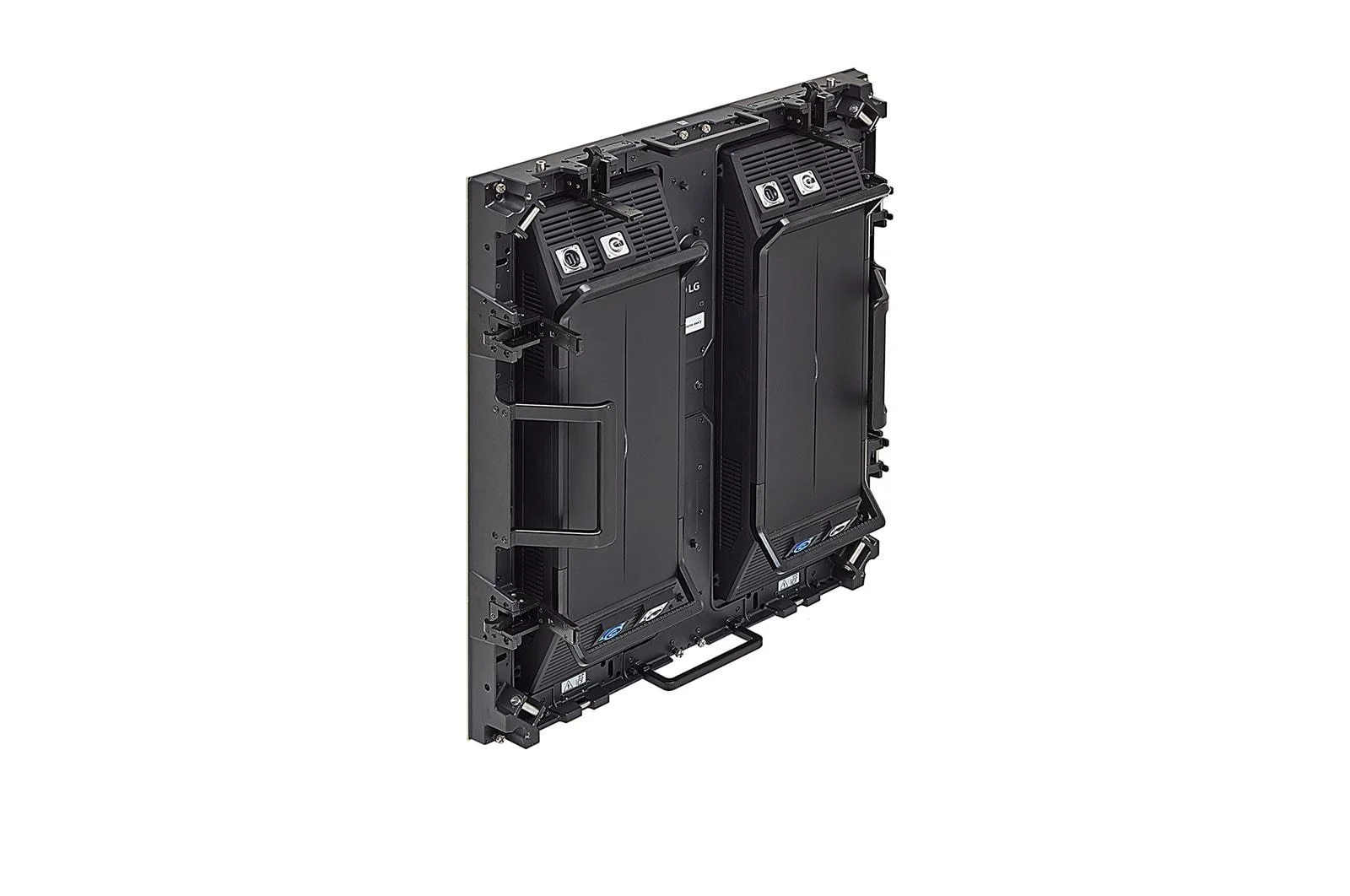

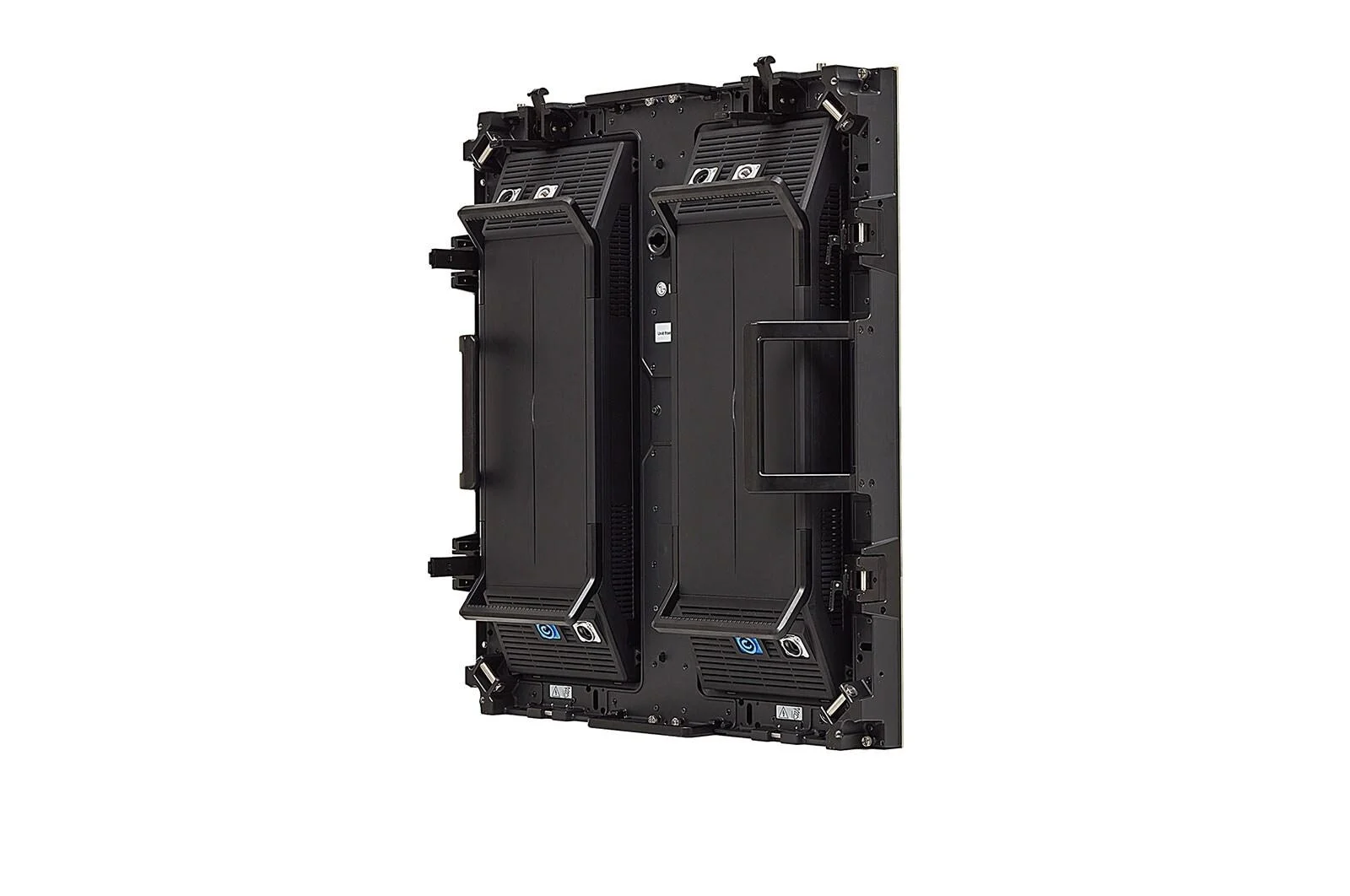

The module can be easily removed with even bare hands, as it features rear service access that does not require any tools. Additionally, the positioning pins and magnets help perform easy panel adjustments, resulting in a smooth screen assembly.
Wide Color Viewing Angle
The structure of LBAG series minimizes color distortion according to the viewing angle. In other words, the original color can be appreciated from multiple angles, captivating various onlookers when installed in a large spaces.
LED Indicator provides convenience to users to check LBAG status with various meanings of colors.
Stacking & Hanging System Available
Installation options vary by stacking or hanging, using optional accessories such as single or double beams for customization to the studio environment.
Curve Effect Available
The angle adapter system and fast lock are designed to fascilitate easy installation for curved display. The system allows for adjustment of up to 10 degrees in concave area while providing a secure mechanical connection.
Broadcast Quality Available
With HDR and low latency video processing, the MAGNIT Studio Series supports high quality video with accurate and smooth playback.
True Black with Ultra-high Contrast
By removing the package surrounding the RGB Micro LED chips and applying LG's own Full Black Coating technology, the LBAG series delivers true black that is enhanced by its ultra-high 100,000:1 contrast ratio. This not only enhances color vividness, but also makes the details which were hidden in the shadows appear, providing audiences a sense of immersion. * Based on LG's conventional LED Signage
View Colors as Intended
MAGNIT's carefully-selected micro LED chip has a narrowed wavelength that allows it to show uniform colors across the screen. Furthermore, the enhanced Gamut Transfer technology supports it to describe colors close to the original color, which is essential for places where exact color representation is demanding.
Powerful UI/UX with Megapixel VR Helios Controller
With the MVR controller, MAGNIT Studio Series now has the capability to utilize powerful UX and UI functionalities. Real-Time Mapping and MultiUser Control, Superior Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics are all available.
*MVR Controller needs to be purchased separately
Easy Installation & Maintenance
The module can be easily removed with even bare hands, as it features rear service access that does not require any tools. Additionally, the positioning pins and magnets help perform easy panel adjustments, resulting in a smooth screen assembly.
Wide Color Viewing Angle
The structure of LBAG series minimizes color distortion according to the viewing angle. In other words, the original color can be appreciated from multiple angles, captivating various onlookers when installed in a large spaces.
- Easy Installation and Maintenance
- 1,500 nits Brightness with 160° x 160° Viewing Angle
- Curve Effect Available
- Megapixel VR Helios Controller
- 1.56 Pixel Pitch COB
- Last up to 100,000 hours
Rebates
view available rebates
Specifications
Specifications
Features
Easy Installation and Maintenance, 1,500 nits Brightness with 160° x 160° Viewing Angle, Curve Effect Available, Megapixel VR Helios Controller, 1.56 Pixel Pitch COB, Last up to 100,000 hours
- Easy Installation and Maintenance
- 1,500 nits Brightness with 160° x 160° Viewing Angle
- Curve Effect Available
- Megapixel VR Helios Controller
- 1.56 Pixel Pitch COB
- Last up to 100,000 hours
PHYSICAL PARAMETERS
Pixel Configuration
COB
Pixel Configuration
- COB
Pixel Pitch (mm)
1.56
Pixel Pitch (mm)
- 1.56
Module Resolution (W x H)
96 x 108
Module Resolution (W x H)
- 96 x 108
Module Dimensions (W x H, in / mm)
5.9 x 6.6 / 150 x 168.75
Module Dimensions (W x H, in / mm)
- 5.9 x 6.6 / 150 x 168.75
Weight per Module (lb / kg)
0.3 / 0.15
Weight per Module (lb / kg)
- 0.3 / 0.15
No. of Modules per Cabinet (W x H)
4 x 4
No. of Modules per Cabinet (W x H)
- 4 x 4
Cabinet Resolution (W x H)
384 x 432
Cabinet Resolution (W x H)
- 384 x 432
Cabinet Dimensions (W x H x D, in. / mm)
23.6 x 26.6 x 4.9 / 600 x 675 x 125
Cabinet Dimensions (W x H x D, in. / mm)
- 23.6 x 26.6 x 4.9 / 600 x 675 x 125
Cabinet Surface Area (ft / m )
4.4 / 0.405
Cabinet Surface Area (ft / m )
- 4.4 / 0.405
Weight per Cabinet (Ibs. / kg)
16.0
Weight per Cabinet (Ibs. / kg)
- 16.0
Weight per Square Meter (Ibs./ft / kg/m )
7.9 / 39.5
Weight per Square Meter (Ibs./ft / kg/m )
- 7.9 / 39.5
Physical Pixel Density (pixels/m )
409,600
Physical Pixel Density (pixels/m )
- 409,600
Flatness of Cabinet (mm)
0.5
Flatness of Cabinet (mm)
- 0.5
Cabinet Material
Die Casting Magnesium Alloy
Cabinet Material
- Die Casting Magnesium Alloy
Service Access
Rear
Service Access
- Rear
OPTICAL SPECIFICATIONS
Max. Brightness (After Calibration, nits)
1,500 (Max.)
Max. Brightness (After Calibration, nits)
- 1,500 (Max.)
Color Temperature (K)
2,000-10,000 / Default 6,504
Color Temperature (K)
- 2,000-10,000 / Default 6,504
Visual Viewing Angle (H x V)
160 x 160
Visual Viewing Angle (H x V)
- 160 x 160
Brightness Uniformity
95%
Brightness Uniformity
- 95%
Color Uniformity
0.02 Cx, Cy
Color Uniformity
- 0.02 Cx, Cy
Contrast Ratio
100,000: 1 (Max.)
Contrast Ratio
- 100,000: 1 (Max.)
Processing Depth (bit)
22 (Internal Processing (HDR10))
Processing Depth (bit)
- 22 (Internal Processing (HDR10))
ELECTRICAL SPECIFICATIONS
Power Consumption (W/Cabinet, Max.)
220
Power Consumption (W/Cabinet, Max.)
- 220
Power Consumption (W/Cabinet, Avg.)
175
Power Consumption (W/Cabinet, Avg.)
- 175
Power Consumption (W/m , Max.)
543
Power Consumption (W/m , Max.)
- 543
Heat Dissipation (BTU/h/Cabinet, Max.)
751
Heat Dissipation (BTU/h/Cabinet, Max.)
- 751
Heat Dissipation (BTU/h/Cabinet, Avg.)
597
Heat Dissipation (BTU/h/Cabinet, Avg.)
- 597
Heat Dissipation (BTU/h/m , Max.)
1,853
Heat Dissipation (BTU/h/m , Max.)
- 1,853
Power Supply (Vac)
100 to 240
Power Supply (Vac)
- 100 to 240
Frame Rate (Hz)
23.98 / 24 / 25 / 29.97 / 30 / 48 / 50 / 59.94 / 60 / 72 / 90 / 96 / 100 / 120
Frame Rate (Hz)
- 23.98 / 24 / 25 / 29.97 / 30 / 48 / 50 / 59.94 / 60 / 72 / 90 / 96 / 100 / 120
Refresh Rate (Hz)
7,680
Refresh Rate (Hz)
- 7,680
OPERATION SPECIFICATIONS
Lifetime (Half brightness)
Up to 100,000 Hours
Lifetime (Half brightness)
- Up to 100,000 Hours
Operating Temperature (°F / °C)
32 to 104 / 0 to 40
Operating Temperature (°F / °C)
- 32 to 104 / 0 to 40
Operating Humidity
10-80%RH
Operating Humidity
- 10-80%RH
IP Rating Front / Rear
N/A
IP Rating Front / Rear
- N/A
Standard
Certification
IEC 62368-1, EMC Class A
Certification
- IEC 62368-1, EMC Class A
SPECIFICATIONS
Environment
RoHS/REACH
Environment
- RoHS/REACH
Controller
Megapixel VR Helios
Controller
- Megapixel VR Helios
Warranty
3 Year Limited
Warranty
- 3 Year Limited
Cabinet
LSAP, LBAG
Cabinet
- LSAP, LBAG
Input
HDMI 2.0, HDCP 2.2, DP 1.4 (HBR3), SDI (4 x 12G-SDI), OPS (ST2110)
Input
- HDMI 2.0, HDCP 2.2, DP 1.4 (HBR3), SDI (4 x 12G-SDI), OPS (ST2110)
Output
Optic (To LED Screen) (8 x 10G)
Output
- Optic (To LED Screen) (8 x 10G)
Video Processing
Brightness Adjustment, Chroma Adjustment, Improved Grayscale at Low Brightness, Scaling, HDR (PQ, HLG, Custom), EDID Custom
Video Processing
- Brightness Adjustment, Chroma Adjustment, Improved Grayscale at Low Brightness, Scaling, HDR (PQ, HLG, Custom), EDID Custom
Max Output Range
Loading Capacity
8,192 x 4,320 @ 60 Hz
Loading Capacity
- 8,192 x 4,320 @ 60 Hz
Output Resolution
35.3 Million Pixels
Output Resolution
- 35.3 Million Pixels
Control
LAN
Yes
LAN
- Yes
GenLock
Yes (In)
GenLock
- Yes (In)
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
