171'' Laed All-In-One Direct View Led Display With 21:9 Aspect Ratio, Embedded Controller, & Built-In Speakers
SKU: LAED015
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDisclaimer
Description

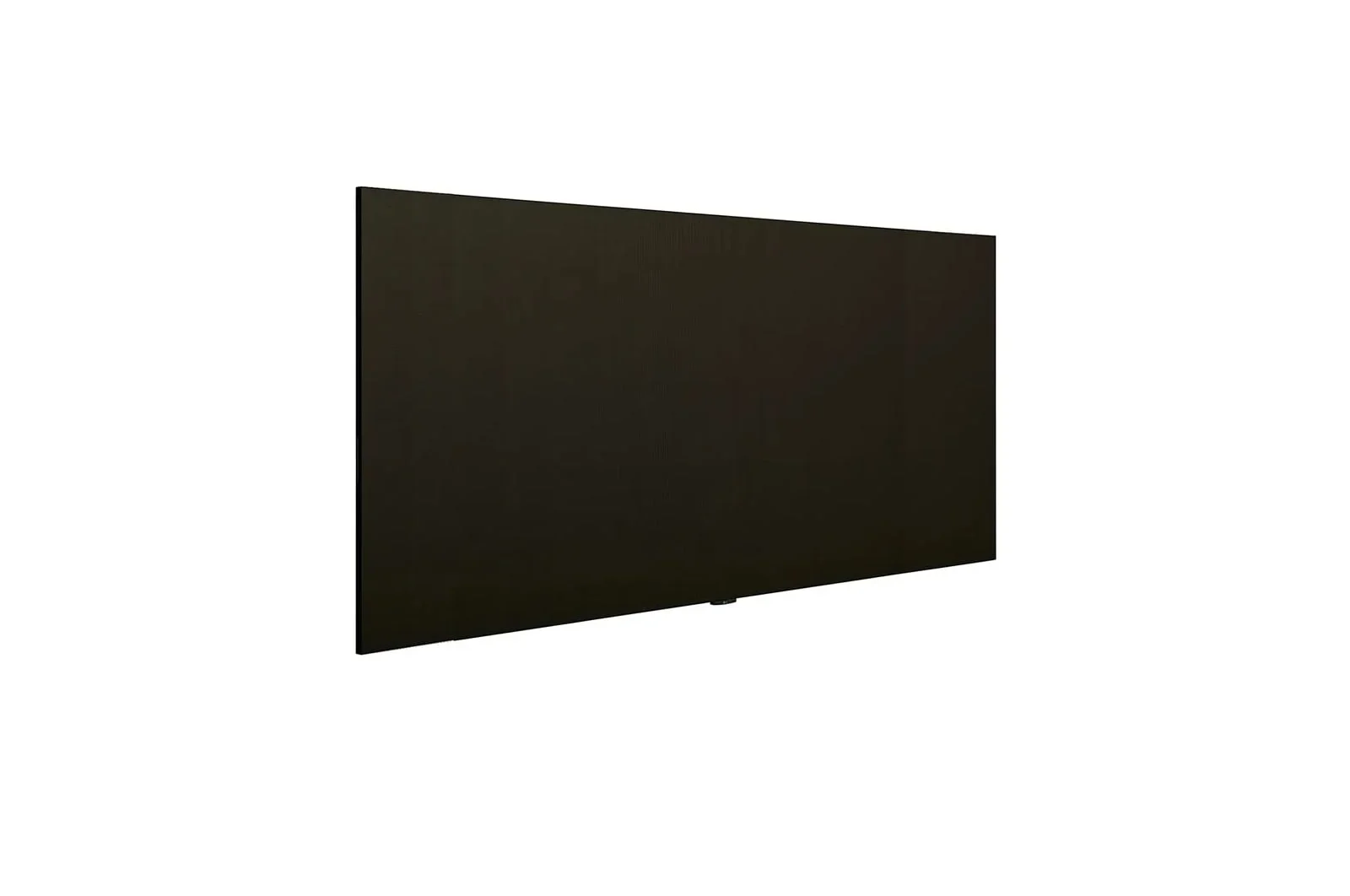

moreAll-in-One Direct View LED Screen with Built-in Speaker
LG's LED All-in-One LAED series with 171-inch screen size is offered as an all-in-one package including an embedded controller and built-in speaker. After a simple installation process that neither requires controller connections or module configuration, all you need to do is to turn on the screen with the remote control like a home TV.
Quick Maintenance
In case of failure related to the LED module or the system board, it can be serviced from the front. The DVLED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.
Office Meeting Mode
With Office Meeting Mode, easily configure meeting room details like the room number and current time. It also includes convenient features like automatic input switching, a presentation timer, and adjustable settings such as autobrightness and picture mode. * Users can enable Office Meeting Mode at EZ Setting menu of the Signage.
Compatible with AV Control Systems
The LAED series supports Crestron Connected®* for high compatibility with professional AV controls to achieve virtually seamless integration and automated control**, boosting business management efficiency. * Initial setting from display is required for Crestron Connected® compatibility. ** Network based control *** Crestron Connected® sold separately.
Display Power Management (DPM)
The DPM function of the LED screen allows it to enter a standby mode after a specific period of time when there is no signal from the input source device.
Real-time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses. *LG ConnectedCare Service needs to be purchased separately, and available on the basis of internet connection.
21:9 Widescreen
With support for a 21:9 widescreen aspect ratio (2,560 x 1,080), LAED series provides an immersive viewing experience with the wider screen than 16:9 display. Its screen specialization helps display 21:9 content including widescreen videoconferencing platforms with the natural details.
*Image simulation for illustration purposes only.
Easy Installation
The installation process of the 21:9 All-in-One series is simple. After securing three cabinets, attach each DVLED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby makingusers handle the LED screen with ease.
*Fixing screws or installing wall mount/accessories is needed additionally.
Versatile Installation with Dedicated Accessories
The product is offered with the necessary component including the landscape wall mount and tools for installation. The dedicated stand* is provided as an option, so that you can easily place it depending on your installation sites.
*Stand accessories sold separately. Image simulation for illustration purposes only.
LG's LED All-in-One LAED series with 171-inch screen size is offered as an all-in-one package including an embedded controller and built-in speaker. After a simple installation process that neither requires controller connections or module configuration, all you need to do is to turn on the screen with the remote control like a home TV.
Quick Maintenance
In case of failure related to the LED module or the system board, it can be serviced from the front. The DVLED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.
Office Meeting Mode
With Office Meeting Mode, easily configure meeting room details like the room number and current time. It also includes convenient features like automatic input switching, a presentation timer, and adjustable settings such as autobrightness and picture mode. * Users can enable Office Meeting Mode at EZ Setting menu of the Signage.
Compatible with AV Control Systems
The LAED series supports Crestron Connected®* for high compatibility with professional AV controls to achieve virtually seamless integration and automated control**, boosting business management efficiency. * Initial setting from display is required for Crestron Connected® compatibility. ** Network based control *** Crestron Connected® sold separately.
Display Power Management (DPM)
The DPM function of the LED screen allows it to enter a standby mode after a specific period of time when there is no signal from the input source device.
Real-time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses. *LG ConnectedCare Service needs to be purchased separately, and available on the basis of internet connection.
21:9 Widescreen
With support for a 21:9 widescreen aspect ratio (2,560 x 1,080), LAED series provides an immersive viewing experience with the wider screen than 16:9 display. Its screen specialization helps display 21:9 content including widescreen videoconferencing platforms with the natural details.
*Image simulation for illustration purposes only.
Easy Installation
The installation process of the 21:9 All-in-One series is simple. After securing three cabinets, attach each DVLED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby makingusers handle the LED screen with ease.
*Fixing screws or installing wall mount/accessories is needed additionally.
Versatile Installation with Dedicated Accessories
The product is offered with the necessary component including the landscape wall mount and tools for installation. The dedicated stand* is provided as an option, so that you can easily place it depending on your installation sites.
*Stand accessories sold separately. Image simulation for illustration purposes only.
- Front IP30 Rated and Back IP20 Rated
- 21:9 Aspect Ratio (2,560 x 1,080) Screen Resolution
- LG webOS™, Embedded Controller & Built-in Speaker
- Easy installation and Front Serviceable
- 1.56 Pixel Pitch
- Last up to 100,000 hours
Rebates
view available rebates
Specifications
Specifications
Features
Front IP30 Rated and Back IP20 Rated, 21:9 Aspect Ratio (2,560 x 1,080) Screen Resolution, LG webOS™, Embedded Controller & Built-in Speaker, Easy installation and Front Serviceable, 1.56 Pixel Pitch, Last up to 100,000 hours
- Front IP30 Rated and Back IP20 Rated
- 21:9 Aspect Ratio (2,560 x 1,080) Screen Resolution
- LG webOS™, Embedded Controller & Built-in Speaker
- Easy installation and Front Serviceable
- 1.56 Pixel Pitch
- Last up to 100,000 hours
PHYSICAL PARAMETERS
Pixel Configuration
Single SMD
Pixel Configuration
- Single SMD
Pixel Pitch (mm)
1.56
Pixel Pitch (mm)
- 1.56
Screen Resolution
2,560 x 1,080
Screen Resolution
- 2,560 x 1,080
Module Dimensions (W x H, in. / mm)
9.8 x 11.1 / 250 x 281.25
Module Dimensions (W x H, in. / mm)
- 9.8 x 11.1 / 250 x 281.25
No. of Modules per Screen (W x H)
16 x 6 (Total 96)
No. of Modules per Screen (W x H)
- 16 x 6 (Total 96)
Screen Dimensions (W x H x D, in. / mm, including Bezel)
157.6 x 66.6 x 1.4 / 4,003.3 x 1,691.8 x 36.5
Screen Dimensions (W x H x D, in. / mm, including Bezel)
- 157.6 x 66.6 x 1.4 / 4,003.3 x 1,691.8 x 36.5
Screen Surface Area ( )
73.2 / 6.8
Screen Surface Area ( )
- 73.2 / 6.8
Screen Weight (Ibs. / kg)
388 / 176
Screen Weight (Ibs. / kg)
- 388 / 176
Physical Pixel Density (ft / m )
409,600
Physical Pixel Density (ft / m )
- 409,600
Flatness of Cabinet (mm)
0.2
Flatness of Cabinet (mm)
- 0.2
Cabinet Material
Aluminum
Cabinet Material
- Aluminum
Service Access
Front
Service Access
- Front
OPTICAL SPECIFICATIONS
Max. Brightness (nits, after calibration)
500
Max. Brightness (nits, after calibration)
- 500
Color Temperature (K)
3,200-9,300
Color Temperature (K)
- 3,200-9,300
Visual Viewing Angle (Horizontal)
160°
Visual Viewing Angle (Horizontal)
- 160°
Visual Viewing Angle (Vertical)
160°
Visual Viewing Angle (Vertical)
- 160°
Brightness Uniformity
98%
Brightness Uniformity
- 98%
Color Uniformity
0.015 Cx, Cy
Color Uniformity
- 0.015 Cx, Cy
Contrast Ratio
3,000 : 1
Contrast Ratio
- 3,000 : 1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Processing Depth (bit)
- 16 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
Power Consumption (W/Screen, Max.)
2,100
Power Consumption (W/Screen, Max.)
- 2,100
Power Consumption (W/Screen, Avg.)
840
Power Consumption (W/Screen, Avg.)
- 840
Power Consumption (W/m , Max.)
311
Power Consumption (W/m , Max.)
- 311
Power Consumption (BTU/h/Screen, Max.)
7,165
Power Consumption (BTU/h/Screen, Max.)
- 7,165
Power Consumption (BTU/h/Screen, Avg.)
2,866
Power Consumption (BTU/h/Screen, Avg.)
- 2,866
Power Consumption (BTU/h/m , Max.)
1,062
Power Consumption (BTU/h/m , Max.)
- 1,062
Power Supply (Vac)
100 to 240
Power Supply (Vac)
- 100 to 240
Frame Rate (Hz)
50 / 60
Frame Rate (Hz)
- 50 / 60
Refresh Rate (Hz)
3,960
Refresh Rate (Hz)
- 3,960
OPERATION SPECIFICATIONS
LED Lifetime (Half brightness)
Up to 100,000 hours
LED Lifetime (Half brightness)
- Up to 100,000 hours
Operating Temperature (°F / °C)
32 to 104 / 0 to 40
Operating Temperature (°F / °C)
- 32 to 104 / 0 to 40
Operating Humidity
10-90% RH
Operating Humidity
- 10-90% RH
IP Rating (Front / Rear)
IP30 / IP20
IP Rating (Front / Rear)
- IP30 / IP20
SPECIFICATIONS
Warranty
3 Year Limited
Warranty
- 3 Year Limited
Speaker
Built-in (9 W + 9 W)
Speaker
- Built-in (9 W + 9 W)
Certification
CE, FCC, ETL, CB
Certification
- CE, FCC, ETL, CB
Environment
RoHS, REACH
Environment
- RoHS, REACH
Controller
Embedded
Controller
- Embedded
I/O Port
HDMI (3), DP (1), USB, LAN, RS-232C In/Out, IR, Optical Digital Audio Out
I/O Port
- HDMI (3), DP (1), USB, LAN, RS-232C In/Out, IR, Optical Digital Audio Out
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
