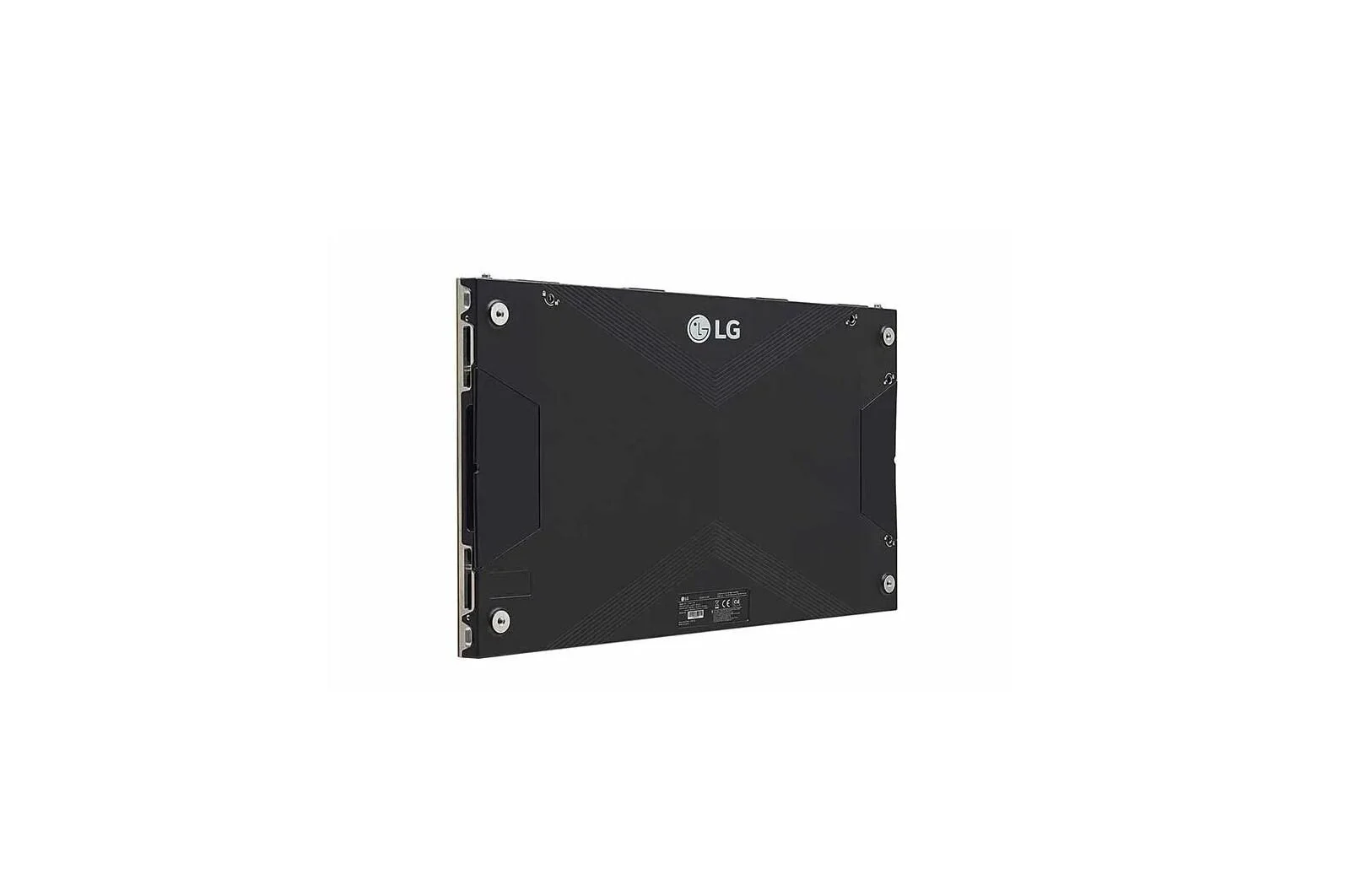

1.56Mm Lscb Curved Ultra Slim Indoor Led With Copper Connectors
SKU: LSCB015CKF
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
Front and Rear Installation and Maintenance
The LSCB series cabinets can be accessed from the front or rear for maintenance for added convenience and enhanced installation options.
16:9 FHD/UHD Configuration
Each cabinet uses a 16:9 aspect ratio, the most commonly used in FHD and UHD content displays. This allows you to keep using existing content without additional cost and time for editing.
EMC Certified & Fire Resistant Design
The LSCB Series is safe from electromagnetic waves, harmful to the environment and human body, with EMC Class B Certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.
LG Recognized as MSAP Leader
LG's environmental practices have earned us the title of Leader in the MindClick Sustainability Assessment Program 22-23. MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices. LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.
LSCB Direct View LED Customizable to fit your needs

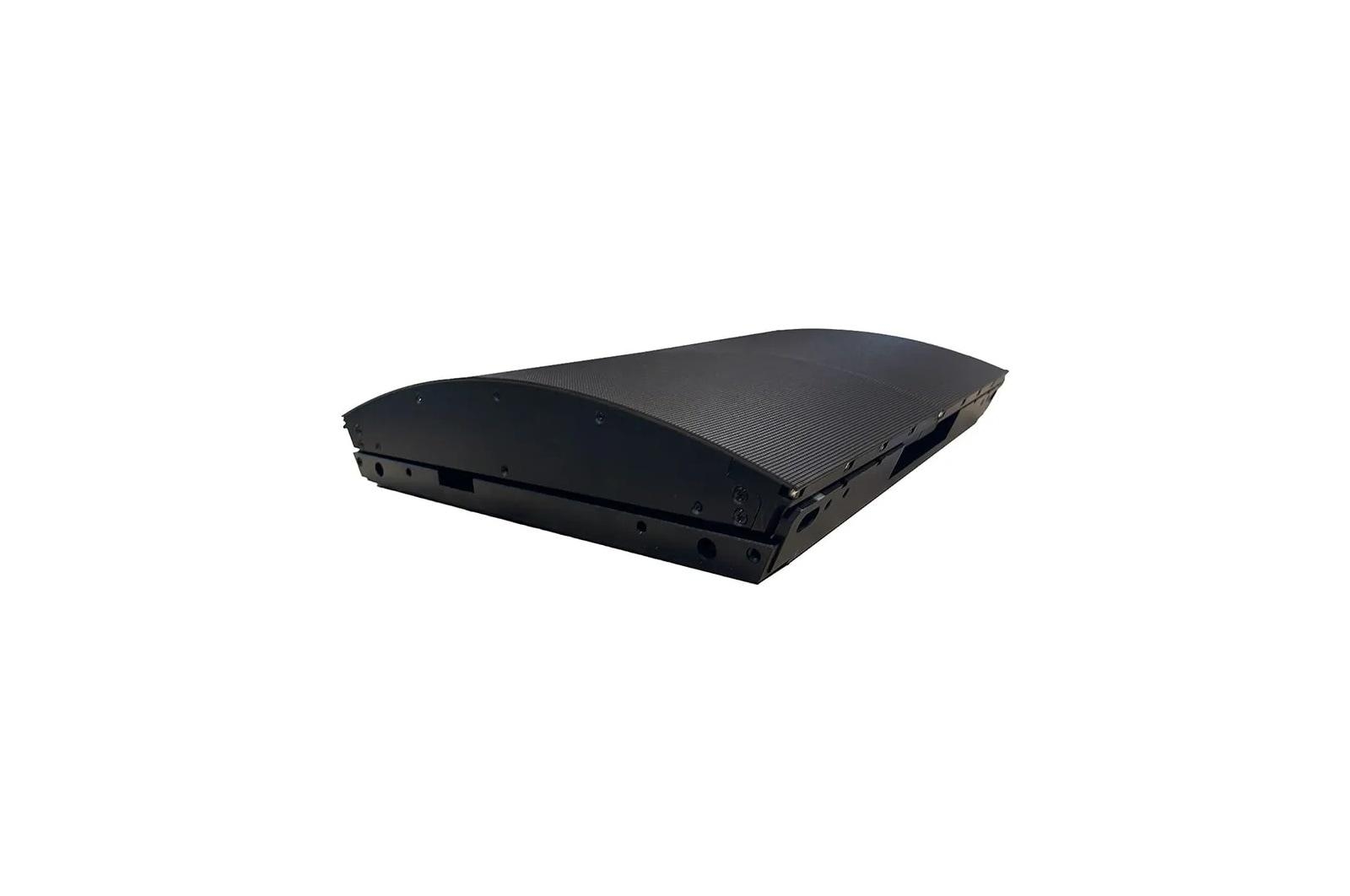

For added installation flexibility, the LSCB series offers half-height/ half-width and curved cabinets to create various types of screens, including customized curvature, concave and convex configurations*.
*Depending on the radius, the unit case dimension size changes.
Ultra Slim Depth
The LSCB Series' ultra-slim cabinet design, with 37.5mm edge thickness, is its most significant advantage. This feature enables the LSCB Series to be installed and utilized in any type of venue without restriction.
Compatibility with LG Software Solution
Powered by LG's high performance system controller and webOS™, the LSCB series is compatible with LG software solutions, including SuperSign CMS, LED Assistant, and ConnectedCare™, which help customers operate their own business flawlessly.
The LSCB series cabinets can be accessed from the front or rear for maintenance for added convenience and enhanced installation options.
16:9 FHD/UHD Configuration
Each cabinet uses a 16:9 aspect ratio, the most commonly used in FHD and UHD content displays. This allows you to keep using existing content without additional cost and time for editing.
EMC Certified & Fire Resistant Design
The LSCB Series is safe from electromagnetic waves, harmful to the environment and human body, with EMC Class B Certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.
LG Recognized as MSAP Leader
LG's environmental practices have earned us the title of Leader in the MindClick Sustainability Assessment Program 22-23. MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices. LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.
LSCB Direct View LED Customizable to fit your needs
For added installation flexibility, the LSCB series offers half-height/ half-width and curved cabinets to create various types of screens, including customized curvature, concave and convex configurations*.
*Depending on the radius, the unit case dimension size changes.
Ultra Slim Depth
The LSCB Series' ultra-slim cabinet design, with 37.5mm edge thickness, is its most significant advantage. This feature enables the LSCB Series to be installed and utilized in any type of venue without restriction.
Compatibility with LG Software Solution
Powered by LG's high performance system controller and webOS™, the LSCB series is compatible with LG software solutions, including SuperSign CMS, LED Assistant, and ConnectedCare™, which help customers operate their own business flawlessly.
- IP30, EMS Certified and Fire Resistant
- 800 Nits Brightness & Expressive Colors
- Front Accessible
- Customizable, Convex/Concave (Interchangeable with others LSCB Copper skus.)
- 1.56 mm Pixel Pitch, 300x337 cabinet
- Show your message 24/7
Rebates
view available rebates
1.56Mm Lscb Curved Ultra Slim Indoor Led With Copper Connectors
Misc Collection
Specifications
Specifications
Features
IP30, EMS Certified and Fire Resistant, 800 Nits Brightness & Expressive Colors, Front Accessible, Customizable, Convex/Concave (Interchangeable with others LSCB Copper skus.), 1.56 mm Pixel Pitch, 300x337 cabinet, Show your message 24/7
- IP30, EMS Certified and Fire Resistant
- 800 Nits Brightness & Expressive Colors
- Front Accessible
- Customizable, Convex/Concave (Interchangeable with others LSCB Copper skus.)
- 1.56 mm Pixel Pitch, 300x337 cabinet
- Show your message 24/7
PHYSICAL PARAMETERS
Pixel Configuration
3 in 1 SMD
Pixel Configuration
- 3 in 1 SMD
Pixel Pitch (mm)
1.563
Pixel Pitch (mm)
- 1.563
Module Resolution (W x H)
192 x 108
Module Resolution (W x H)
- 192 x 108
Module Dimensions (W x H)
11.8 x 6.6 in / 300 x 168.75 mm
Module Dimensions (W x H)
- 11.8 x 6.6 in / 300 x 168.75 mm
Weight per Module
1.47 lbs / 0.67 kg
Weight per Module
- 1.47 lbs / 0.67 kg
No. of Modules per Cabinet (W x H)
1 x 2
No. of Modules per Cabinet (W x H)
- 1 x 2
Unit Case Resolution (W x H)
192 x 216 mm
Unit Case Resolution (W x H)
- 192 x 216 mm
Unit Case Dimensions (W x H x D)
11.8 x 13.3 x 1.4 in / 300 x 337.5 x 35.6 mm (Cabinet Mounting depth)
Unit Case Dimensions (W x H x D)
- 11.8 x 13.3 x 1.4 in / 300 x 337.5 x 35.6 mm (Cabinet Mounting depth)
Unit Case Surface Area
1.1ft / 0.101 m
Unit Case Surface Area
- 1.1ft / 0.101 m
Weight per Cabinet
6.8 lbs / 3.1 kg
Weight per Cabinet
- 6.8 lbs / 3.1 kg
Weight per Unit Area
8 lbs/ft / 39.0 kg/m
Weight per Unit Area
- 8 lbs/ft / 39.0 kg/m
Physical Pixel Density
409,600 pixels/m 4,408,898 pixels/ft
Physical Pixel Density
- 409,600 pixels/m 4,408,898 pixels/ft
Flatness of Cabinet
0.1 mm
Flatness of Cabinet
- 0.1 mm
Cabinet Material
Aluminum
Cabinet Material
- Aluminum
Service Access
Front
Service Access
- Front
OPTICAL SPECIFICATIONS
Max Brightness (After Calibration)
800 nits
Max Brightness (After Calibration)
- 800 nits
Color Temperature
3,200~9,300 K
Color Temperature
- 3,200~9,300 K
Visual Viewing Angle (Horizontal)
160°
Visual Viewing Angle (Horizontal)
- 160°
Visual Viewing Angle (Vertical)
160°
Visual Viewing Angle (Vertical)
- 160°
Brightness Uniformity
97%
Brightness Uniformity
- 97%
Color Uniformity
0.003CxCy
Color Uniformity
- 0.003CxCy
Contrast Ratio
5000:1
Contrast Ratio
- 5000:1
Processing Depth
14 bit (HDR10, HDR10 Pro)
Processing Depth
- 14 bit (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
Max Power Consumption
75 W
Max Power Consumption
- 75 W
Avg. Power Consumption
25 W
Avg. Power Consumption
- 25 W
Max Power Consumption per Unit Area
740 W/m
Max Power Consumption per Unit Area
- 740 W/m
Avg. Heat Dissipation per Cabinet
256 BTU/h
Avg. Heat Dissipation per Cabinet
- 256 BTU/h
Max Heat Dissipation per Unit Area
85 BTU/h / 2,525 BTU/h/m
Max Heat Dissipation per Unit Area
- 85 BTU/h / 2,525 BTU/h/m
Power Supply
100 to 240 V
Power Supply
- 100 to 240 V
Frame Rate
50 / 60 Hz
Frame Rate
- 50 / 60 Hz
Refresh Rate
3,840 Hz
Refresh Rate
- 3,840 Hz
OPERATION SPECIFICATIONS
LED Lifetime (Half brightness)
100,000 Hours
LED Lifetime (Half brightness)
- 100,000 Hours
Operating Temperature
14°F to 113°F/-10°C to 45°C
Operating Temperature
- 14°F to 113°F/-10°C to 45°C
Operating Humidity
0~80%RH
Operating Humidity
- 0~80%RH
IP Rating Front
IP30
IP Rating Front
- IP30
IP Rating Rear
IP30
IP Rating Rear
- IP30
REGULATORY & CERTIFICATIONS
CE EMC Class B, FCC, ETL
REGULATORY & CERTIFICATIONS
- CE EMC Class B, FCC, ETL
CONTROLLER COMPATIBILITY
CVCA, LCIN006, LCIN008 and LCIN009
CONTROLLER COMPATIBILITY
- CVCA, LCIN006, LCIN008 and LCIN009
90 DEGREE CORNER CUT AVAILABLE
Yes
90 DEGREE CORNER CUT AVAILABLE
- Yes
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
