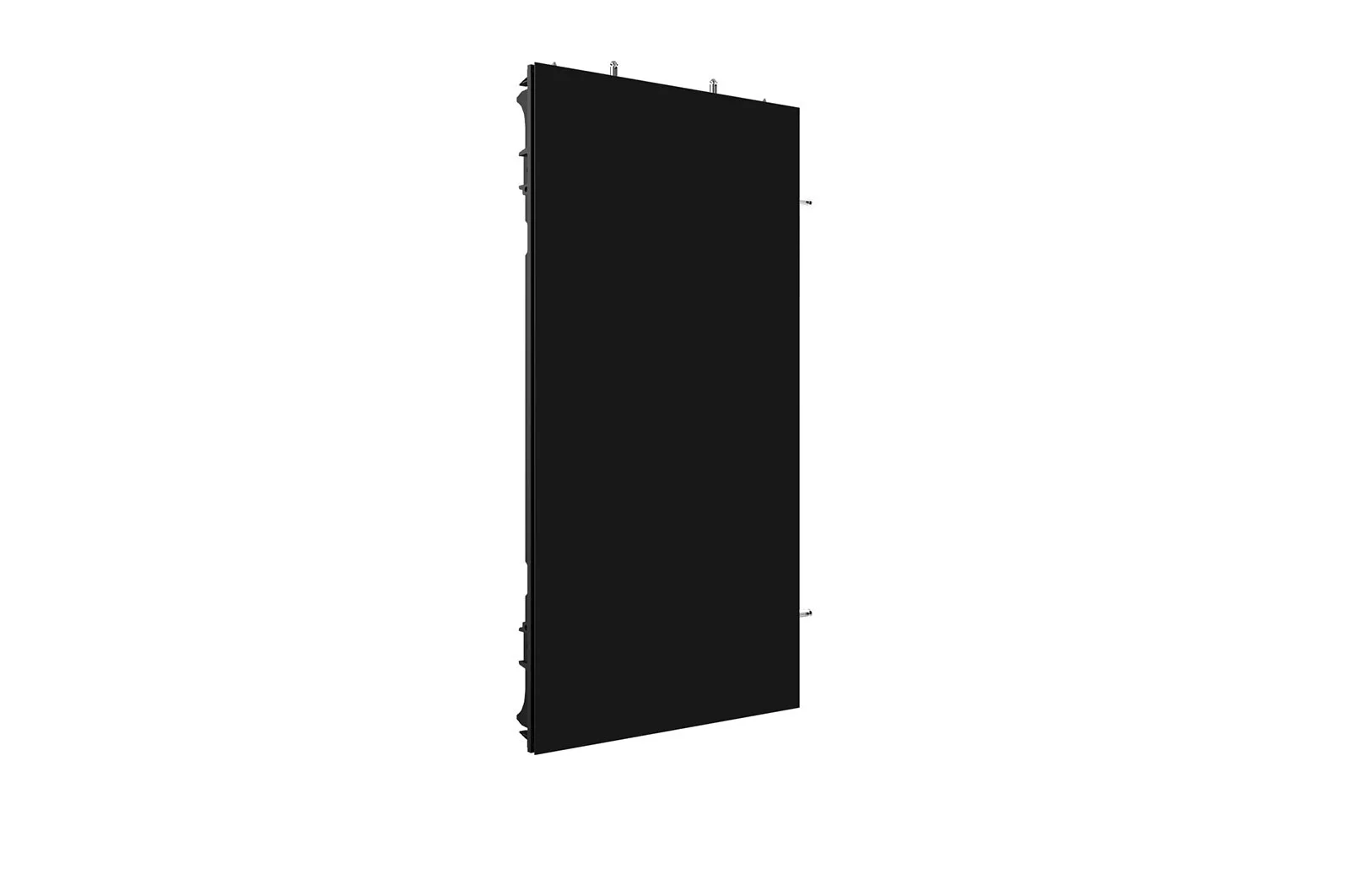

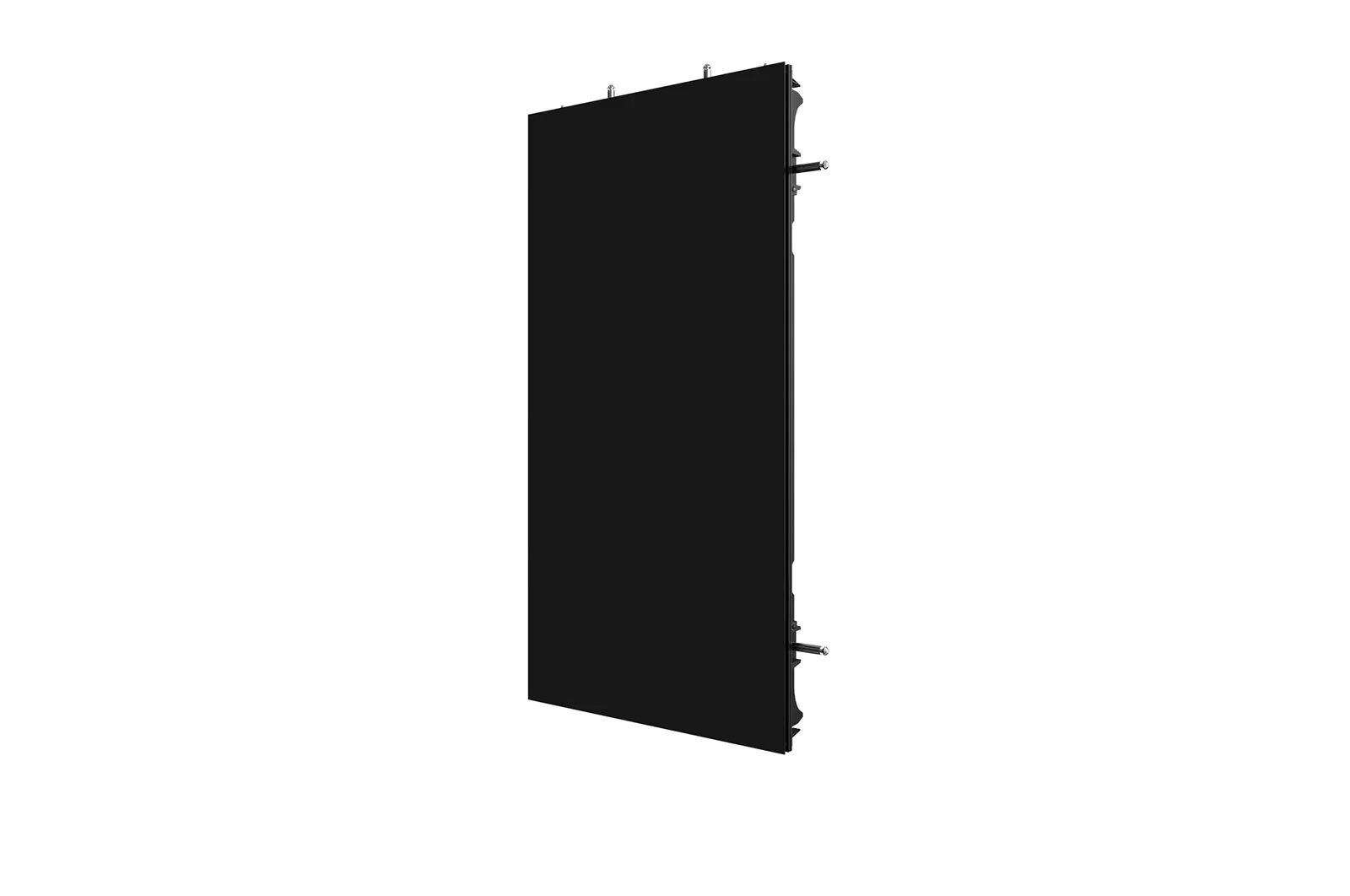

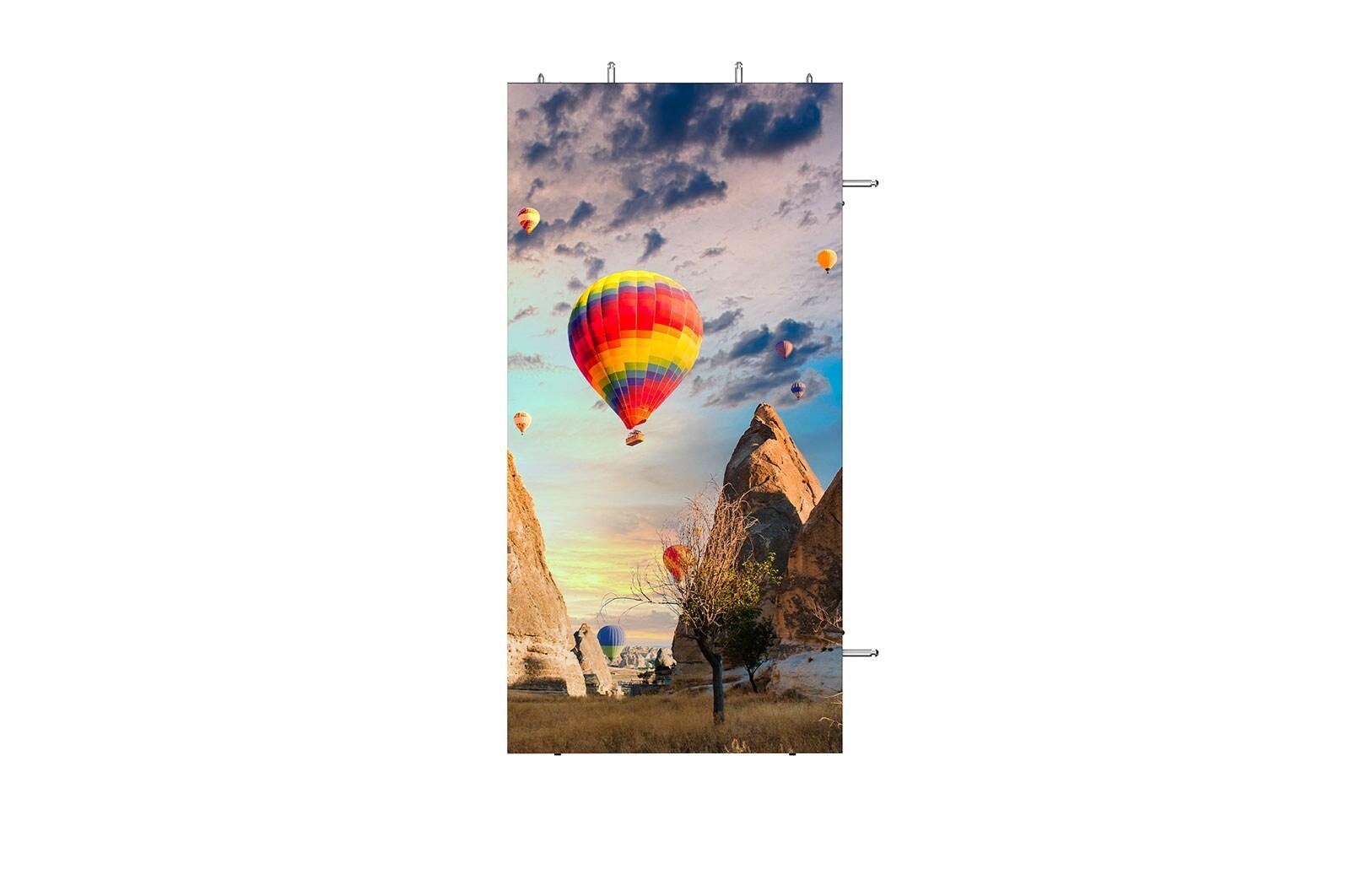

3.9Mm Lwbc Window Facing Dvled Display With 3,500 Nit Brightness
SKU: LWBC039GD
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
High Visibility Under the Sunlight
With a brightness of 3,500 nits, LWBC clearly delivers content and attracts public attention. Turn your window display up a notch with LWBC series Direct View LED!
90° Corner Design Available
LWBC has a 90° corner option that can be purchased separately. It allows this LED window display to fit naturally into corners and deliver virtually flawless content to customers.
Front or Rear Installation & Maintenance
Easy access to front or rear cabinet for maintenance.

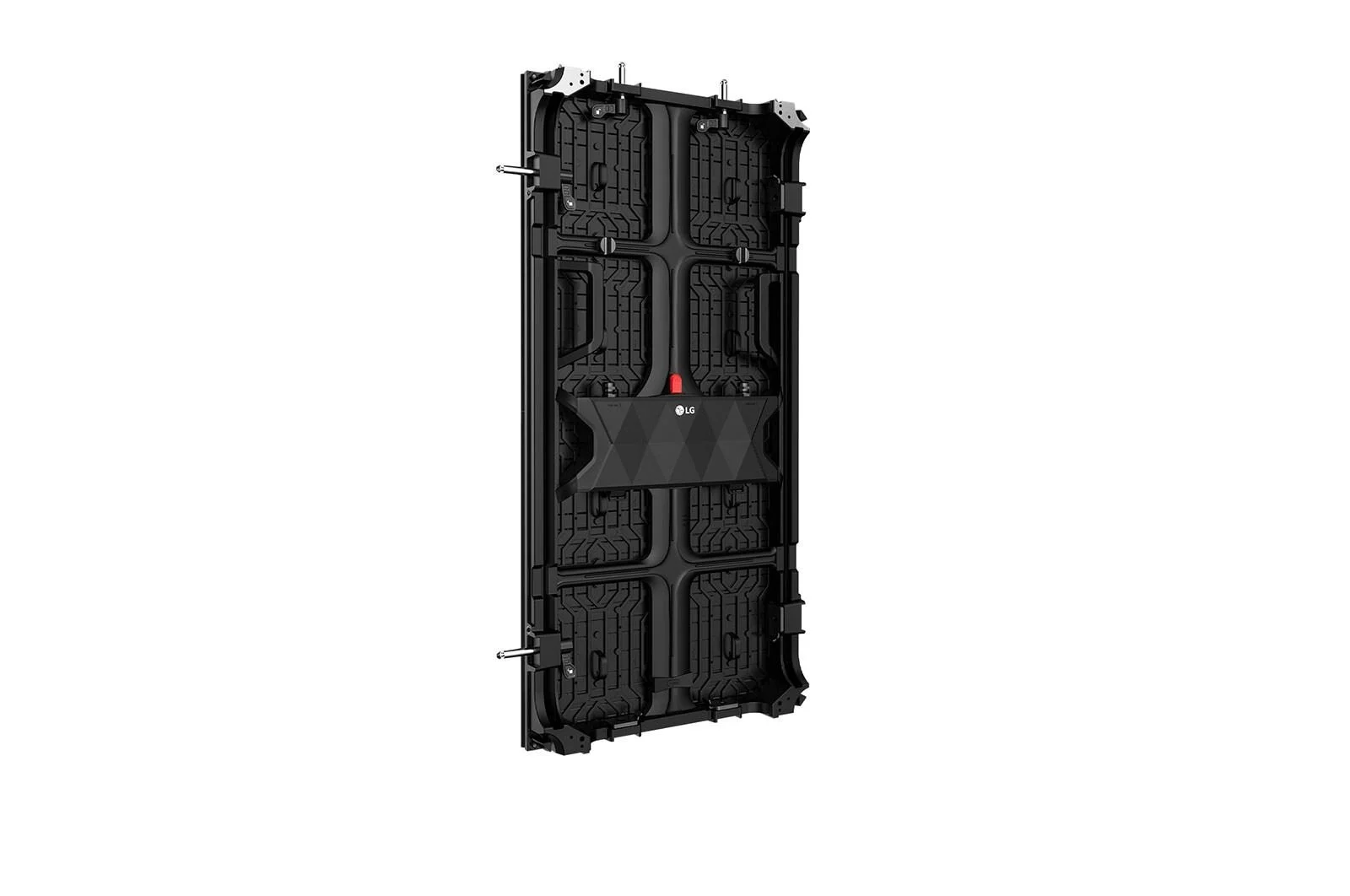

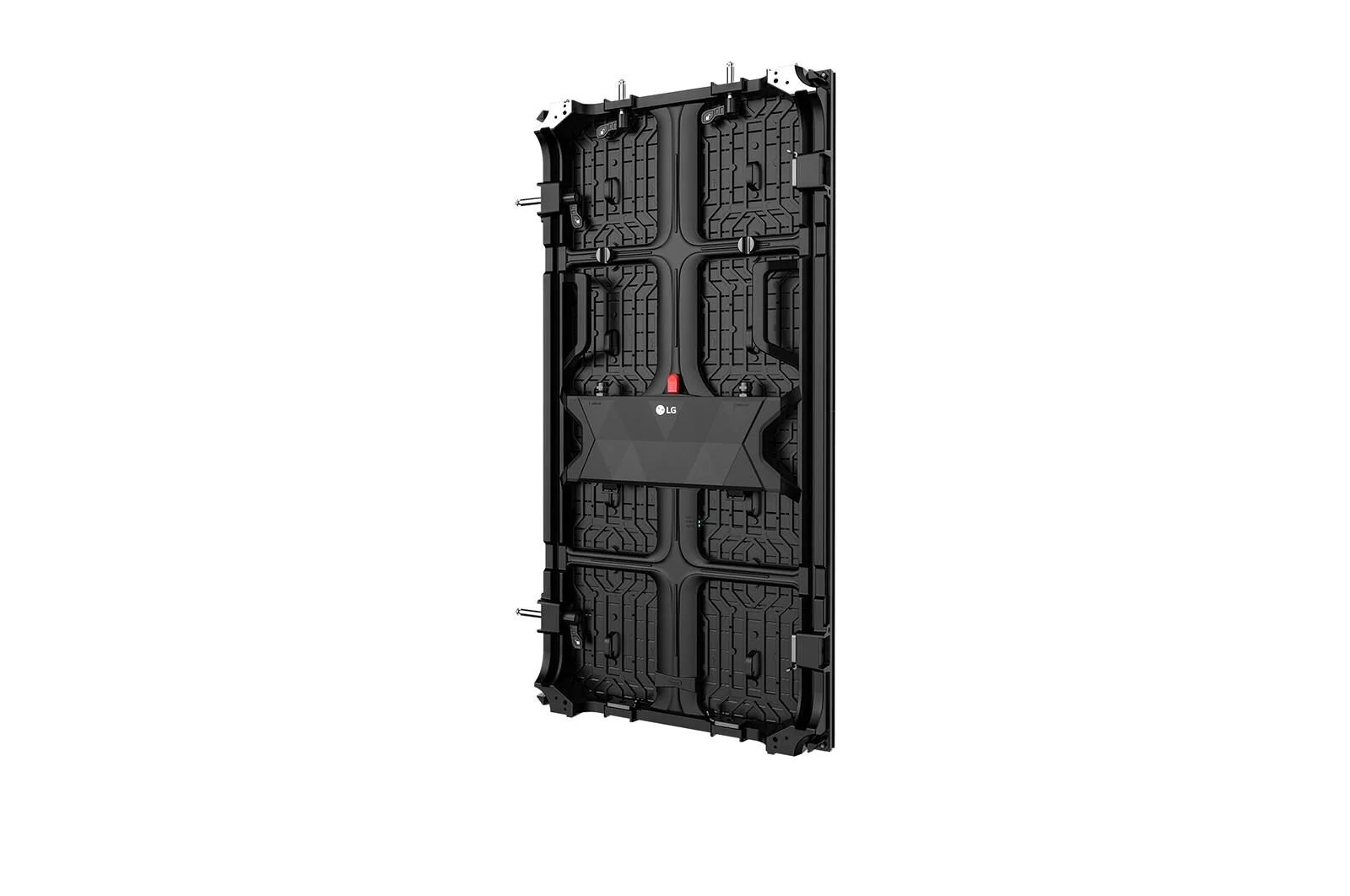

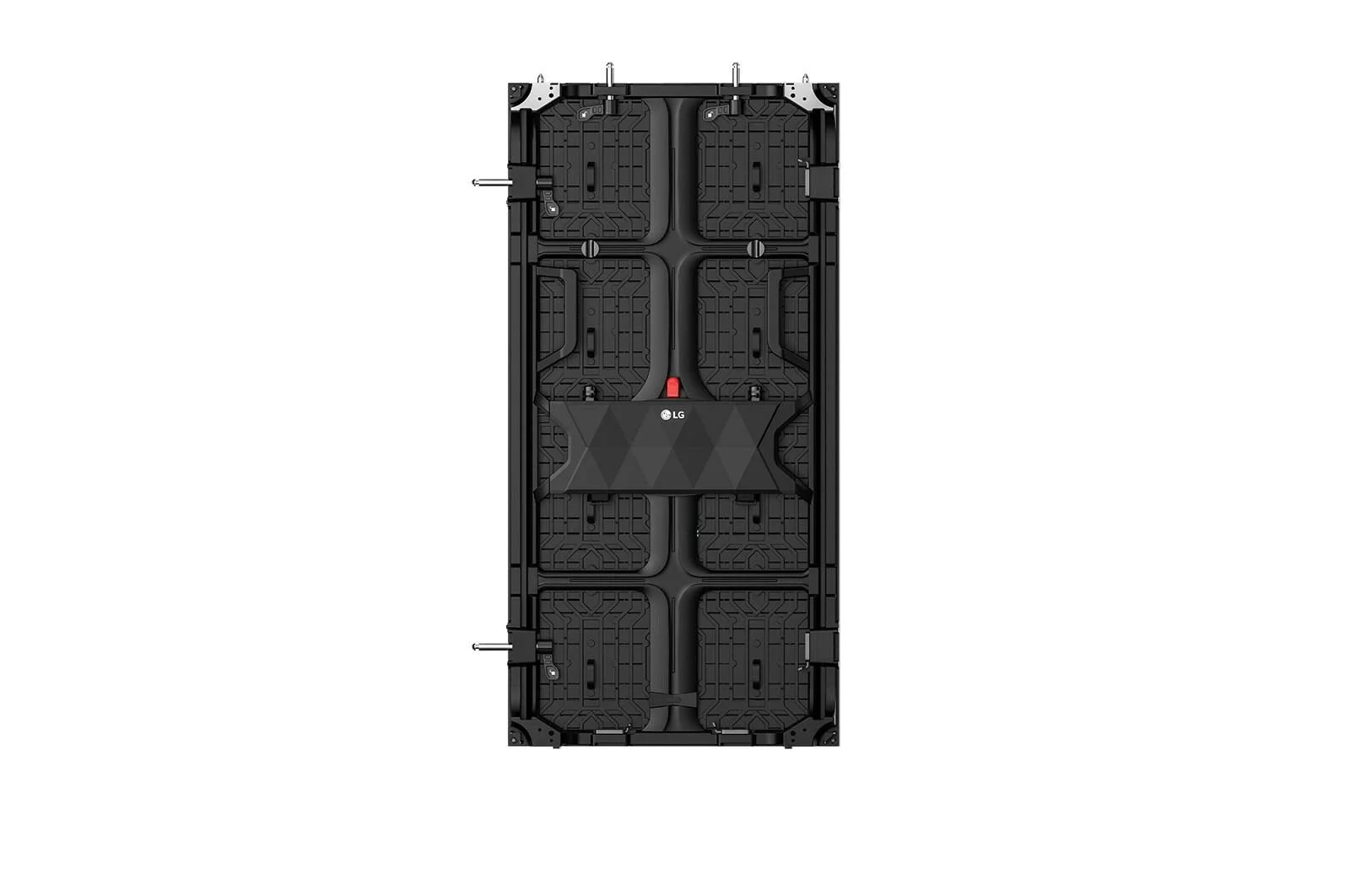

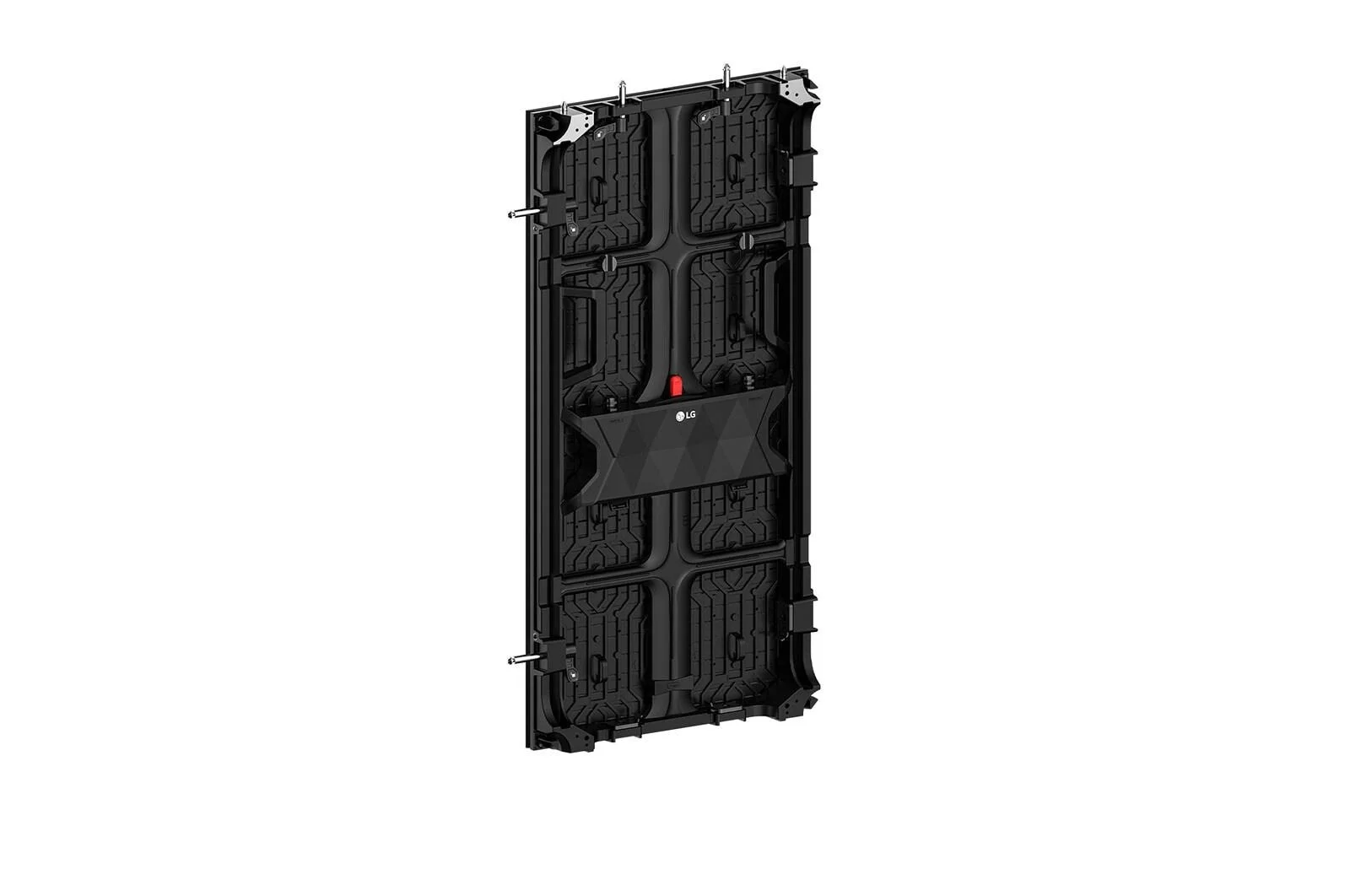

Quick Lock & Flip Design
The LWBC is easy to install with its quick lock system, which also helps maintain an outstanding alignment. Because it does not require screws or a screwdriver, the flip design makes it easy to repair and/or replace the integrated power system and reception card.
Compatibility with LG Software Solutions
Powered by LG's high performance system controller, the LWBC series is compatible with LG software solutions including SuperSign™ CMS, LED Assistant™ , and ConnectedCare™*, which help customers operate their own business**.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details. The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power) **Actual GUI may vary in different webOS versions. ***Screen image is simulated for illustrative purposes only.
With a brightness of 3,500 nits, LWBC clearly delivers content and attracts public attention. Turn your window display up a notch with LWBC series Direct View LED!
90° Corner Design Available
LWBC has a 90° corner option that can be purchased separately. It allows this LED window display to fit naturally into corners and deliver virtually flawless content to customers.
Front or Rear Installation & Maintenance
Easy access to front or rear cabinet for maintenance.
Quick Lock & Flip Design
The LWBC is easy to install with its quick lock system, which also helps maintain an outstanding alignment. Because it does not require screws or a screwdriver, the flip design makes it easy to repair and/or replace the integrated power system and reception card.
Compatibility with LG Software Solutions
Powered by LG's high performance system controller, the LWBC series is compatible with LG software solutions including SuperSign™ CMS, LED Assistant™ , and ConnectedCare™*, which help customers operate their own business**.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details. The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power) **Actual GUI may vary in different webOS versions. ***Screen image is simulated for illustrative purposes only.
- Long-lasting (100,000 Hours) & High Performance
- Brightness: 3,500 nit
- Slim Bezel
- Quick Lock & Flip Design
- Pixel Pitch: 3.91 mm
- Front or Rear Serviceability
Rebates
view available rebates
3.9Mm Lwbc Window Facing Dvled Display With 3,500 Nit Brightness
Misc Collection
Specifications
Specifications
Features
Long-lasting (100,000 Hours) & High Performance, Brightness: 3,500 nit, Slim Bezel, Quick Lock & Flip Design, Pixel Pitch: 3.91 mm, Front or Rear Serviceability
- Long-lasting (100,000 Hours) & High Performance
- Brightness: 3,500 nit
- Slim Bezel
- Quick Lock & Flip Design
- Pixel Pitch: 3.91 mm
- Front or Rear Serviceability
PHYSICAL PARAMETERS
Pixel Configuration
3 in 1 SMD
Pixel Configuration
- 3 in 1 SMD
Pixel Pitch
3.906 mm
Pixel Pitch
- 3.906 mm
Module Resolution (W x H)
64 x 64
Module Resolution (W x H)
- 64 x 64
Module Dimensions (W x H)
250 x 250 mm
Module Dimensions (W x H)
- 250 x 250 mm
Weight per Module ( 0.003 kg)
1.5 lbs / 0.70 kg
Weight per Module ( 0.003 kg)
- 1.5 lbs / 0.70 kg
No. of Modules per Cabinet (W x H)
2 x 4
No. of Modules per Cabinet (W x H)
- 2 x 4
Cabinet Resolution (W x H)
128 x 256
Cabinet Resolution (W x H)
- 128 x 256

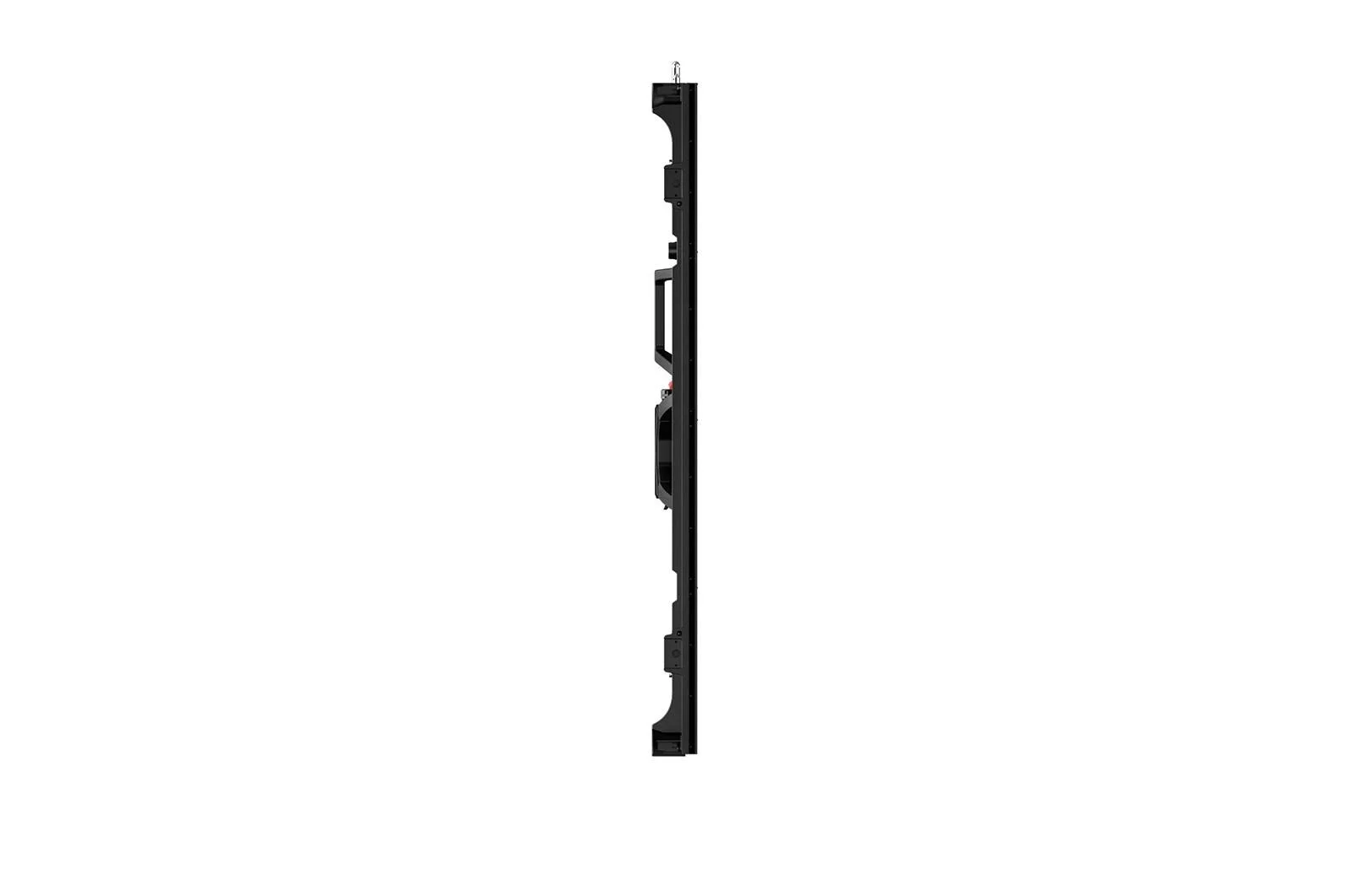

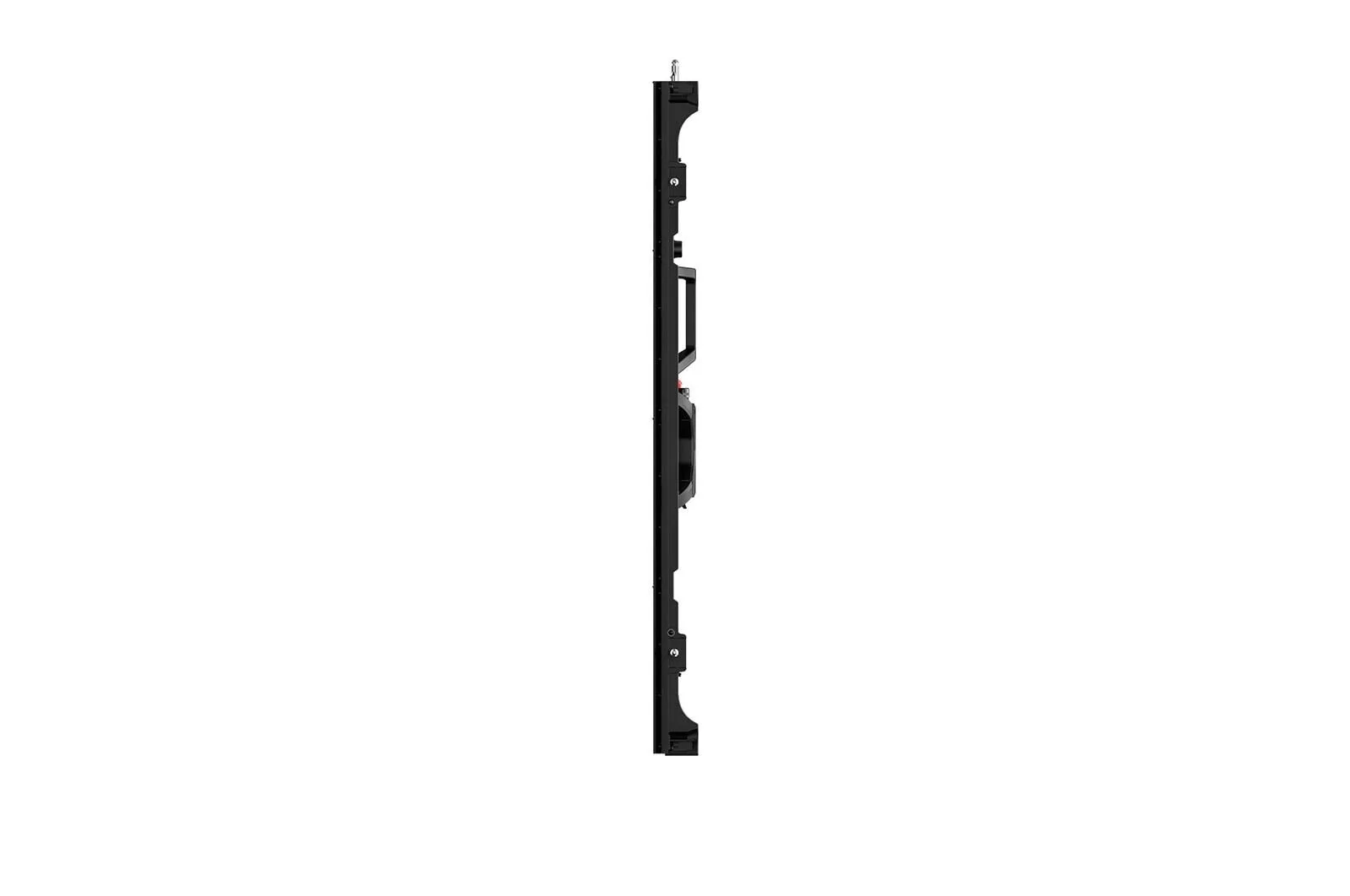

Cabinet Dimensions (W x H x D)
19.7 x 39.4 x 2.7 in / 500 x 1000 x 68 mm
Cabinet Dimensions (W x H x D)
- 19.7 x 39.4 x 2.7 in / 500 x 1000 x 68 mm
Unit Case Surface Area
5.4 ft / 0.500 m
Unit Case Surface Area
- 5.4 ft / 0.500 m
Weight per Cabinet
26.5 lbs / 12.0 kg
Weight per Cabinet
- 26.5 lbs / 12.0 kg
Weight per Unit Area
4.9 lbs/ft / 24.0 kg/m
Weight per Unit Area
- 4.9 lbs/ft / 24.0 kg/m
Physical Pixel Density
705,424 pixels/ft 65,536 pixels/m
Physical Pixel Density
- 705,424 pixels/ft 65,536 pixels/m
Flatness of Cabinet
0.5 mm
Flatness of Cabinet
- 0.5 mm
Cabinet Material
Die Cast Aluminum
Cabinet Material
- Die Cast Aluminum
Service Access
Front or Rear
Service Access
- Front or Rear
90-Degree Angle Corner Option
Yes
90-Degree Angle Corner Option
- Yes
OPTICAL SPECIFICATIONS
Max Brightness (After Calibration)
3500 nits
Max Brightness (After Calibration)
- 3500 nits
Color Temperature
3200-9300 K
Color Temperature
- 3200-9300 K
Visual Viewing Angle (H x V)
160° x 140°
Visual Viewing Angle (H x V)
- 160° x 140°
Brightness Uniformity
97%
Brightness Uniformity
- 97%
Color Uniformity
0.003 Cx,Cy
Color Uniformity
- 0.003 Cx,Cy
Contrast Ratio (Typ.)
5,000:1
Contrast Ratio (Typ.)
- 5,000:1
Processing Depth
16 bit (HDR10, HDR10 Pro)
Processing Depth
- 16 bit (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
Max Power Consumption
300 W
Max Power Consumption
- 300 W
Avg. Power Consumption
100 W
Avg. Power Consumption
- 100 W
Max Power Consumption per Unit Area
600 W/m
Max Power Consumption per Unit Area
- 600 W/m
Max Heat Dissipation per Unit Area
1024 BTU/h
Max Heat Dissipation per Unit Area
- 1024 BTU/h
Avg. Heat Dissipation per Cabinet
341 BTU/h
Avg. Heat Dissipation per Cabinet
- 341 BTU/h
Power Supply
100 to 240 V
Power Supply
- 100 to 240 V
Frame Rate
50 / 60 Hz
Frame Rate
- 50 / 60 Hz
Refresh Rate
3840 Hz
Refresh Rate
- 3840 Hz
OPERATION SPECIFICATIONS
Lifetime (Half brightness)
100,000 hours
Lifetime (Half brightness)
- 100,000 hours
Operating Temperature
-4 to +104° F / -20 to +40° C
Operating Temperature
- -4 to +104° F / -20 to +40° C
Operating Humidity
10-99% RH
Operating Humidity
- 10-99% RH
IP Rating Front / Rear
IP5X / IP5X
IP Rating Front / Rear
- IP5X / IP5X
90 Degree Angle Option
Yes
90 Degree Angle Option
- Yes
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
