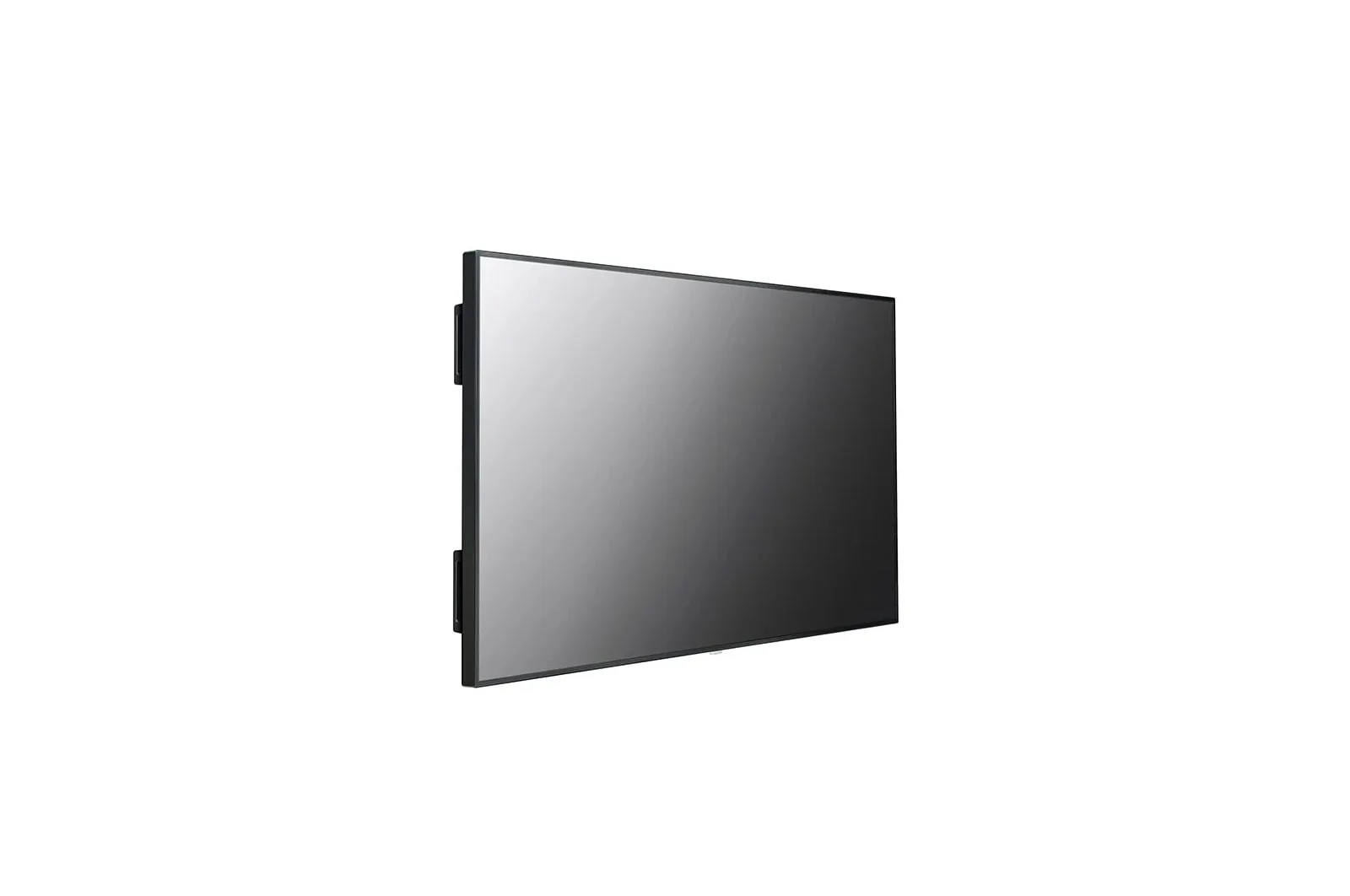

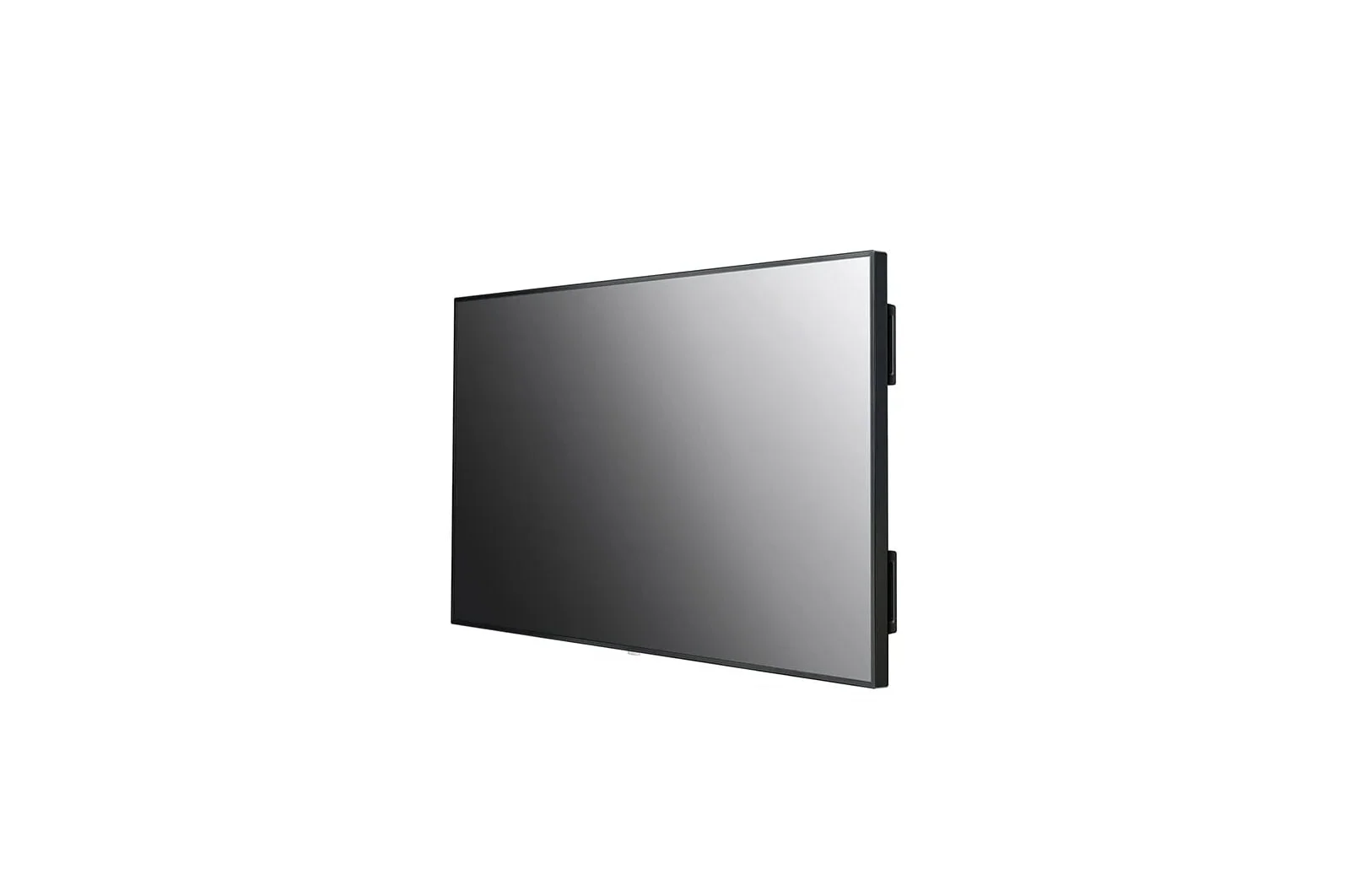

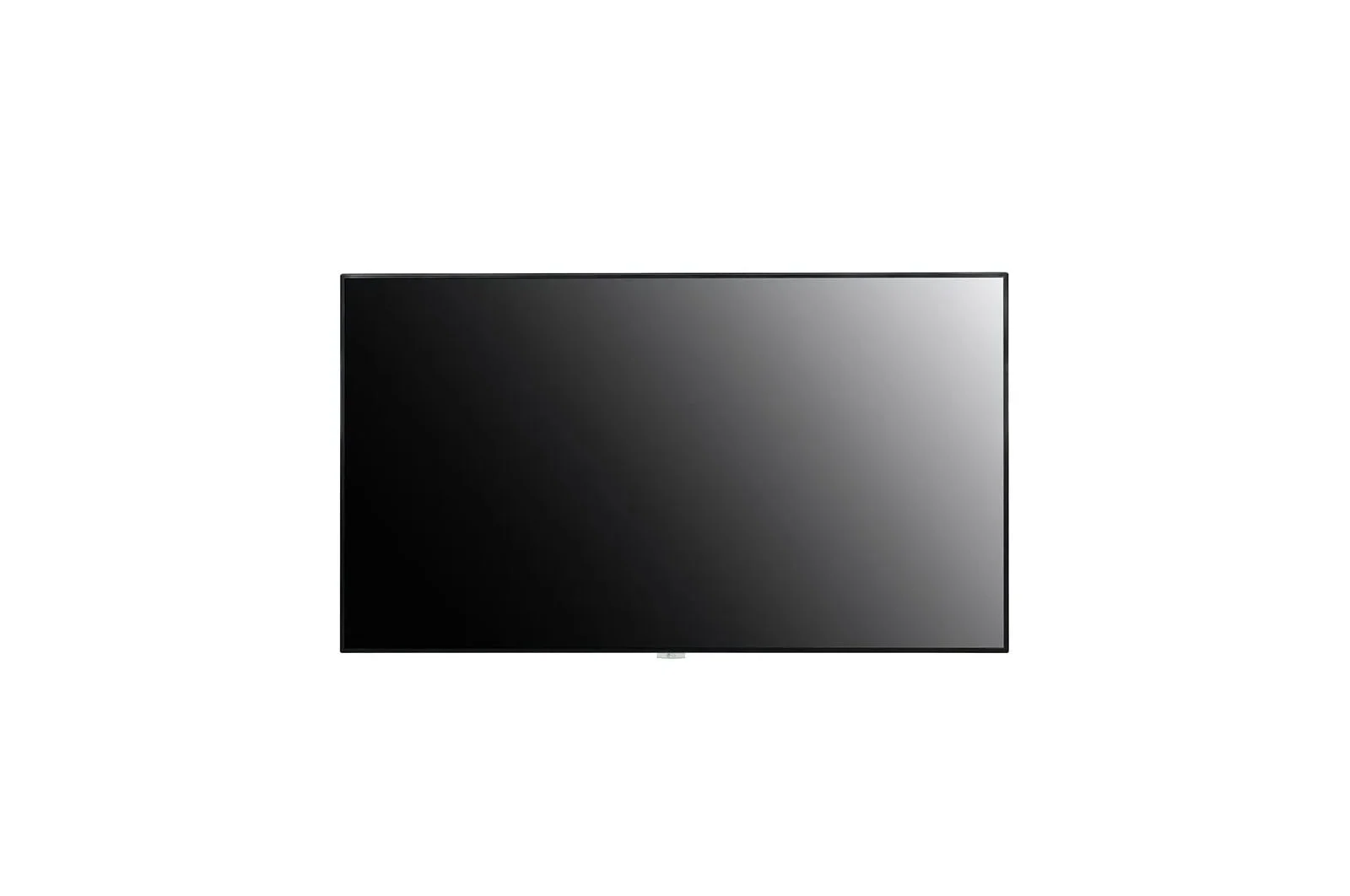

98'' Uh5j-H Series High Haze Lcd Uhd Signage With Webos™, Ip5x Rating
SKU: 98UH5JH
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
Compatible with AV Control System
The UH5J-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency. * Network based control
A Bright View

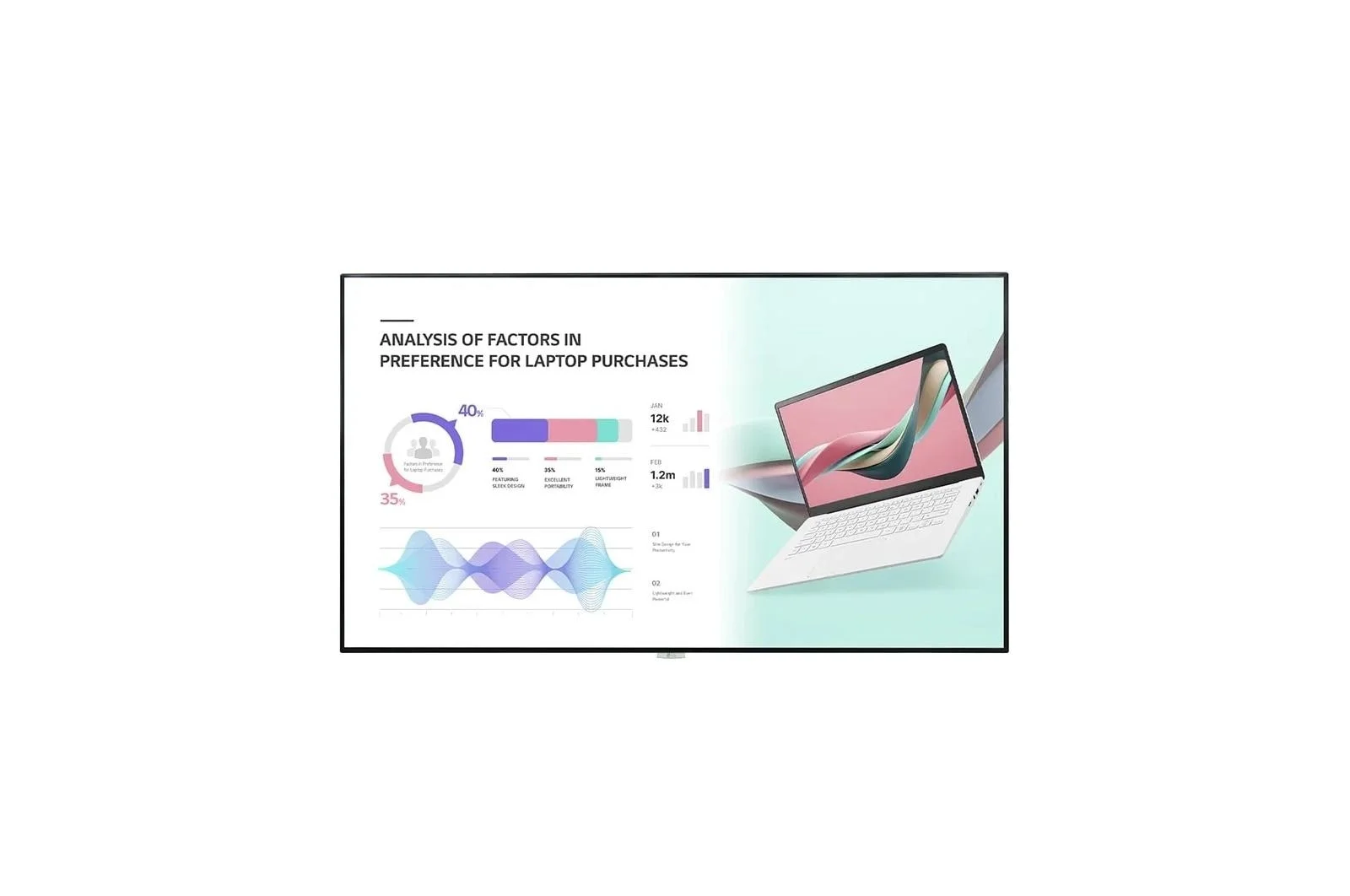

With a brightness of 500 nits, the UH5J-H series clearly delivers content and can attract attention, making it suitable for displaying presentations and marketing communications in meeting rooms, retail spaces, airports, shopping malls and more.
*Image simulation for illustration purposes only.
High-Performance with webOS™
Built-in Quad Core System on Chip (SoC) can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS™ platform enhances user convenience with intuitive graphical user interface (GUI) and access to an advanced ecosystem of third-party development applications.
Conformal Coating
It can be hard to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on the power board of the UH5J-H series helps reduce these risks.
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
Compatible with AV Control System
The UH5J-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency. * Network based control
A Bright View
With a brightness of 500 nits, the UH5J-H series clearly delivers content and can attract attention, making it suitable for displaying presentations and marketing communications in meeting rooms, retail spaces, airports, shopping malls and more.
*Image simulation for illustration purposes only.
High-Performance with webOS™
Built-in Quad Core System on Chip (SoC) can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS™ platform enhances user convenience with intuitive graphical user interface (GUI) and access to an advanced ecosystem of third-party development applications.
Conformal Coating
It can be hard to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on the power board of the UH5J-H series helps reduce these risks.
- Certified Crestron Connected® and Cisco Certified
- 500 nits brightness & 28% (Haze) surface treatment lets your message been seen
- webOS™ 6.0 Signage Platform, SuperSign CMS Compatible
- Lasts up to 50,000 hours and can be on 24/7
- The 16:9 UHD display shows crisp, clear images & in portrait or landscape
- ENERGY STAR® Certified
Rebates
view available rebates
Specifications
Specifications
Features
Certified Crestron Connected® and Cisco Certified, 500 nits brightness & 28% (Haze) surface treatment lets your message been seen, webOS™ 6.0 Signage Platform, SuperSign CMS Compatible, Lasts up to 50,000 hours and can be on 24/7, The 16:9 UHD display shows crisp, clear images & in portrait or landscape, ENERGY STAR® Certified
- Certified Crestron Connected® and Cisco Certified
- 500 nits brightness & 28% (Haze) surface treatment lets your message been seen
- webOS™ 6.0 Signage Platform, SuperSign CMS Compatible
- Lasts up to 50,000 hours and can be on 24/7
- The 16:9 UHD display shows crisp, clear images & in portrait or landscape
- ENERGY STAR® Certified
PANEL
Screen Size
98"
Screen Size
- 98"
Panel Technology
IPS
Panel Technology
- IPS
Back Light Type
Direct
Back Light Type
- Direct
Aspect Ratio
16 : 9
Aspect Ratio
- 16 : 9
Native Resolution
3,840 x 2,160 (UHD)
Native Resolution
- 3,840 x 2,160 (UHD)
Refresh Rate
60 Hz
Refresh Rate
- 60 Hz
Brightness
500 nits (Typ.)
Brightness
- 500 nits (Typ.)
Contrast Ratio
1,200:1
Contrast Ratio
- 1,200:1
Dynamic CR
1,000,000 : 1
Dynamic CR
- 1,000,000 : 1
Color Gamut
NTSC 72%
Color Gamut
- NTSC 72%
Viewing Angle (H x V)
178° x 178°
Viewing Angle (H x V)
- 178° x 178°
Color Depth
1.07 Billion colors (10 bit)
Color Depth
- 1.07 Billion colors (10 bit)
Response Time (G to G)
8 ms
Response Time (G to G)
- 8 ms
Surface Treatment (Haze)
28%
Surface Treatment (Haze)
- 28%
Lifetime
Up to 50,000 Hrs.
Lifetime
- Up to 50,000 Hrs.
Portrait / Landscape
Yes / Yes
Portrait / Landscape
- Yes / Yes
CONNECTIVITY
Input
HDMI (x2, HDCP 2.2/1.4), HDMI (HDCP 1.4), DP (HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio In, RS-232C In (4 Pin 3.5mm jack), RJ45 (LAN), IR In, USB 2.0 (x2, Type A)
Input
- HDMI (x2, HDCP 2.2/1.4), HDMI (HDCP 1.4), DP (HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio In, RS-232C In (4 Pin 3.5mm jack), RJ45 (LAN), IR In, USB 2.0 (x2, Type A)
Output
HDMI Out, Audio Out, External Control (RS-232C Out (4 Pin 3.5mm jack))
Output
- HDMI Out, Audio Out, External Control (RS-232C Out (4 Pin 3.5mm jack))
MECHANICAL SPECIFICATION
Bezel Color
Black
Bezel Color
- Black
Bezel Width
14.9 mm (Even Bezel)
Bezel Width
- 14.9 mm (Even Bezel)
Weight
145.5 lbs. / 66 kg
Weight
- 145.5 lbs. / 66 kg
Shipping Weight
218.3 lbs. / 99 kg
Shipping Weight
- 218.3 lbs. / 99 kg
Shipping Dimensions (W x H x D)
92.2 x 54.6 x 16.5 in. 2,342 x 1,386 x 420 mm
Shipping Dimensions (W x H x D)
- 92.2 x 54.6 x 16.5 in. 2,342 x 1,386 x 420 mm
Handle
Yes
Handle
- Yes
VESA Standard Mount Interface
800 x 400 mm
VESA Standard Mount Interface
- 800 x 400 mm
KEY FEATURES
Key Features
Internal Memory 16 GB, Built-in Wi-Fi, Sensor (Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor), Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 x 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2)), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready (Except 98"/86"/75")), Beacon, HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom
Key Features
- Internal Memory 16 GB, Built-in Wi-Fi, Sensor (Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor), Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 x 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2)), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready (Except 98"/86"/75")), Beacon, HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom
ENVIRONMENT CONDITIONS
Operation Temperature
32°F to 104°F 0°C to 40°C
Operation Temperature
- 32°F to 104°F 0°C to 40°C
Operation Humidity
10% to 80%
Operation Humidity
- 10% to 80%
ELECTRICAL
Power Supply
100-240Vac, 50/60Hz
Power Supply
- 100-240Vac, 50/60Hz
Power Type
Built-In Power
Power Type
- Built-In Power
Power Consumptions (Typ. / Max.)
420 W / 570 W
Power Consumptions (Typ. / Max.)
- 420 W / 570 W
BTU (British Thermal Units)
1,433 BTU/Hr (Typ.), 1,945 BTU/Hr (Max.)
BTU (British Thermal Units)
- 1,433 BTU/Hr (Typ.), 1,945 BTU/Hr (Max.)
Smart Enegy Saving
294 W
Smart Enegy Saving
- 294 W
DPM
0.5 W
DPM
- 0.5 W
Power off
0.5 W
Power off
- 0.5 W
SOUND
Speaker
Yes
Speaker
- Yes
CERTIFICATIONS
Safety
CB / NRTL
Safety
- CB / NRTL
EMC
FCC Class "A" / CE
EMC
- FCC Class "A" / CE
ErP / Energy Star
Yes (NewErP) / No (TDB)
ErP / Energy Star
- Yes (NewErP) / No (TDB)
OPS Compatibility
OPS Type Compatible
No
OPS Type Compatible
- No
OPS Power Built-in
No
OPS Power Built-in
- No
LG SOFTWARE COMPATIBILITY
LG Software Compatibility
SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, Promota (Not Available for EU/CIS), Mobile CMS, LG ConnectedCare )
LG Software Compatibility
- SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, Promota (Not Available for EU/CIS), Mobile CMS, LG ConnectedCare )
Languages
On-screen Display Languages
English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic
On-screen Display Languages
- English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic
ACCESSORIES
Basic
Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS-232C Gender
Basic
- Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS-232C Gender
SPECIAL FEATURE
Overlay Touch Compatibility
No
Overlay Touch Compatibility
- No
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
