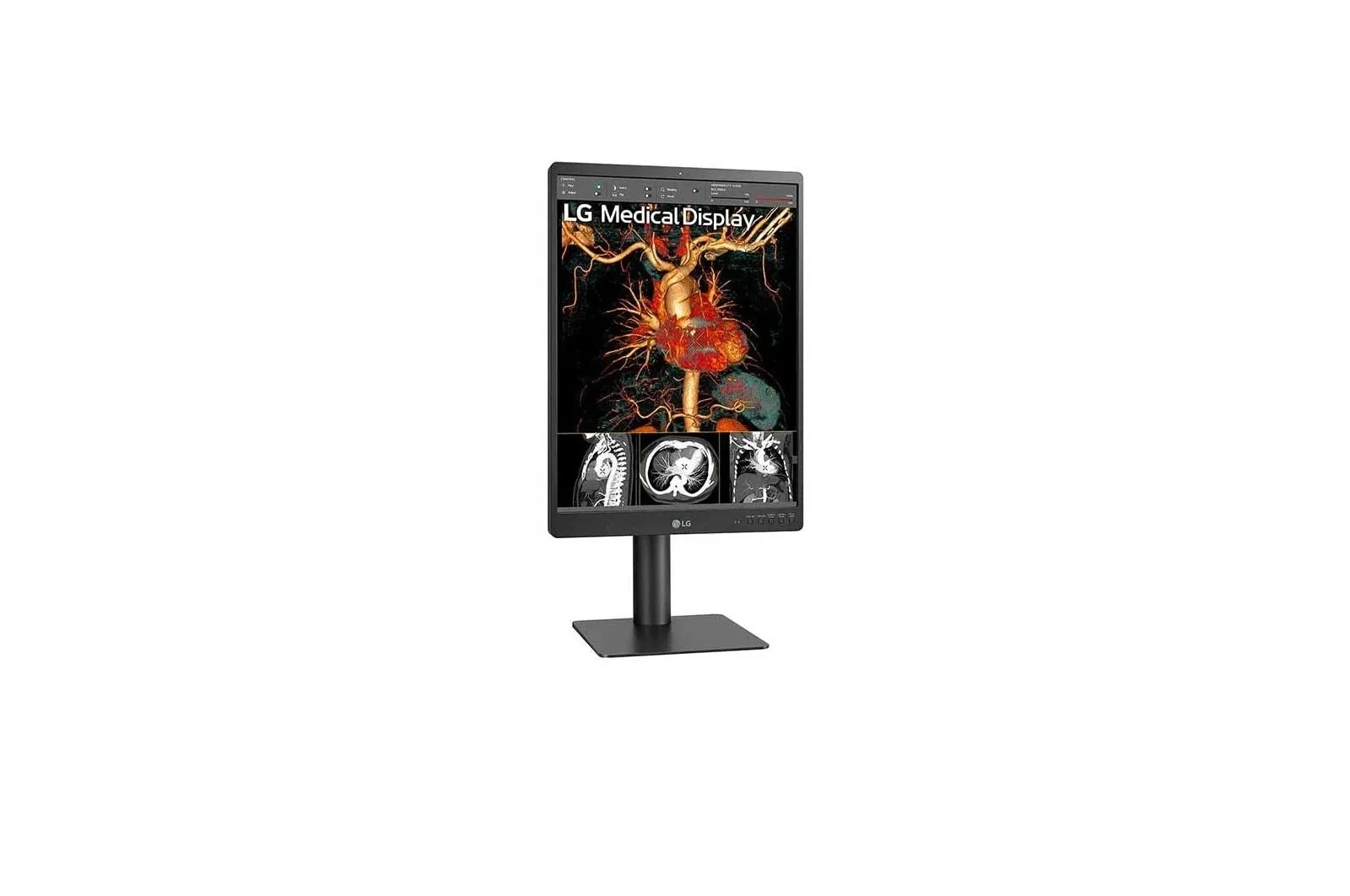

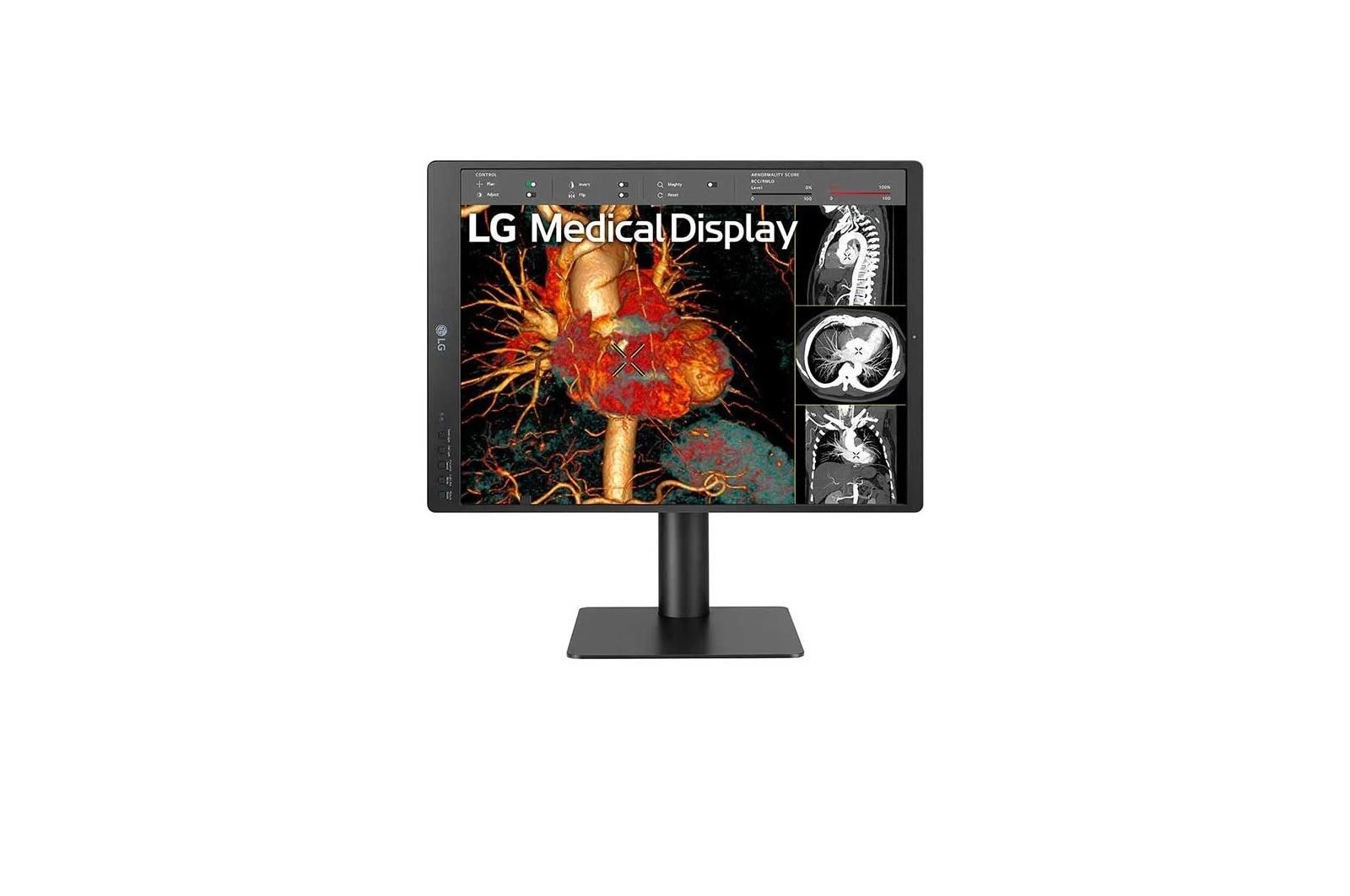

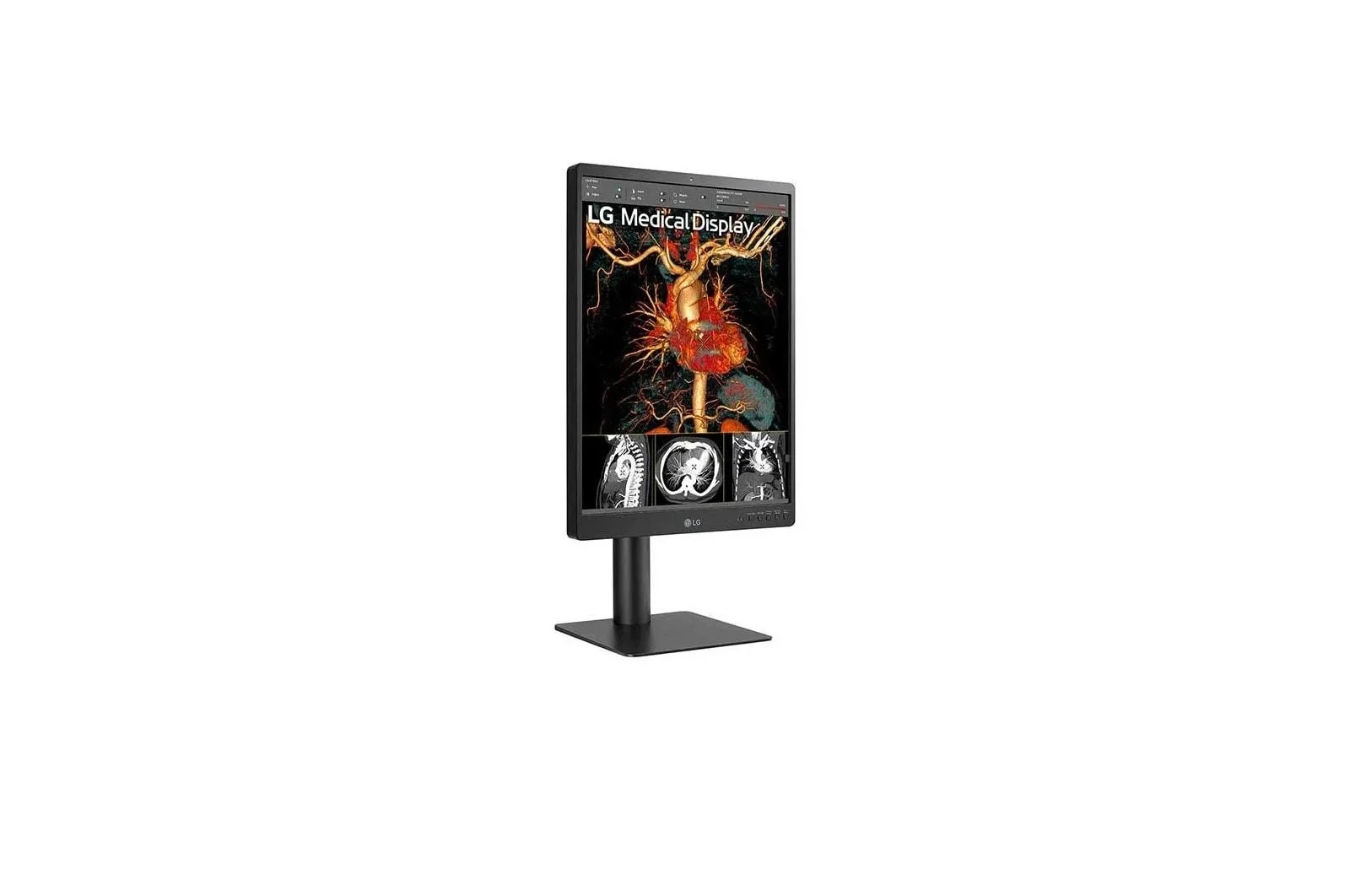

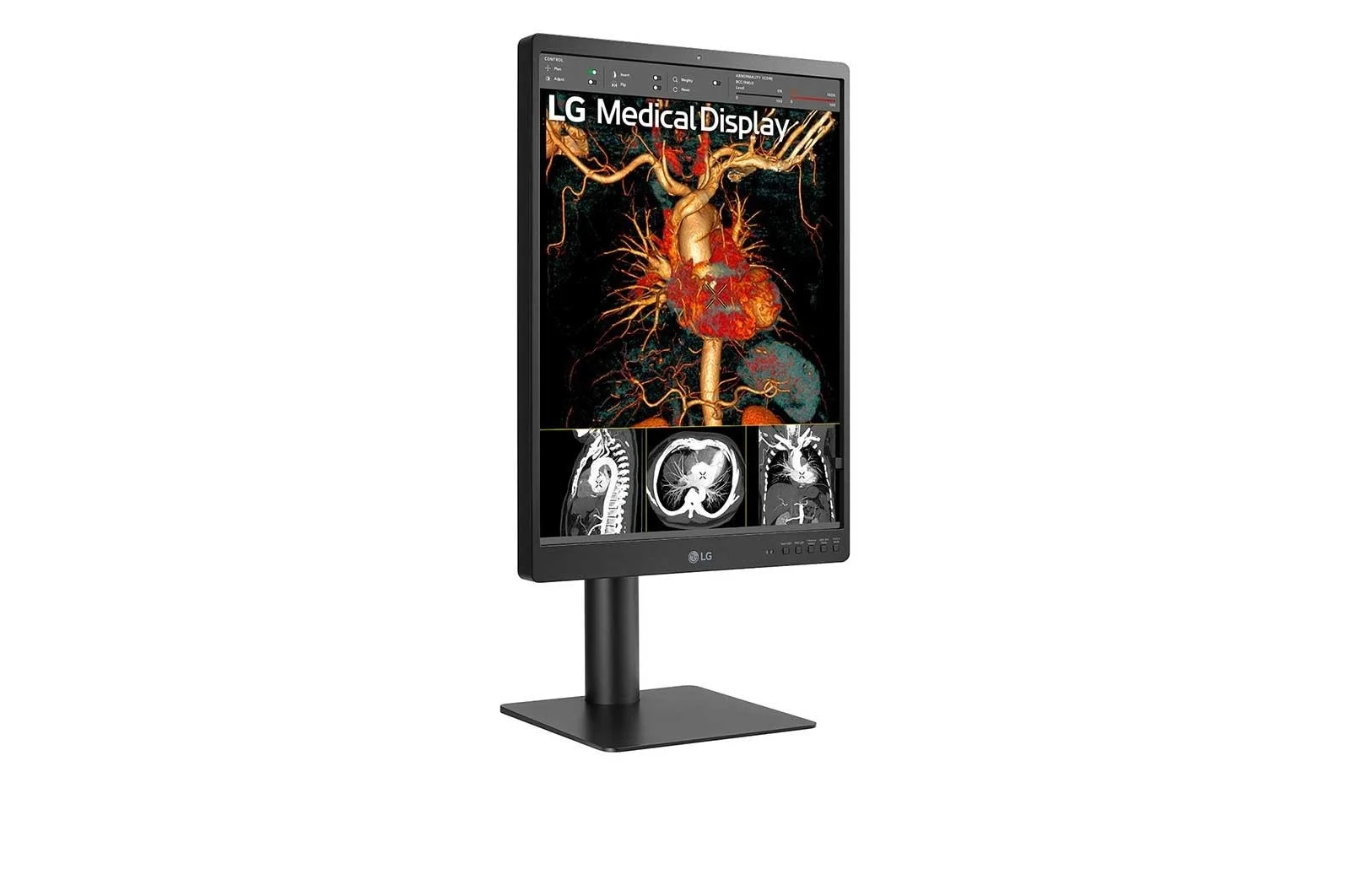

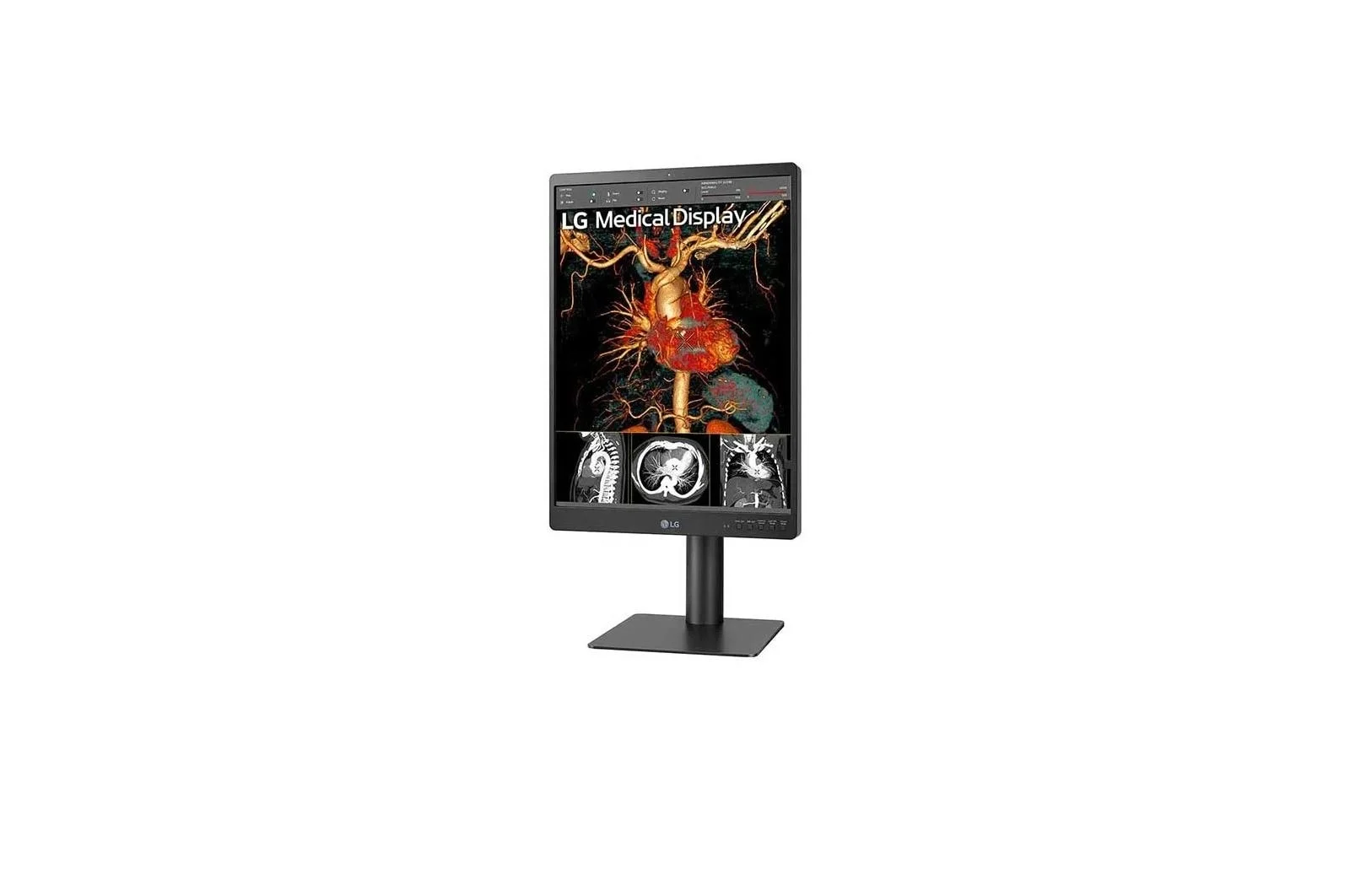

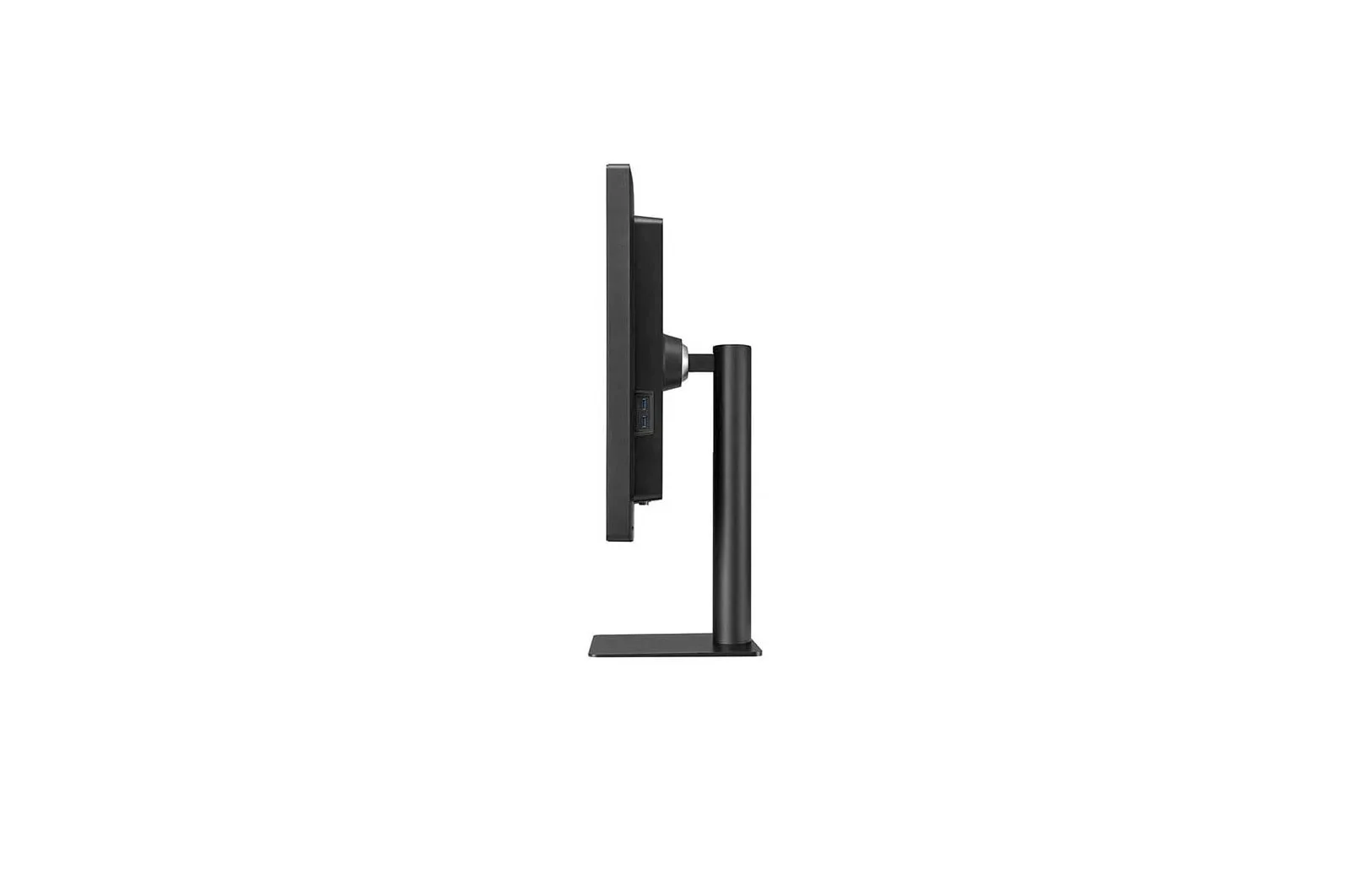

21.3" 3Mp Ips Diagnostic Monitor With Ergonomic Design, Daisy Chain, And Front Sensor Calibration
SKU: 21HQ513DS
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
Multi-Resolution Mode
Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to the 21HQ513D's Multi-Resolution Mode, you can adjust the monitor's resolution to 3MP or 2MP.
Incredible Color Reproduction
In Pathology Mode, the 21HQ513D reproduces the same level of detail and color accuracy as seen directly under a microscope to help healthcare professionals make their diagnoses.
Energy Efficiency & Strong Security
The Presence Sensor automatically turns off the display when no motion is detected. You can save energy and help with patient privacy.
Fully Focus on the Region of Interest
With Focus View Mode, this monitor allows you to review a specific part of the medical image closely. This will enable professionals to focus entirely on the image's region of interest for diagnosis.
Auto Luminance Sensor
The Auto Luminance Sensor automatically adjusts screen brightness according to the ambient lighting conditions. As a result, it helps to reduce eye strain by maintaining an optimal screen brightness.
Manage Quality Control
The Integrated Front Sensor allows for calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.
Ideal Diagnostic Workspace
Down and Wall Lighting Modes reduce the contrast between the monitors' brightness and ambient lighting conditions, allowing you to work comfortably without adjusting the lighting to view paper documents in the darkroom.
Hot Key Controls
Five Hot Keys make changing between screen modes more straightforward and intuitive than operating through an onscreen menu. The Hot Keys are fast and easy to use while working, allowing you to change mode and lighting settings without disrupting your workflow.
*Image infill for illustration purposes only.

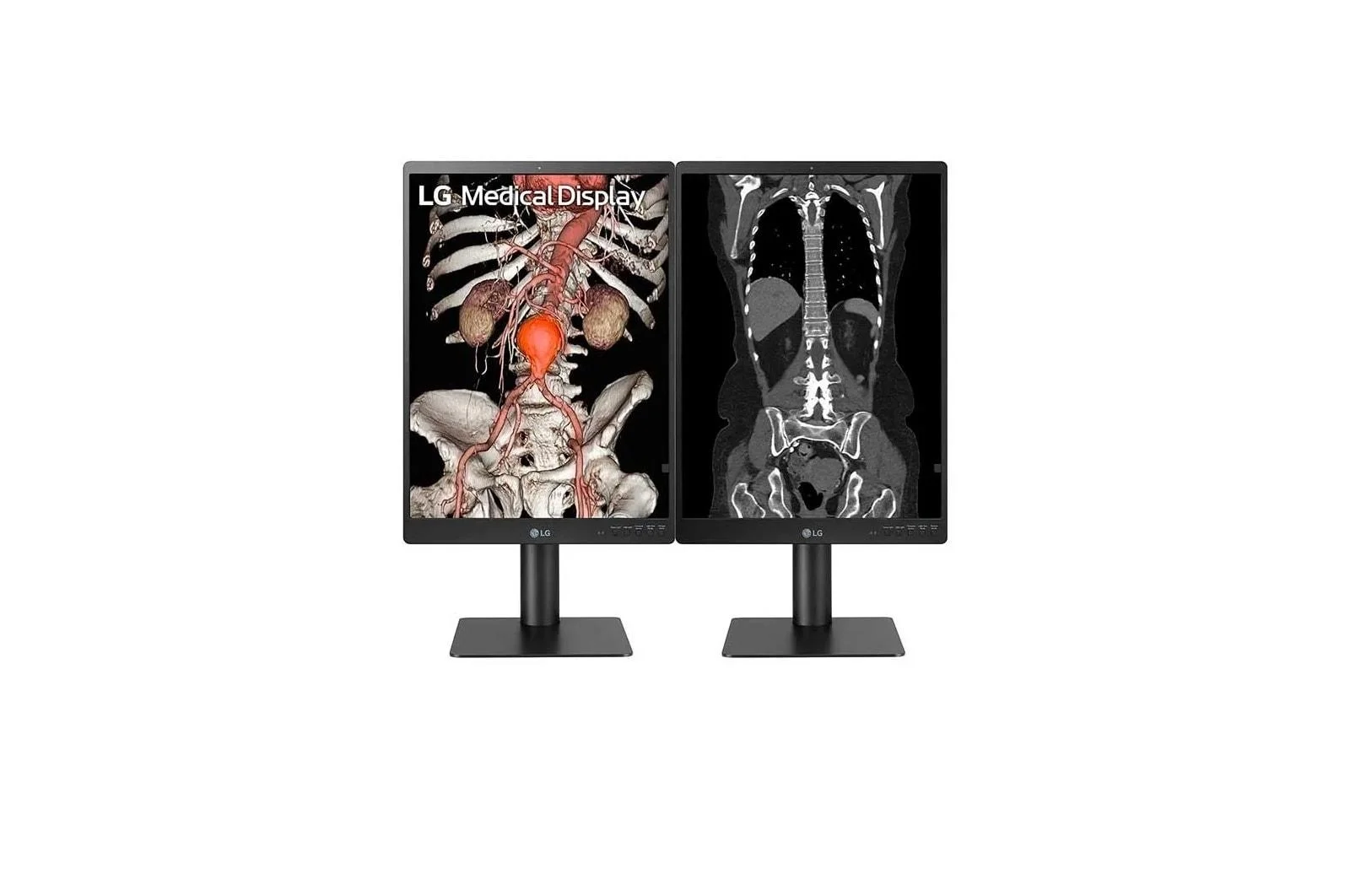

Reducing Clutter on Your Desk and Simplifying Cable Management
With 2 USB 3.0 Upstream Port and DisplayPort support Daisy Chain Setup, you can establish a productive workstation by connecting two diagnostic Monitors and a PC.
*Image infill for illustration purposes only.
Easy and Comfortable Workspace
Designed to be adjustable for posture, healthcare professionals can review images comfortably with the 21HQ513D.
Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to the 21HQ513D's Multi-Resolution Mode, you can adjust the monitor's resolution to 3MP or 2MP.
Incredible Color Reproduction
In Pathology Mode, the 21HQ513D reproduces the same level of detail and color accuracy as seen directly under a microscope to help healthcare professionals make their diagnoses.
Energy Efficiency & Strong Security
The Presence Sensor automatically turns off the display when no motion is detected. You can save energy and help with patient privacy.
Fully Focus on the Region of Interest
With Focus View Mode, this monitor allows you to review a specific part of the medical image closely. This will enable professionals to focus entirely on the image's region of interest for diagnosis.
Auto Luminance Sensor
The Auto Luminance Sensor automatically adjusts screen brightness according to the ambient lighting conditions. As a result, it helps to reduce eye strain by maintaining an optimal screen brightness.
Manage Quality Control
The Integrated Front Sensor allows for calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.
Ideal Diagnostic Workspace
Down and Wall Lighting Modes reduce the contrast between the monitors' brightness and ambient lighting conditions, allowing you to work comfortably without adjusting the lighting to view paper documents in the darkroom.
Hot Key Controls
Five Hot Keys make changing between screen modes more straightforward and intuitive than operating through an onscreen menu. The Hot Keys are fast and easy to use while working, allowing you to change mode and lighting settings without disrupting your workflow.
*Image infill for illustration purposes only.
Reducing Clutter on Your Desk and Simplifying Cable Management
With 2 USB 3.0 Upstream Port and DisplayPort support Daisy Chain Setup, you can establish a productive workstation by connecting two diagnostic Monitors and a PC.
*Image infill for illustration purposes only.
Easy and Comfortable Workspace
Designed to be adjustable for posture, healthcare professionals can review images comfortably with the 21HQ513D.
- Pathology Mode, Focus View Mode
- 1100 cd/m (Typ.)
- Easy Calibration Sensor
- Down & Wall Lighting
- 21.3-inch 3MP IPS Display
- Ergonomic Design
Rebates
view available rebates
Specifications
Specifications
Features
Pathology Mode, Focus View Mode, 1100 cd/m (Typ.), Easy Calibration Sensor, Down & Wall Lighting, 21.3-inch 3MP IPS Display, Ergonomic Design
- Pathology Mode, Focus View Mode
- 1100 cd/m (Typ.)
- Easy Calibration Sensor
- Down & Wall Lighting
- 21.3-inch 3MP IPS Display
- Ergonomic Design
PANEL
Panel Type
IPS
Panel Type
- IPS
Inch (Aspect Ratio)
21.3-inch (3:4)
Inch (Aspect Ratio)
- 21.3-inch (3:4)
Resolution
3MP (1536 x 2048)
Resolution
- 3MP (1536 x 2048)
Surface Treatment
Anti-glare, 3H
Surface Treatment
- Anti-glare, 3H
Color Gamut (Typ.)
NTSC 72%
Color Gamut (Typ.)
- NTSC 72%
Viewing Angles (CR 10)
178° (Right/Left), 178° (Up/Down)
Viewing Angles (CR 10)
- 178° (Right/Left), 178° (Up/Down)
Brightness (Typ.)
1100 cd/m2
Brightness (Typ.)
- 1100 cd/m2
Contrast Ratio (Typ.)
1800:1
Contrast Ratio (Typ.)
- 1800:1
Response Time (GtG*)
5ms
Response Time (GtG*)
- 5ms
FEATURE
DICOM Compliant
Yes
DICOM Compliant
- Yes
HW Calibration
Yes (PerfectLum) with Internal Front Sensor
HW Calibration
- Yes (PerfectLum) with Internal Front Sensor
Display Mode
Multi-resolution (3/2MP), Focus View Mode, Light Box Mode, Pathology Mode
Display Mode
- Multi-resolution (3/2MP), Focus View Mode, Light Box Mode, Pathology Mode
Super Resolution+
Yes
Super Resolution+
- Yes
VIDEO SIGNALS

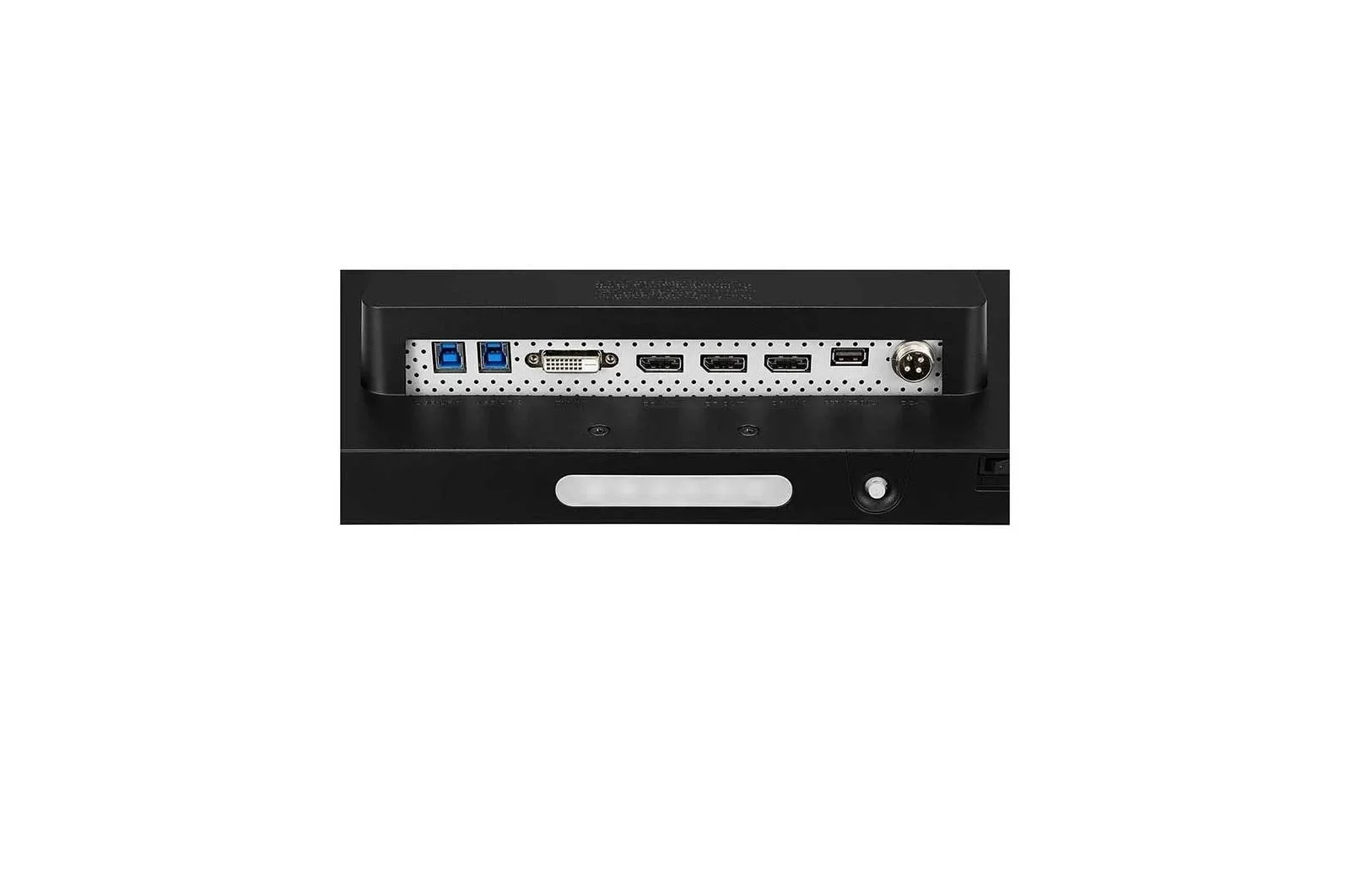

Input Terminals
DisplayPort x2, DVI x1
Input Terminals
- DisplayPort x2, DVI x1
Output Terminals
DisplayPort x1 (Daisy Chain, 3MP/ @60Hz)
Output Terminals
- DisplayPort x1 (Daisy Chain, 3MP/ @60Hz)
CONNECTIVITY
USB
2 Upstream, 2 Downstream
USB
- 2 Upstream, 2 Downstream
POWER
AC Input
100-240Vac, 50/60Hz
AC Input
- 100-240Vac, 50/60Hz
Power Consumption (Max.)
120W
Power Consumption (Max.)
- 120W
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (DC Off)
- Less than 0.3W
User Convenience
Dual Controller
Yes
Dual Controller
- Yes
Text Mode / Flicker Safe
Yes / Yes
Text Mode / Flicker Safe
- Yes / Yes
Lighting
Yes (Down/Wall)
Lighting
- Yes (Down/Wall)
Hot Key
Yes (5 Keys - Down Light / Wall Light / Presence Sensor / Light Box Mode / Picture Mode)
Hot Key
- Yes (5 Keys - Down Light / Wall Light / Presence Sensor / Light Box Mode / Picture Mode)
Presence Sensor
Yes
Presence Sensor
- Yes
Auto Luminance Sensor
Yes
Auto Luminance Sensor
- Yes
PHYSICAL SPECIFICATIONS
Weight (With Stand)
7.0 kg (15.4 lbs)
Weight (With Stand)
- 7.0 kg (15.4 lbs)
Weight (Without Stand)
5.0 kg (11.0 lbs)
Weight (Without Stand)
- 5.0 kg (11.0 lbs)

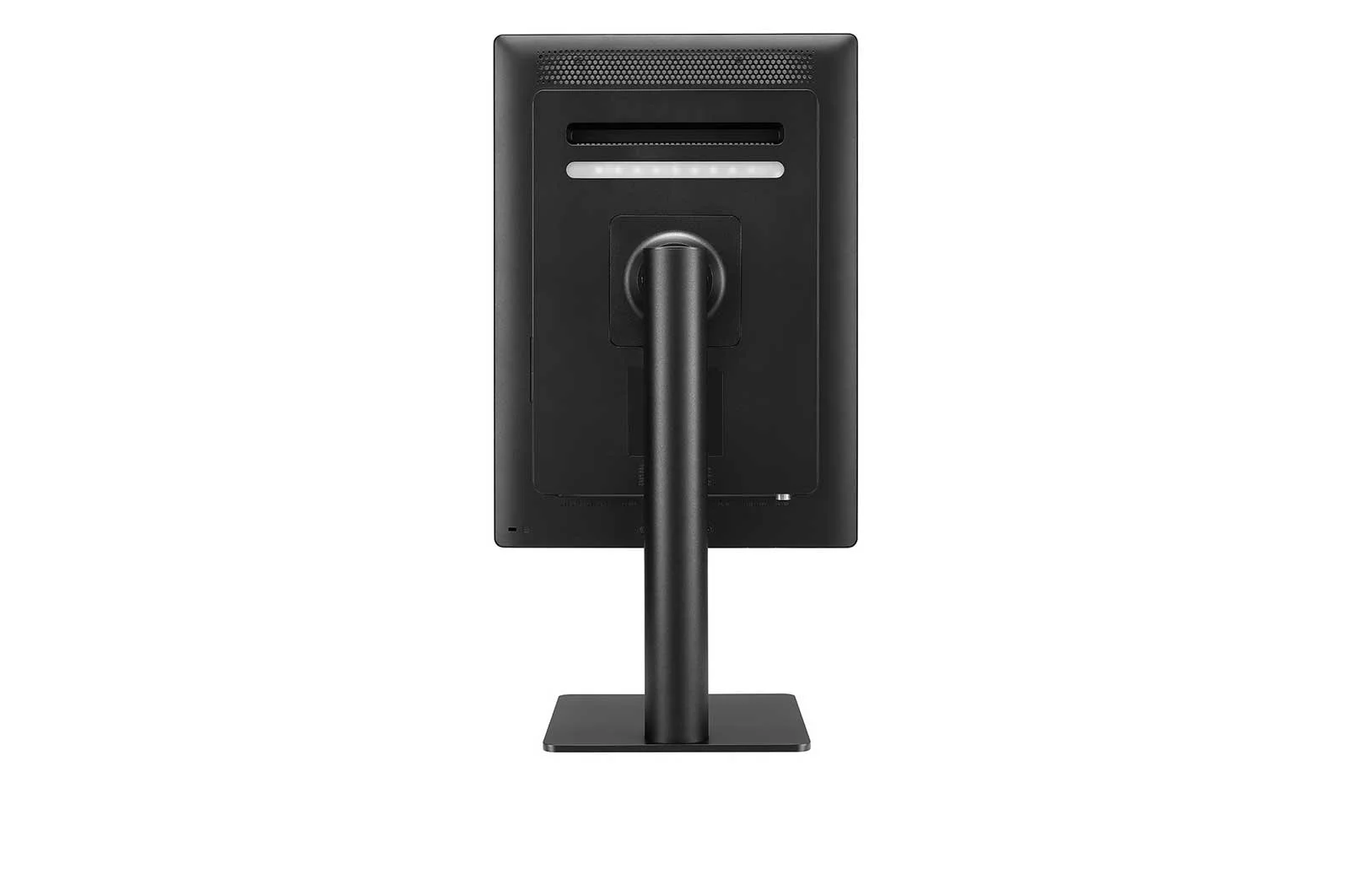

Adjustable Stand
Tilt: -5°~20°, Pivot: 90°, Height Range: 110 mm (4.3 in.)
Adjustable Stand
- Tilt: -5°~20°, Pivot: 90°, Height Range: 110 mm (4.3 in.)
WARRANTY/UPC
Warranty
5 Year Limited Warranty
Warranty
- 5 Year Limited Warranty
UPC
195174 017296
UPC
- 195174 017296
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
