55" Fhd Portrait Curvable Open Frame Oled Digital Signage With Webos™ 4.0, Supersign Cms, Pro:Idiom Drm , & Lan Daisy Chain
SKU: 55EF5KP
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
Absolute Black
Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.
Rich Color
LG OLED Signage provides richness in all colors, bringing colors to life with great accuracy and vividness.
Splendid Design
LG OLED technology doesn't require a backlight unit nor a liquid crystal layer so it offers a flexible design with unbelievably lightweight and slim features.
Expandable Screen Size
The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive viewing experience.
LAN Daisy Chain Management
The LAN daisy chain allows users to control and monitor displays, transmit data and even update firmware all at once, reducing management burden.
Videowall Playlist & Sync Playback
Through its built-in high performance SoC, each display plays its video tile for synchronized content playback.
Variety of Curvature for Landmarks

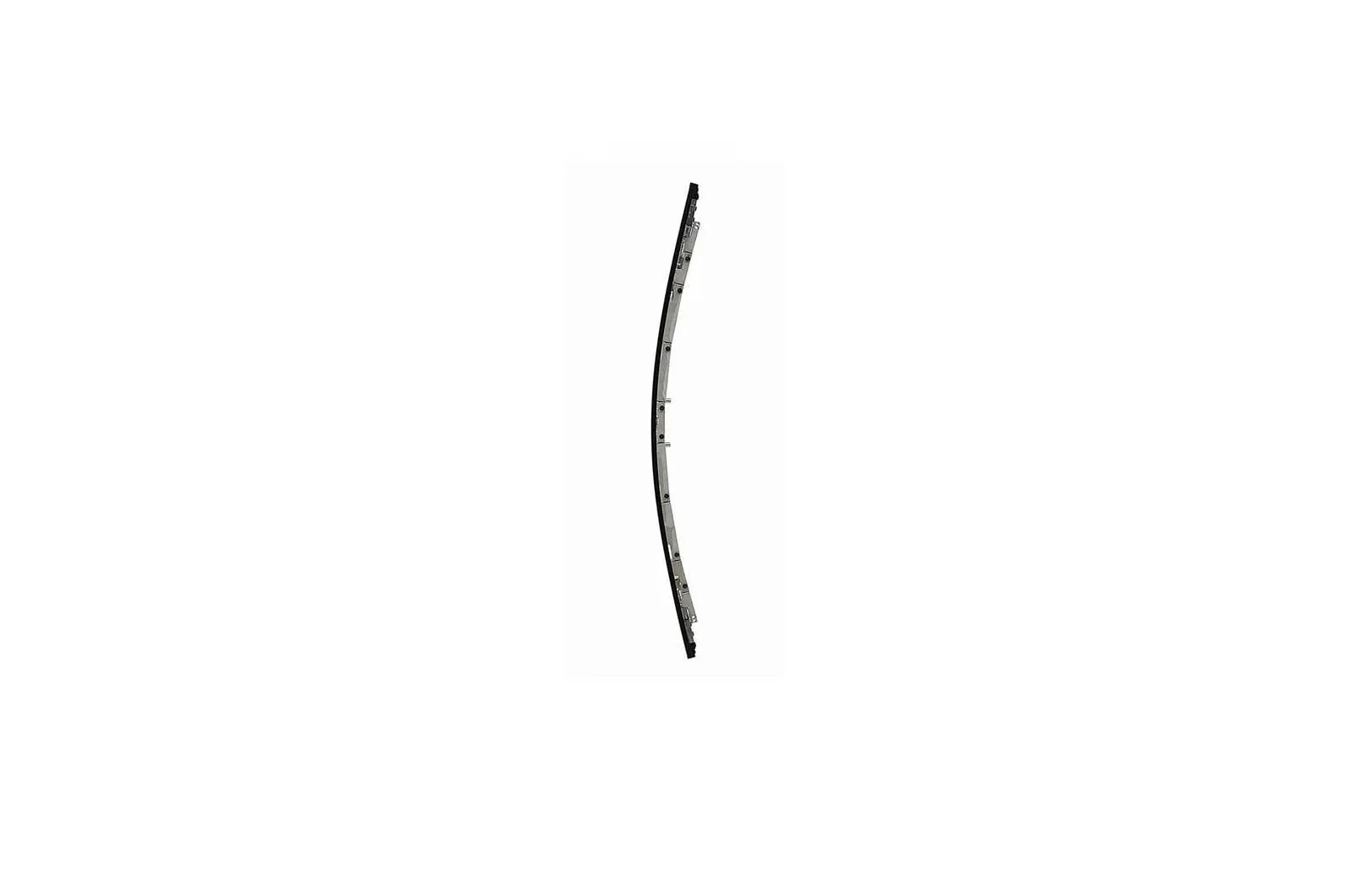

The 55EF5G series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.
On-site Customization
The 55EF5G series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)*" supports the coordination of displays with various convex and concave curvature, depending on the requirements. This makes it possible to rapidly respond to changes on-site, making it easier to successfully build an eyecatching landmark.
*A Curvature Calibrator needs to be purchased separately. Please contact your regional LG sales representatives for details.
Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.
Rich Color
LG OLED Signage provides richness in all colors, bringing colors to life with great accuracy and vividness.
Splendid Design
LG OLED technology doesn't require a backlight unit nor a liquid crystal layer so it offers a flexible design with unbelievably lightweight and slim features.
Expandable Screen Size
The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive viewing experience.
LAN Daisy Chain Management
The LAN daisy chain allows users to control and monitor displays, transmit data and even update firmware all at once, reducing management burden.
Videowall Playlist & Sync Playback
Through its built-in high performance SoC, each display plays its video tile for synchronized content playback.
Variety of Curvature for Landmarks
The 55EF5G series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.
On-site Customization
The 55EF5G series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)*" supports the coordination of displays with various convex and concave curvature, depending on the requirements. This makes it possible to rapidly respond to changes on-site, making it easier to successfully build an eyecatching landmark.
*A Curvature Calibrator needs to be purchased separately. Please contact your regional LG sales representatives for details.
- Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR
- Depth: 12.4 mm (Head Only)
- Curvature: ~1,000R(Concave/convex)
- Brightness: 150/400nit (APL 100%/25%)
Rebates
view available rebates
55" Fhd Portrait Curvable Open Frame Oled Digital Signage With Webos™ 4.0, Supersign Cms, Pro:Idiom Drm , & Lan Daisy Chain
Misc Collection
Specifications
Specifications
Features
Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR, Depth: 12.4 mm (Head Only), Curvature: ~1,000R(Concave/convex), Brightness: 150/400nit (APL 100%/25%)
- Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR
- Depth: 12.4 mm (Head Only)
- Curvature: ~1,000R(Concave/convex)
- Brightness: 150/400nit (APL 100%/25%)
PANEL
Screen Size
55"
Screen Size
- 55"
Panel Technology
OLED
Panel Technology
- OLED
Aspect Ratio
16:9
Aspect Ratio
- 16:9
Native Resolution
1920 x 1080 (Full HD)
Native Resolution
- 1920 x 1080 (Full HD)
Refresh Rate
120Hz
Refresh Rate
- 120Hz
Brightness
400nits
Brightness
- 400nits
Contrast Ratio
150,000:1
Contrast Ratio
- 150,000:1
Color Gamut
BT709 120%
Color Gamut
- BT709 120%
Viewing Angle(H x V)
178° x 178°
Viewing Angle(H x V)
- 178° x 178°
Color Depth
1.07 Bilion colors
Color Depth
- 1.07 Bilion colors
Response Time (G to G)
1ms
Response Time (G to G)
- 1ms
Surface Treatment (Haze)
Hard coating (2H)
Surface Treatment (Haze)
- Hard coating (2H)
Lifetime (Typ.)
30,000 Hrs
Lifetime (Typ.)
- 30,000 Hrs
Operation Hours (Hours/Day)
18/7 (Non-Static Content Only)
Operation Hours (Hours/Day)
- 18/7 (Non-Static Content Only)
Portrait / Landscape
Yes/Yes
Portrait / Landscape
- Yes/Yes
CONNECTIVITY
HDMI
Yes (1), HDCP1.4
HDMI
- Yes (1), HDCP1.4
DP
Yes (1), HDCP1.3
DP
- Yes (1), HDCP1.3
RS232C In
Yes (1)
RS232C In
- Yes (1)
RJ45 (LAN)
Yes (1)
RJ45 (LAN)
- Yes (1)
IR In
Yes (1), External IR Receiver
IR In
- Yes (1), External IR Receiver
USB in
USB 2.0 Type A (2)
USB in
- USB 2.0 Type A (2)
DP Out
Yes (1)
DP Out
- Yes (1)
Audio Out
Yes (1)
Audio Out
- Yes (1)
RS232C OUT
Yes (1) (w/ IR out)
RS232C OUT
- Yes (1) (w/ IR out)
MECHANICAL
Bezel Color
Black
Bezel Color
- Black
Bezel Width - Off Bezel (T/R/L/B)
0.6/6.7/6.7/0.6 mm (Landscape Model), 0.6/6.7/6.7/0.6 mm (Portrait Model)
Bezel Width - Off Bezel (T/R/L/B)
- 0.6/6.7/6.7/0.6 mm (Landscape Model), 0.6/6.7/6.7/0.6 mm (Portrait Model)
Bezel Width - On Bezel (T/R/L/B)
5.0/7.6/7.6/10.6 mm (Landscape Model), 5.0/13.2/7.8/5.0 mm (Portrait Model)
Bezel Width - On Bezel (T/R/L/B)
- 5.0/7.6/7.6/10.6 mm (Landscape Model), 5.0/13.2/7.8/5.0 mm (Portrait Model)
Weight - Screen
12.8 lbs/5.8kg (Landccape Model), 15.4 lbs/7.0kg (Portrait Model)
Weight - Screen
- 12.8 lbs/5.8kg (Landccape Model), 15.4 lbs/7.0kg (Portrait Model)
Weight - Signage box
7.7 lbs, 3.5kg
Weight - Signage box
- 7.7 lbs, 3.5kg
Shipping Weight
37.5 lbs/17.0kg (Landscape Model), 38.8 lbs/17.6kg (Portrait Model)
Shipping Weight
- 37.5 lbs/17.0kg (Landscape Model), 38.8 lbs/17.6kg (Portrait Model)
Dimensions - Landscape Model with Pemnut (W x H x D)
48.2 x 27.4 x 1.5 in, 1224.9 x 696.2 x 38.0 mm
Dimensions - Landscape Model with Pemnut (W x H x D)
- 48.2 x 27.4 x 1.5 in, 1224.9 x 696.2 x 38.0 mm
Dimensions - Landscape Model without Pemnut (W x H x D)
48.2 x 27.4 x 0.5 in, 1224.9 x 696.2 x 12.4 mm
Dimensions - Landscape Model without Pemnut (W x H x D)
- 48.2 x 27.4 x 0.5 in, 1224.9 x 696.2 x 12.4 mm
Dimensions - Portrait Model with Pemnut (W x H x D)
27.6 x 48.0 x 1.5 in, 701.4 x 1219.7 x 38.0 mm
Dimensions - Portrait Model with Pemnut (W x H x D)
- 27.6 x 48.0 x 1.5 in, 701.4 x 1219.7 x 38.0 mm
Dimensions - Portrait Model without Pemnut (W x H x D)
27.6 x 48.0 x 0.5 in, 701.4 x 1219.7 x 12.4 mm
Dimensions - Portrait Model without Pemnut (W x H x D)
- 27.6 x 48.0 x 0.5 in, 701.4 x 1219.7 x 12.4 mm
Dimensions - Signage Box (W x H x D)
16.3 x 13.9 x 2.3 in, 413 x 353 x 57.3 mm
Dimensions - Signage Box (W x H x D)
- 16.3 x 13.9 x 2.3 in, 413 x 353 x 57.3 mm
Shipping Dimensions (W x H x D)
53.5 x 33.1 x 9.9 in, 1360 x 842 x 252 mm
Shipping Dimensions (W x H x D)
- 53.5 x 33.1 x 9.9 in, 1360 x 842 x 252 mm
Operation Temperature
32°F to 104°F, 0°C to 40°C
Operation Temperature
- 32°F to 104°F, 0°C to 40°C
Operation Humidity
10% to 80%
Operation Humidity
- 10% to 80%
KEY FEATURES
Internal Memory
16GB
Internal Memory
- 16GB
Built-in Wi-Fi
X
Built-in Wi-Fi
- X
Temperature Sensor
O
Temperature Sensor
- O
webOS ver.
webOS 4.0
webOS ver.
- webOS 4.0
Local Contents Scheduling
Yes
Local Contents Scheduling
- Yes
Group Manager
Yes
Group Manager
- Yes
USB Plug & Play
Yes
USB Plug & Play
- Yes
Fail over
Yes
Fail over
- Yes
RS-232C Sync
Yes
RS-232C Sync
- Yes
Local Network Sync
Yes
Local Network Sync
- Yes
Video Tag
Yes (4)
Video Tag
- Yes (4)
Screen Rotation
Yes
Screen Rotation
- Yes
External Input Rotation
Yes
External Input Rotation
- Yes
Gapless Playback
Yes
Gapless Playback
- Yes
Tile Mode Setting
Yes
Tile Mode Setting
- Yes
Setting Data Cloning
Yes
Setting Data Cloning
- Yes
SNMP
Yes
SNMP
- Yes
ISM Method
Yes
ISM Method
- Yes
Auto Set ID
Yes
Auto Set ID
- Yes
Status Mailing
Yes
Status Mailing
- Yes
Control Manager
Yes
Control Manager
- Yes
Crestron Inside
Yes
Crestron Inside
- Yes
PM mode
Yes
PM mode
- Yes
Wake on LAN
Yes
Wake on LAN
- Yes
HDMI-CEC
Yes
HDMI-CEC
- Yes
SI Server Setting
Yes
SI Server Setting
- Yes
Pro:Idiom DRM
Yes
Pro:Idiom DRM
- Yes
POWER
Power Supply
100-240 Vac, 50/60Hz
Power Supply
- 100-240 Vac, 50/60Hz
Power Type
Built-In Power
Power Type
- Built-In Power
Typ. Power Consumption
309W
Typ. Power Consumption
- 309W
Max. Power Consumption
318W
Max. Power Consumption
- 318W
DPM
3W
DPM
- 3W
Power Off
0.5W
Power Off
- 0.5W
LG SOFTWARE & SERVICES*
SuperSign CMS
Yes (v3.0)
SuperSign CMS
- Yes (v3.0)
SuperSign Control / Control+
Yes (v1.7/v1.9)
SuperSign Control / Control+
- Yes (v1.7/v1.9)
SuperSign White Balance
Yes (v3.7.15)
SuperSign White Balance
- Yes (v3.7.15)
SuperSign Media Editor
Yes (v3.7)
SuperSign Media Editor
- Yes (v3.7)
LG ConnectedCare
Yes (v2.9)
LG ConnectedCare
- Yes (v2.9)
*
Available for an additional fee.
*
- Available for an additional fee.
Warranty & Other
Warranty
3 Year Limited
Warranty
- 3 Year Limited
FCC (Regulatory)
Class "A"
FCC (Regulatory)
- Class "A"
CE (Regulatory)
Yes
CE (Regulatory)
- Yes
IEC/EN/UL 60950-1 (EMC)
Yes
IEC/EN/UL 60950-1 (EMC)
- Yes
ErP (Environmental)
Yes
ErP (Environmental)
- Yes
Basic Accessories
Remote Control (battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, DP Cable (2m), LAN Cable (2m), RS232 Cable (4P-4P,1.5m), LC Cable (VLC,3m), Tape (4ea for Cabling), Screws (M3xL4.5,30ea/M3xL5.5,50ea/M3x3.5,10ea), Shield Cover Assembly, Tiling Set Fixer 6ea, Flex Bar 2ea
Basic Accessories
- Remote Control (battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, DP Cable (2m), LAN Cable (2m), RS232 Cable (4P-4P,1.5m), LC Cable (VLC,3m), Tape (4ea for Cabling), Screws (M3xL4.5,30ea/M3xL5.5,50ea/M3x3.5,10ea), Shield Cover Assembly, Tiling Set Fixer 6ea, Flex Bar 2ea
