Gsce Ceiling Direct View Led Compatible With Megapixel Vr Helios Controller
SKU: GSCE039
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
Easy Installation
The positioning pins and magnets help perform panel adjustments accurately and quickly, ensuring seamless screen assembly.

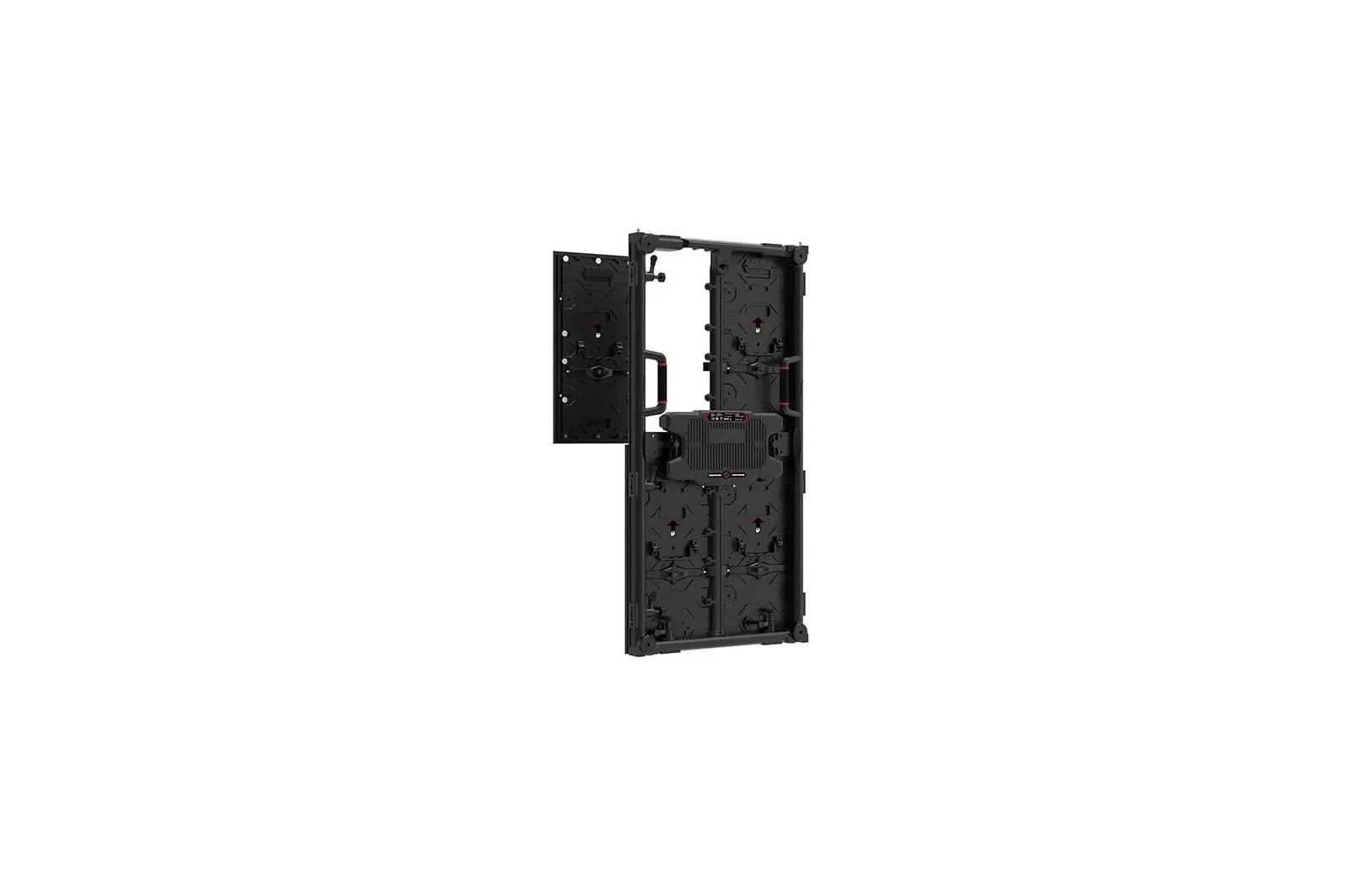

Easy Maintenance
The module can be easily removedusing using the dedicated tool (with front or rear selective service access).
Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose installation options according to their need.
High Brightness
The ceiling LED with 5,000 nits enables GSCE series to be used for alternative lightings in XR and virtual production.
*Images are simulated for illustrated purposes only.
Powerful UI/UX with Megapixel VR HELIOS LED Processing Platform
With the MVR controller, GSCE now has the capability to utilize powerful UX and UI functionalities. Real-Time Mapping and Multi-User Control, Stunning Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics are all available.
*Please note that Megapixel VR HELIOS LED processing platform needs to be purchased separately, and depending on the actual usage environment, there may be limitations in the implementation of certain features offered by HELIOS. A game controller needs to be purchased separately.
The positioning pins and magnets help perform panel adjustments accurately and quickly, ensuring seamless screen assembly.
Easy Maintenance
The module can be easily removedusing using the dedicated tool (with front or rear selective service access).
Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose installation options according to their need.
High Brightness
The ceiling LED with 5,000 nits enables GSCE series to be used for alternative lightings in XR and virtual production.
*Images are simulated for illustrated purposes only.
Powerful UI/UX with Megapixel VR HELIOS LED Processing Platform
With the MVR controller, GSCE now has the capability to utilize powerful UX and UI functionalities. Real-Time Mapping and Multi-User Control, Stunning Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics are all available.
*Please note that Megapixel VR HELIOS LED processing platform needs to be purchased separately, and depending on the actual usage environment, there may be limitations in the implementation of certain features offered by HELIOS. A game controller needs to be purchased separately.
- Megapixel VR Helios Controller (Sold seperately)
- IP30 Rated front & back
- Up to 5,000 nits brightness with 160° x 155° viewing angle
- Front or Rear Accessible
- 3.91 mm Pixel Pitch Single SMD
Rebates
view available rebates
Gsce Ceiling Direct View Led Compatible With Megapixel Vr Helios Controller
Misc Collection
Specifications
Specifications
Features
Megapixel VR Helios Controller (Sold seperately), IP30 Rated front & back, Up to 5,000 nits brightness with 160° x 155° viewing angle, Front or Rear Accessible, 3.91 mm Pixel Pitch Single SMD
- Megapixel VR Helios Controller (Sold seperately)
- IP30 Rated front & back
- Up to 5,000 nits brightness with 160° x 155° viewing angle
- Front or Rear Accessible
- 3.91 mm Pixel Pitch Single SMD
SPECIFICATIONS
Pitch Name
P3.91
Pitch Name
- P3.91
Cabinet
GSCE
Cabinet
- GSCE
Input
HDMI 2.0, HDCP 2.2, DP 1.4 (HBR3), SDI (4 x 12G-SDI), OPS (ST2110)
Input
- HDMI 2.0, HDCP 2.2, DP 1.4 (HBR3), SDI (4 x 12G-SDI), OPS (ST2110)
Output
Optic (To LED Screen (8 x 10G))
Output
- Optic (To LED Screen (8 x 10G))
Video Processing
Brightness Adjustment, Chroma Adjustment, Improved Grayscale at Low Brightness, Scaling, HDR (PQ, HLG, Custom), EDID Custom
Video Processing
- Brightness Adjustment, Chroma Adjustment, Improved Grayscale at Low Brightness, Scaling, HDR (PQ, HLG, Custom), EDID Custom
Application
SuperSign CMS (Cross-platform Web Interface), webOS API, Configuration SW (Cross-platform Web Interface)
Application
- SuperSign CMS (Cross-platform Web Interface), webOS API, Configuration SW (Cross-platform Web Interface)
PHYSICAL PARAMETERS
Pixel Configuration
Single SMD
Pixel Configuration
- Single SMD
Pixel Pitch (mm)
3.91
Pixel Pitch (mm)
- 3.91
Module Resolution (W x H)
64 x 128
Module Resolution (W x H)
- 64 x 128
Module Dimensions (W x H, in. / mm)
9.8 x 19.6 in. / 250 x 500 mm
Module Dimensions (W x H, in. / mm)
- 9.8 x 19.6 in. / 250 x 500 mm
Weight per Module (lbs. / kg)
3.1 lbs. / 1.4 kg
Weight per Module (lbs. / kg)
- 3.1 lbs. / 1.4 kg

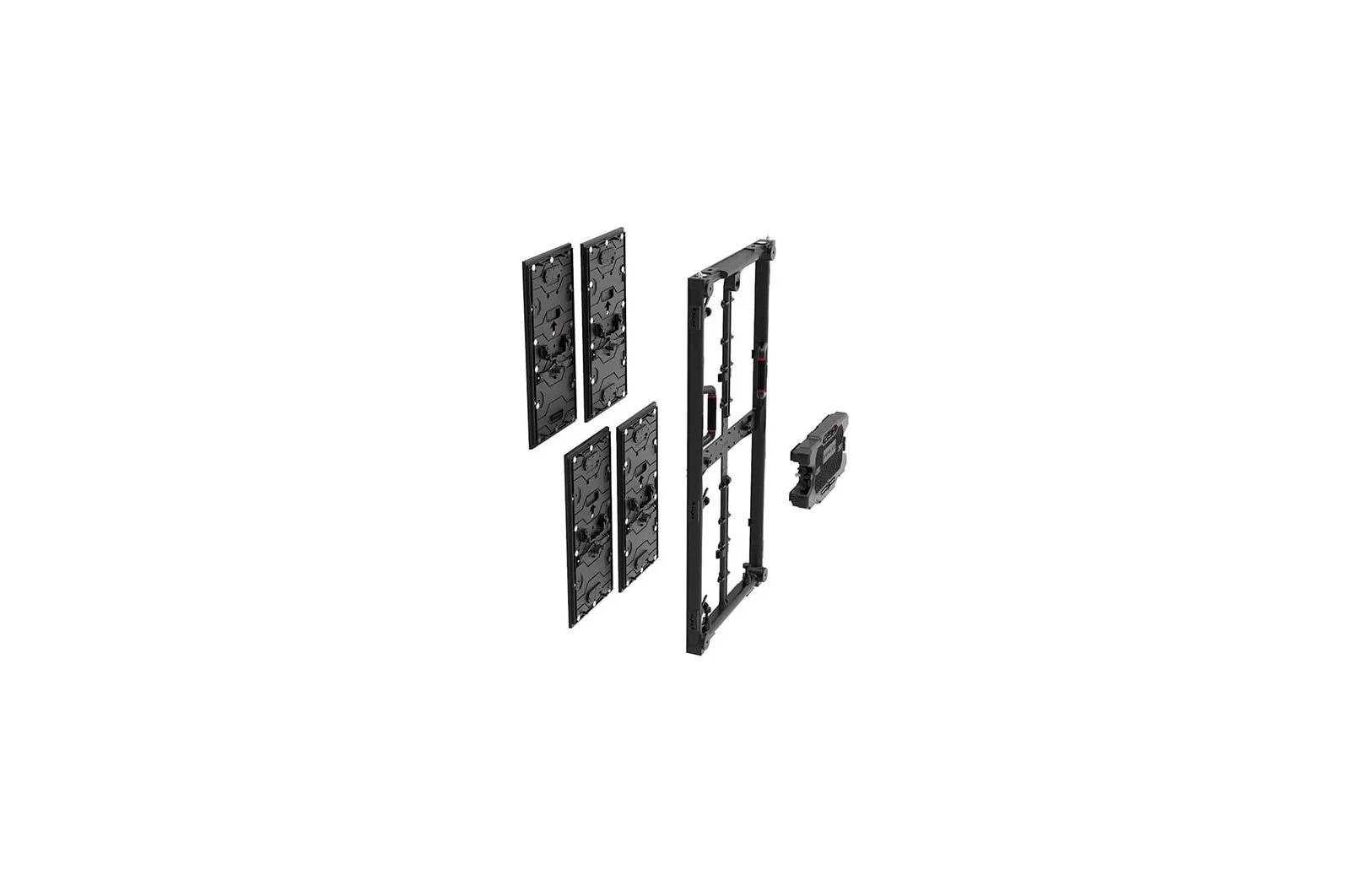

No. of Modules per Cabinet (W x H)
2 x 2
No. of Modules per Cabinet (W x H)
- 2 x 2
Cabinet Resolution (W x H)
128 x 256
Cabinet Resolution (W x H)
- 128 x 256
Cabinet Dimensions (W x H x D, in. / mm)
19.6 x 39.4 x 2.6 in. 500 x 1,000 x 66.05 mm
Cabinet Dimensions (W x H x D, in. / mm)
- 19.6 x 39.4 x 2.6 in. 500 x 1,000 x 66.05 mm
Cabinet Surface Area (ft2 / m2 )
5.4 ft2 / 0.5m2
Cabinet Surface Area (ft2 / m2 )
- 5.4 ft2 / 0.5m2
Weight per Cabinet (lbs. / kg)
27.3 / 12.4
Weight per Cabinet (lbs. / kg)
- 27.3 / 12.4
Weight per Square Meter (kg/m )
24.9
Weight per Square Meter (kg/m )
- 24.9
Physical Pixel Density (pixels/m )
65,536
Physical Pixel Density (pixels/m )
- 65,536
Flatness of Cabinet (mm)
0.3
Flatness of Cabinet (mm)
- 0.3
Cabinet Material
Die-casting Magnesium
Cabinet Material
- Die-casting Magnesium
Service Access
Front or Rear (select one only)
Service Access
- Front or Rear (select one only)
OPTICAL SPECIFICATIONS
Max. Brightness (After Calibration, nits)
5,000
Max. Brightness (After Calibration, nits)
- 5,000
Color Temperature (K)
2,000-11,000
Color Temperature (K)
- 2,000-11,000
Visual Viewing Angle (H x V)
160° x 155°
Visual Viewing Angle (H x V)
- 160° x 155°
Brightness Uniformity
0.97
Brightness Uniformity
- 0.97
Color Uniformity
0.003 Cx, Cy
Color Uniformity
- 0.003 Cx, Cy
Contrast Ratio
6,000 : 1
Contrast Ratio
- 6,000 : 1
Processing Depth (bit)
16 (PQ, HLG)
Processing Depth (bit)
- 16 (PQ, HLG)
ELECTRICAL SPECIFICATIONS
Max Power Consumption per Cabinet (W)
300
Max Power Consumption per Cabinet (W)
- 300
Avg. Power Consumption per Cabinet (W)
100
Avg. Power Consumption per Cabinet (W)
- 100
Max Power Consumption (W/m )
600
Max Power Consumption (W/m )
- 600
Max Heat Dissipation per Cabinet (BTU/h)
1,024
Max Heat Dissipation per Cabinet (BTU/h)
- 1,024
Avg. Heat Dissipation per Cabinet (BTU/h)
341
Avg. Heat Dissipation per Cabinet (BTU/h)
- 341
Max Heat Dissipation (BTU/h/m )
2,047
Max Heat Dissipation (BTU/h/m )
- 2,047
Power Supply (Vac)
100 to 240
Power Supply (Vac)
- 100 to 240
Frame Rate (Hz)
50 / 60
Frame Rate (Hz)
- 50 / 60
Refresh Rate (Hz)
3,840
Refresh Rate (Hz)
- 3,840
OPERATION SPECIFICATIONS
Operating Temperature (°F / °C)
-22 to 113 / -30 to +45
Operating Temperature (°F / °C)
- -22 to 113 / -30 to +45
Operating Humidity
10-99% RH
Operating Humidity
- 10-99% RH
IP Rating Front / Rear
IP30 / IP30
IP Rating Front / Rear
- IP30 / IP30
Warranty & Other
Warranty
3 Year Limited
Warranty
- 3 Year Limited
Regulatory
CE, FCC, ETL
Regulatory
- CE, FCC, ETL
Environmental
RoHS
Environmental
- RoHS
Controller
Megapixel VR HELIOS LED Processing Platform
Controller
- Megapixel VR HELIOS LED Processing Platform
90 degree corner cut
No
90 degree corner cut
- No
Max Output Range
Loading Capacity
8,192 x 4,320 @ 60 Hz
Loading Capacity
- 8,192 x 4,320 @ 60 Hz
Output Resolution
35.3 Million Pixels
Output Resolution
- 35.3 Million Pixels
Control
LAN
Yes
LAN
- Yes
GenLock
Yes (In)
GenLock
- Yes (In)
MECHANICAL
Size (W x H x D, in. / mm)
18.9 x 1.7 x 15.5 in. 481.5 x 44.2 x 393 mm
Size (W x H x D, in. / mm)
- 18.9 x 1.7 x 15.5 in. 481.5 x 44.2 x 393 mm
Weight (lbs. / kg)
12.6 lbs. / 5.7kg
Weight (lbs. / kg)
- 12.6 lbs. / 5.7kg
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
