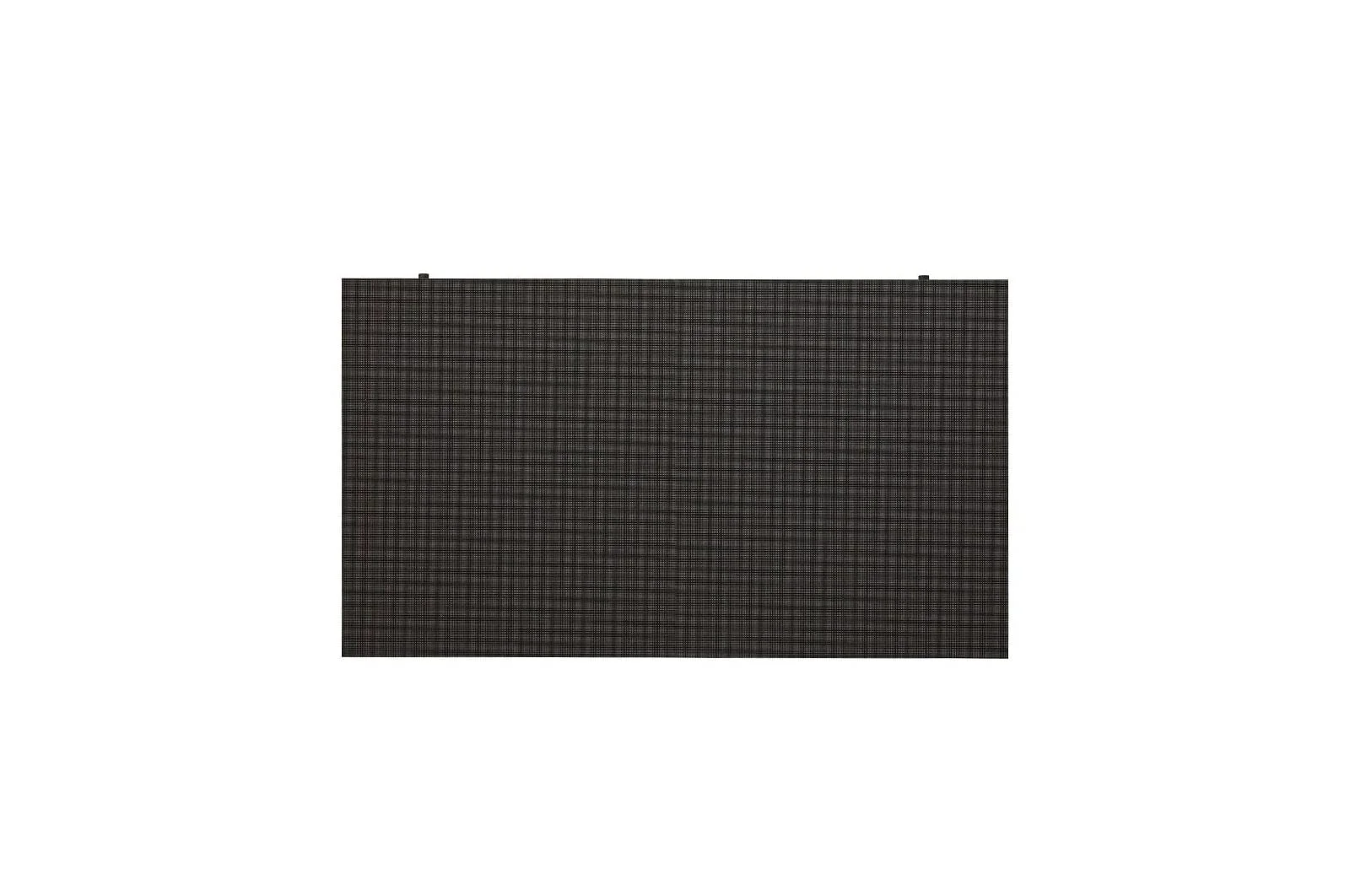

1.5 Mm Lsbe Series Fine Pitch Direct View Led With 90° Corner, Ip50 Front/Rear, & Lg Software Compatible
SKU: LSBE015
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
Improved Design and Easy Maintenance
LSBE utilizes two modules to form a single cabinet, which helps minimize the gaps between modules compared to cabinets composed of multiple modules resulting in a smoother screen with fewer visible gaps. This helps with easy maintenance.
Durable Frame Design

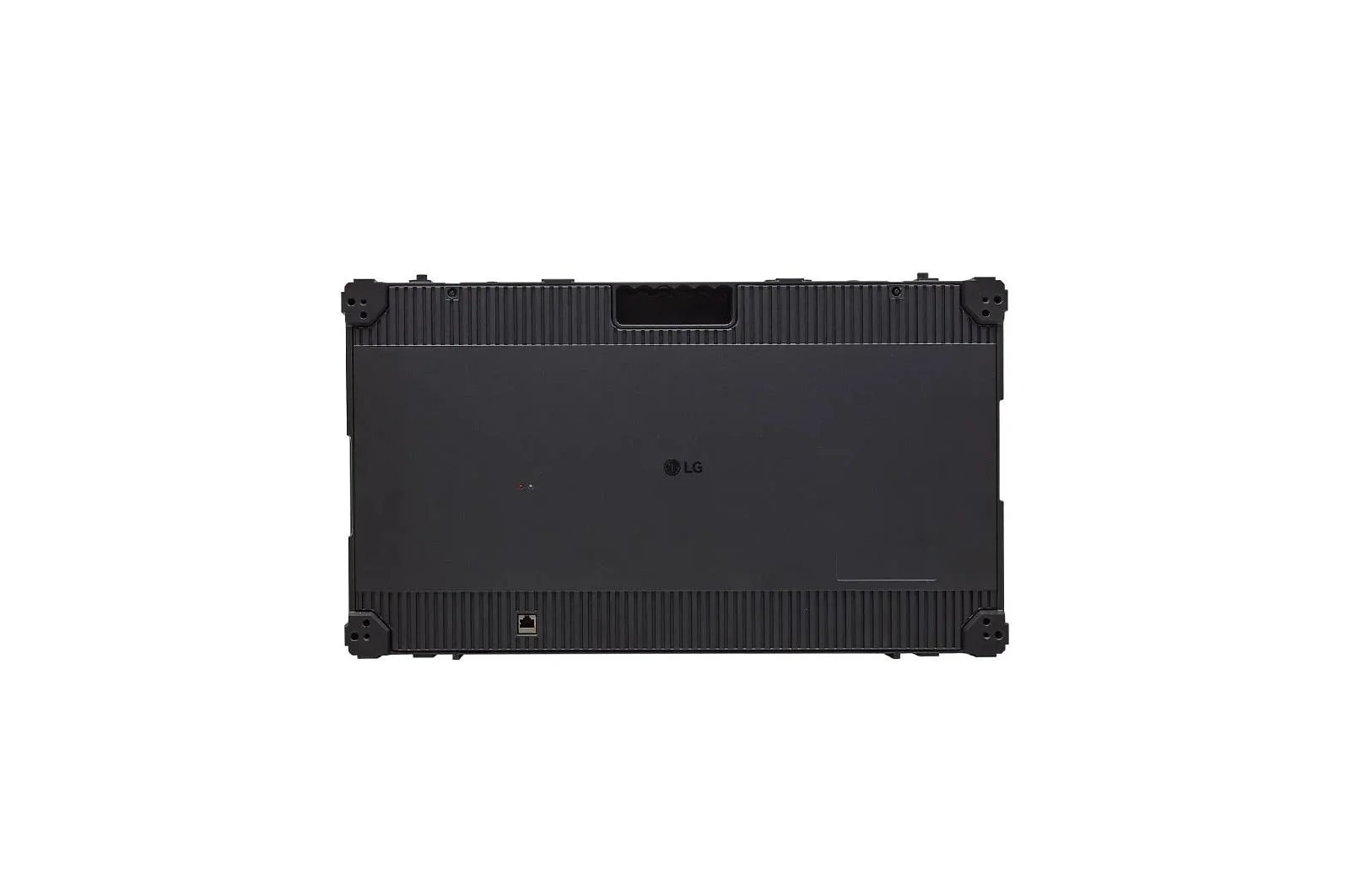

LSBE incorporates an aluminum cabinet that enhances durability, and its high-strength frame allows for stable operation.
Brightness
With a brightness of 600 nits, it clearly delivers content and attracts public attention, making it great for indoor visibility.

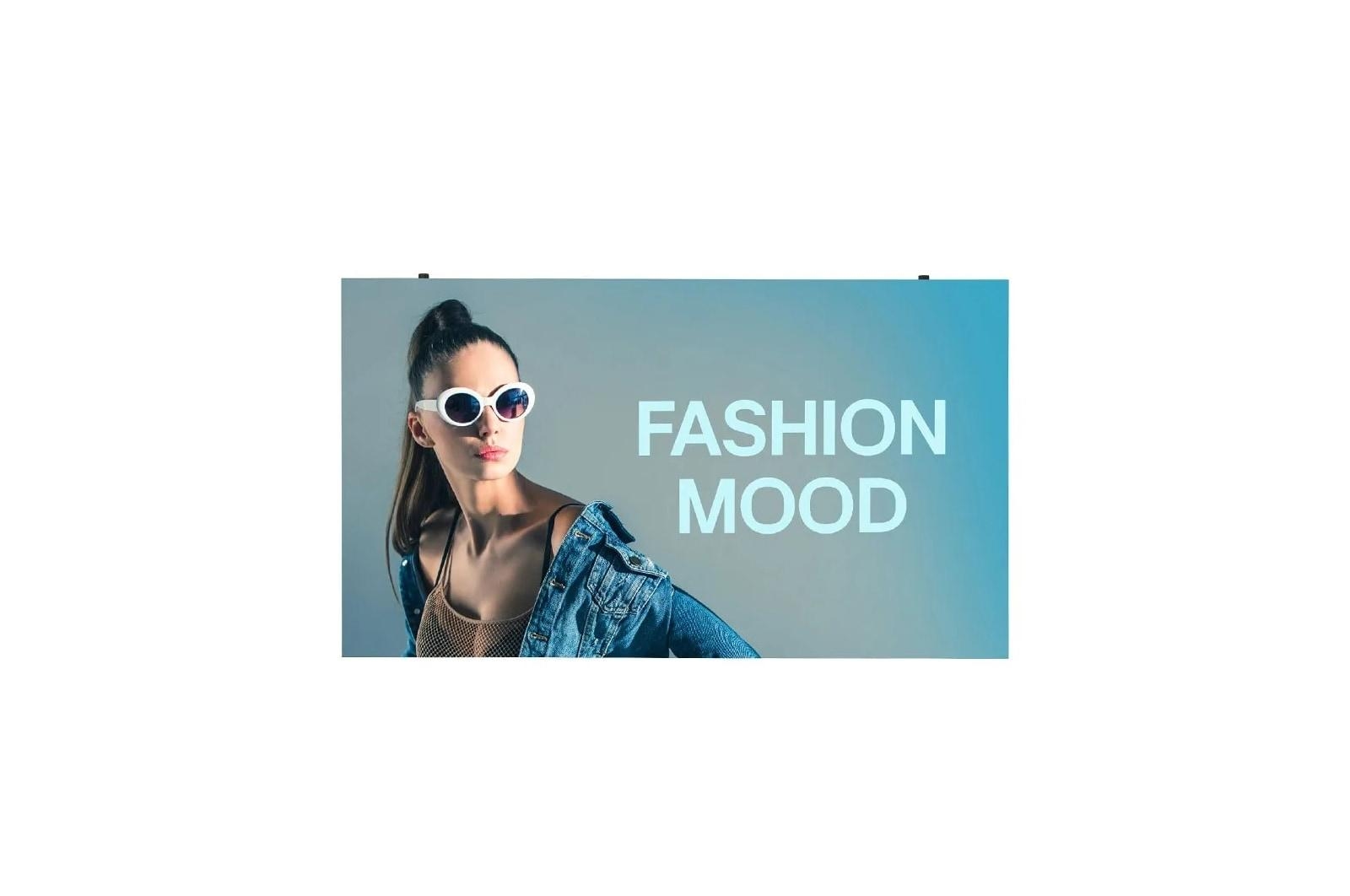

*Image simulation for illustration purposes only.
Compatibility with LG Software Solutions
When connected with LG's CVBA system controller, the LSBE series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details. *The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power) *Actual GUI may vary in different webOS versions. *LG Software solutions needs to be purchased separately.
LSBE utilizes two modules to form a single cabinet, which helps minimize the gaps between modules compared to cabinets composed of multiple modules resulting in a smoother screen with fewer visible gaps. This helps with easy maintenance.
Durable Frame Design
LSBE incorporates an aluminum cabinet that enhances durability, and its high-strength frame allows for stable operation.
Brightness
With a brightness of 600 nits, it clearly delivers content and attracts public attention, making it great for indoor visibility.
*Image simulation for illustration purposes only.
Compatibility with LG Software Solutions
When connected with LG's CVBA system controller, the LSBE series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details. *The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power) *Actual GUI may vary in different webOS versions. *LG Software solutions needs to be purchased separately.
- IP50 Rating Front and Rear
- Front Service Access for Easy Install & Maintance
- 600 nits Brightness
- Compatible with CVBA Controller
- 1.5 mm Fine Pitch Single SMD
- Lifetime up to 100,000 hours
Rebates
view available rebates
1.5 Mm Lsbe Series Fine Pitch Direct View Led With 90° Corner, Ip50 Front/Rear, & Lg Software Compatible
Misc Collection
Specifications
Specifications
Features
IP50 Rating Front and Rear, Front Service Access for Easy Install & Maintance, 600 nits Brightness, Compatible with CVBA Controller, 1.5 mm Fine Pitch Single SMD, Lifetime up to 100,000 hours
- IP50 Rating Front and Rear
- Front Service Access for Easy Install & Maintance
- 600 nits Brightness
- Compatible with CVBA Controller
- 1.5 mm Fine Pitch Single SMD
- Lifetime up to 100,000 hours
PHYSICAL PARAMETERS
Pixel Configuration
Single SMD
Pixel Configuration
- Single SMD
Pixel Pitch (mm)
1.56
Pixel Pitch (mm)
- 1.56
Module Resolution (W x H)
192 x 216
Module Resolution (W x H)
- 192 x 216
Module Dimensions (W x H, in. / mm)
11.8 x 13.3 x .5 / 300 x 337.5 x 13
Module Dimensions (W x H, in. / mm)
- 11.8 x 13.3 x .5 / 300 x 337.5 x 13
Weight per Module (Ibs. / kg)
2.1 / 0.95
Weight per Module (Ibs. / kg)
- 2.1 / 0.95
No. of Modules per Cabinet (W x H)
2 x 1
No. of Modules per Cabinet (W x H)
- 2 x 1
Cabinet Resolution (W x H)
384 x 216
Cabinet Resolution (W x H)
- 384 x 216
Cabinet Dimensions (W x H x D, in. / mm)
23.6 x 13.3 x 2.8 / 600 x 337.5 x 72
Cabinet Dimensions (W x H x D, in. / mm)
- 23.6 x 13.3 x 2.8 / 600 x 337.5 x 72
Cabinet Surface Area (ft / m )
14.3 / 6.5
Cabinet Surface Area (ft / m )
- 14.3 / 6.5
Weight per Cabinet (Ibs. / kg)
6.5
Weight per Cabinet (Ibs. / kg)
- 6.5
Weight per Unit Area (Ibs./ft / kg/m )
6.6 / 32.0
Weight per Unit Area (Ibs./ft / kg/m )
- 6.6 / 32.0
Physical Pixel Density (pixels/m )
409,600
Physical Pixel Density (pixels/m )
- 409,600
Flatness of Cabinet (mm)
0.3
Flatness of Cabinet (mm)
- 0.3
Cabinet Material
Die-cast Aluminum
Cabinet Material
- Die-cast Aluminum
Service Access
Front
Service Access
- Front
OPTICAL SPECIFICATIONS
Max. Brightness (After Calibration, nits)
600
Max. Brightness (After Calibration, nits)
- 600
Color Temperature (K)
3,200 - 9,300
Color Temperature (K)
- 3,200 - 9,300
Visual Viewing Angle (H x V)
160° x 150°
Visual Viewing Angle (H x V)
- 160° x 150°
Brightness Uniformity
97%
Brightness Uniformity
- 97%
Color Uniformity
0.003 Cx, Cy
Color Uniformity
- 0.003 Cx, Cy
Contrast Ratio
5,000:1
Contrast Ratio
- 5,000:1
Processing Depth (bit)
14
Processing Depth (bit)
- 14
ELECTRICAL SPECIFICATIONS
Power Consumption (W/Cabinet, Max.)
107
Power Consumption (W/Cabinet, Max.)
- 107
Power Consumption (W/Cabinet, Avg.)
45
Power Consumption (W/Cabinet, Avg.)
- 45
Power Consumption (W/m , Max.)
530
Power Consumption (W/m , Max.)
- 530
Heat Dissipation (BTU/h/Cabinet, Max.)
365
Heat Dissipation (BTU/h/Cabinet, Max.)
- 365
Heat Dissipation (BTU/h/Cabinet, Avg.)
153
Heat Dissipation (BTU/h/Cabinet, Avg.)
- 153
Heat Dissipation (BTU/h/m , Max.)
1,808
Heat Dissipation (BTU/h/m , Max.)
- 1,808
Power Supply (Vac)
100 to 240
Power Supply (Vac)
- 100 to 240
Frame Rate (Hz)
50 / 60
Frame Rate (Hz)
- 50 / 60
Refresh Rate (Hz)
3,840
Refresh Rate (Hz)
- 3,840
OPERATION SPECIFICATIONS
LED Lifetime (Half brightness)
Up to 100,000 hours
LED Lifetime (Half brightness)
- Up to 100,000 hours
Operating Temperature (°F / °C)
-4 to +104 / -20 to +40
Operating Temperature (°F / °C)
- -4 to +104 / -20 to +40
Operating Humidity
10-80%RH
Operating Humidity
- 10-80%RH
IP Rating Front / Rear
IP50 / IP50
IP Rating Front / Rear
- IP50 / IP50
SPECIFICATIONS
Certification
CE, FCC, cTUVus, CB, KC, CCC
Certification
- CE, FCC, cTUVus, CB, KC, CCC
Warranty
3 Year Limited
Warranty
- 3 Year Limited
Environment
RoHS, REACH
Environment
- RoHS, REACH
Controller
CVBA
Controller
- CVBA
90 Degree Corner Cut
Yes
90 Degree Corner Cut
- Yes
Max Output Range
Loading Capacity
3,840 x 2,160 @ 60 Hz
Loading Capacity
- 3,840 x 2,160 @ 60 Hz
Output Resolution
8.2944 Million Pixels
Output Resolution
- 8.2944 Million Pixels
INPUT
Input
HDMI 2.0, HDCP 2.2, DP 1.2 / HDCP 1.3, OPS
Input
- HDMI 2.0, HDCP 2.2, DP 1.2 / HDCP 1.3, OPS
OUTPUT
Output
Ethernet (To LED Screen) (16-channel)
Output
- Ethernet (To LED Screen) (16-channel)
Control
LAN
Yes
LAN
- Yes
RS-232C
Yes (LOOP)
RS-232C
- Yes (LOOP)
Sensor
Temperature
Yes
Temperature
- Yes
Video Processing
Video Processing
Brightness Adjustment, Chroma Adjustment, Improved Grayscale at Low Brightness, Scaling, HDR10 Pro
Video Processing
- Brightness Adjustment, Chroma Adjustment, Improved Grayscale at Low Brightness, Scaling, HDR10 Pro
Application
Application
SuperSign CMS, webOS API, LG ConnectedCare1), Configuration SW (LED Assistant)
Application
- SuperSign CMS, webOS API, LG ConnectedCare1), Configuration SW (LED Assistant)
MECHANICAL
Size (W x H x D, in. / mm)
17.4 x 2.5 x 12.1 / 443 x 63 x 307.5
Size (W x H x D, in. / mm)
- 17.4 x 2.5 x 12.1 / 443 x 63 x 307.5
Weight (lbs. / kg)
10.8 / 4.9
Weight (lbs. / kg)
- 10.8 / 4.9
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
