Pro:Centric® Server With Html5 Content Management, Ui Editor, And Server Admin Client
SKU: PCS500R
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDisclaimer
Description
moreLG Recognized as MSAP Leader
LG's environmental practices have earned us the title of Leader in the MindClick Sustainability Assessment Program 22-23. MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices. LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.
Pro:Centric® Direct Support
The stand-alone server supports LG's Pro:Centric® Direct, an HTML5 Content Management Software. This software offers a comprehensive UI (user interface) editor, along with customizable widgets and a number of theme templates to enable a unique guest experience as well as express your hotel's brand identity and individuality through LG's in-room television.
Server Admin Client
PCA or PCD Admin Client Graphical User Interface (GUI) is provided and is remotely accessible via the Internet using VPN service and a standard web browser, to provide System Integrator administration users with a full suite of features to manage and support the Pro:Centric system, including: System Status, Logs, and Server Settings Configuration for Channel Lineup and Electronic Program Guide UI Editor and Customization Tools Managing Television Settings and Software Updates For further details, refer to the appropriate Pro:Centric® Admin Client User Guide (also accessible on the system).
Pro:Centric® Server Installation
Remote management of this server functionality is provided via a secure, built-in VPN client that connects to the centralized VPN server, supporting remote configuration management and software updates.
LG's environmental practices have earned us the title of Leader in the MindClick Sustainability Assessment Program 22-23. MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices. LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.
Pro:Centric® Direct Support
The stand-alone server supports LG's Pro:Centric® Direct, an HTML5 Content Management Software. This software offers a comprehensive UI (user interface) editor, along with customizable widgets and a number of theme templates to enable a unique guest experience as well as express your hotel's brand identity and individuality through LG's in-room television.
Server Admin Client
PCA or PCD Admin Client Graphical User Interface (GUI) is provided and is remotely accessible via the Internet using VPN service and a standard web browser, to provide System Integrator administration users with a full suite of features to manage and support the Pro:Centric system, including: System Status, Logs, and Server Settings Configuration for Channel Lineup and Electronic Program Guide UI Editor and Customization Tools Managing Television Settings and Software Updates For further details, refer to the appropriate Pro:Centric® Admin Client User Guide (also accessible on the system).
Pro:Centric® Server Installation
Remote management of this server functionality is provided via a secure, built-in VPN client that connects to the centralized VPN server, supporting remote configuration management and software updates.
- Minimal Head-End Rack-Space
- Remote Support
- Simple Installation
- Supports Pro:Centric® Direct (PCD) and Pro:Centric® Application (java)
Rebates
view available rebates
Pro:Centric® Server With Html5 Content Management, Ui Editor, And Server Admin Client
Misc Collection
Specifications
Specifications
Features
Minimal Head-End Rack-Space, Remote Support, Simple Installation, Supports Pro:Centric® Direct (PCD) and Pro:Centric® Application (java)
- Minimal Head-End Rack-Space
- Remote Support
- Simple Installation
- Supports Pro:Centric® Direct (PCD) and Pro:Centric® Application (java)
SYSTEM SOFTWARE
Software
Linux OS kernel 3.10, PCA (Java) and PCD (HTML) server applications
Software
- Linux OS kernel 3.10, PCA (Java) and PCD (HTML) server applications
ELECTRICAL
Data Output
RF, 100/1000T Ethernet
Data Output
- RF, 100/1000T Ethernet

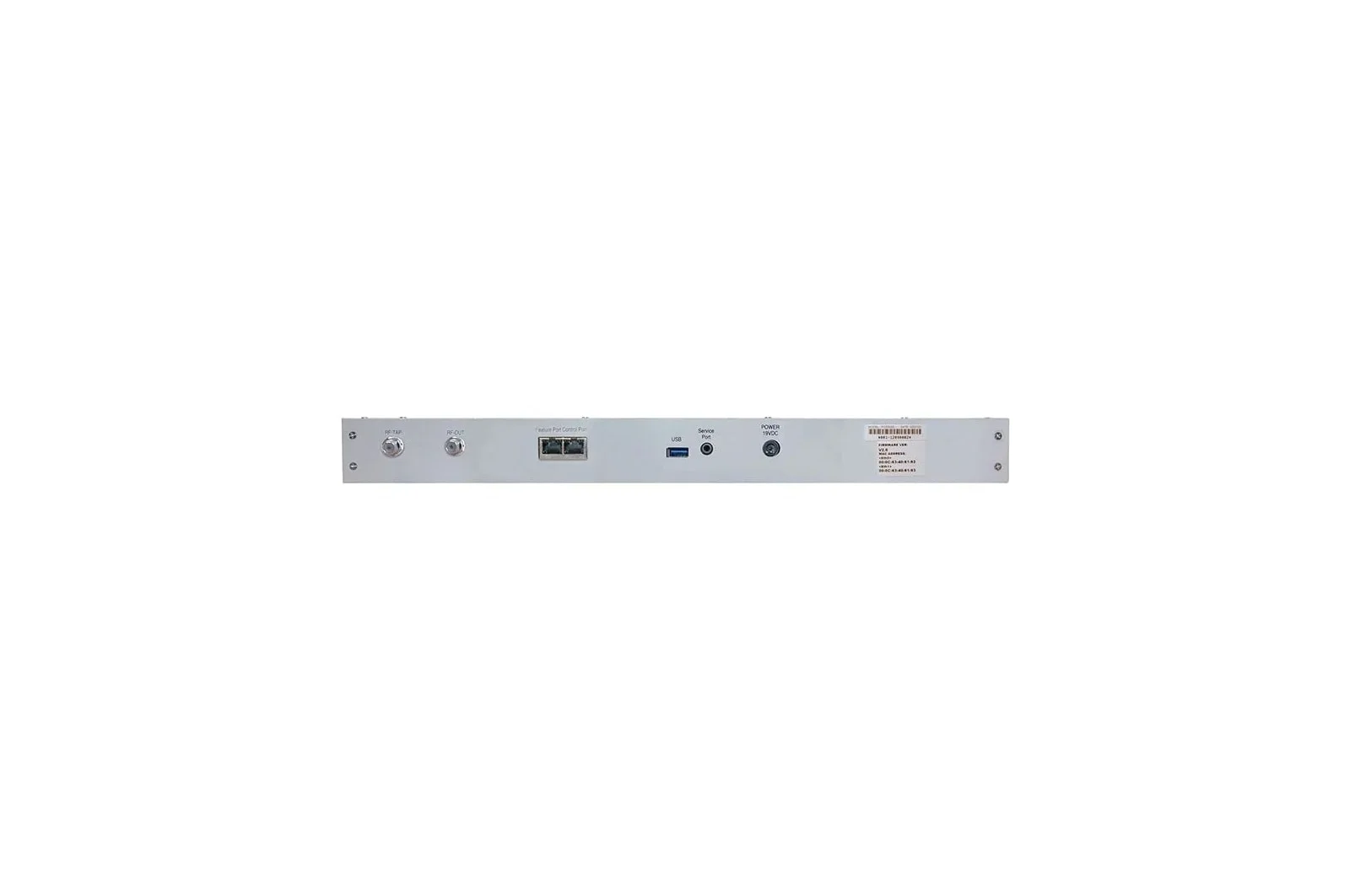

Rear Port
RF/RF Tap/TTL serial, Ethernet 2 Port
Rear Port
- RF/RF Tap/TTL serial, Ethernet 2 Port
DC Input
+19V DC @ 2.2Amps Adaptor
DC Input
- +19V DC @ 2.2Amps Adaptor
RF Output Connectors (2)
75Ohm, Type 'F'
RF Output Connectors (2)
- 75Ohm, Type 'F'
RF Output Span
Up to 8 Channels (Typically 48-64MHz) (non-contiguous)
RF Output Span
- Up to 8 Channels (Typically 48-64MHz) (non-contiguous)
RF Output Frequency Range
54MHz to 865MHz
RF Output Frequency Range
- 54MHz to 865MHz
Active Output Level
-1dBm (+47.75dBmV) Typical
Active Output Level
- -1dBm (+47.75dBmV) Typical
Test Output Level
-47.75dBm (+1dBmV) Typical
Test Output Level
- -47.75dBm (+1dBmV) Typical
Frequency Accuracy
+/- 5 ppm
Frequency Accuracy
- +/- 5 ppm
Ethernet Connector (Control Port)
10/100/1000 BaseT, RJ-45
Ethernet Connector (Control Port)
- 10/100/1000 BaseT, RJ-45
Ethernet Connector (Feature Port)
100/1000 BaseT, Full Duplex RJ-45
Ethernet Connector (Feature Port)
- 100/1000 BaseT, Full Duplex RJ-45
TTL-UART
Command Line Interface port (5V TTL)
TTL-UART
- Command Line Interface port (5V TTL)
CPU/Memory/Storage
64-bit Intel i3-6100U (4 threads at 2.3GHz), 16GB memory, 128GB SSD/Expandable storage with M.2 NGFF or 2.5" SSD
CPU/Memory/Storage
- 64-bit Intel i3-6100U (4 threads at 2.3GHz), 16GB memory, 128GB SSD/Expandable storage with M.2 NGFF or 2.5" SSD
MODULATION SPECIFICATIONS
Standard
ITU-T J.83 Annex B (QAM-B)
Standard
- ITU-T J.83 Annex B (QAM-B)
Constellations
64-QAM, 256-QAM
Constellations
- 64-QAM, 256-QAM
Symbol Rate
64-QAM, 5.056941 MBaud/256-QAM, 5.360537 MBaud
Symbol Rate
- 64-QAM, 5.056941 MBaud/256-QAM, 5.360537 MBaud
Interleaving
Fixed I=128, J=1
Interleaving
- Fixed I=128, J=1
Parameters
64-QAM, 7/8 Convolutional Code, 1/32 Guard Interval Ratio, 2K FFT, 13 Segments
Parameters
- 64-QAM, 7/8 Convolutional Code, 1/32 Guard Interval Ratio, 2K FFT, 13 Segments
Sample Rate
8.126984 Ms/s
Sample Rate
- 8.126984 Ms/s
ENVIRONMENTAL OPERATING CONDITIONS
Temperature
32° to 95°F / 0° to 34°C
Temperature
- 32° to 95°F / 0° to 34°C
Humidity
95% Non-condensing
Humidity
- 95% Non-condensing
ENVIRONMENTAL STORAGE CONDITIONS
Storage Temperature
-4° to 158° Fahrenheit (-20° to 70° Celsius)
Storage Temperature
- -4° to 158° Fahrenheit (-20° to 70° Celsius)
Humidity
95% Non-condensing
Humidity
- 95% Non-condensing
CERTIFICATION
Regulatory Compliance
FCC, UL, RoHS
Regulatory Compliance
- FCC, UL, RoHS
DIMENSIONS
Unit Dimensions (W x H x D)
19.0" x 1.7" x 8.5"
Unit Dimensions (W x H x D)
- 19.0" x 1.7" x 8.5"
Unit Weight (Rack-only)
5.65 Ibs.
Unit Weight (Rack-only)
- 5.65 Ibs.
OTHER
Warranty
1 Year
Warranty
- 1 Year
UPC
719192641662
UPC
- 719192641662
