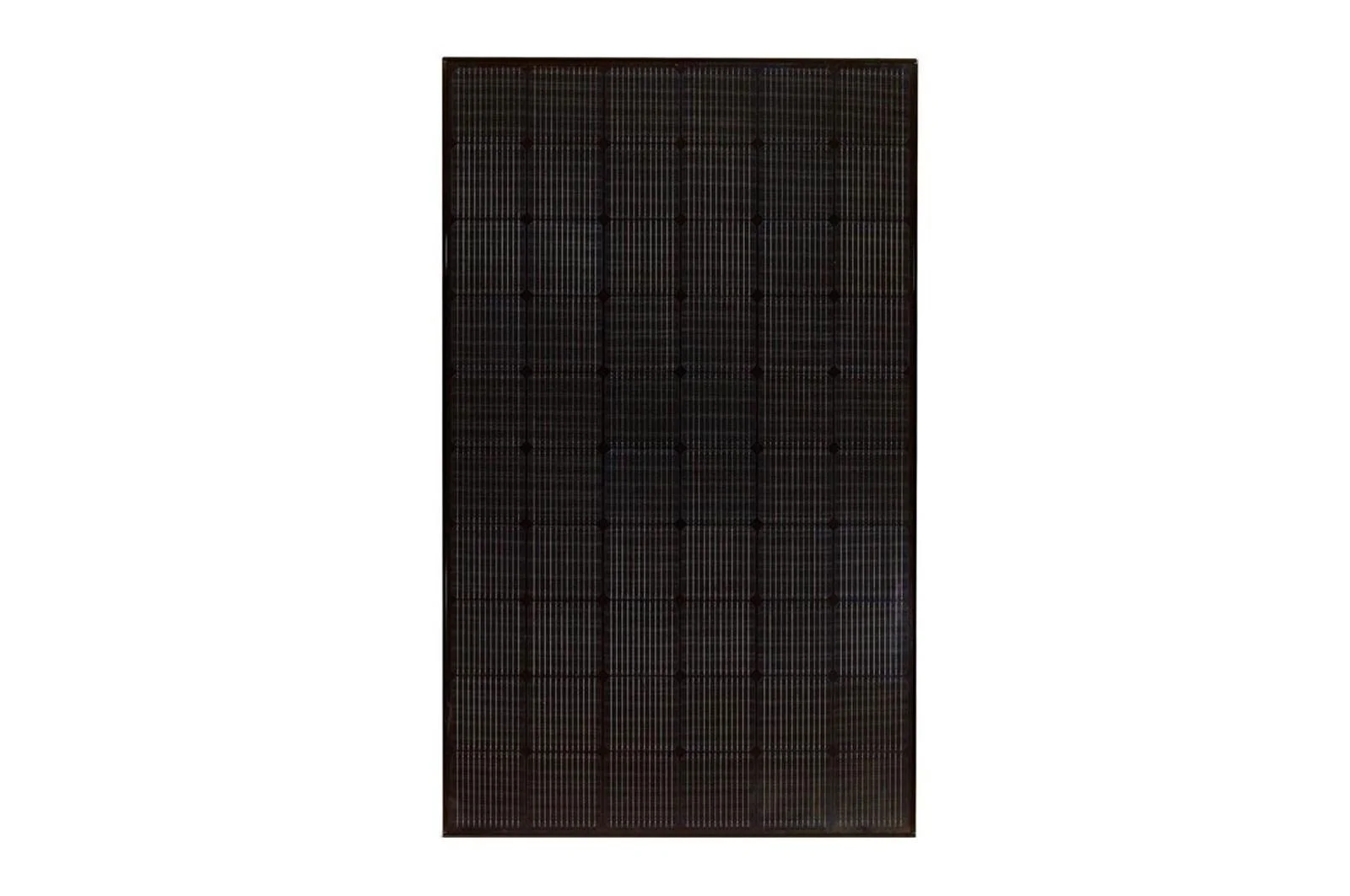

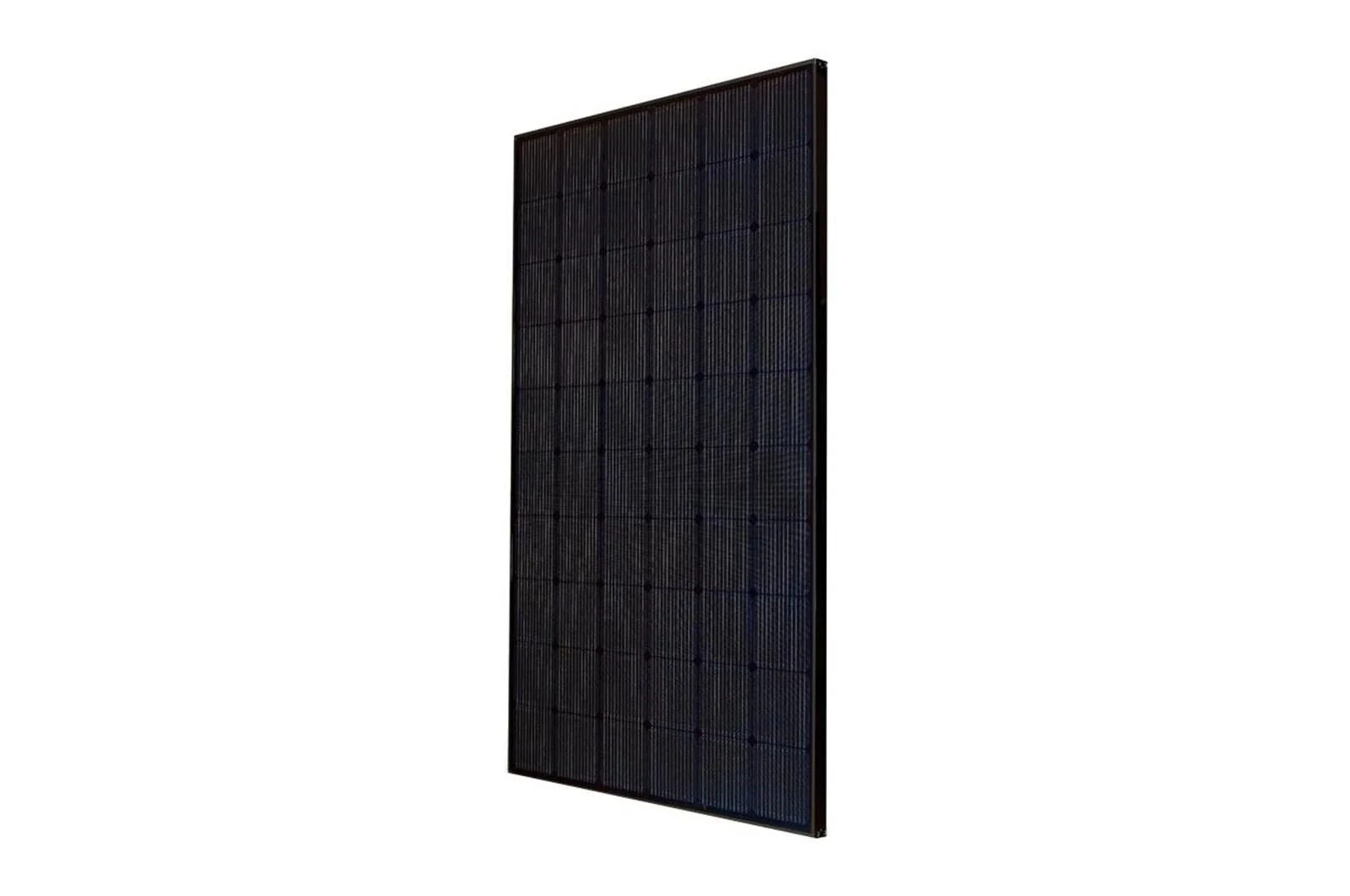

335W Neon® R Prime High Efficiency Solar Panel For Home
SKU: LG340N1KV5
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
- Roof Aesthetics
- High Power Output
- Durability
- 25-Year Product Warranty
Rebates
view available rebates
335W Neon® R Prime High Efficiency Solar Panel For Home
Misc Collection
Specifications
Specifications
Features
Roof Aesthetics, High Power Output, Durability, 25-Year Product Warranty
- Roof Aesthetics
- High Power Output
- Durability
- 25-Year Product Warranty
General Data
Cell Properties (Material/Type)
Monocrystalline/N-type
Cell Properties (Material/Type)
- Monocrystalline/N-type
Cell Maker
LG
Cell Maker
- LG
Cell Configuration
60 Cells (6 x 10)
Cell Configuration
- 60 Cells (6 x 10)
Number of Busbars
12EA
Number of Busbars
- 12EA
Module Dimensions (L x W x H)
1,686mm x 1,016mm x 40 mm
Module Dimensions (L x W x H)
- 1,686mm x 1,016mm x 40 mm
Weight
17.1 kg
Weight
- 17.1 kg
Glass (Material)
Tempered Glass with AR Coating
Glass (Material)
- Tempered Glass with AR Coating
Backsheet (Color)
Black
Backsheet (Color)
- Black
Frame (Material)
Anodized Aluminium
Frame (Material)
- Anodized Aluminium
Junction Box (Protection Degree)
IP 68 with 3 Bypass Diodes
Junction Box (Protection Degree)
- IP 68 with 3 Bypass Diodes
Cables (Length)
1,000mm x 2EA
Cables (Length)
- 1,000mm x 2EA
Connector (Type/Maker)
MC 4/MC
Connector (Type/Maker)
- MC 4/MC
Certifications and Warranty
Certifications
IEC 61215-1/-1-1/2:2016, IEC 61730- 1/2:2016, UL 1703, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001
Certifications
- IEC 61215-1/-1-1/2:2016, IEC 61730- 1/2:2016, UL 1703, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001
Salt Mist Corrosion Test
IEC 62701:2012 Severity 6
Salt Mist Corrosion Test
- IEC 62701:2012 Severity 6
Ammonia Corrosion Test
IEC 62716:2013
Ammonia Corrosion Test
- IEC 62716:2013
Module Fire Performance
Type 2 (UL 1703)
Module Fire Performance
- Type 2 (UL 1703)
Fire Rating
Class C (UL 790, ULC/ORD C 1703)
Fire Rating
- Class C (UL 790, ULC/ORD C 1703)
Solar Module Product Warranty
25 Years
Solar Module Product Warranty
- 25 Years
Solar Module Output Warranty
Linear Warranty*
Solar Module Output Warranty
- Linear Warranty*
*
Improved: 1st year 98%, from 2-24th year: 0.33%/year down, after 25th year: 90.08%
*
- Improved: 1st year 98%, from 2-24th year: 0.33%/year down, after 25th year: 90.08%
Temperature Characteristics
NMOT* [°C]
42 3
NMOT* [°C]
- 42 3
Pmax [%/°C]
-0.36
Pmax [%/°C]
- -0.36
Voc [%/°C]
-0.27
Voc [%/°C]
- -0.27
Isc [%/°C]
0.03
Isc [%/°C]
- 0.03
*
NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m2 , Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5
*
- NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m2 , Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5
Electrical Properties (NMOT)
Model
LG335N1K-V5
Model
- LG335N1K-V5
Maximum Power (Pmax) [W]
250
Maximum Power (Pmax) [W]
- 250
MPP Voltage (Vmpp) [V]
32.3
MPP Voltage (Vmpp) [V]
- 32.3
MPP Current (Impp) [A]
7.75
MPP Current (Impp) [A]
- 7.75
Open Circuit Voltage (Voc) [V]
38.6
Open Circuit Voltage (Voc) [V]
- 38.6
Short Circuit Current (Isc) [A]
8.29
Short Circuit Current (Isc) [A]
- 8.29
Electrical Properties (STC*)
Maximum Power (Pmax) [W]
335
Maximum Power (Pmax) [W]
- 335
MPP Voltage (Vmpp) [V]
34.5
MPP Voltage (Vmpp) [V]
- 34.5
MPP Current (Impp) [A]
9.72
MPP Current (Impp) [A]
- 9.72
Open Circuit Voltage (Voc 5%) [V]
41.1
Open Circuit Voltage (Voc 5%) [V]
- 41.1
Short Circuit Current (Isc 5%) [A]
10.31
Short Circuit Current (Isc 5%) [A]
- 10.31
Module Efficiency [%]
19.6
Module Efficiency [%]
- 19.6
Bifaciality Coefficient of Power [%]
10
Bifaciality Coefficient of Power [%]
- 10
Power Tolerance [%]
0 ~ +3
Power Tolerance [%]
- 0 ~ +3
*
STC (Standard Test Condition): Irradiance 1000 W/m , Cell temperature 25°C, AM 1.5, Measure Tolerance: 3%.
*
- STC (Standard Test Condition): Irradiance 1000 W/m , Cell temperature 25°C, AM 1.5, Measure Tolerance: 3%.
Operating Conditions
Operating Temperature [°C]
-40 ~+90
Operating Temperature [°C]
- -40 ~+90
Maximum System Voltage [V]
1,000, 1000(IEC)
Maximum System Voltage [V]
- 1,000, 1000(IEC)
Maximum Series Fuse Rating [A]
20
Maximum Series Fuse Rating [A]
- 20
Mechanical Test Load (Front) [Pa/psf]
5,400/113
Mechanical Test Load (Front) [Pa/psf]
- 5,400/113
Mechanical Test Load (Rear) [Pa/psf]
4,000/84
Mechanical Test Load (Rear) [Pa/psf]
- 4,000/84
*
Manufacturer Declaration according to IEC 61215:2005 Mechanical Test Loads 5,400 Pa/4,000 Pa based on IEC 61215-2:2016 (Test Load = Design Load x Safety Factor (1.5))
*
- Manufacturer Declaration according to IEC 61215:2005 Mechanical Test Loads 5,400 Pa/4,000 Pa based on IEC 61215-2:2016 (Test Load = Design Load x Safety Factor (1.5))
Packaging Configuration
Number of Modules per Pallet [EA]
25
Number of Modules per Pallet [EA]
- 25
Number of Modules per 40ft HQ Container [EA]
650
Number of Modules per 40ft HQ Container [EA]
- 650
Packaging Box Dimensions (L x W x H) [mm]
1,750 x 1,120 x 1,221
Packaging Box Dimensions (L x W x H) [mm]
- 1,750 x 1,120 x 1,221
Packaging Box Gross Weight [kg]
464
Packaging Box Gross Weight [kg]
- 464
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
The Misc 335W Neon® R Prime High Efficiency Solar Panel For Home, made by LG Appliances,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
