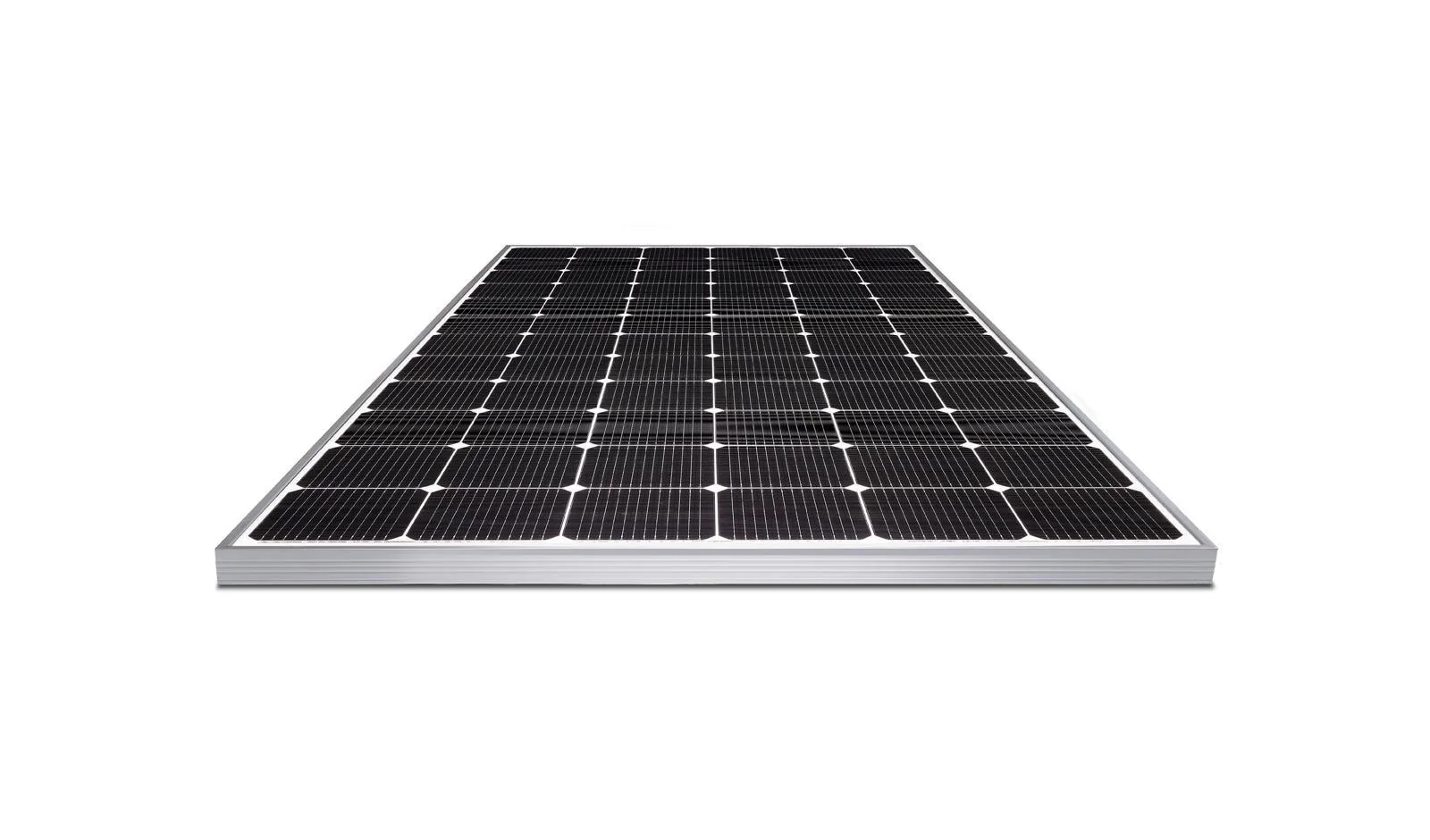

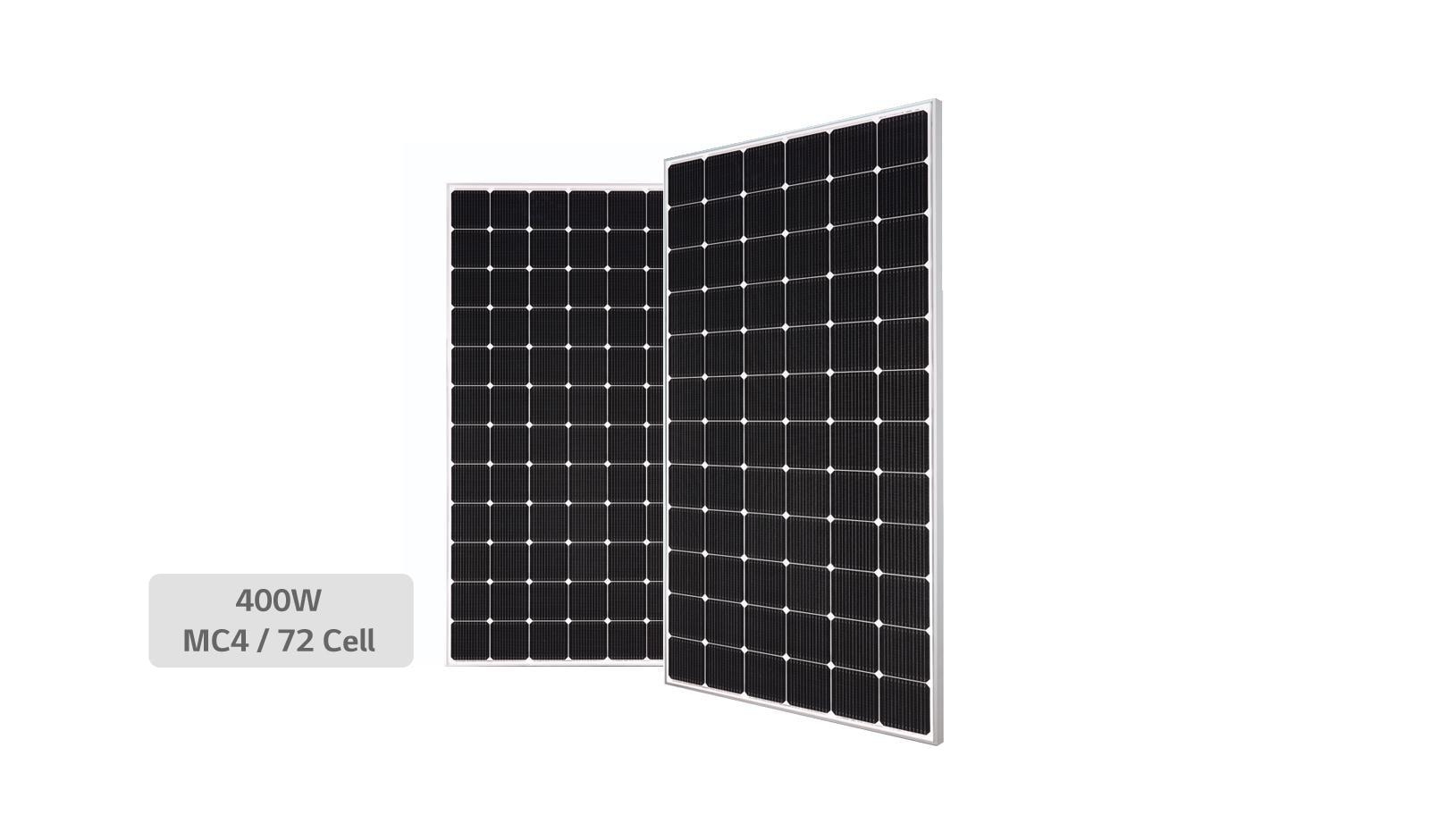

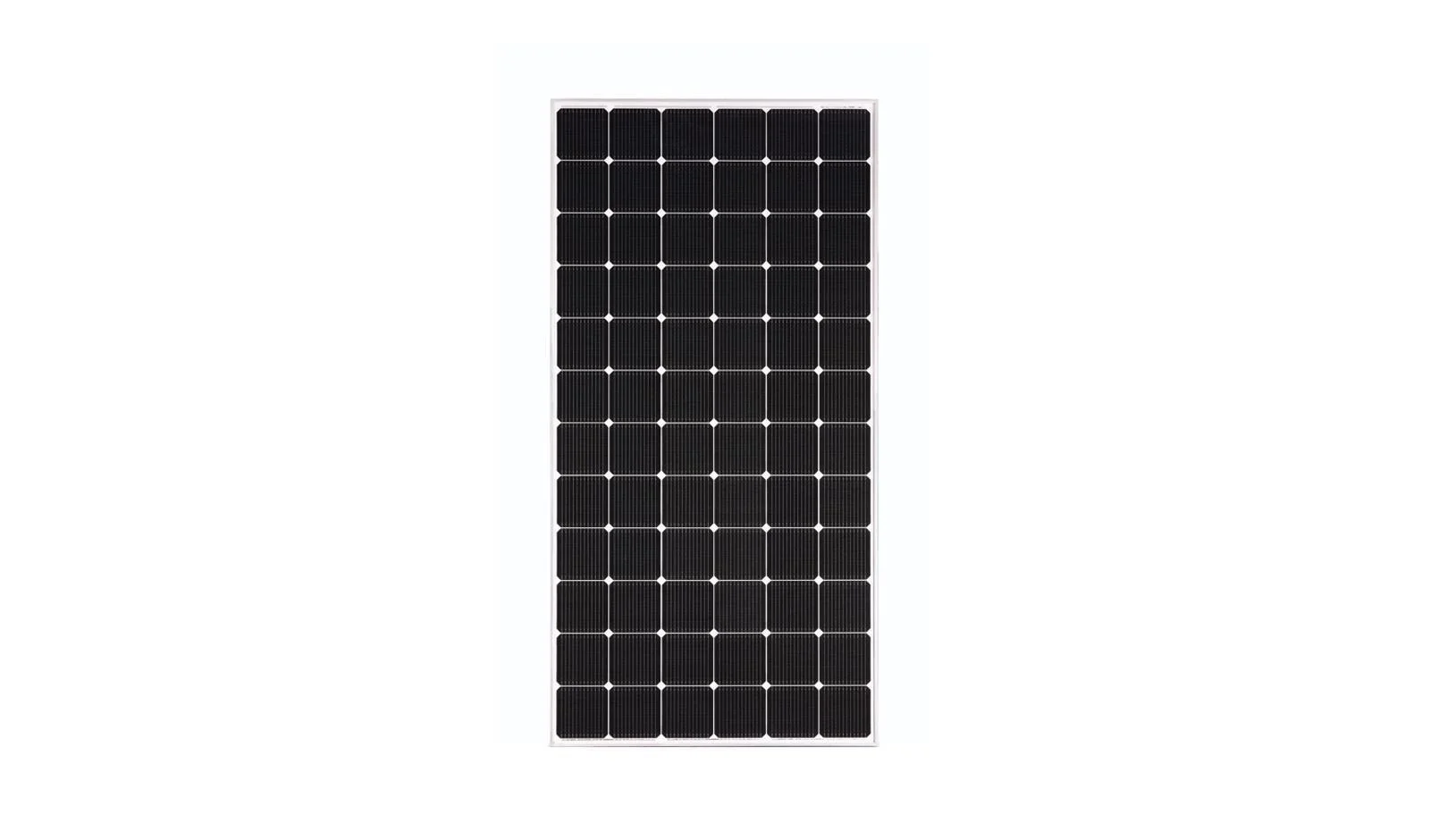

High Efficiency Lg Neon® 2 72Cell Module Cells: 6 X 12 Module Efficiency 19.3% Connector Type: Mc4
SKU: LG400N2WA5
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Dimensions:
40.0" W
×
66.38" D
×
1.57" H
Description
- High Power Output
- Roof Aesthetics
- Enhanced Performance Warranty
Rebates
view available rebates
High Efficiency Lg Neon® 2 72Cell Module Cells: 6 X 12 Module Efficiency 19.3% Connector Type: Mc4
Misc Collection
Specifications
Specifications
Dimensions
Height (bottom to top)
1.57" H
Height (bottom to top)
- 1.57" H
Width (side to side)
40.0" W
Width (side to side)
- 40.0" W
Depth (front to back)
66.38" D
Depth (front to back)
- 66.38" D
Features
High Power Output, Roof Aesthetics, Enhanced Performance Warranty
- High Power Output
- Roof Aesthetics
- Enhanced Performance Warranty
CERTIFICATIONS & WARRANTY
Certifications
IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt mist corrosion t est), IEC 62716 (Ammonia corrosion test), ISO 9001
Certifications
- IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt mist corrosion t est), IEC 62716 (Ammonia corrosion test), ISO 9001
Module Fire Performance
Type 1
Module Fire Performance
- Type 1
Product Warranty
25 years
Product Warranty
- 25 years
Output Warranty of Pmax
Linear warranty**
Output Warranty of Pmax
- Linear warranty**
**
1) 1 st year : 98%, 2) After 1st year : 0.5% annual degradation, 3) 25 years : 86%
**
- 1) 1 st year : 98%, 2) After 1st year : 0.5% annual degradation, 3) 25 years : 86%
Fire Rating (for CANADA)
Class C (ULC/ORD C1703)
Fire Rating (for CANADA)
- Class C (ULC/ORD C1703)
ELECTRICAL PROPERTIES(NOCT*)
Maximum Power(Pmax)
293
Maximum Power(Pmax)
- 293
MPP Voltage (Vmpp)
37.2
MPP Voltage (Vmpp)
- 37.2
MPP Current (Impp)
7.86
MPP Current (Impp)
- 7.86
Open Circuit Voltage (Voc)
46
Open Circuit Voltage (Voc)
- 46
Short Circuit Current (Isc)
8.38
Short Circuit Current (Isc)
- 8.38
*
NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
*
- NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
Electrical Properties (STC*)
MPP Voltage (Vmpp)
40.2
MPP Voltage (Vmpp)
- 40.2
MPP Current (Impp)
9.83
MPP Current (Impp)
- 9.83
Open Circuit Voltage (Voc)
49.2
Open Circuit Voltage (Voc)
- 49.2
Short Circuit Current (Isc)
10.43
Short Circuit Current (Isc)
- 10.43
Module Efficiency (%)
19.1
Module Efficiency (%)
- 19.1
Operating Temperature (°C)
-40 ~ +90
Operating Temperature (°C)
- -40 ~ +90
Maximum System Voltage (V)
1500
Maximum System Voltage (V)
- 1500
Maximum Series Fuse Rating (A)
20
Maximum Series Fuse Rating (A)
- 20
Power Tolerance (%)
0 ~ +3
Power Tolerance (%)
- 0 ~ +3
*
STC (Standard Test Condition): Irradiance 1,000 W/m , Ambient Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The Typical change in module efficiency at 200W/m in relation to 1000W/m2 is -2.0%.
*
- STC (Standard Test Condition): Irradiance 1,000 W/m , Ambient Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The Typical change in module efficiency at 200W/m in relation to 1000W/m2 is -2.0%.
Maximum Power (Pmax)
395
Maximum Power (Pmax)
- 395
MECHANICAL PROPERTIES
Cells
6 x 12
Cells
- 6 x 12
Cell vendor
LG
Cell vendor
- LG
Cell Type
Monocrystalline / N-type
Cell Type
- Monocrystalline / N-type
Cell Dimensions
161.7 x 161.7 mm / 6 inches
Cell Dimensions
- 161.7 x 161.7 mm / 6 inches
# of Busbar
12 (Multi Wire Busbar)
# of Busbar
- 12 (Multi Wire Busbar)
Dimensions (L x W x H)
2024 x 1024 x 40 mm / 79.69 x 40.31 x 1.57 inch
Dimensions (L x W x H)
- 2024 x 1024 x 40 mm / 79.69 x 40.31 x 1.57 inch
Front Load
5400 Pa
Front Load
- 5400 Pa
Rear Load
4300Pa
Rear Load
- 4300Pa
Weight
21.7 kg
Weight
- 21.7 kg
Connector Type
MC4
Connector Type
- MC4

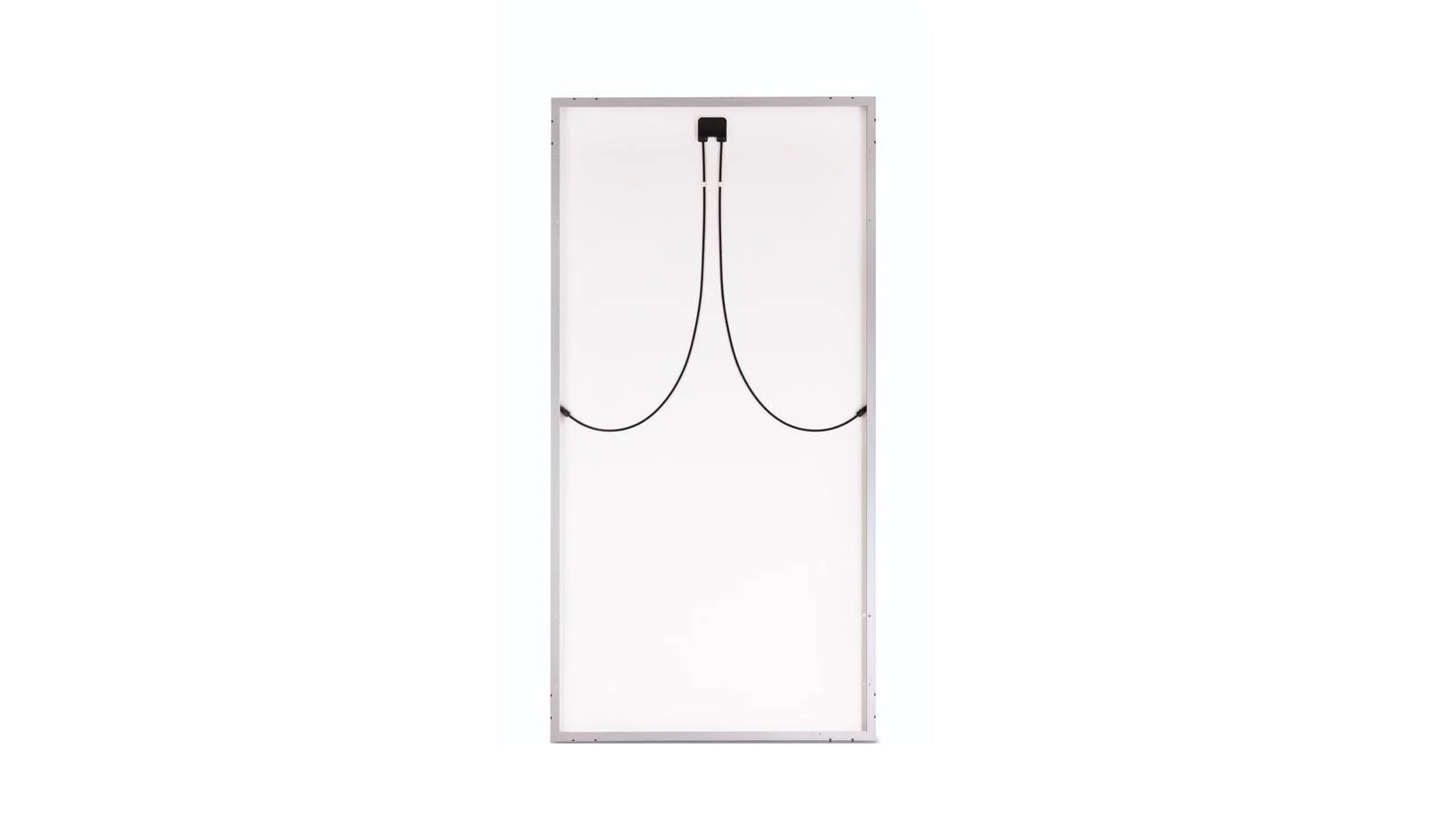

Junction Box
IP68 with 3 Bypass Diodes
Junction Box
- IP68 with 3 Bypass Diodes
Frame
Anodized aluminium
Frame
- Anodized aluminium
Glass
Tempered Glass with AR Coating
Glass
- Tempered Glass with AR Coating
Cables
1200 mm x 2 ea
Cables
- 1200 mm x 2 ea
Temperature Characteristics
NOCT
45 3 °C
NOCT
- 45 3 °C
Pmpp
-0.36%/°C
Pmpp
- -0.36%/°C
Voc
-0.26%/°C
Voc
- -0.26%/°C
Isc
0.02 %/°C
Isc
- 0.02 %/°C
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
The Misc High Efficiency Lg Neon® 2 72Cell Module Cells: 6 X 12 Module Efficiency 19.3% Connector Type: Mc4, made by LG Appliances,
