Description
- Raw Image in 1.5 sec.(Wired) / 2 sec.(Wireless)
- 16bit A/D conversion
- IP68, Magnesium & Carbon-fiber Body
- Max. Uniform Load : 400kg / Max. Point Load : 200kg
- 140 pixel size
Rebates
view available rebates

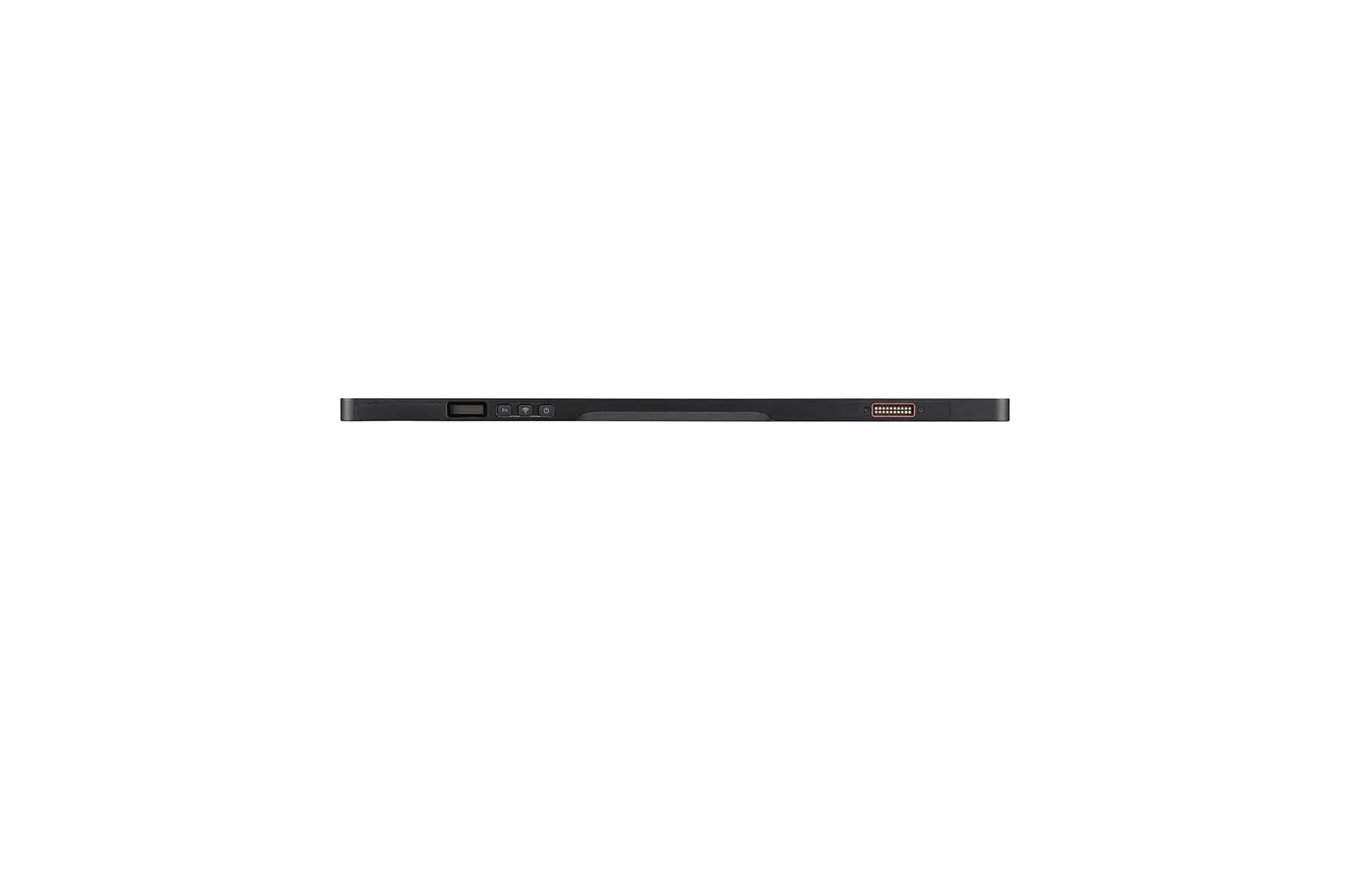

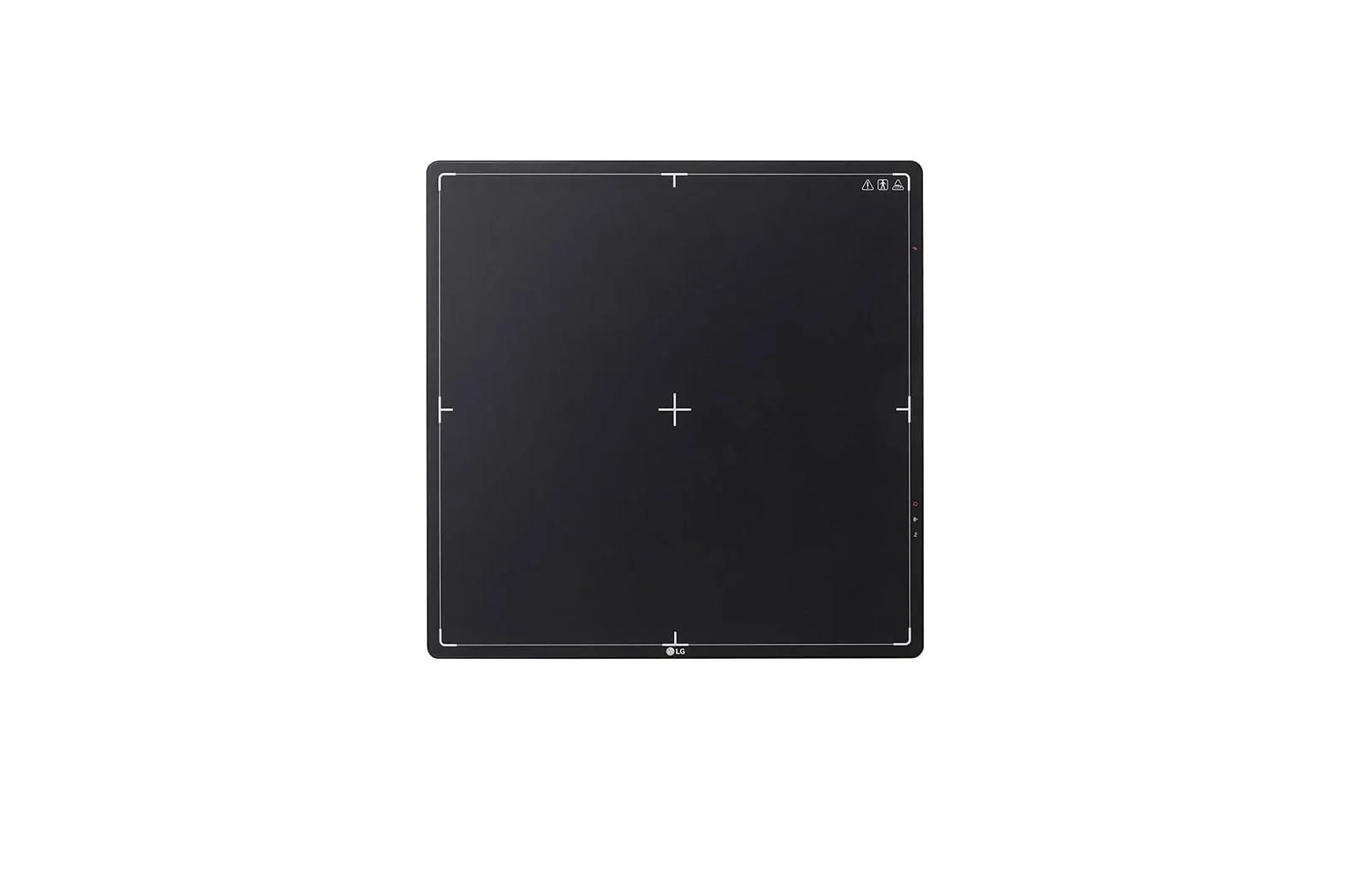

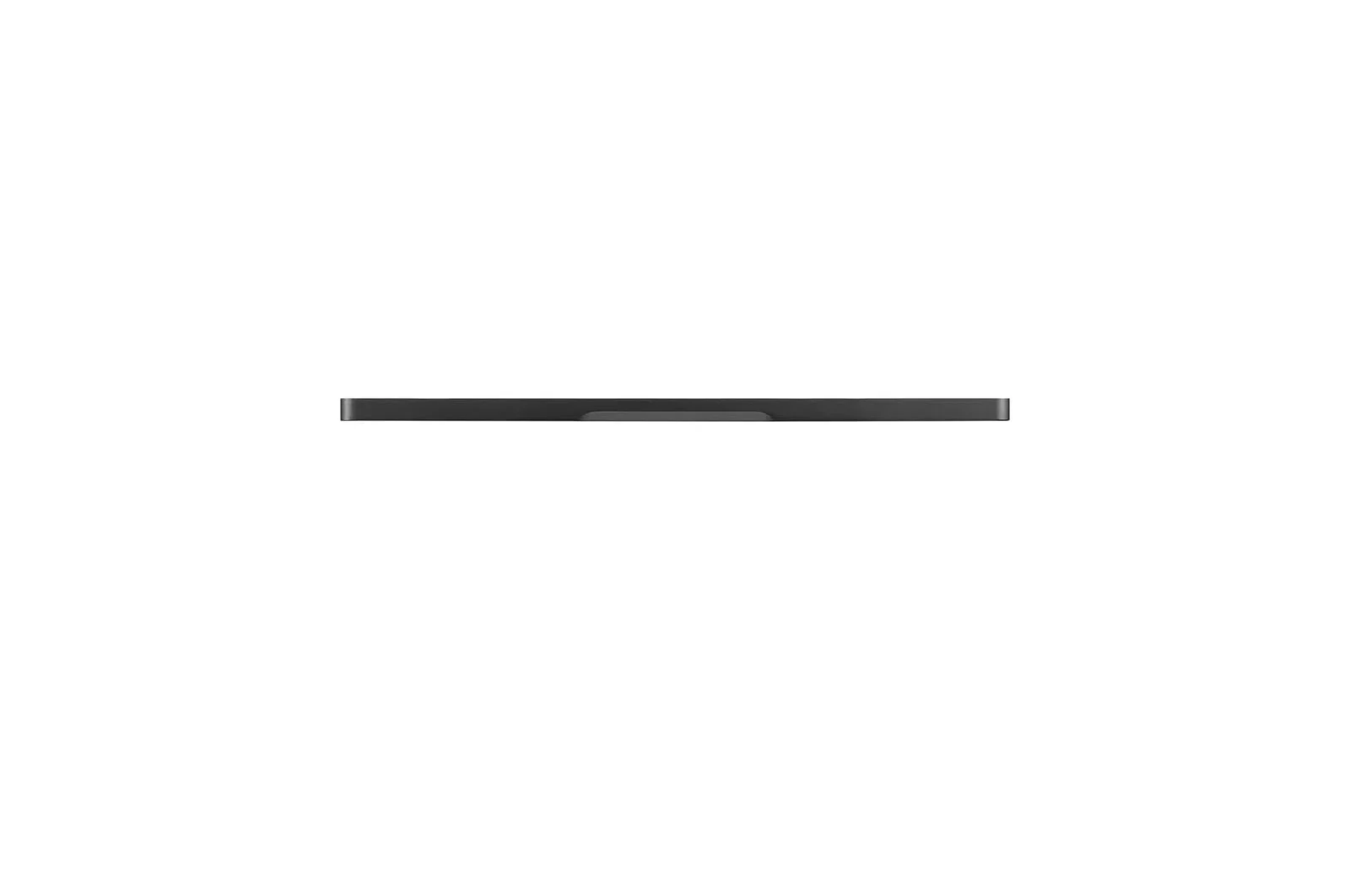

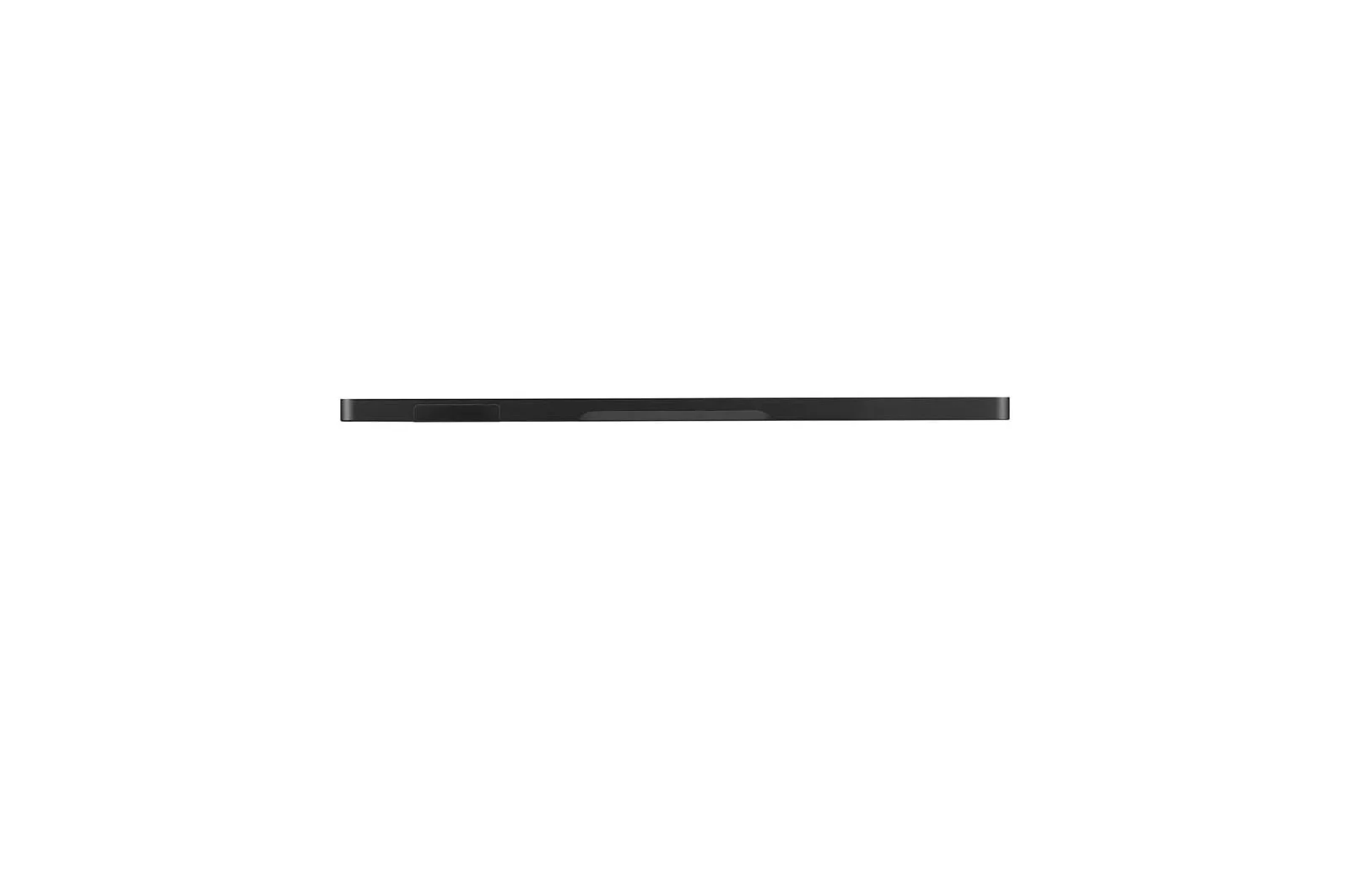

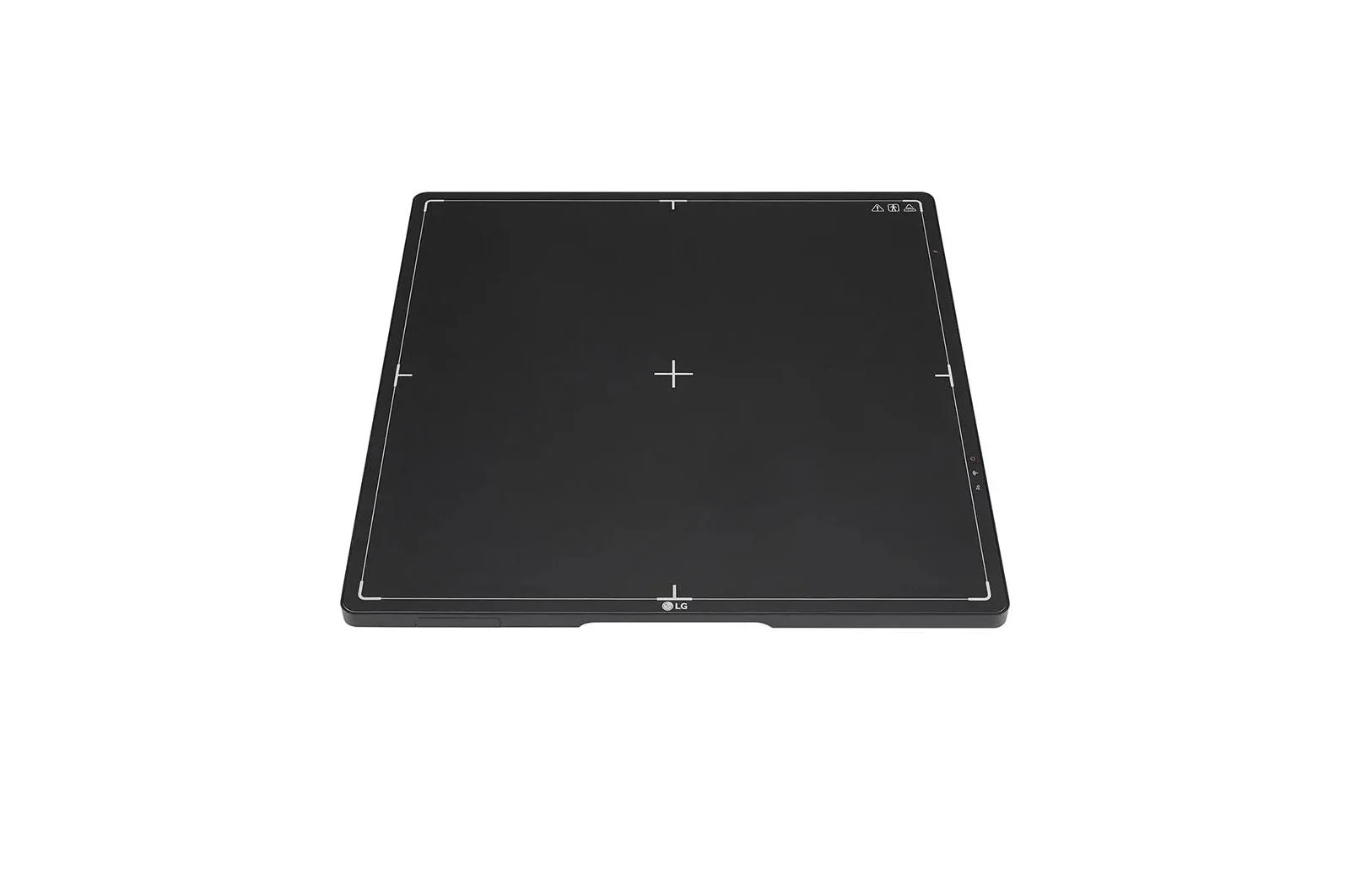

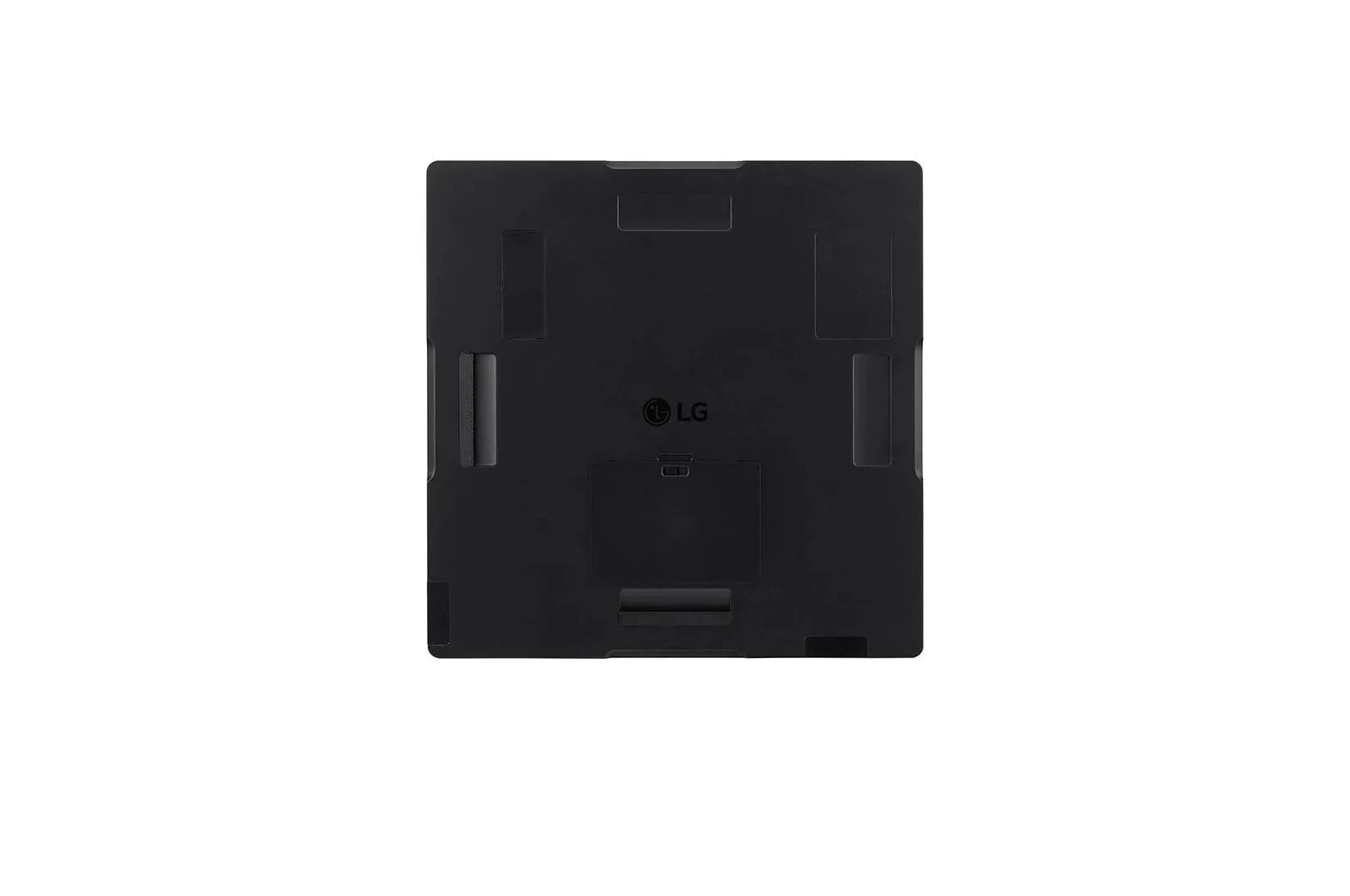

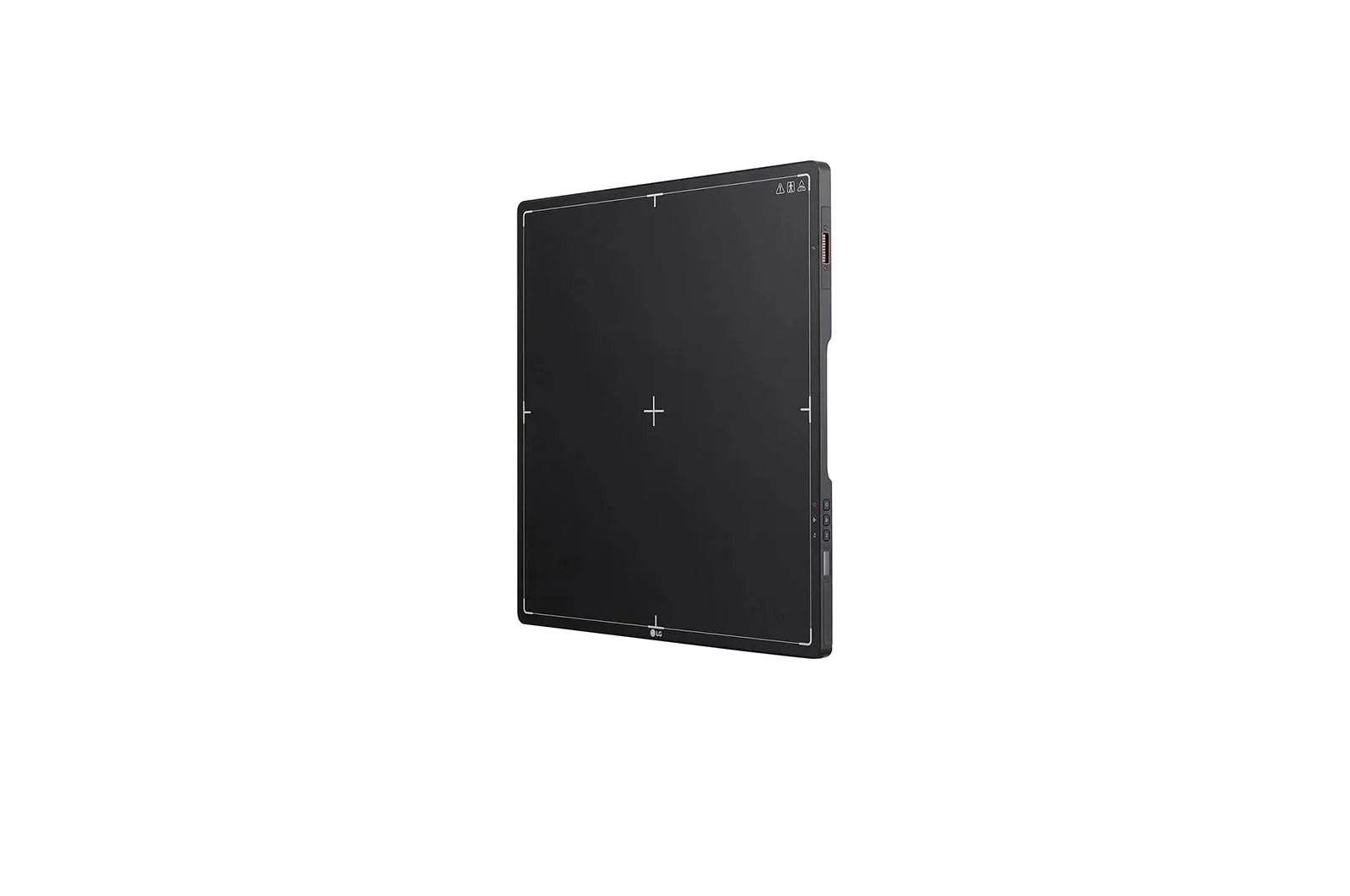

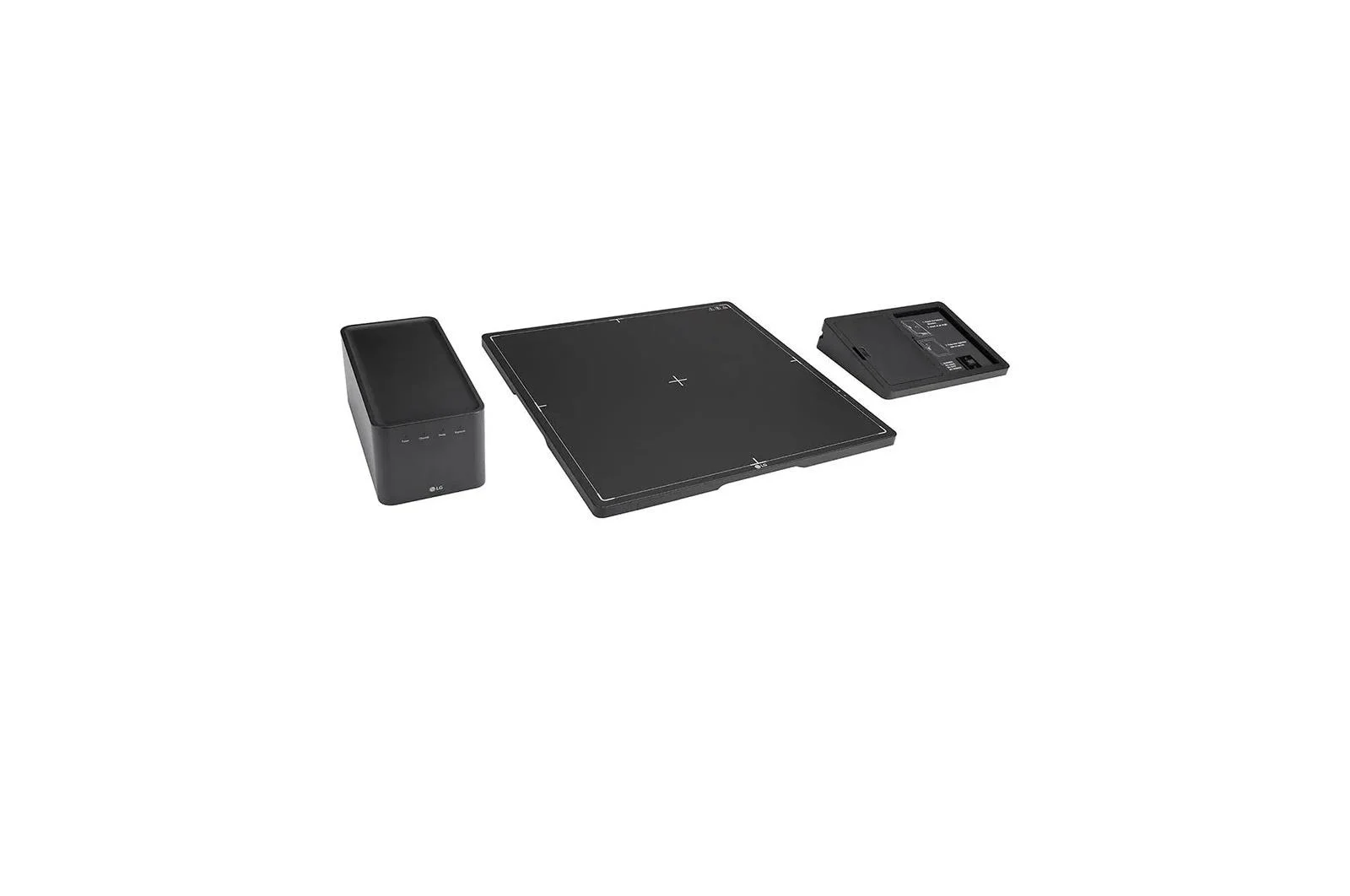

Lg Digital X-Ray Detector With A-Si Tft
Misc Collection
Specifications
Specifications
Features
Raw Image in 1.5 sec.(Wired) / 2 sec.(Wireless), 16bit A/D conversion, IP68, Magnesium & Carbon-fiber Body, Max. Uniform Load : 400kg / Max. Point Load : 200kg, 140 pixel size
- Raw Image in 1.5 sec.(Wired) / 2 sec.(Wireless)
- 16bit A/D conversion
- IP68, Magnesium & Carbon-fiber Body
- Max. Uniform Load : 400kg / Max. Point Load : 200kg
- 140 pixel size
Specification
Intended Use
General Radiography
Intended Use
- General Radiography
TFT Type
A-si
TFT Type
- A-si
Scintillator
CsI
Scintillator
- CsI
Pixel Pitch
140
Pixel Pitch
- 140
A/D Conversion
16bit
A/D Conversion
- 16bit
Data Output
16bit
Data Output
- 16bit
Cycle Time
4.5 sec (Wired) / 5 sec (Wireless)
Cycle Time
- 4.5 sec (Wired) / 5 sec (Wireless)
Full Image Transfer (Typical) *Without window time
1.5 sec (Wired) / 2.5 sec (Wireless)
Full Image Transfer (Typical) *Without window time
- 1.5 sec (Wired) / 2.5 sec (Wireless)
FDA 510(k) Clearance
K221434
FDA 510(k) Clearance
- K221434
Image Area
Number of Pixels
3072 x 3072 pixels
Number of Pixels
- 3072 x 3072 pixels
TFT Active Area
430.08 x 430.08 mm
TFT Active Area
- 430.08 x 430.08 mm
MTF
MTF @ 0.5lp/mm (Typical)
84%
MTF @ 0.5lp/mm (Typical)
- 84%
COMMUNICATION
Type
Wired / Wireless
Type
- Wired / Wireless
WLAN
IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
WLAN
- IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
Auto Exposure Detection
Yes
Auto Exposure Detection
- Yes
DURABILITY
Maximum Load Weight
Full (Uniform Load) : 400 kg (881.8 lbs) , Local (Point Load) : 200 kg (440.9 lbs)
Maximum Load Weight
- Full (Uniform Load) : 400 kg (881.8 lbs) , Local (Point Load) : 200 kg (440.9 lbs)
Water-Resistant
IP68
Water-Resistant
- IP68
Sensor Protection Plate
Carbon Fiber Plate
Sensor Protection Plate
- Carbon Fiber Plate
BATTERY
Operating Time
300 shots / 7.5 hrs (Typical) (Condition : Cycle Time 90 sec)
Operating Time
- 300 shots / 7.5 hrs (Typical) (Condition : Cycle Time 90 sec)
Charging Time
3 hrs (Type)
Charging Time
- 3 hrs (Type)
Hot Swap
Yes (1 Min)
Hot Swap
- Yes (1 Min)
ACCESSORIES
Cable
Power Cord, Main Cable 7 m (LAN Cable, Sync Cable Option)
Cable
- Power Cord, Main Cable 7 m (LAN Cable, Sync Cable Option)

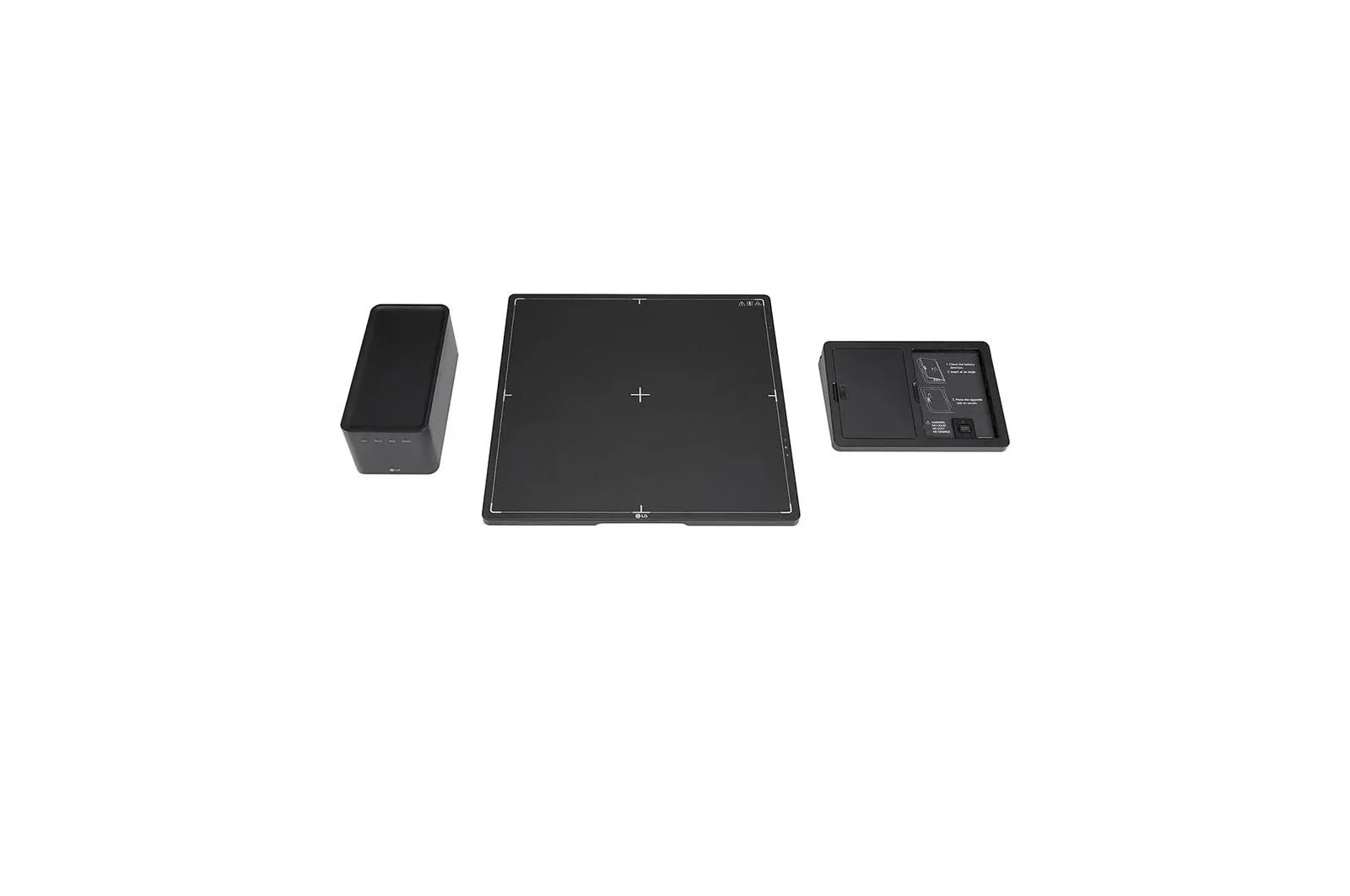

Other
Battery Charger, 2 x Battery Packs,
Other
- Battery Charger, 2 x Battery Packs,
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
The Misc Lg Digital X-Ray Detector With A-Si Tft, made by LG Appliances,
