Description
Superior Image Quality
LG DXD guarantees high resolution and clear image quality without image distortion through 16bit image processing. Plus, it also supports ideal pixel pitches of 140 for high resolution images.
IP53: Water and Dust Resistant
IP53 resistance rating* ensures that LG DXD will be partially protected against dust that may harm the equipment and moisture spray up to 60 degrees from vertical.
Magnesium & Carbon-fiber Body
With a super strong body that combines carbon-fiber with magnesium, LG DXD is not only lightweight, but also exceptionally strong.
Rapid Image Availability
LG DXD increases productivity with a fast-processing. It takes only 2 seconds to get a raw image.
LG DXD guarantees high resolution and clear image quality without image distortion through 16bit image processing. Plus, it also supports ideal pixel pitches of 140 for high resolution images.
IP53: Water and Dust Resistant
IP53 resistance rating* ensures that LG DXD will be partially protected against dust that may harm the equipment and moisture spray up to 60 degrees from vertical.
Magnesium & Carbon-fiber Body
With a super strong body that combines carbon-fiber with magnesium, LG DXD is not only lightweight, but also exceptionally strong.
Rapid Image Availability
LG DXD increases productivity with a fast-processing. It takes only 2 seconds to get a raw image.
- Highly sensitive Csl AED detector (16 bit A/D conversion)
- Raw image in 2 sec. (wired)
- IP53: Water and Dust Resistant
- Light yet durable carbon-fiber housing
Rebates
view available rebates

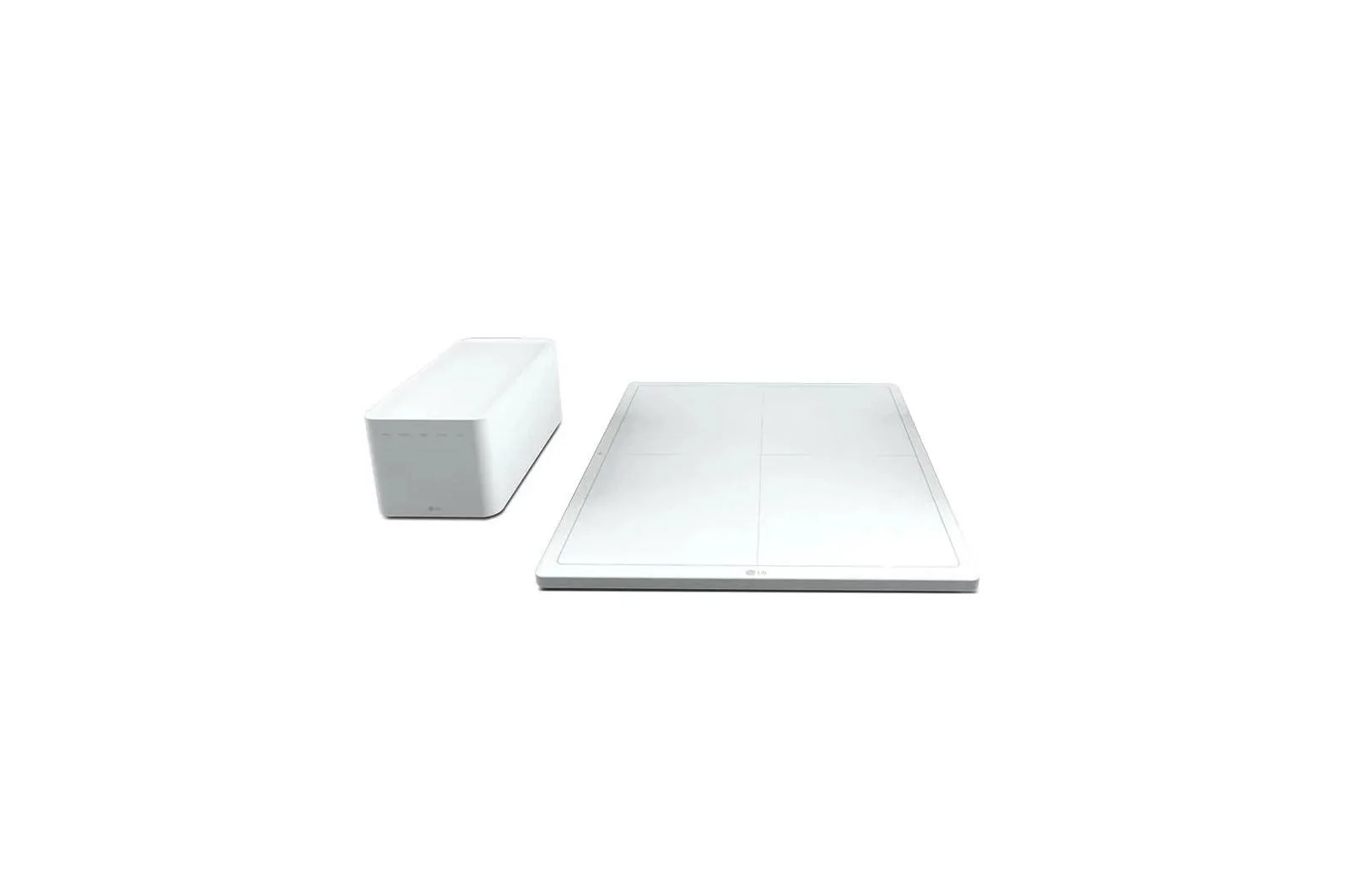

Wired Digital X-Ray Detector
Misc Collection
Specifications
Specifications
Features
Highly sensitive Csl AED detector (16 bit A/D conversion), Raw image in 2 sec. (wired), IP53: Water and Dust Resistant, Light yet durable carbon-fiber housing
- Highly sensitive Csl AED detector (16 bit A/D conversion)
- Raw image in 2 sec. (wired)
- IP53: Water and Dust Resistant
- Light yet durable carbon-fiber housing
PANEL
Size
17" x 17" x 0.61"
Size
- 17" x 17" x 0.61"
Panel Type
General Radiography
Panel Type
- General Radiography
Scintillator
Csl
Scintillator
- Csl
Pixel Size
140 m
Pixel Size
- 140 m
X-ray Sensitive Area (pixels)
3,072 x 3,072
X-ray Sensitive Area (pixels)
- 3,072 x 3,072
X-ray Sensitive Area (inches)
16.9" x 16.9"
X-ray Sensitive Area (inches)
- 16.9" x 16.9"
MTF @ 0.5 lp/mm
89% (Typ)
MTF @ 0.5 lp/mm
- 89% (Typ)
DQE @ 0.1 lp/mm
72% (Typ)
DQE @ 0.1 lp/mm
- 72% (Typ)
COMMUNICATION
A/D Conversion
16 bit
A/D Conversion
- 16 bit
Data Output
16 bit
Data Output
- 16 bit
Communication Method
Wired
Communication Method
- Wired
Total Cycle Time
8 seconds
Total Cycle Time
- 8 seconds
AED (Auto Exposure Detection)
Supported
AED (Auto Exposure Detection)
- Supported
Raw Image Time
2 sec
Raw Image Time
- 2 sec
DURABILITY
Resistance Rating
IP53 rated
Resistance Rating
- IP53 rated
Sensor Protection Plate
Carbon Fiber
Sensor Protection Plate
- Carbon Fiber
Maximum Load Weight
Full (Uniform Load) : 300kg Local (Point Load) : 100kg
Maximum Load Weight
- Full (Uniform Load) : 300kg Local (Point Load) : 100kg
