Lbae Studio Series Wall Direct View Led With Webos™

CamSync
Prevent the flow of black lines by adjusting the LED display's V-Sync to match the frequency between the camera and Direct View LED. This can reduce a rolling shutter effect while the camera is shooting.
Phase Shift
can make adjustments to the Direct View LED screen output timing. The Direct View LED screen can adjust timing manually to remove visual artefacts with Phase Shift if the camera recording results have caused a double image (double frame).
Detailed Analysis of Video Signals
The LBAE series analyzes video input of Y', Y'-Cb, and Y'Cr and shows Waveform and Vector Scope on LED tiles. False Color, Waveform, and Vector Scope for more video details or adjustments can be read on a display.
Color Gamut Adjustment
The RGB color gamut can be manually adjusted to match colors between LED tiles and camera to achieve desired colors.
Gamma Adjustment
Gamma adjustment can be made manually from 0 to 1023 to calibrate RGB and fix errors.
Custom 3D-LUT
With LED displays supporting customized 3D-LUT, users can achieve their desired colors.
HDR Manual Adjustment
Although HDR metadata is not transferred from recorded video, tone-mapping can be made with this HDR manual adjustment feature.
Easy Installation & Maintenance

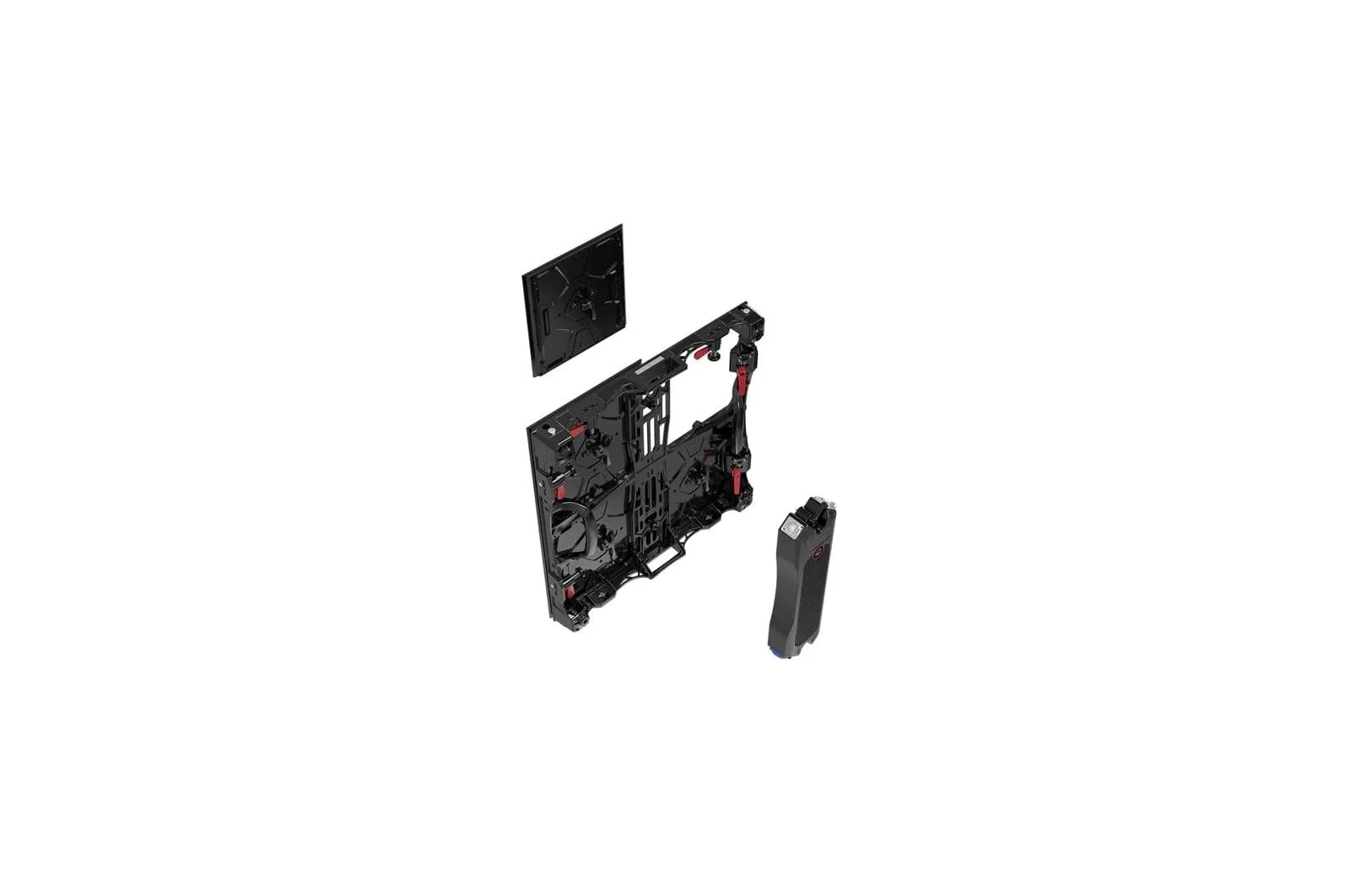

The module can be easily removed using the dedicated tool (with front or rear selective service access). The positioning pins and magnets help perform panel adjustments accurately and quickly, ensuring seamless screen assembly.
Curve Effect Available
The mechanical connection between the two panels is secured by an angle adapter system and a fast lock, adjustable by 10 degrees in concave areas and 5 degrees in convex areas.
*Image simulation for illustration purposes only.

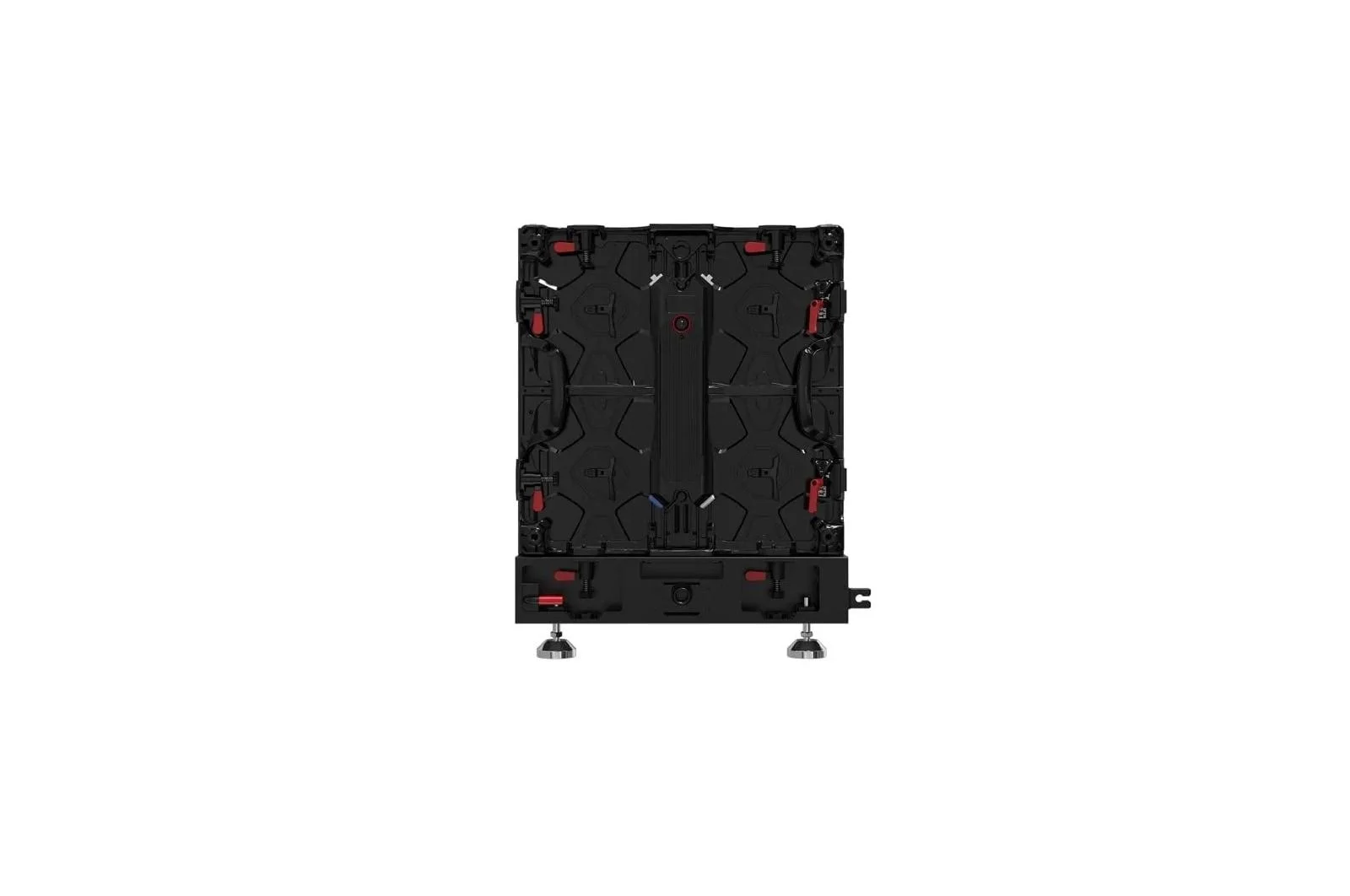

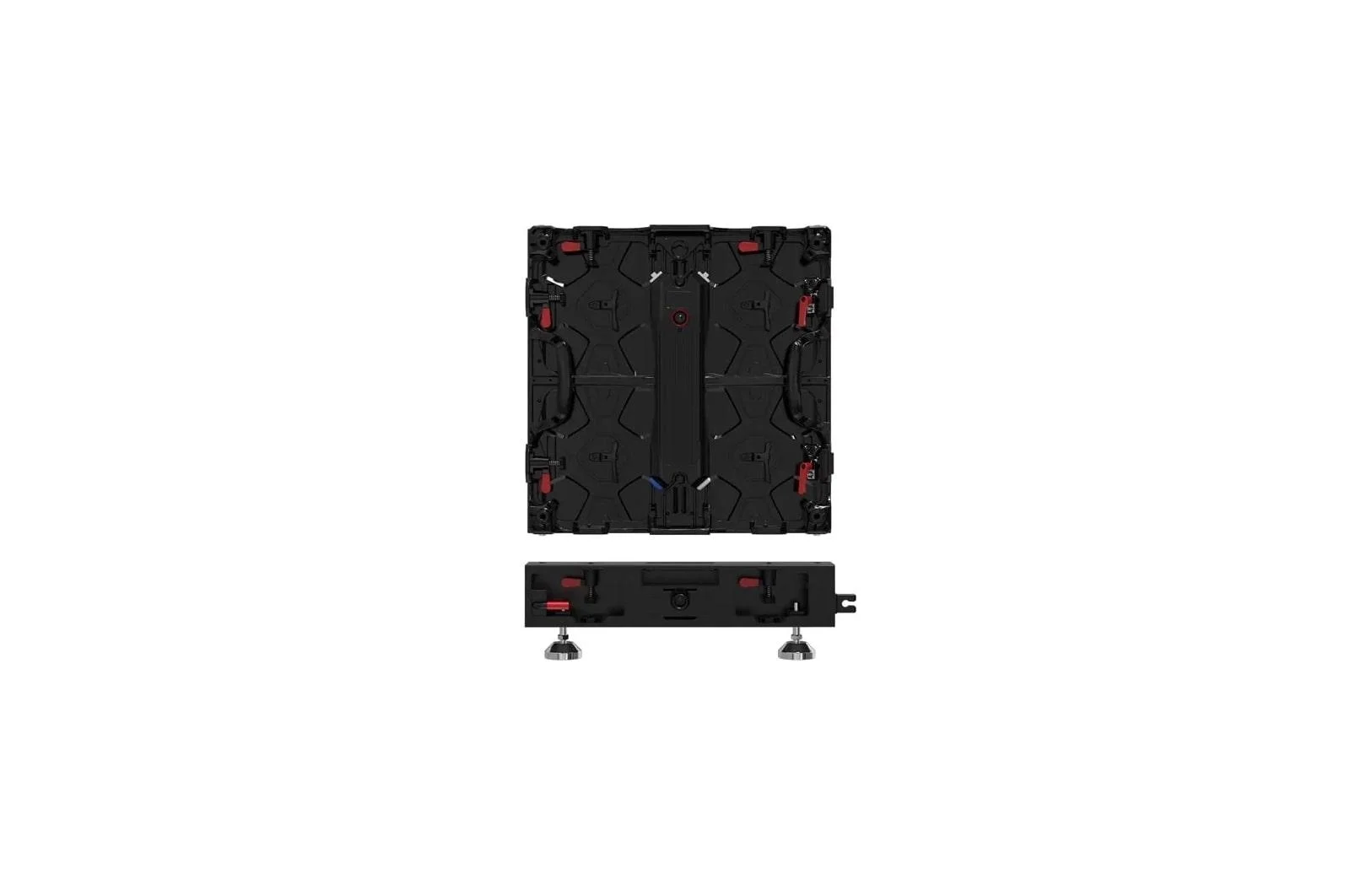

Stacking & Hanging System Available
Installation can be performed by stacking or hanging, using the optional accessories (single, double, triple beams) for customization to the studio environment.
Create a Broadcast Quality Screen
With pinpoint color reproduction, low latency of video processing, and HDR capability.
Broadcast VP Controller
LBAE series is compatible with the CBAE controller, and the CBAE controller's SDI and Genlock (in/out) interfaces support unique features of broadcast and virtual production.
Compatibility with LG Software Solutions
Powered by LG's high performance system controller, the LBAE series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details. *The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power) *Actual GUI may vary in different webOS versions.
