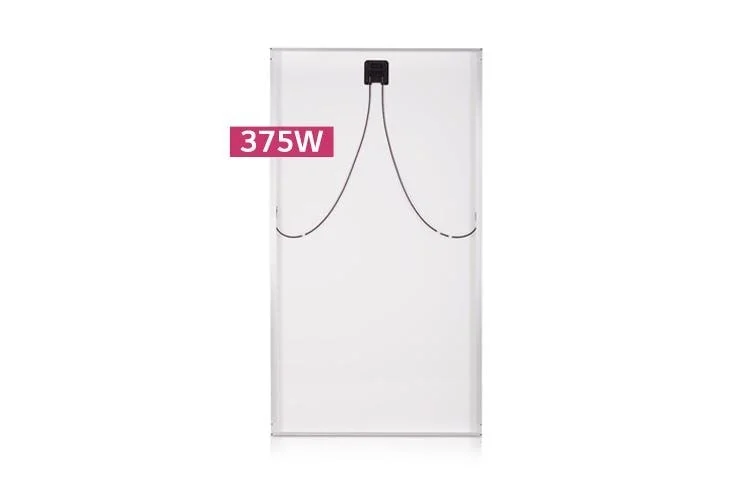

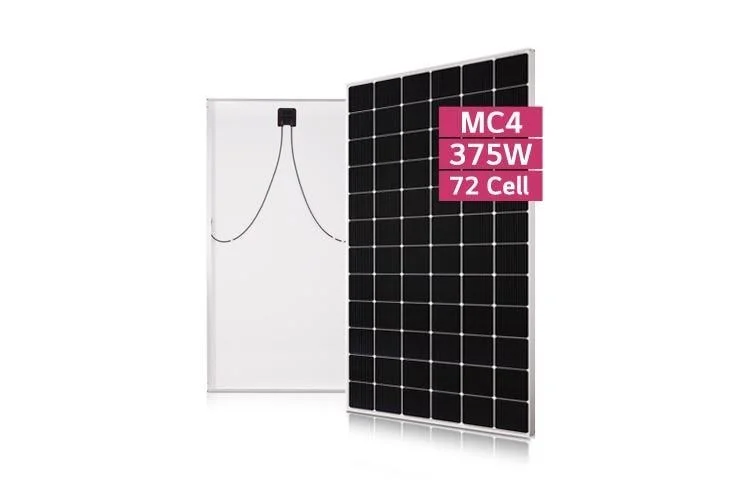

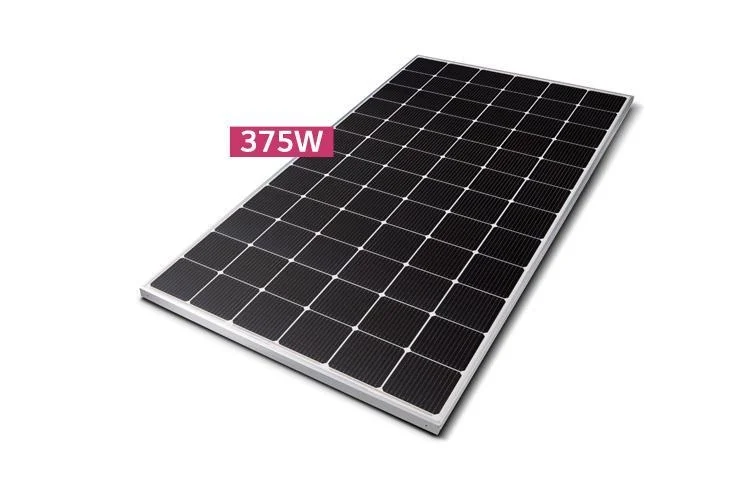

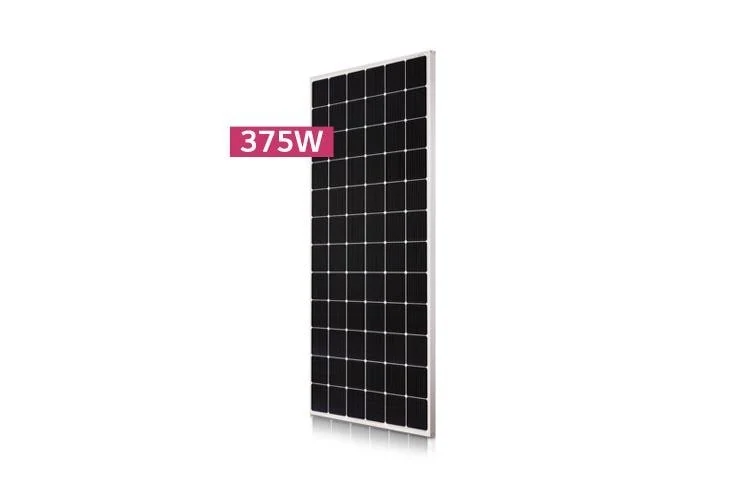

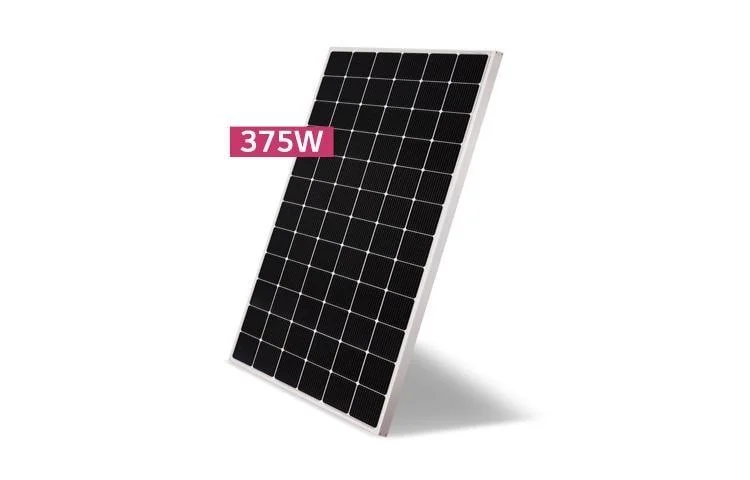

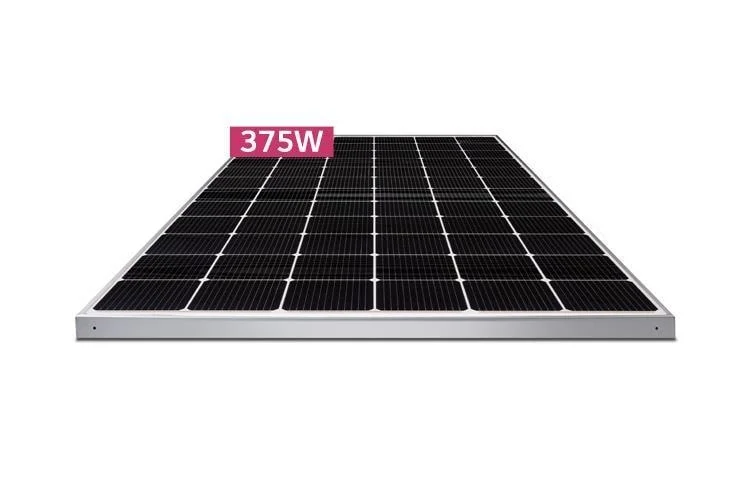

High Efficiency Lg Neon®2 72Cell Module Cells: 6 X 12 Module Efficiency 19.1% Connector Type: Mc4
SKU: LG375N2WG4
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
- High Power Output
- Improved Product Warranty
- Enhanced Performance Warranty
Rebates
view available rebates
High Efficiency Lg Neon®2 72Cell Module Cells: 6 X 12 Module Efficiency 19.1% Connector Type: Mc4
Misc Collection
Specifications
Specifications
Features
High Power Output, Improved Product Warranty, Enhanced Performance Warranty
- High Power Output
- Improved Product Warranty
- Enhanced Performance Warranty
CERTIFICATIONS & WARRANTY
Certifications
IEC 61215, IEC 61730-1/-2 UL1703 IEC 61701 (Salt corrosion test)* IEC 62716 (Ammonia corrosion test)*,ISO 9001
Certifications
- IEC 61215, IEC 61730-1/-2 UL1703 IEC 61701 (Salt corrosion test)* IEC 62716 (Ammonia corrosion test)*,ISO 9001
Module Fire Performance
Type 2
Module Fire Performance
- Type 2
Fire Resistance Class
Class C
Fire Resistance Class
- Class C
Product Warranty
12 years
Product Warranty
- 12 years
Output Warranty of Pmax
Linear warranty**
Output Warranty of Pmax
- Linear warranty**
*
in progress
*
- in progress
**
1) 1st year: 98%, 2) After 2nd year: 0.6%p annual degradation, 3) 83.6% for 25 years
**
- 1) 1st year: 98%, 2) After 2nd year: 0.6%p annual degradation, 3) 83.6% for 25 years
ELECTRICAL PROPERTIES(NOCT*)
Maximum Power(Pmax)
277
Maximum Power(Pmax)
- 277
MPP Voltage (Vmpp)
36.6
MPP Voltage (Vmpp)
- 36.6
MPP Current (Impp)
7.57
MPP Current (Impp)
- 7.57
Open Circuit Voltage (Voc)
45
Open Circuit Voltage (Voc)
- 45
Short Circuit Current (Isc)
8.08
Short Circuit Current (Isc)
- 8.08
*
NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
*
- NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
Electrical Properties (STC*)
MPP Voltage (Vmpp)
39.6
MPP Voltage (Vmpp)
- 39.6
MPP Current (Impp)
9.5
MPP Current (Impp)
- 9.5
Open Circuit Voltage (Voc)
48.3
Open Circuit Voltage (Voc)
- 48.3
Short Circuit Current (Isc)
10.04
Short Circuit Current (Isc)
- 10.04
Module Efficiency (%)
19.1
Module Efficiency (%)
- 19.1
Operating Temperature (°C)
-40 ~ +90
Operating Temperature (°C)
- -40 ~ +90
Maximum System Voltage (V)
1000
Maximum System Voltage (V)
- 1000
Maximum Series Fuse Rating (A)
20
Maximum Series Fuse Rating (A)
- 20
Power Tolerance (%)
0 ~ +3
Power Tolerance (%)
- 0 ~ +3
*
STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.
*
- STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.
MECHANICAL PROPERTIES
Cells
6 x 12
Cells
- 6 x 12
Cell vendor
LG
Cell vendor
- LG
Cell Type
Monocrystalline / N-type
Cell Type
- Monocrystalline / N-type
Cell Dimensions
156.75 x 156.75 mm / 6 inches
Cell Dimensions
- 156.75 x 156.75 mm / 6 inches
# of Busbar
12 (Multi Wire Busbar)
# of Busbar
- 12 (Multi Wire Busbar)
Dimensions (L x W x H)
1960 x 1000 x 46 mm
Dimensions (L x W x H)
- 1960 x 1000 x 46 mm
Front Load
5400 Pa
Front Load
- 5400 Pa
Rear Load
2400 Pa
Rear Load
- 2400 Pa
Weight
20.3 0.5 kg
Weight
- 20.3 0.5 kg
Connector Type
MC4
Connector Type
- MC4
Junction Box
IP 67 with 3 bypass diodes
Junction Box
- IP 67 with 3 bypass diodes
Length of Cables
1200 mm x 2 ea
Length of Cables
- 1200 mm x 2 ea
Frame
Anodized aluminium
Frame
- Anodized aluminium
Glass
Tempered Glass with AR Coating
Glass
- Tempered Glass with AR Coating
Temperature Characteristics
NOCT
45 3 °C
NOCT
- 45 3 °C
Pmpp
-0.38 %/°C
Pmpp
- -0.38 %/°C
Voc
-0.28 %/°C
Voc
- -0.28 %/°C
Isc
0.03 %/°C
Isc
- 0.03 %/°C
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
