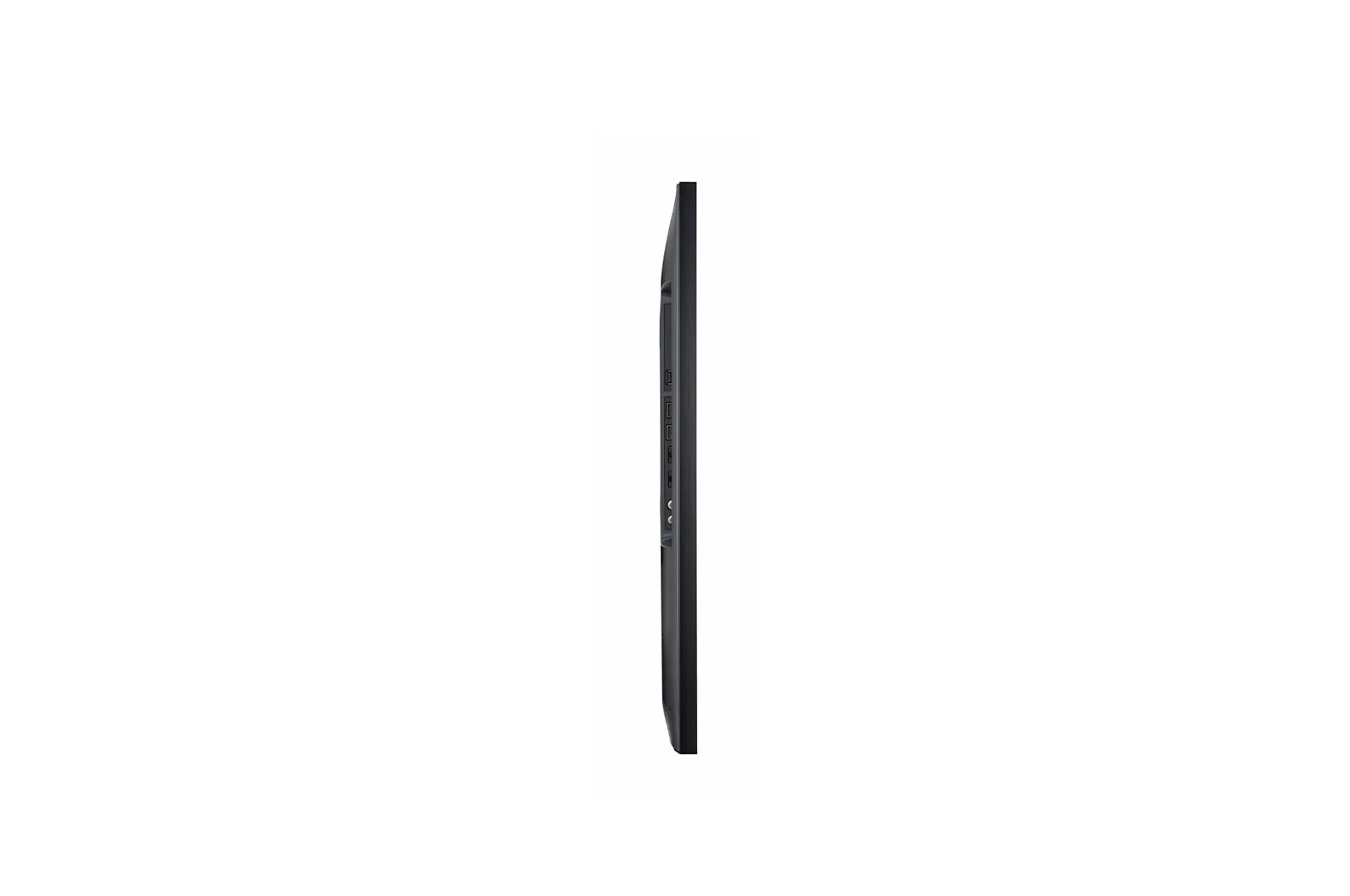

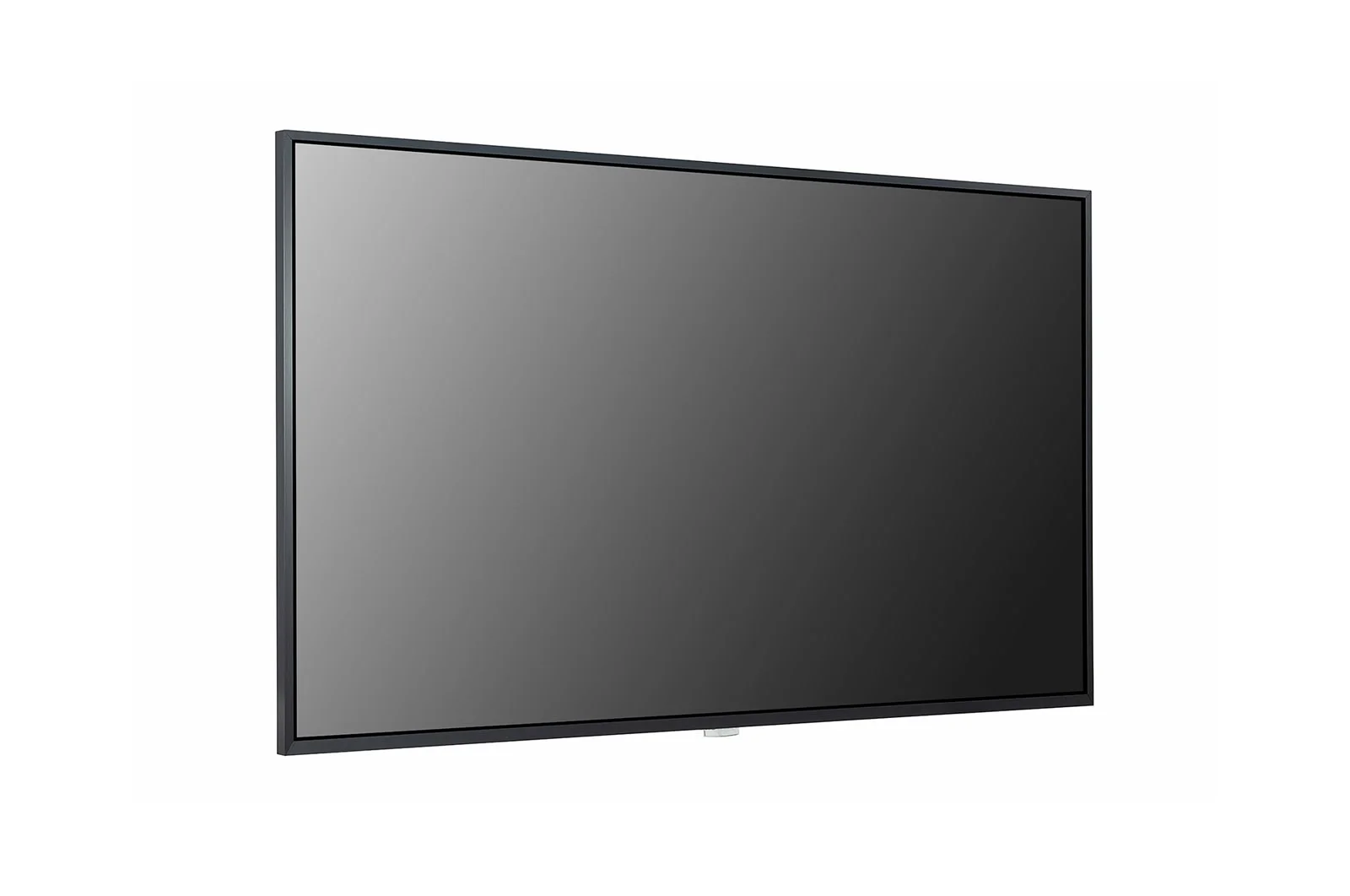

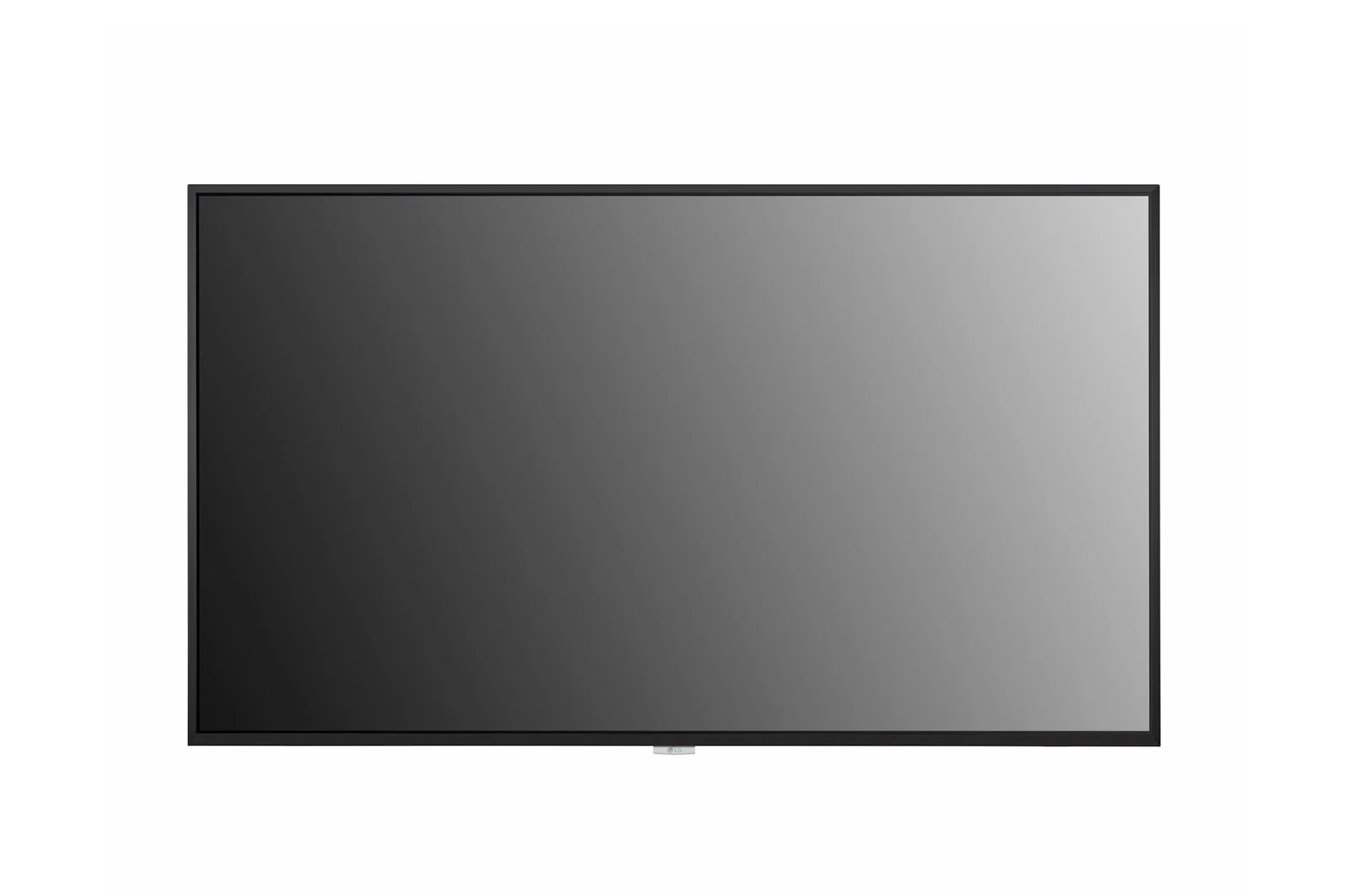

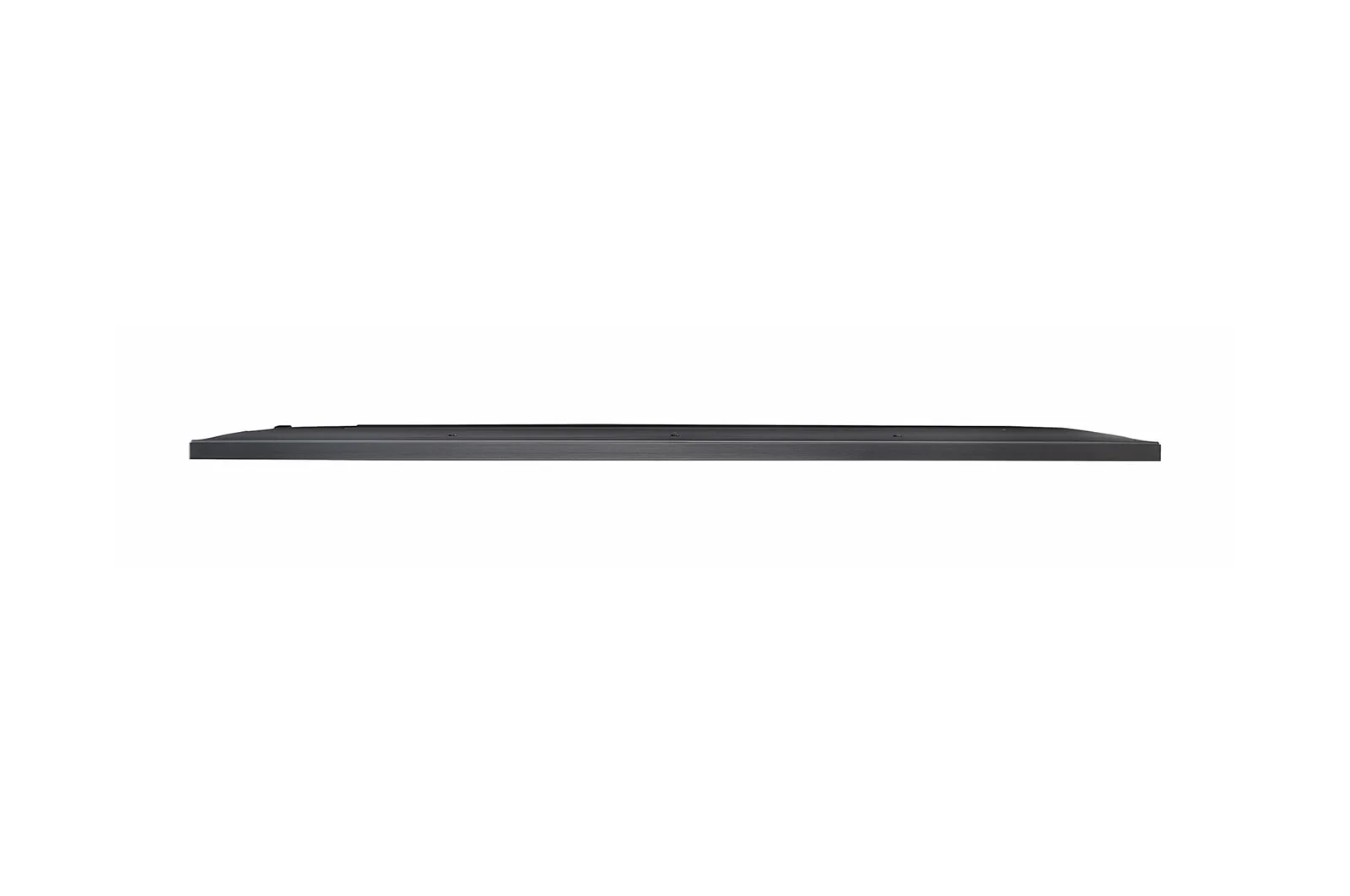

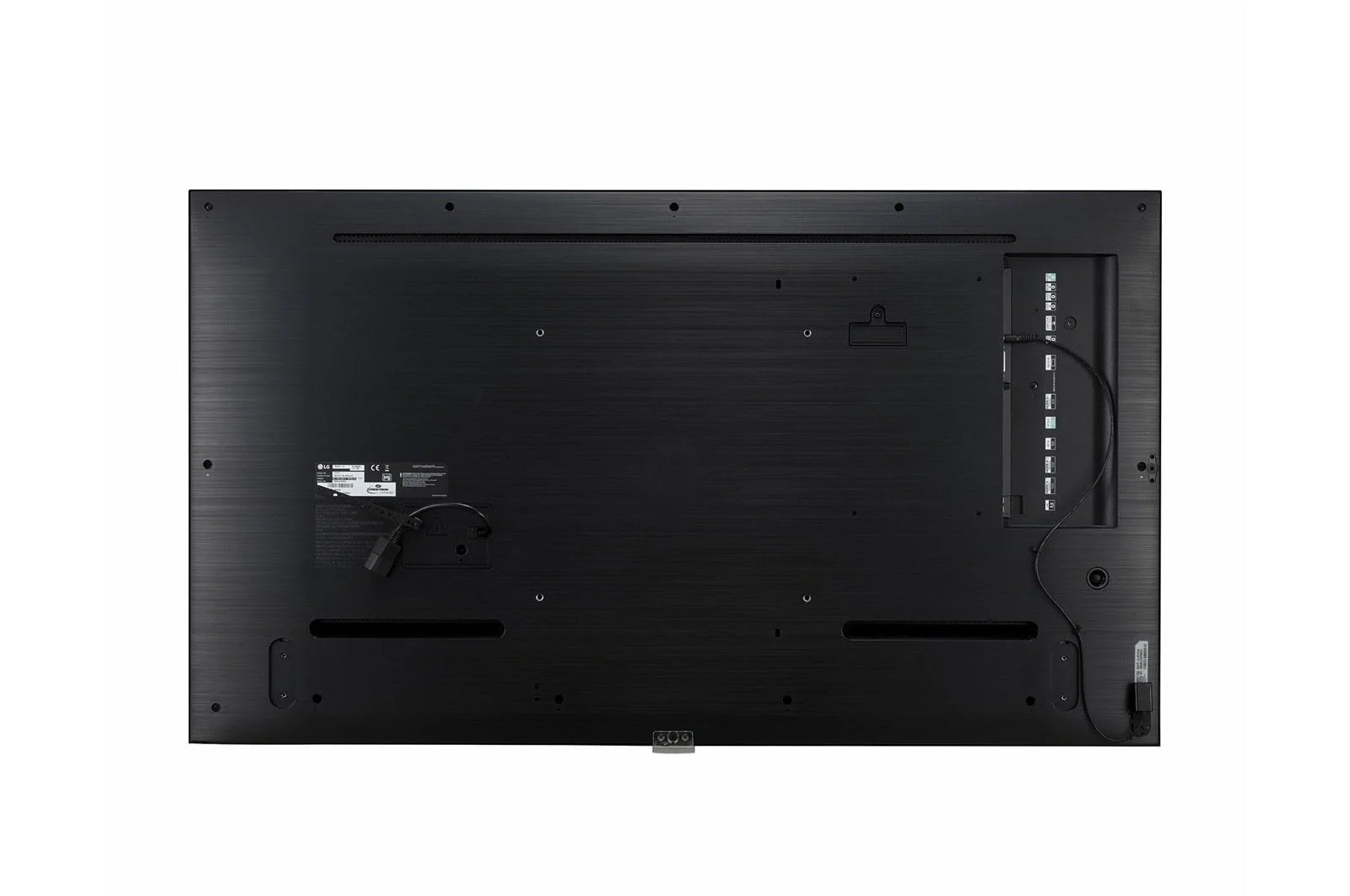

55'' Uh7j-H Series High Haze Lcd Uhd Signage With Webos™, Ip5x Rating
SKU: 55UH7JH
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
A Bright View
With brightness of 700 nit, the UH7J-H series clearly deliver content to attract public attention, making it a great display for marketing in airports, retail, shopping malls & more.
High-Performance with webOS™
Built-in Quad Core System on Chip (SoC) can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS™ platform enhances user convenience with intuitive graphical user interface (GUI) and access to an advanced ecosystem of third-party development applications.
Support USB-C Interface Port
The UH7J-H series supports the USB-C jack interface, allowing easy connection and use with other devices.
Compatible with AV Control System
The UH7J-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency. * Network based control
Conformal Coating
It can be hard to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on the power board of the UH7J-H series helps reduce these risks.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
*Image simulation for illustration purposes only.
With brightness of 700 nit, the UH7J-H series clearly deliver content to attract public attention, making it a great display for marketing in airports, retail, shopping malls & more.
High-Performance with webOS™
Built-in Quad Core System on Chip (SoC) can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS™ platform enhances user convenience with intuitive graphical user interface (GUI) and access to an advanced ecosystem of third-party development applications.
Support USB-C Interface Port
The UH7J-H series supports the USB-C jack interface, allowing easy connection and use with other devices.
Compatible with AV Control System
The UH7J-H series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency. * Network based control
Conformal Coating
It can be hard to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on the power board of the UH7J-H series helps reduce these risks.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
*Image simulation for illustration purposes only.
- Certified Crestron Connected®
- 700 nits brightness & 28% (Haze) surface treatment lets your message been seen
- webOS™ 6.0 Signage Platform, SuperSign CMS Compatible
- Lasts up to 50,000 hours and can be on 24/7
- The 16:9 UHD display shows crisp, clear images & in portrait or landscape
- Great for conference rooms, retail stores, lobbies and more
Rebates
view available rebates
55'' Uh7j-H Series High Haze Lcd Uhd Signage With Webos™, Ip5x Rating
Misc Collection
Specifications
Specifications
Features
Certified Crestron Connected®, 700 nits brightness & 28% (Haze) surface treatment lets your message been seen, webOS™ 6.0 Signage Platform, SuperSign CMS Compatible, Lasts up to 50,000 hours and can be on 24/7, The 16:9 UHD display shows crisp, clear images & in portrait or landscape, Great for conference rooms, retail stores, lobbies and more
- Certified Crestron Connected®
- 700 nits brightness & 28% (Haze) surface treatment lets your message been seen
- webOS™ 6.0 Signage Platform, SuperSign CMS Compatible
- Lasts up to 50,000 hours and can be on 24/7
- The 16:9 UHD display shows crisp, clear images & in portrait or landscape
- Great for conference rooms, retail stores, lobbies and more
PANEL
Screen Size
55"
Screen Size
- 55"
Panel Technology
IPS
Panel Technology
- IPS
Back Light Type
Edge
Back Light Type
- Edge
Aspect Ratio
16 : 9
Aspect Ratio
- 16 : 9
Native Resolution
3,840 x 2,160 (UHD)
Native Resolution
- 3,840 x 2,160 (UHD)
Refresh Rate
60 Hz
Refresh Rate
- 60 Hz
Brightness
700 nits (Typ.)
Brightness
- 700 nits (Typ.)
Contrast Ratio
1,100:1
Contrast Ratio
- 1,100:1
Dynamic CR
1,000,000 : 1
Dynamic CR
- 1,000,000 : 1
Color Gamut
BT709 95%
Color Gamut
- BT709 95%
Viewing Angle (H x V)
178° x 178°
Viewing Angle (H x V)
- 178° x 178°
Color Depth
1.07 Billion Colors (10 bit (D))
Color Depth
- 1.07 Billion Colors (10 bit (D))
Response Time
8 ms (G to G)
Response Time
- 8 ms (G to G)
Surface Treatment (Haze)
28%
Surface Treatment (Haze)
- 28%
Life time
50,000 Hrs (Min.)
Life time
- 50,000 Hrs (Min.)
Operation Hours (Hours / Day)
24/7
Operation Hours (Hours / Day)
- 24/7
Portrait / Landscape
Yes / Yes
Portrait / Landscape
- Yes / Yes
CONNECTIVITY
Input
HDMI (x2, HDCP 2.2/1.4), DP (USB-C (DP Alternate Mode) Shared, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio In, RS-232C (4-Pin 3.5mm), RJ45 (LAN), IR In, USB 2.0 Type A, USB 2.0 Type C (without PD Function)
Input
- HDMI (x2, HDCP 2.2/1.4), DP (USB-C (DP Alternate Mode) Shared, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio In, RS-232C (4-Pin 3.5mm), RJ45 (LAN), IR In, USB 2.0 Type A, USB 2.0 Type C (without PD Function)
Output
DP Out (Input: HDMI 1 / HDMI 2 / DVI / DP / USB-C / OPS), Audio Out, RS-232C Out (4 Pin 3.5mm)
Output
- DP Out (Input: HDMI 1 / HDMI 2 / DVI / DP / USB-C / OPS), Audio Out, RS-232C Out (4 Pin 3.5mm)
MECHANICAL SPECIFICATION
Bezel Color
Black
Bezel Color
- Black
Bezel Width
9.9 mm (T/R/L), 14.4 mm
Bezel Width
- 9.9 mm (T/R/L), 14.4 mm
Weight (Head)
41.9 lbs. / 19.0 kg
Weight (Head)
- 41.9 lbs. / 19.0 kg
Weight (Head + Stand)
43.2 lbs. / 19.6 kg
Weight (Head + Stand)
- 43.2 lbs. / 19.6 kg
Packed Weight
53.4 lbs. / 24.2 kg
Packed Weight
- 53.4 lbs. / 24.2 kg
Monitor Dimensions (W x H x D) (with LG Logo)
48.6 x 28.4 x 1.6 in. 1,234.4 x 720.9 x 39.9 mm
Monitor Dimensions (W x H x D) (with LG Logo)
- 48.6 x 28.4 x 1.6 in. 1,234.4 x 720.9 x 39.9 mm
Monitor Dimensions with Stand (W x H x D)
48.6 x 30.3 x 11.4 in. 1,234.4 x 770.7 x 290.0 mm
Monitor Dimensions with Stand (W x H x D)
- 48.6 x 30.3 x 11.4 in. 1,234.4 x 770.7 x 290.0 mm
Carton Dimensions (W x H x D) (Box Outer Size)
63.0 x 43.1 x 6.9 in. 1,600.0 x 1095.0 x 175.0 mm
Carton Dimensions (W x H x D) (Box Outer Size)
- 63.0 x 43.1 x 6.9 in. 1,600.0 x 1095.0 x 175.0 mm
Handle
No
Handle
- No
VESATM Standard Mount Interface
300 x 300 mm
VESATM Standard Mount Interface
- 300 x 300 mm
KEY FEATURES
Key Features
Internal Memory 16 GB, Built-in Wi-Fi, Sensor (Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor), Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 x 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC3, SI Server Setting, webRTC, Pro:Idiom
Key Features
- Internal Memory 16 GB, Built-in Wi-Fi, Sensor (Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor), Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 x 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC3, SI Server Setting, webRTC, Pro:Idiom
ENVIRONMENT CONDITIONS
Operation Temperature
32°F to 104°F 0°C to 40°C
Operation Temperature
- 32°F to 104°F 0°C to 40°C
Operation Humidity
10% to 80%
Operation Humidity
- 10% to 80%
POWER
Power Supply
100-240 Vac, 50/60 Hz
Power Supply
- 100-240 Vac, 50/60 Hz
Power Type
Built-In Power
Power Type
- Built-In Power
POWER CONSUMPTION
Typ. / Max.
110 W / 150 W
Typ. / Max.
- 110 W / 150 W
BTU (British Thermal Unit)
376 BTU/Hr (Typ.), 512 BTU/Hr (Max.)
BTU (British Thermal Unit)
- 376 BTU/Hr (Typ.), 512 BTU/Hr (Max.)
Smart Enegy Saving(70%)
77 W
Smart Enegy Saving(70%)
- 77 W
Power off
0.5W
Power off
- 0.5W
DPM
0.5W
DPM
- 0.5W
SOUND
Speaker
Yes
Speaker
- Yes
CERTIFICATION
Safety
CB / NRTL
Safety
- CB / NRTL
EMC
FCC Class "A" / CE / KC
EMC
- FCC Class "A" / CE / KC
ErP / Energy Star
Yes (NewErP) / Yes
ErP / Energy Star
- Yes (NewErP) / Yes
OPS Compatibility
OPS Type Compatible
Yes
OPS Type Compatible
- Yes
OPS Power Built-in
No
OPS Power Built-in
- No
SOFTWARE COMPATIBILITY
Software Compatibility
SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, Mobile CMS (TBD), LG ConnectedCare
Software Compatibility
- SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, Mobile CMS (TBD), LG ConnectedCare
Language
Language
English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic
Language
- English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic
ACCESSORY
Basic
Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS-232C Gender, USB-C Cable
Basic
- Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS-232C Gender, USB-C Cable
Optional
Stand (ST-653T), Wall Bracket (LSW350B), OPS Kit (KT-OPSF)
Optional
- Stand (ST-653T), Wall Bracket (LSW350B), OPS Kit (KT-OPSF)
SPECIAL FEATURE
Overlay Touch Compatibility
No
Overlay Touch Compatibility
- No
Tilt (Facedown)
Yes (Max. 30 )
Tilt (Facedown)
- Yes (Max. 30 )
IP Rating
IP5X
IP Rating
- IP5X
