31.5'' 8Mp (3840X2160) Nano Ips Color Diagnostic Monitor With Multi Resolution And Clinical Pathology Modes, Auto Luminance Calibration, Pbp/Dual Controller & Ergonomic Stand
SKU: 32HL512DB
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
Accurate Image from Any Angle
The 31.5-inch 8MP Nano IPS display helps facilitate diagnosis of medical images. The 178° wide viewing angles enable clinicians to more accurately read multiple screens without loss in contrast ratio.

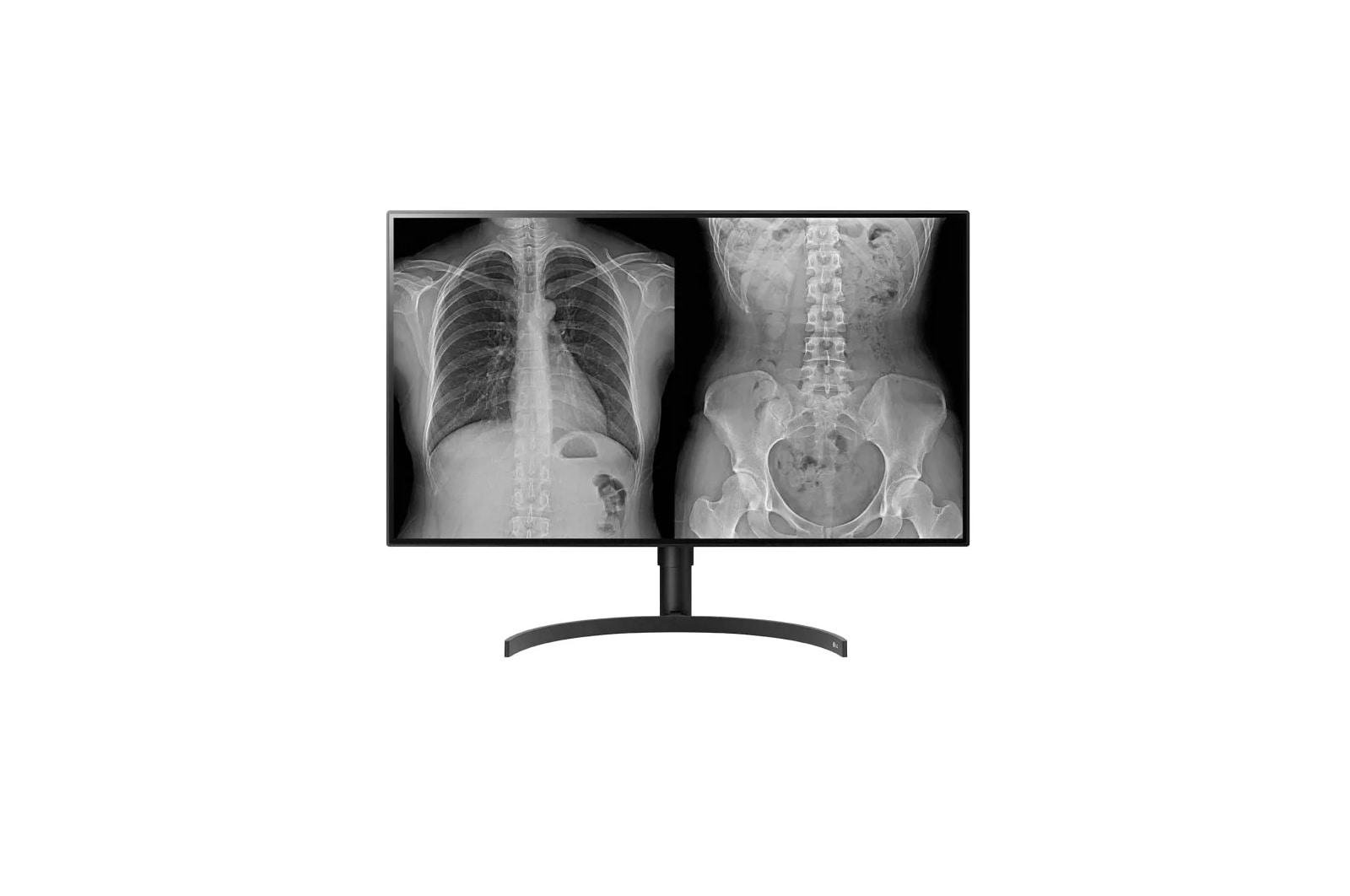

Two 4MP Screens in One Monitor
PBP (Picture By Picture) mode enables connection of two video source for operation with PACS application.
Sustained Picture Quality
Built-in backlight sensor dynamically measures and maintains calibrated DICOM brightness. This enhances diagnostic reading consistency and confidence over time.
Multi Purpose
Operate 32HL512D monitor in lower 4MP or 6MP resolution and use as multiple work list screens. Switch back to 8MP resolution for reading images.
Realistic Color Reproduction
As LG 32HL512D monitor adopts the clinical pathology mode with improved color reproduction, can deliver images from the microscope vividly with less color distortion.

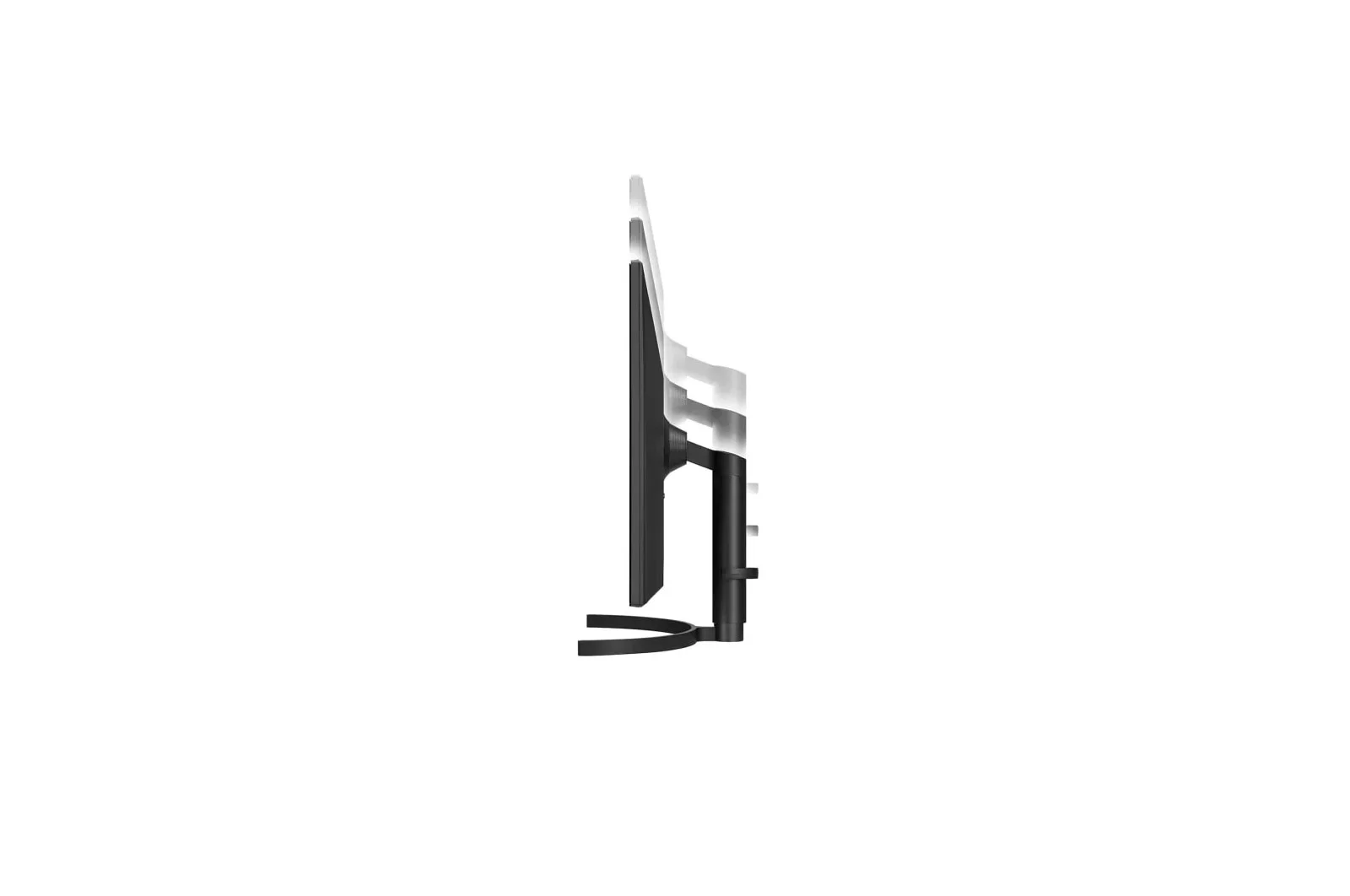

Designed for Comfort & Immersion

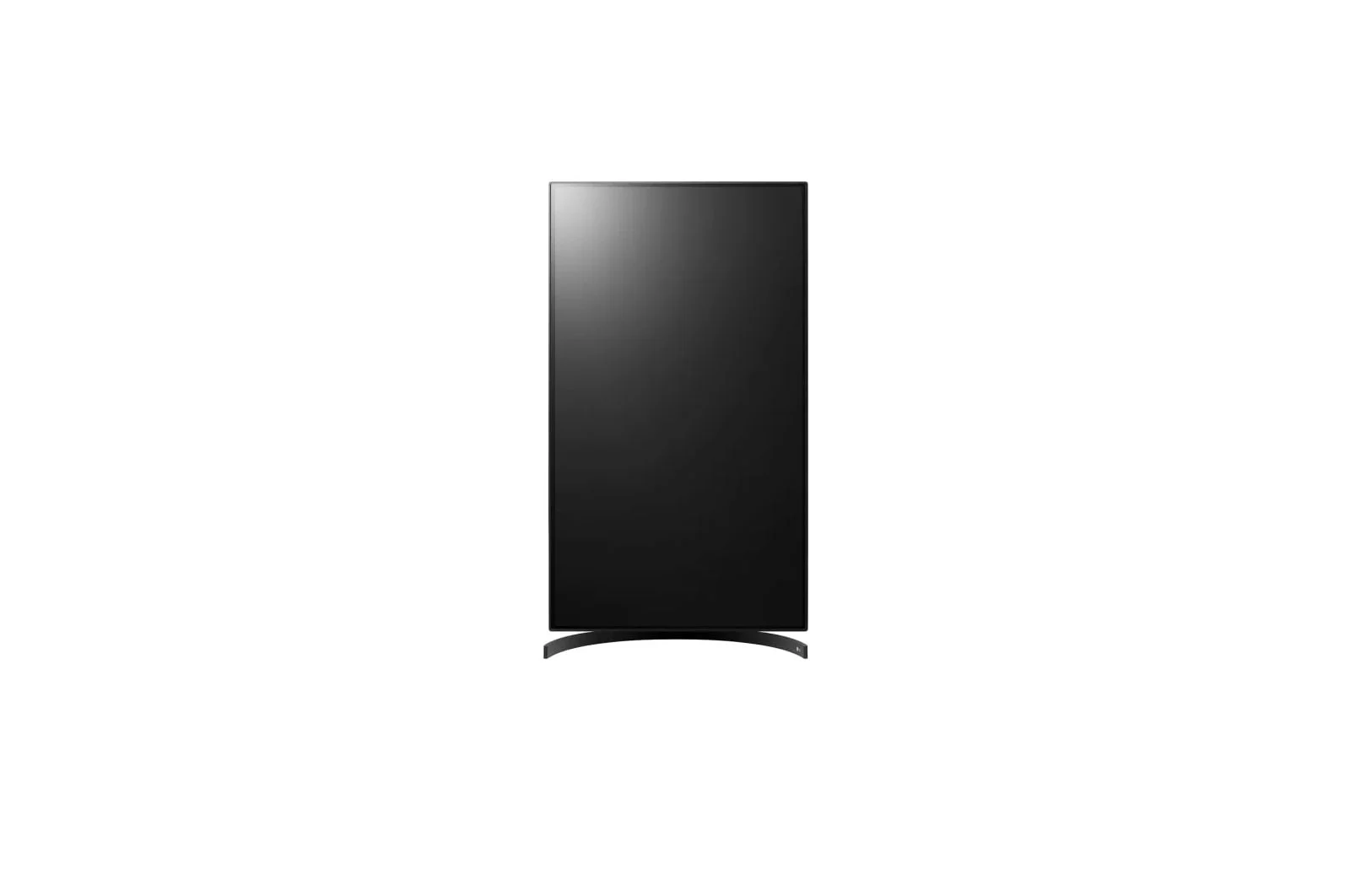

Its ergonomic stand, two-way pivot adjustment and narrow bezel can help create an optimized diagnostic workspace. Rotate two monitors in portrait and use side-by-side for the ultimate reading experience.
The 31.5-inch 8MP Nano IPS display helps facilitate diagnosis of medical images. The 178° wide viewing angles enable clinicians to more accurately read multiple screens without loss in contrast ratio.
Two 4MP Screens in One Monitor
PBP (Picture By Picture) mode enables connection of two video source for operation with PACS application.
Sustained Picture Quality
Built-in backlight sensor dynamically measures and maintains calibrated DICOM brightness. This enhances diagnostic reading consistency and confidence over time.
Multi Purpose
Operate 32HL512D monitor in lower 4MP or 6MP resolution and use as multiple work list screens. Switch back to 8MP resolution for reading images.
Realistic Color Reproduction
As LG 32HL512D monitor adopts the clinical pathology mode with improved color reproduction, can deliver images from the microscope vividly with less color distortion.
Designed for Comfort & Immersion
Its ergonomic stand, two-way pivot adjustment and narrow bezel can help create an optimized diagnostic workspace. Rotate two monitors in portrait and use side-by-side for the ultimate reading experience.
- Picture by Picture / Two 4 MP Screen Operation
- DICOM Calibrated to Primary Diagnostic Guidelines
- Brightness Stabilization
- Display Port and HDMI Video Inputs
- NanoIPS Technology
- Support Nvidia, AMD & Intel Graphics
Rebates
view available rebates
31.5'' 8Mp (3840X2160) Nano Ips Color Diagnostic Monitor With Multi Resolution And Clinical Pathology Modes, Auto Luminance Calibration, Pbp/Dual Controller & Ergonomic Stand
Misc Collection
Specifications
Specifications
Features
Picture by Picture / Two 4 MP Screen Operation, DICOM Calibrated to Primary Diagnostic Guidelines, Brightness Stabilization, Display Port and HDMI Video Inputs, NanoIPS Technology, Support Nvidia, AMD & Intel Graphics
- Picture by Picture / Two 4 MP Screen Operation
- DICOM Calibrated to Primary Diagnostic Guidelines
- Brightness Stabilization
- Display Port and HDMI Video Inputs
- NanoIPS Technology
- Support Nvidia, AMD & Intel Graphics
PANEL
Size (Inch)
31.5"
Size (Inch)
- 31.5"
Resolution
3840x2160
Resolution
- 3840x2160
Panel Type
Nano IPS
Panel Type
- Nano IPS
Aspect Ratio
16:9
Aspect Ratio
- 16:9
Pixel Pitch
0.18159mm x 0.18159mm
Pixel Pitch
- 0.18159mm x 0.18159mm
Brightness (Typ.)
450 cd/m
Brightness (Typ.)
- 450 cd/m
Color Gamut (Typ.)
DCI-P3 98% (CIE1976)
Color Gamut (Typ.)
- DCI-P3 98% (CIE1976)
Contrast Ratio (Typ.)
1300:1
Contrast Ratio (Typ.)
- 1300:1
Response Time (Typical)
14ms (Off setting), 5ms (Faster setting)
Response Time (Typical)
- 14ms (Off setting), 5ms (Faster setting)
Viewing Angle (CR 10)
178 (R/L), 178 (U/D)
Viewing Angle (CR 10)
- 178 (R/L), 178 (U/D)
Surface Treatment
Anti-Glare 3H
Surface Treatment
- Anti-Glare 3H
Wall Mountable
100 x 100 mm
Wall Mountable
- 100 x 100 mm
Dimension with Stand (W x H x D)
28.3 x 23.2 x 9.1 in 718.2 x 590.0 x 231.2 mm
Dimension with Stand (W x H x D)
- 28.3 x 23.2 x 9.1 in 718.2 x 590.0 x 231.2 mm
Dimension without Stand (W x H x D)
28.3 x 16.3 x 1.8 in 718.2 x 414.3 x 45.1 mm
Dimension without Stand (W x H x D)
- 28.3 x 16.3 x 1.8 in 718.2 x 414.3 x 45.1 mm
Dimension in Shipping (W x H x D)
33.0 x 21.8 x 9.4 in 838 x 553 x 240 mm
Dimension in Shipping (W x H x D)
- 33.0 x 21.8 x 9.4 in 838 x 553 x 240 mm
Weight with Stand
16.1 lbs / 7.3 kg
Weight with Stand
- 16.1 lbs / 7.3 kg
Weight without Stand
13.0 lbs / 5.9 Kg
Weight without Stand
- 13.0 lbs / 5.9 Kg
Weight in Shipping
24.4 lbs / 11.1kg
Weight in Shipping
- 24.4 lbs / 11.1kg
SPECIAL FEATURES
BLS (ALS)
YES
BLS (ALS)
- YES
Black Stabilizer
Yes
Black Stabilizer
- Yes
DICOM Calibrated
Yes
DICOM Calibrated
- Yes
Flicker Safe
Yes
Flicker Safe
- Yes
HDR10
Yes
HDR10
- Yes
HDR Effect
Yes
HDR Effect
- Yes
HW Calibration
YES
HW Calibration
- YES
PBP
Yes
PBP
- Yes
Pathology
Yes
Pathology
- Yes
Picture Mode
Custom, Mono, Pathology, Reader, Vivid, HDR Effect, DICOM(Clinical), DICOM(Diagnostic), Calibration 1, Calibration 2, Custom, Vivid, Standard
Picture Mode
- Custom, Mono, Pathology, Reader, Vivid, HDR Effect, DICOM(Clinical), DICOM(Diagnostic), Calibration 1, Calibration 2, Custom, Vivid, Standard
Smart Energy Saving
Yes
Smart Energy Saving
- Yes
Super Resolution +
Yes
Super Resolution +
- Yes
Uniformity
Yes
Uniformity
- Yes
Dual Controller
Yes
Dual Controller
- Yes
OnScreen Control (OSC)
Yes
OnScreen Control (OSC)
- Yes
LG PerfectLum
Yes
LG PerfectLum
- Yes
INPUT/OUTPUT
DisplayPort
YES - Version 1.4 (2)
DisplayPort
- YES - Version 1.4 (2)
HDMI
YES - Version 2.0 (1)
HDMI
- YES - Version 2.0 (1)
USB Downstream Port
YES - Version 2.0 (2)
USB Downstream Port
- YES - Version 2.0 (2)
USB Upstream Port
YES - Version 2.0 (1)
USB Upstream Port
- YES - Version 2.0 (1)
POWER
Type
External Power (Adapter)
Type
- External Power (Adapter)
AC Input
100-240v
AC Input
- 100-240v
DC Output
19V, 3.42A
DC Output
- 19V, 3.42A
Power Consumption (Max)
65W
Power Consumption (Max)
- 65W
Power Consumption (Sleep Mode)
Less than 0.5 W
Power Consumption (Sleep Mode)
- Less than 0.5 W
Display Position Adjustments
Tilt/Height/Pivot
Display Position Adjustments
- Tilt/Height/Pivot
STANDARD
IEC (IEC 60601-1 / IEC 60601-1-2)
Yes
IEC (IEC 60601-1 / IEC 60601-1-2)
- Yes
EN (EN 60601-1 / EN 60601-1-2)
Yes
EN (EN 60601-1 / EN 60601-1-2)
- Yes
CSA( CAN/CSA C22.2 No.60601-1, CSA 22.2 No.601.1-M90)
Yes
CSA( CAN/CSA C22.2 No.60601-1, CSA 22.2 No.601.1-M90)
- Yes
FCC (FCC part 15 Class A)
Yes
FCC (FCC part 15 Class A)
- Yes
UL60601-1
Yes
UL60601-1
- Yes
FDA
Class II
FDA
- Class II
CE(MDD 93/42/EEC,2007/47/EC)
Yes
CE(MDD 93/42/EEC,2007/47/EC)
- Yes
ISO13485
Yes
ISO13485
- Yes
GMP
Yes
GMP
- Yes
KGMP
Yes
KGMP
- Yes
CE(EU)
Yes
CE(EU)
- Yes
RoHS
Yes
RoHS
- Yes
REACH
Yes
REACH
- Yes
WEEE
Yes
WEEE
- Yes
MFDS(KR)
Yes
MFDS(KR)
- Yes
ACCESSORY
Power Adapter
Yes
Power Adapter
- Yes
Calibration Software
Yes
Calibration Software
- Yes
Calibration Report
Yes
Calibration Report
- Yes
Power Cord
Yes
Power Cord
- Yes
HDMI Cable
Yes
HDMI Cable
- Yes
DisplayPort Cable
Yes
DisplayPort Cable
- Yes
OTHER
Limited Warranty
5 Year
Limited Warranty
- 5 Year
UPC
719192634541
UPC
- 719192634541
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
The Misc 31.5'' 8Mp (3840X2160) Nano Ips Color Diagnostic Monitor With Multi Resolution And Clinical Pathology Modes, Auto Luminance Calibration, Pbp/Dual Controller & Ergonomic Stand, made by LG Appliances,
