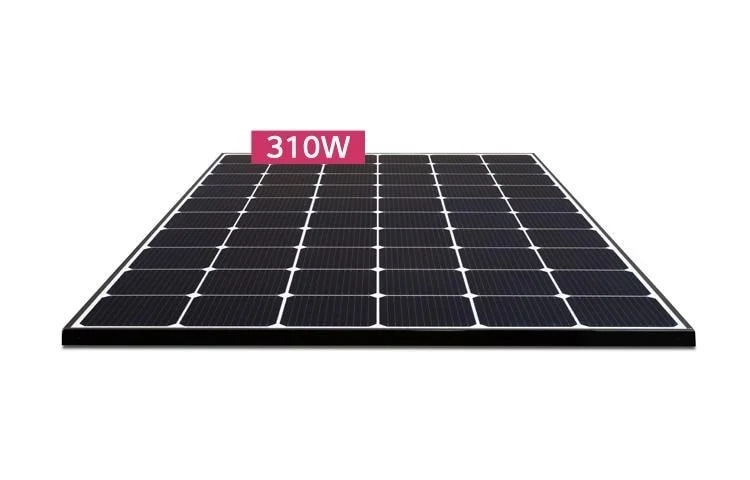

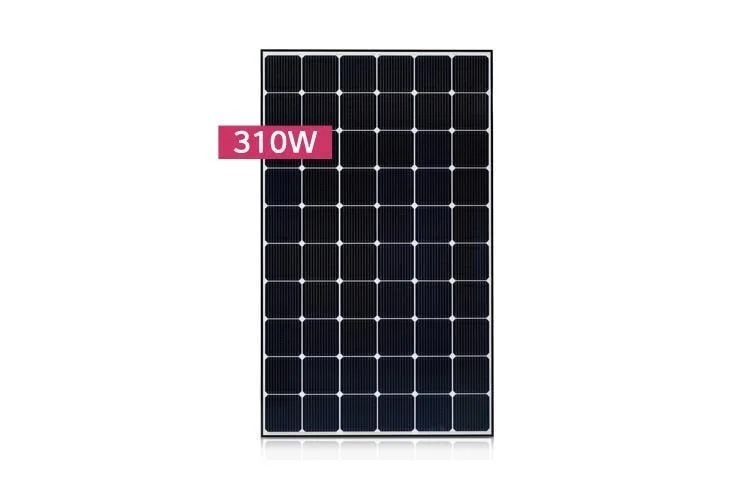

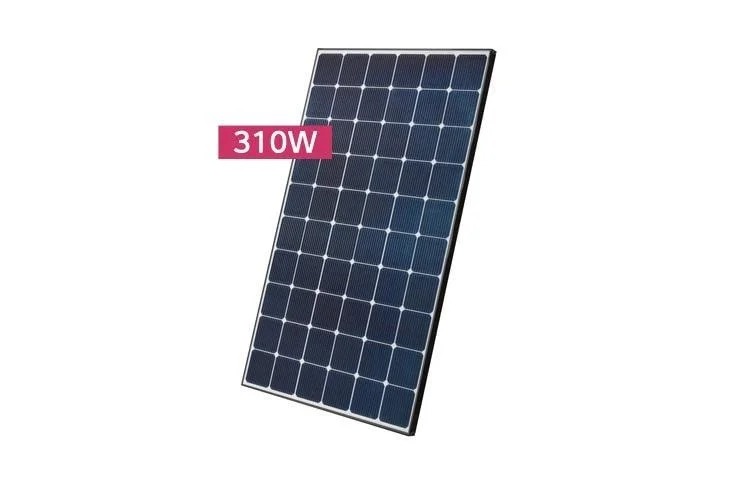

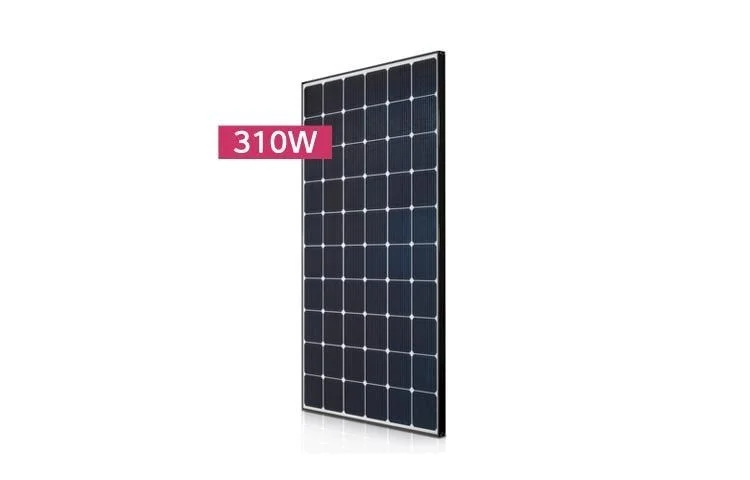

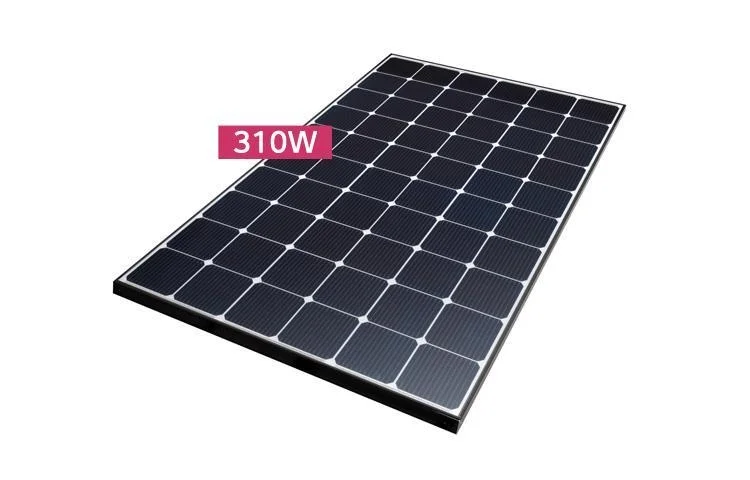

High Efficiency Lg Neon® 2 Module Cells: 6 X 10 Module Efficiency 18.9% Connector Type: Mc4, Mc4 Compatible, Ip67
SKU: LG310N1CG4
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Dimensions:
39.37" W
×
64.57" D
×
1.57" H
Description
- Roof Aesthetics
- High Power Output
- Enhanced Performance Warranty
Rebates
view available rebates
High Efficiency Lg Neon® 2 Module Cells: 6 X 10 Module Efficiency 18.9% Connector Type: Mc4, Mc4 Compatible, Ip67
Misc Collection
Specifications
Specifications
Dimensions
Height (bottom to top)
1.57" H
Height (bottom to top)
- 1.57" H
Width (side to side)
39.37" W
Width (side to side)
- 39.37" W
Depth (front to back)
64.57" D
Depth (front to back)
- 64.57" D
Features
Roof Aesthetics, High Power Output, Enhanced Performance Warranty
- Roof Aesthetics
- High Power Output
- Enhanced Performance Warranty
CERTIFICATIONS & WARRANTY
Certifications
IEC 61215, IEC 61730-1/-2, UL 1703, ISO 9001, IEC 62716 (Ammonia Test), IEC 61701(Salt Mist Corrosion Test)
Certifications
- IEC 61215, IEC 61730-1/-2, UL 1703, ISO 9001, IEC 62716 (Ammonia Test), IEC 61701(Salt Mist Corrosion Test)
Module Fire Performance
Type 1 (UL 1703)(LGxxxN1C-G4.AUF)
Module Fire Performance
- Type 1 (UL 1703)(LGxxxN1C-G4.AUF)
Product Warranty
12 years
Product Warranty
- 12 years
Output Warranty of Pmax
Linear warranty*
Output Warranty of Pmax
- Linear warranty*
*
1) 1st year: 98%, 2) After 2nd year: 0.6% annual degradation, 3) 83.6% for 25 years
*
- 1) 1st year: 98%, 2) After 2nd year: 0.6% annual degradation, 3) 83.6% for 25 years
Fire Rating (for CANADA)
Class C (ULC/ORD C1703)
Fire Rating (for CANADA)
- Class C (ULC/ORD C1703)
ELECTRICAL PROPERTIES(NOCT*)
Maximum Power(Pmax)
226
Maximum Power(Pmax)
- 226
MPP Voltage (Vmpp)
30
MPP Voltage (Vmpp)
- 30
MPP Current (Impp)
7.54
MPP Current (Impp)
- 7.54
Open Circuit Voltage (Voc)
37.4
Open Circuit Voltage (Voc)
- 37.4
Short Circuit Current (Isc)
8.03
Short Circuit Current (Isc)
- 8.03
*
NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
*
- NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
Electrical Properties (STC*)
MPP Voltage (Vmpp)
32.8
MPP Voltage (Vmpp)
- 32.8
MPP Current (Impp)
9.45
MPP Current (Impp)
- 9.45
Open Circuit Voltage (Voc)
40.4
Open Circuit Voltage (Voc)
- 40.4
Short Circuit Current (Isc)
9.96
Short Circuit Current (Isc)
- 9.96
Module Efficiency (%)
18.9
Module Efficiency (%)
- 18.9
Operating Temperature (°C)
-40 ~ +90
Operating Temperature (°C)
- -40 ~ +90
Maximum System Voltage (V)
1000
Maximum System Voltage (V)
- 1000
Maximum Series Fuse Rating (A)
20
Maximum Series Fuse Rating (A)
- 20
Power Tolerance (%)
0 ~ +3
Power Tolerance (%)
- 0 ~ +3
*
STC (Standard Test Condition): Irradiance 1000 W/m2, Module Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The typical change in module efficiency at 200 W/m2 in relation to 1000 W/m2 is -2.0%.
*
- STC (Standard Test Condition): Irradiance 1000 W/m2, Module Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The typical change in module efficiency at 200 W/m2 in relation to 1000 W/m2 is -2.0%.
MECHANICAL PROPERTIES
Cells
6 x 10
Cells
- 6 x 10
Cell vendor
LG
Cell vendor
- LG
Cell Type
Monocrystalline / N-type
Cell Type
- Monocrystalline / N-type
Cell Dimensions
156.75 x 156.75 mm / 6 inches
Cell Dimensions
- 156.75 x 156.75 mm / 6 inches
# of Busbar
12 (Multi Wire Busbar)
# of Busbar
- 12 (Multi Wire Busbar)
Dimensions (L x W x H)
1640 x 1000 x 40 mm 64.57 x 39.37 x 1.57 inch
Dimensions (L x W x H)
- 1640 x 1000 x 40 mm 64.57 x 39.37 x 1.57 inch
Front Load
6000 Pa / 125 psf
Front Load
- 6000 Pa / 125 psf
Rear Load
5400 Pa / 113 psf
Rear Load
- 5400 Pa / 113 psf
Weight
17.0 0.5 kg / 37.48 1.1 lbs
Weight
- 17.0 0.5 kg / 37.48 1.1 lbs
Connector Type
MC4, MC4 Compatible, IP67
Connector Type
- MC4, MC4 Compatible, IP67
Junction Box
IP 67 with 3 bypass diodes
Junction Box
- IP 67 with 3 bypass diodes
Length of Cables
2 x 1000 mm / 2 x 39.37 in
Length of Cables
- 2 x 1000 mm / 2 x 39.37 in

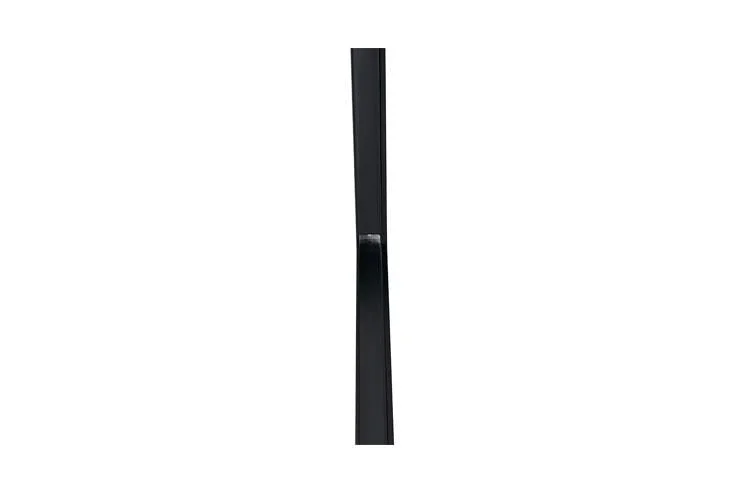

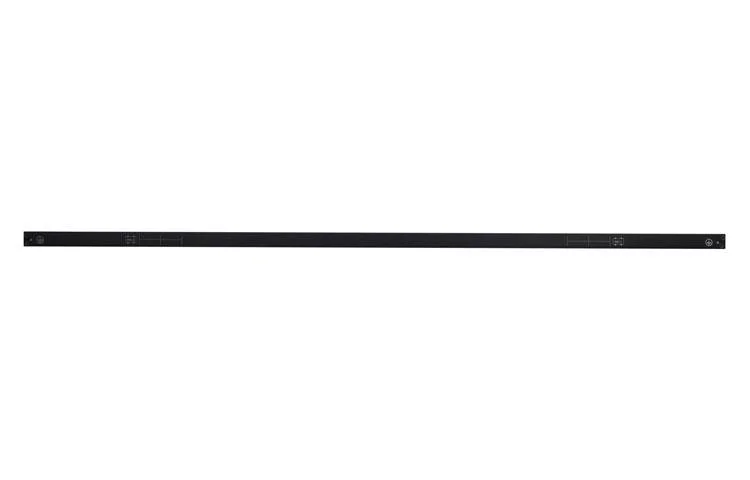

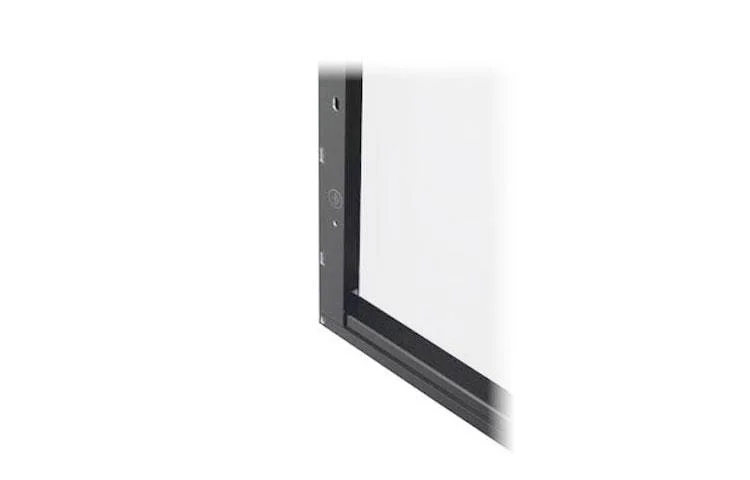

Frame
Anodized aluminum
Frame
- Anodized aluminum
Glass
Tempered Glass with AR Coating
Glass
- Tempered Glass with AR Coating
Temperature Characteristics
NOCT
46 3 °C
NOCT
- 46 3 °C
Pmpp
-0.38 %/°C
Pmpp
- -0.38 %/°C
Voc
-0.28 %/°C
Voc
- -0.28 %/°C
Isc
0.03 %/°C
Isc
- 0.03 %/°C
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
The Misc High Efficiency Lg Neon® 2 Module Cells: 6 X 10 Module Efficiency 18.9% Connector Type: Mc4, Mc4 Compatible, Ip67, made by LG Appliances,
