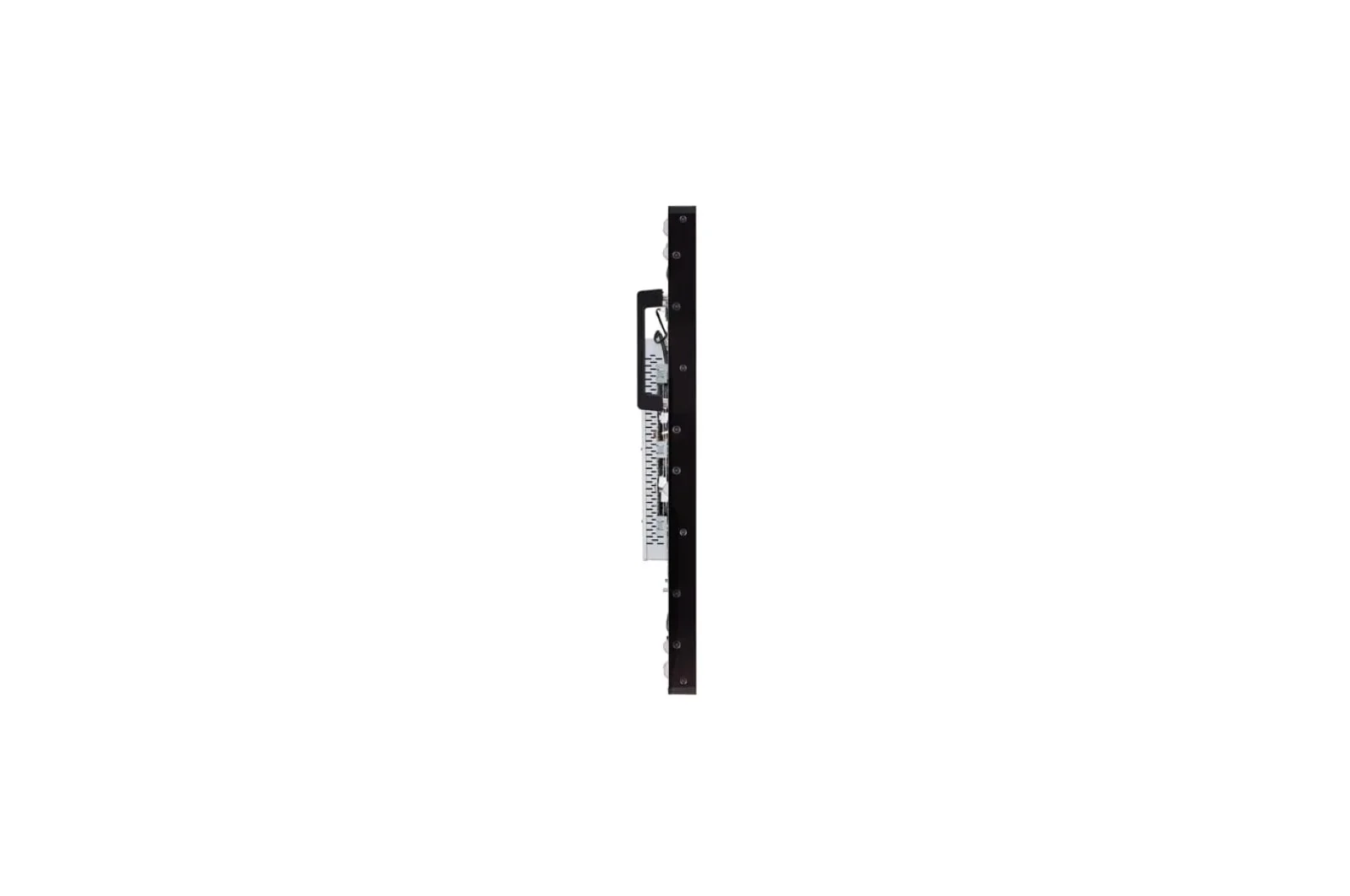

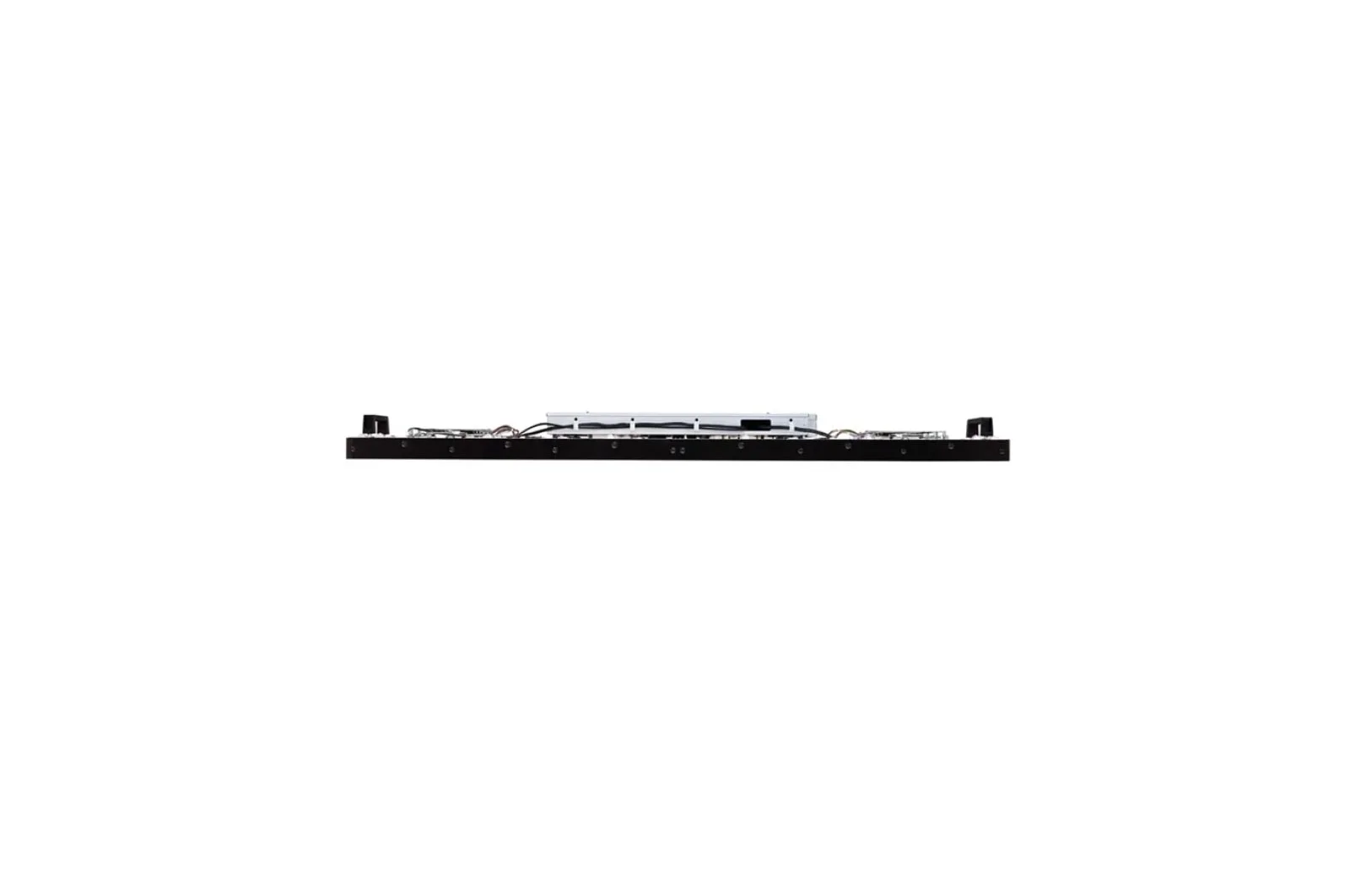

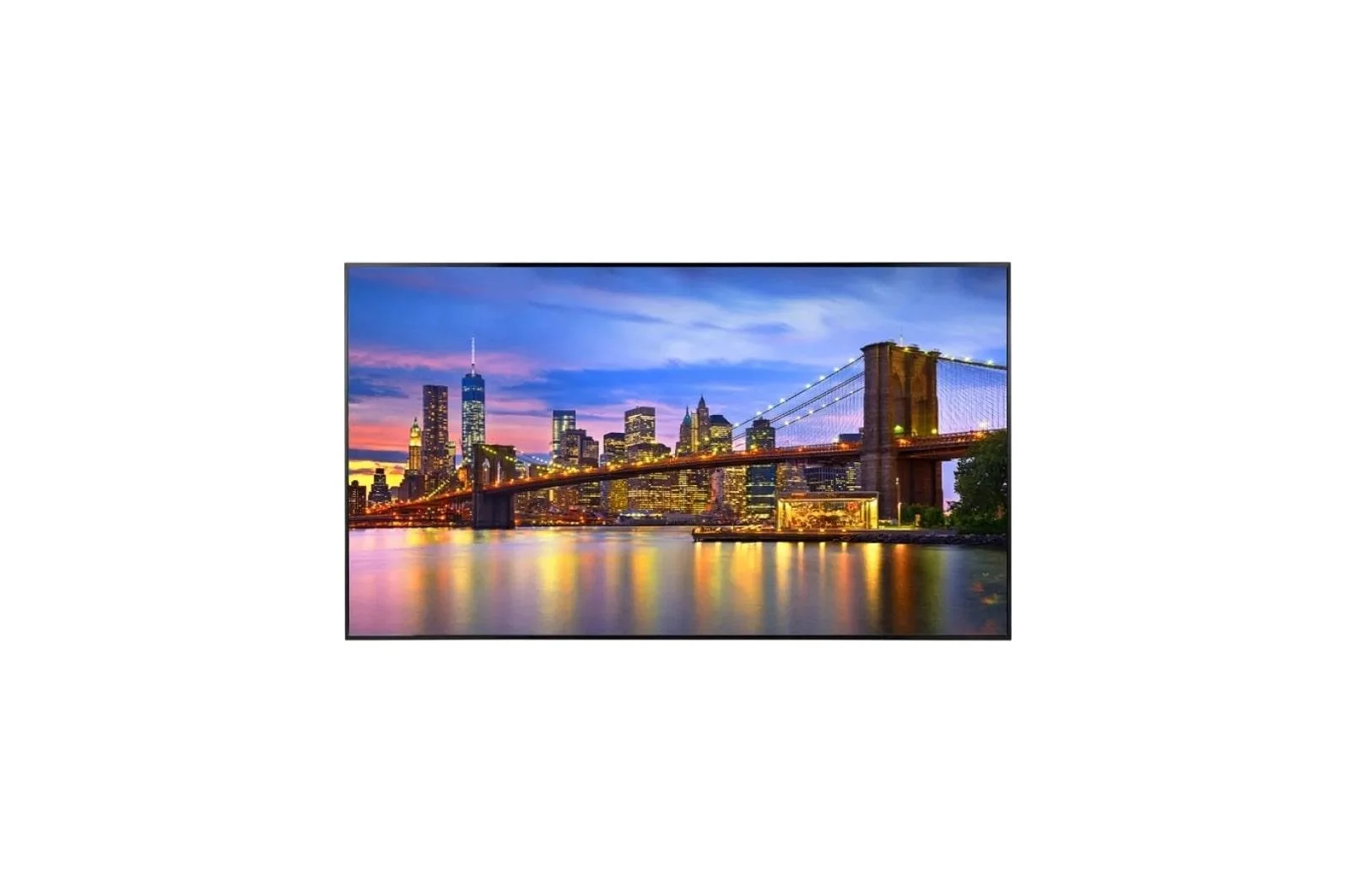

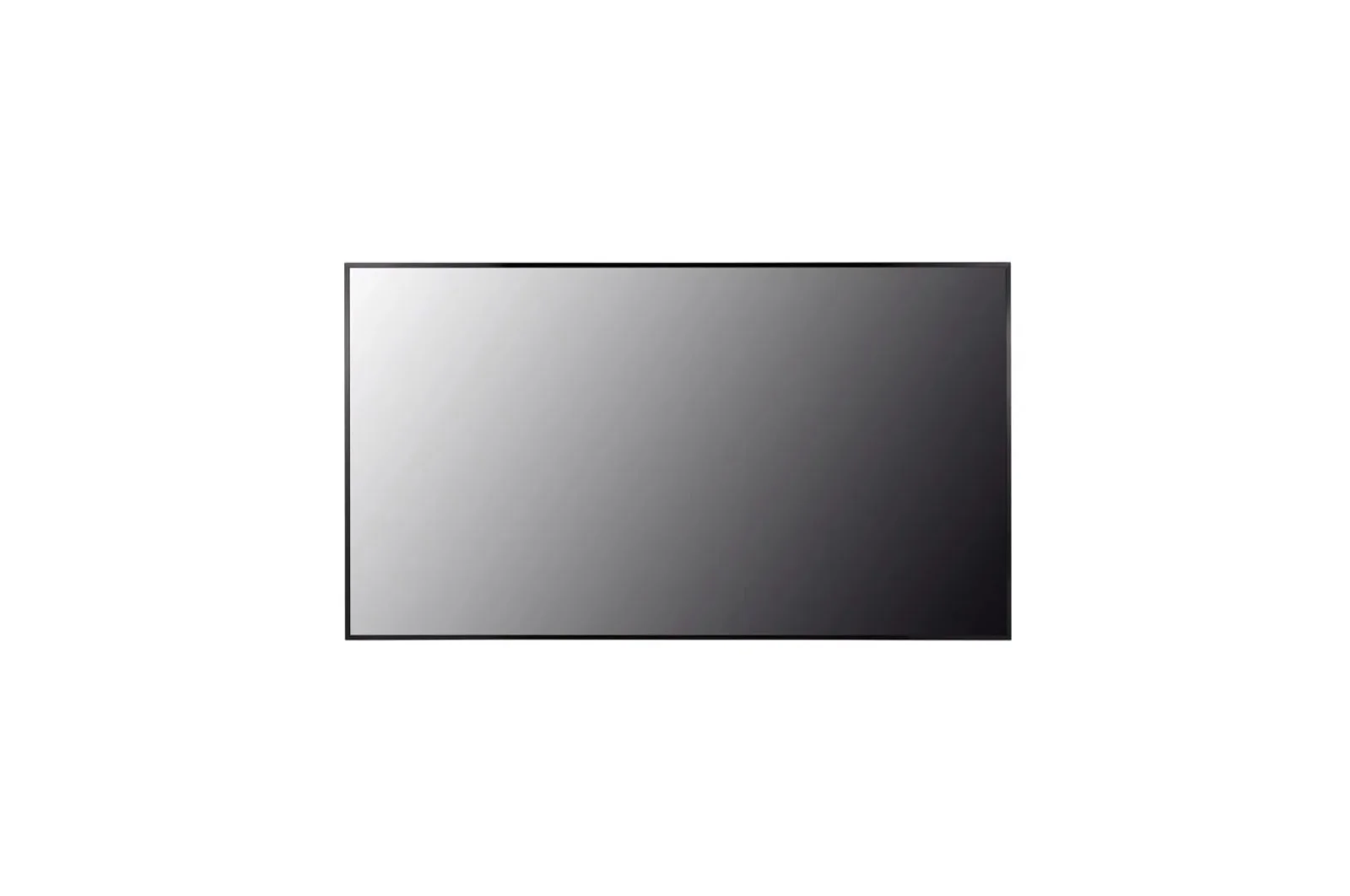

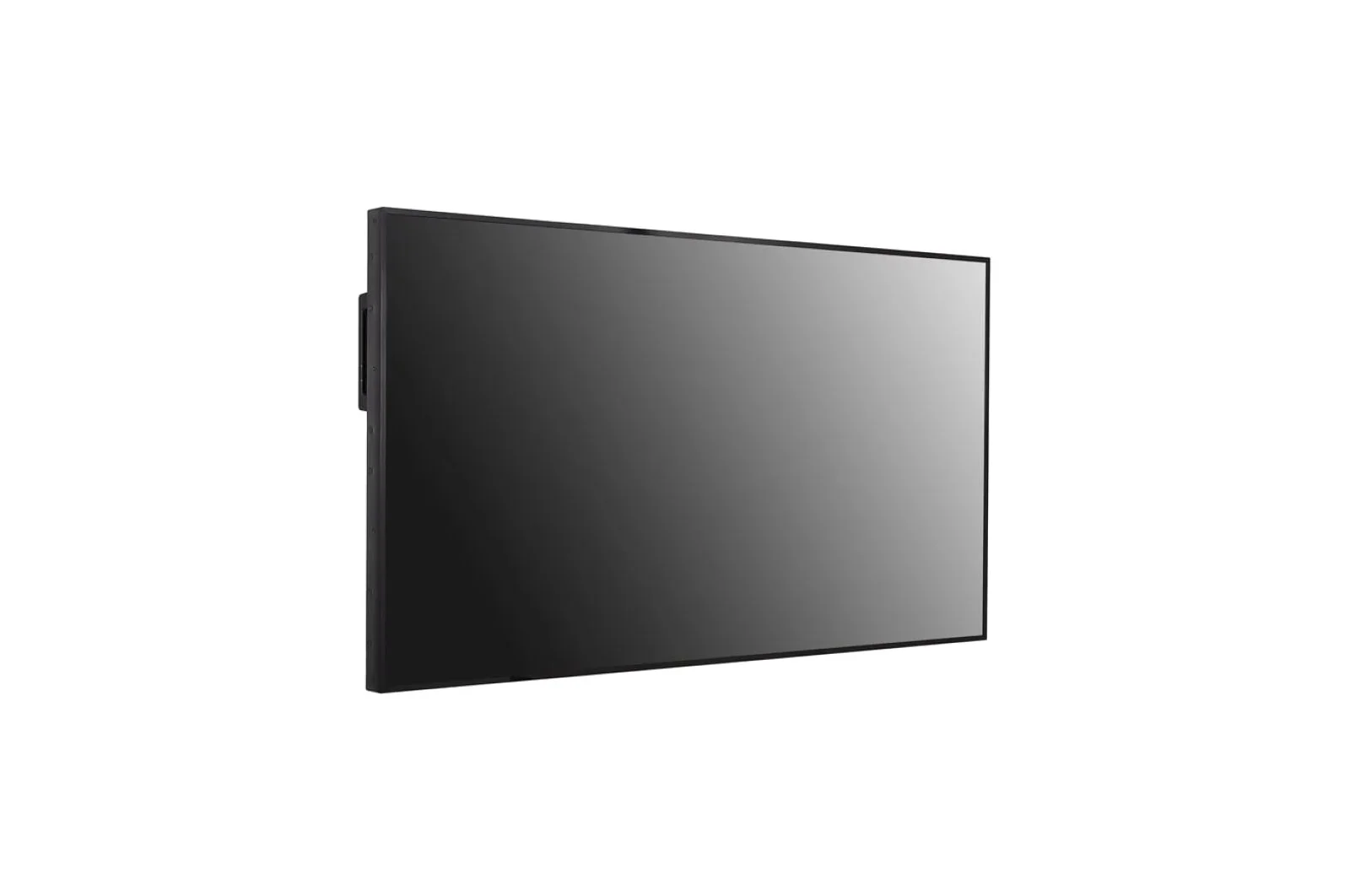

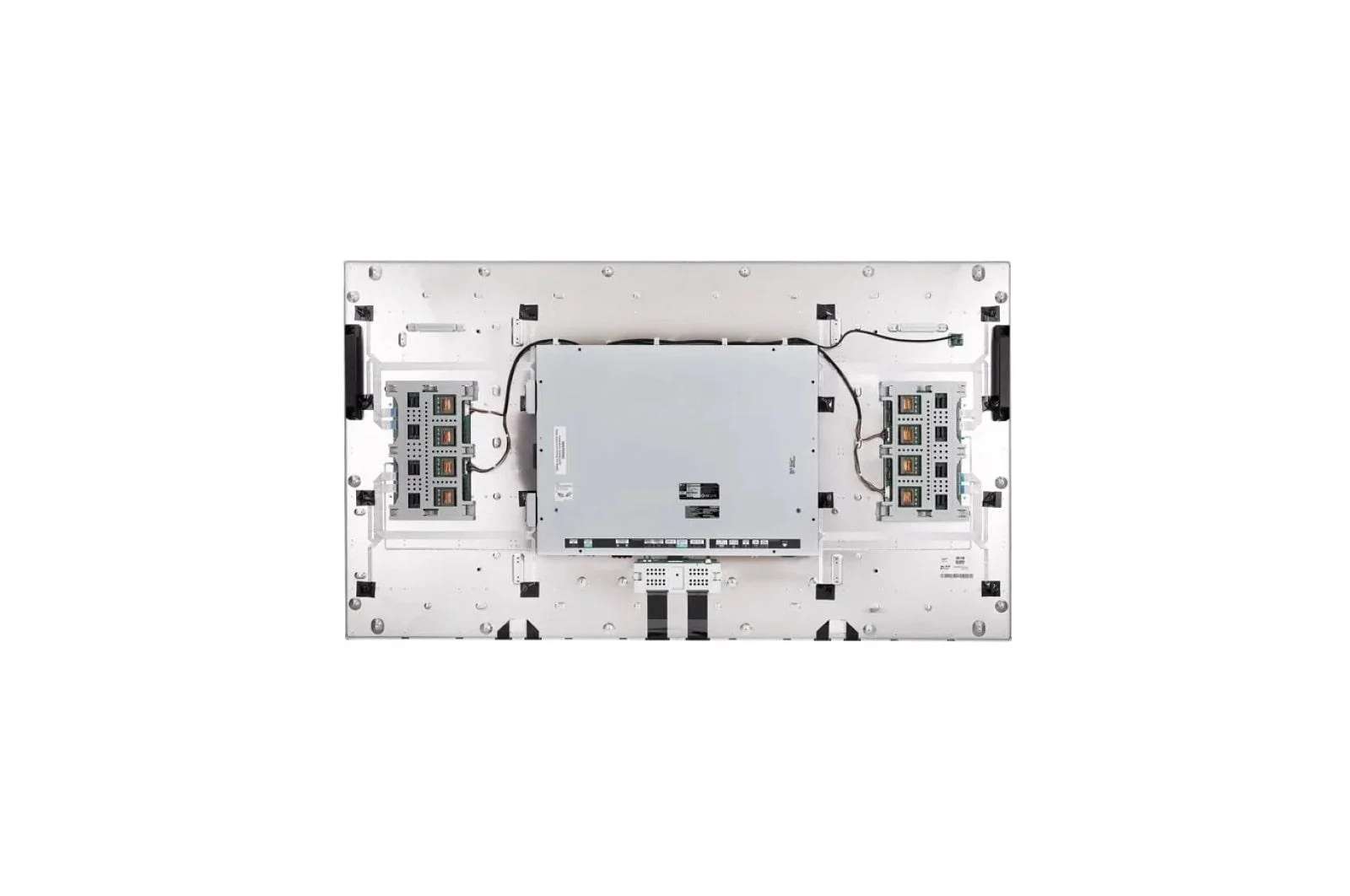

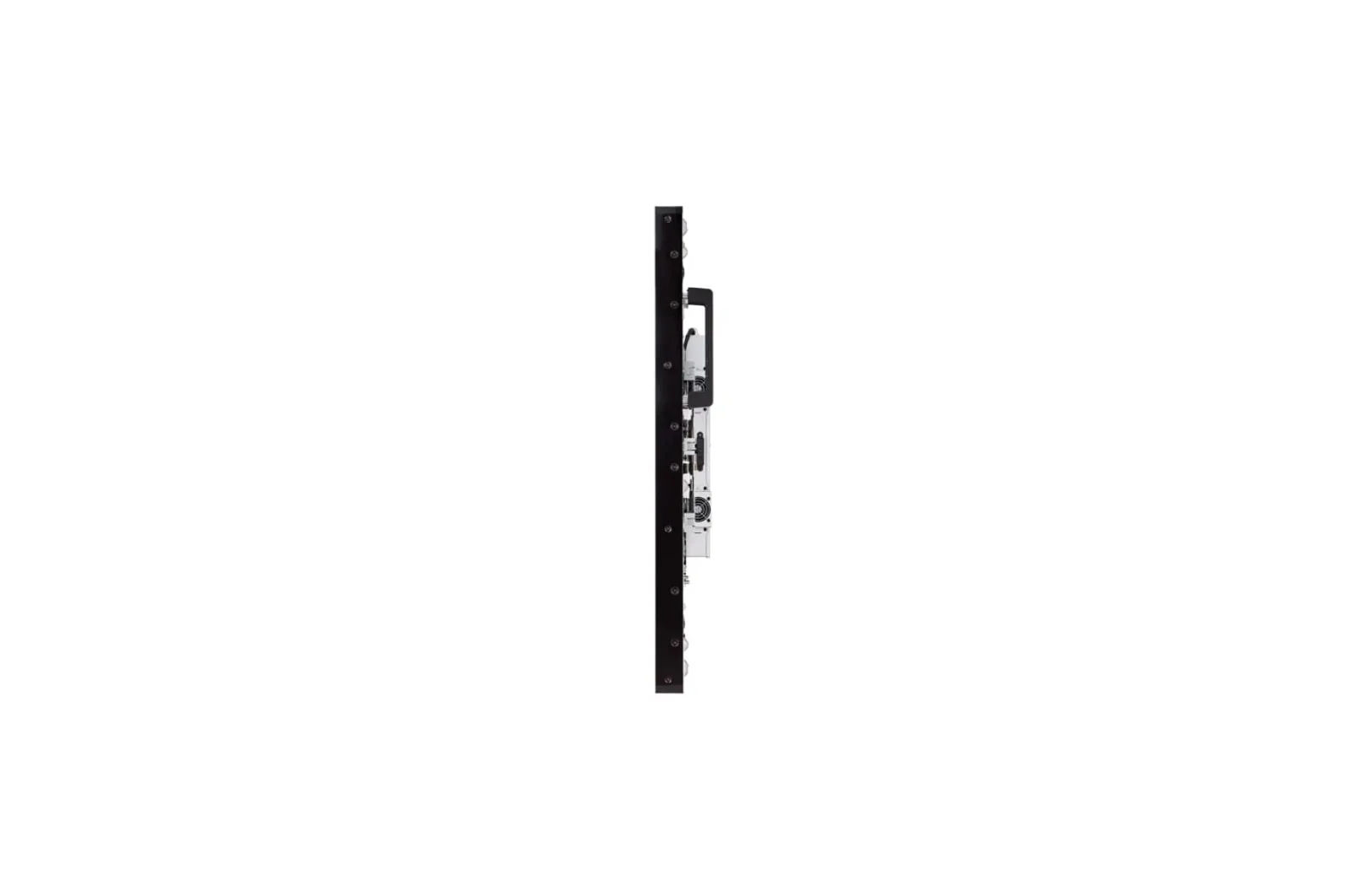

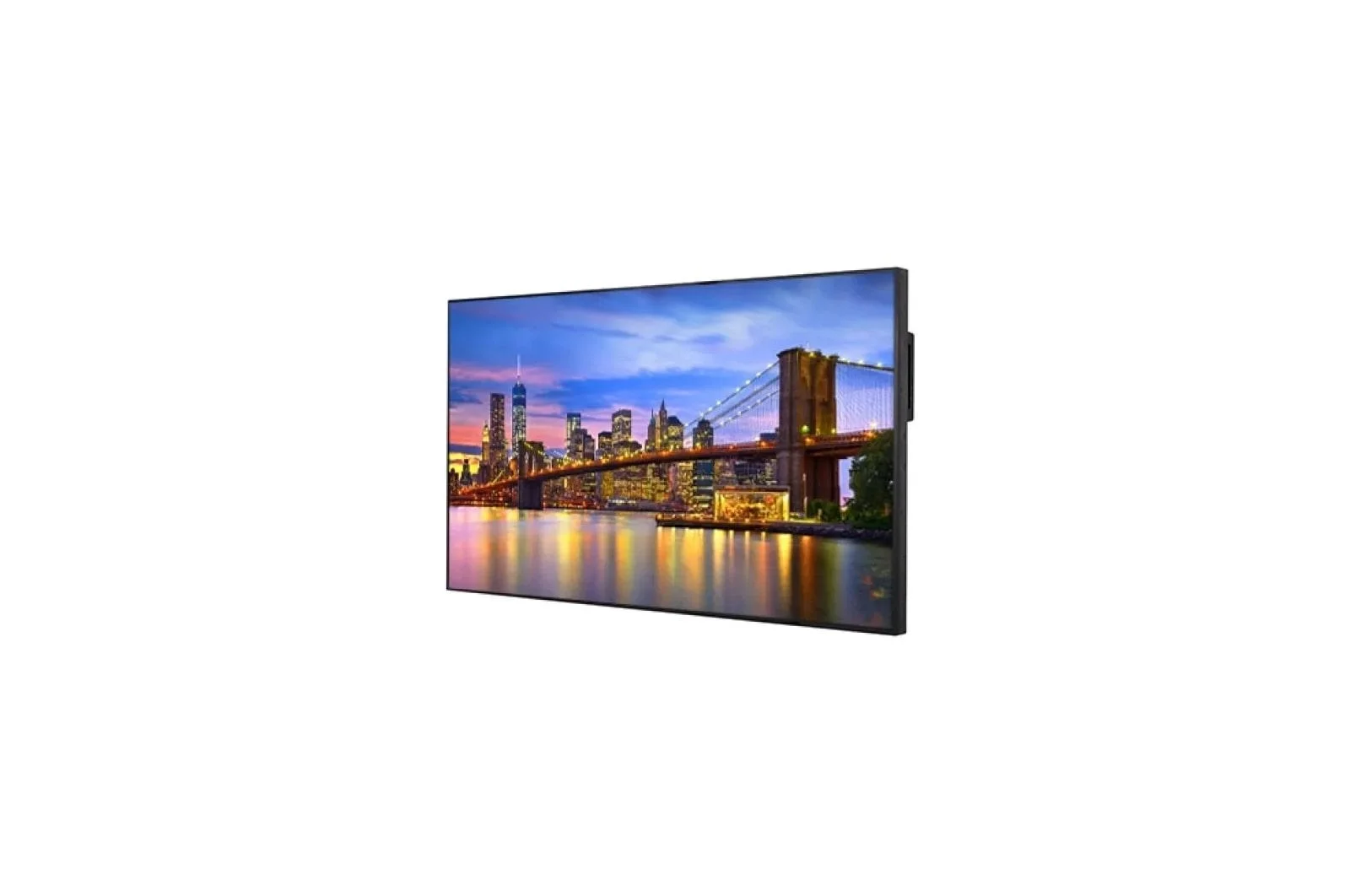

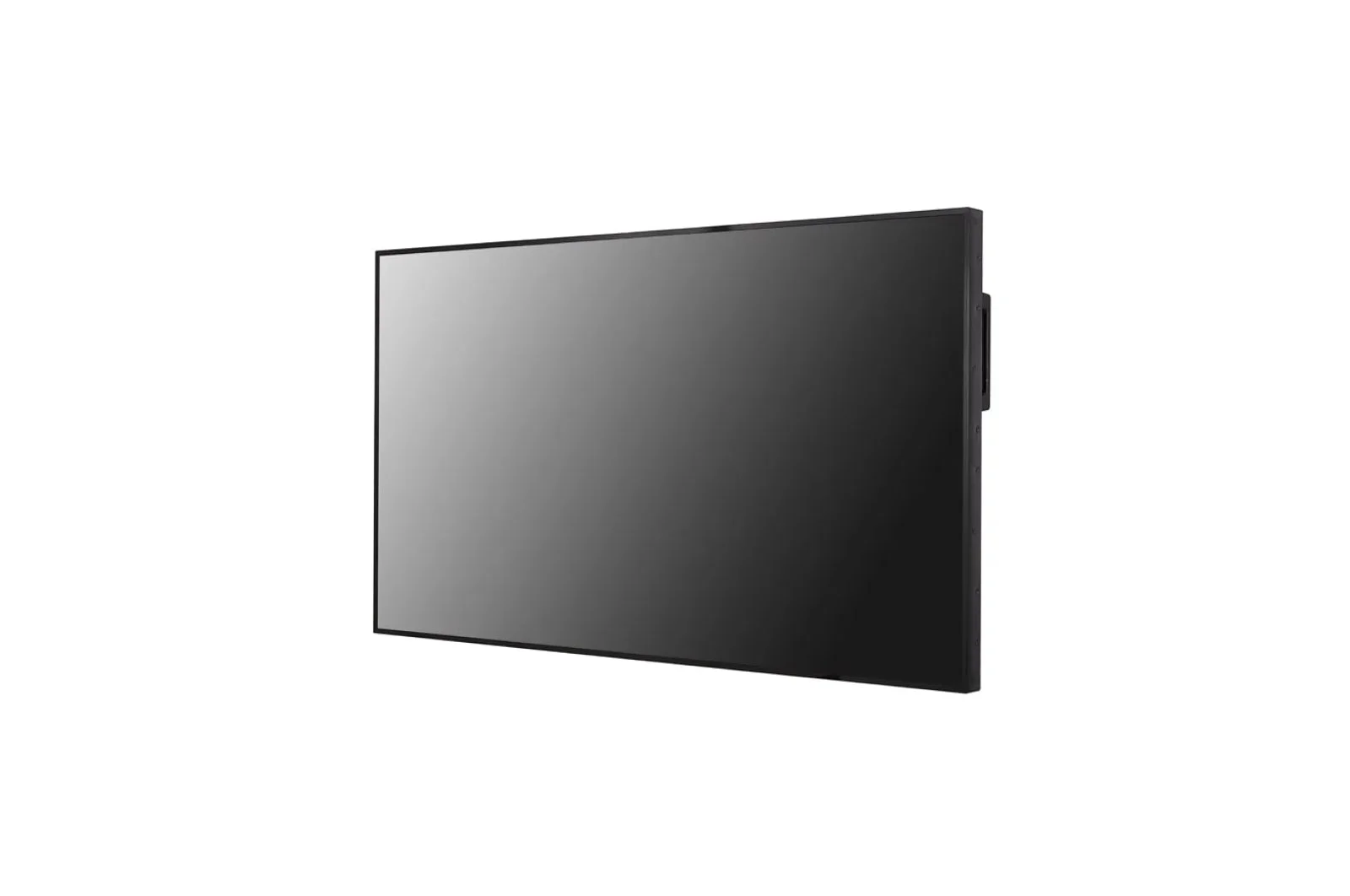

75'' Open Frame Uhd High Bright Outdoor Signage With Webos, Conformal Coating & Supersign Cms Compatible
SKU: 75XF3CB
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
- Lifetime up to 50,000 hours 24/7
- 3,000 nits Brightness
- Portrait or Landscape with Viewing Angle 178° x 178°
- 75" UHD (3,840 x 2,160) IPS M+ (WRGB) Display with 16:9 Aspect Ration
Rebates
view available rebates
75'' Open Frame Uhd High Bright Outdoor Signage With Webos, Conformal Coating & Supersign Cms Compatible
Misc Collection
Specifications
Specifications
Features
Lifetime up to 50,000 hours 24/7, 3,000 nits Brightness, Portrait or Landscape with Viewing Angle 178° x 178°, 75" UHD (3,840 x 2,160) IPS M+ (WRGB) Display with 16:9 Aspect Ration
- Lifetime up to 50,000 hours 24/7
- 3,000 nits Brightness
- Portrait or Landscape with Viewing Angle 178° x 178°
- 75" UHD (3,840 x 2,160) IPS M+ (WRGB) Display with 16:9 Aspect Ration
PANEL
Screen Size
75" (74.52" Measured Diagonal)
Screen Size
- 75" (74.52" Measured Diagonal)
Panel Technology
IPS, M+ (WRGB)
Panel Technology
- IPS, M+ (WRGB)
Aspect Ratio
16:9
Aspect Ratio
- 16:9
Native Resolution
3,840 x 2,160 (UHD)
Native Resolution
- 3,840 x 2,160 (UHD)
Brightness
3,000 nits (Typ.), 2,400 nits (Min.)
Brightness
- 3,000 nits (Typ.), 2,400 nits (Min.)
Contrast Ratio (Typ.)
1,200:1
Contrast Ratio (Typ.)
- 1,200:1
Viewing Angle (H x V)
178° x 178°
Viewing Angle (H x V)
- 178° x 178°
Color Depth
1.07 Billion
Color Depth
- 1.07 Billion
Surface Treatment
Haze 3%, QWP
Surface Treatment
- Haze 3%, QWP
Lifetime
Up to 50,000 Hrs
Lifetime
- Up to 50,000 Hrs
Operation Hours
24 Hrs
Operation Hours
- 24 Hrs
Orientation
Landscape & Portrait
Orientation
- Landscape & Portrait
CONNECTIVITY
Input
HDMI (x2), DP, DVI-D, Audio, USB, SD Card
Input
- HDMI (x2), DP, DVI-D, Audio, USB, SD Card
Output
DP, External Speaker
Output
- DP, External Speaker
External Control
RS232C In/out, RJ45 In, IR
External Control
- RS232C In/out, RJ45 In, IR
PHYSICAL SPECIFICATION
Bezel Color
Black
Bezel Color
- Black
Bezel Width
11.8 mm (Even)
Bezel Width
- 11.8 mm (Even)
Monitor Dimensions (W x H x D)
66.0 x 37.5 x 4.9 in. 1,675.2 x 953.6 x 123.9 mm
Monitor Dimensions (W x H x D)
- 66.0 x 37.5 x 4.9 in. 1,675.2 x 953.6 x 123.9 mm
Weight
80.9 lbs. / 36.7 kg
Weight
- 80.9 lbs. / 36.7 kg
Shipping Dimensions (W x H x D)
71.5 x 43.5 x 11.2 in. 1,816 x 1,106 x 285 mm
Shipping Dimensions (W x H x D)
- 71.5 x 43.5 x 11.2 in. 1,816 x 1,106 x 285 mm
Shipping Weight
102.1 lbs. / 46.3 kg
Shipping Weight
- 102.1 lbs. / 46.3 kg
Cooling Fan
Yes (x2)
Cooling Fan
- Yes (x2)
SPECIAL FEATURES
Special Features
Temperature Sensor, Cooling Fan, Auto Brightness Sensor, Energy Saving, Smart Energy Saving, Tile Mode (up to 15 x 15), Natural Mode@Tile Mode, Source Selection, Brightness/Contrast/Backlight, DPM Select, File Play with USB, Internal Memory (8GB, System 4GB + Available 4GB), Wi-Fi Dongle Ready
Special Features
- Temperature Sensor, Cooling Fan, Auto Brightness Sensor, Energy Saving, Smart Energy Saving, Tile Mode (up to 15 x 15), Natural Mode@Tile Mode, Source Selection, Brightness/Contrast/Backlight, DPM Select, File Play with USB, Internal Memory (8GB, System 4GB + Available 4GB), Wi-Fi Dongle Ready
ENVIRONMENT CONDITIONS
Operation Temperature
32°F to 122°F / 0°C to 50°C
Operation Temperature
- 32°F to 122°F / 0°C to 50°C
Operation Humidity
10% to 85%
Operation Humidity
- 10% to 85%
POWER
Power Supply
100-240 Vac, 50/60 Hz
Power Supply
- 100-240 Vac, 50/60 Hz
Power Type
Built-In Power
Power Type
- Built-In Power
Power Consumption - Typ. / Max.
660W (Full White) / 403W (IEC 62087)
Power Consumption - Typ. / Max.
- 660W (Full White) / 403W (IEC 62087)
Power Consumption - Smart Energy Saving
320 W
Power Consumption - Smart Energy Saving
- 320 W
SOUND
Speaker
20 W (10 W x 2) for External Speaker
Speaker
- 20 W (10 W x 2) for External Speaker
STANDARD (CERTIFICATION)
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
Safety
- IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC
FCC Class "A" / CE / KC / VCCI
EMC
- FCC Class "A" / CE / KC / VCCI
SOFTWARE COMPATIBILITY
Content Management Software
SuperSign CMS
Content Management Software
- SuperSign CMS
Control and Monitoring Software
SuperSign Control+ / Control
Control and Monitoring Software
- SuperSign Control+ / Control
ACCESSORIES
Basic
Remote Controller, Power Cord, HDMI Cable, IR Extension Kit, Manual (ESG&EIG)
Basic
- Remote Controller, Power Cord, HDMI Cable, IR Extension Kit, Manual (ESG&EIG)
Optional
Wi-Fi Accessory (AN-WF500)
Optional
- Wi-Fi Accessory (AN-WF500)
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
The Misc 75'' Open Frame Uhd High Bright Outdoor Signage With Webos, Conformal Coating & Supersign Cms Compatible, made by LG Appliances,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Misc collection is an amazing option if you are looking for
furniture.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Reference #: 75XF3CB
