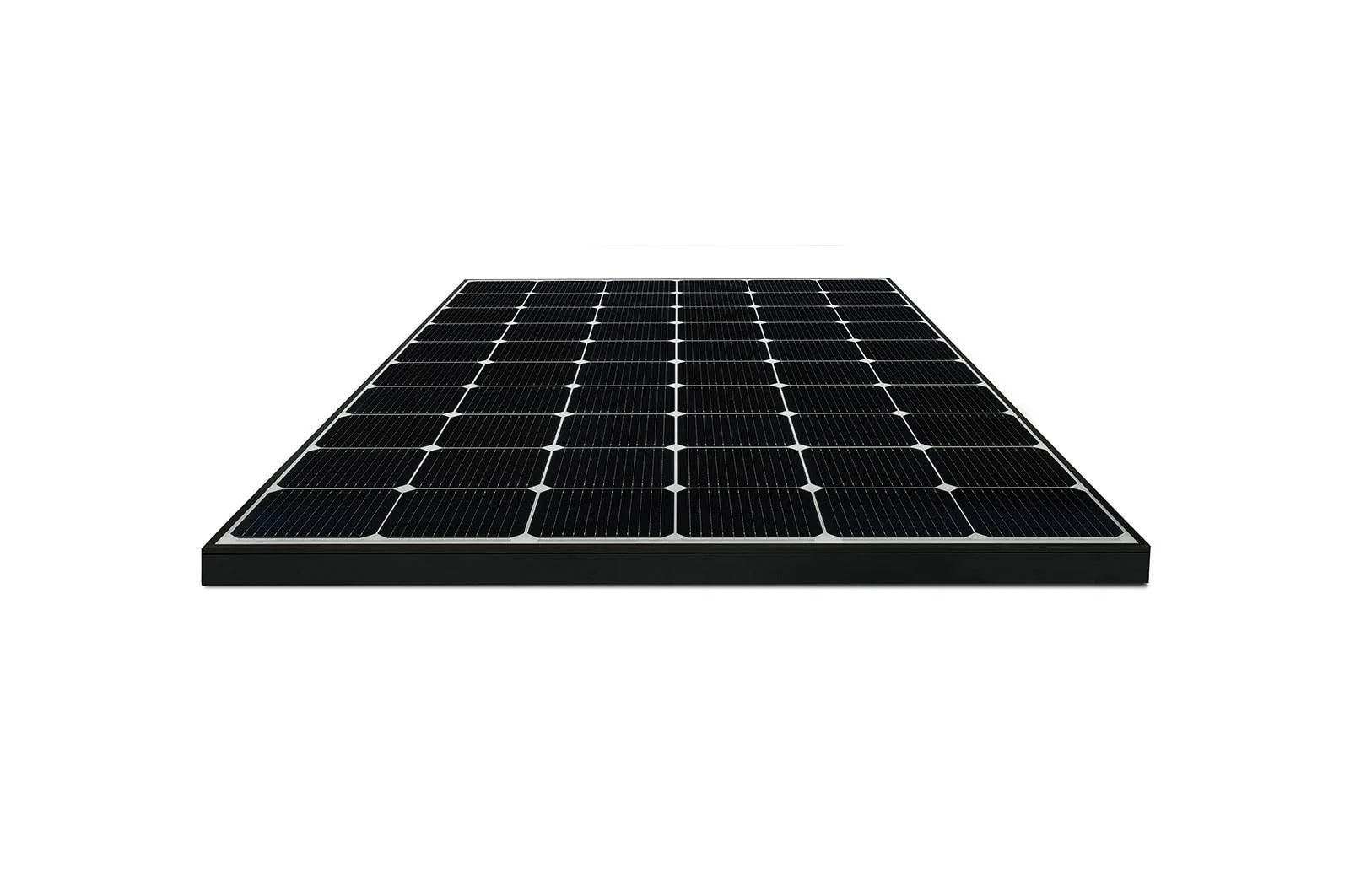

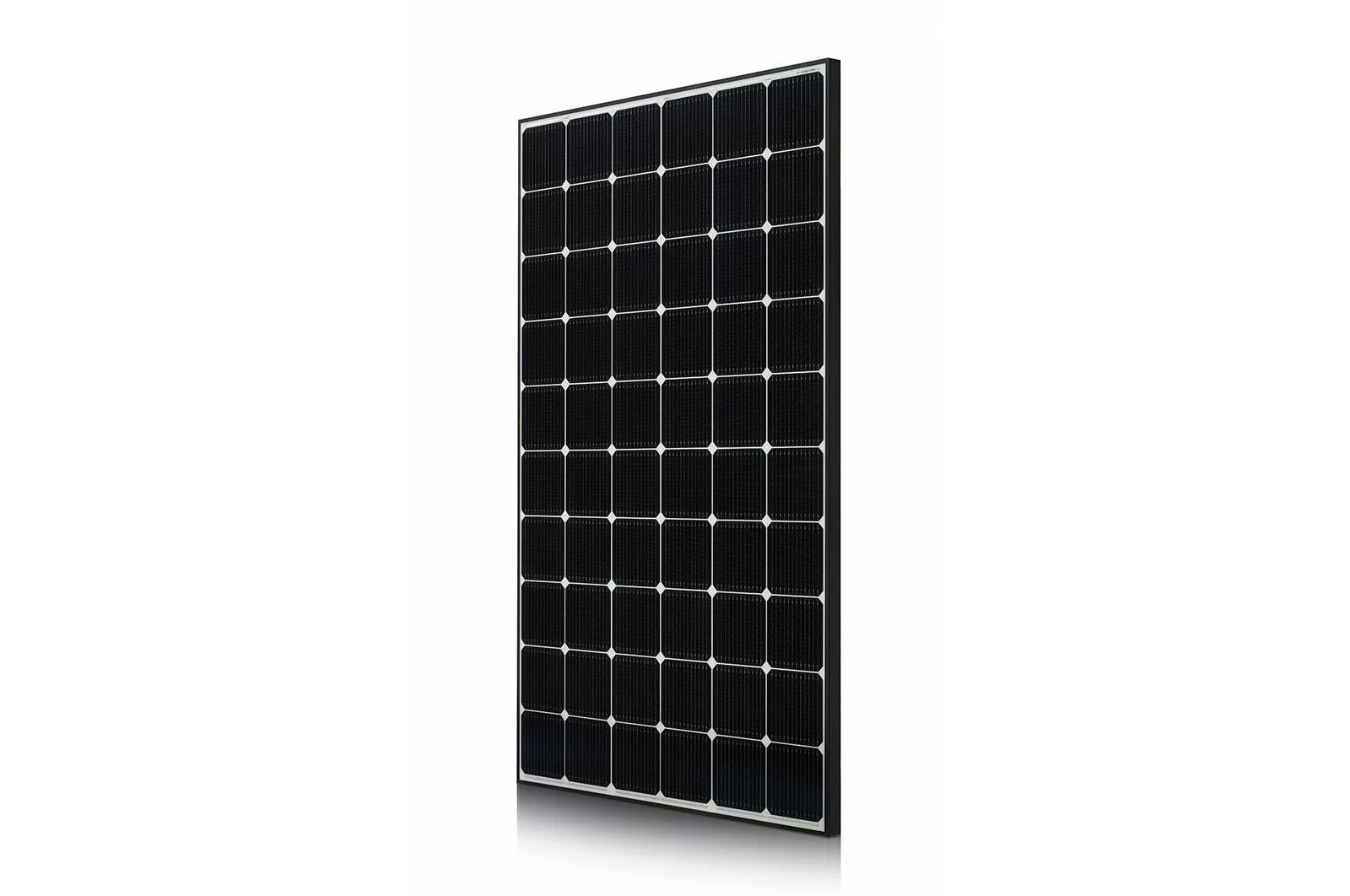

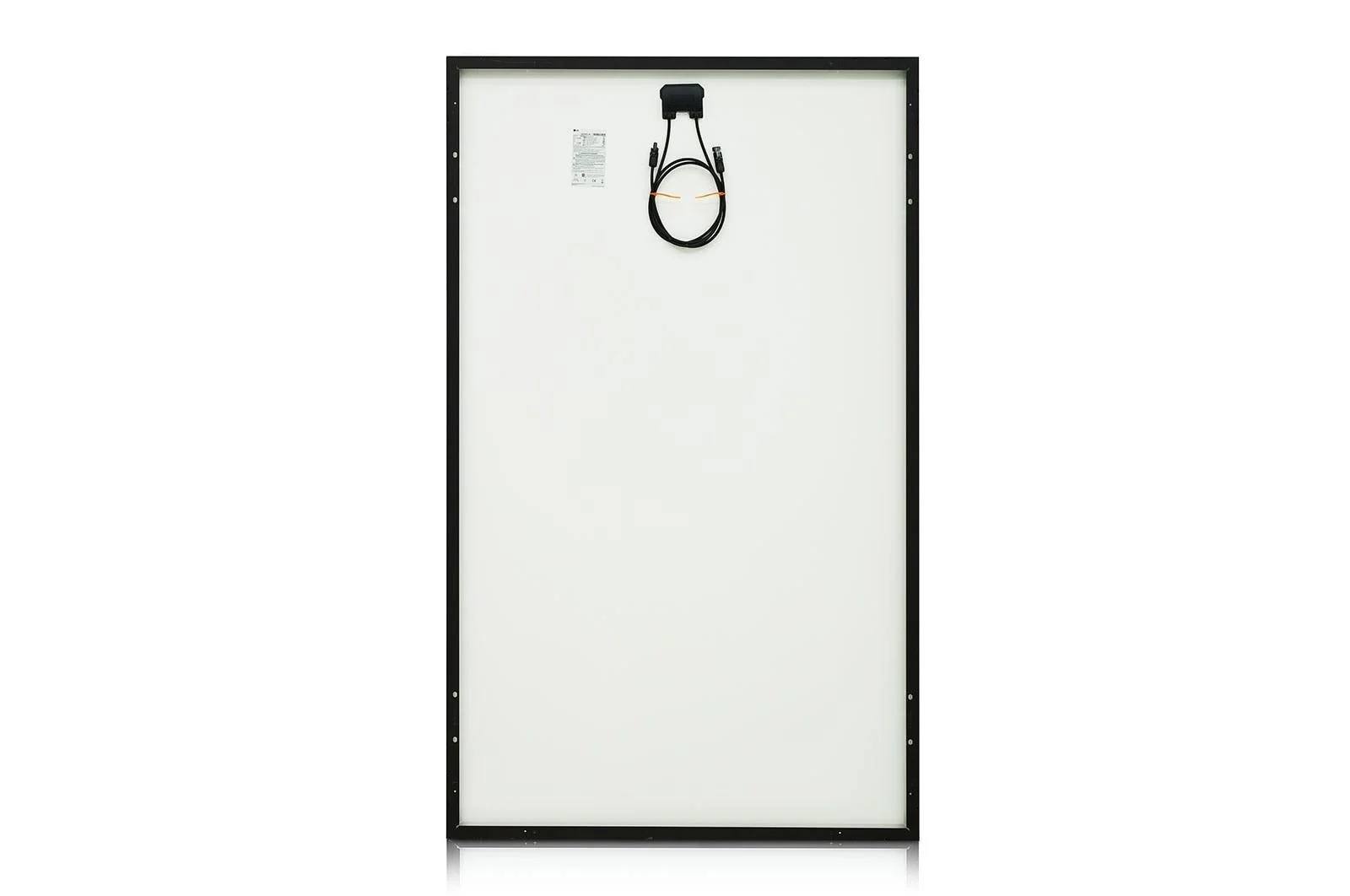

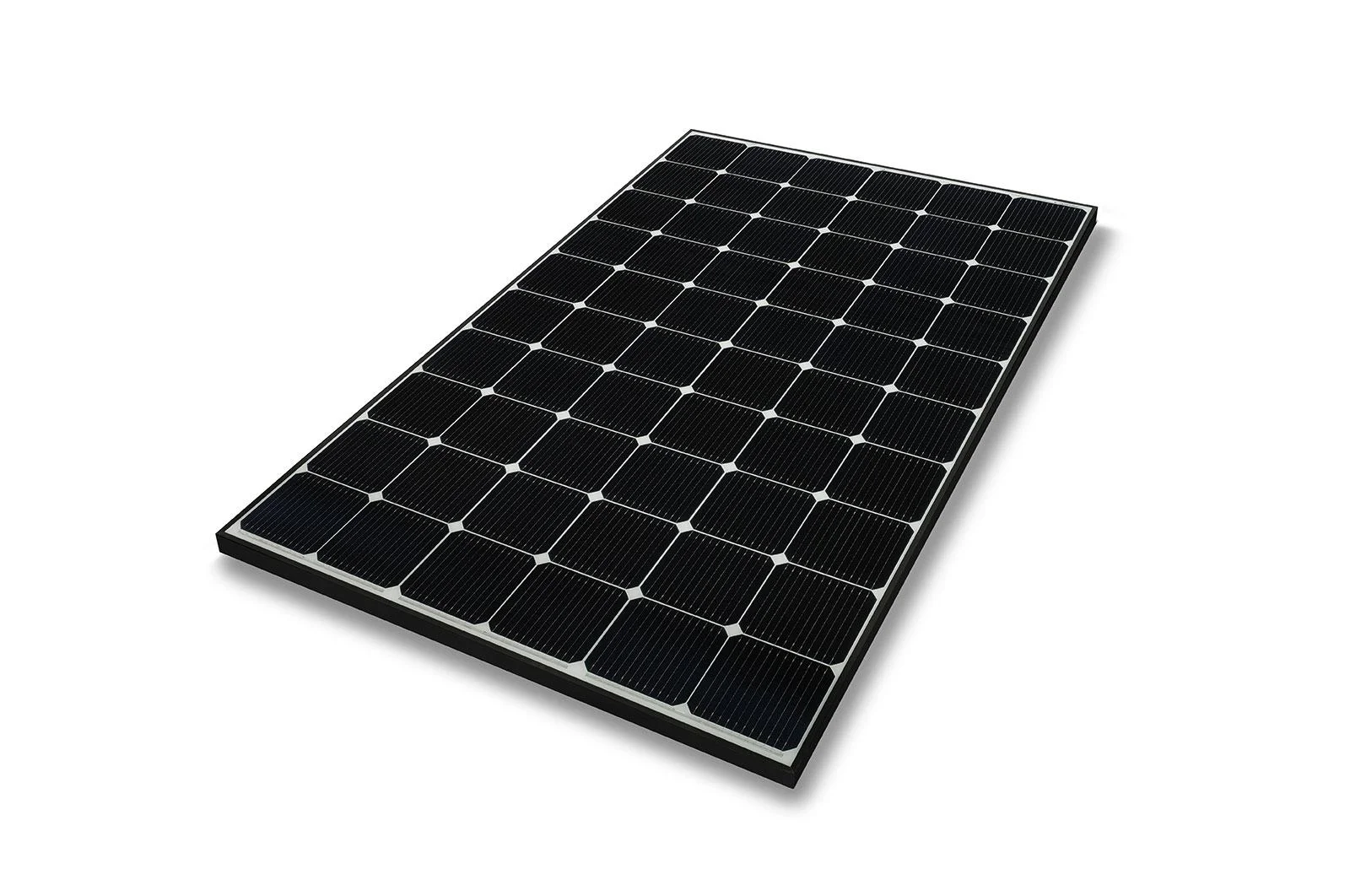

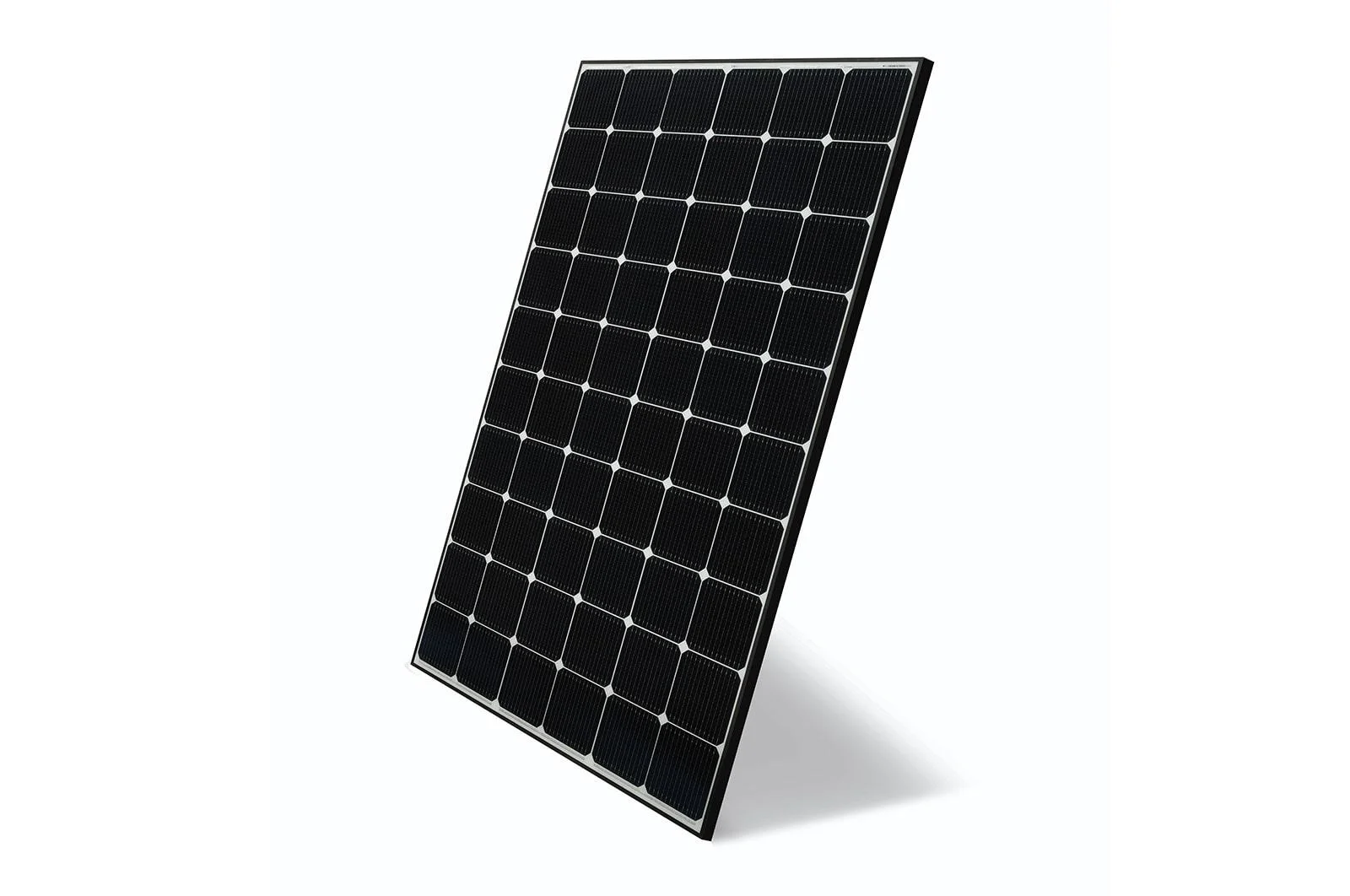

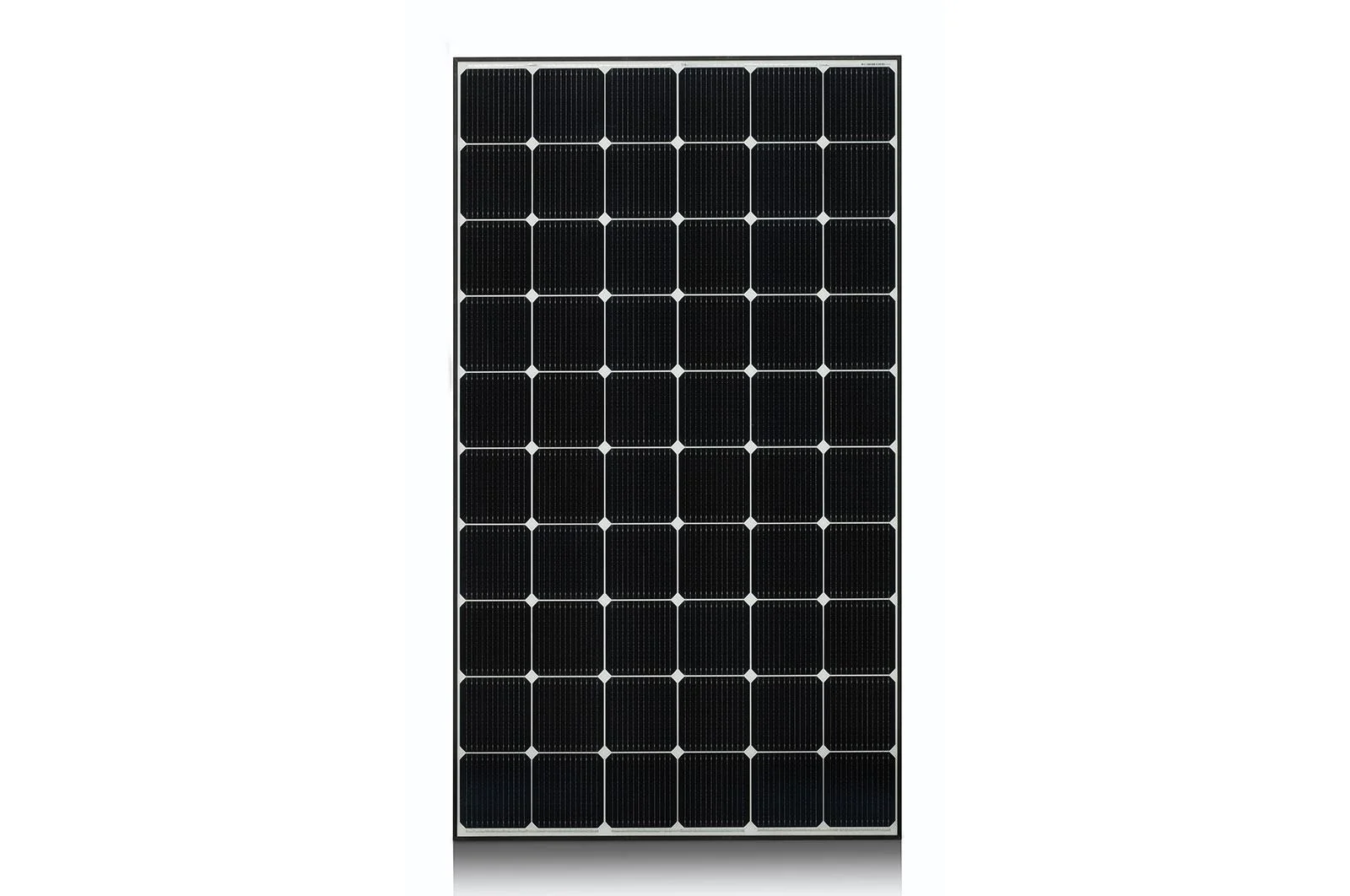

385W High Efficiency Lg Neon® 2 Solar Panel For Home With 60 Cells (6 X 10), Module Efficiency: 21.2%, Connector Type: Mc4
SKU: LG385N1CA6
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
- 21.0% Module Efficiency
- 25 Year Limited Warranty
- Better Performance on a Sunny Day
- Award-Winning Cello Technology™
- 60 Cell (6 x 10) Solar Panel
- Attractive Roof Aesthetic
Rebates
view available rebates
385W High Efficiency Lg Neon® 2 Solar Panel For Home With 60 Cells (6 X 10), Module Efficiency: 21.2%, Connector Type: Mc4
Misc Collection
Specifications
Specifications
Features
21.0% Module Efficiency, 25 Year Limited Warranty, Better Performance on a Sunny Day, Award-Winning Cello Technology™, 60 Cell (6 x 10) Solar Panel, Attractive Roof Aesthetic
- 21.0% Module Efficiency
- 25 Year Limited Warranty
- Better Performance on a Sunny Day
- Award-Winning Cello Technology™
- 60 Cell (6 x 10) Solar Panel
- Attractive Roof Aesthetic
General Data
Cell Properties (Material / Type)
Monocrystalline / N-type
Cell Properties (Material / Type)
- Monocrystalline / N-type
Cell Maker
LG
Cell Maker
- LG
Cell Configuration
60 Cells (6 x 10)
Cell Configuration
- 60 Cells (6 x 10)
Number of Busbars
12 EA
Number of Busbars
- 12 EA
Module Dimensions (L x W x H)
1,740 mm x 1,042 mm x 40 mm
Module Dimensions (L x W x H)
- 1,740 mm x 1,042 mm x 40 mm
Weight
18.6 kg
Weight
- 18.6 kg
Glass (Material)
Tempered Glass with AR Coating
Glass (Material)
- Tempered Glass with AR Coating
Backsheet (Color)
White
Backsheet (Color)
- White
Frame (Material)
Anodized Aluminium
Frame (Material)
- Anodized Aluminium
Junction Box (Protection Degree)
IP 68 with 3 Bypass Diodes
Junction Box (Protection Degree)
- IP 68 with 3 Bypass Diodes
Cables (Length)
1,100 mm x 2 EA
Cables (Length)
- 1,100 mm x 2 EA
Connector (Type / Maker)
MC4 / MC
Connector (Type / Maker)
- MC4 / MC
Electrical Properties (STC*)
Model
LG385N1C-A6
Model
- LG385N1C-A6
Maximum Power (Pmax) [W]
385
Maximum Power (Pmax) [W]
- 385
MPP Voltage (Vmpp) [V]
36.1
MPP Voltage (Vmpp) [V]
- 36.1
MPP Current (Impp)
10.67
MPP Current (Impp)
- 10.67
Open Circuit Voltage (Voc, 5 %) [ V ]
42.0
Open Circuit Voltage (Voc, 5 %) [ V ]
- 42.0
Short Circuit Current (Isc, 5 %) [ A ]
11.43
Short Circuit Current (Isc, 5 %) [ A ]
- 11.43
Module Efficiency [%]
21.2
Module Efficiency [%]
- 21.2
Power Tolerance [%]
0 ~ +3
Power Tolerance [%]
- 0 ~ +3
*
STC (Standard Test Condition): Irradiance 1000 W/ , Cell temperature 25 , AM 1.5 , Measure tolerance of Pmax : 3%
*
- STC (Standard Test Condition): Irradiance 1000 W/ , Cell temperature 25 , AM 1.5 , Measure tolerance of Pmax : 3%
Temperature Characteristics
NMOT* [°C]
42 3
NMOT* [°C]
- 42 3
Pmax [%/°C]
-0.34
Pmax [%/°C]
- -0.34
Voc [%/°C]
-0.26
Voc [%/°C]
- -0.26
Isc [%/°C]
0.03
Isc [%/°C]
- 0.03
*
NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m2 , Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5
*
- NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m2 , Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5
Electrical Properties (NMOT)
Model
LG385N1C-A6
Model
- LG385N1C-A6
Maximum Power (Pmax) [W]
289
Maximum Power (Pmax) [W]
- 289
MPP Voltage (Vmpp) [V]
33.9
MPP Voltage (Vmpp) [V]
- 33.9
MPP Current (Impp) [A]
8.51
MPP Current (Impp) [A]
- 8.51
Open Circuit Voltage (Voc) [V]
39.5
Open Circuit Voltage (Voc) [V]
- 39.5
Short Circuit Current (Isc) [A]
9.19
Short Circuit Current (Isc) [A]
- 9.19
Certifications and Warranty
Certifications
IEC 61215-1/-1-1 / 2:2016, IEC 61730-1/2:2016, UL 61730-1:2017, UL 61730-2:2017 ISO 9001, ISO 14001, ISO 50001 OHSAS 18001
Certifications
- IEC 61215-1/-1-1 / 2:2016, IEC 61730-1/2:2016, UL 61730-1:2017, UL 61730-2:2017 ISO 9001, ISO 14001, ISO 50001 OHSAS 18001
Salt Mist Corrosion Test
IEC 61701 : 2011 Severity 6
Salt Mist Corrosion Test
- IEC 61701 : 2011 Severity 6
Ammonia Corrosion Test
IEC 62716 : 2013
Ammonia Corrosion Test
- IEC 62716 : 2013
Module Fire Performance
Type 1 (UL 61730)
Module Fire Performance
- Type 1 (UL 61730)
Fire Rating
Class C (UL 790)
Fire Rating
- Class C (UL 790)
Solar Module Product Warranty
25 Years
Solar Module Product Warranty
- 25 Years
Solar Module Output Warranty
Linear Warranty*
Solar Module Output Warranty
- Linear Warranty*
*
*1) First years : 98.5%, 2) After 1st year : 0.33% annual degradation, 3) 90.6% for 25 years
*
- *1) First years : 98.5%, 2) After 1st year : 0.33% annual degradation, 3) 90.6% for 25 years
Operating Conditions
Operating Temperature [°C]
-40 ~ +85
Operating Temperature [°C]
- -40 ~ +85
Maximum System Voltage [V]
1000
Maximum System Voltage [V]
- 1000
Maximum Series Fuse Rating [A]
20
Maximum Series Fuse Rating [A]
- 20
Mechanical Test Load* (Front) [Pa]
5,400
Mechanical Test Load* (Front) [Pa]
- 5,400
Mechanical Test Load* (Rear) [Pa]
4,000
Mechanical Test Load* (Rear) [Pa]
- 4,000
*
*Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa / 5,400 Pa based on IEC 61215 : 2005
*
- *Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa / 5,400 Pa based on IEC 61215 : 2005
Packaging Configuration
Number of Modules per Pallet [EA]
25
Number of Modules per Pallet [EA]
- 25
Number of Modules per 40ft HQ Container [EA]
650
Number of Modules per 40ft HQ Container [EA]
- 650
Packaging Box Dimensions (L x W x H) [mm]
1790x1120x1213
Packaging Box Dimensions (L x W x H) [mm]
- 1790x1120x1213
Packaging Box Gross Weight [kg]
500
Packaging Box Gross Weight [kg]
- 500
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
The Misc 385W High Efficiency Lg Neon® 2 Solar Panel For Home With 60 Cells (6 X 10), Module Efficiency: 21.2%, Connector Type: Mc4, made by LG Appliances,
