Lsca 2.97Mm Versatile Series Indoor Led With 1,000 Nits Brightness, Two Cabinet Options, 90° Corner Option, Ip30 Rated, Easy To Install & Maintain
SKU: LSCA029
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
Easy Maintenance
The LSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.

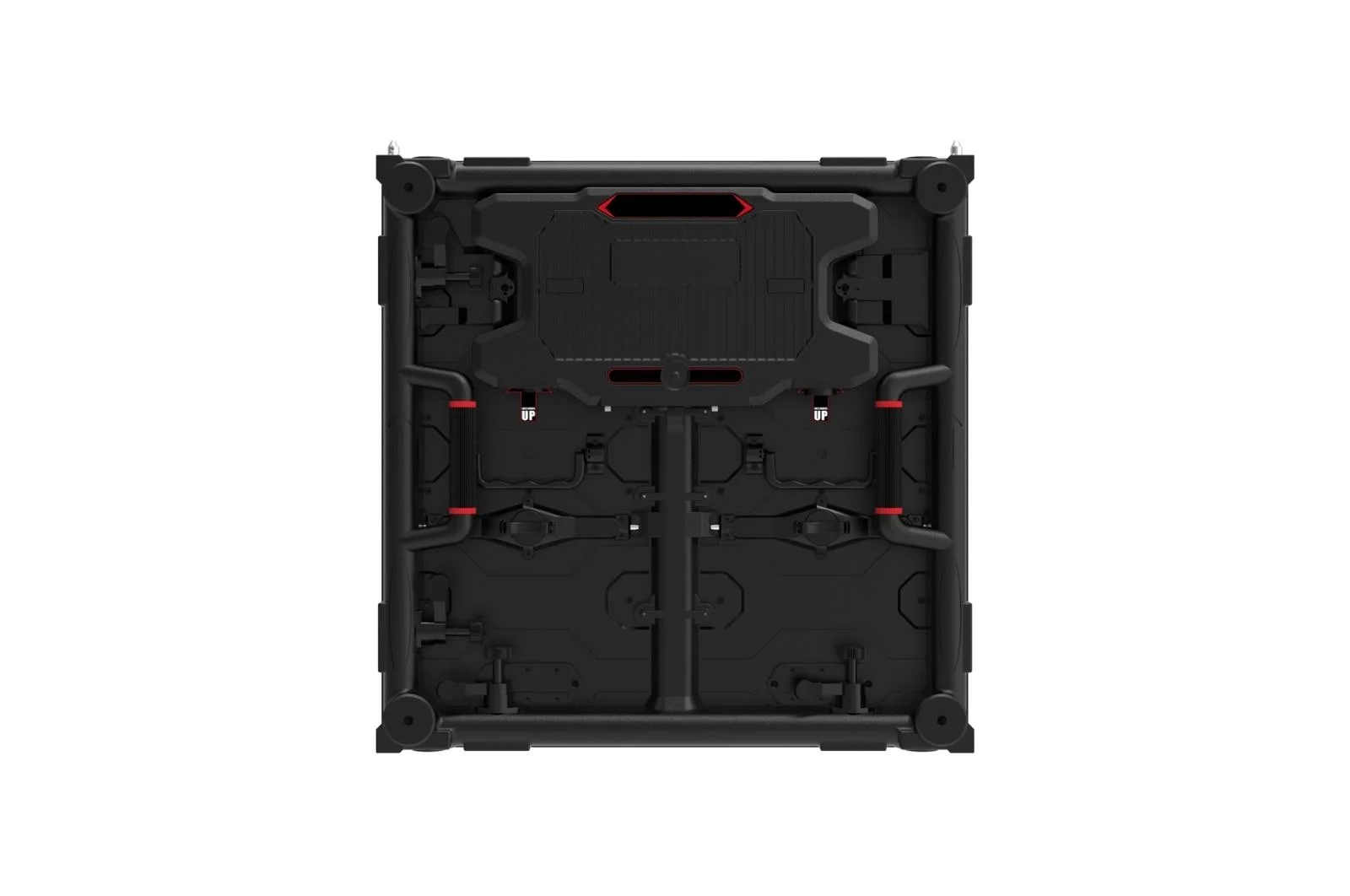

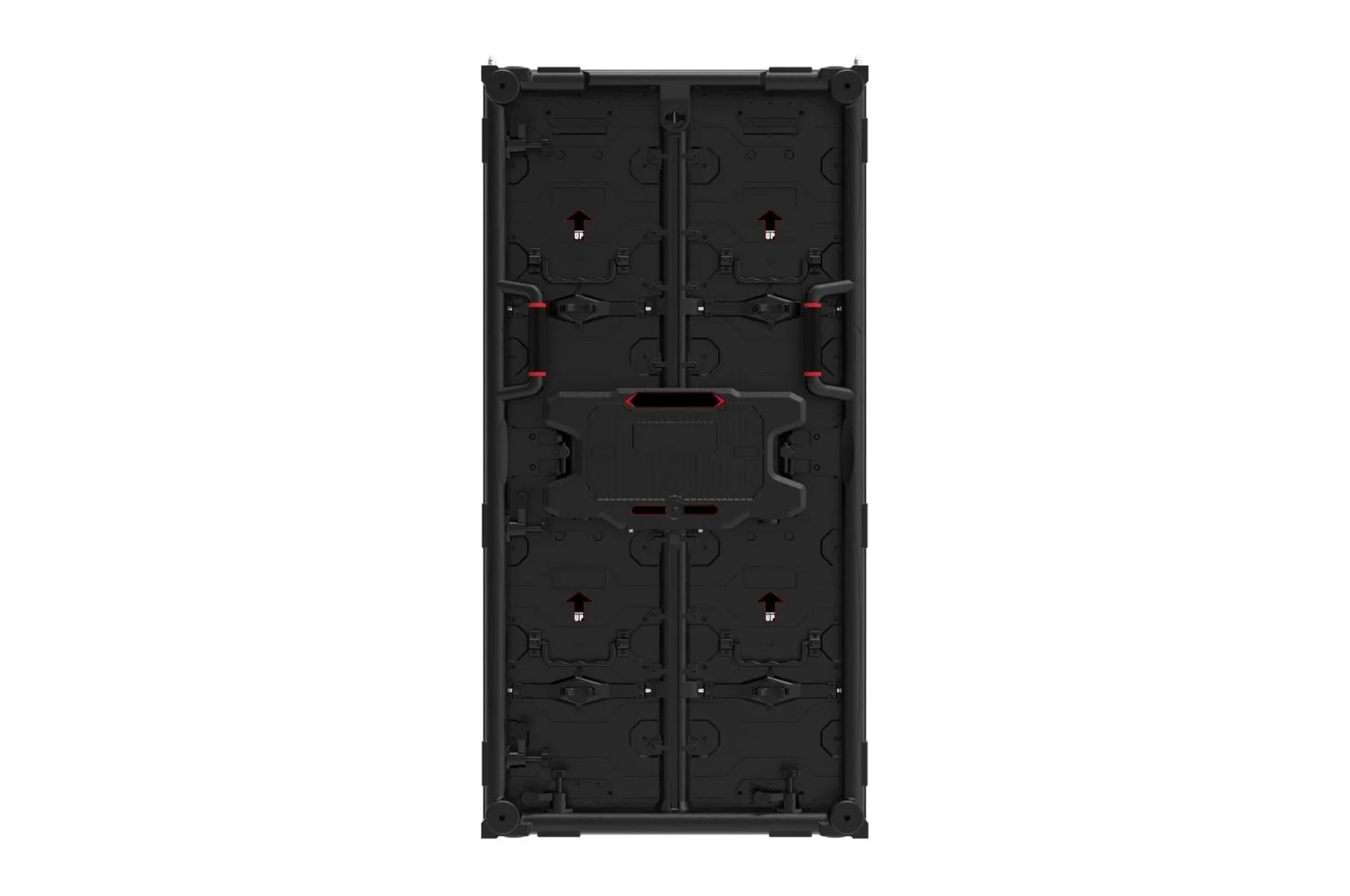

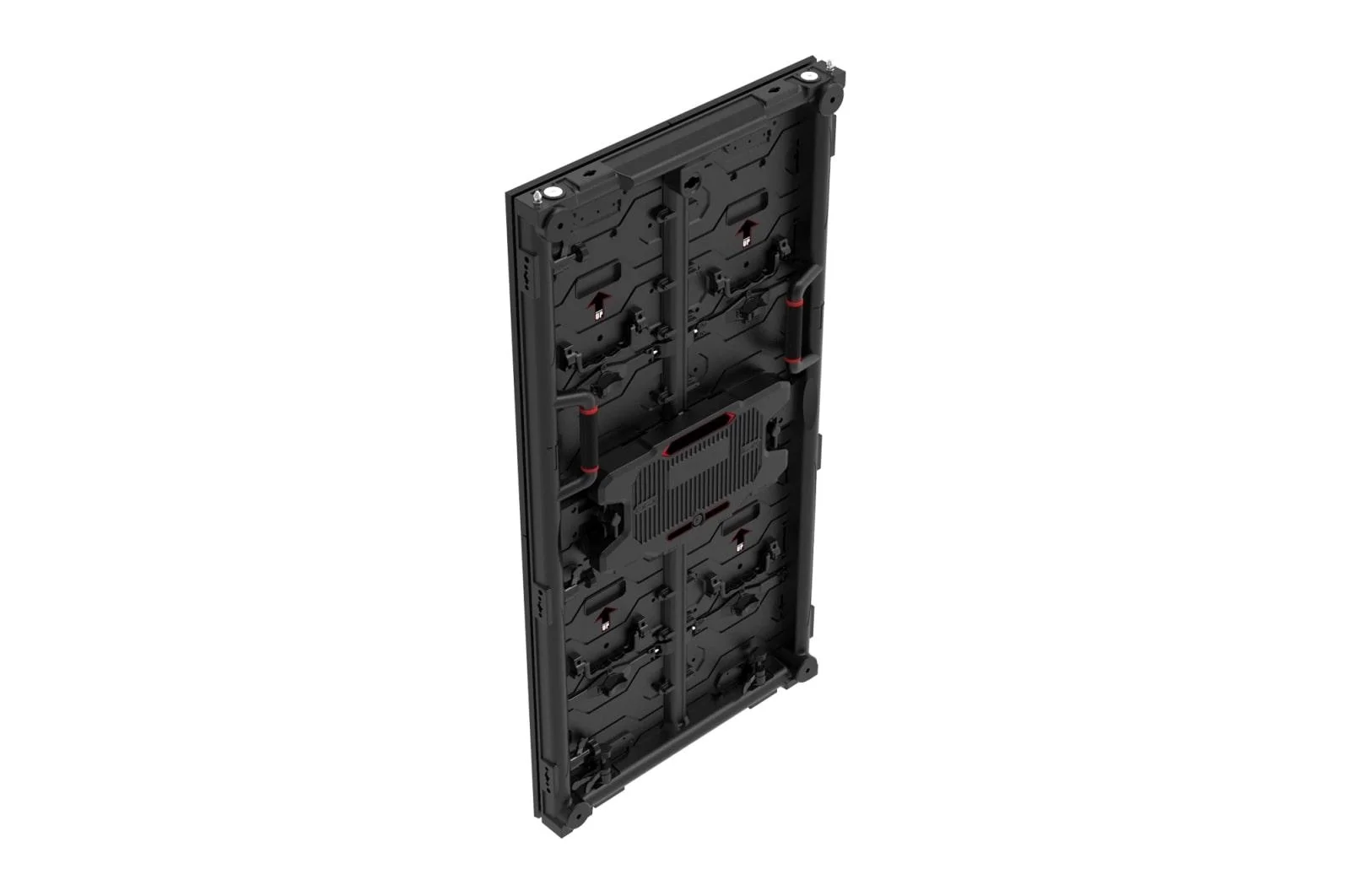

Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.
Fast Installation
Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.

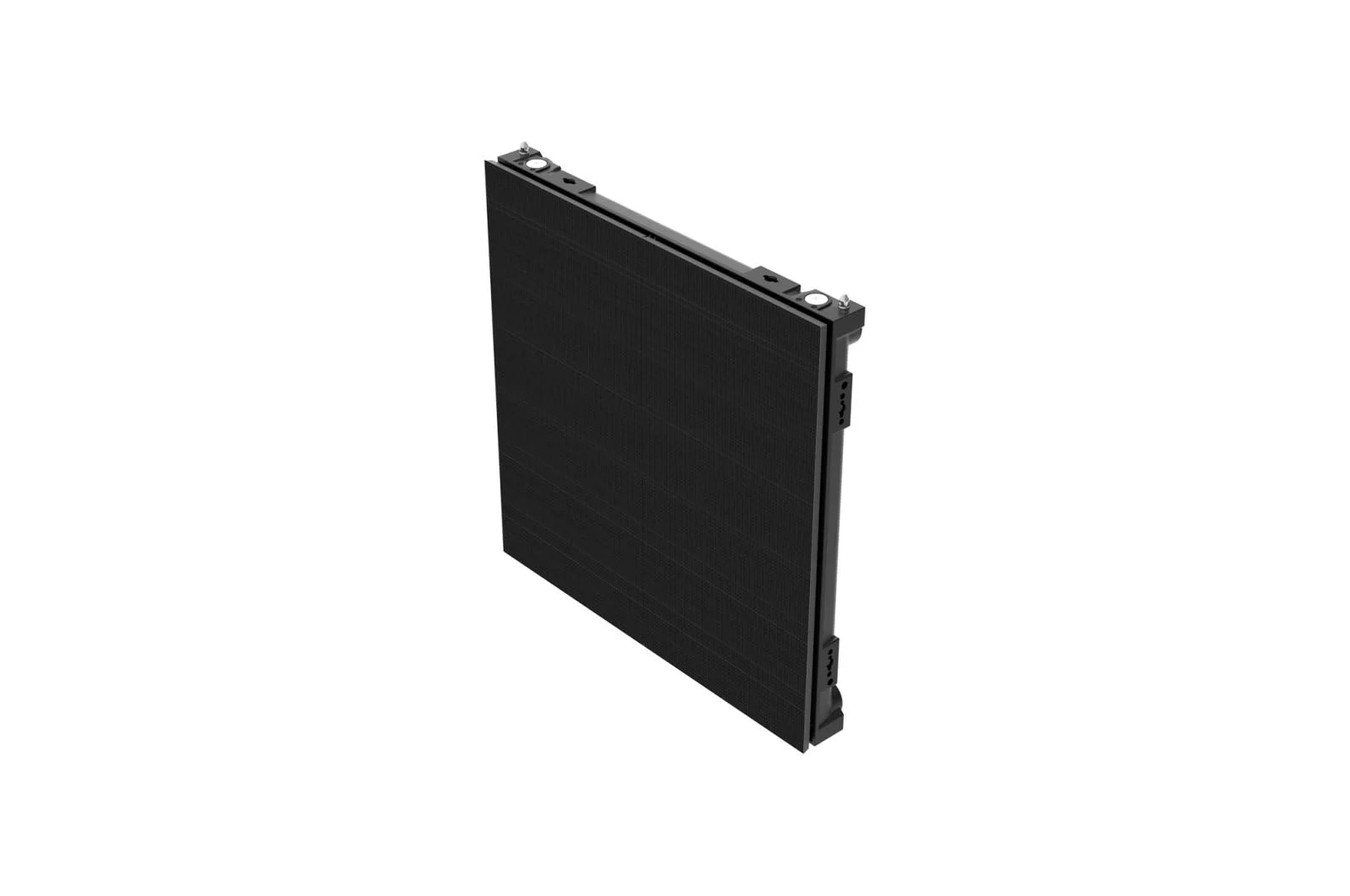

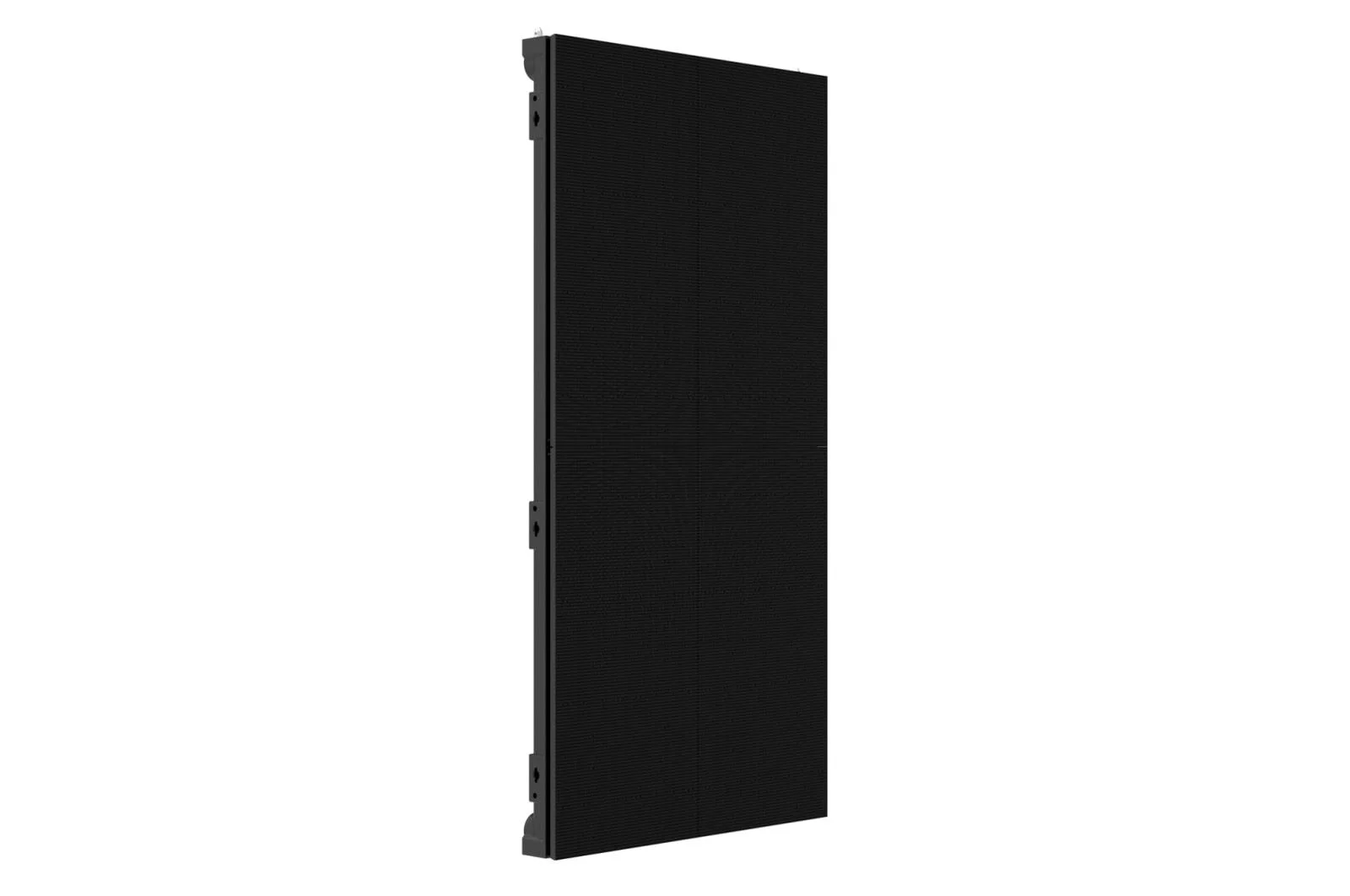

Two Cabinet Options
The LSCA series offers two sizes of cabinets, enabling a screen size configuration that fit with the customer's needs.
*Image for illustration purposes only.
90° Corner Design Available
If you add a 90° corner option, the LSCA series can deliver flawless content even when installed on right-angled structures.
*Image for illustration purposes only.
The LSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.
Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.
Fast Installation
Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.
Two Cabinet Options
The LSCA series offers two sizes of cabinets, enabling a screen size configuration that fit with the customer's needs.
*Image for illustration purposes only.
90° Corner Design Available
If you add a 90° corner option, the LSCA series can deliver flawless content even when installed on right-angled structures.
*Image for illustration purposes only.
- Two Cabinet Options
- Brightness: 1,000nits
- Fast Assembly and Easy Maintenance
- Front or Rear Serviceability
- Pixel Pitch: 2.97mm
- 90 Corner Option Available
Rebates
view available rebates
Lsca 2.97Mm Versatile Series Indoor Led With 1,000 Nits Brightness, Two Cabinet Options, 90° Corner Option, Ip30 Rated, Easy To Install & Maintain
Misc Collection
Specifications
Specifications
Features
Two Cabinet Options, Brightness: 1,000nits, Fast Assembly and Easy Maintenance, Front or Rear Serviceability, Pixel Pitch: 2.97mm, 90 Corner Option Available
- Two Cabinet Options
- Brightness: 1,000nits
- Fast Assembly and Easy Maintenance
- Front or Rear Serviceability
- Pixel Pitch: 2.97mm
- 90 Corner Option Available
PHYSICAL PARAMETER
Pixel Configuration
3 in 1 SMD
Pixel Configuration
- 3 in 1 SMD
Pixel Pitch (mm)
2.97
Pixel Pitch (mm)
- 2.97
Module Resolution (W x H)
84 x 168
Module Resolution (W x H)
- 84 x 168
Module Dimensions (W x H, mm)
250 x 500
Module Dimensions (W x H, mm)
- 250 x 500
Weight per Module (kg)
1.30
Weight per Module (kg)
- 1.30
No. of Modules per Cabinet (W x H)
2 x 2/2 x 1 (Half-sized)
No. of Modules per Cabinet (W x H)
- 2 x 2/2 x 1 (Half-sized)
Cabinet Resolution (W x H)
168 x 336 / 168 x 168 (Half-sized)
Cabinet Resolution (W x H)
- 168 x 336 / 168 x 168 (Half-sized)
Cabinet Dimensions (W x H x D)
500 x 1,000 x 66 / 500 x 500 x 66 (Half-sized)
Cabinet Dimensions (W x H x D)
- 500 x 1,000 x 66 / 500 x 500 x 66 (Half-sized)
Cabinet Surface Area (m )
0.500/0.250 (Half-sized)
Cabinet Surface Area (m )
- 0.500/0.250 (Half-sized)
Weight per Cabinet (kg/cabinet)
14.0 / 10.0 (Half-sized)
Weight per Cabinet (kg/cabinet)
- 14.0 / 10.0 (Half-sized)
Weight per Square Meter (kg/m )
28.0 / 40.0 (Half-sized)
Weight per Square Meter (kg/m )
- 28.0 / 40.0 (Half-sized)
Physical Pixel Density (pixels/m )
112,896
Physical Pixel Density (pixels/m )
- 112,896
Flatness of Cabinet
0.3mm
Flatness of Cabinet
- 0.3mm
Cabinet Material
Die-casting Aluminum
Cabinet Material
- Die-casting Aluminum
Service Access
Front or Rear (One Option Only)
Service Access
- Front or Rear (One Option Only)
OPTICAL PARAMETER
Brightness
1,000nits
Brightness
- 1,000nits
Min. Brightness (After Calibration)
1,000
Min. Brightness (After Calibration)
- 1,000
Color Temperature
3,500 ~ 9,000
Color Temperature
- 3,500 ~ 9,000
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Horizontal)
- 160
Visual Viewing Angle (Vertical)
160
Visual Viewing Angle (Vertical)
- 160
Brightness Uniformity
97%
Brightness Uniformity
- 97%
Color Uniformity
0.003CxCy
Color Uniformity
- 0.003CxCy
Contrast Ratio
5,000
Contrast Ratio
- 5,000
Processing Depth (bit)
14
Processing Depth (bit)
- 14
ELECTRICAL PARAMETER
Power Consumption (W/cabinet, Max.)
270 / 135 (Half-sized)
Power Consumption (W/cabinet, Max.)
- 270 / 135 (Half-sized)
Power Consumption (W/cabinet, Avg.)
90 / 45 (Half-sized)
Power Consumption (W/cabinet, Avg.)
- 90 / 45 (Half-sized)
Power Consumption (W/m , Max.)
540
Power Consumption (W/m , Max.)
- 540
Power Consumption (BTU/h/cabinet, Max.)
921 / 461 (Half-sized)
Power Consumption (BTU/h/cabinet, Max.)
- 921 / 461 (Half-sized)
Power Consumption (BTU/h/cabinet, Avg.)
307 / 154 (Half-sized)
Power Consumption (BTU/h/cabinet, Avg.)
- 307 / 154 (Half-sized)
Power Consumption (BTU/h/m , Max.)
1,842
Power Consumption (BTU/h/m , Max.)
- 1,842
Power Supply (V)
100 to 240
Power Supply (V)
- 100 to 240
Frame Rate (Hz)
50/ 60
Frame Rate (Hz)
- 50/ 60
Refresh Rate (Hz)
2,880
Refresh Rate (Hz)
- 2,880
OPERATION CONDITIONS
Lifetime (Hours to Half Brightness)
100,000
Lifetime (Hours to Half Brightness)
- 100,000
Operating Temperature (°C)
-10 °C to +45 °C
Operating Temperature (°C)
- -10 °C to +45 °C
Operating Humidity
0 - 80 % RH
Operating Humidity
- 0 - 80 % RH
IP rating Front / Rear
IP30 / IP30
IP rating Front / Rear
- IP30 / IP30
CERTIFICATION
Certification
CE,FCC,ETL
Certification
- CE,FCC,ETL
ENVIRONMENT
Environment
RoHS
Environment
- RoHS
CONTROLLER
Controller
CVCA, LCIN006
Controller
- CVCA, LCIN006
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
The Misc Lsca 2.97Mm Versatile Series Indoor Led With 1,000 Nits Brightness, Two Cabinet Options, 90° Corner Option, Ip30 Rated, Easy To Install & Maintain, made by LG Appliances,
