Description
Clear Colors
32HL714S Supports sRGB 115% (Area), Over 99% (Coverage) and the standard DICOM Part 14.
Brightness Stabilization
LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions.
Support HDR10
LG 4K surgical monitor is compatible with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.
12G-SDI Support
enables long-distance transmission of 4K signals over a single coaxial cable without latency. (12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable)
Failover Input Switch
When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.
Mirror & Rotation
The 32HL714S with Mirror & Rotation functions, helps you to find the right view. You can select the 180 degrees rotated image or the mirror image you want to see.
Dust & Water Resistant
The front of 32HL714S is IP35 rated and IP32 on the body except for front.
Large Display for Surgical Review
LG 4K surgical high-resolution monitor with LG's innovative technology provides crisp, clear images for surgical review.

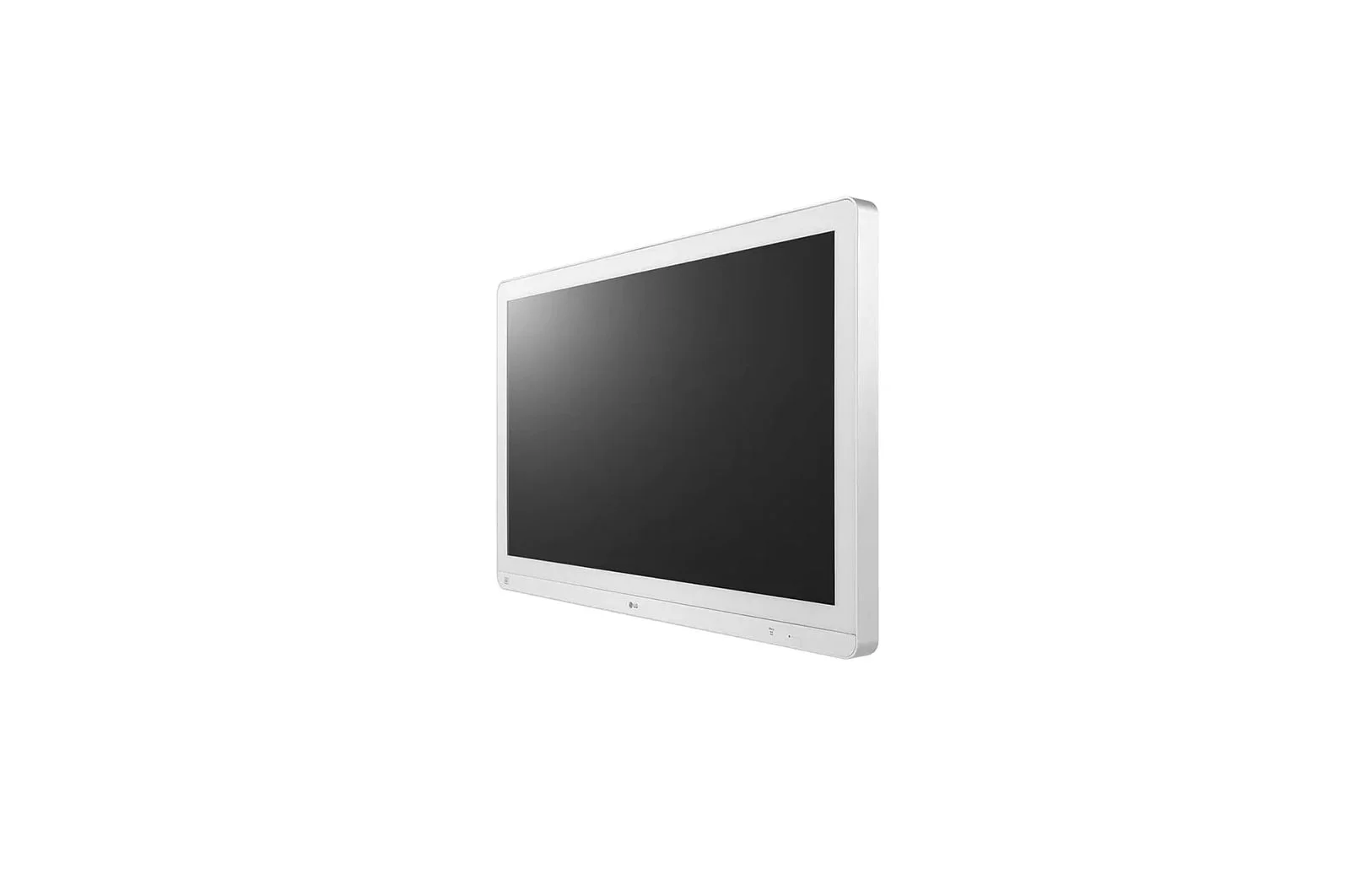

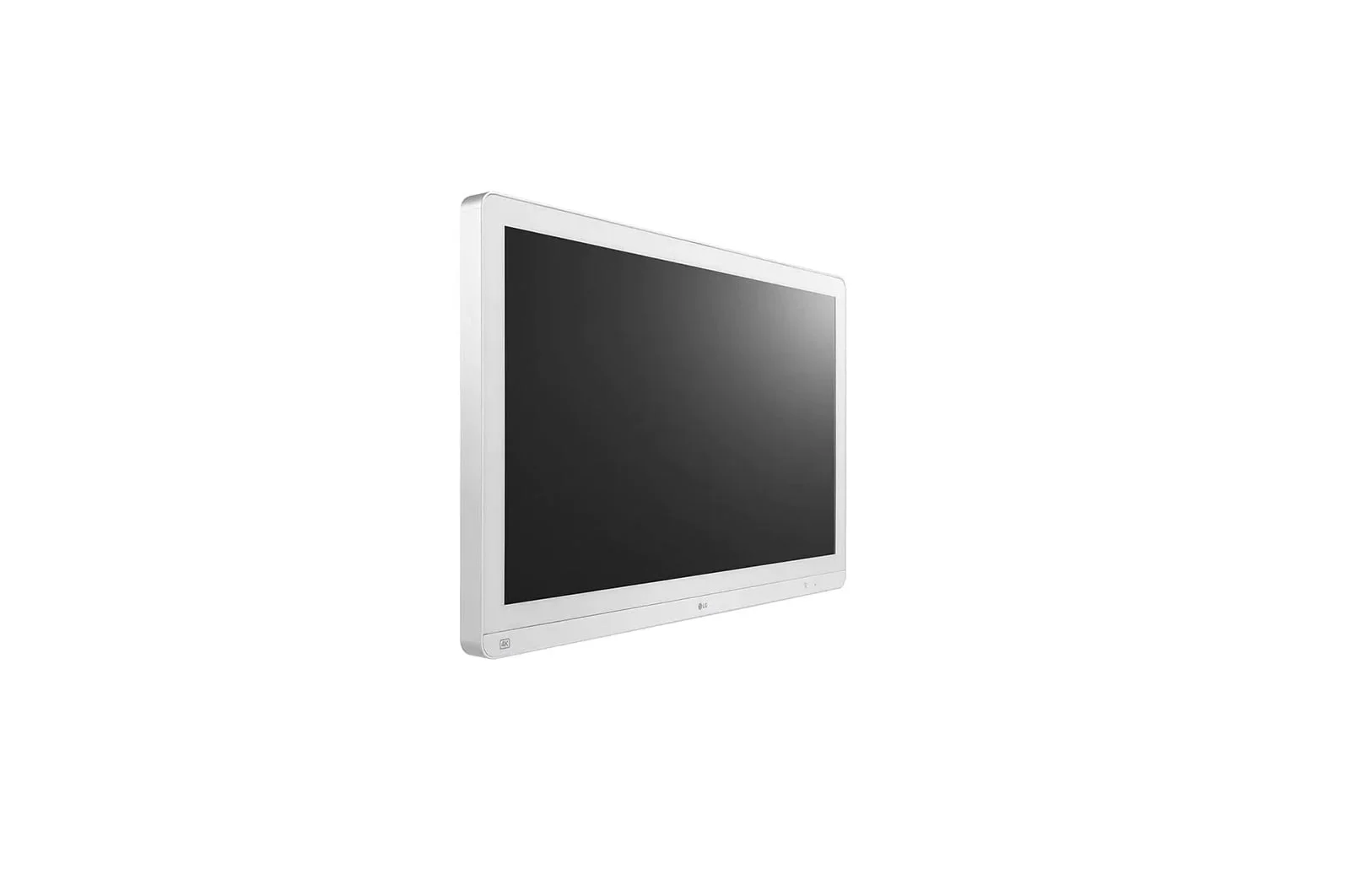

31.5-inch 4K IPS Monitor
This LG surgical monitor provides images in 4K (3840x2160) resolution and IPS allows for 178° wide viewing angles.

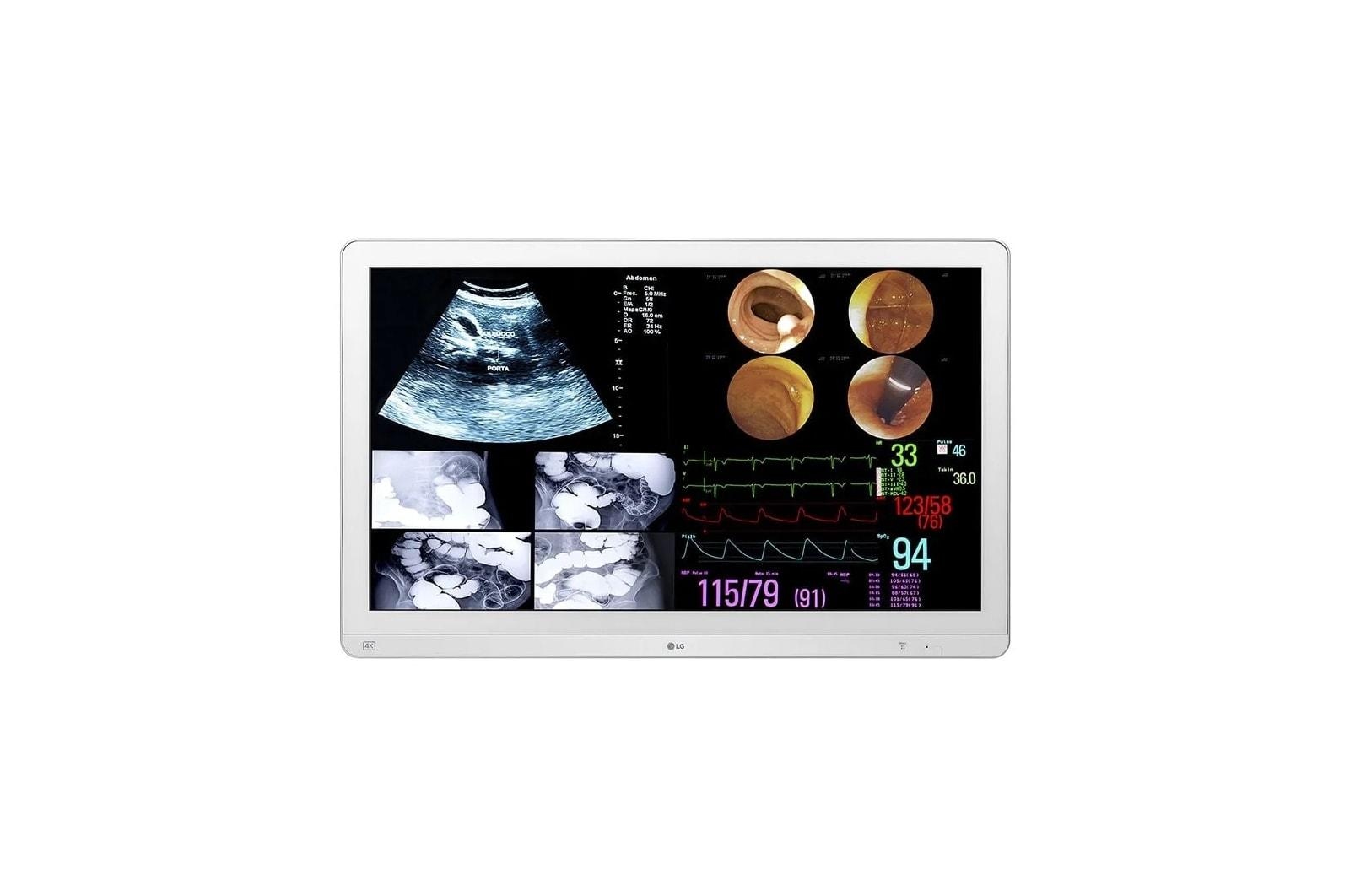

Multiple Signals on One Screen
The 32HL714S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen.
32HL714S Supports sRGB 115% (Area), Over 99% (Coverage) and the standard DICOM Part 14.
Brightness Stabilization
LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions.
Support HDR10
LG 4K surgical monitor is compatible with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.
12G-SDI Support
enables long-distance transmission of 4K signals over a single coaxial cable without latency. (12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable)
Failover Input Switch
When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.
Mirror & Rotation
The 32HL714S with Mirror & Rotation functions, helps you to find the right view. You can select the 180 degrees rotated image or the mirror image you want to see.
Dust & Water Resistant
The front of 32HL714S is IP35 rated and IP32 on the body except for front.
Large Display for Surgical Review
LG 4K surgical high-resolution monitor with LG's innovative technology provides crisp, clear images for surgical review.
31.5-inch 4K IPS Monitor
This LG surgical monitor provides images in 4K (3840x2160) resolution and IPS allows for 178° wide viewing angles.
Multiple Signals on One Screen
The 32HL714S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen.
- Failover Input Switch
- Support HDR10
- Mirror & Rotation Mode
- 12G-SDI Support
- 31.5" 4K (3840x2160) IPS
- Up to 4PBP, PIP
Rebates
view available rebates
31.5'' 4K Ips Surgical Monitor
Misc Collection
Specifications
Specifications
Features
Failover Input Switch, Support HDR10, Mirror & Rotation Mode, 12G-SDI Support, 31.5" 4K (3840x2160) IPS, Up to 4PBP, PIP
- Failover Input Switch
- Support HDR10
- Mirror & Rotation Mode
- 12G-SDI Support
- 31.5" 4K (3840x2160) IPS
- Up to 4PBP, PIP
PANEL
Panel Type
IPS
Panel Type
- IPS
Inch (Aspect Ratio)
31.5-inch (16:9)
Inch (Aspect Ratio)
- 31.5-inch (16:9)
Resolution
4K UHD (3840 x 2160)
Resolution
- 4K UHD (3840 x 2160)
Surface Treatment
Protection Glass (1.6t, Anti-Reflection, Anti-fingerprint)
Surface Treatment
- Protection Glass (1.6t, Anti-Reflection, Anti-fingerprint)
Color Gamut (Typ.)
sRGB 115% (Area), sRGB over 99% (Coverage)
Color Gamut (Typ.)
- sRGB 115% (Area), sRGB over 99% (Coverage)
Viewing Angle (CR 10)
178° (Right/Left)/178° (Up/Down)
Viewing Angle (CR 10)
- 178° (Right/Left)/178° (Up/Down)
Brightness (Typ.)
800cd/m
Brightness (Typ.)
- 800cd/m
Contrast Ratio (Typ.)
1300:1
Contrast Ratio (Typ.)
- 1300:1
Response Time (GtG*)
14ms (Off-setting), 5ms (Faster-setting)
Response Time (GtG*)
- 14ms (Off-setting), 5ms (Faster-setting)
FEATURE
DICOM Compliant
Yes
DICOM Compliant
- Yes
HW Calibration
Yes(True color pro)
HW Calibration
- Yes(True color pro)
HDR
HDR 10
HDR
- HDR 10
VIDEO SIGNALS
Input Terminals
HDMI x1, DisplayPort x1, DVI x1, 12G-SDI x1
Input Terminals
- HDMI x1, DisplayPort x1, DVI x1, 12G-SDI x1
Output Terminals
DisplayPort x1, DVI x1, 12G-SDI x1
Output Terminals
- DisplayPort x1, DVI x1, 12G-SDI x1
CONNECTIVITY
USB
1 upstream, 1 downstream
USB
- 1 upstream, 1 downstream
POWER
Power Requirements
100-240Vac, 50/60Hz
Power Requirements
- 100-240Vac, 50/60Hz
Power Consumption (Max.)
180W
Power Consumption (Max.)
- 180W
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (DC Off)
- Less than 0.3W
RESISTANCE RATING
Resistance Rating
IP35 (Front), IP32 (Rear), IK06
Resistance Rating
- IP35 (Front), IP32 (Rear), IK06
CERTIFICATIONS & STANDARDS
Certifications & Standards
IEC (IEC 60601-1 /IEC 60601-1-2), EN (EN 60601-1/EN 60601-1-2), IEC (IEC 60950-1/ICE 55032, 55024),EN (EN 60950-1 /EN 55032, 55024), cUL (ANSI/AAMI ES 60601-1,CSA CAN/CSA-C22.2 NO. 60601-1), RoHS, REACH, WEEE
Certifications & Standards
- IEC (IEC 60601-1 /IEC 60601-1-2), EN (EN 60601-1/EN 60601-1-2), IEC (IEC 60950-1/ICE 55032, 55024),EN (EN 60950-1 /EN 55032, 55024), cUL (ANSI/AAMI ES 60601-1,CSA CAN/CSA-C22.2 NO. 60601-1), RoHS, REACH, WEEE
User Convenience
Screen Filp
Mirror Mode & Rotation Mode
Screen Filp
- Mirror Mode & Rotation Mode
PBP / PIP
PBP (2/3/4PBP) / PIP
PBP / PIP
- PBP (2/3/4PBP) / PIP
Failover Input Switch
Yes
Failover Input Switch
- Yes
User Preset Quick Setting
Save or load up to 10 picture quality settings in each preset
User Preset Quick Setting
- Save or load up to 10 picture quality settings in each preset
PHYSICAL SPECIFICATIONS
Weight (Without Stand)
13.5 kg (29.8 lbs)
Weight (Without Stand)
- 13.5 kg (29.8 lbs)
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
